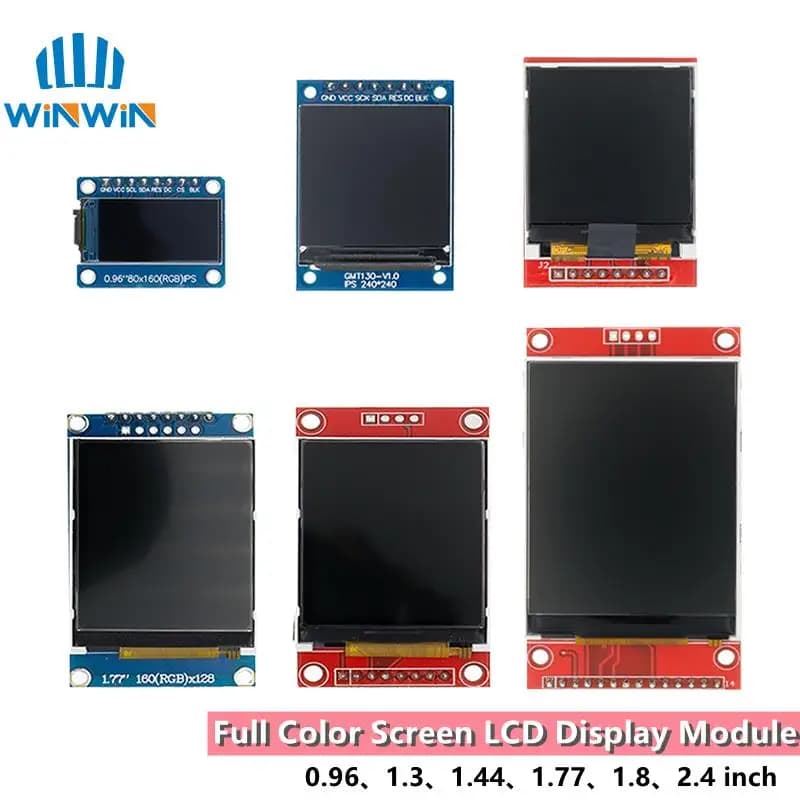

TFT Display 0.96/1.3/1.44/1.77/1.8/2.4/2.8 inch IPS 7P SPI HD 65K TFT Full Color LCD Module ST7735 Drive IC 80*160 For Arduino

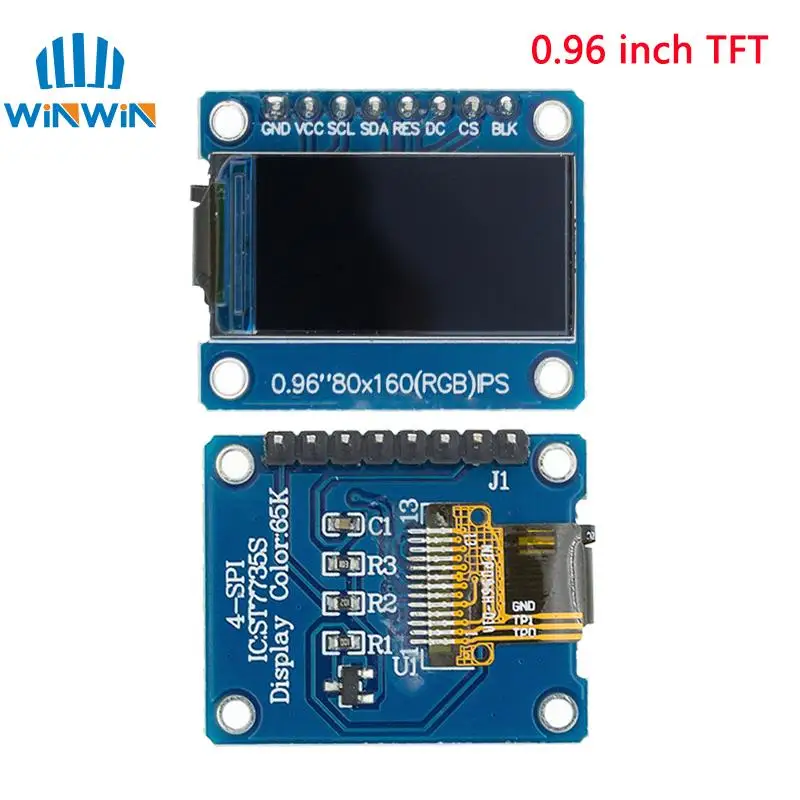

0.96 inch

SIZE 0.96inch

Display Mode Normally black IPS

Display Format Graphic 80RGB*160 Dot-matrix

Input Data SPI interface

Drive IC ST7735S

Dimensional outline 24(W)*30 (H)*2.8+/-0.1(T)mm

Resolution 80RGB*160 Dots

LCD Active area 10.8 (W)*21.7 (H)

Dot pitch 0.135(H) x 0.1356(V) mm

Viewing Direction All View

Operating Temperature -20～70°C

2.Pin Descriptions:

PIN No Symbol Description

1 GND Ground

2 VCC Power 3.3V

3 SCL Serial clock pin.

4 SDA Serial data input

5 RES LCM Reset pin

This pin is reset signal input. When the pin is low, initialization of the chip is

executed. Keep this pin pull high during normal operation.

6 DC Data/Command Control

7 CS Chip Select

8 BLK Backlight control pin

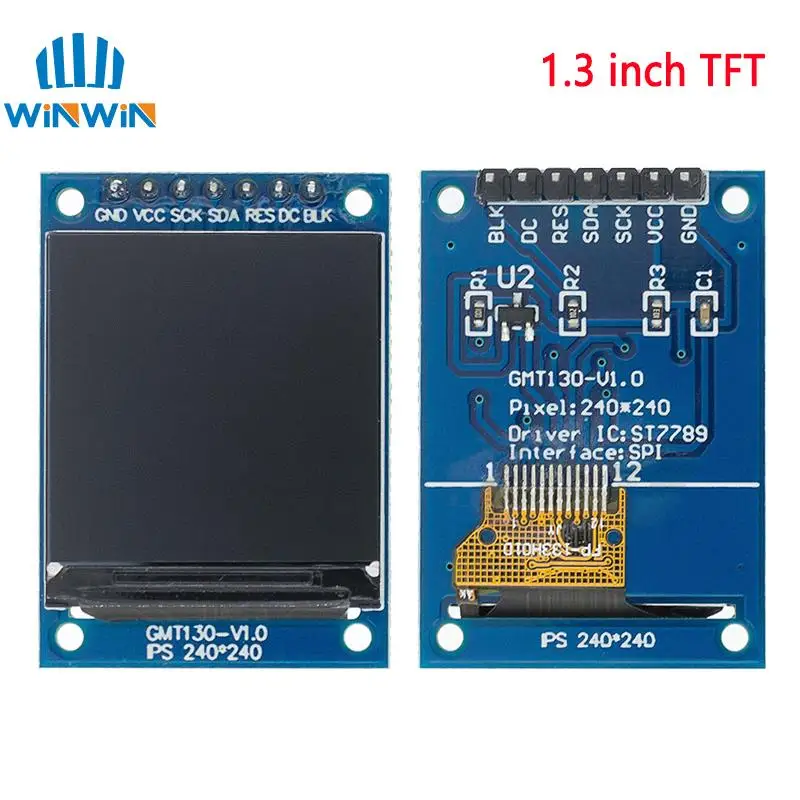

 1.3 inch

1.Features

Display Mode Normally black IPS

Display Format Graphic 240RGB*240 Dot-matrix

Input Data SPI interface

Drive IC ST7789VW

Dimensional outline 27.78(W)*39.22 (H)*3.0+/-0.1(T)mm

Resolution 240RGB*240 Dots

LCD Active area 23.4 (W)*23.4 (H)

Dot pitch 0.0975(H) x 0.0975(V) mm

Viewing Direction All View

Operating Temperature -20～70°C

2.Pin Descriptions:

PIN No Symbol Description

1 GND Ground

2 VCC Power 3.3V

3 SCL Serial clock pin.

4 SDA Serial data input

5 RES LCM Reset pin

This pin is reset signal input. When the pin is low, initialization of the chip is

executed. Keep this pin pull high during normal operation.

6 DC Data/Command Control

7 BLK Backlight control pin

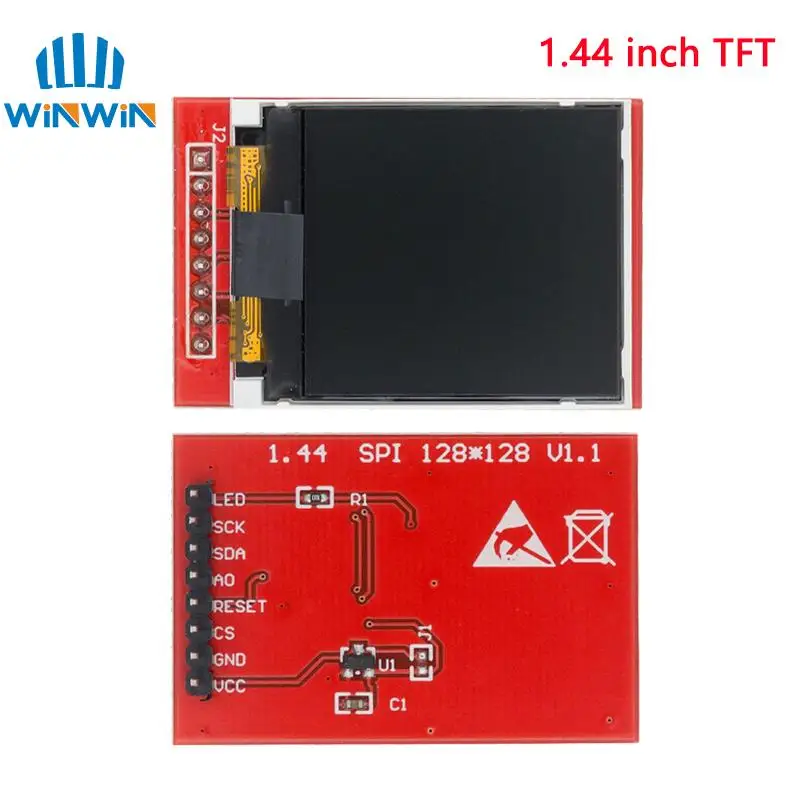

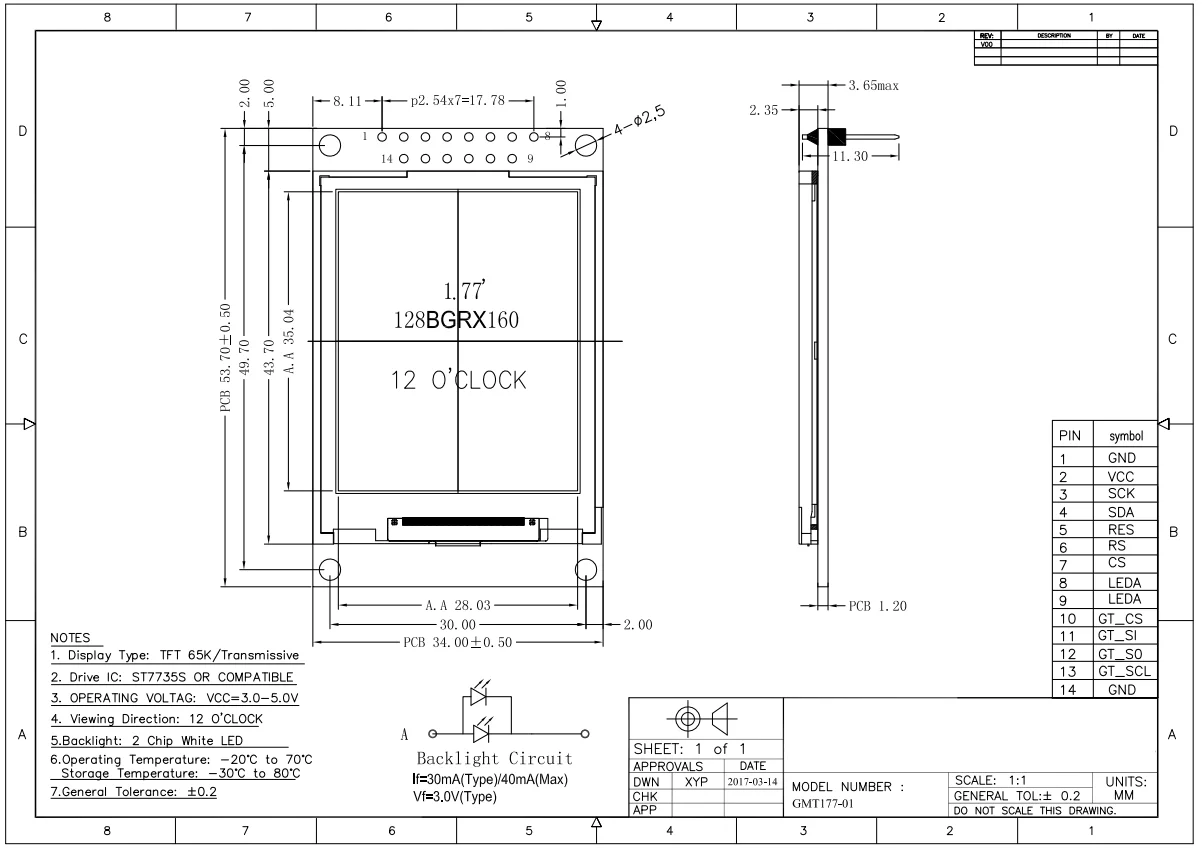

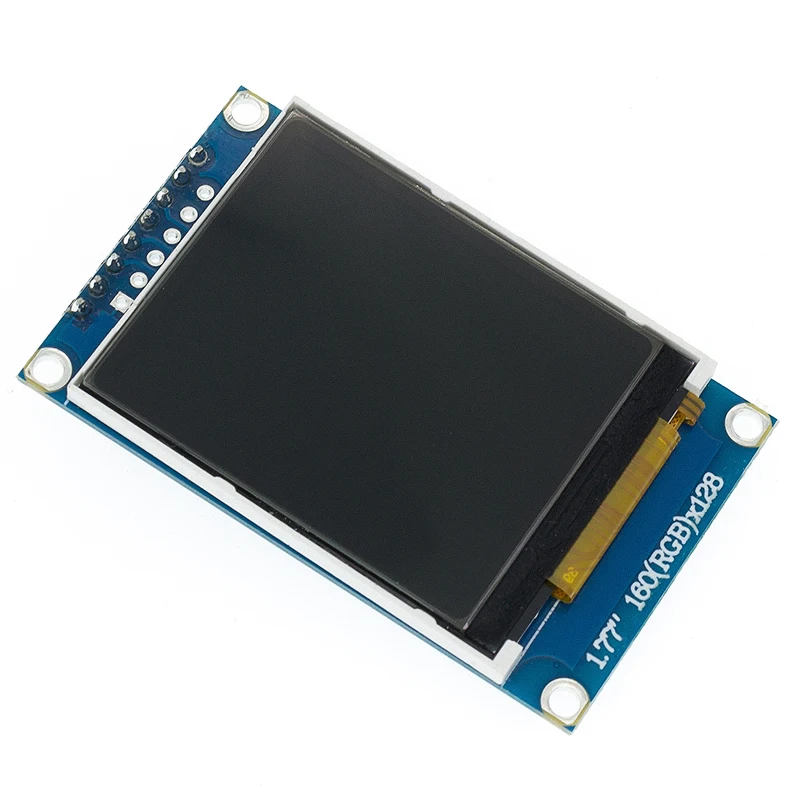

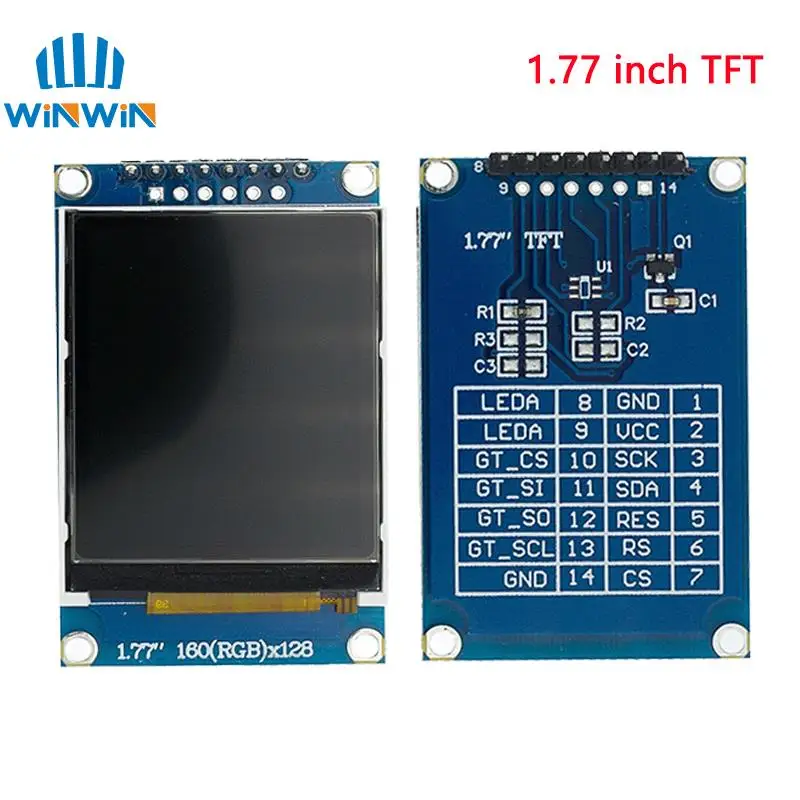

1.77 inchTFT LCD module:

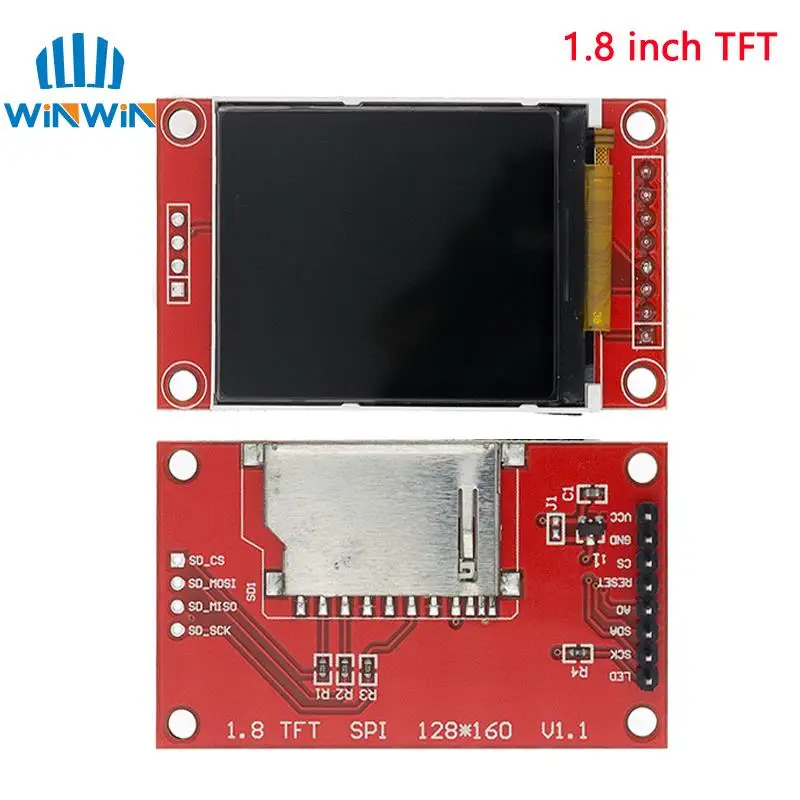

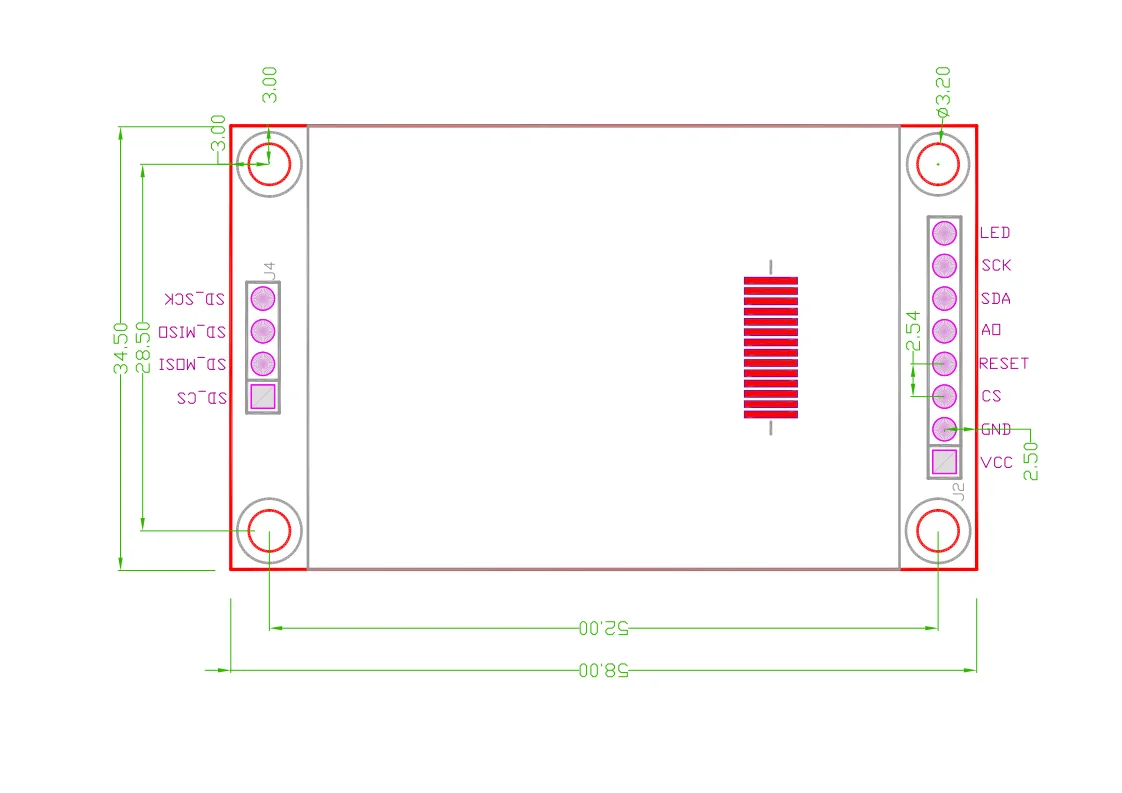

1.8 inch TFT LCD module:

1.8-inch SPI serial port 128*160 Instructions

/*

Program default IO connection method:

sbit LCD_CS =P0^0; //chip select

sbit LCD_AO =P0^2; //data/command switch

sbit LCD_SDA =P1^5; // Data

sbit LCD_SCK =P1^7; //clock

sbit LCD_REST =P0^1; //reset

*/

●TFT power supply: screen power supply is 2.8-3.3V; remember not to use 5V

(modules with PCB have inherited 3V regulator IC , 5V can be input)

●Backlight power supply (LED pin): The maximum backlight power supply is 3.2V.

(5 ohm current limiting resistor can be connected in series under 3.3V power supply or 25 ohm resistor in series under 5V).

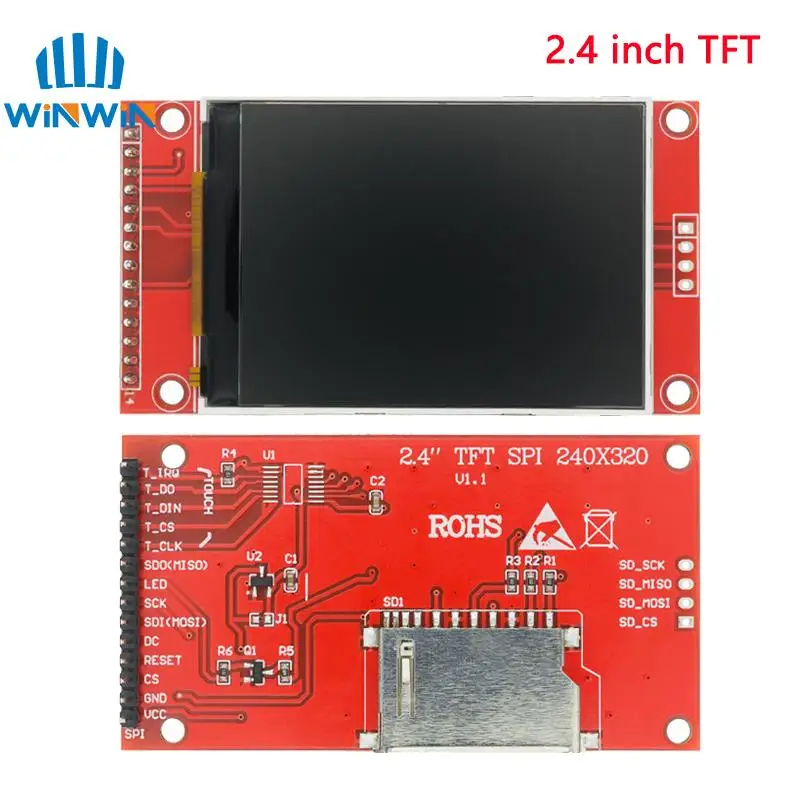

Product Description

2.4-inch color screen,support 65K color display,display rich colors

320X240 resolution, optional touch function

Using the SPI serial bus, it only takes a few IOs to illuminate the display

Easy to expand the experiment with SD card slot

Provide a rich sample program

Military-grade process standards, long-term stable work

Provide underlying driver technical support

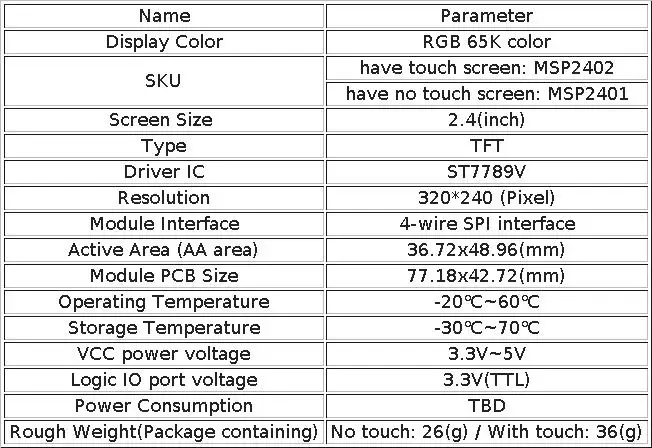

Product Parameters
