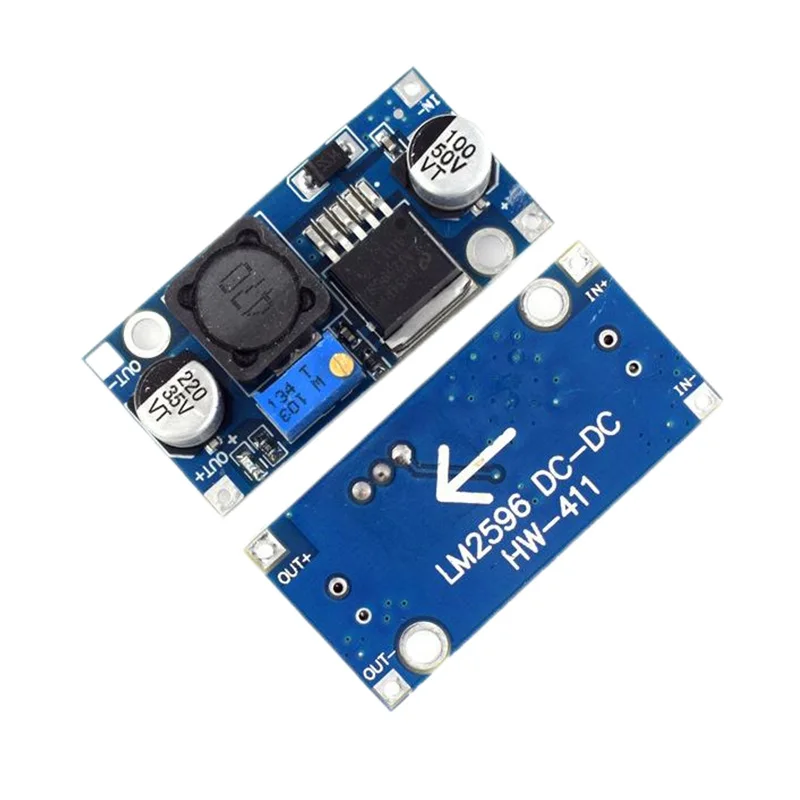

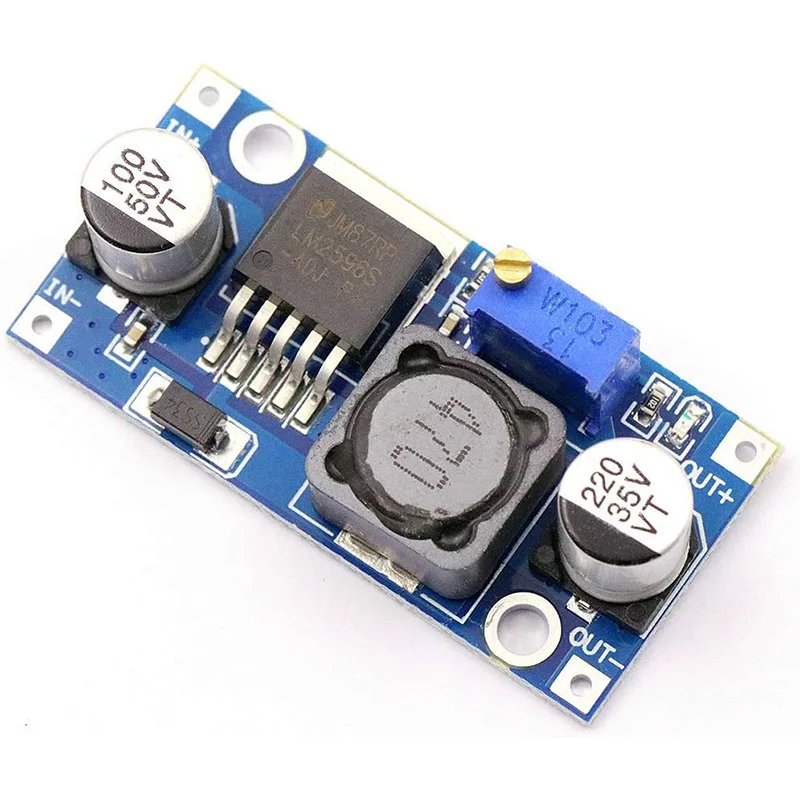

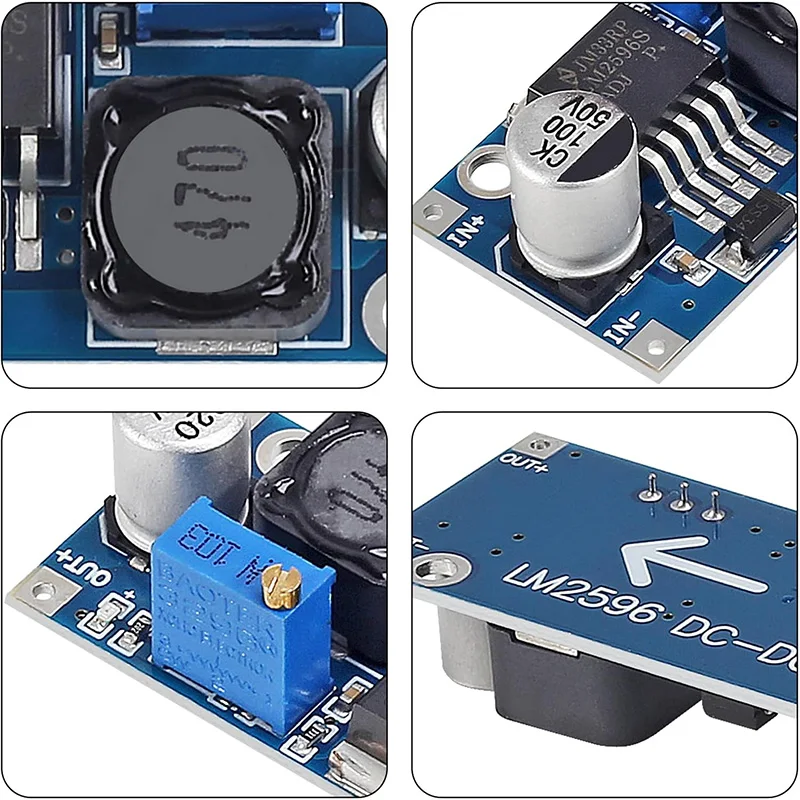

Adjustable Output LM2596S Step Down Module DC to DC Buck Converter Voltage Regulator Conversion Power Supply Module LM2596

Features:
1.Adjustable Output: The step-down power supply module features adjustable output, making it suitable for a wide range of applications.
2.High Efficiency: With a conversion efficiency of up to 90%, this voltage regulator module is highly efficient and can save energy compared to other power supply modules.
3.Low Ripple: This step-down power converter module features low ripple output, which means that the output voltage will be stable and reliable.
4.Strong Heat Dissipation: The step-down power supply module comes with dense through-holes and strong heat dissipation capabilities, making it ideal for projects where high power output is required.
5.Wide Input Voltage Range: With an input voltage range of 3.2V to 46V, this converter power supply step down module is versatile and can handle a wide range of input voltages.
Specification:
Origin: Mainland China
Type: Voltage Regulator
Condition: New
Supply Voltage: 3.2-46 V
Specifications: adjustable output
Product Description:
LM2596SDC-DC buck power module BUCK 3A adjustable buck module voltage regulator Super LM2576;
Low ripple, high current, high efficiency 90%;
Dense over-hole, high heat dissipation capability;
Add xo TR high Q high frequency bypass capacitor at input and output respectively, electromagnetic compatibility performance.
Product parameters:

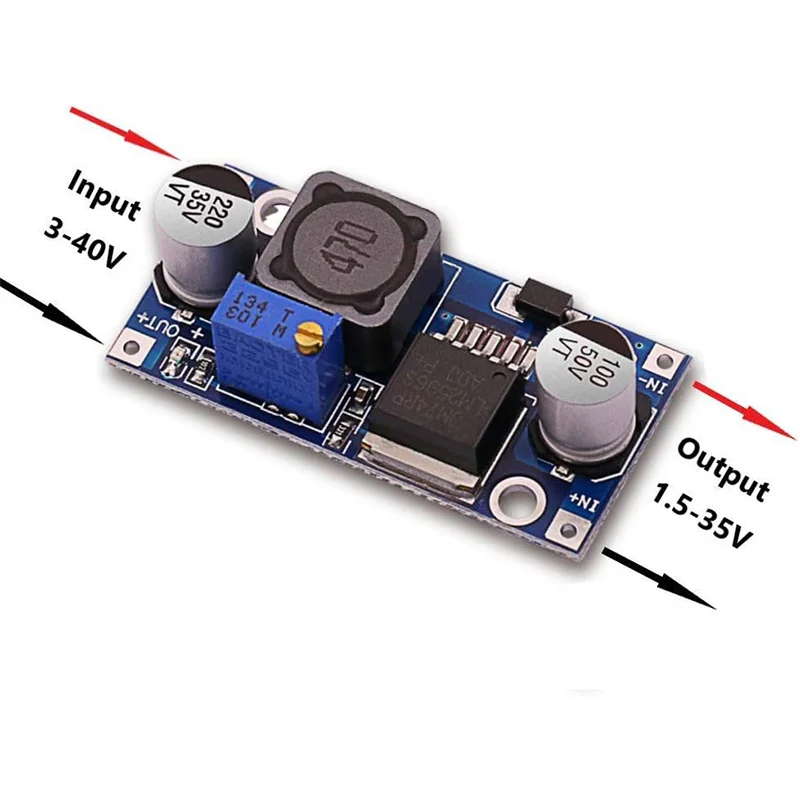

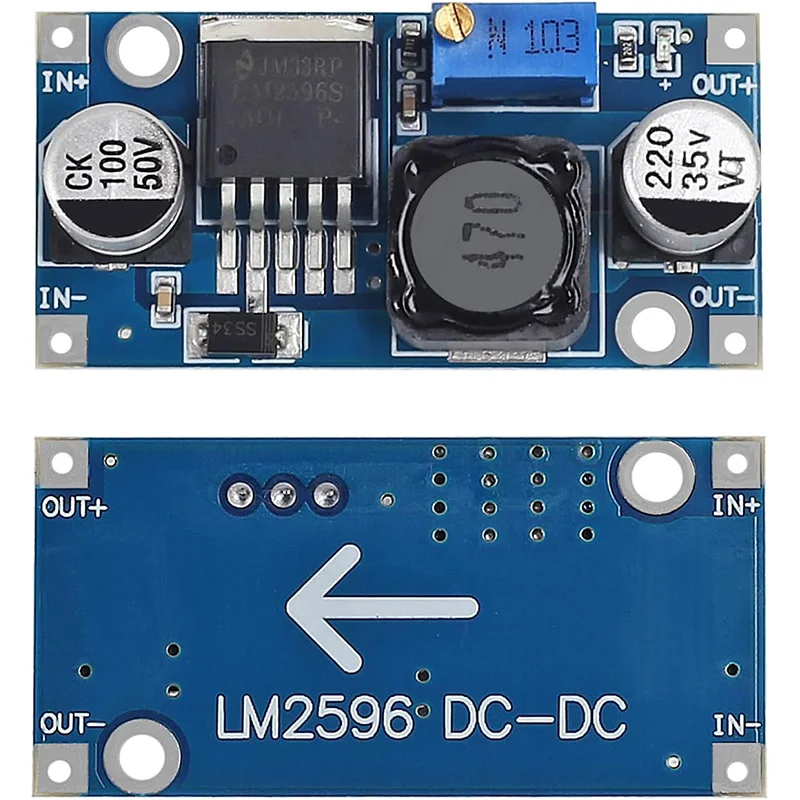

Model: LM2596S DC-DC buck module
Input voltage: 3.2V-46V
Output voltage: 1.25V-35V
Output current: 3A (maximum)
Conversion efficiency: 92% (maximum)
Output ripple: <30mV
Switching frequency: 65KHz
Operating temperature: -45℃~+85℃
Product size: 43*21*14mm
Caution:
This is a buck module, the input voltage should be higher than the output voltage. Output 2A or less can be used for a long time without adding a heatsink output current greater than 2 (or output power greater than 10W) long working hours, please add a heatsink.
