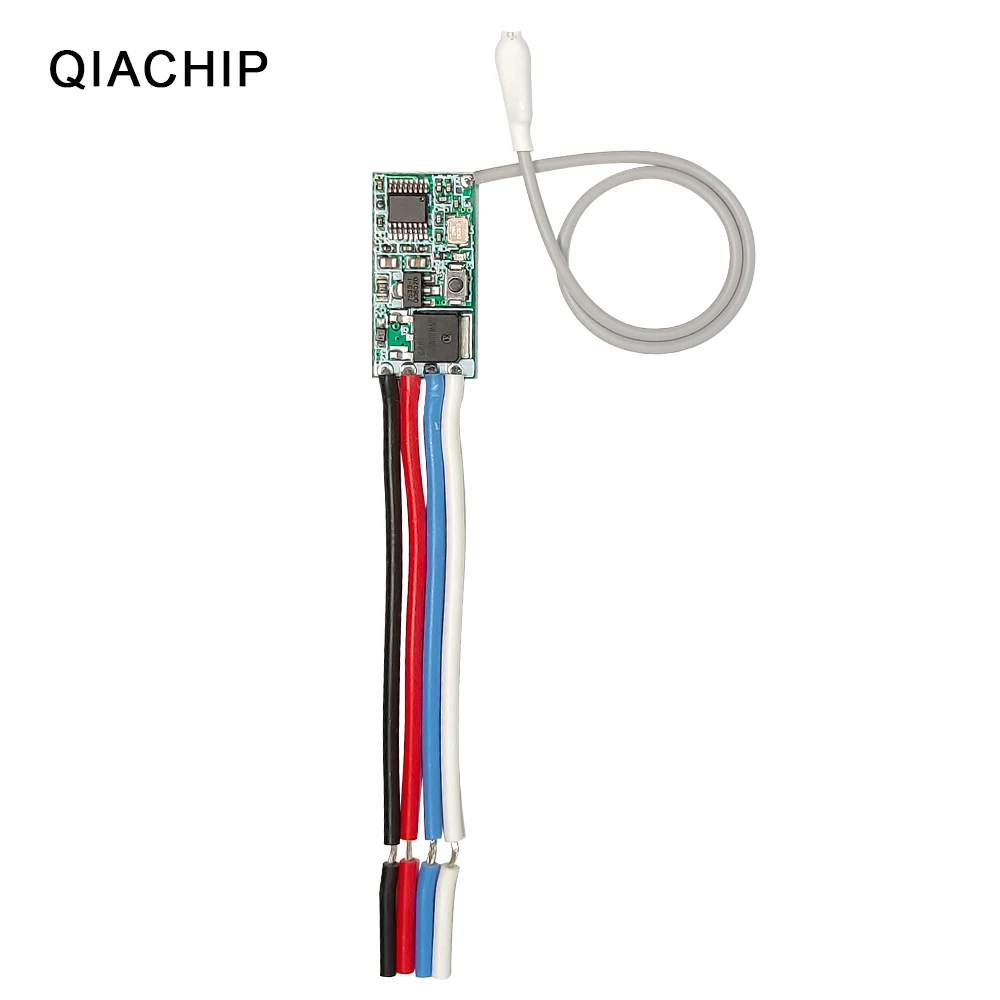

QIACHIP 433MHz Wireless RF Remote Control DC3.6V-24V Mirco Switch Receiver Module DIY With Long Range Transmitter Light On/Off

433MHz Wireless RF Remote control DC6V 12V 24V Mirco Switch Receiver Module DIY with 433 mhz Long range Transmitter Light on/off

Application environment:

Remote control switch,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

Features:

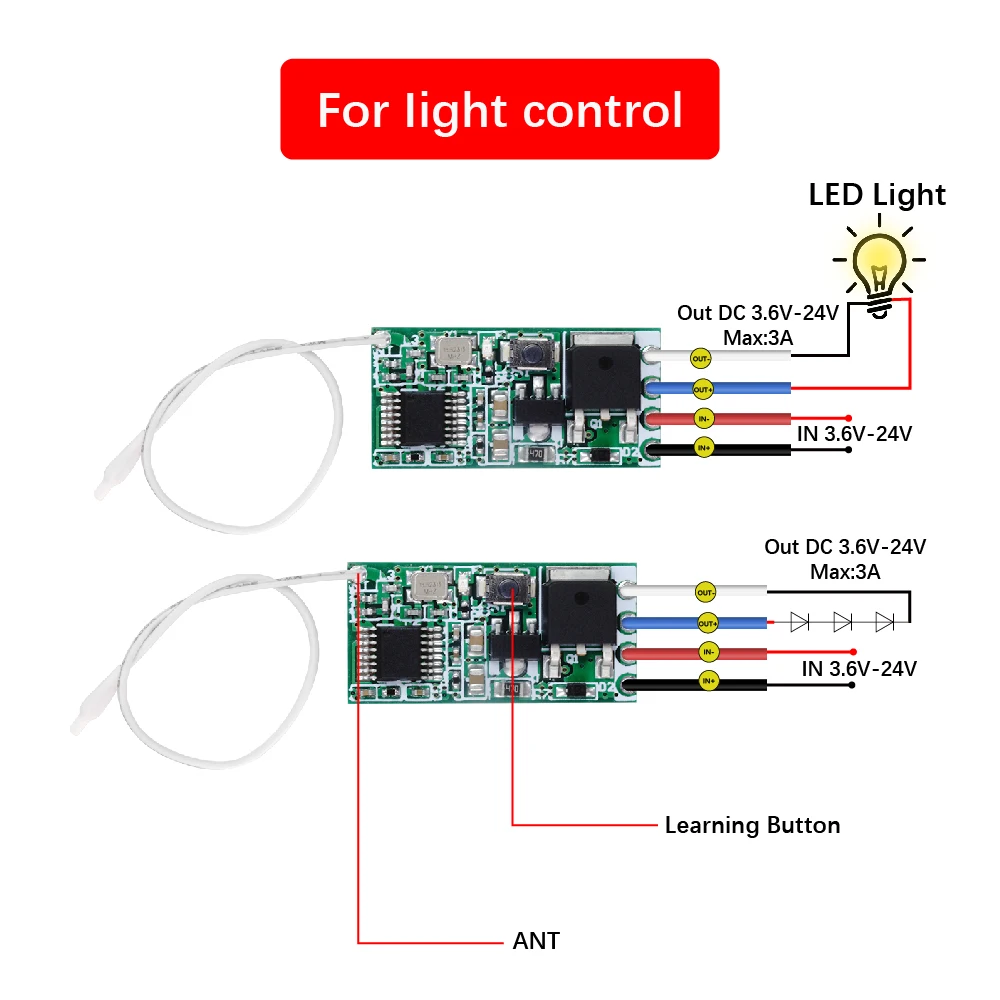

·Wireless control LED lamp string, Christmas tree light string, light control switch

·Long range working voltage

·Ultra low power,High sensitive response.

.Operating Voltage: DC 3.6V-24V

.Encoding : EV1527 Learning code

Note:

We would suggest you to purchase our remote control for the better working performance.

Specification:

Working voltage: DC 3.6V~24V

Maximum load: 2A

Static current: <5 mA

Working frequency: 433MHz

Reception sensitivity:<-108dBm

Size: 25.5 mm x 13mm x 5mm (length × width × high)

Mini size support coding format 1527 learning code

Input: DC 3.6V ~ DC 24V

Output: DC 3.6V ~ DC 24V

Modulation mode:ASK (superheterodyne)

Appearance size: 25.5mmx 13mm x 5mm (length × width × high)

Number of stored remote controls: ≤ 5

Working mode: Momentary, Toggle, Latching Mode

Learning style: Learning Button

Working temperature: -20 degrees 80 degrees.

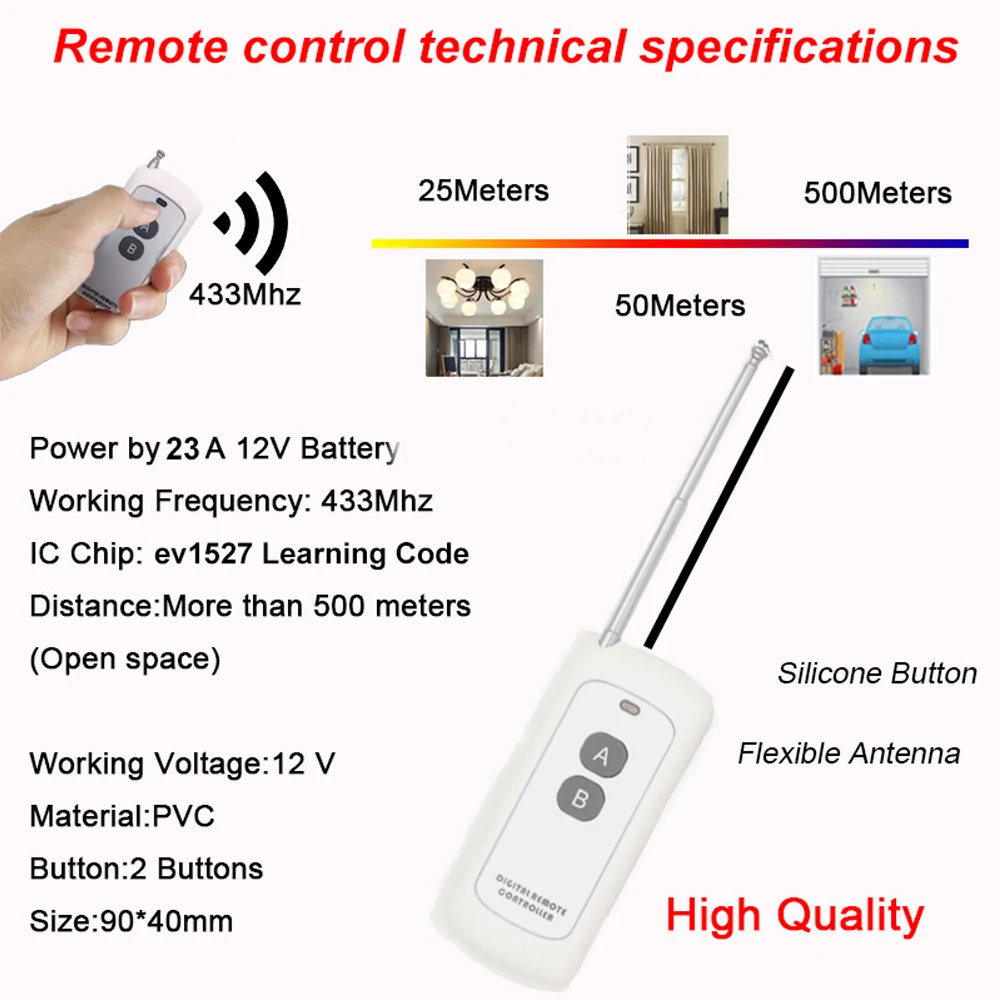

Specifications Of The Remote Control:

Operating frequency: 433.92MHz

Power by 12V23A Battery  (Battery not included ),
