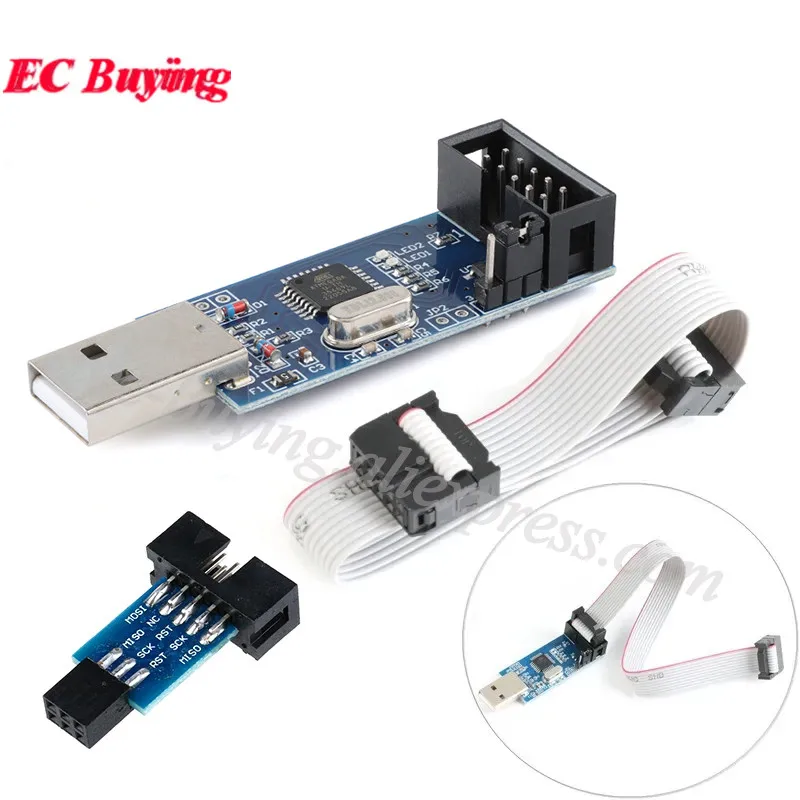

USBASP USBISP AVR Programmer USB ISP USB ASP ATMEGA8 ATMEGA128 Support Win7 Win8 Win8.1 32K/64K 10Pin To 6 Pin Adapter Board

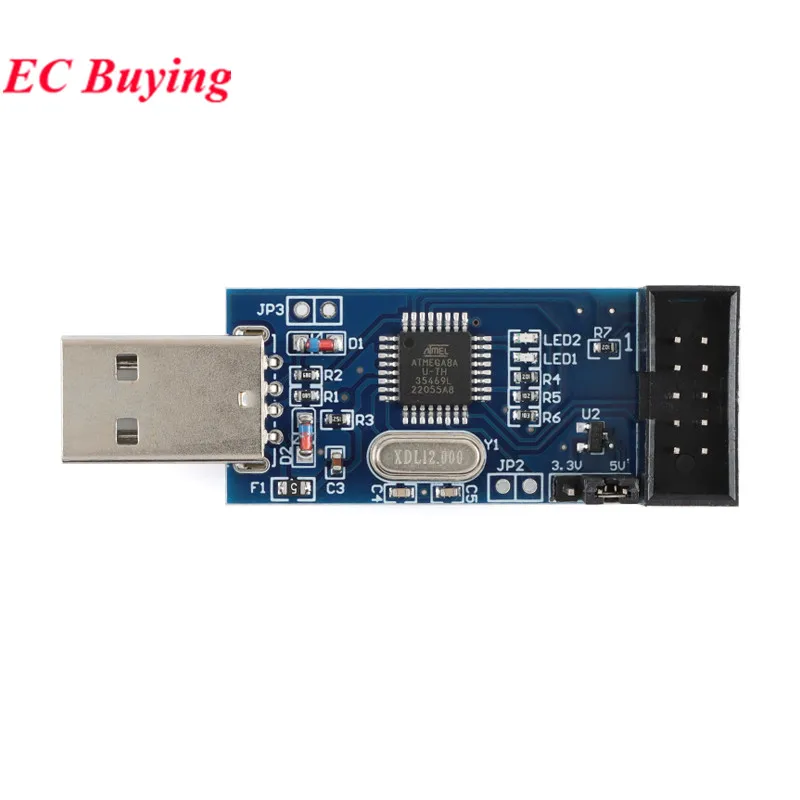

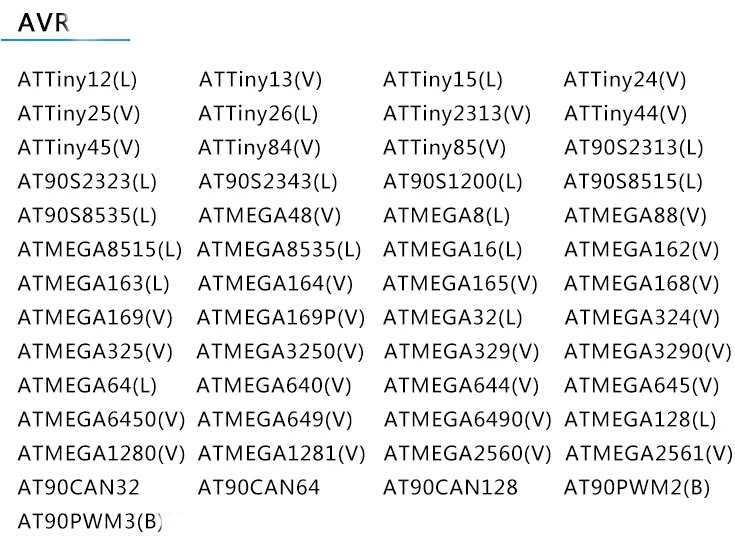

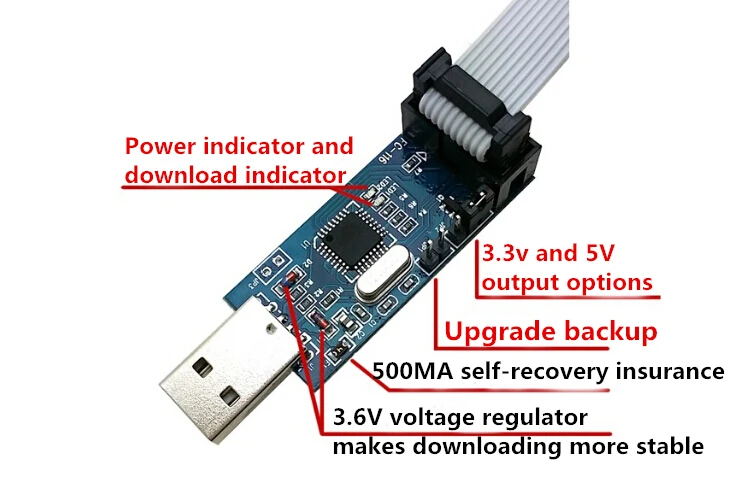

The programmer's onboard new original imported ATMega8A-AU chip supports all ASP chips of AT89S51/52 MCU AVR. The output port is an ATMEL standard port. There is USB power supply and support target board voltage 5V, which can be selected by jumper cap connection. AUTOSPEED can automatically adjust the firmware, the downloader will automatically track the chip frequency to be programmed, and automatically change the speed to achieve automatic speed regulation. The PROGRAMMING programming interface is reserved and the user can upgrade the downloader firmware. Suitable for WIN8.1/8/7/XP 32/64 bit systems.

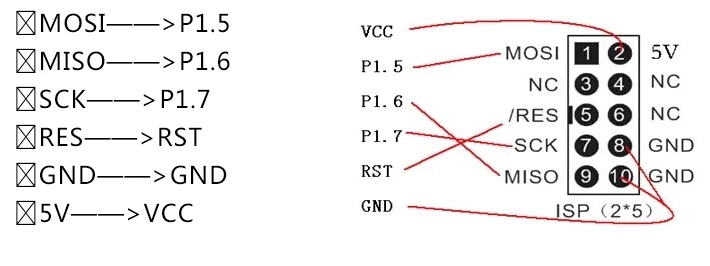

AT89S51 and S52 series pin and download line corresponding connection definition
