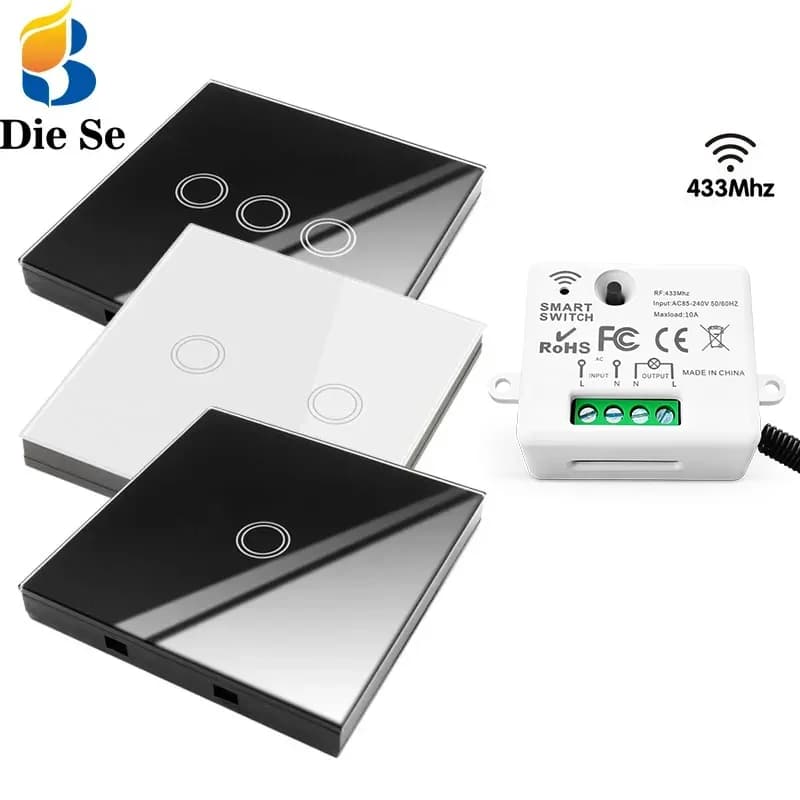

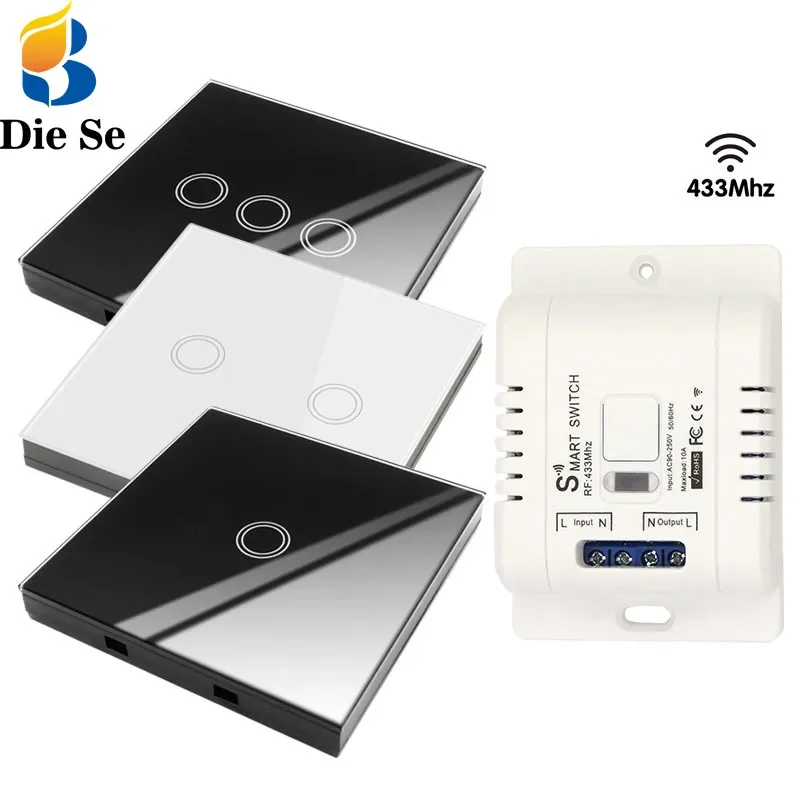

Diese 86 Switch Panel ON/OFF Touch Switch Wireless Light Switch 433Mhz Remote Control ,AC 85V~240V 10A Interruptor for Lighting

Diese 86 Switch Panel ON/OFF Touch Switch Wireless Light Switch 433Mhz Remote Control ,AC 85V~240V 10A Interruptor for Lighting

Wide Availability

-Touchable with wet hands

-Powerful functions

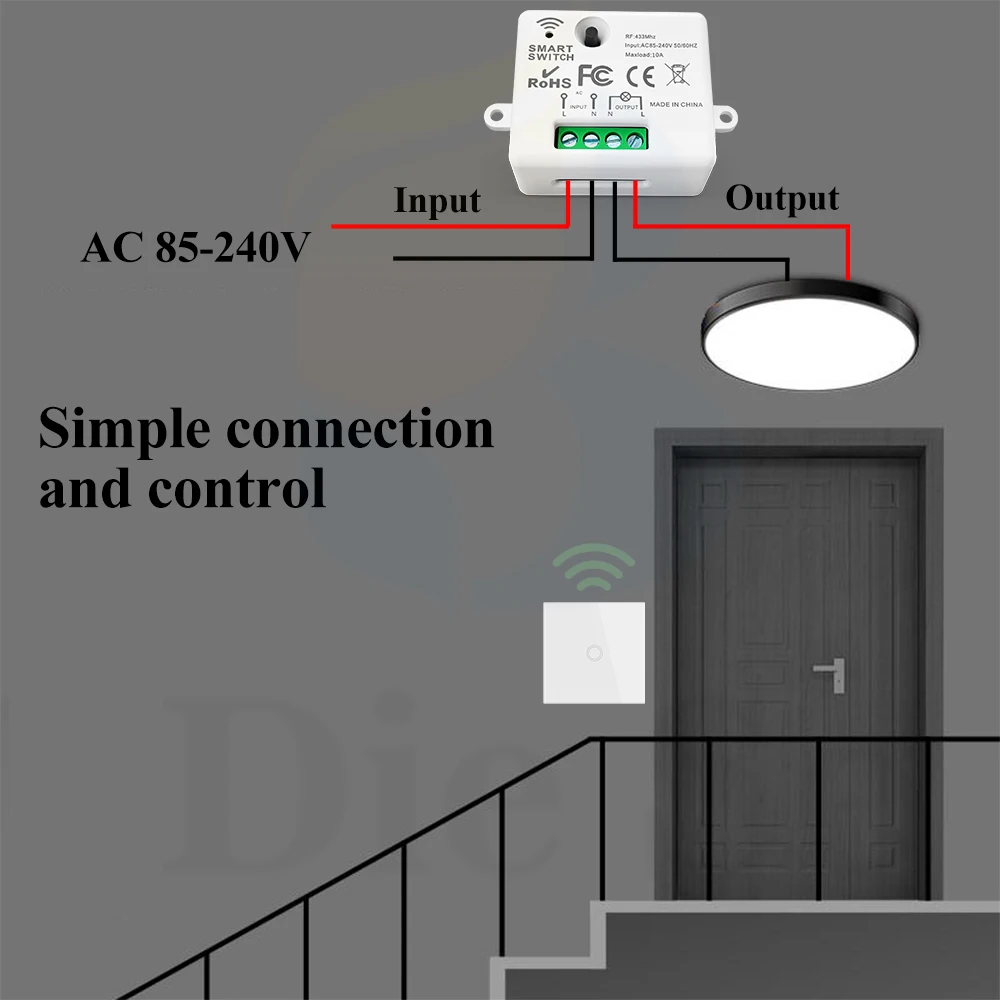

Wiring Diagram

-Wiring is simple,Safety
Perfect Craft & Detail Control

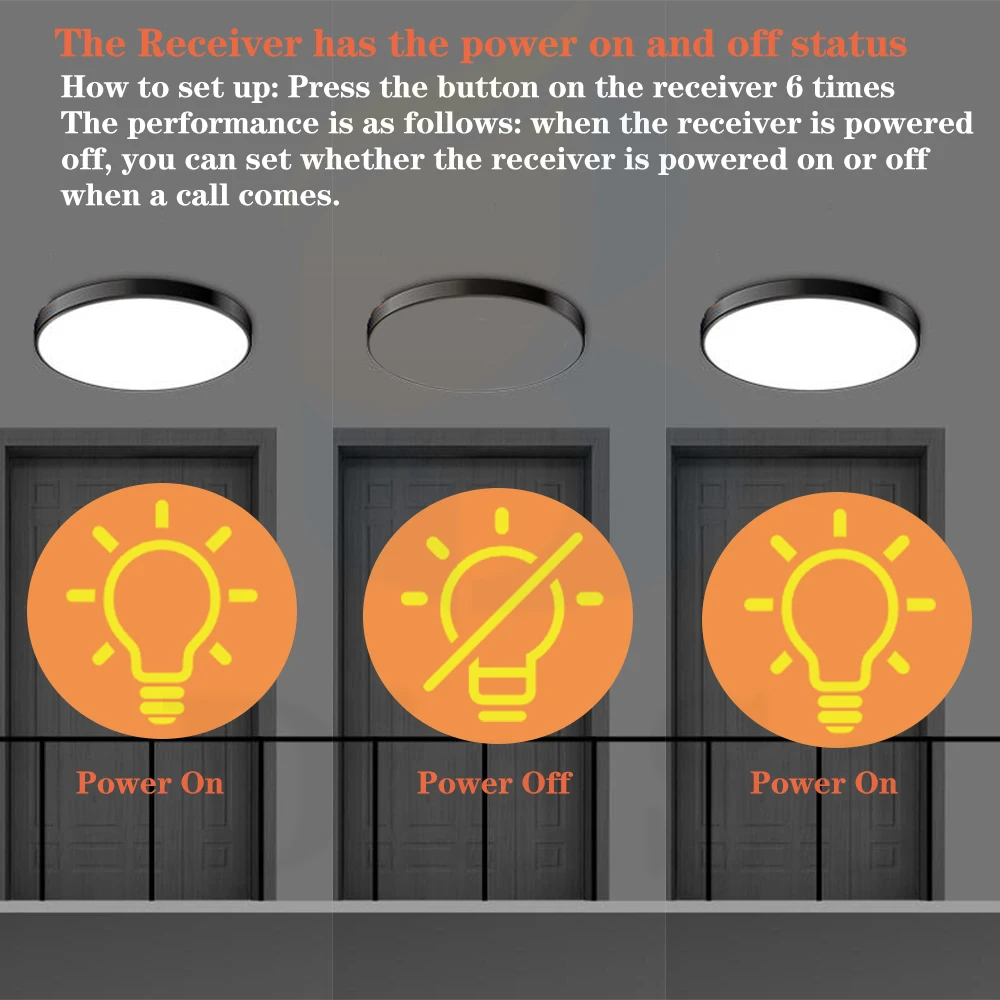

Call on and off function

The performance is as follows: when the receiver is poweredoff, you can set whether the receiver is powered on or offwhen a call comes.

Product Detail
Working voltage : AC 85V~240V
Quiescent Current : <5MA
Max current : 10A
Max load : 2000W
RF frequency : 433MHz
Working temperature : -30~+80
Receiving Sensitivity : >97dbm
Amount of storage remote controls : 10 pieces
Support encoding : 1527 Leaning code,2262 fixed code
RF Operating mode : ASK superheterodyne wireless reception
Receiving range : up to 50m (theoretical distance)

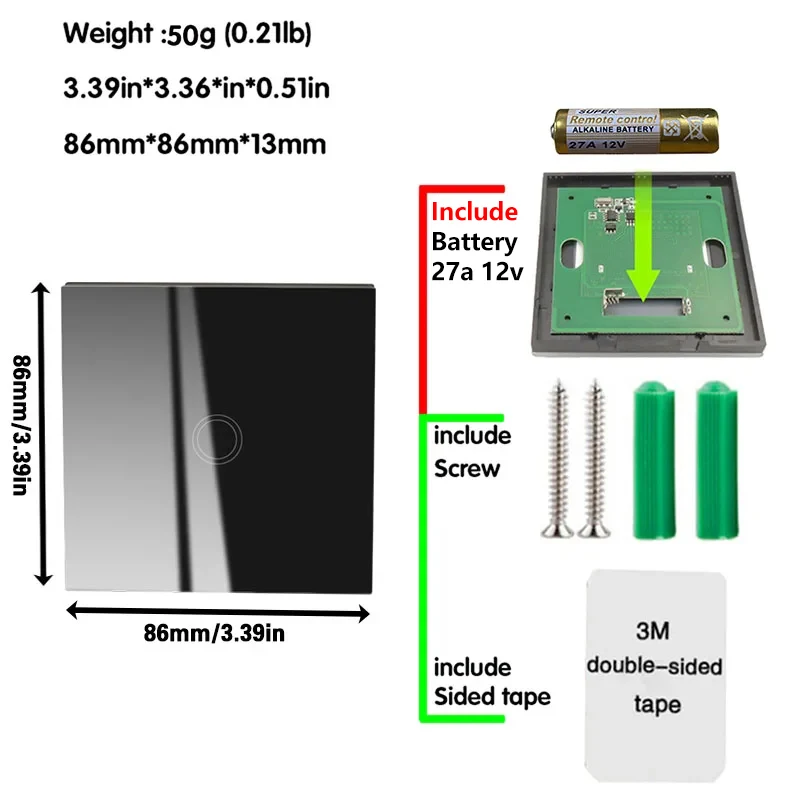

Wall switch size: 86 *86 mm
Switch battery : include

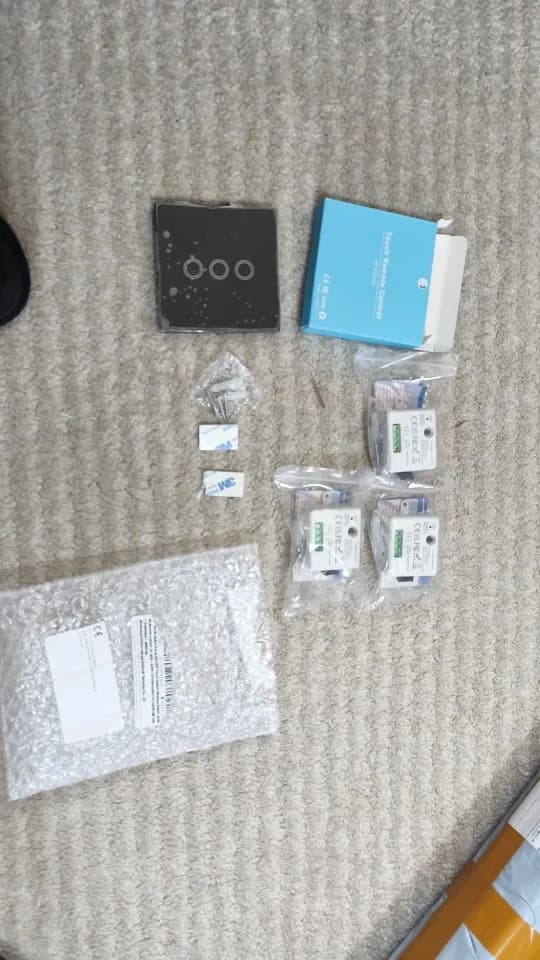

Package include

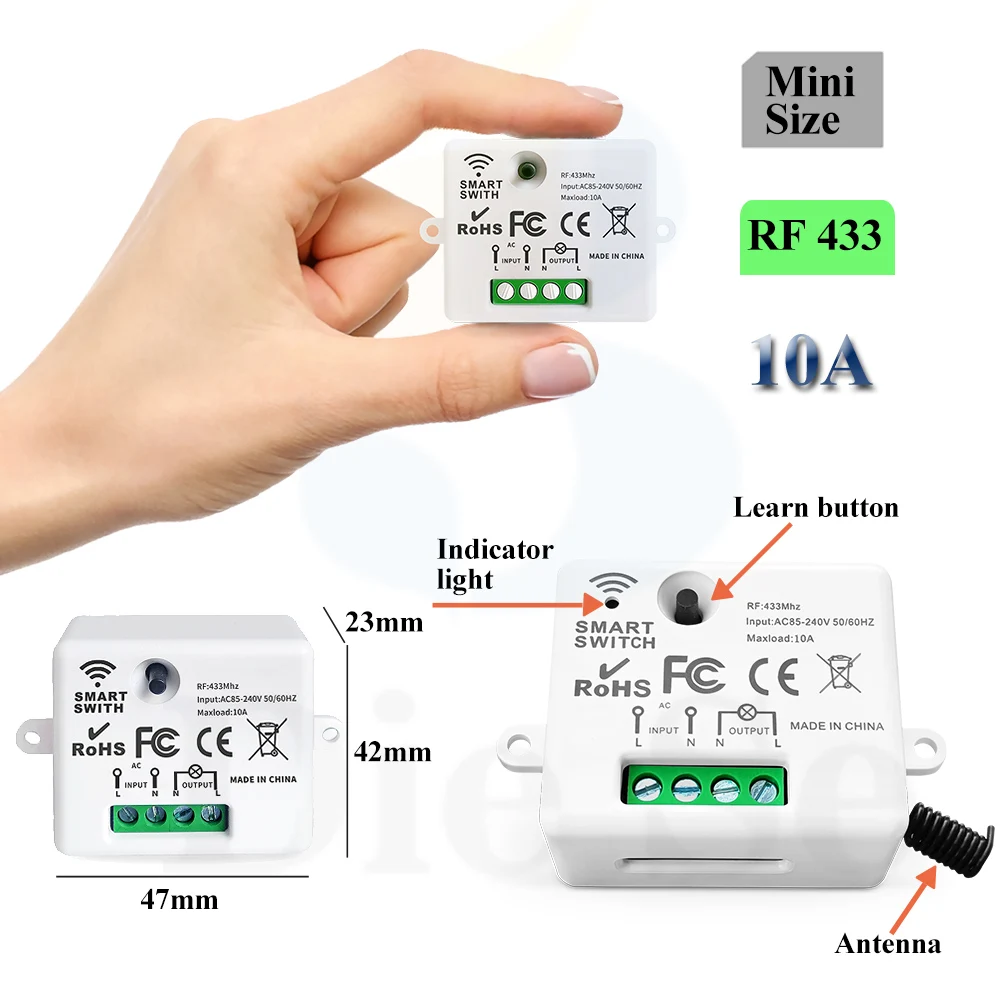

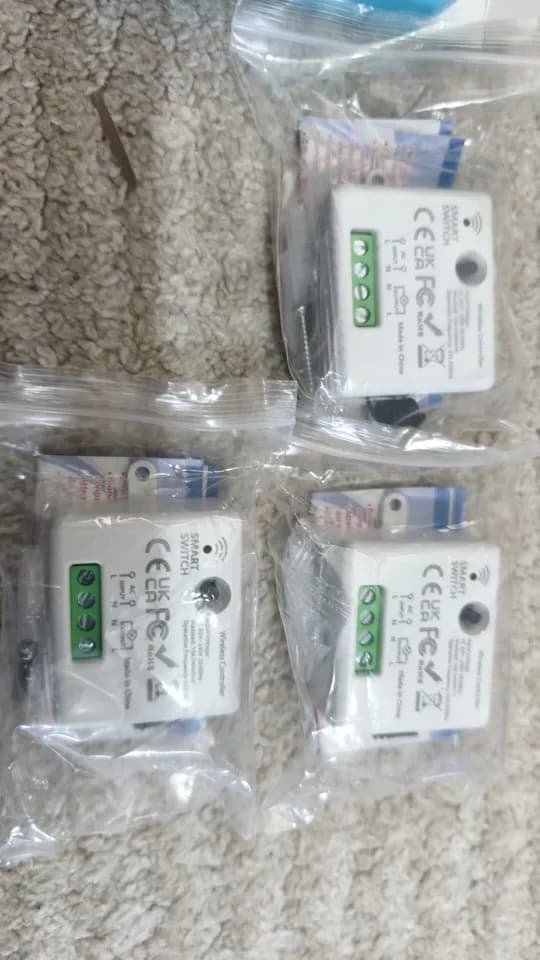

Receiver module ( include Shell )
Wall switch ( include battery )
The Quantity depends on the option you choose

Operating Mode

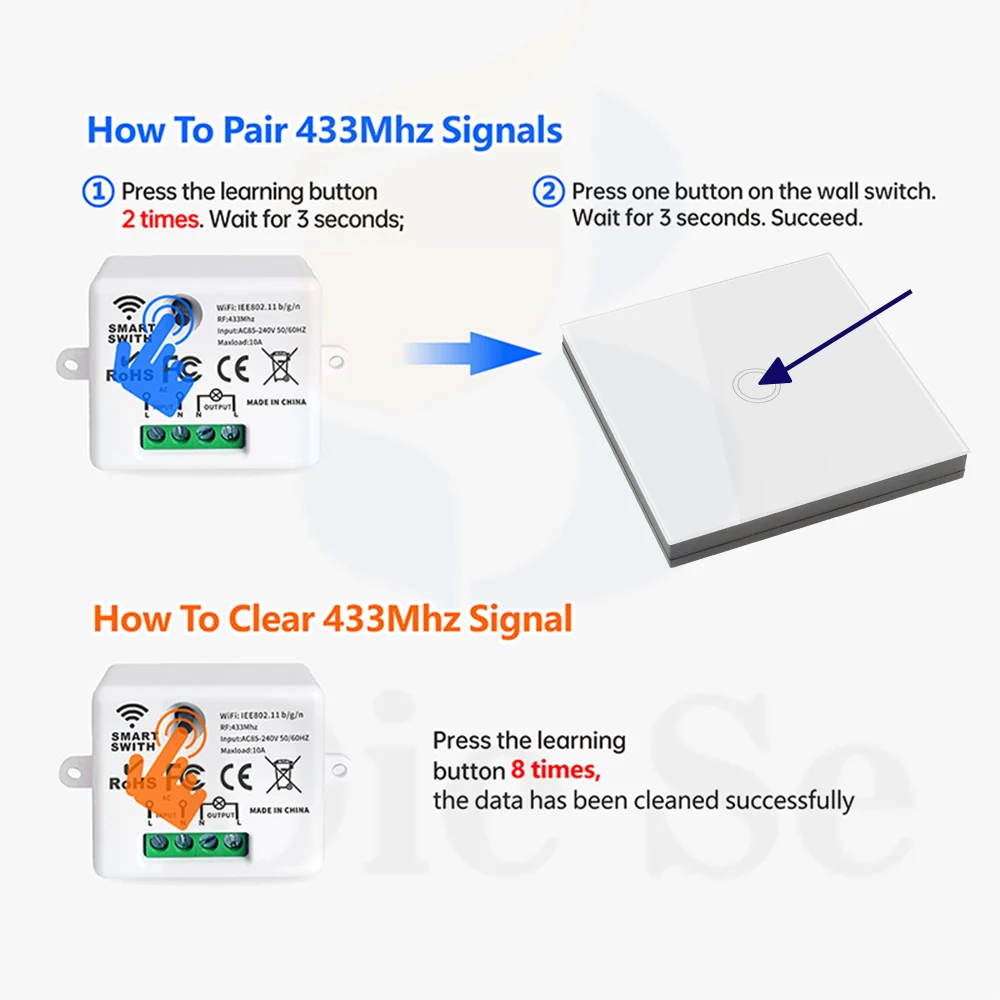

-Set up Toggle Mode

1. Press the learning button(on the Receiver) twice. Wait for 3 seconds;
2. Press one button on the wall switch. Wait for 3 seconds. Succeed.

Reset

1.Press the learning button (on the Receiver) 8 times. The existing data will be deleted succeed.

Q & A

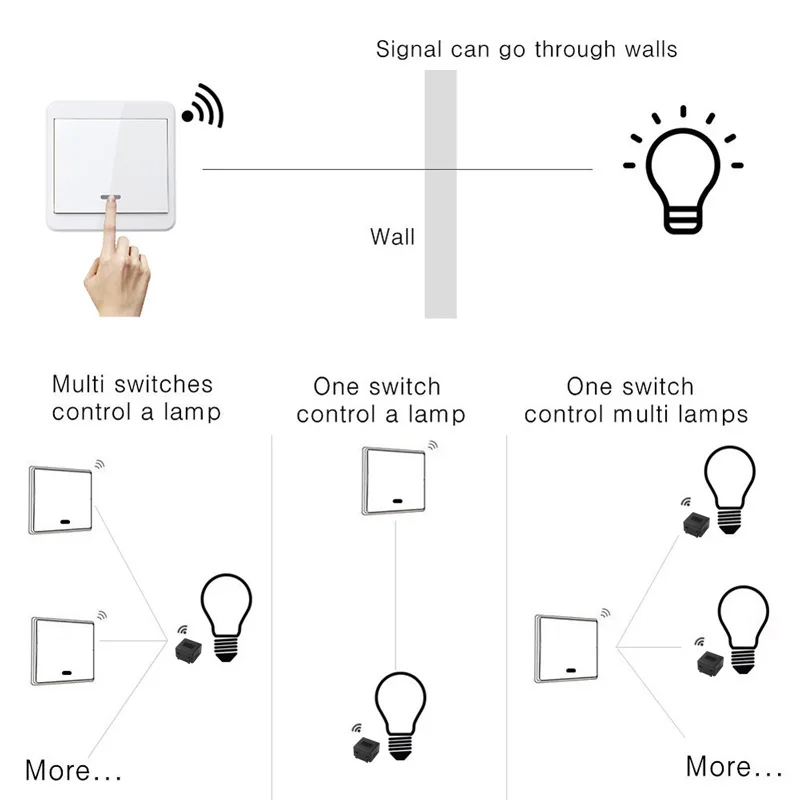

Q : Can one receiver be controled by diffrent wall switch?
A : Yes, each receiver can add about 25 wall switch .
Q : Can one wall Switch control 2 receivers individually ?
A :Yes, wall switch with 2 buttons can control 2 receivers , wall switch with 3 buttons can control 3 receivers.
Q : Can 1 button on wall switch control 2 receivers at the same time?
A : Yes , You can program it by yourself. For example, matched Button "1" with receiver "1",and then matched Button "1" with receiver "2" too. This Button "1" can control receiver "1" and receiver "2" at the same time.
On this product detailed page, there is a demonstration video for your reference.
*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
