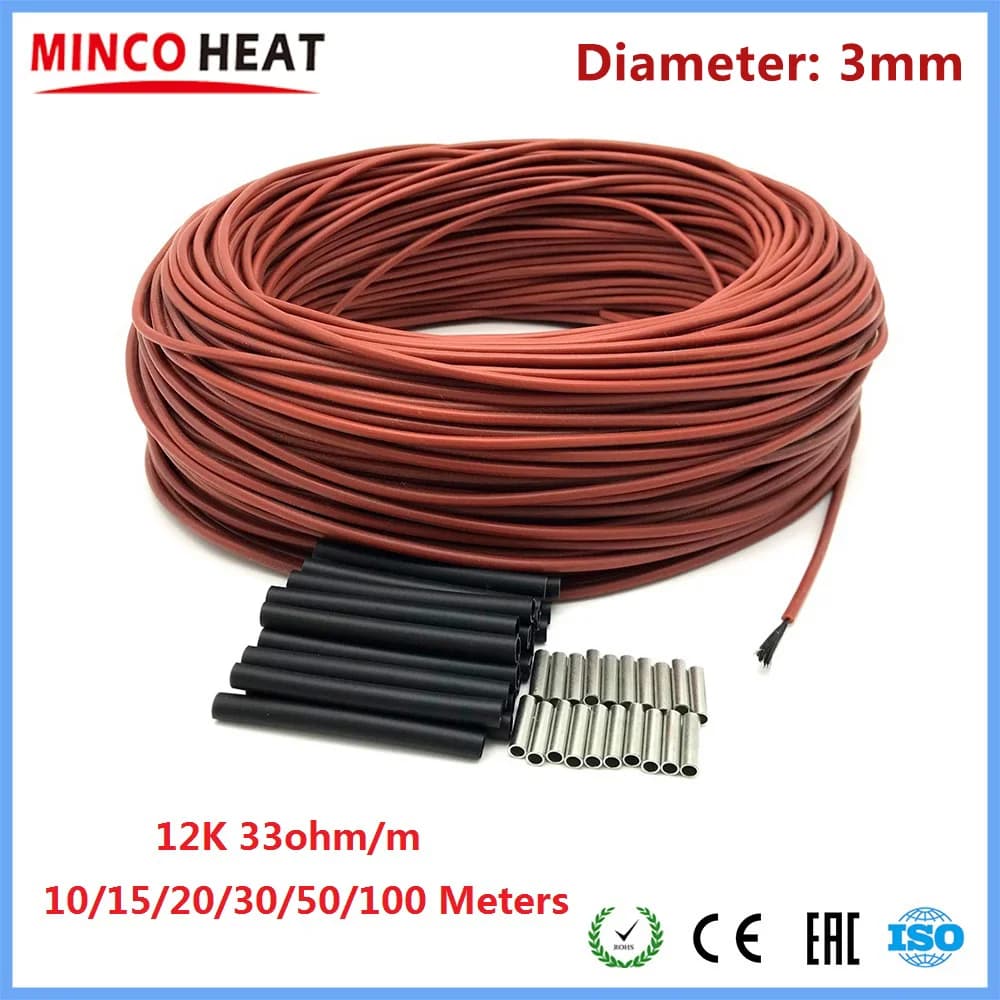

MINCO HEAT 10/20/50/100 Meters Infrared Warm Floor Cable 12K 33ohm/m Coil 3mm±0.2 Electric Carbon Heating Wires

Technical Datas:

Product Name: Carbon Fiber Heating Wire
Insulating Material: Silicone Rubber
Max enduring temperature: 200C degrees
Heating temperature: based on the using length
Heating conductor: 12K
Conductor resistance: 33±10% ohm/m
Leakage current: 0.05mA/m
The product can withstand max power: 25w/m
Diameter: 3±0.2mm; (Thicker and Safer; Толще и безопаснее)
Color: Red
Infrared wavelength: 8UM-18UM
Length: (can customized, suggest use not less than 10m with 220v voltage)

Package Includes:

- Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves
- Buy 50m = 50m cable + 10pcs copper tube + 10pcs sleeves
- Buy 30m = 30m cable + 6pcs copper tube + 6pcs sleeves
- Buy 20m = 20m cable + 4pcs copper tube + 4pcs sleeves
- Buy 15m = 15m cable + 4pcs copper tube + 4pcs sleeves
- Buy 10m = 10m cable + 2pcs copper tube + 2pcs sleeves

How to calculate power?

Voltage * Voltage ÷ resistance=electric power

12K=33ohm/meter (resistance)

For example, using 10m 12K carbon fiber cable on 220V, the power is:

220V*220V÷(10meters*33Ω)=150W
150w/10m=15w/m

For example, using 15m 12K carbon fiber cable on 220V, the power is:

220V*220V÷(15meters*33Ω)=100W
100w/15m=6.66w/m

The longer length, the smaller power, and the lower heating temperature.

What is the power of the cable? And what is heating temperature?

1. The power of the cable is based on the length that you use, you can calculate the power according to above examples.

2. Power = 5W/m, the temperature is about 30~40C degrees;
Power = 10W/m, the temperature is about 40~50C degrees;
Power = 15W/m, the temperature is about 50~60C degrees;
Power = 20W/m, the temperature is about 60~70C degrees;
Power = 25W/m, the temperatuee is about 70~90C degrees. Please notice that this is for your reference, not exactly right because of different test conditions.

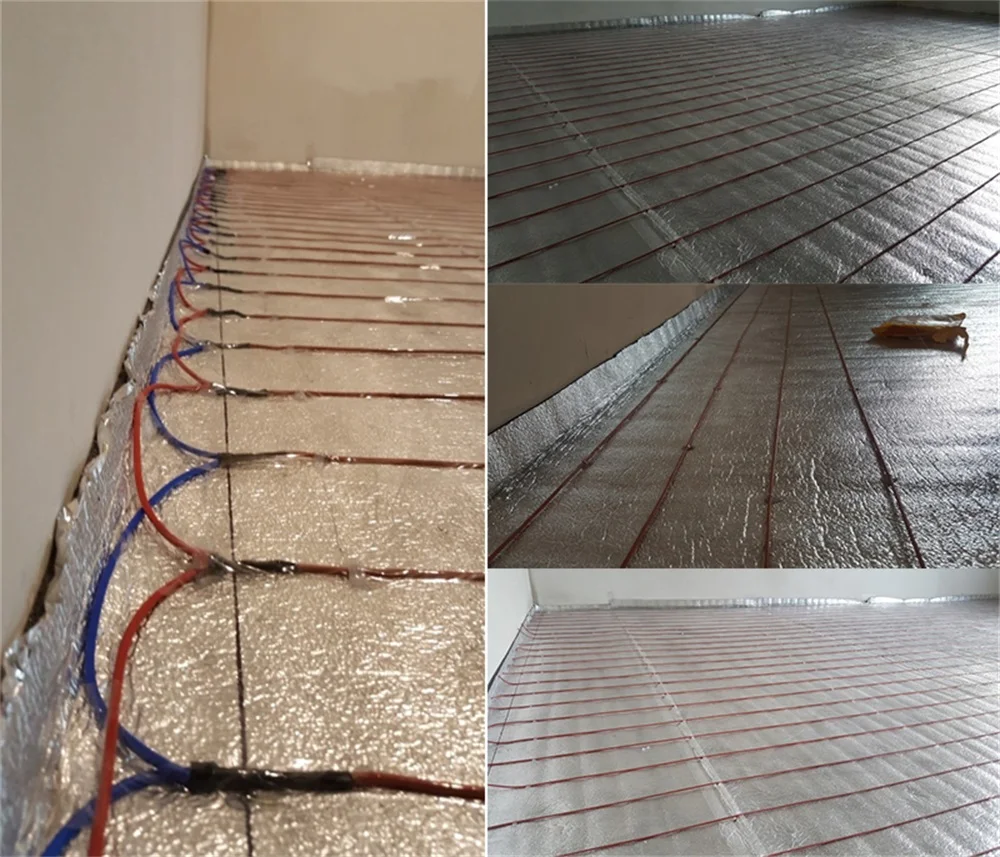

Product Applications

1. Floor heating for Home and office: Homes, villas, hotels, office buildings, hospitals, shopping malls

2. Floor heating for public areas: Swimming pool, soccer field, gymnasium, museum, memorial hall, the kindergarten

3. Floor heating for large public facilities: Bus terminal, parking lot, airport, highways

4. Floor heating for professional field: Botanical garden, greenhouse, laboratory

And other heating applications..etc...

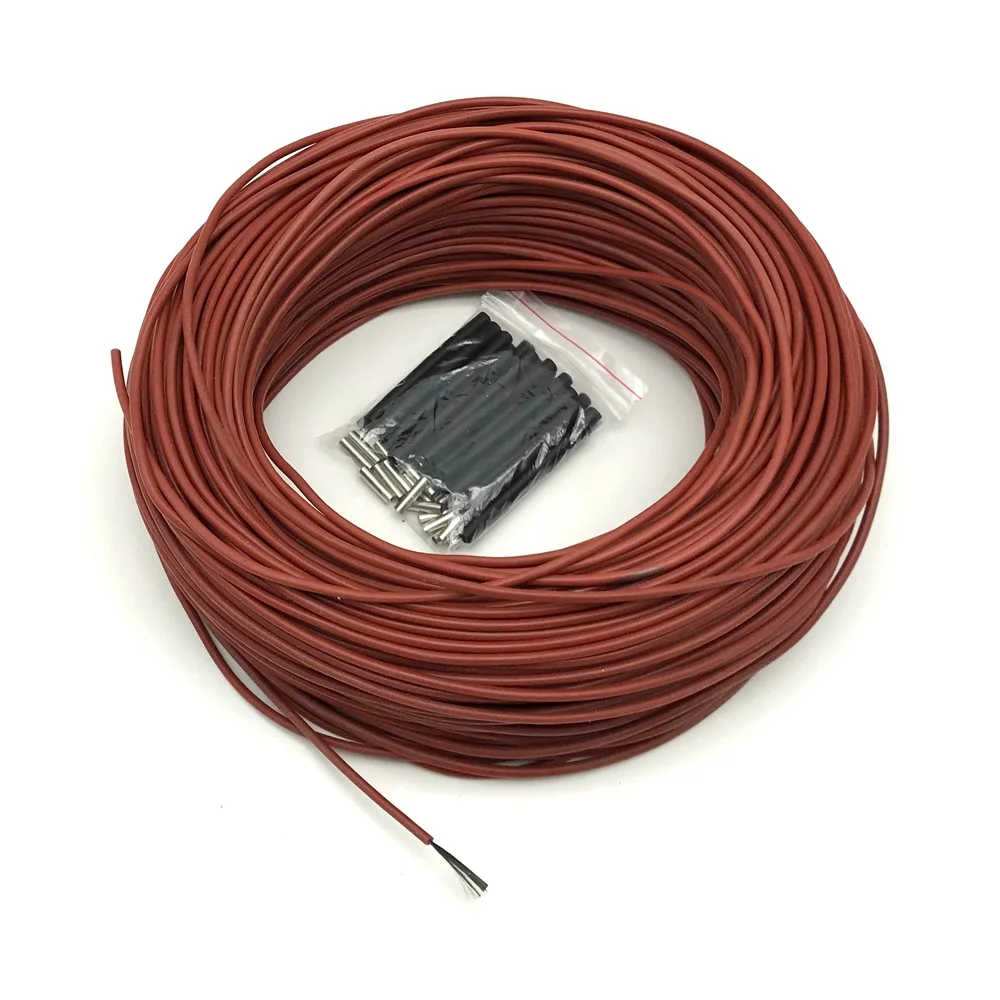

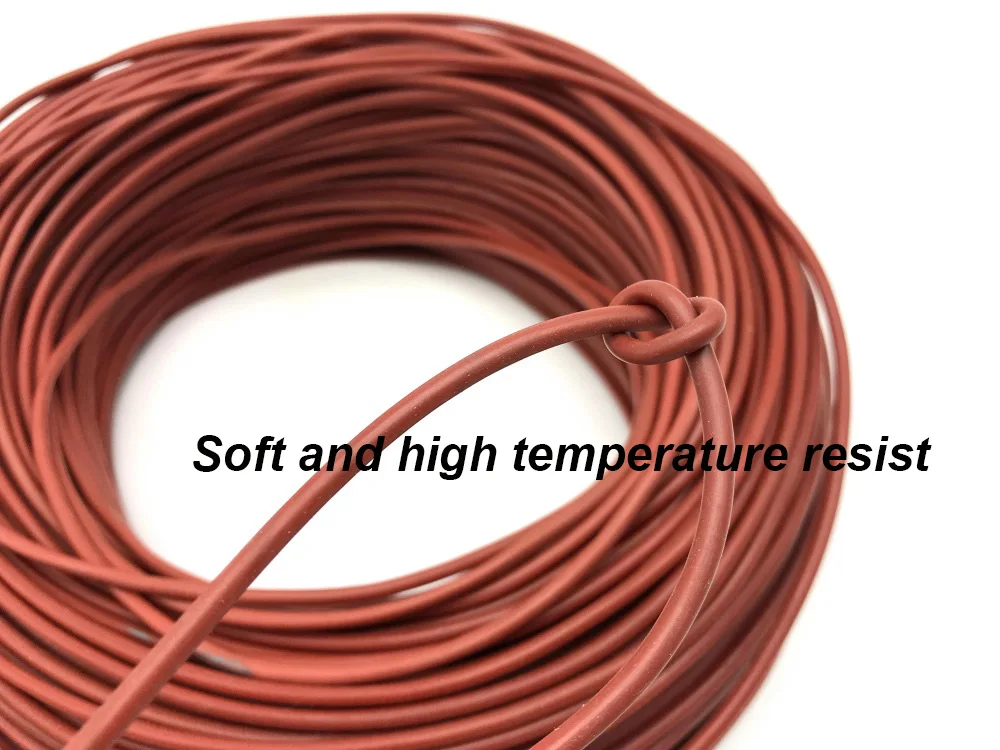

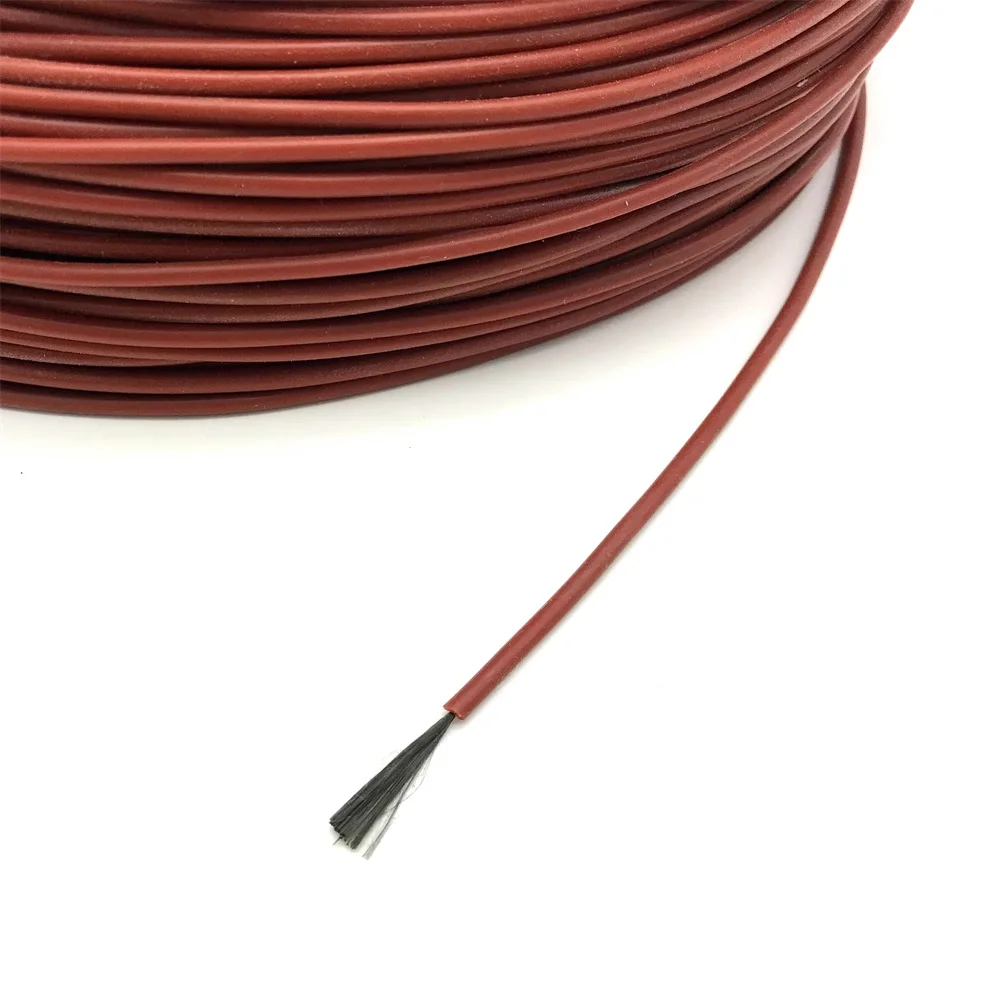

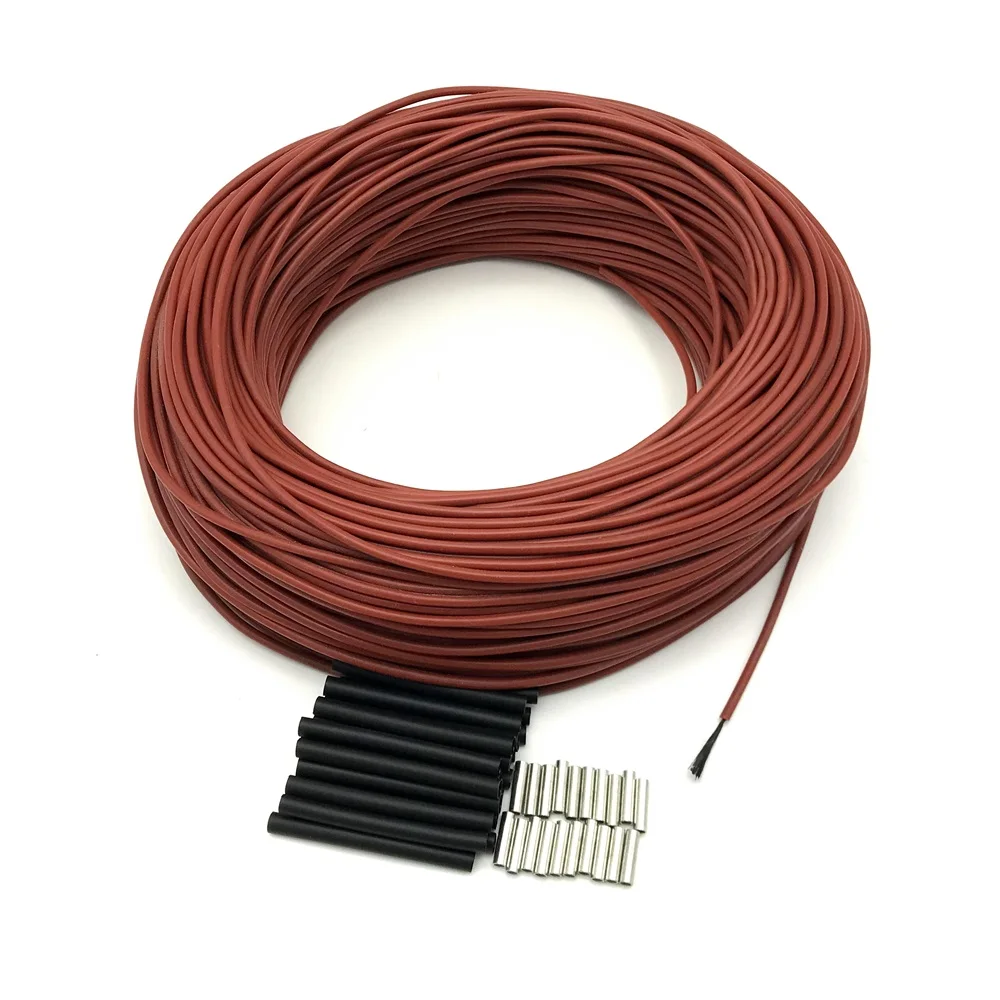

Product Photos

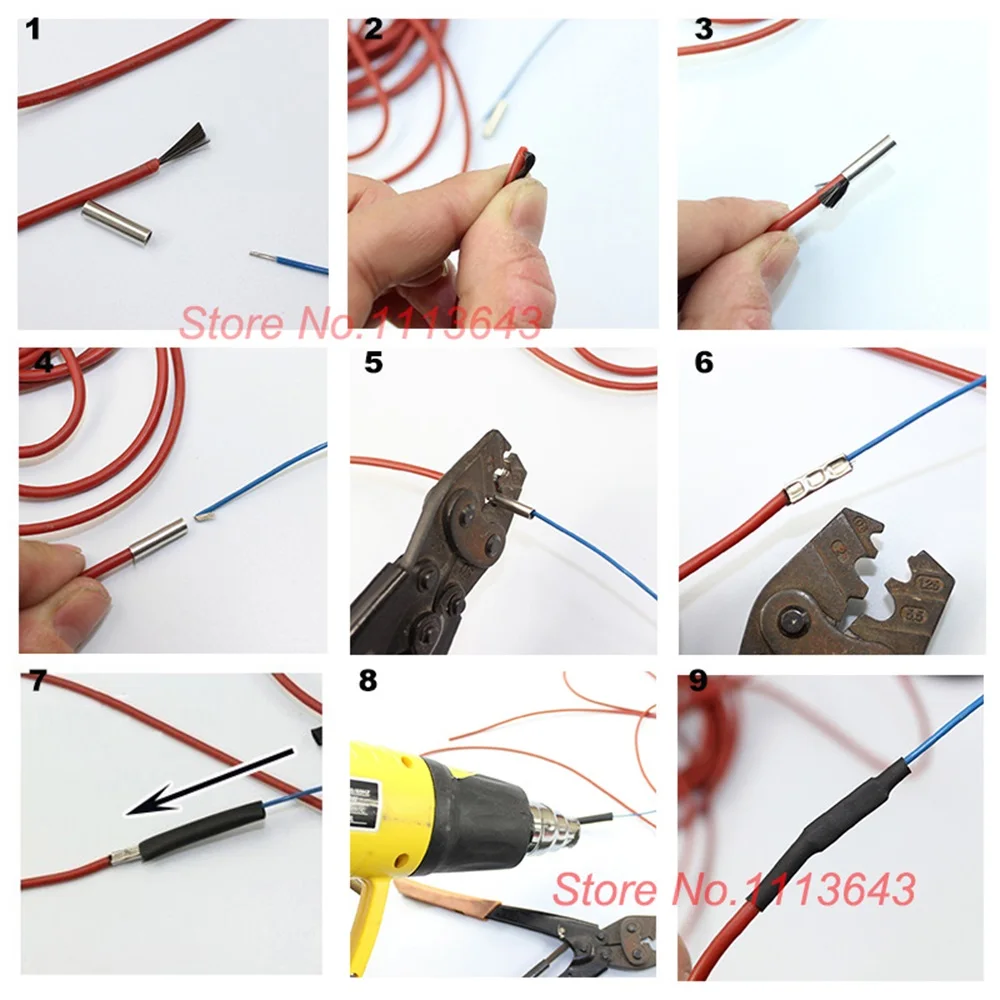

Wire Connection

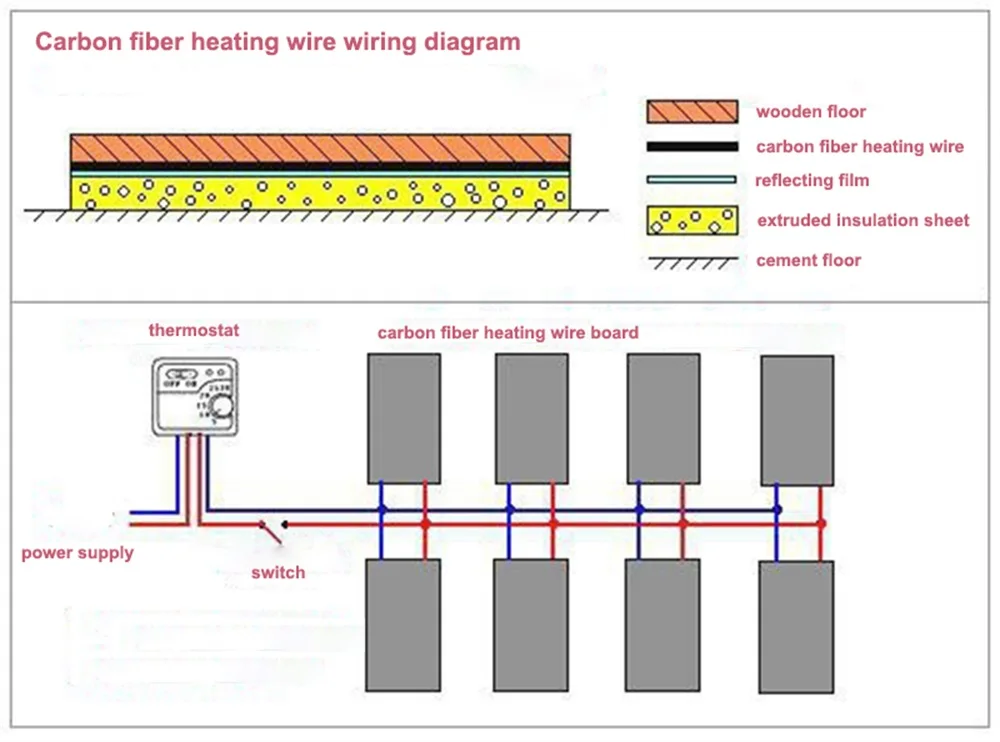

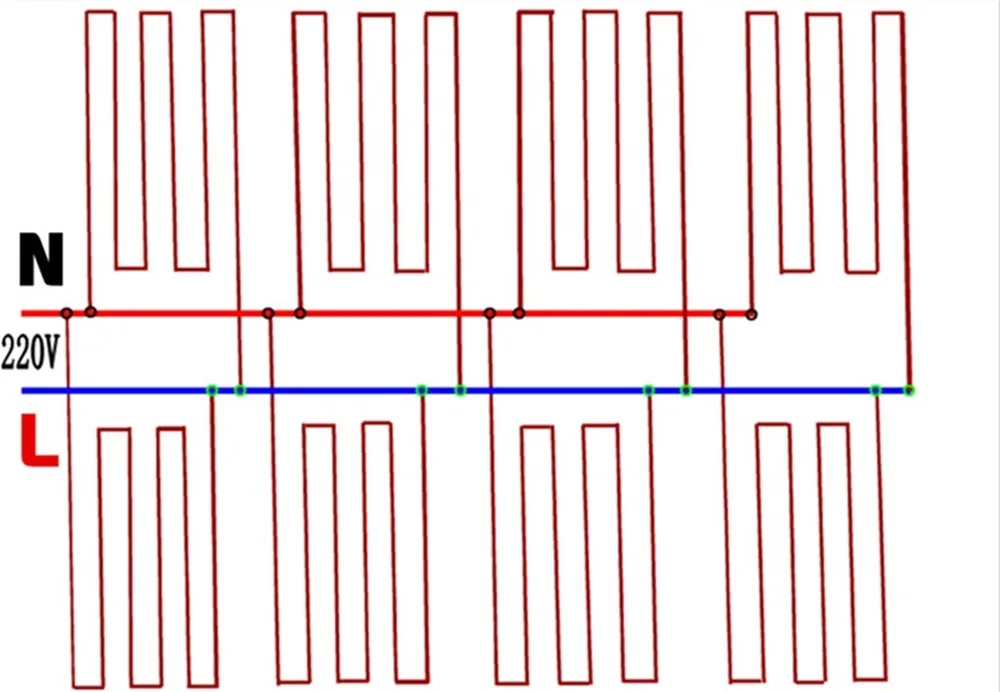

Wire Diagram

Product Advantages:

1. High energy-efficient: Don't need other transmission medium, the electrothermal conversion efficiency is above 98%.

2. Comfortable and healthy: New infrared floor heating, make the temperature uniformity, promote blood circulation.

3. Easy to install: The carbon fiber heating wire cost a little, and has a long life span, an investment, life-long benefit, low maintenance costs.

And etc...
