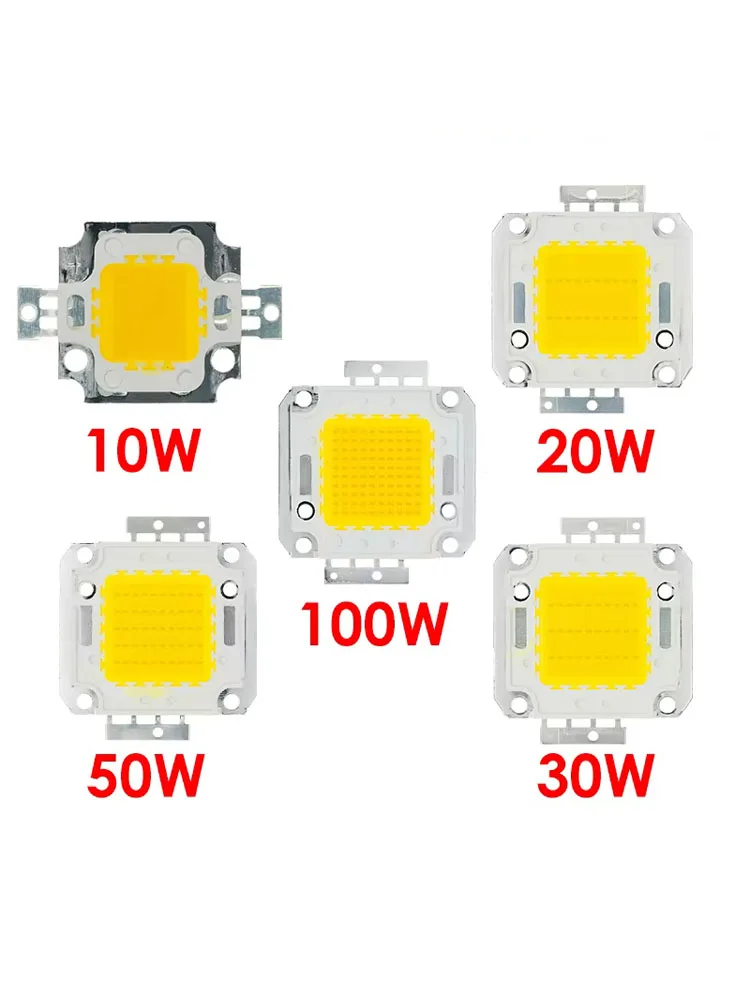

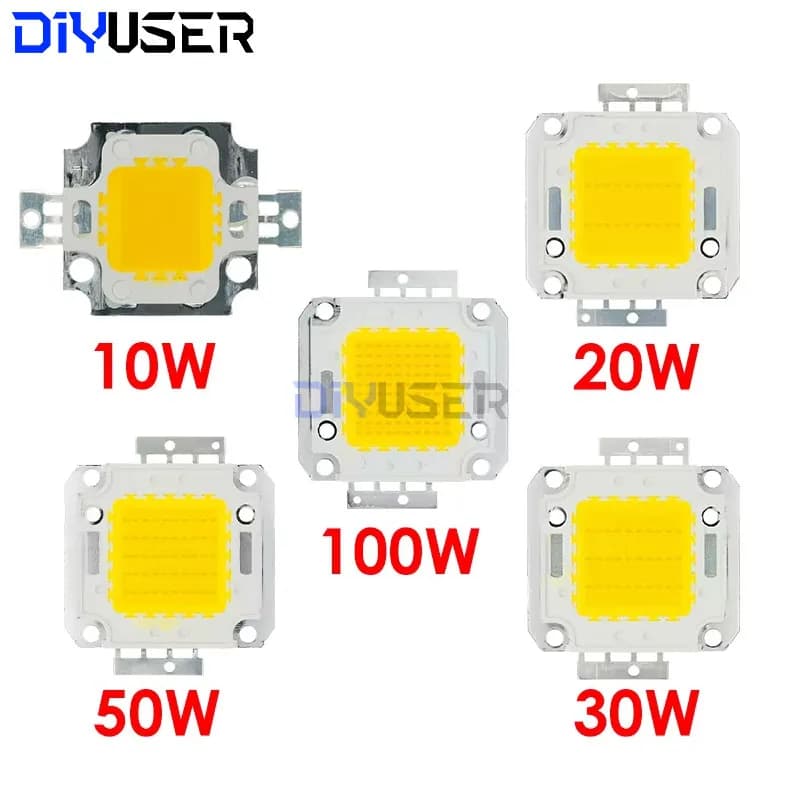

DIYUSER 10W 20W 30W 50W 100W White/Warm white LED CHIP Integrated High Power Lamp Beads 24*44mil 32V-34V 3200K-6500K 600-3000MA

LED 10W Product Description:

LED bulb Power: 10W

Luminance: 900-1000LM

Current: 800-900mA

Voltage: DC 9-12V(if use DC 12,Recommended Series a about 1.50 ohm resistor to use)

Integrated approach:

Series 3 and 3 Color: Daylight white /warm white

Size (L x W): Approx. 1.15 x 0.8 inch / 2.9 x 2 cm

Light-emitting part of the size: 11mm * 11mm

LifeSpan Time : > 50,000 hours

Application: Landscape scene / spot lighting

Architectural lighting Display scene Artwork lighting general lighting Amusement park scene

Aquarium lighting LED 20W

Specifications: 1.Model Number:AXD-20WGJ24WW

2. Product name: Integrated Led Light Bead

3. Shapes: Tetragonum

4. Integrated way: 10 string 2 merge

5. Power: 20W

6. Forward Voltage: 32-34V

7. Forward Current: 600mA

8. Luminous Flux: 1600-1800LM

9. color-rendering index: 60-85

10. Beam Angle: 120 degrees

11. Working Temperature: -20 centigrade to 60 centigrade

12. Color Temperature: Warm White: 3000-3200K White: 6000-6500K

13. Lamp Body Material : Pure Copper Bracket

14. Life Span: 50,000 Hours

Features:

1. Low Heating Generation To Reduce Electricity Consumption

2. Saving Money on Electricity fee

3. Great Reducing Carbon Emission

4. Minimizing Drastic Climate Change

5. Great Reducing Maintenance Cost

6. Long lifespan

7. Instant start, no flashing

8. Solid State, shockproof

LED 30W Product Description Specifications:

1.Model Number:AXD-30WGJ24WW

2. Product name: Integrated Led Light Bead

3. Shapes: Tetragonum

4. Integrated way: 10 string 3 merge

5. Power: 30W

6. Forward Voltage: 32-34V

7. Forward Current: 900mA

8. Luminous Flux: 2400-2700LM

9. color-rendering index: 60-85

10. Beam Angle: 120 degrees

11. Working Temperature: -20 centigrade to 60 centigrade

12. Color Temperature: Warm White: 3000-3200K White: 6000-6500K

13. Lamp Body Material : Pure Copper Bracket

14. Life Span: 50,000 Hours

Features: 1. Low Heating Generation To Reduce Electricity Consumption

2. Saving Money on Electricity fee

3. Great Reducing Carbon Emission

4. Minimizing Drastic Climate Change

5. Great Reducing Maintenance Cost

6. Long lifespan

7. Instant start, no flashing

8. Solid State, shockproof

LED 50 Specifications:

1.Model Number:AXD-50WGJ24WW

2. Product name: Integrated Led Light Bead

3. Shapes: Tetragonum

4. Integrated way: 10 string 5 merge

5. Power: 50W

6. Forward Voltage: 32-34V

7. Forward Current: 1500mA

8. Luminous Flux: 4000-4500LM

9. color-rendering index: 60-85

10. Beam Angle: 120 degrees

11. Working Temperature: -20 centigrade to 60 centigrade

12. Color Temperature: White: 6000-6500K Warm White: 3000-3200K

13. Lamp Body Material : Pure Copper Bracket

14. Life Span: 50,000 Hours

Features: 1. Low Heating Generation To Reduce Electricity Consumption

2. Saving Money on Electricity fee

3. Great Reducing Carbon Emission

4. Minimizing Drastic Climate Change

5. Great Reducing Maintenance Cost

6. Long lifespan

7. Instant start, no flashing

8. Solid State, shockproof

LED 100W

1.Model Number:DRP-100WGJ24WW

2. Product name: Integrated Led Light Bead

3. Shapes: Tetragonum

4. Integrated way: 10 string 10 merge

5. Power:100W

6. Forward Voltage: 32-34V

7. Forward Current: 1700mA

8. Luminous Flux: 9000lm

9. color-rendering index: 60-85

10. Beam Angle: 120 degrees

11. Working Temperature: -20 centigrade to 60 centigrade

12. Color Temperature: White: 6000-6500K Warm White: 3000-3200K

13. Lamp Body Material : Pure Copper Bracket
