Feyree EV Charger Station Adapter GBT to Type 2 IEC 62196-2 Converter EVSE Single/Three Phase Connector 16A 32A for Type 2 Cars

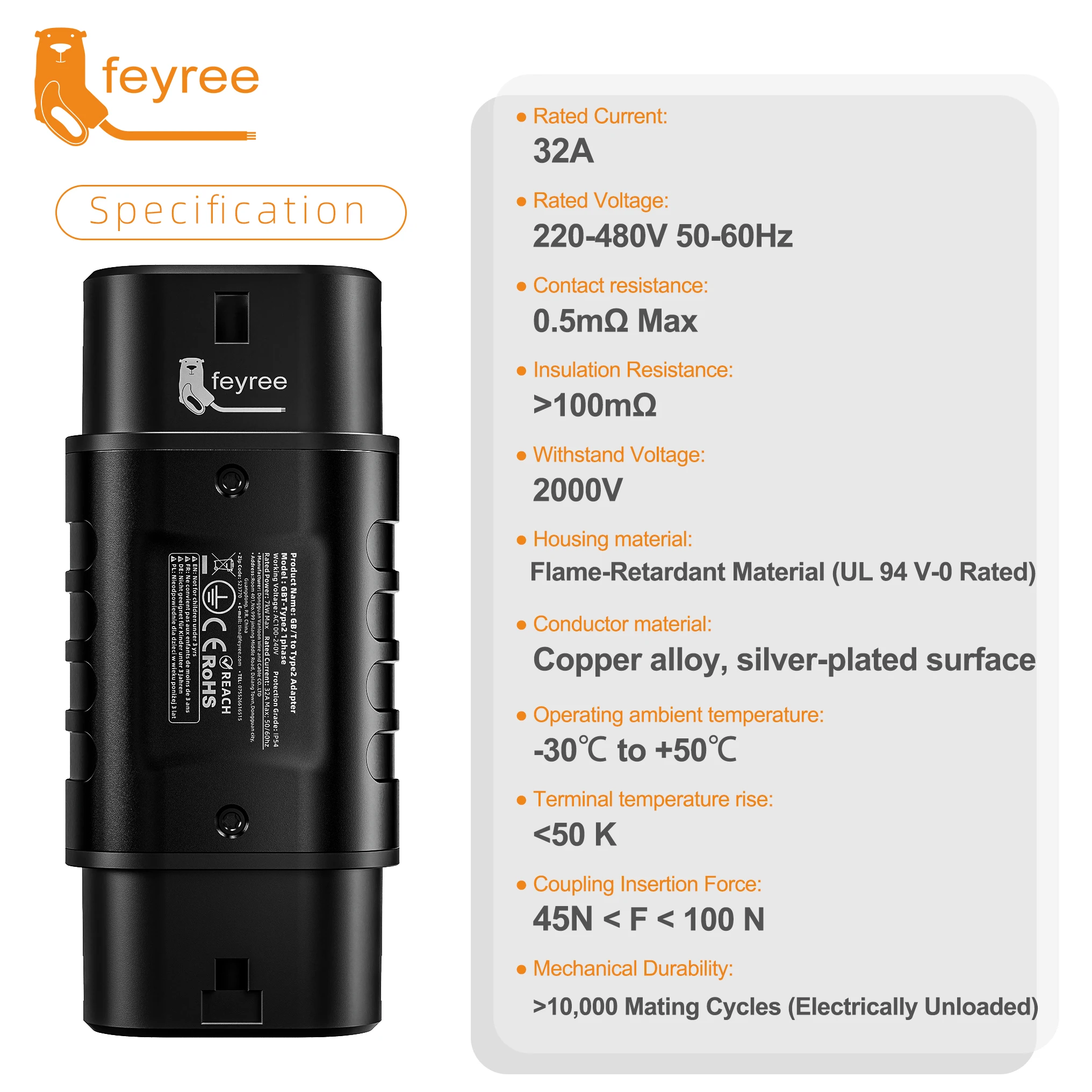

Specifications:

Rated Current: 32 A

Rated voltage: 220V-480V

Insulation Resistance:≥100MΩ

Withstand Voltage:2000V

Contact Resistance:0.5mΩ Max

Plastic fire rating: UL94 V - 0

Mechanical Life:More than 10000 Times(No-Load Insertion and Extraction)

Insertion force of products: <80 N

Waterproof level: IP55

Working Environment:-30℃-55℃

Features:

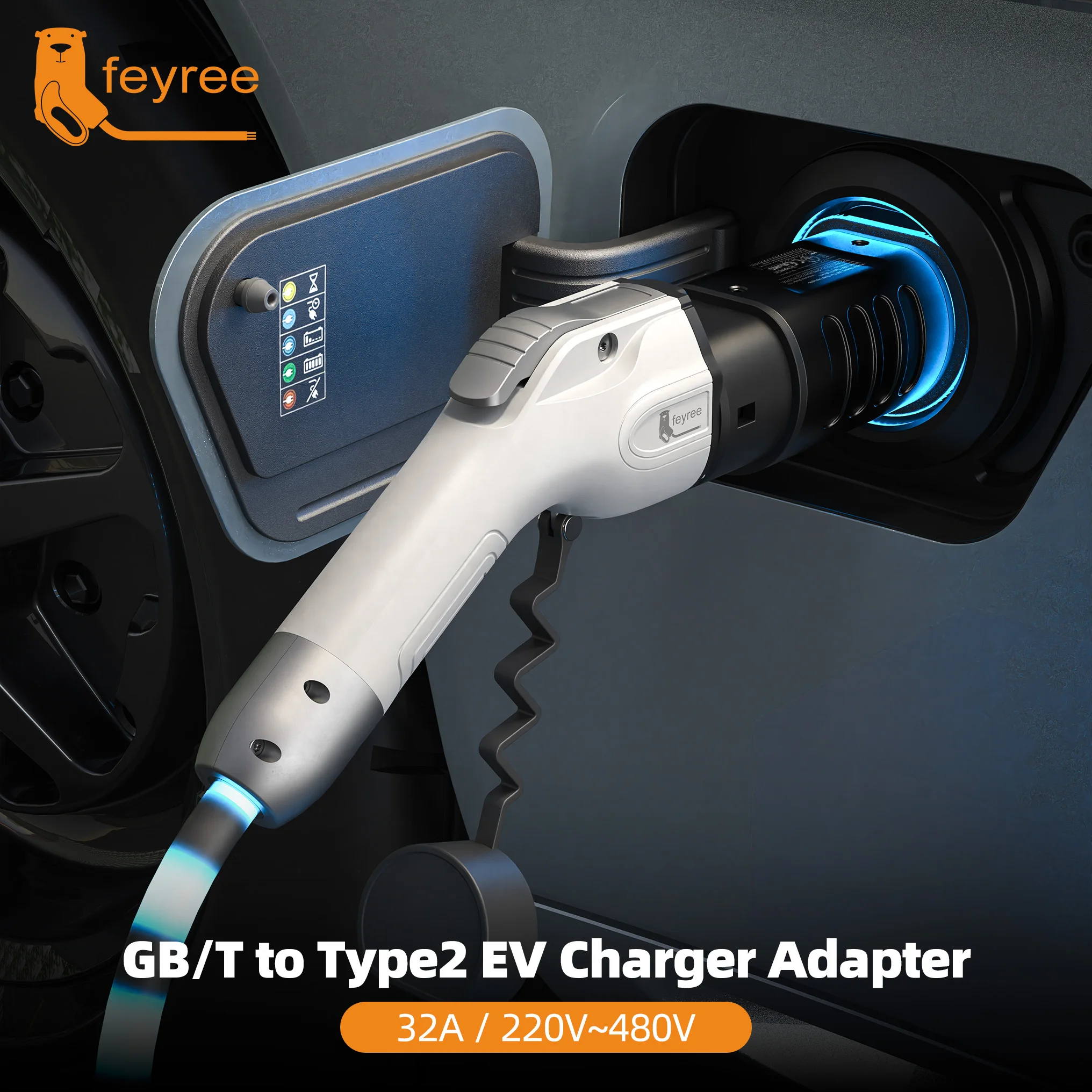

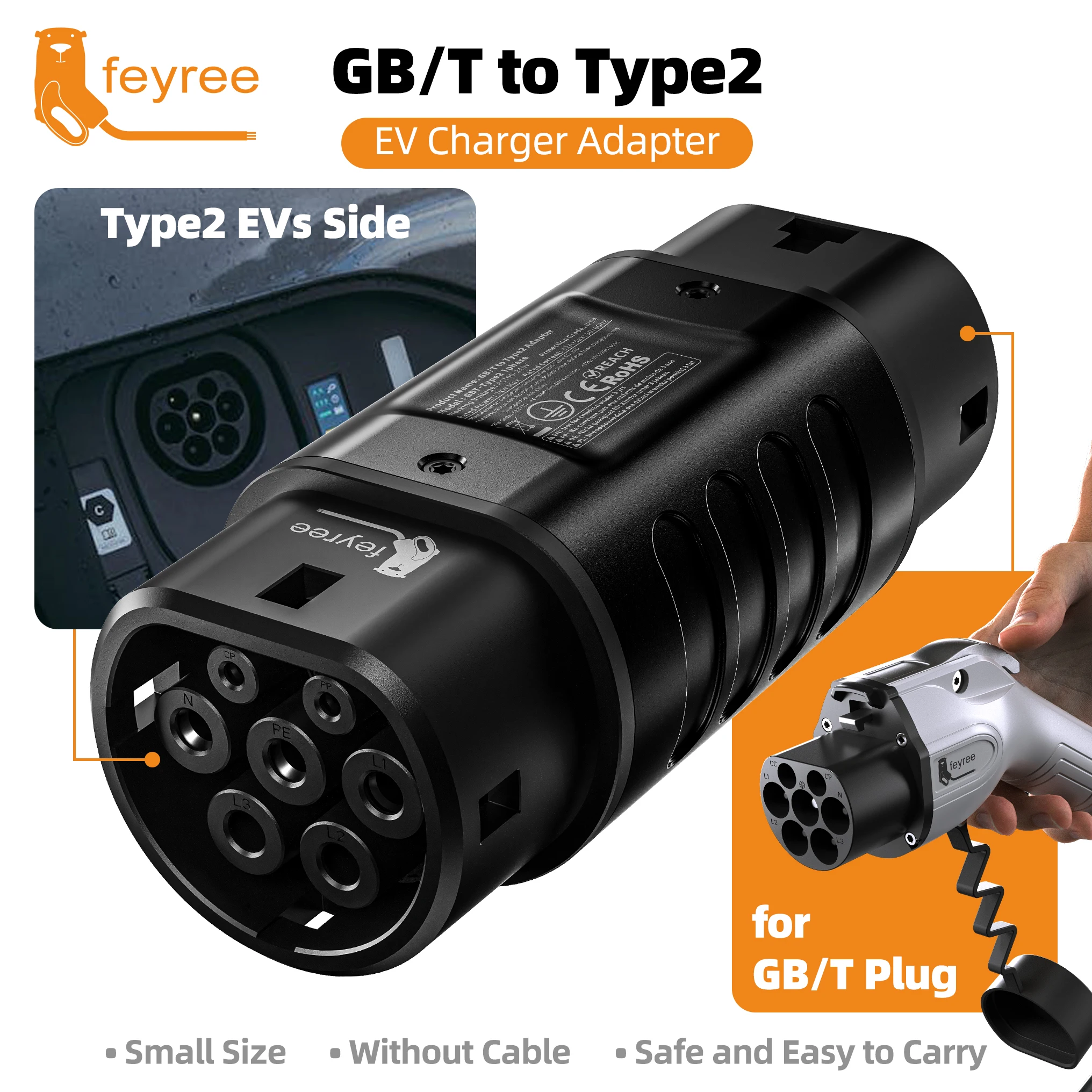

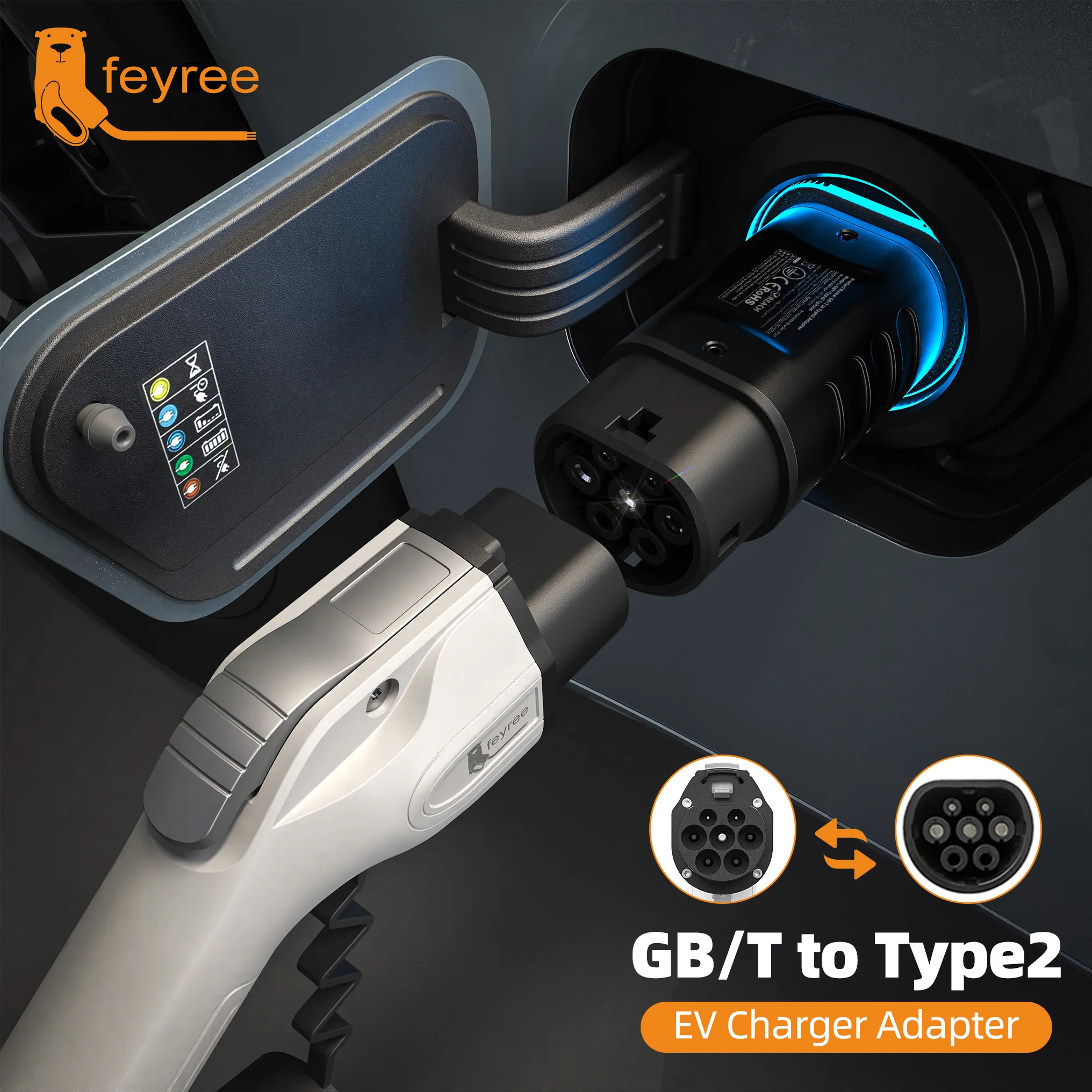

 COMPACT CHARGING ADAPTER:Used to connect the GBT standard charger to your type 2 vehicle, is common use to type 2 connecter vehicles.

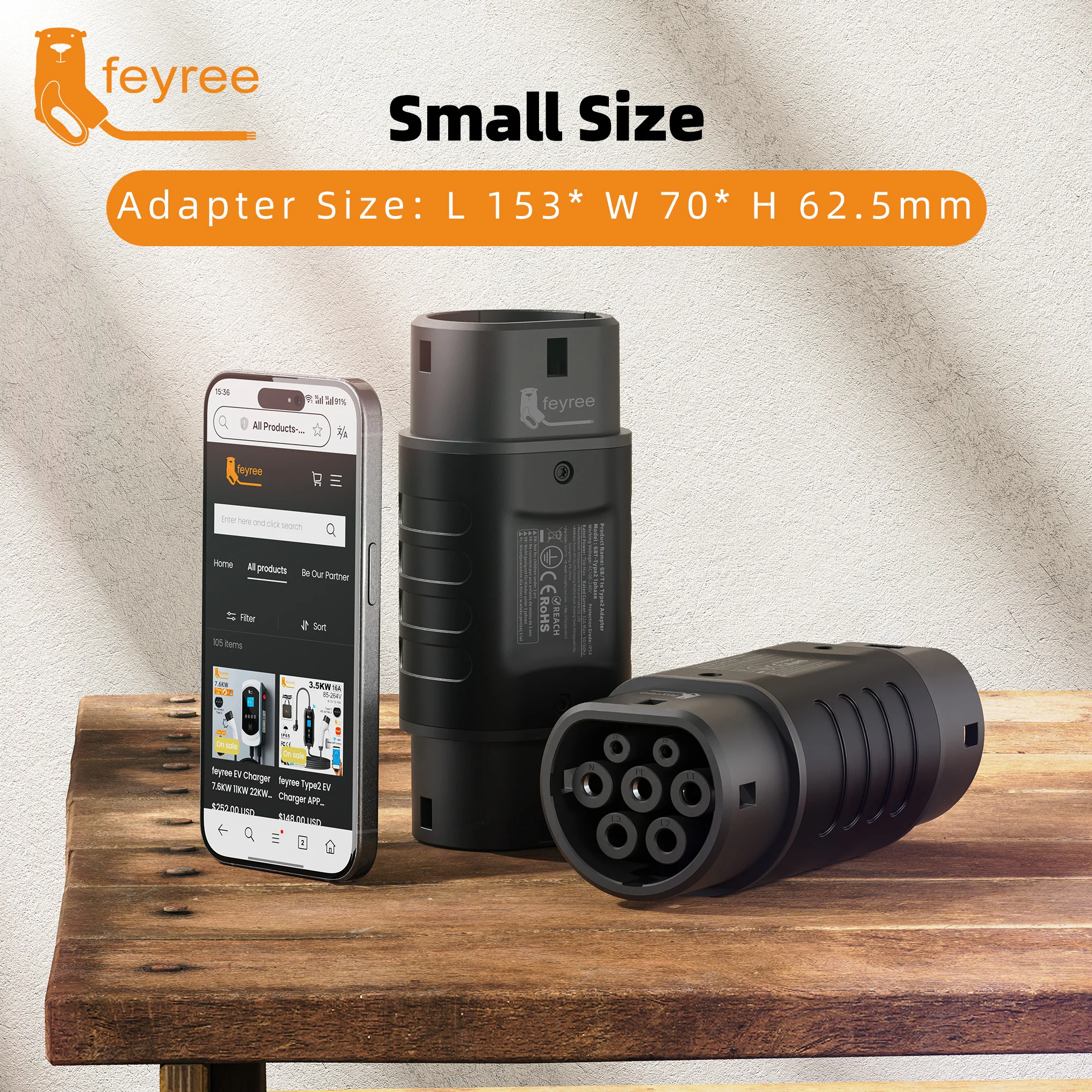

PORTABLE SMALL SIZE:Without cable,easy to carry.

RATED CURRENT AND VOLTAGE :220V-480V AC , 50-60Hz, 32A Max. With an operating temperature of -22°F to 122°F (-30°C to +50°C). It does not slow down the charging speed.

WATERPROOF WITH IP55 PROTECTION :The adapter is well protected from water sprays and dustproof ,but it is not suitable for charging outdoors on rainy days.

Insulation resistance:0.5Ω Max

IP Rating:IP 55

Insertion/withdrawal force: <80 N

Operating Temperature:-30℃ - +50℃

Mechanical Life(Normal use):>10000 Times

Material: Thermoplastic, Flame Retardant Frade UL94 V-0

Pin Material: Copper Alloy, Silver plating + Thermoplastic On The Top

Package Contents:

1*Charger Adapter

1*User Manual
