HA 60mm Auto Gauge Standalone Meter 7Color Def I Advance A1 Oil Pressure Turbo Boost EGT Exhaust Temp Tachometer Water Oil Temp

GOOD SELL

Product: Auto Gauge Defi Advance A1 60mm 7Color Oil Pressure Water Oil Temp EGT Exhaust Temp Turbo Boost Tachometer Meter

Features:

-2.5" (60mm) diameter gauge.

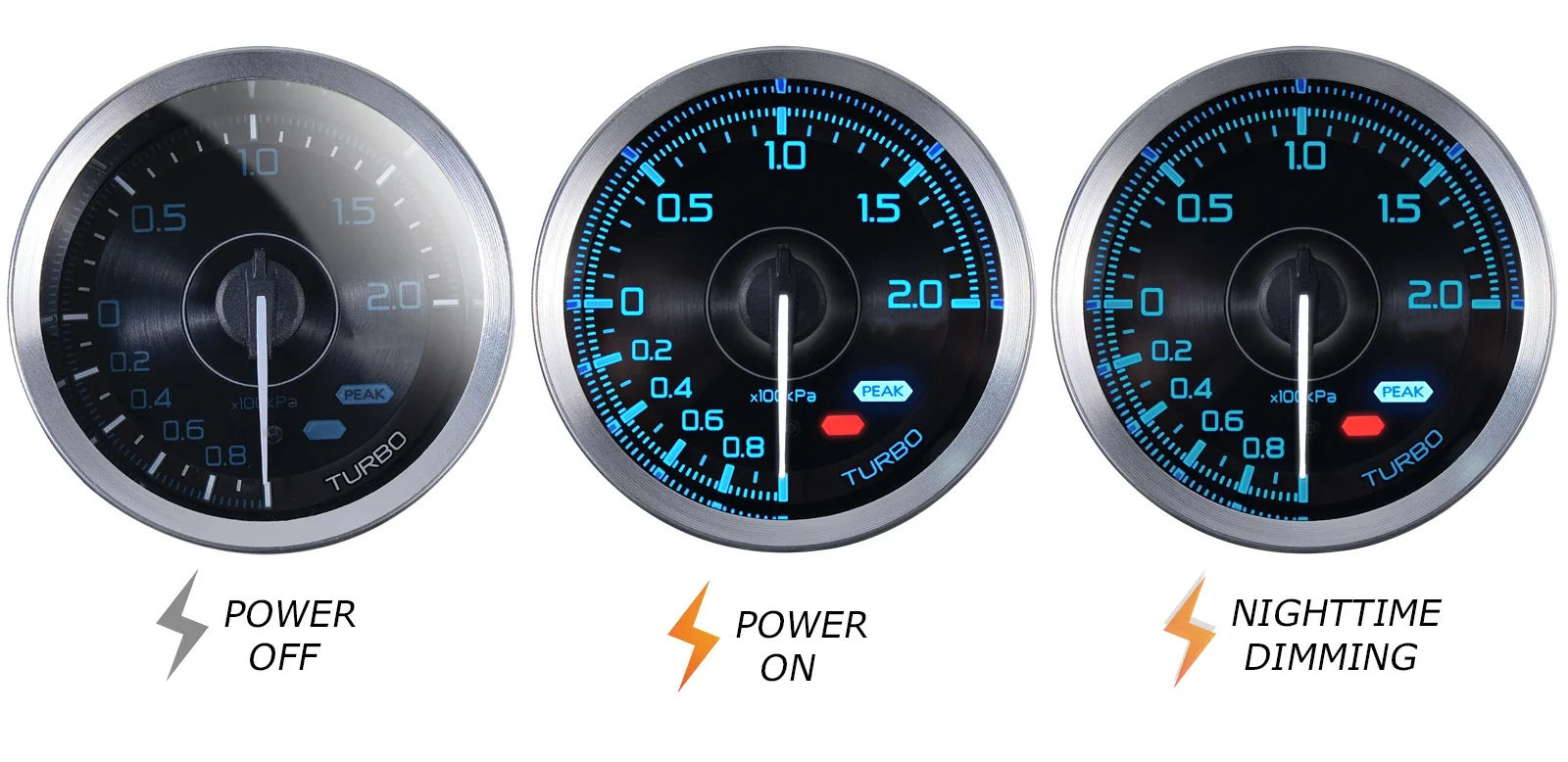

-7 colors backlights can be selected, and it can memory the setting in the both daytime and night mode.

-Brightness can be selected in 6 different levels, and it can memory the setting in the both daytime and night mode.

-3 buzzer types can be selected (slowly →fast→all the time).

-4 buzzer levels can be selected. (silence →resounding)

-5 Varations open ceremonies can be selected.

-A warning value (arbitrary) can be set and the warning buzzer can be selected from three variations or turn off.

-Data obtained during driving (top value and warning value) can be stored up, and the top value can be reviewed and cleared.

-Brushless stepping motor is used to enable a smooth, instantaneous response to high performance sport driving.

Common Button Operation:

1.There is a button in the backside of the gauge.They are used to review and clear top value,change the colors, adjust the brightness, choose the buzzer, set the warning etc.

2.Short press to switch between different functions settings,long press until buzzer sounds, then enter the setting mode.It will return to normal status when the button is released after 5 seconds.

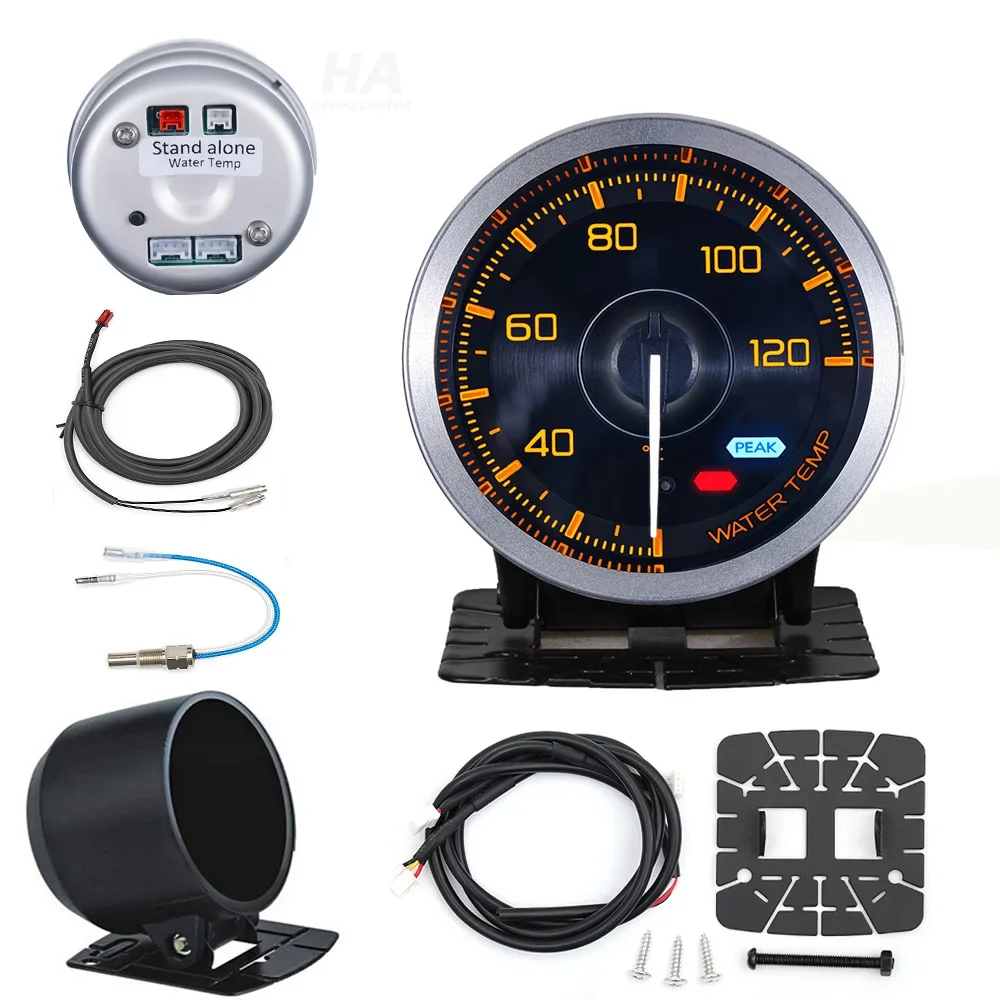

WAHT'S INCLUDED

1*Gauge

1*Electric sensor

1*power wire

1*Meter cup

1*Mounting Bractet

1*Double sided rape

Power Wires Connecting :

White wire : To 12V wire when ignition on

Red wire :To 12V battery wire

Yellow wire : To 12V wire when small lamp on

Black wire : To ground
