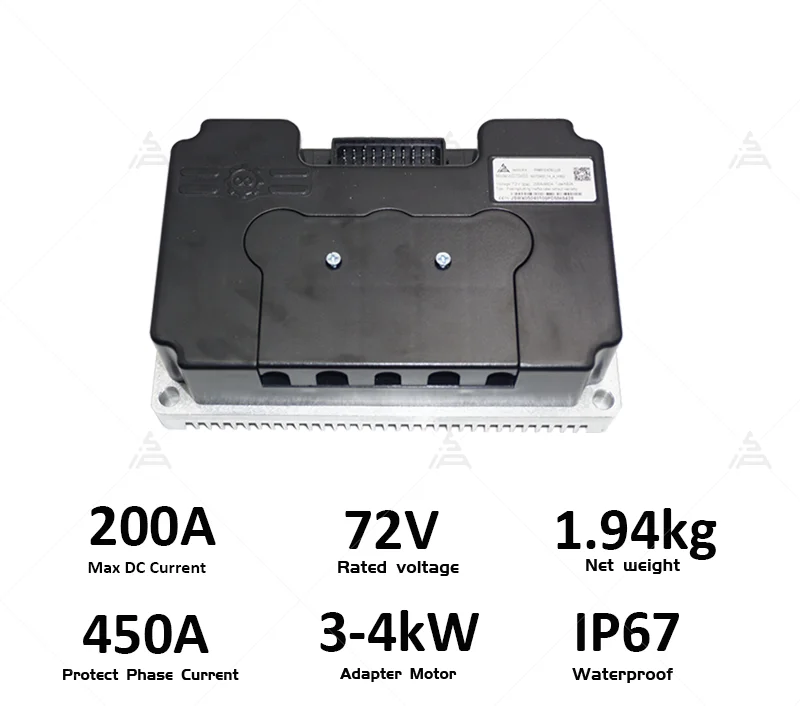

Fardriver Controller ND72450 200A Carro Electrico Adullto For Ebike Fardriver Programmable Controller with BT

SIAECOSYS/FARDRIVER ND72450 High Power Electric Motorcycle Controller 200A BLDC Programmable with Bluetooth Module for 3-4kW QS Motor

FarDriver controller is a sine wave type controller, which is brushless DC controller with auto-learn function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.

NOTE:

1.Orders do not include customs duties, which are borne by the buyer.(Except for some aliexpress marked orders including tax).

2.For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support. (special countries list contact seller)

One set including below kits

Combo1.

1. 1pcs X ND72450 sine wave controller

2. 1pcs X Bluetooth module

Key Features

1). All the raw materials are imported, using high-performance Moss tube

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app compatible with Android and Apple

7). With flux weakening function.(The product does not contain magnetism)

Product Description

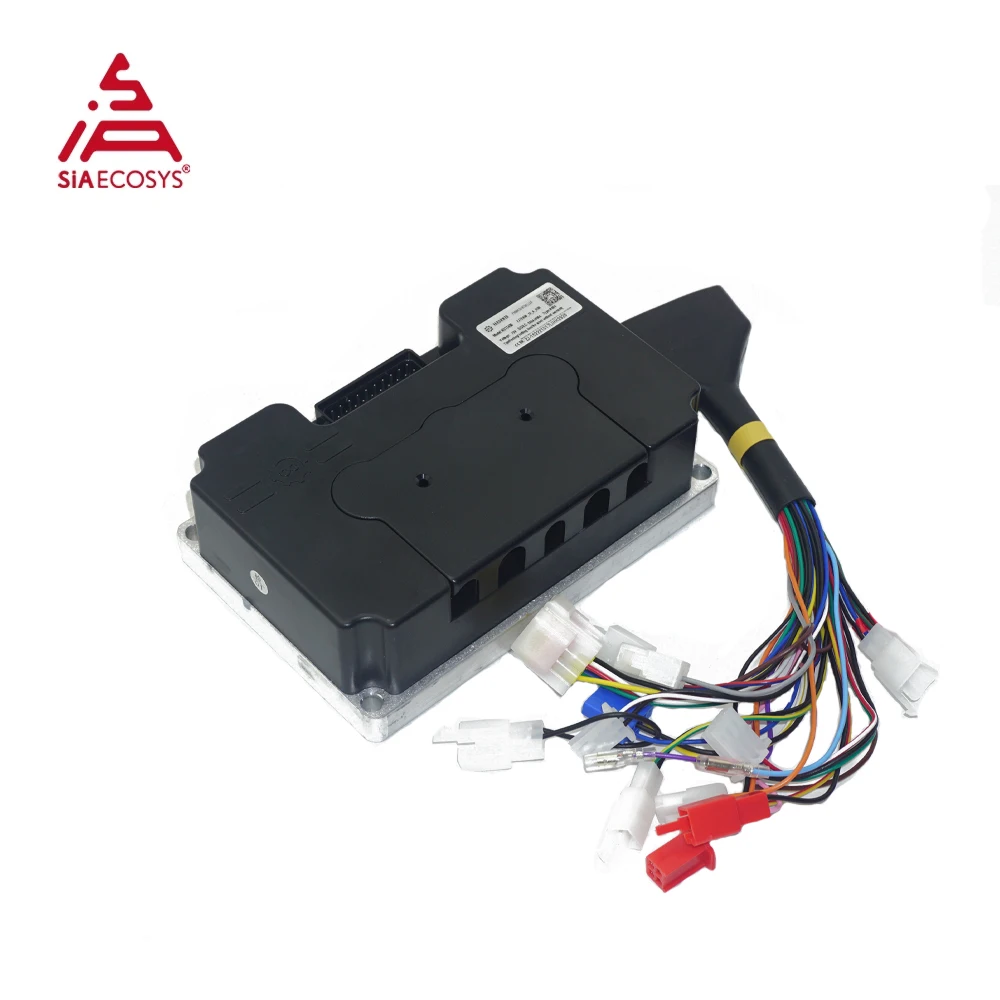

ND72450 is a sine wave controller with waterproofing grade IP67, suit for 3-4kW motors.

For ND72450, the peak voltage is 88V;

It’s hall version (as default) which suit with hall motors.

ND72450 Spec

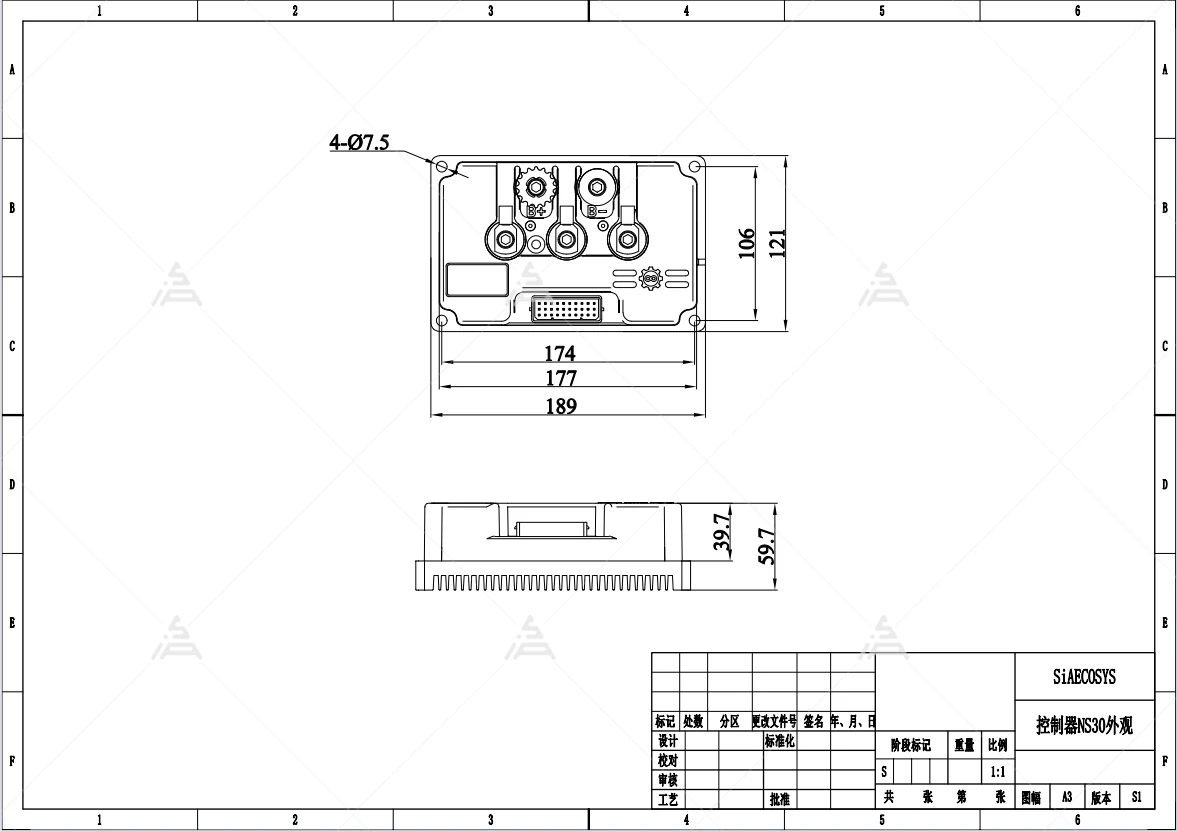

Drawing

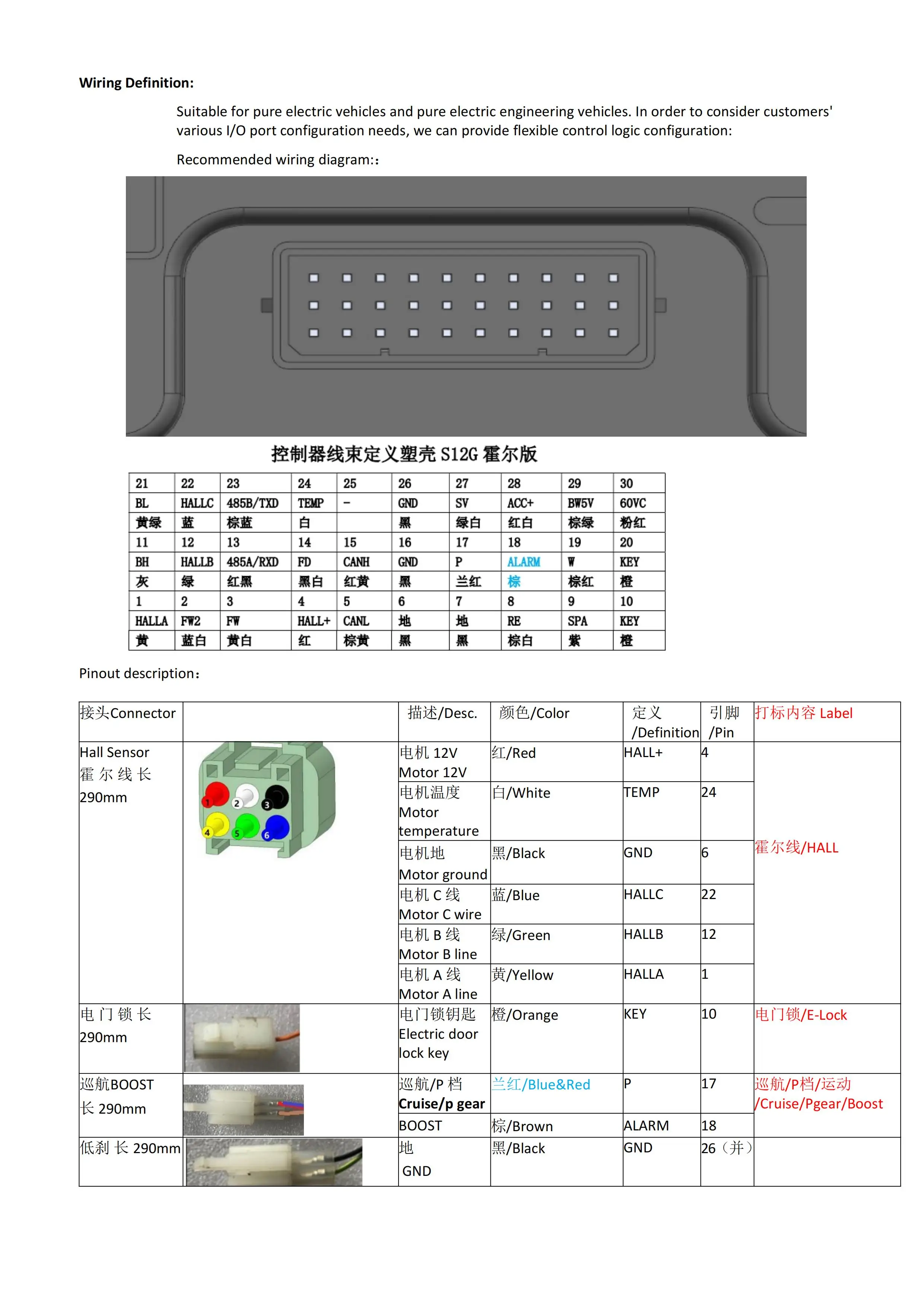

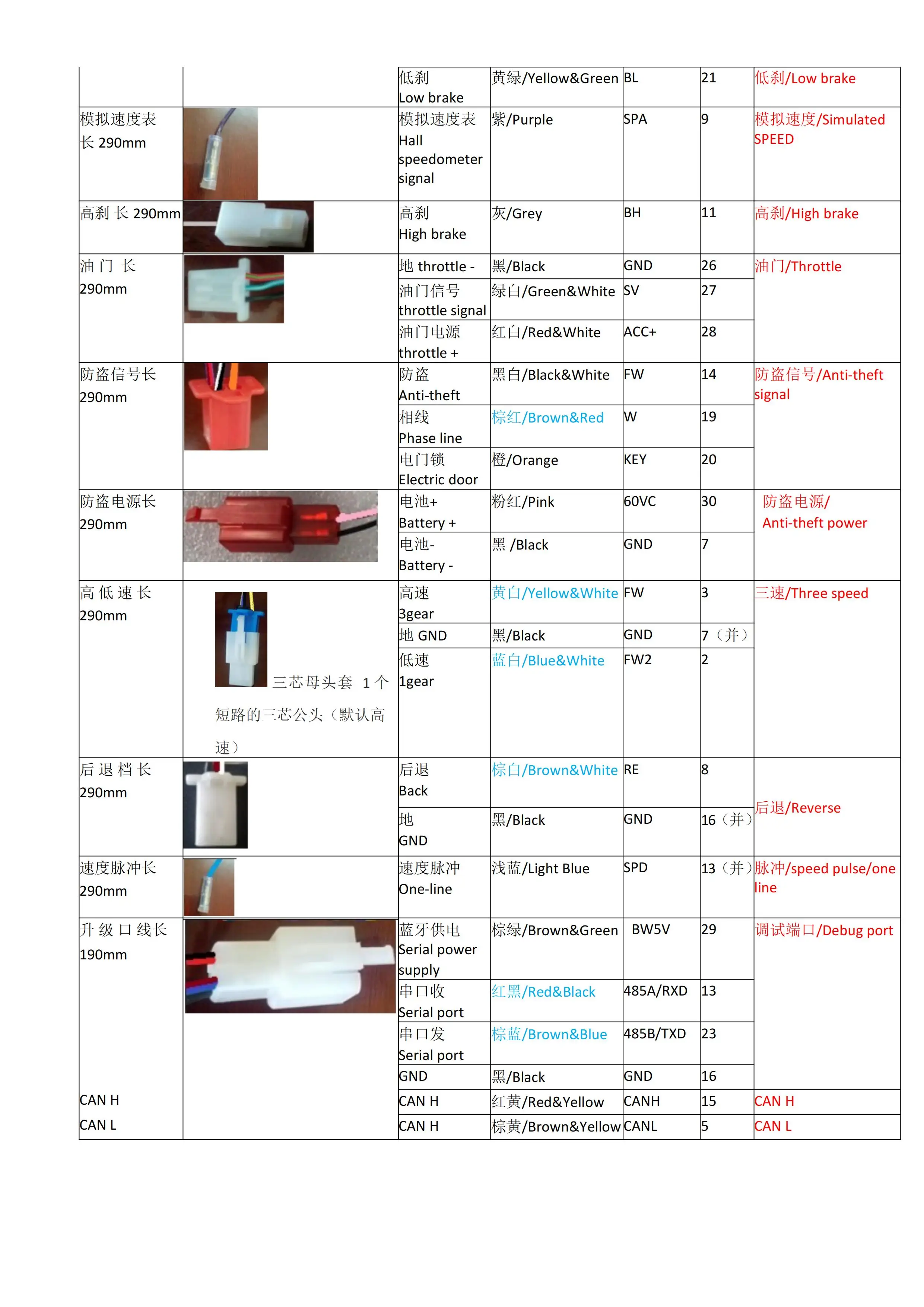

Harness Definition

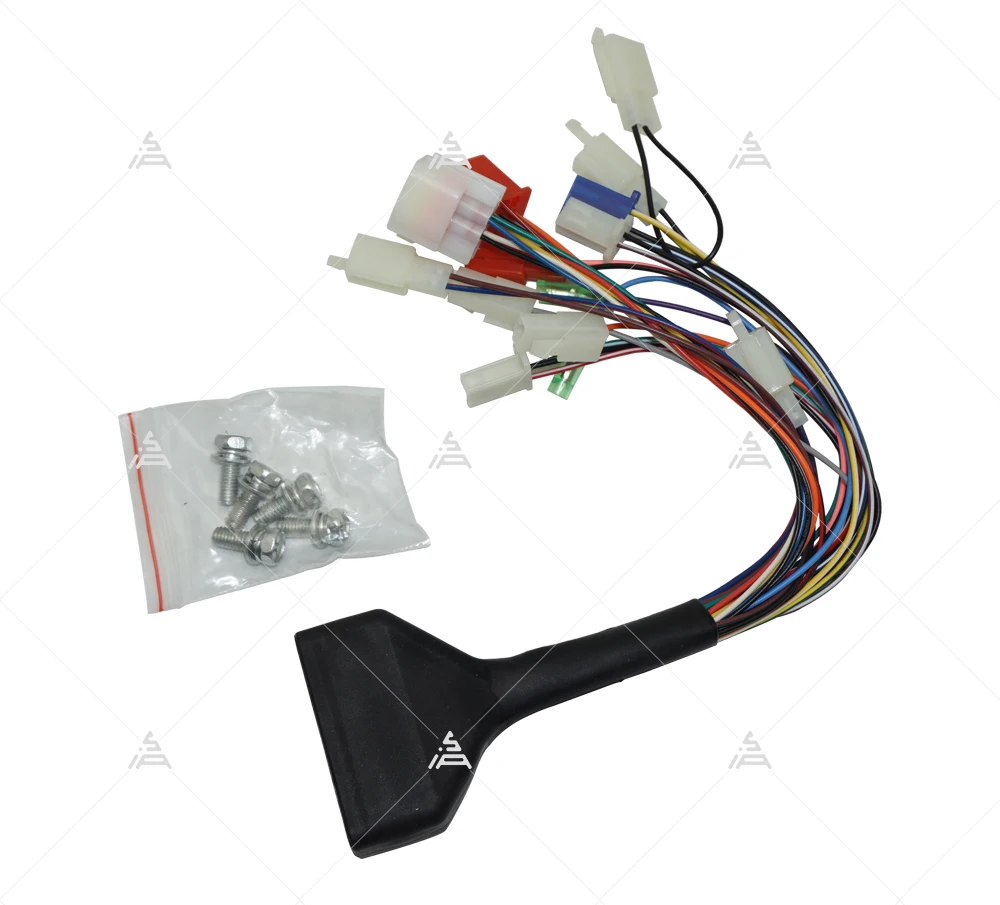

Adapter Cable

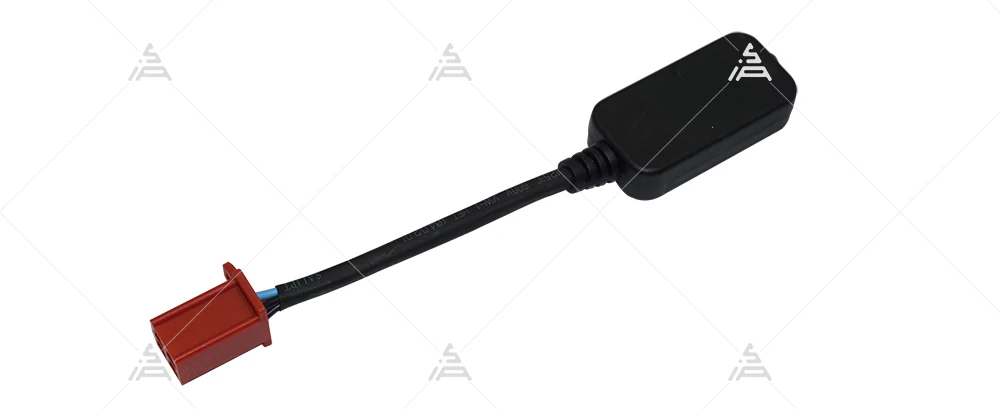

Bluetooth

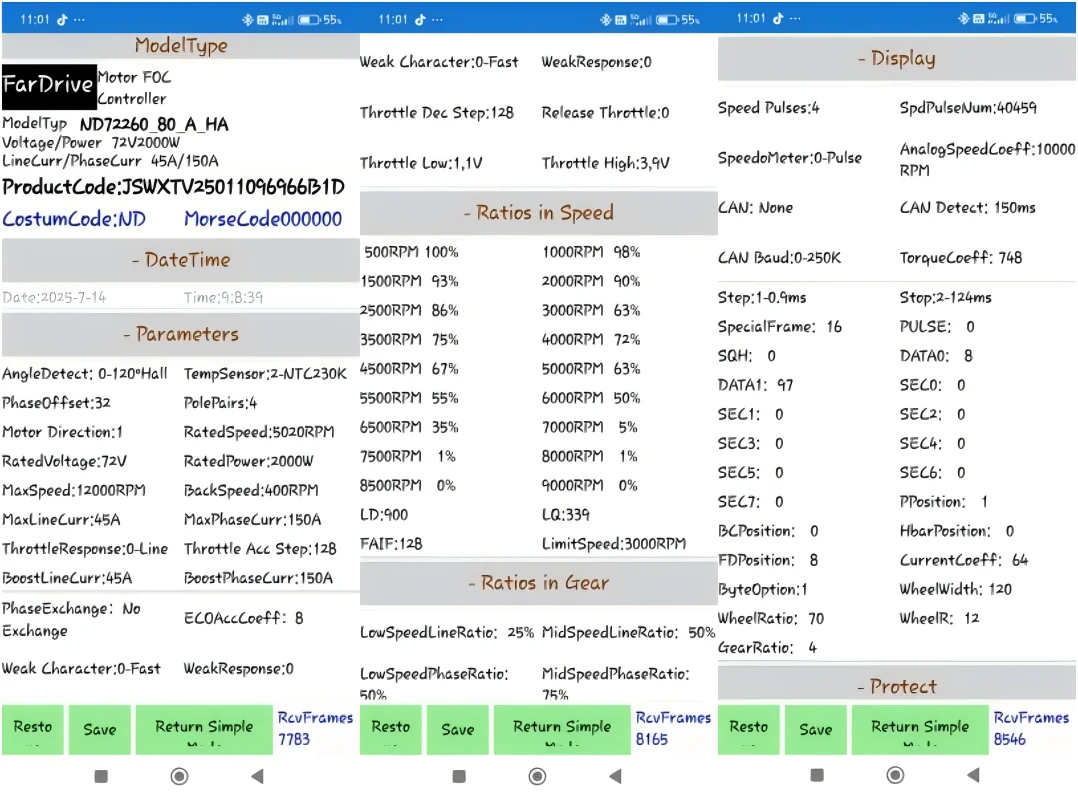

Software interface(APP)
