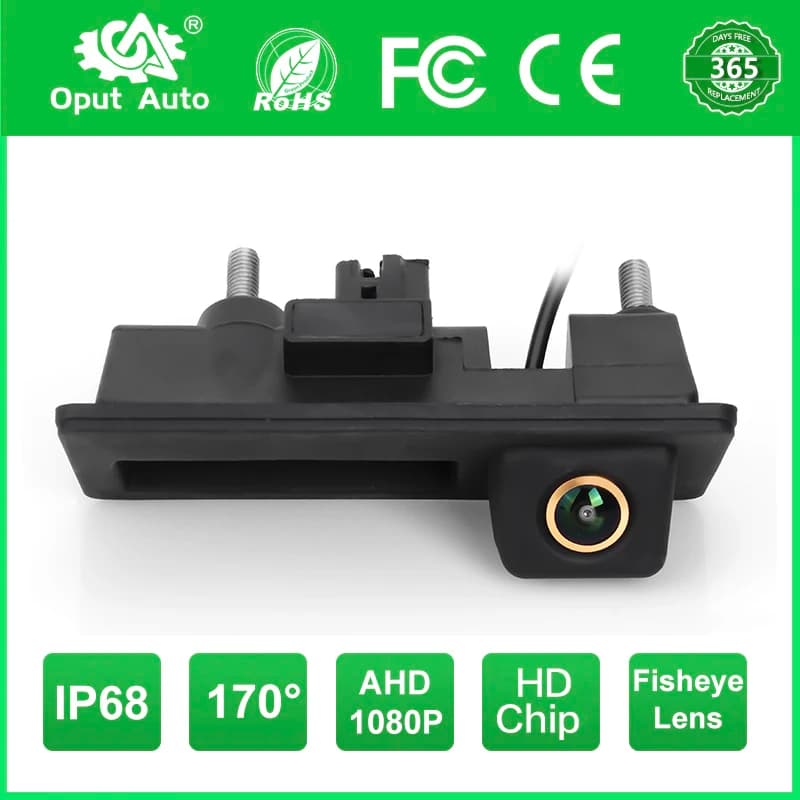

AHD 1080P 170° Car Rear View Trunk Handle Camera For Volkswagen VW Passat Golf Polo B6 B7 Jetta Tiguan Touareg Audi A3 A4 A5 A6

HD 1080P 170° Car Rear View Camera For VW Volkswagen Passat Golf Polo Jetta Tiguan Touareg B6 B7 Audi A3 8V A4 B8 A5 8T A6 C6 S5

NOT SUPPORT :A5 B8 / A4  B6 2004  2007/ A3 (8P 2013)/ Q5 MM

For Volkswagen ：
Jetta MK6 2010-2018
Jetta Sagitar 2012-2017
Lavida 2011-2016
Gran Lavida 2013 2015
Passat 2012-2016
Passat B5 2009 2010
New Passat 2011 2013 2015
Sharan Seat Alhambra 7N 2011-2015
Tiguan(5N facelift) 2008-2015
Touareg 2011-2016
Touran 1T3 1T2 2011-2015
Caddy 4 2011-2015
T5 Facelift 2011-2015
Golf Sportwagen 2.5 2011-2015
Golf VI Variant ab from 2010
For Audi：
A3 A6L 2012-2017
A4 B8 (Facelift ) 2008-2015
A4 B6 A4L A5 A8L S5 S3 2011-2015
Q3 Q5 2012-2016
Q7 2015-2017
Audi RS6 2009-2015
​For Porsche：
Cayenne 2009 2010 2011 2012 2013 2014
Cayenne 958 2011-2015 Android Radio Player

* AHD technology produces High-definition video signal, it adopts advanced Y/C signal separation and filtering technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
* Highly integrated 2053 HD chip, Max HD 1080P resolution. 170 degrees 6 Glass Fisheye Lens. Zero-delay front-end data is not encoded and compressed to the back end, Full real-time, High fidelity.
* The Camera supports both AHD and CVBS video signal, it can work with both AHD Android monitors and all CVBS TFT monitors.
* Chip: HD Sony/OV2053HD
* Viewing Angle: 170~175 Degrees Visible Range .
* Effective Pixels: CVBS: 1280x720P (NTSC/30HZ), AHD: 1920x1080P (PAL/25HZ)
* Signal Format: NTSC or PAL
* Image Resolution: 92W/200W pixels
* Video Output: AHD Video Signal or CVBS Video Signal
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image: Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens: 14/16MM Fisheye 6 glass Lens .
* Waterproof: IP68 /IP69
* Working Power Supply: DC 12V~24V, 2A
* Working Temperature: -30 °C ~ +70°C
* Maximum Power: 3W
Tips:

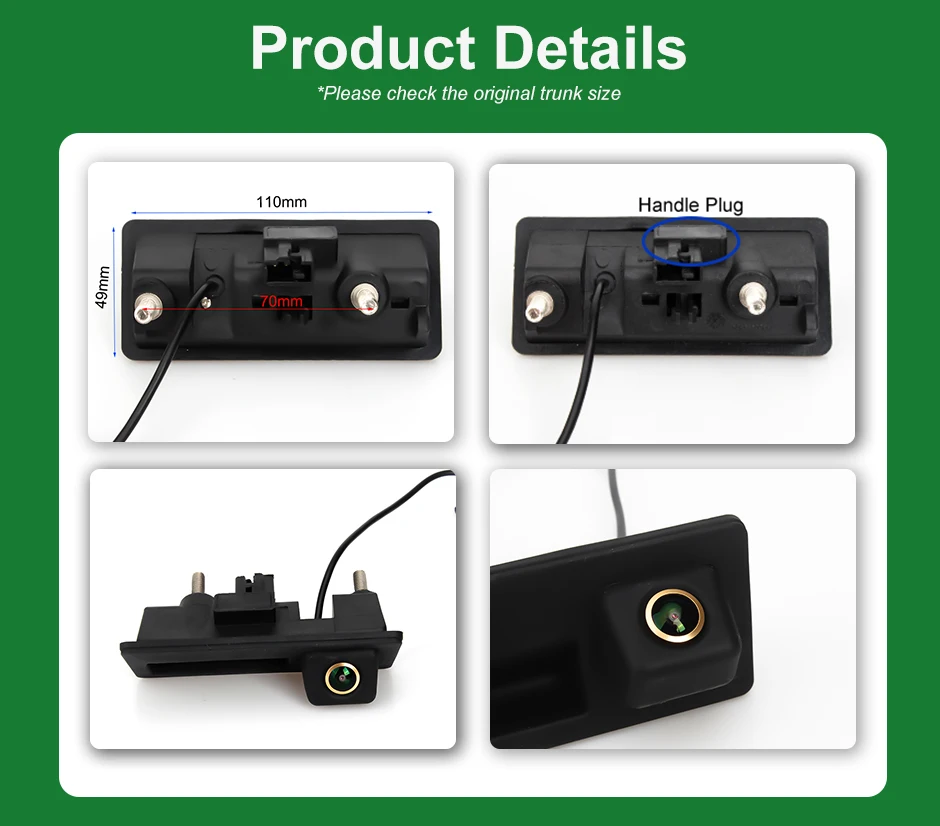

1. Because there may be slight differences between cars produced in different countries, please check the size before buying.
2. If your monitor can not support AHD video signal, please Cut the white wire change to CVBS video signal, please re-connect all cables.(The trajectory camera only supports AHD video signal)
3. When connecting the camera with a DVD player, and it does not work properly, please check if the DVD reverse trigger wire is correctly connected.

FAQ：

How to choose a rear view camera that can be suitable for my car model?

A) According to the main car model, search in the shop, there will be several type of cameras, and then buy according to your actual original license plate/ handle.
B) Or you can measure your size and consult customer service to confirm the camera model.
Tip: because there may be slight differences between cars produced in different countries, please check the size before buying.

After connecting the rear view camera, the screen shows no signal, black screen and no picture, what should I do?

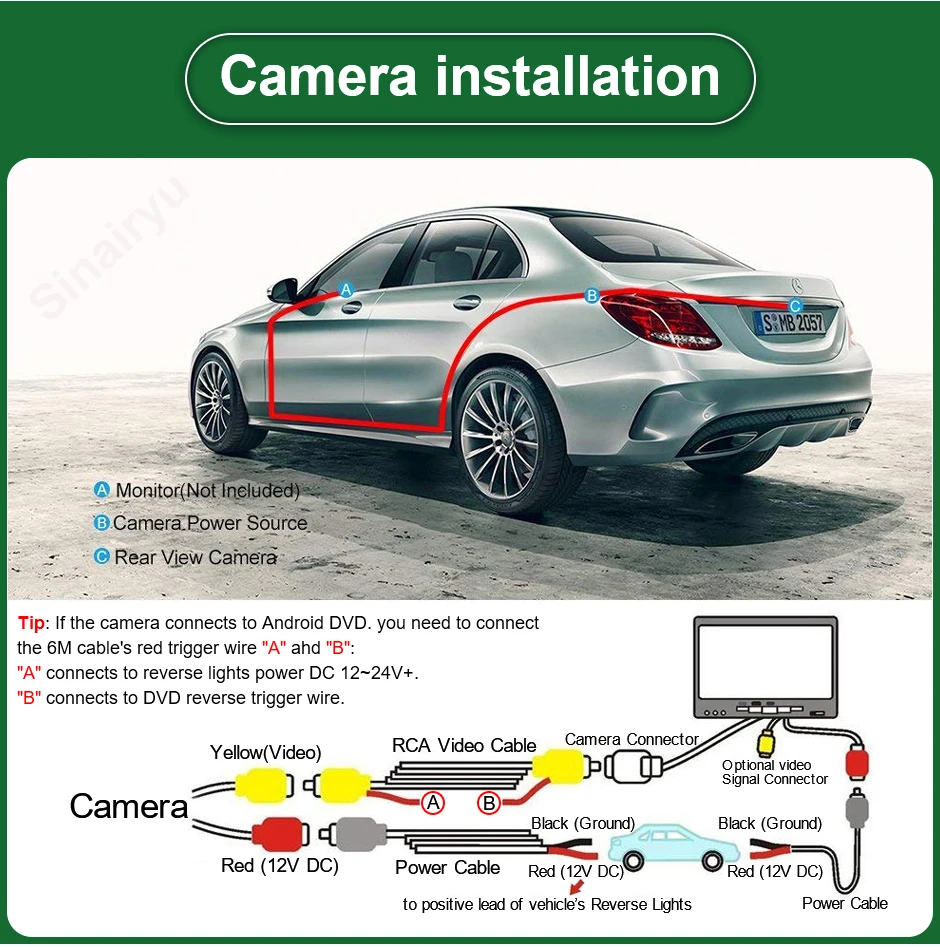

A) Please check your connection, red trigger line should connect to your reverse light and monitor reverse-in cable.
B) Please check your signal format, choose right signal to run the camera.
C) If your monitor has AUX-IN function, you can connect to the AUX-IN.
Tip: CVBS cameras can test the performance on the TV. Universal cameras with 4Pin plugs can only be installed with our cables. You can consult customer service if you encounter any problems during the installation process.

After connecting the rear view camera, the screen shows black and white, what should I do if there is no color?

A) Choose wrong camera system(such as PAL/NTSC) will cause the screen to be black and white. Please select the right system to run the camera and restart the camera power. CVBS camera is NTSC system, AHD1080P camera is PAL system.
B) Please check whether the 6M line is normal, please replace with another 6M cable to test the camera.

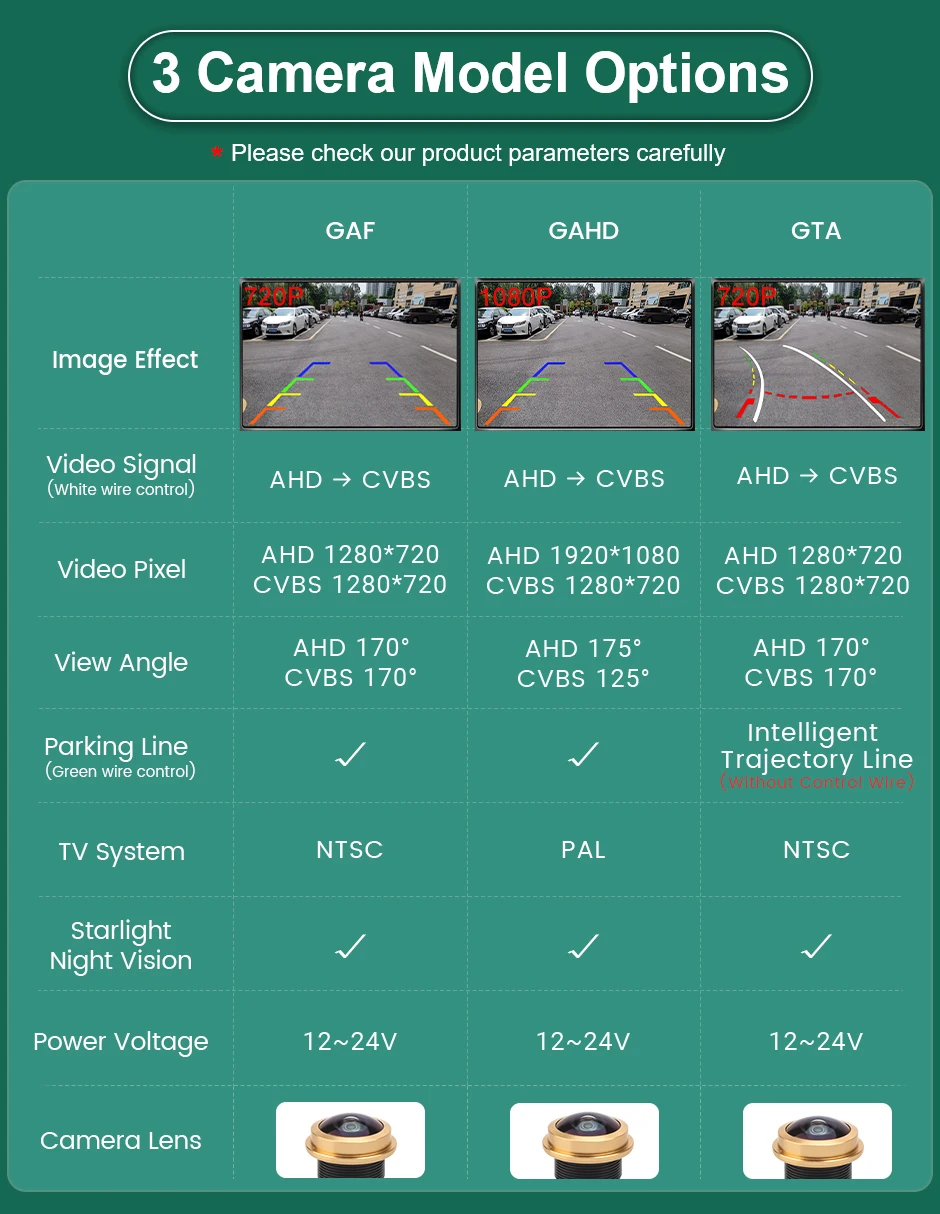

What functions do the white and green cables of the rear view camera control?

A) White cable: video signal control
• GFA camera:
( CVBS )+( 1280x720 )+( 170° )
Cut the white cable(reconnect the camera power)→( AHD )+( 1280x720 )+( 170° )
• GAHD camera:
( AHD1080P )+( 1920x1080 )+( 175° )
Cut the white cable(reconnect the camera power)→( CVBS )+( 1280x720 )+( 125° )
B) Green cable: parking line control
Camera with parking line/camera does not display parking line, you can cut the green cable, then reconnect the camera's power supply, that can change the parking line.
