Bleed Kit Oil Filler Kit 2Pcs For Seastar Hydraulic Steering Systems Bridge Tube Hose Marine Boat Yacht Accessories Repair Tools

Bleed Kit Oil Filler Kit 2Pcs For Seastar Hydraulic Steering Systems Bridge Tube Hose Marine Boat Yacht Accessories Repair Tools

Specification:

Material: Polyurethane, Stainless Steel

Color: Gold Tone, Black,Clear

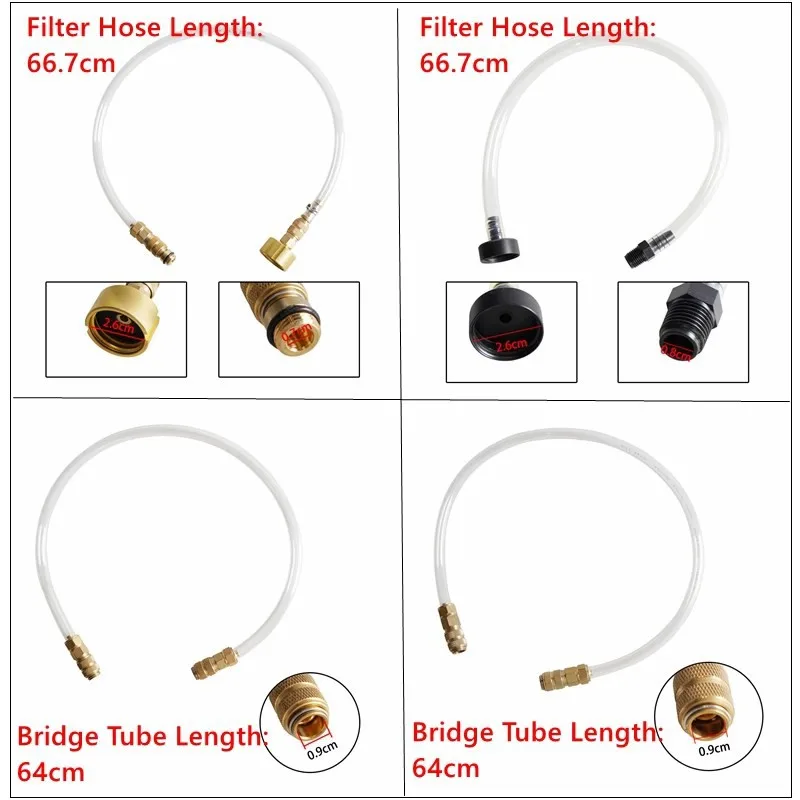

Bridge Tube Inner Dia. :9mm/0.35 inch

Bridge Tube Length: 64cm/25.1 inch

Bridge Tube Outer Dia. : 10mm/0.39 inch

Filler Hose Thread Size: 1/4 NPT

Filler Hose Hole Dia. : 8mm/0.31 inch

Filler Hose Length: 66.7cm/26.2 inch

Filler Hose with Screw Cap Dia.: 26mm/1.02 inch

Filler Hose with Screw Cap Outer Dia. : 12mm/0.47 inch

Fitment:

Fit for Seastar inboard, outboard hydraulic steering systems. Used for refilling your boat's steering system fluid.

Basic Instructions:

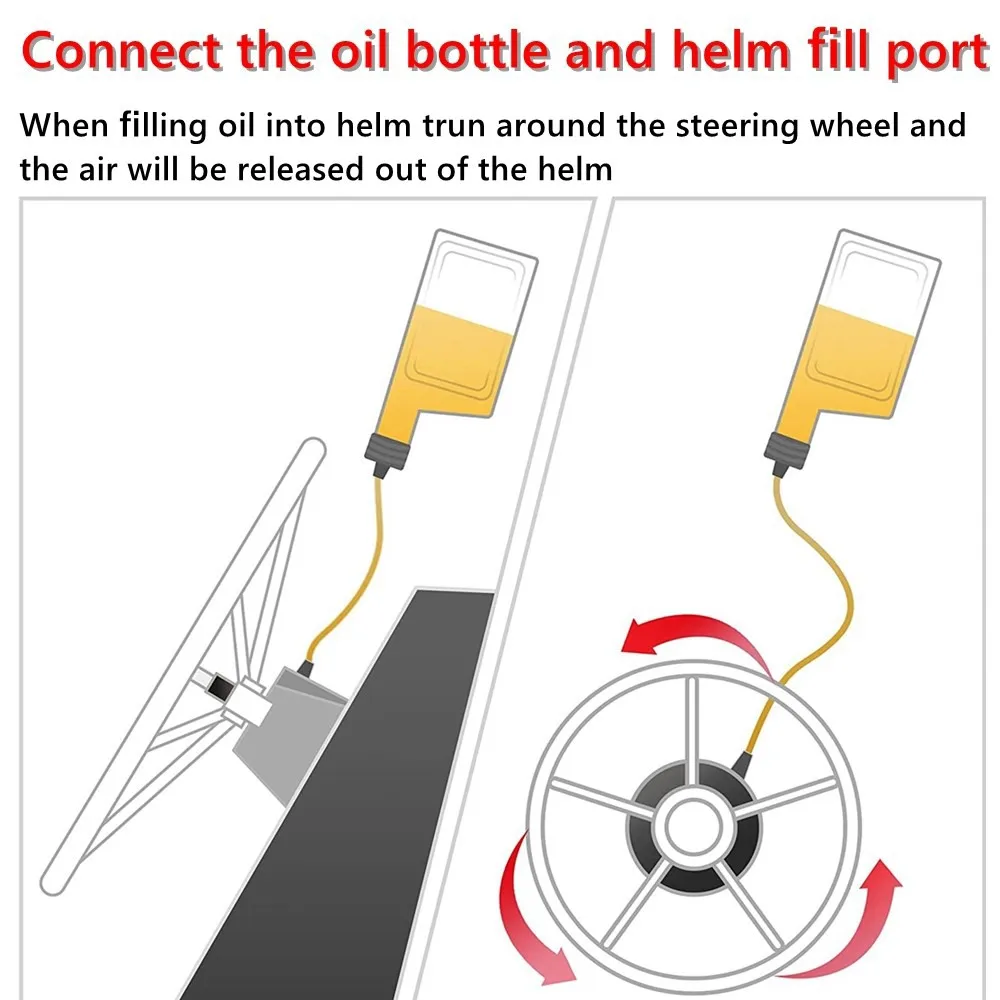

1. Attach bottle to helm reservoir (do not pierce bottle)(do not let bottle run empty).

2. Connect bridge tube to fittings on steering cylinder and loosen fittings.

3. Use helm to pump fluid through system by turning the wheel in one direction. Air bubbles will be pushed to the reservoir at the helm.

4. Manually swing the outboard through full articulation to relieve trapped air.

5. Note: Orientating fittings up while pumping fluid with helm will allow air to escape cylinder.

6. Repeat 3-4 times necessary until no air is visible in bridge tube.

7. Tighten fittings before removing bridge tube.

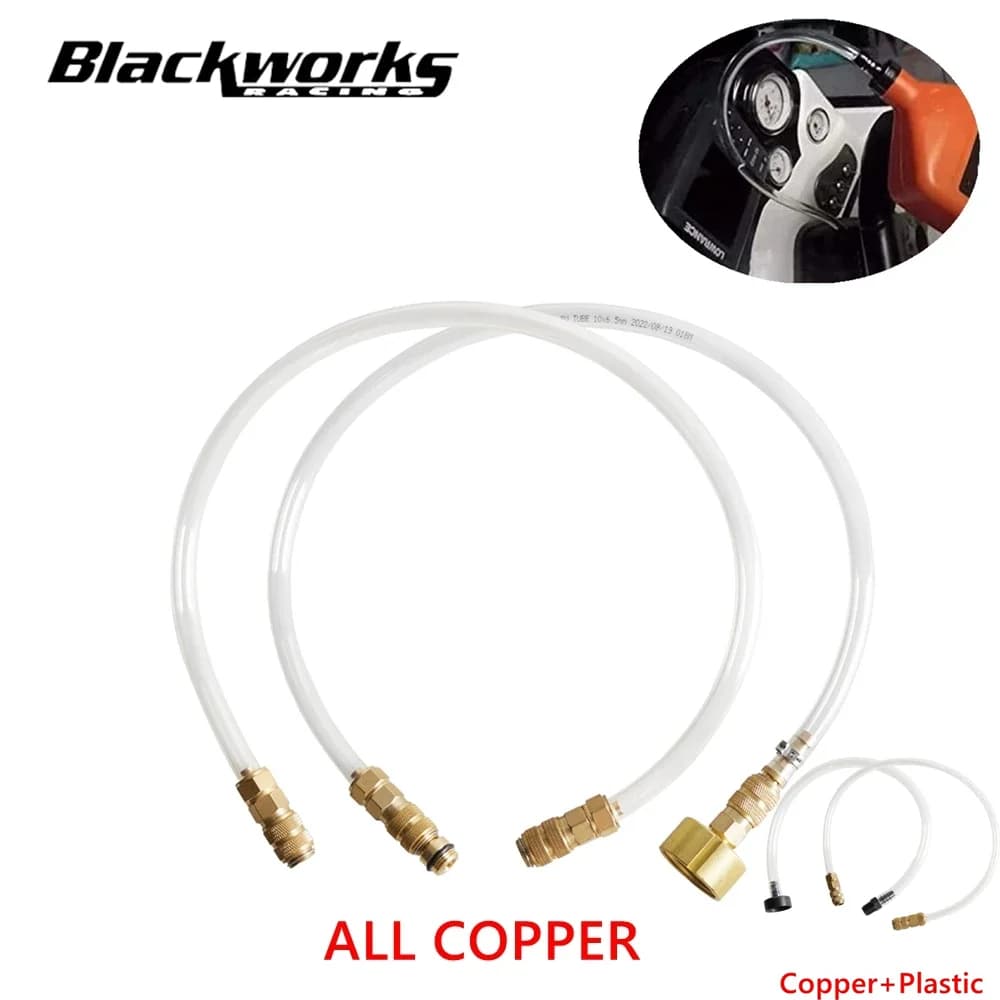

Package Included:

1 x Bridge Tube

1 x Filler Hose with Screw Cap
