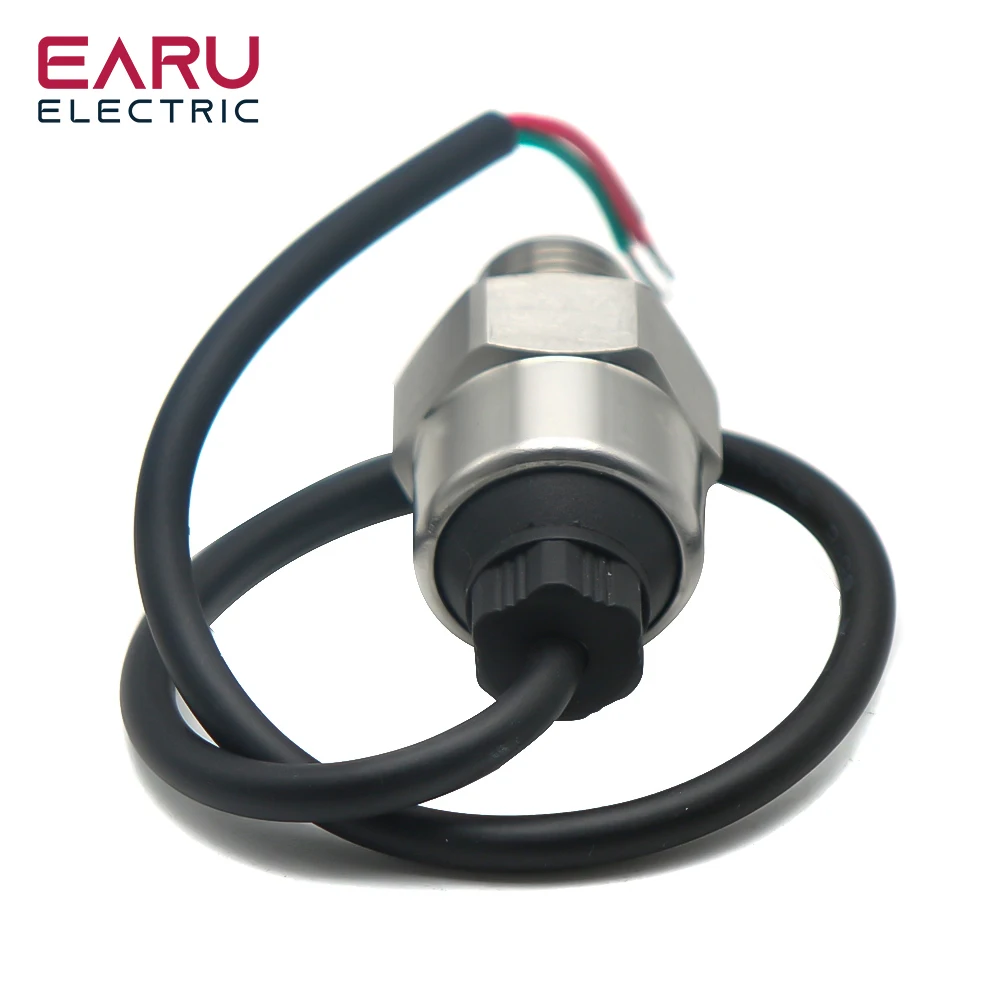

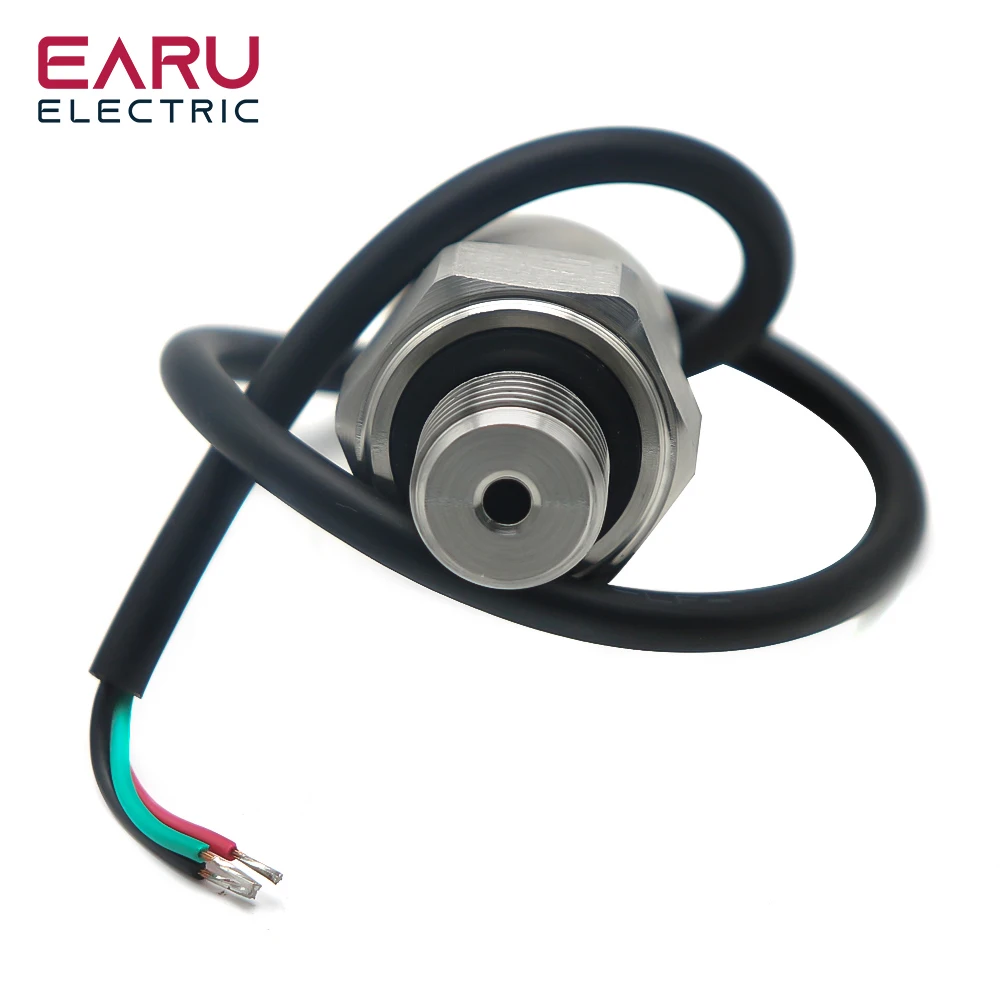

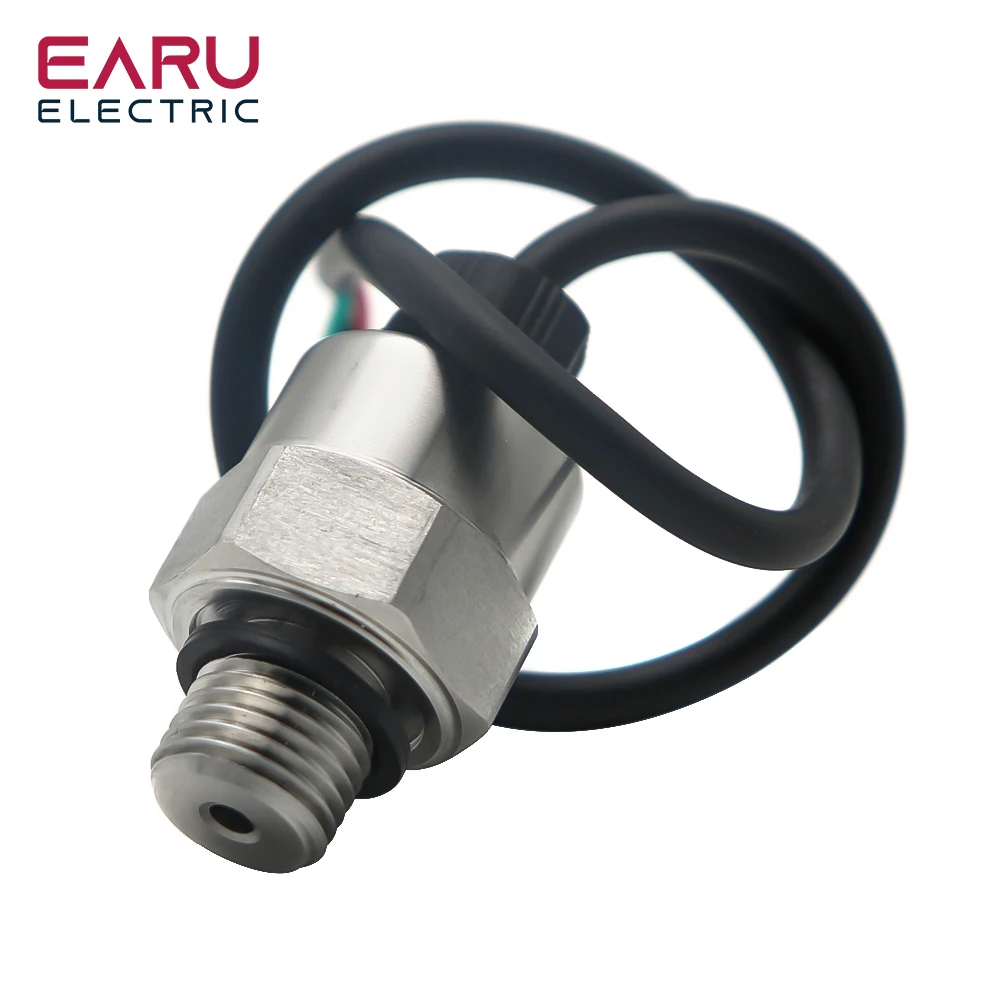

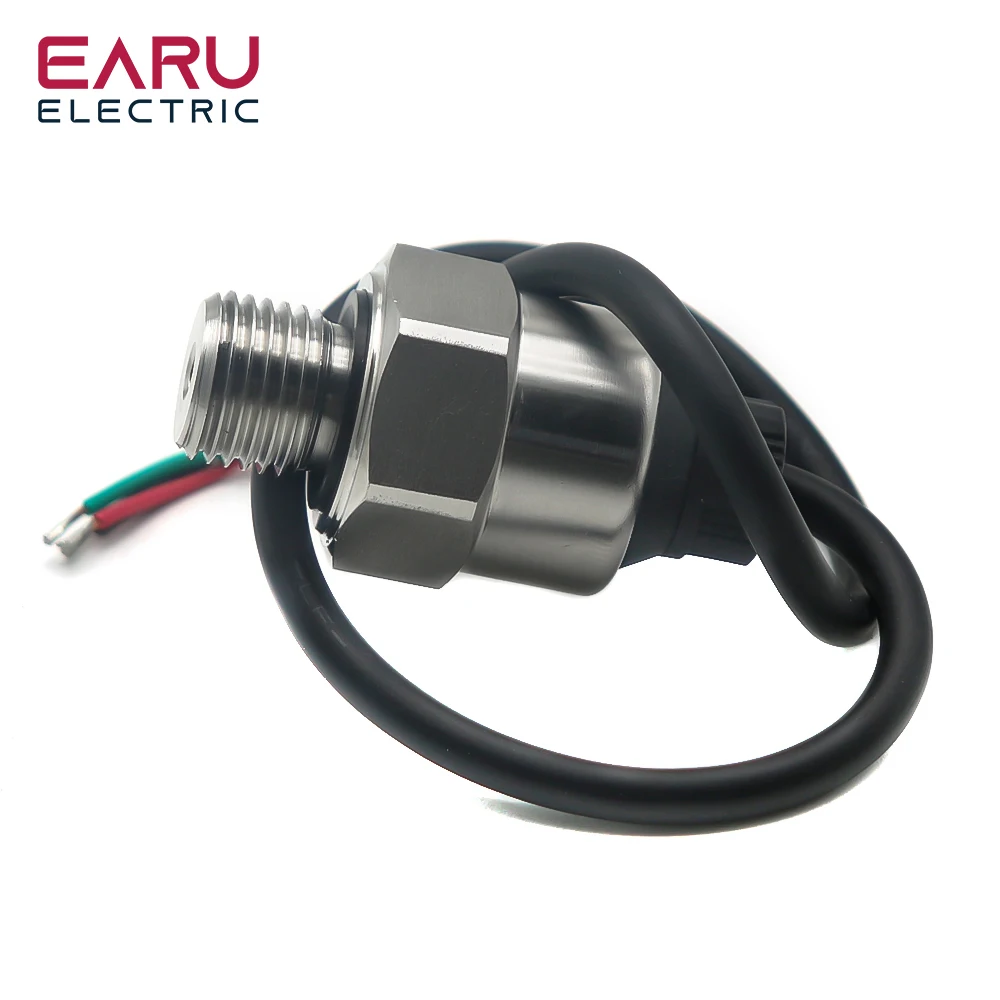

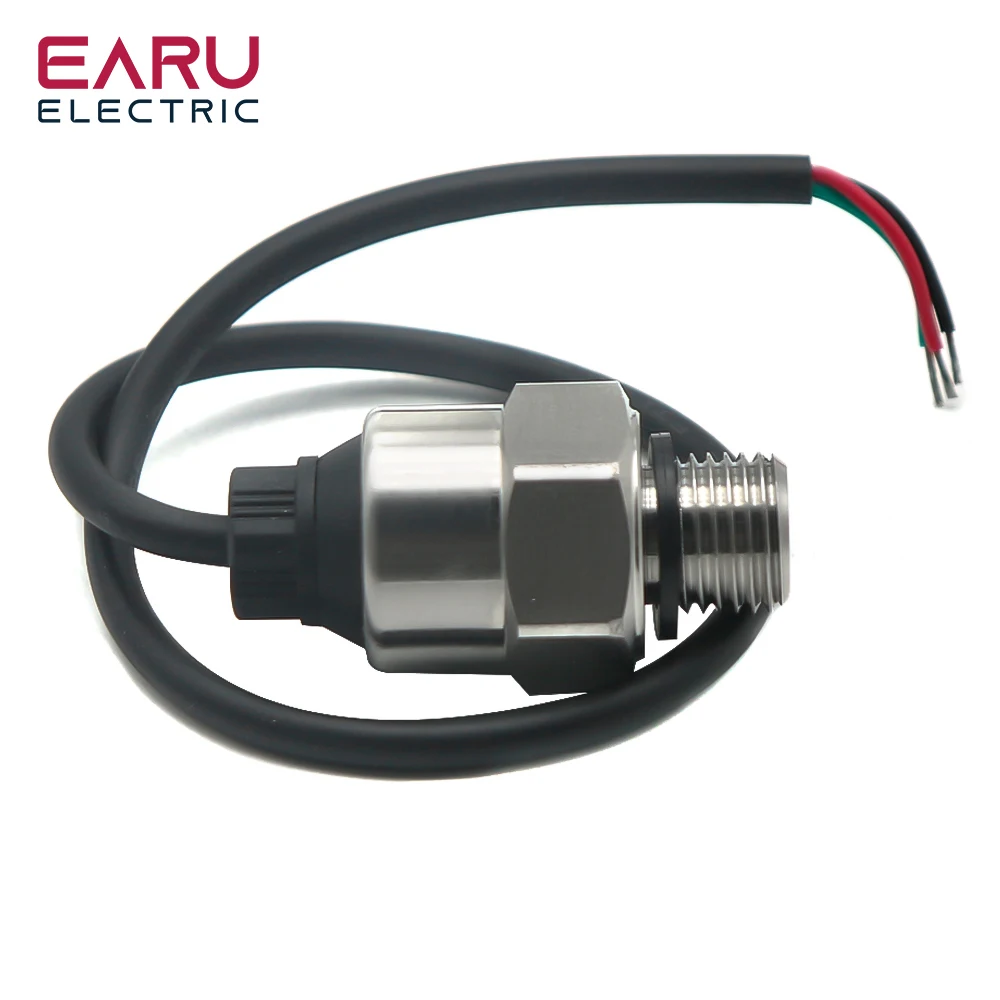

Pressure Sensor Transmitter For Water Oil Fuel Gas Air G1/4 5V Ceramic Sensor Stainless Steel 0.5Mpa 1.2Mpa Transducer

Features

◆ CE conformity
◆ Low cost and high quality
◆ All stainless steel integrated structure
◆ Small size, convenient to install and operate
◆ 0.5-4.5V, 0-5V, 1-5V, various voltage output
◆ Complete surge voltage protection function
◆ For applications such as air, water, oil
◆ Provide OEM, flexible customization

Applications

◆ Intelligent IoT constant pressure water supply
◆ Engineering machinery, industrial process control and monitoring
◆ Energy and water treatment systems
◆ Steel, light industry, environmental protection
◆ Medical, agricultural machinery, testing equipment
◆ Flow measurement equipment
◆ Hydraulic and pneumatic control systems
◆ Air-conditioning unit and refrigeration equipment
◆ Water pump, air compressor pressure monitoring

Parameters

Measuring range: 0-60Mpa gauge pressure
Accuracy: ±1.0%FS
Output signal: 0.5-4.5V, or other please tell us
Supply voltage: 5VDC or 12VDC
Operating temperature: -40～105℃
Compensation temperature: -20～80℃
Operating current: ≤3mA
Temperature drift (zero&sensitivity): ≤±0.03%FS/℃
Long-term stability: ≤±0.2%FS/year
Response time: ≤3ms
Overload pressure: 150%FS
Burst pressure: 300%FS
Cycle life: 500,000 times
Sensor core: Al2O3-96% ceramic sensor
Pressure medium: Non-corrosive liquid or gas

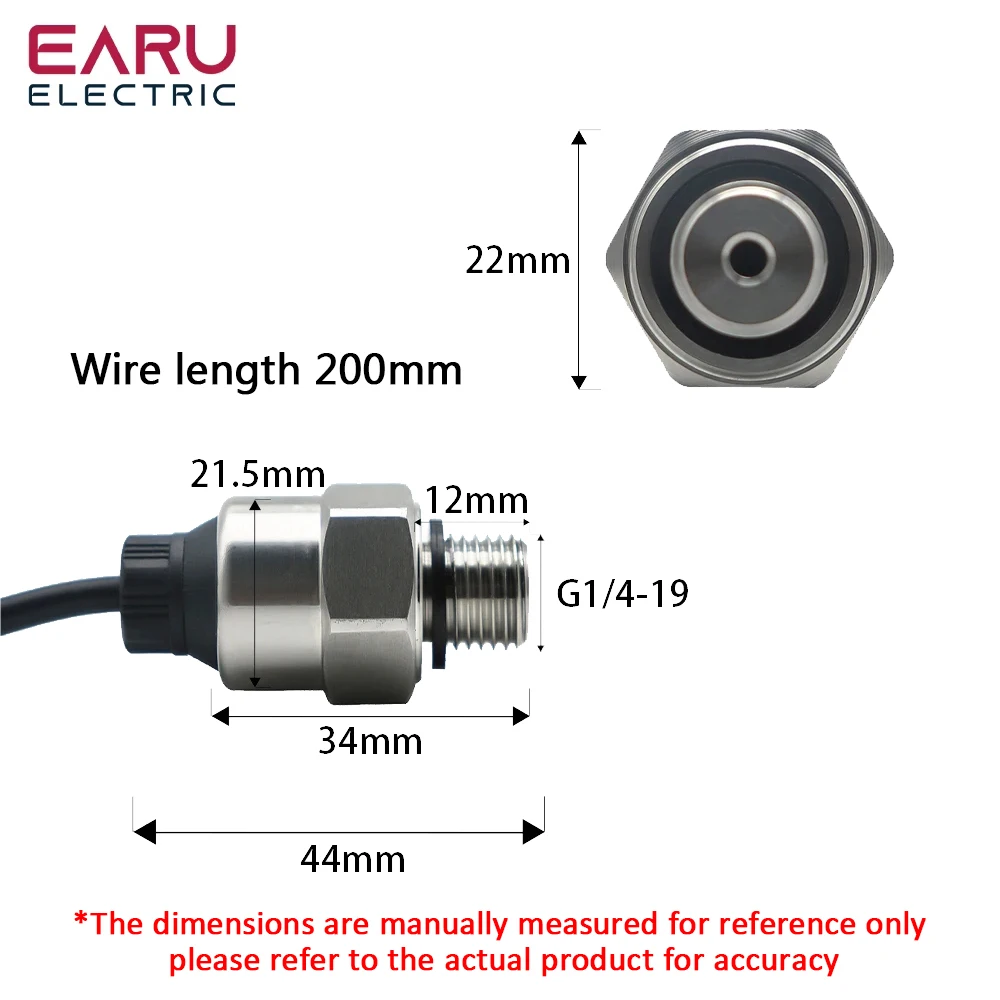

Pressure connection: G1/4, Other pressure connection is on request
Electrical connection: Direct cable
Housing material: 304 Stainless Steel
Weight: ≈0.080kg

Customization Process：When other specifications such as voltage are inconsistent with this product, please contact customer service for consultation before placing an order
