LAUNCH CRP129 HD Heavy Duty Truck Scanner Full System Diesel Scan Tool Global Version 24V Trucks Diagnostic Tool

LAUNCH CRP129 HD

—— ALL-IN-ONE Truck Diagnostic Tool

[Selling Points]

✅ALL-IN-ONE Truck Diagnostic Tool
CRP129 HD Commercial Vehicle Configuration includes software light/heavy truck, pickup, buses, trailer, tractor, dumper, agricultural and construction vehicles.

✅Full System Diagnosis
The main functions include : 1.Version Information 2.Read Fault Code 3.Clear Fault Memory 4.Read Data Stream2. Global Version, No IP limit.

✅Auto VIN & Auto Scan (2006+)

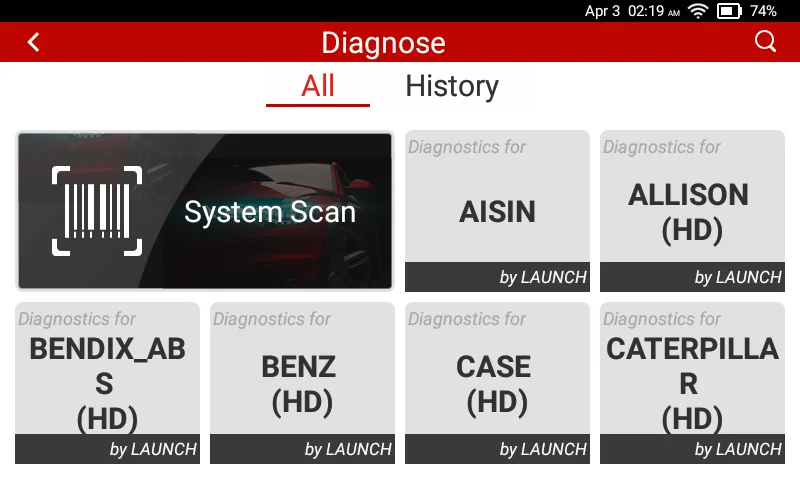

Supports One-Click Auto VIN Detect, One-Click WiFi Update, One-Click Generate Graph. One-click automatically identify the vehicle and intelligently enter all system scanning.

✅7+ Special Function
DPF regen, oil reset, speed limit adjustment, ABS bleeding, injector coding, Cylinder Deactivation Compression, advanced ECM data, reset ABS controller, set parameters and so on

✅2-in-1 Truck Diagnostic Scanner
Not only a 24V heavy duty diagnostic scanner for truck with Full HD OBD/EOBD functions, but also a 12V code reader for car with Full OBD2 functions.

✅Intuitive Data Analysis
(1) 4-IN-1 Live Data Graphing to check the real-time status of the system; (2)Record and Playback Data Stream for easy data re.view and analysis; (3)Diagnostic Report Share & Print, deeply analyze problem causes.

✅Diagnosis Feedback
Support remote diagnostic, diagnostic feedback and respond.

✅2 Years Free Software Update
After 2 years, you can still use it, it will not be locked.

✅11+ Languages Supported
English, French, German, Spanish, Italian, Russian, Portuguese, Japanese, Korean, Polish, Chinese

✅99% Vehicle Coverage
Owns complete database covering 99% of vehicles from 50+ global bra

[ALL Systems Diagnostics]

1.Version Information
2.Read DTC
3.Clear DTC
4.Read Data Stream

LAUNCH CRP129HD support read/clear DTCs, read live data stream and perform active test and services functions for ALL modules of Trucks including Engine system/SRS system/Retarder system/Transmission system/CAB Climate system/Unit Pump system/Electronical control system/Tail gas after-treatment system/Body system/ABS(anti-lock brake system)/Instrument System/Brake control system/Suspension system/Common Rail System/Natural gas system...etc.

[7+ Special Functions ]

✔️DPF Regen
✔️Oil Reset
✔️Speed Limit Adjustment
✔️ABS Bleeding
✔️Injector Coding
✔️Cylinder Deactivation Compression
✔️Advanced ECM Data
✔️Reset ABS Controller
✔️Set Parameters.​.....

[DPF Functions]

A DPF, is an exhaust aftertreatment device that traps particulate matter such as soot and ash. A DPF typically uses a substrate made of a ceramic material that is formed into a honeycomb structure. In order to reduce emissions from diesel vehicles, DPF capture and store exhaust soot, which must be periodically burned off to regen the filter. The regen process burns off excess soot deposited in the filter, which prevents harmful exhaust emi-ssion and the black smoke you commonly see emitted from diesel vehicles when accelerating.

This heavy duty truck scanner diagnostic tool is available for you to achieve active(auto) regen, passive regen, DPF related information reset, DPR state reset, forced DPR regen, differential pressure test, DPD forced regen, etc.

✔️Passive Regen
When you drive for a long time (20 to 30 minutes) at high speeds, the exhaust reaches very high temperatures. Driving at 70mph or above for a while will heat the exhaust enough to burn off the soot particles which have been trapped by the DPF.

✔️Active Regen
Since many drivers do not use their cars to drive long distances on the motorway on a regular basis, manufacturers had to come up with a different way to clear the DPF of particles. They came up with a system in which active regen is activated when the amount of soot gathered in the DPF reaches a certain level. In most cars, this level is set at 45% of the DPF’s total capacity. When the soot gathered reaches this amount, it triggers the process of post combustion fuel injection which increases the temperature of the exhaust. This way, even if the car is not travelling at high speed, the exhaust becomes hot enough to burn off all of the soot which has collected in the DPF.

[Other Advantages]

--- Auto VinSmart AutoVIN technology for fast and precise identifying vehicles in one touch to scan ECUs, acquire vehicle info and run diagnostic on selected systems.Quickly get your car’s information,save your time.

--- Live Data StreamIt can shows you live sensors data and provides data graphing for intuitive diagnostics and monitoring your vehicle performance, help customers to better analyze the abnormal parameter.

--- Automatic Diagnostic Report Print & ShareHealth Report will scan all vehicle modules and give you a status list for each modules condition .This diagnostic tool can automatically generate a diagnostic report when diagnostic work is successfully finished.The reports are saved to the internal memory for later review. The reports are able to be saved in PDF format, and as the tablet is equipped with WIFI, these can be emailed to the office or directly to the customer.

--- One to One Online Feedback- In-Time Problem SolvingLAUNCH Scanner provides you with a Feedback function to share any problems you encounter in the process of diagnosis. We will make every effort to perform a no-delay problem solving and makes improvements on product quality according to your problems and suggestions, thus offering you a higher quality user experience.

--- Remote DiagnosisConfigures LAUNCH CRP129HDTablet as an I/M(Instant Messaging) tool, which enables technicians to exchange repair experience and perform remote assistance more conveniently.

--- View HistoryOnce a vehicle diagnosis is performed, LAUNCH Scanner will record the every detail of the diagnostic process.you can record/review/playback live data anytime .The History function provides quick access to the tested vehicles and users can resume from the last operation, without the necessity of starting from scratch

--- Maintenance HelpIncluding How-to Videos, operation skills, and user manual, Q&A, Quick start guide, etc.

[Car Brands Coverage]

Europe:
For MERCEDES BENZ
For MAN
For VOLVO
For SCANIA
For IVECO
For DAF
For RENAULT...

U.S:
For Freightliner
For INTERNATIONAL
For Kenworth
For PETERBILT
For STERLING
For WESTERN STAR
For MACK
For DETROIT
For CUMMINS...

Asia:
For HINO
For FUSO
For ISUZU
For UD
For HYUNDAI...

Equipped with Multiple Interfaces - there are OBD-16 Pin, 6-Pin OBD, 9-Pin OBD andType II 9-PIN OBD Diagnostic Connectoradditional diagnostic connectors for many major truck brands. Supports J1939, J1708 and J1587 and J27145 protocols.Routine diagnosis for almost all cars, mini vans and light duty vehicle from 1996 to newest utilizing ISO9141,ISO14230,ISO15765,ISO11898,SAE-J1850 VPW,SAE-1850 PWM,UDS,K/L lines,High speed CAN,Middle speed CAN,Low speed CAN and Single wire CAN.

[Specifications]

Screen: 3.97inch
Interface: Standard OBDII interface, Type-C interface
Android Version: Android 8.1
Storage: 2+16GB
Battery: 3000mAh
CPU: 1.3G
Communication/Upgrade: WIFI 2.4Ghz (b/g/n)
Diagnostic Device Dimensions: 212*120*34mm
Outer carton size: 323*254*131mm
Transportation box size: 336*412*529mm
Weight: <500G
Storage Temperature: -20~ 70 ℃
Working Temperature: -10 ~50 ℃

[Packaging List]

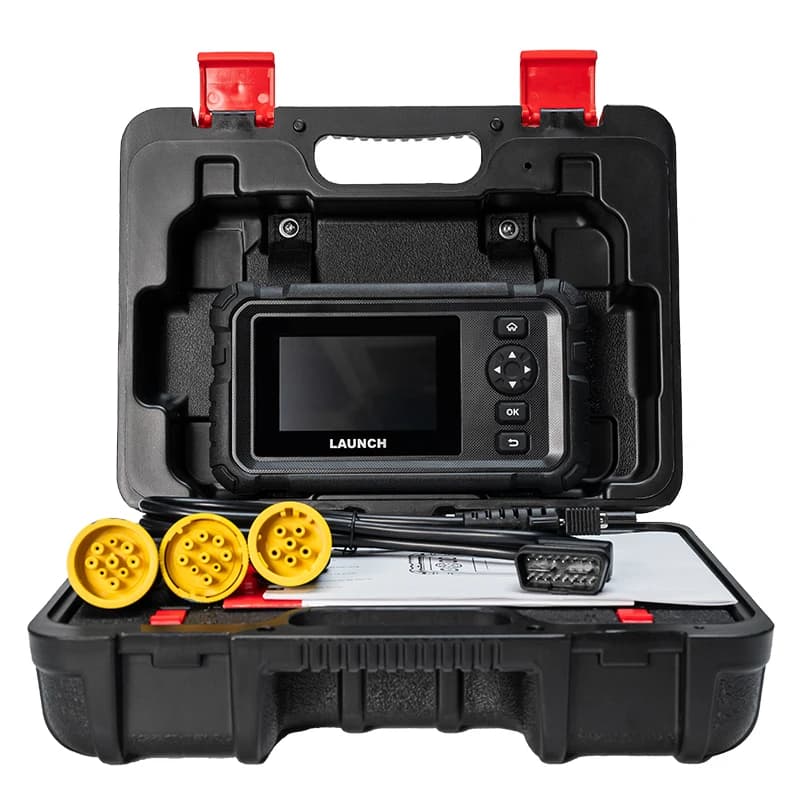

1*CRP129HD Diagnostic Equipment
1* Diagnostic Main Cable
1* CAT 9-PIN Diagnostic Connector
1* OBD 6-PIN Diagnostic Connecto
1* Type II OBD 9-PIN Diagnostic Connector
1* Instruction Manual
1* Quickstart
