9.7 4G Wireless Carplay Android Auto Car Radio Multimedia for Toyota Fortuner / HILUX Revo 2015 - 2022 Video Player

Applicable Models & Years
for Toyota Fortuner 2015 2016 2017 2018 2019 2020 2021 2022
for HILUX Revo 2015 2016 2017 2018 2019 2020 2021 2022
Note:
1. Compatible list just for your reference ,please confirm shape & size of certer console before bidding ,if size are not same then please do not order it to avoid wrong order .
----->Impotant Notice as follows:
① All products have been passed strict quality test before shipment, make sure high quality;
② Please write your full name and correct address with zip code when you order,if you have your email ,can leave us on order chat after paid, which will have the shipment notice to email from carrier if shipped by seller manual;
③ Please check your original car radio size and appearance & its compatible list with the Notice details before make a order bid to avoid mistake; if needs other adapter for installed which needs to order separately except the description accessories picture shows.
④ our item not includes installation instructions except the rear camera instruction file, but you can contact us on order chat if needs helps for installation;
⑤ Professional installation is necessary,the car maintenance store is the best choice for you;
⑥ Custom clearance is the buyer's duty, Whether to generate tariffs depends on the local customs policy.
Hope to see your order soon :)
-----> Basic functions: Android 13 + 9.7 inch Display Screen Tesla Style + Quad Core 1.2GHZ (Eight core UIS 7862A 1.8Ghz / UIS 7862S 2.0Hhz optional)+ DDR3 1GB Flash (2GB/3GB/4GB/6GB/8GB optional) + 16 GB Memory (32GB/64GB/128GB optional) + WIFI (4G Network optional)+ Mirror link+ Steering Wheel Control + RDS+DSP(optional)
----->Special functions:
1) Plug and Play: Radio' power cable is pin to pin, easy to install;
2) Built-in Wireless Carplay / Android Auto: S1/S2/S3/S4/S5/S7/S8 version supporting, just use your phone cable connect it, stable and easy to use;
----->Optional accessories:
1) AI Voice Control: just say the command word control the radio without hands, make drive more safe;
2) ADAS DVR Camera, Tire Pressure Monitoring, OBD2, External Microphone, RCA cable;
3) If the Car Original Wire connectors is special(not the same as our accessories Pin) which needs to order separately adapter for install.

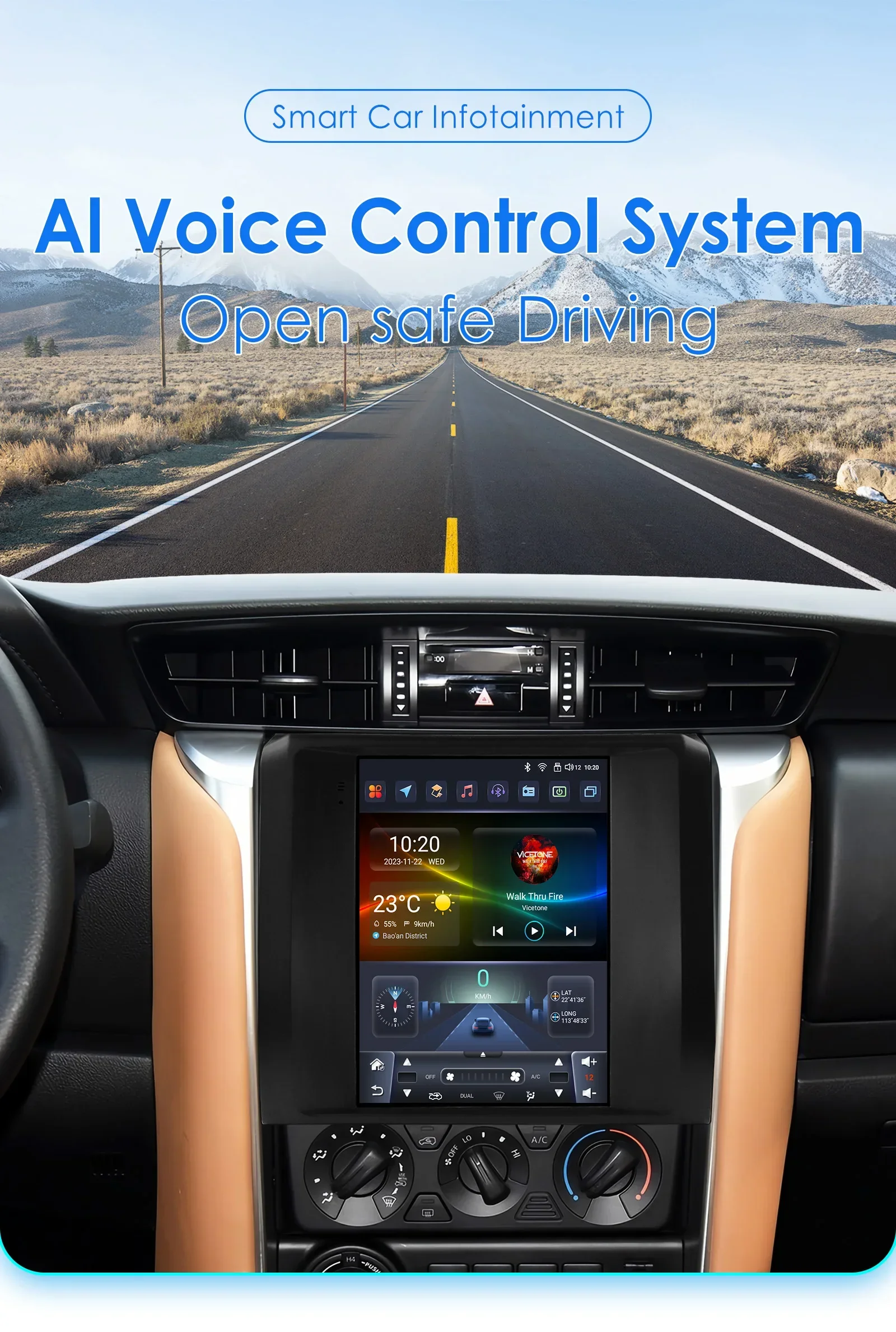

Smart Car Infrtainment: AI Voice Control System Open safe Driving

Car Model: This unit will fit the following car model

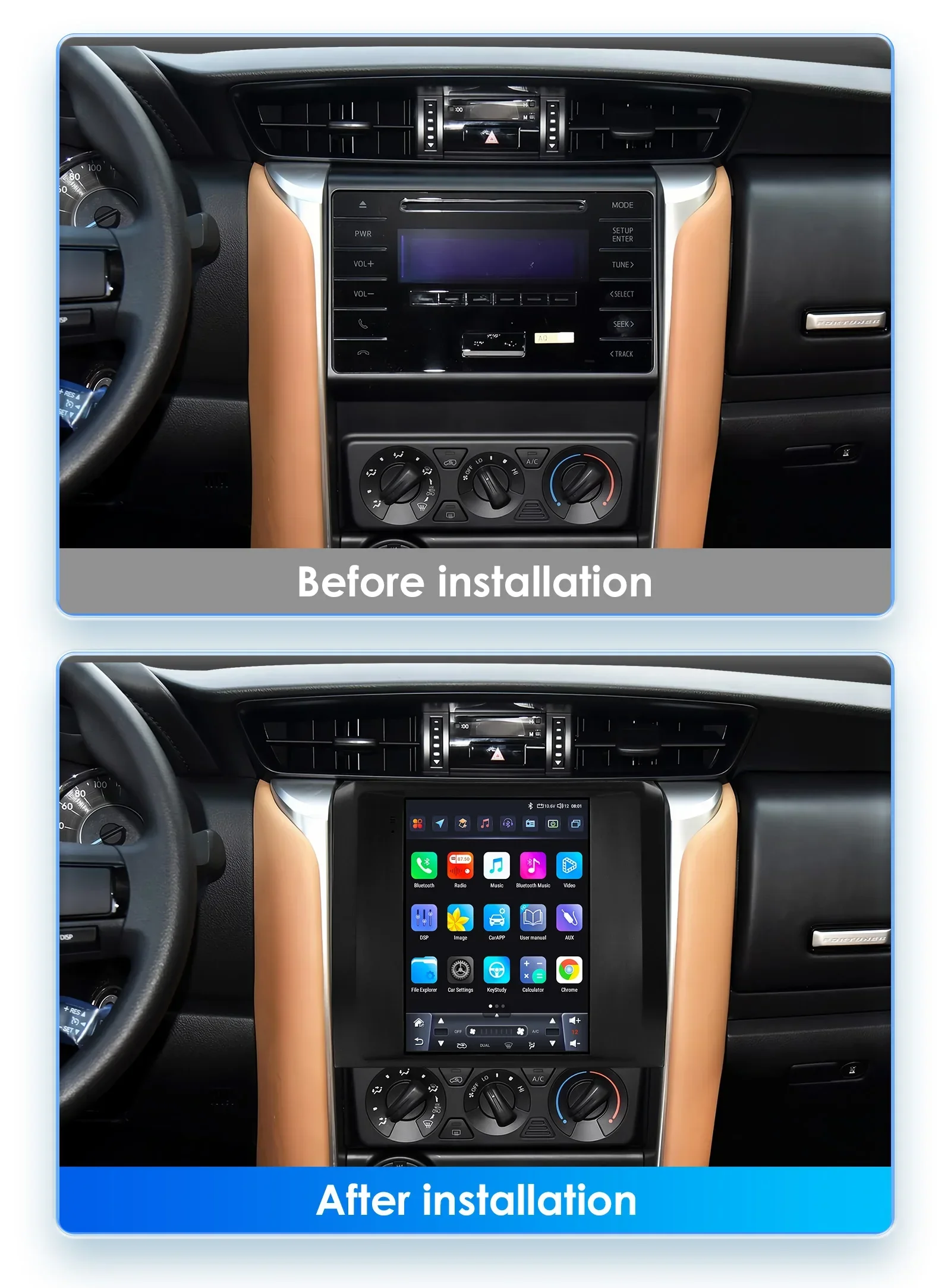

Before installation VS After installation

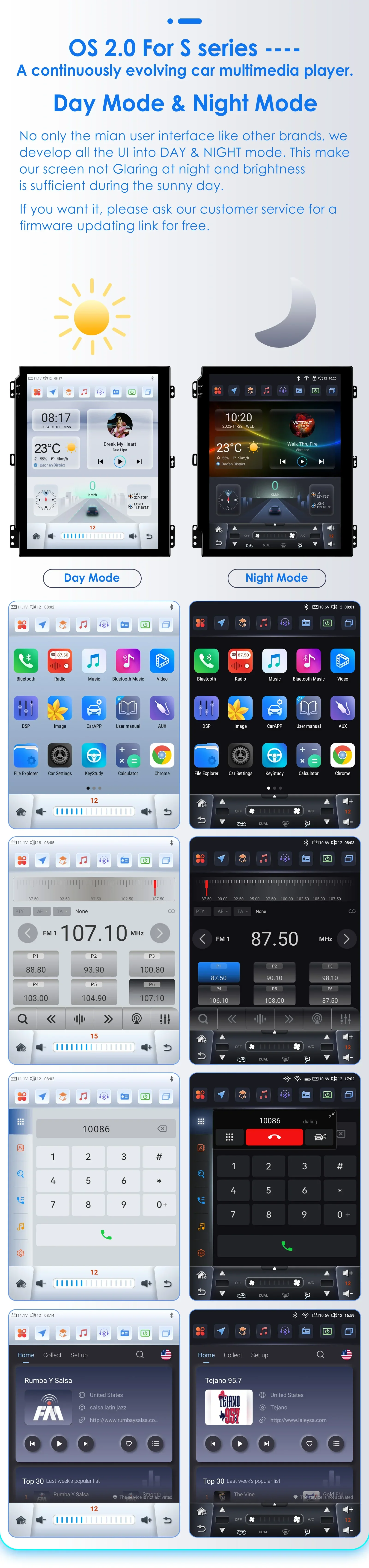

OS 2.0 for S series--A continuously evolving car multimedia player.
Day Mode & Night Mode
Not only the main user interface like other brands, we develop all the UI into Day & Night Mode ,this make our screen not Glaring at night and Brightness is sufficient during the sunny day.
if you want it, please ask out customer service for a firmware updating link for free.

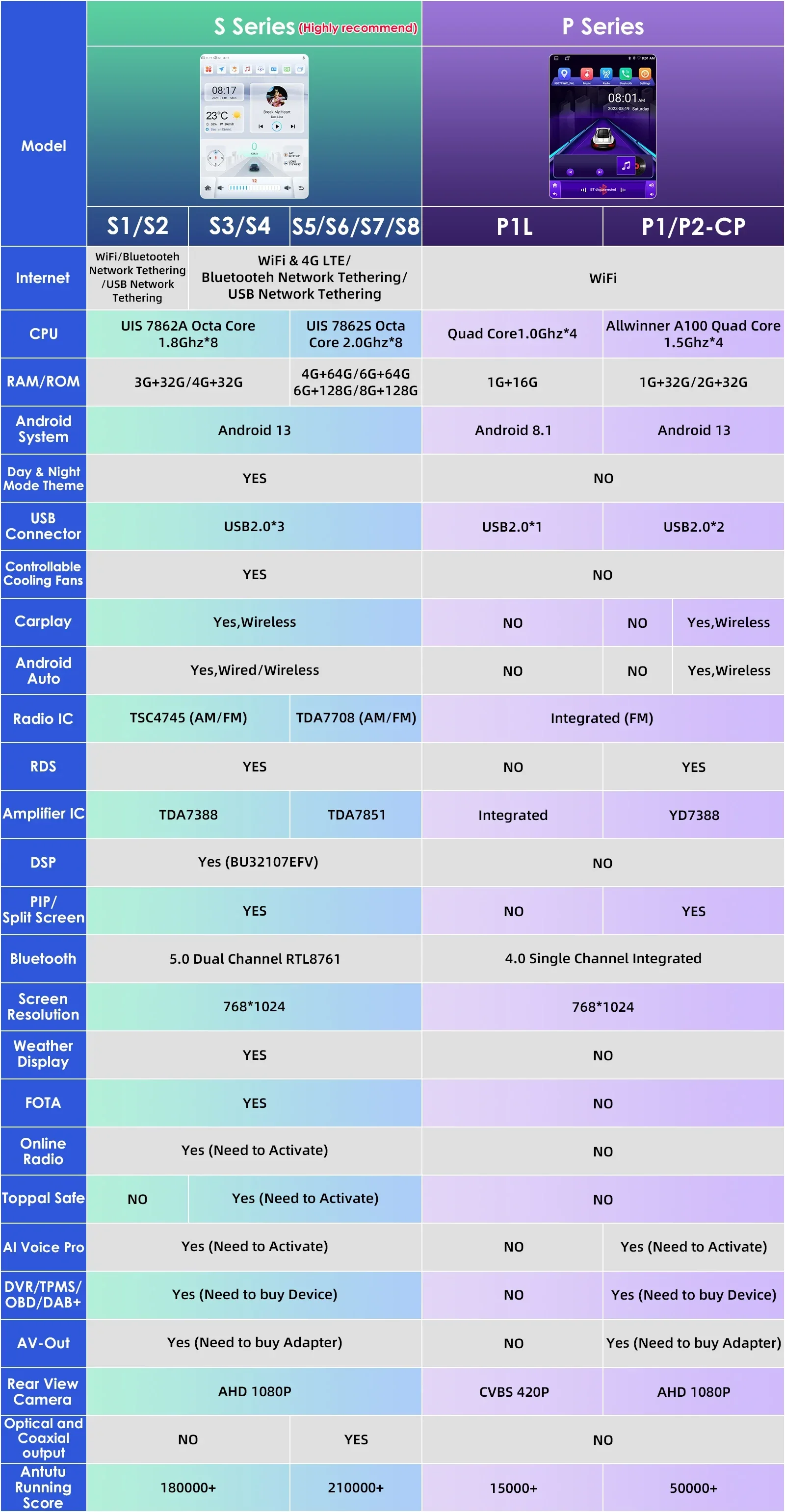

System Parameters: Refer to the following table for specific parameter configuration

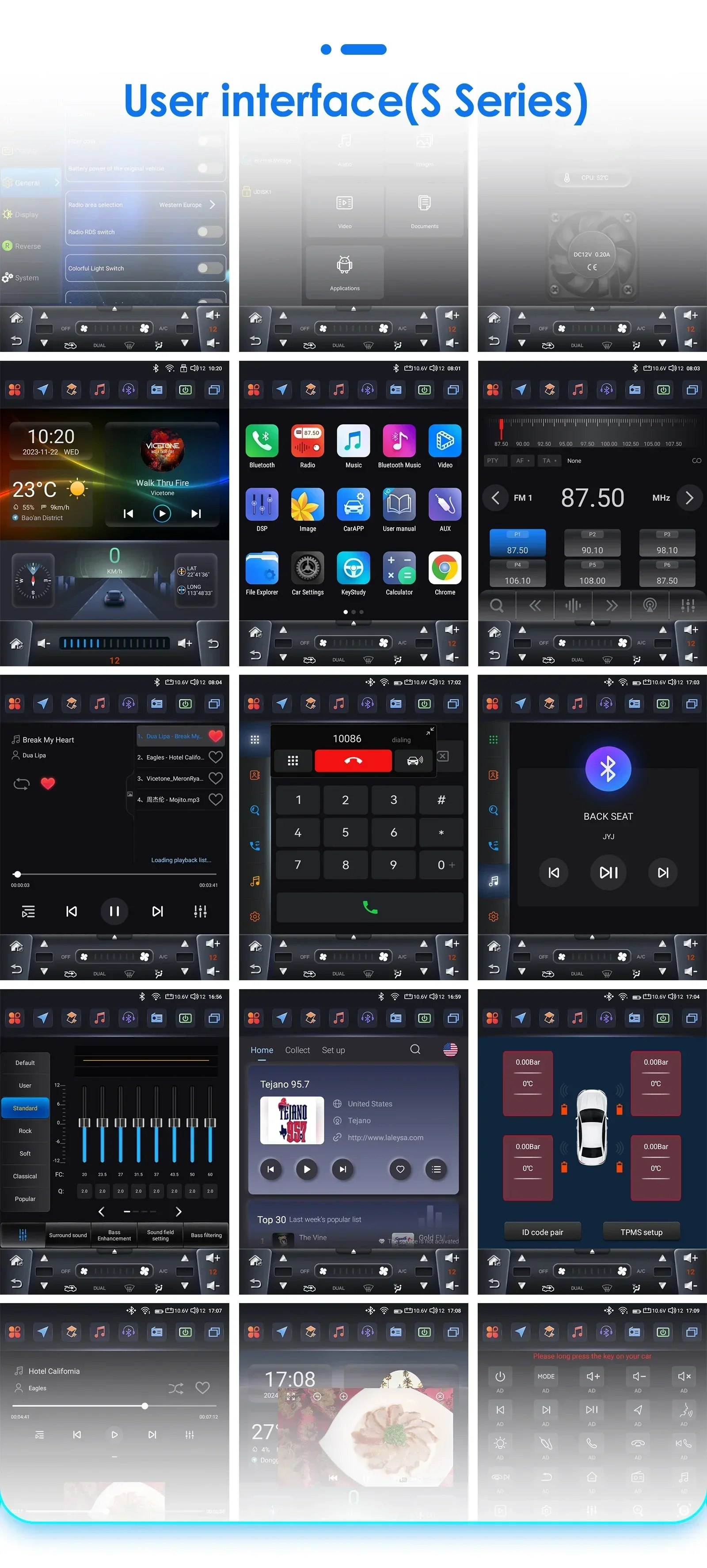

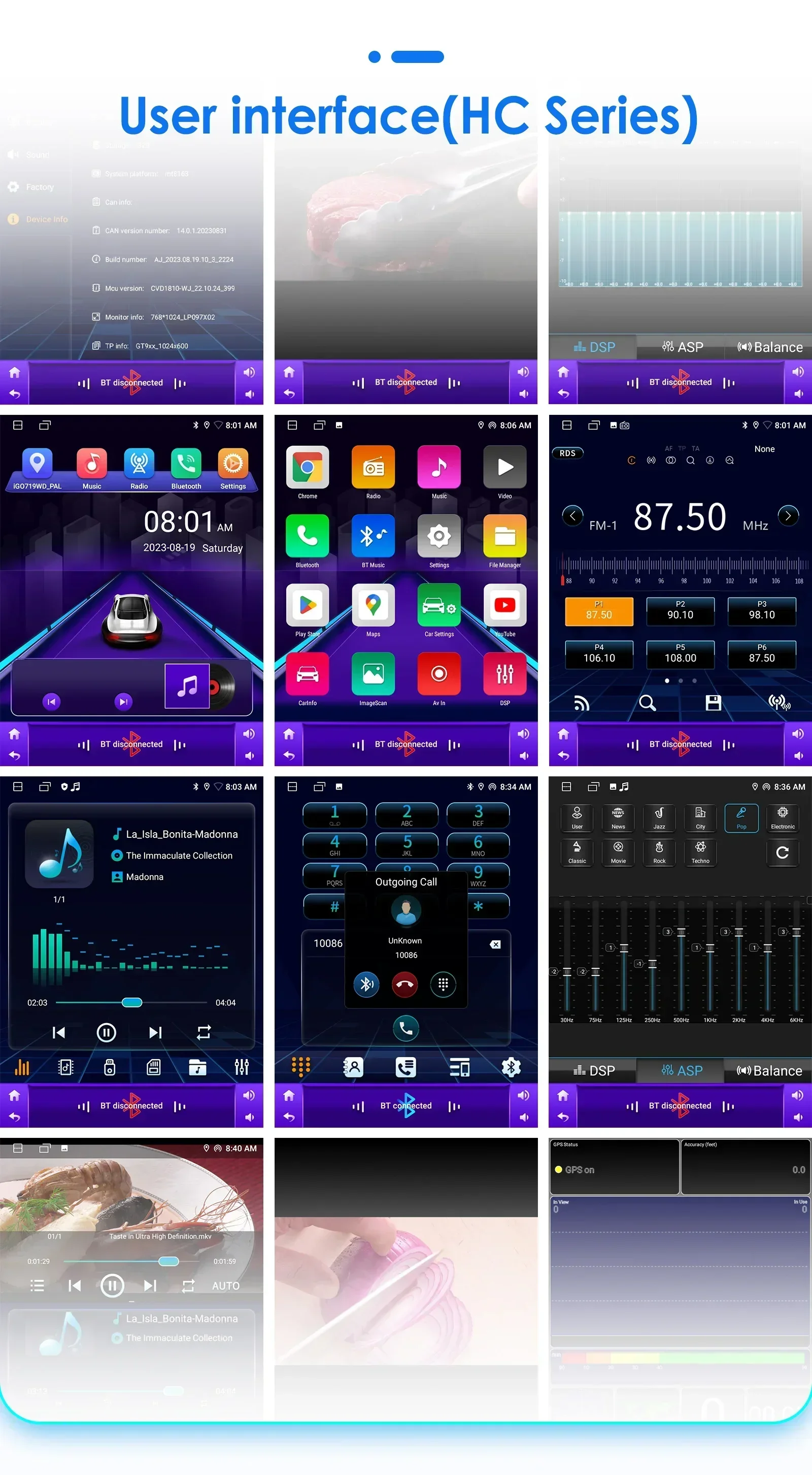

User interface: S Series (can set as Day Mode & Night Mode or 12 color type: Purple/ Dark blue / Black / Golden , and so on) included S8/ S7/ S6/ S5/ S4/ S3/ S2/ S1 version; and HCSeries included HC1 / HC2-CP version.

Extreme Performance: A new generation of new CPU architecture, equipped with Two A75,six A55,super performance release ,easy to deal with daily needs. The specific CPU model please refer to the products configuration table. 7862A 1.8Ghz.

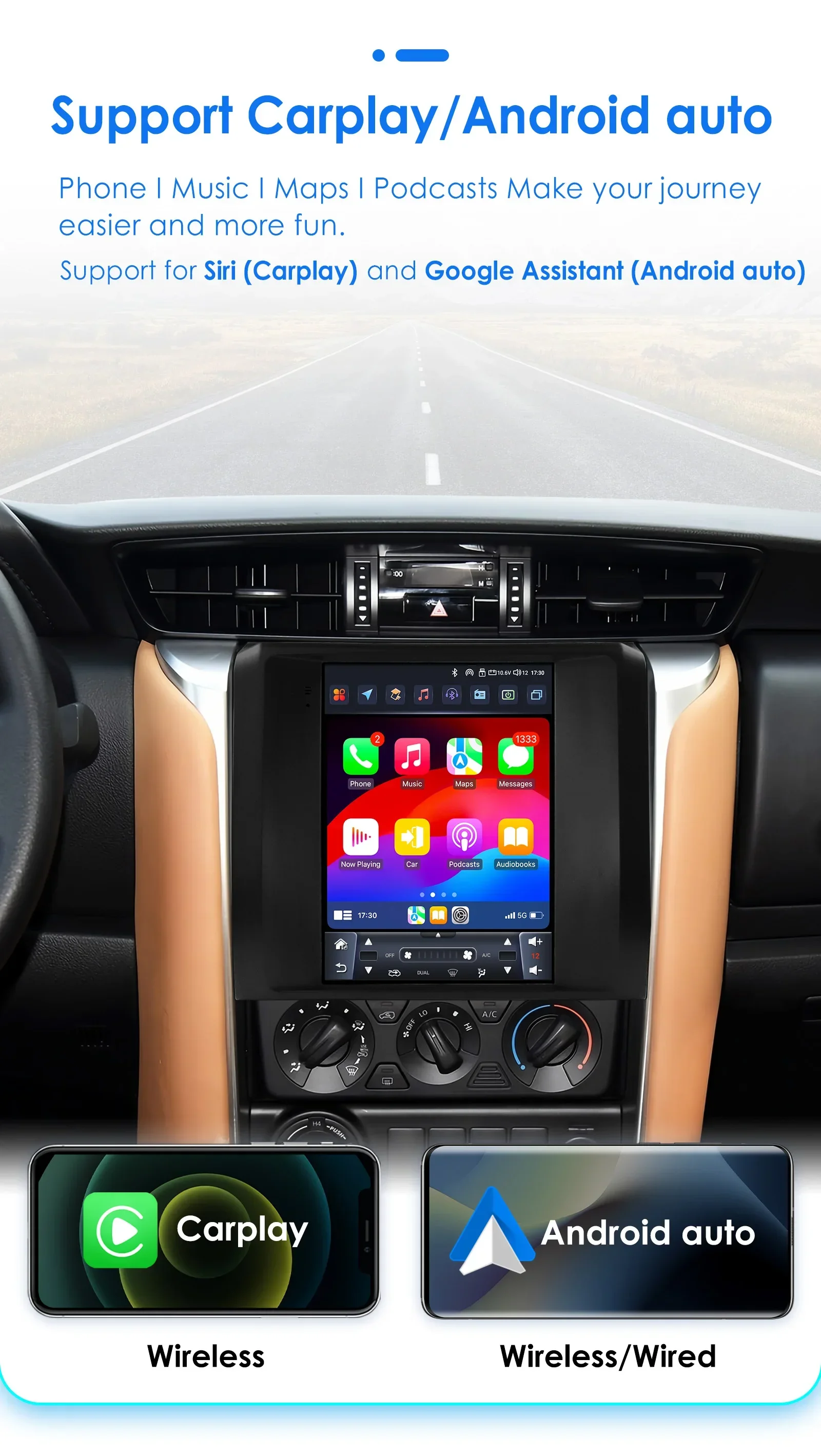

Support Carplay / Android auto: Phone / Music / Maps / Podcasts Make your journey easier and more fun. support wireless carplay,wired android auto,wireless android auto(which needs to set its cell phone wifi hotspot's AP Band as 5 Ghz band).
Support for Siri (Carplay) and Google Assistant (Android Auto)

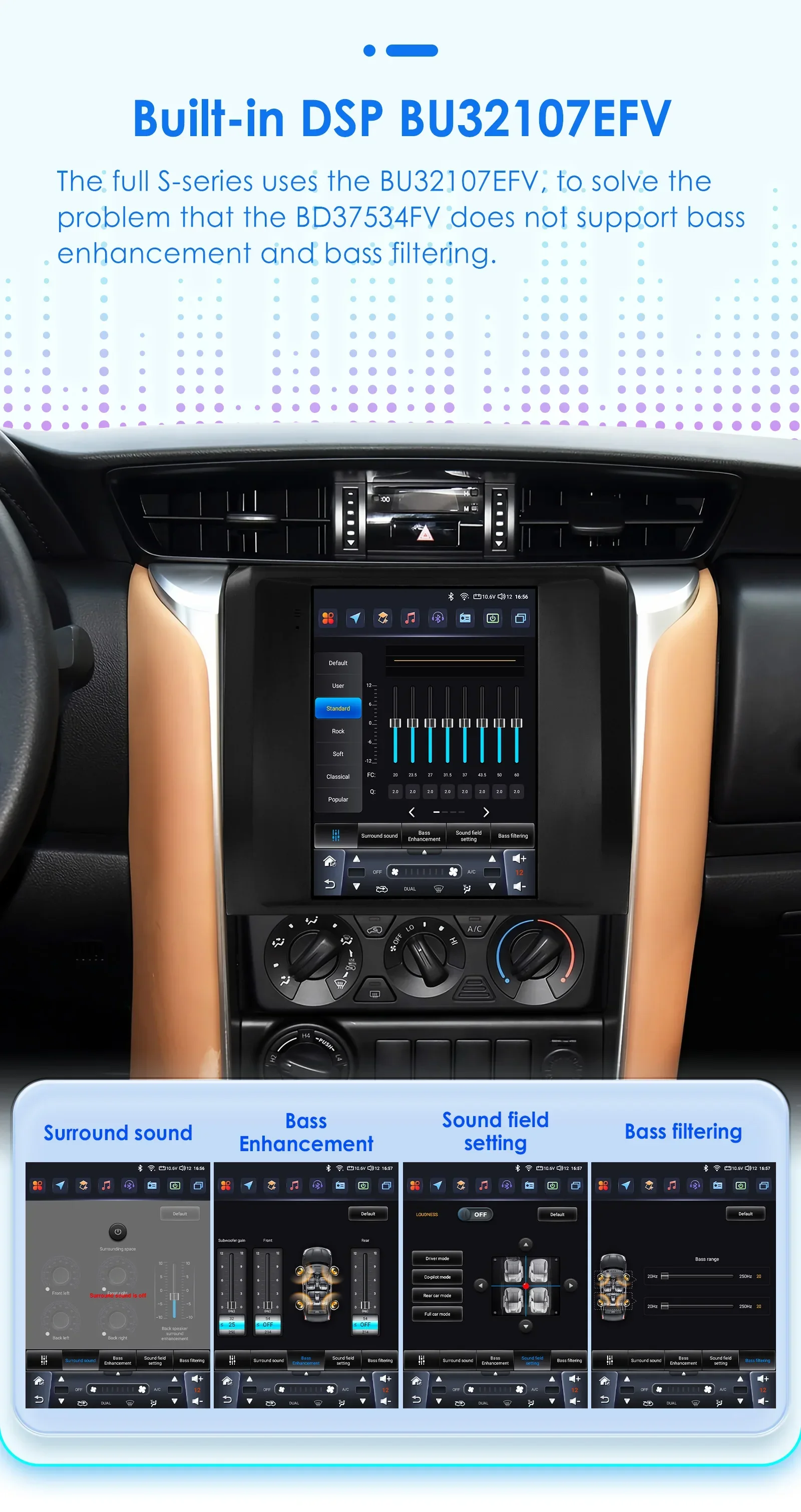

Built-in DSP BU32107EFV: We use BU32107EFV and BD37534FV DSP IC in different configurations products. The specifit difference please refer to the product configurations table.

Professional radio chip: Receive more stable radio station ,less radio noise, higher performance during driving. (We use 4745,TDA7708 and integrated radio IC in different configurations products, the specific different please refer to the products configuration table.)

Bluetooth 5.0 Dual Channel: Stable and long distance Bluetooth connection. Stable and long distance WIFI connection. (On its main interface can show "Model phone battery display")

Built-in 4G Network: Please enter the SIM card before turn on the device. Include the 4G card slot, and the 4G antenna!

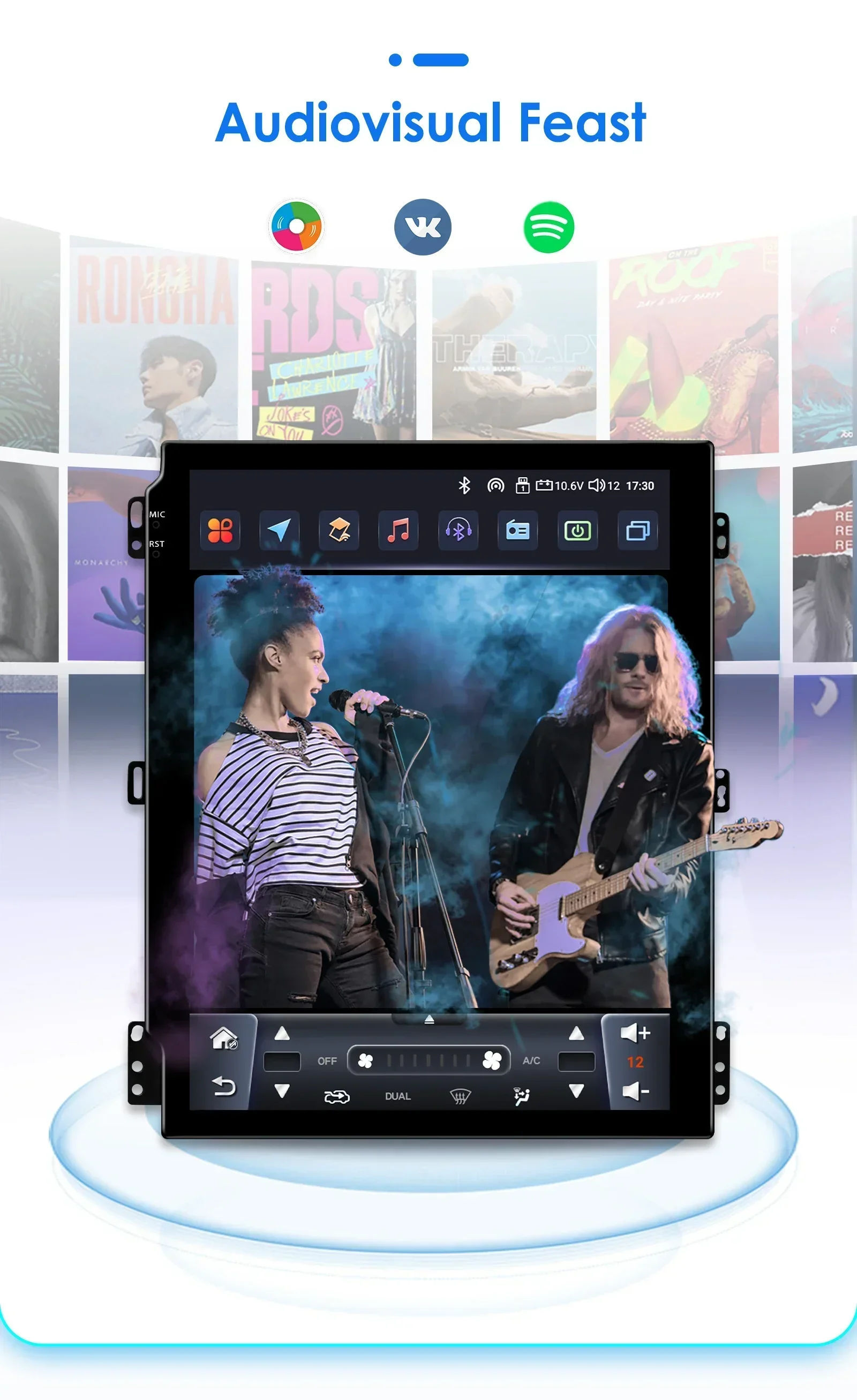

Audiovisual Feast

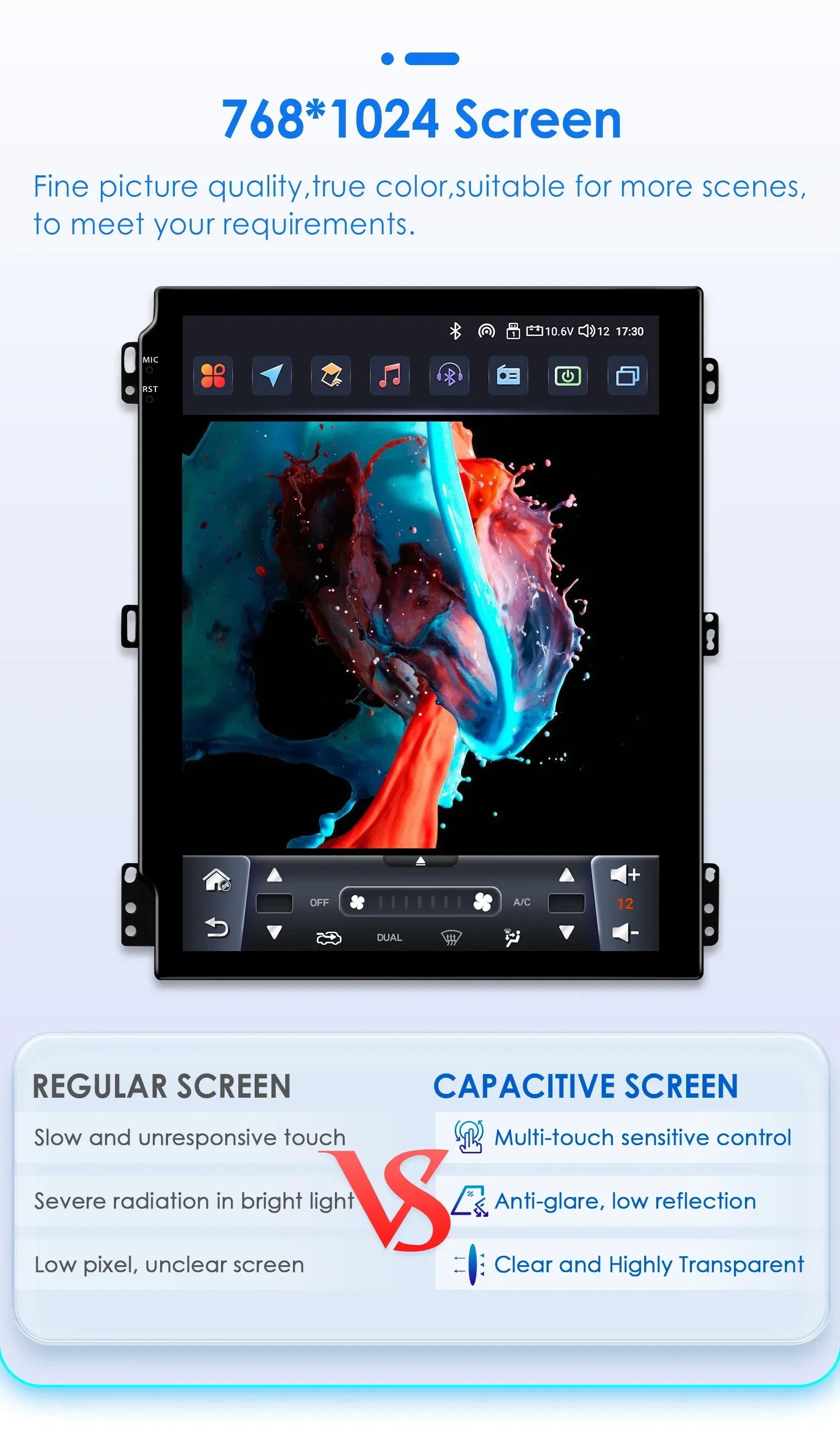

9.7 inch 768*1024 QLED Screen : Fine picture quality, true color, suiltable for more scenes, to meet your requirements

AI Voice Car System Relax Driving( Need to buy separately)

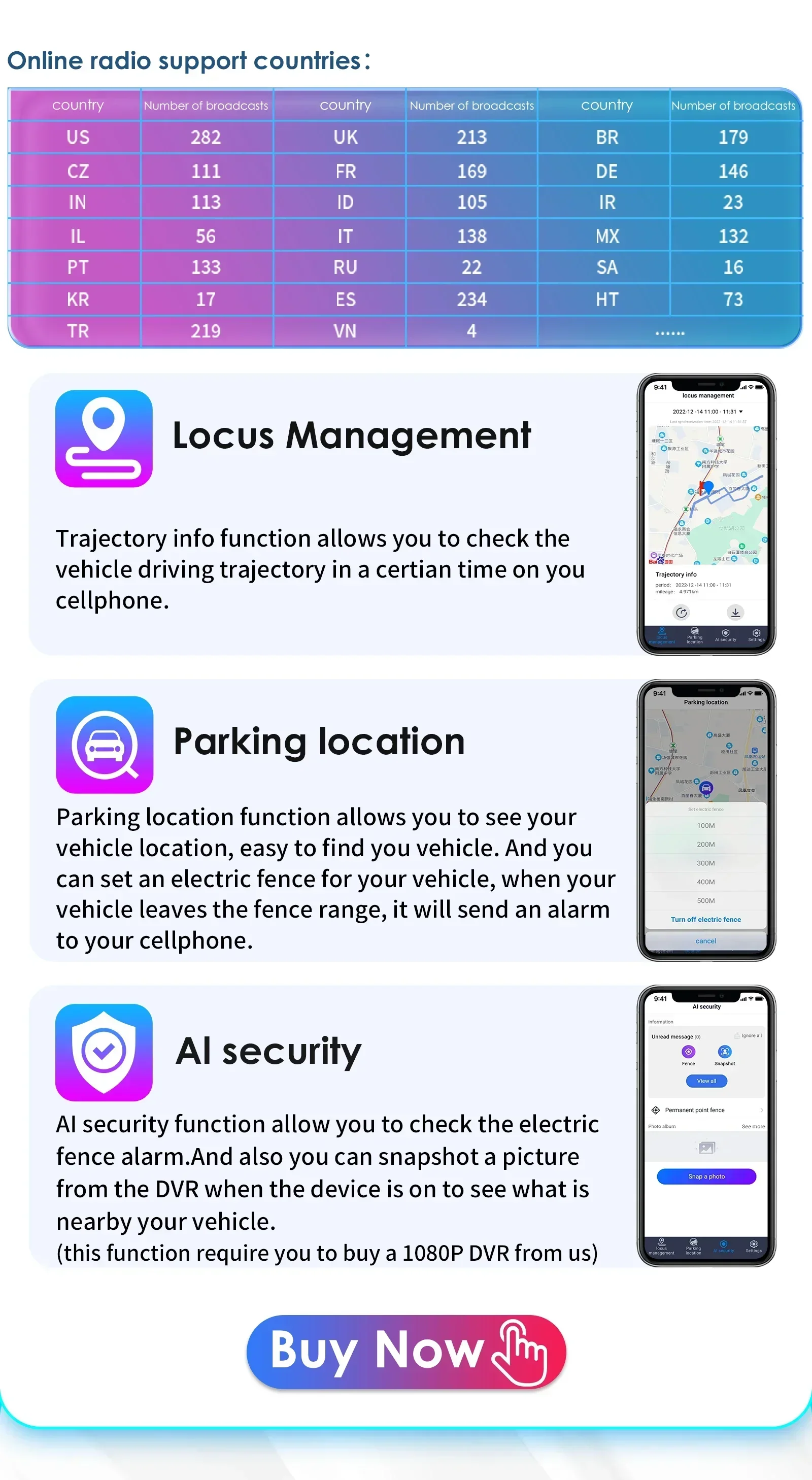

(1) Online Radio
with an internet data connection,you can listen to online channels with no noise interference compared to traditional radio ,allowing your journey to enjoy the ultimate listening experience.
Customize settings ,Supports 20 countries ,add to favorites, Quality broadcast.,we will open up more national radio staions ,thanks you for your supports.
(2) Anti-Theft
this feature is only supported in the 4G version (S3/S4/S5/S7/S8 options)
Locus Management:Trajectory info function allows you to check the vehicle driving trajectory in a certain time on your cellphone.
(3) Parking location: Parking location function allows you to see your vehicle location,easy to find your vehicle,and you can set an electric fence for your vehicle,when your cehicle leaves the fence range,it will send an alarm to your cellphone.
AI Security: AI Security function allow you to check the electric fence alarm, and also you can snapshot a picture from the DVR when the device is on to see what is nearby your vehicle, ( this function require you to buy a 1080P DVR from us).

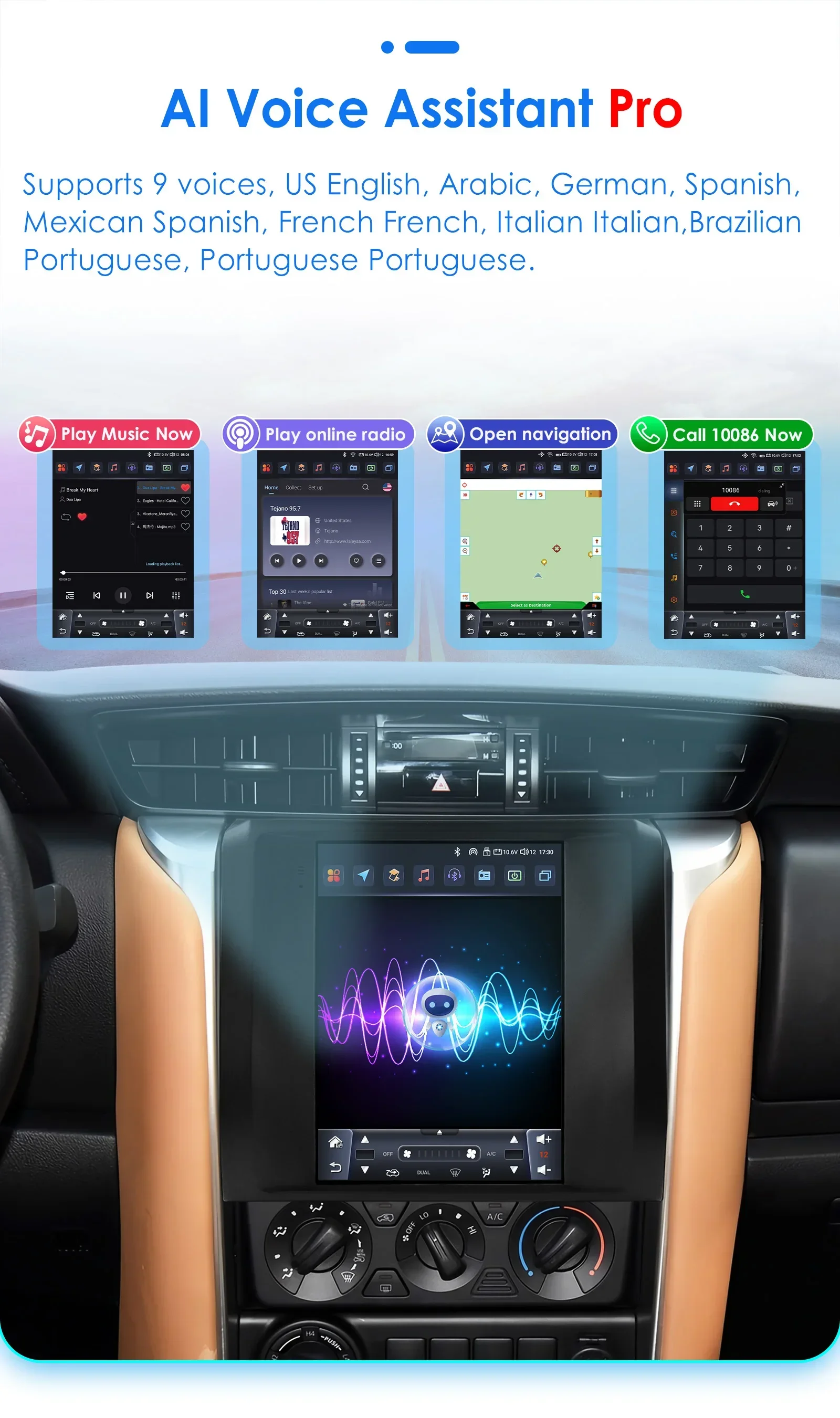

(4) AI Voice Car System Relax Driving( Need to buy separately)
AI Intelligent Assistant Pack
our AI intelligent assistant pack included the AI voice assistant Pro,for S series radio S3 ,S4,S5,S7,S8 will add these functions works: track tracking ,packing location and online radio functions.

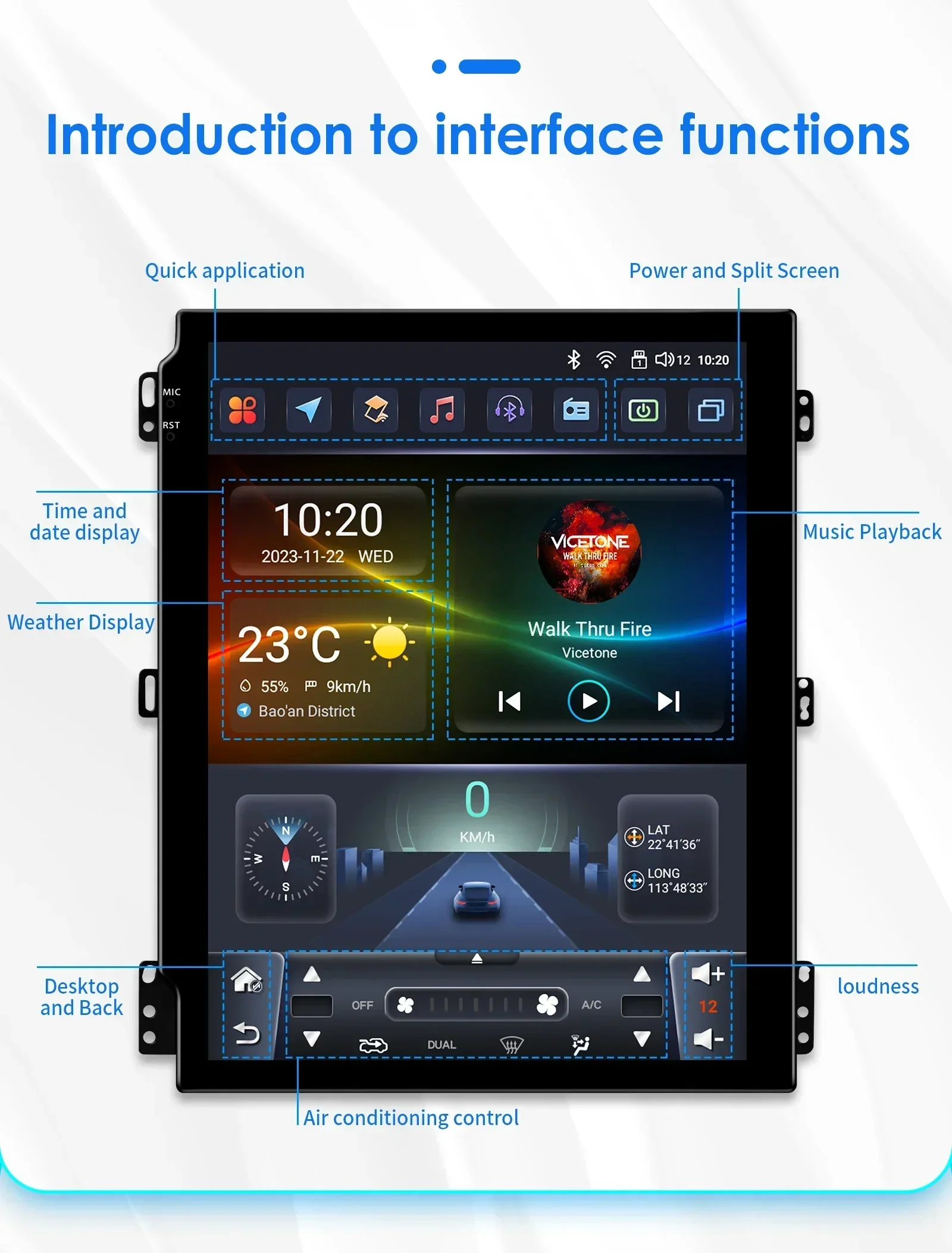

Introduction to interface functions :
Quick application, Power and Split Screen , Time and date display , Music Playback , Weather Display , Desktop and Back , Air conditioning control , Loudness

Support Torque Pro ( OBD2 & Car ) : You can connect a PJ-908 Bluetooth OBD2 Scanner Tool to use this function. Note: this PJ-908 Bluetooth OBD2 scanner Tool is not included,you can contact us to buy it together.

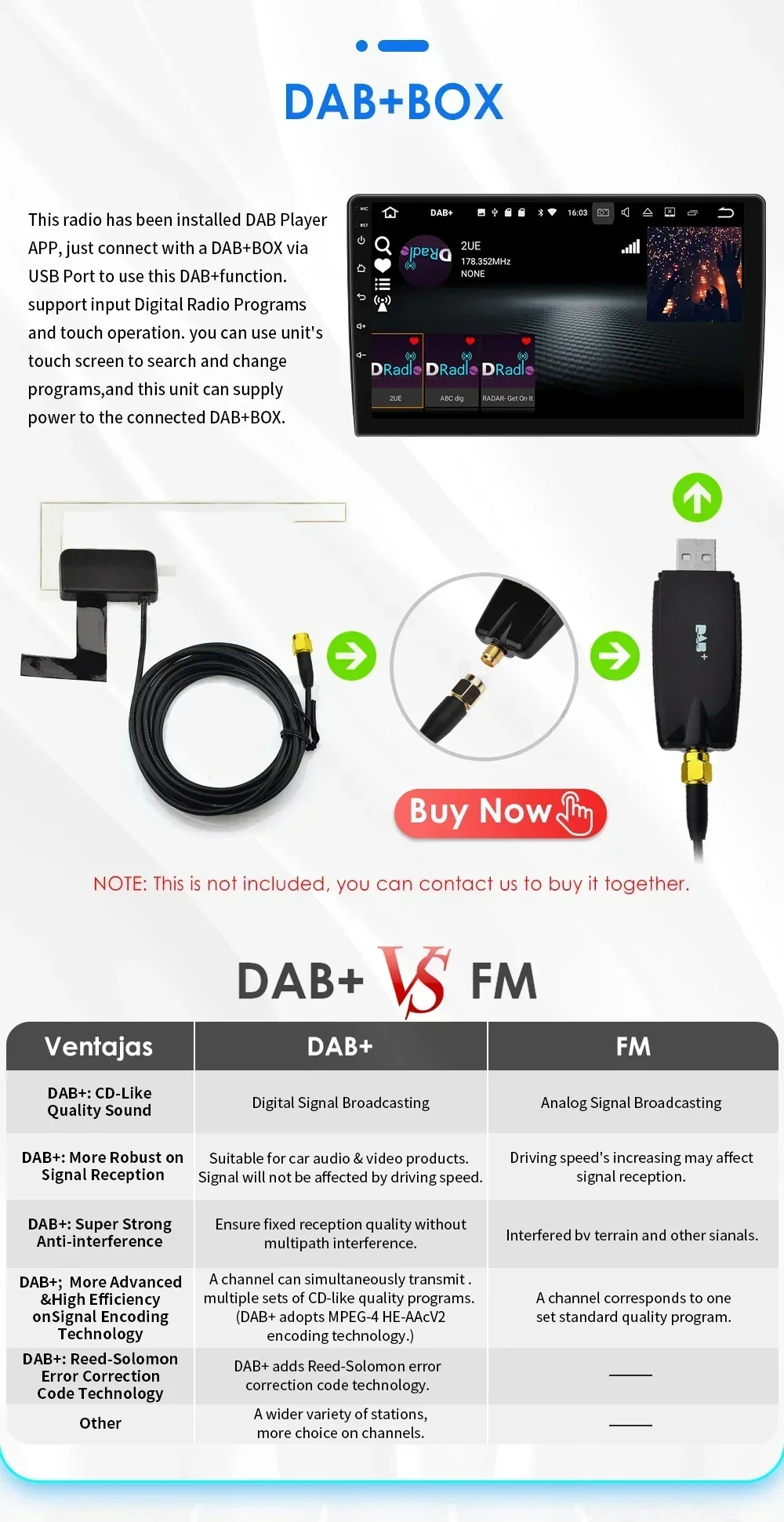

DAB+ Box ( Needs to order separately) : This radio has been installed DAB player APP, just connect with a DAB+BOX via USB Port to use this DAB+ Function, support input digital radio Programs and touch operation.you can use unit's touch screen to search and change programs ,and this unit can supply power to the connected DAB+ BOX.

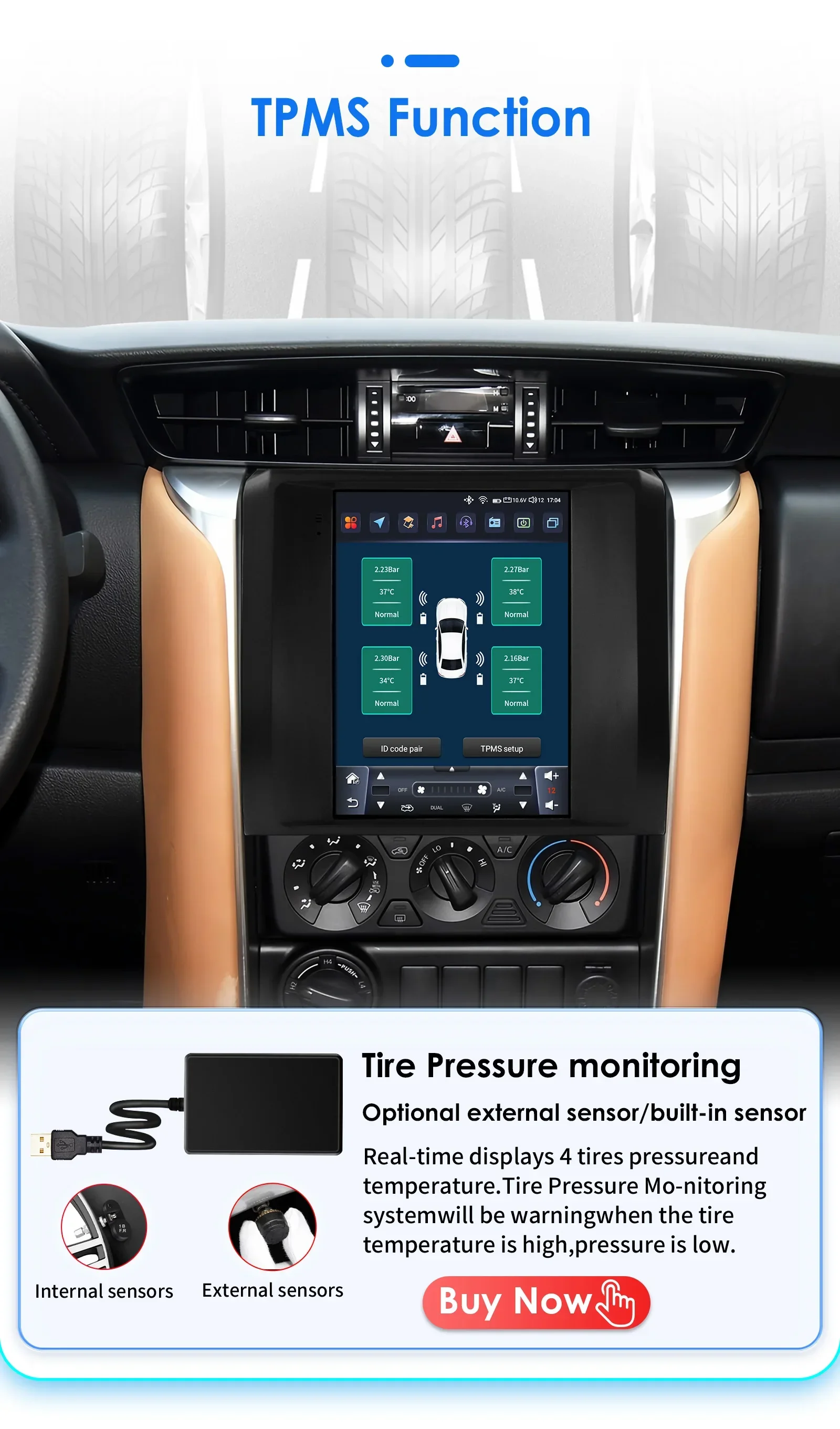

TPMS Function( Needs to order separately) : Tire Pressure Monitoring: Real-time displays 4 tires pressure and temperature,Tire Pressure Monitoring system will be warning when the tire temperature is high, pressure is low.

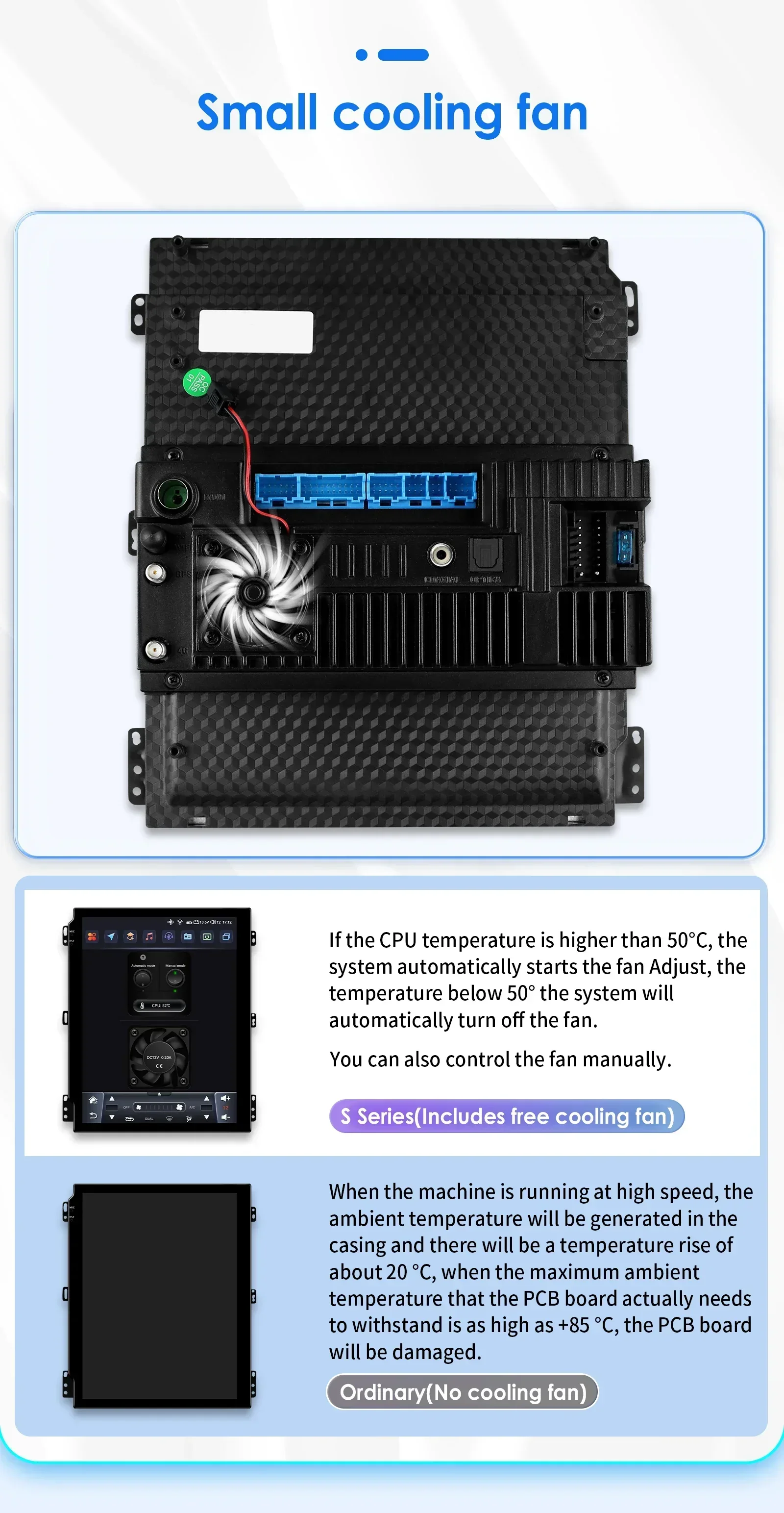

Small cooling fan : Note: the S series 8Core all included.; 4Core items not includes the Fan and not support this function.

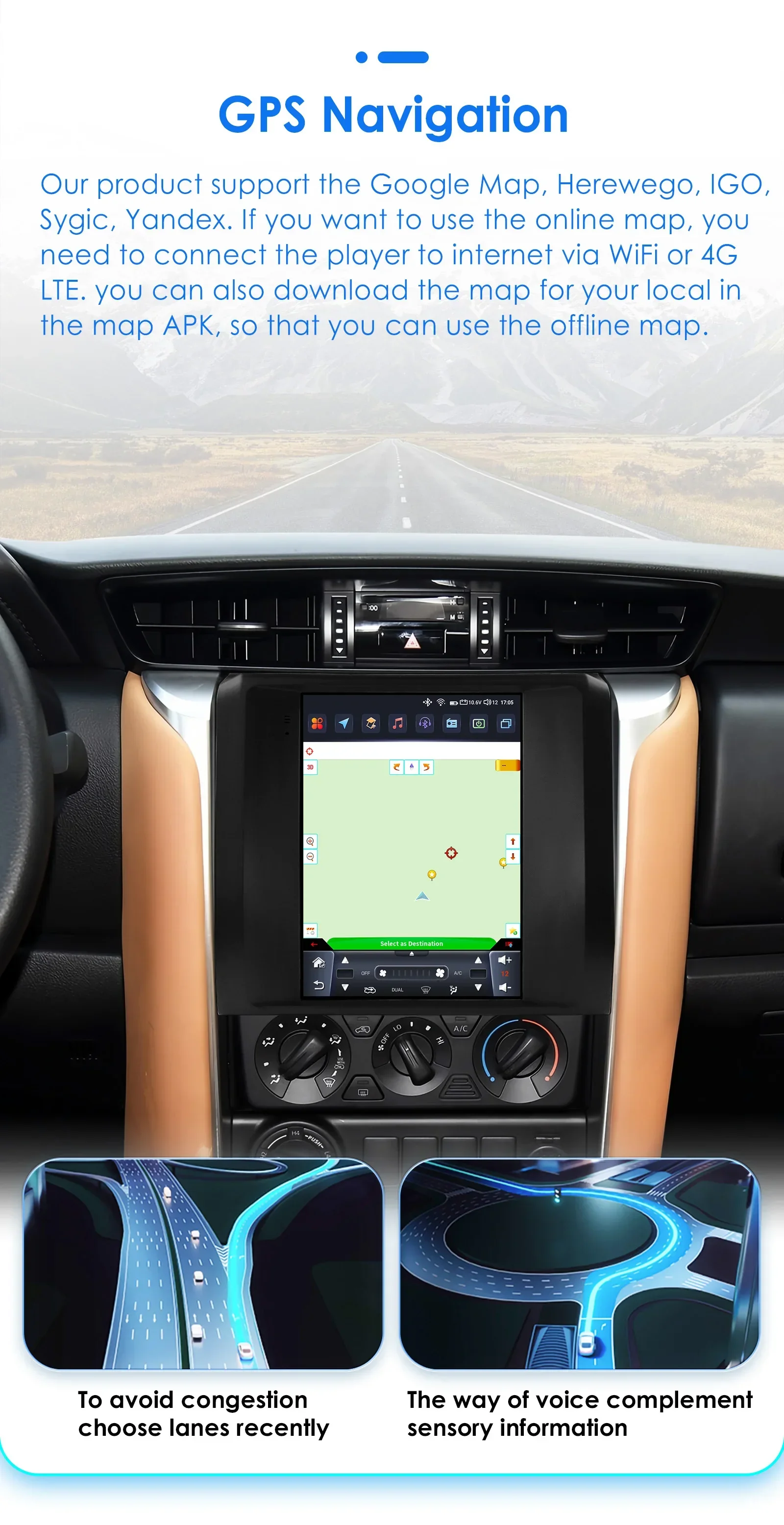

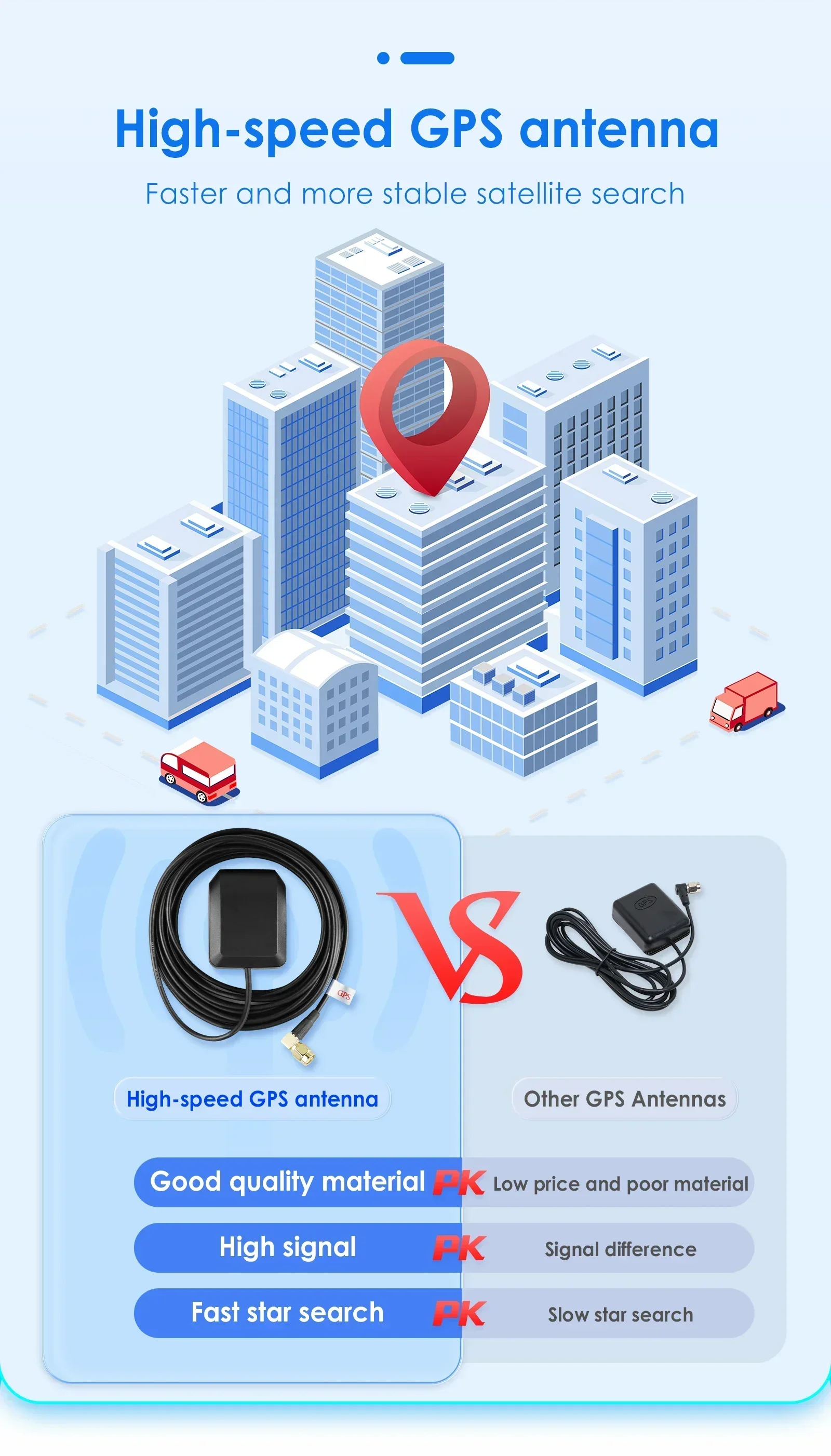

GPS Navigation: Supports Online and Off line Google map, Navitel, Waze, Herewego To avoid congestion choose lanes recently , the way of voice complement sensory information.

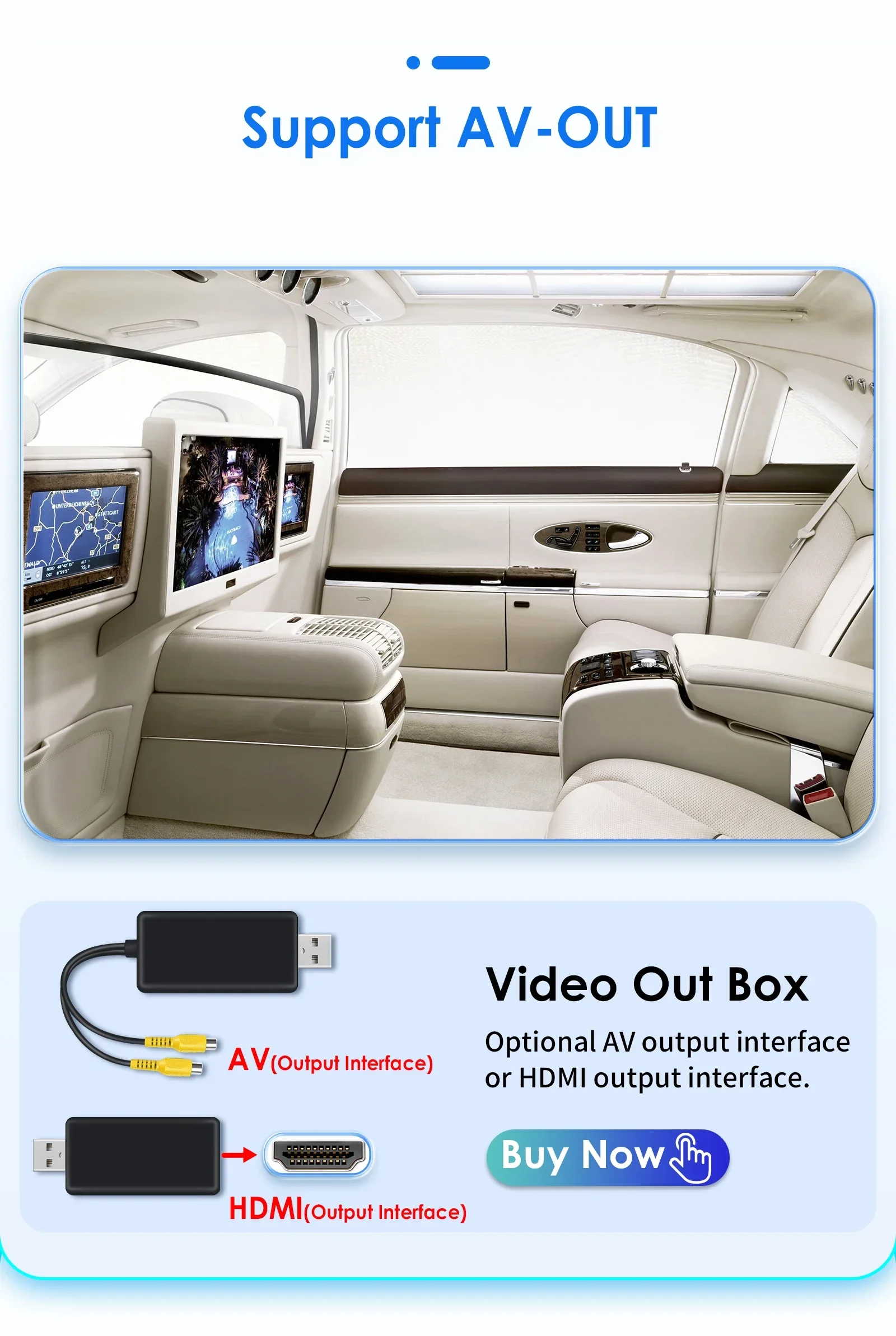

Supports AV-OUT: AV OUT box ( Needs to order separately)

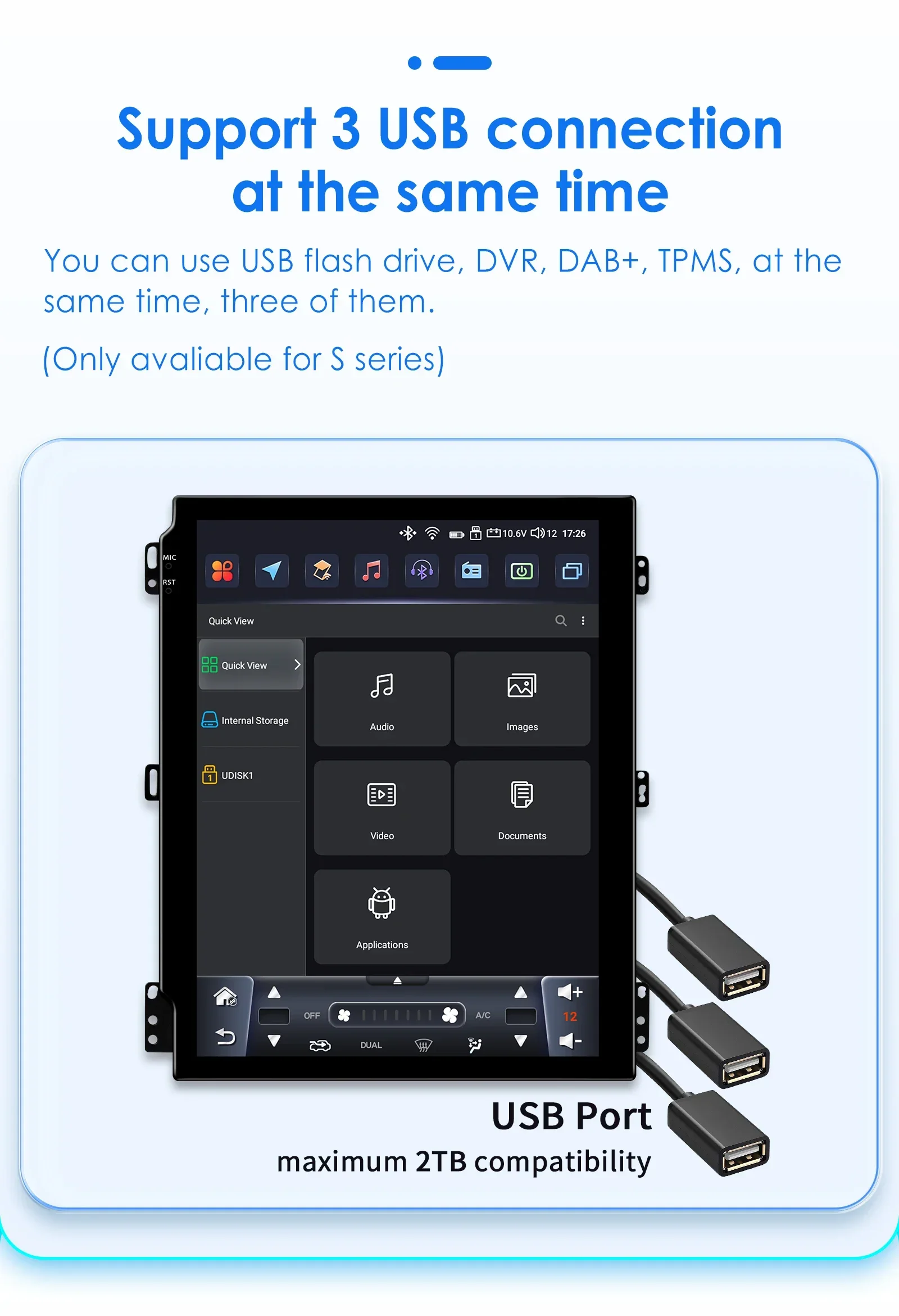

S Series Support 3 USB Connection:
External Memory: USB port up to 2TB,this unit can play the video and audio files from your external device.

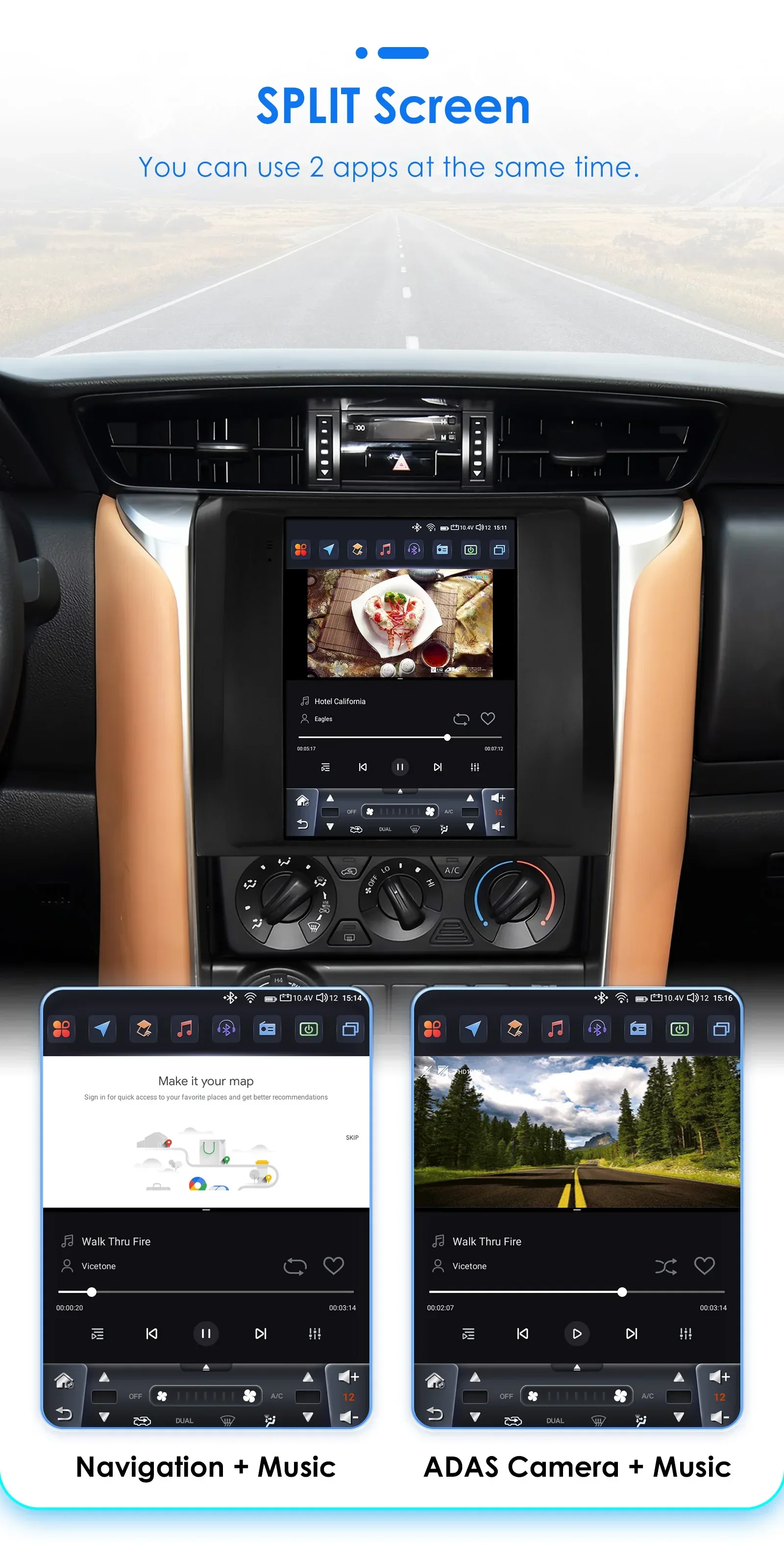

Split Screen : You can use 2 apps at the same time (such as: Navigation + Music , ADAS Camera + Music ,etc.)

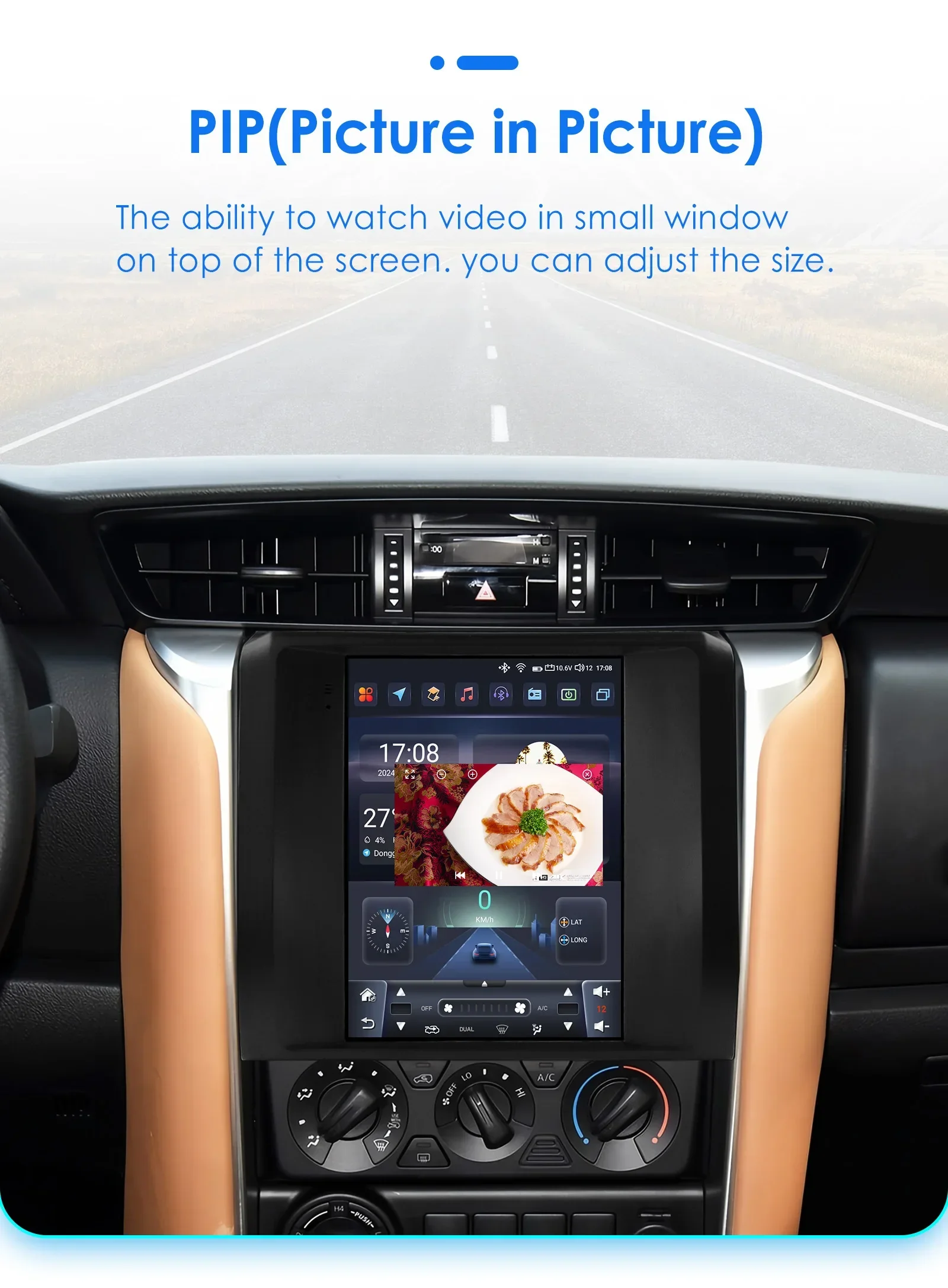

PIP(Picture in Picture): the ability to watch video in small window on top of the screen, you car adjust the size.

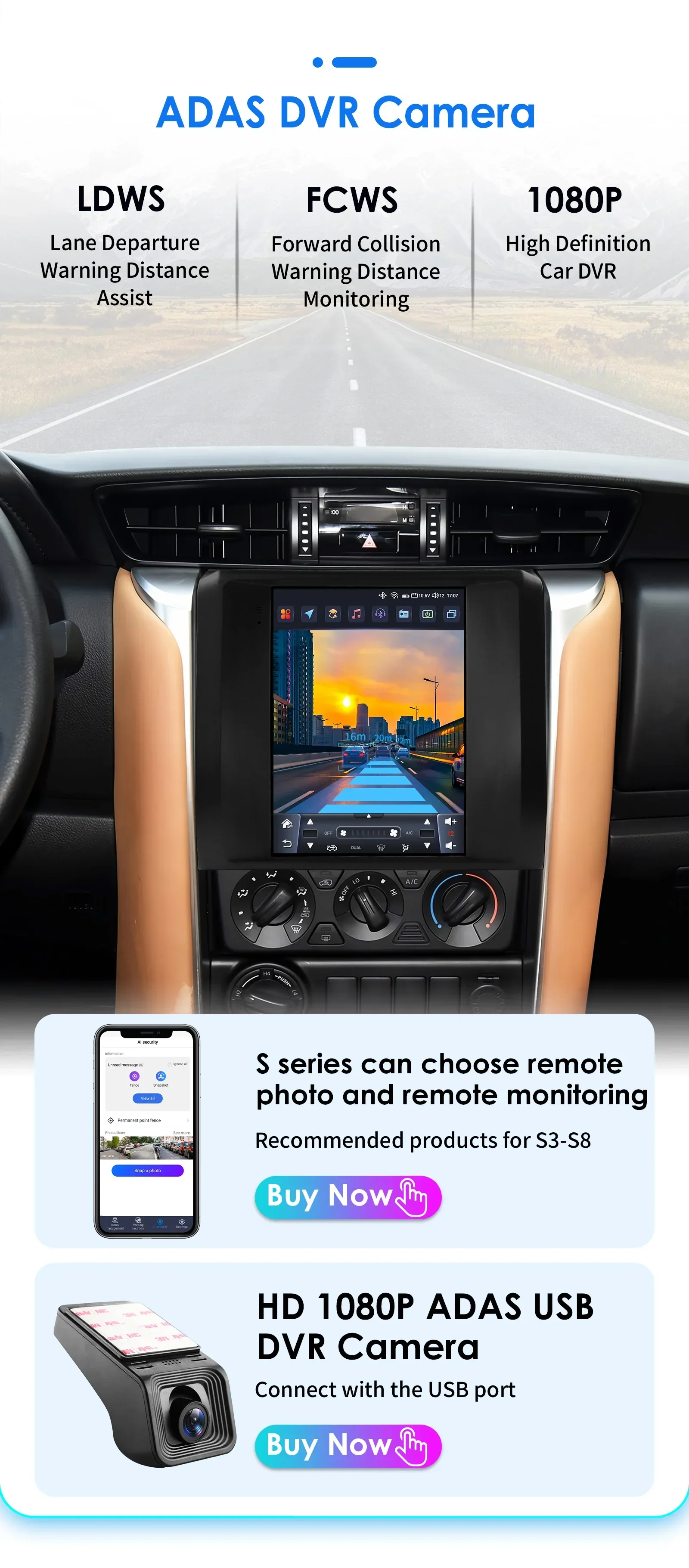

HD 1080P ADAS DVR Camera(Needs to order separately) --connect with the USB port: LDWS(Lane Departure Warning Distance),FCWS(Forward Collision Warning Distance), 1080P(High Definition Car DVR).

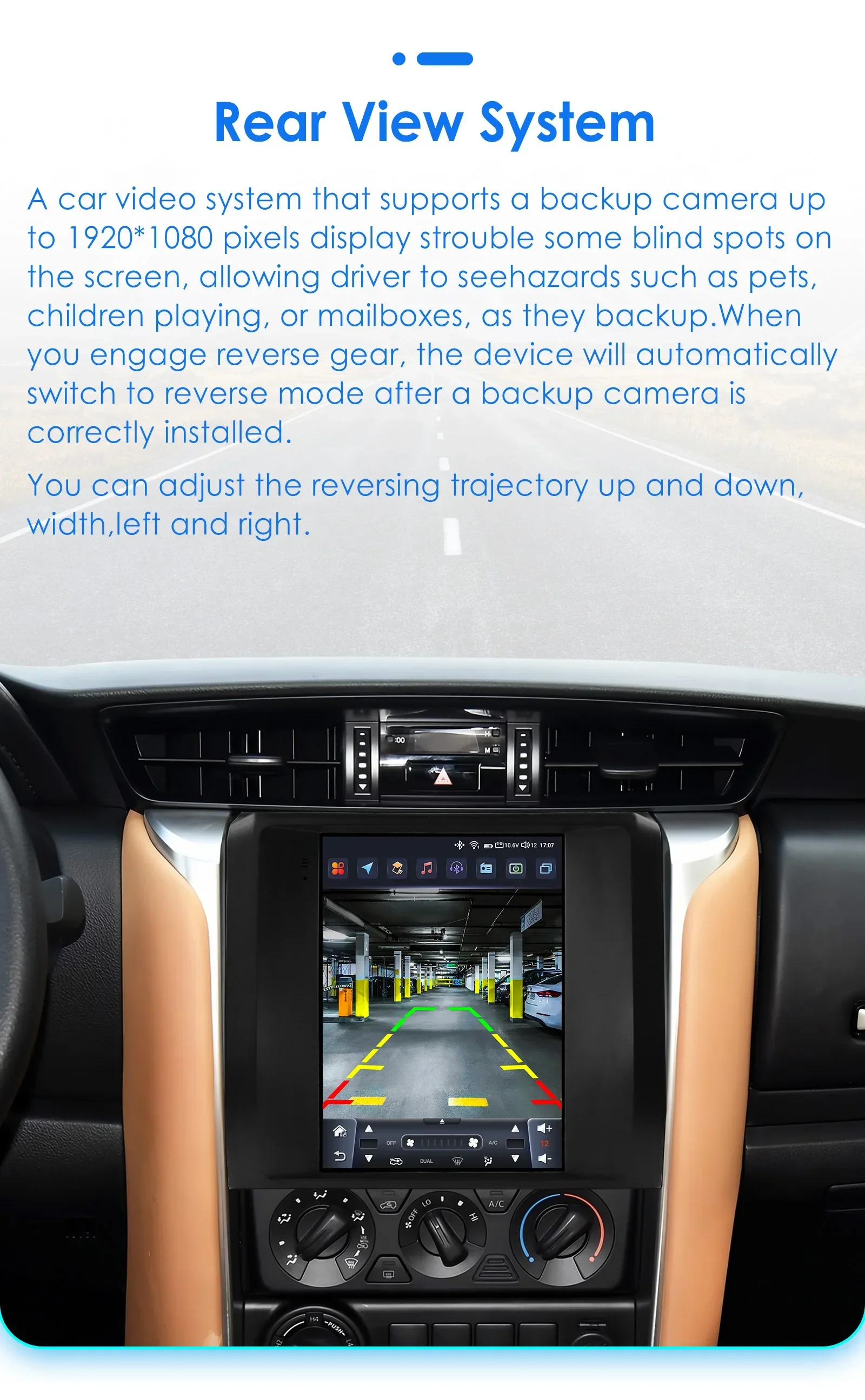

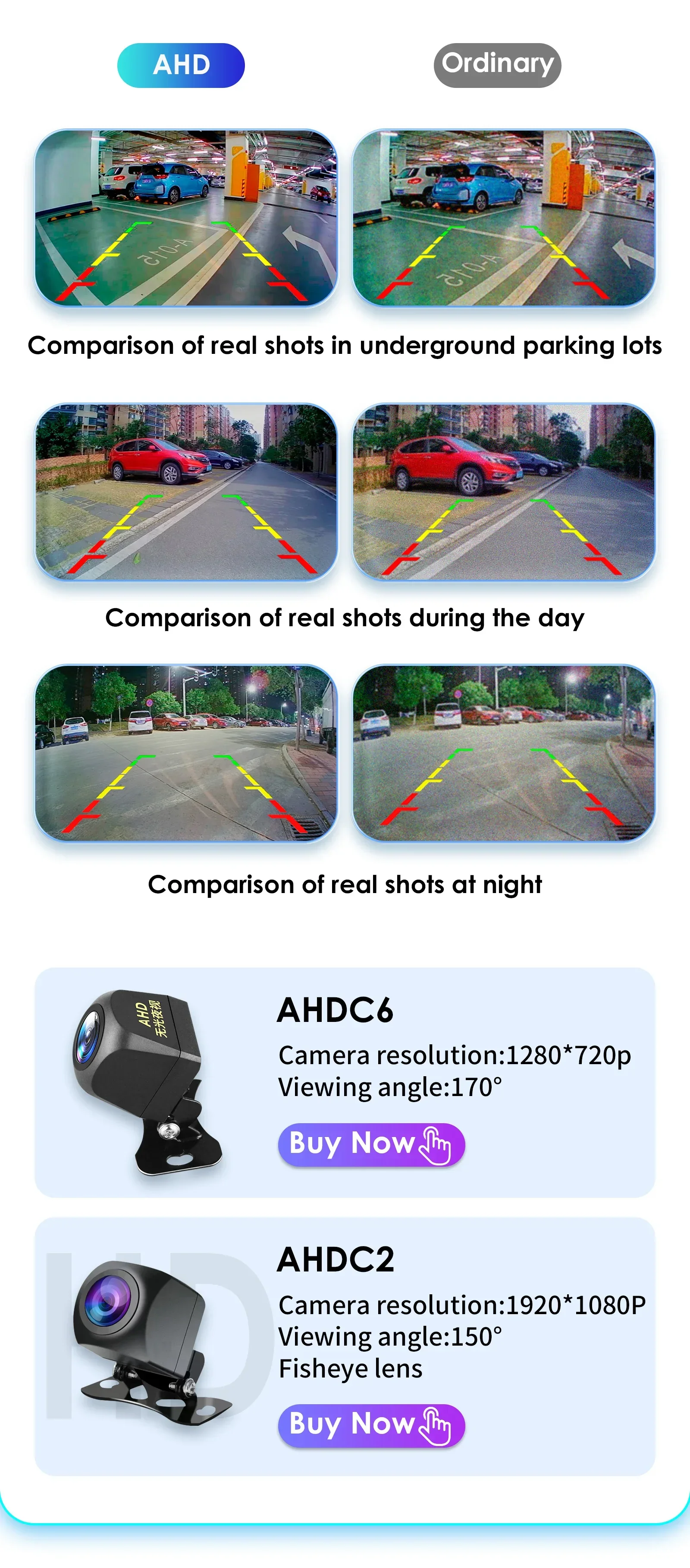

Rear View System(Rear View Camera needs to order separately): A car video system that supports a backup camera displays troublesome blind spots on a monitor , allowing a driver to see hazard such as pets ,children playing ,or mailboxes ,as they backup.

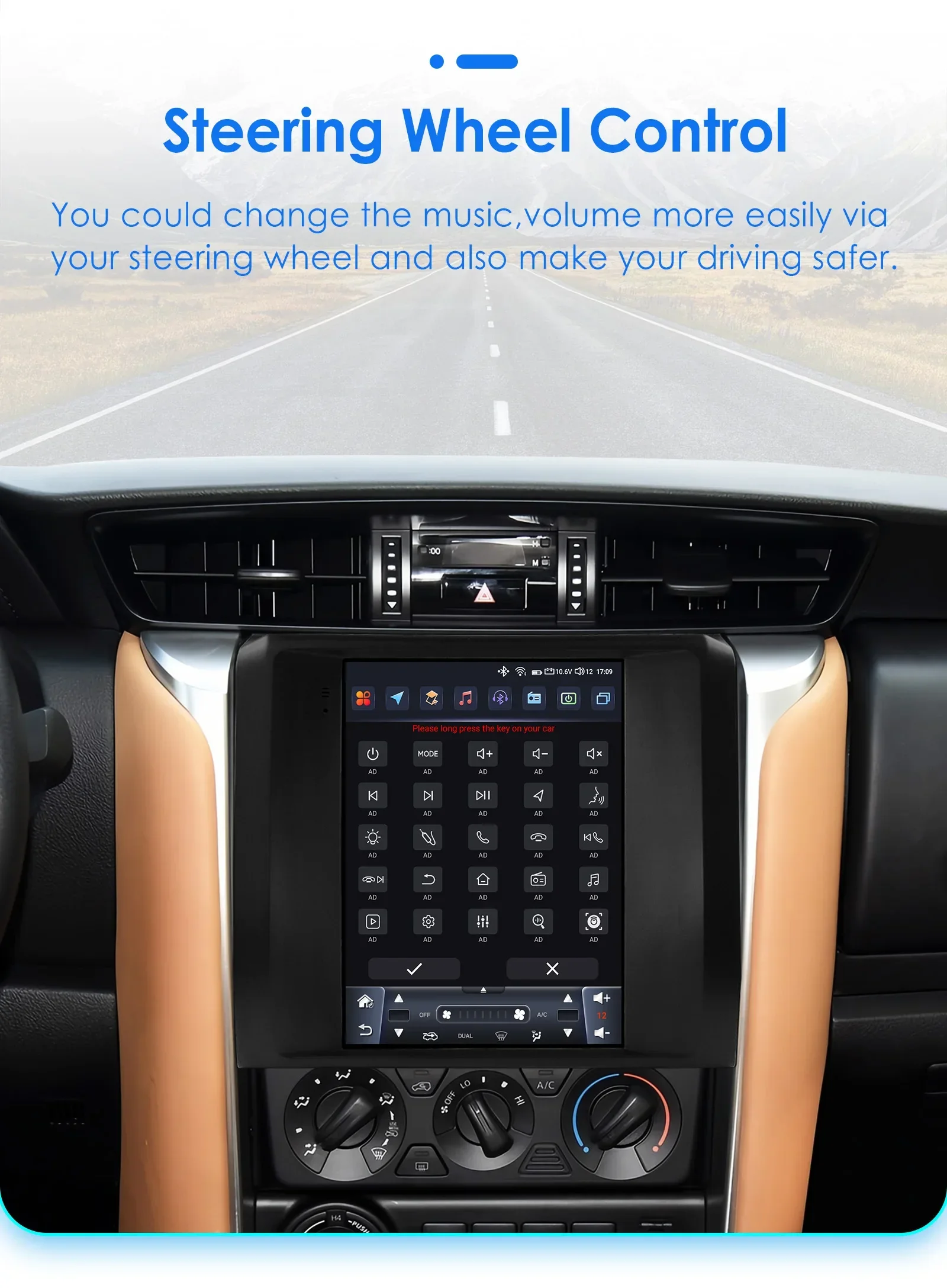

Steering Wheel Control: You could change the music ,volume more easily via your steering wheel and also make your driving safer.

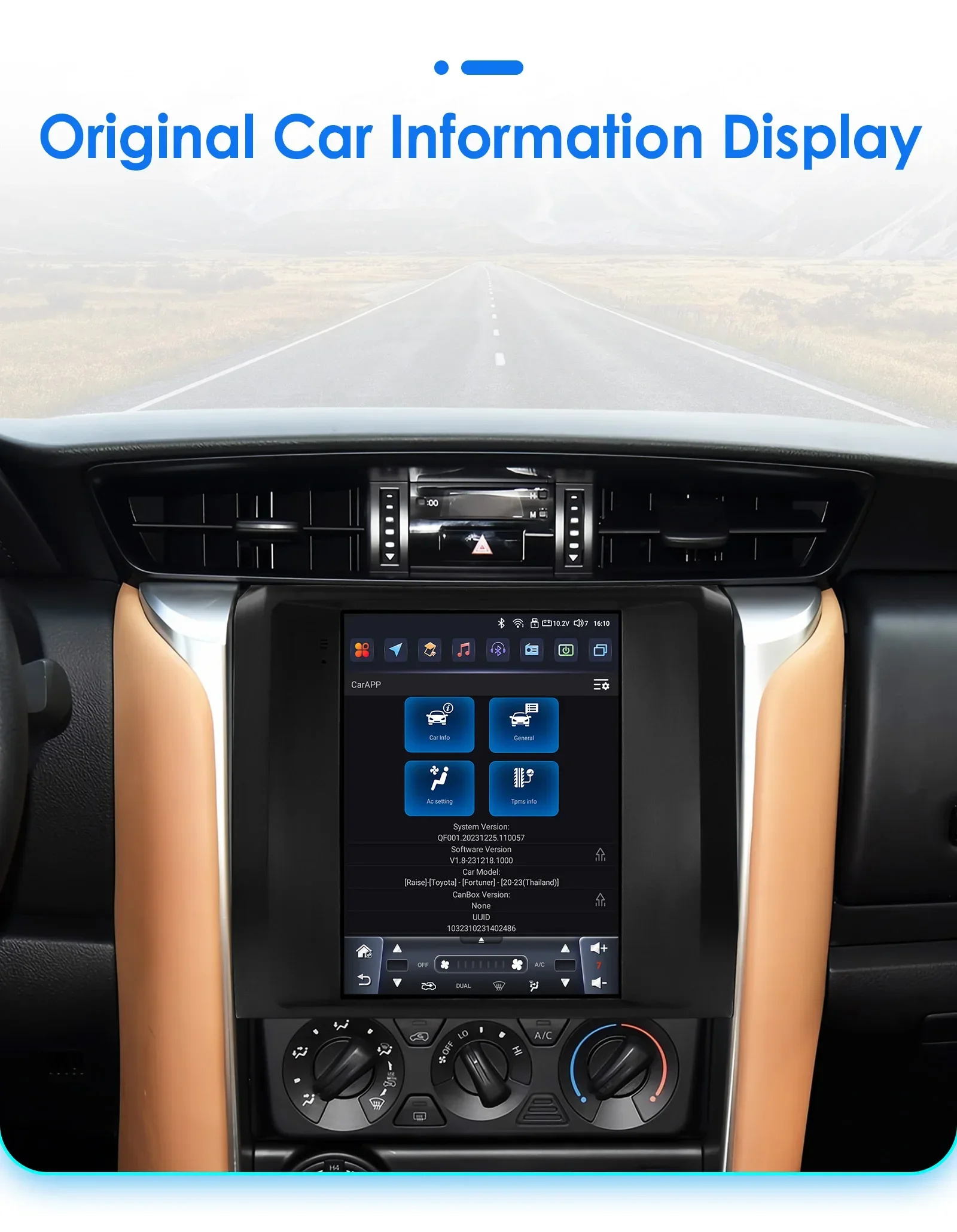

Original Car Information Display:

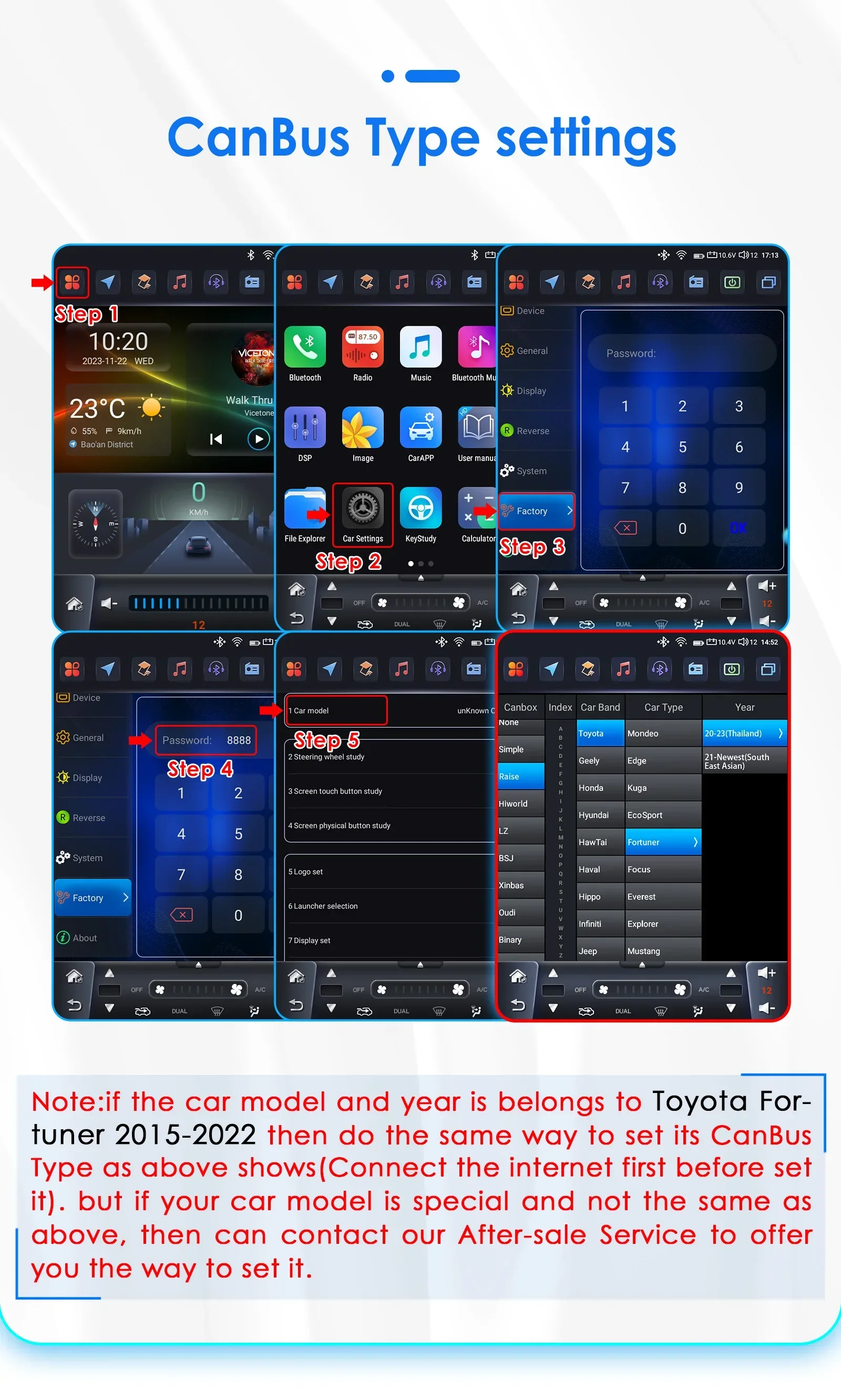

Canbus Type settings: Factory--8888( S series's Password)--Car Model--Raise--Toyota--Fortuner--20-23(Thailand)--OK.
the P series code is 1617 of factory settings.

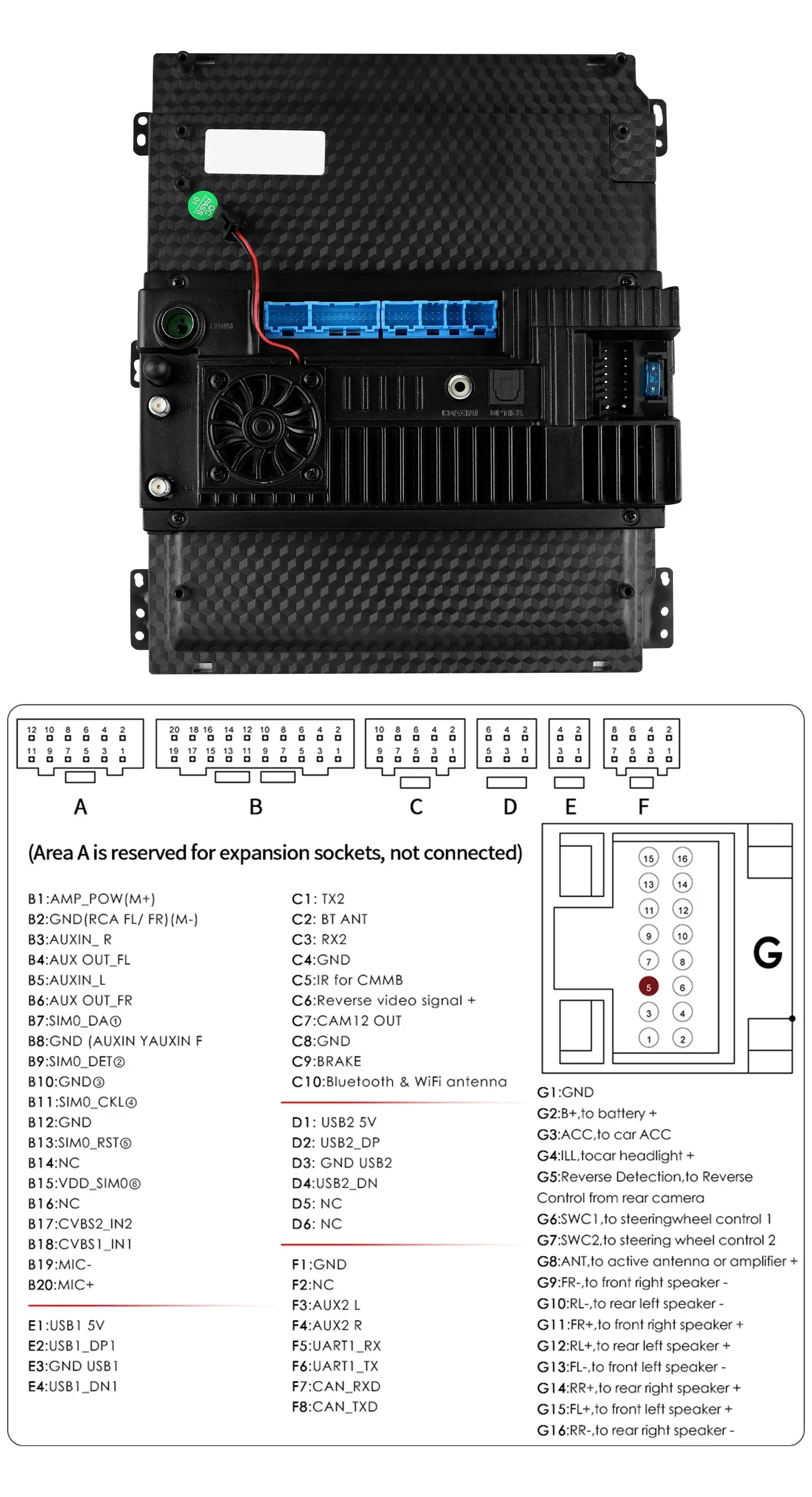

Its Wire Diagram of each pin wire details

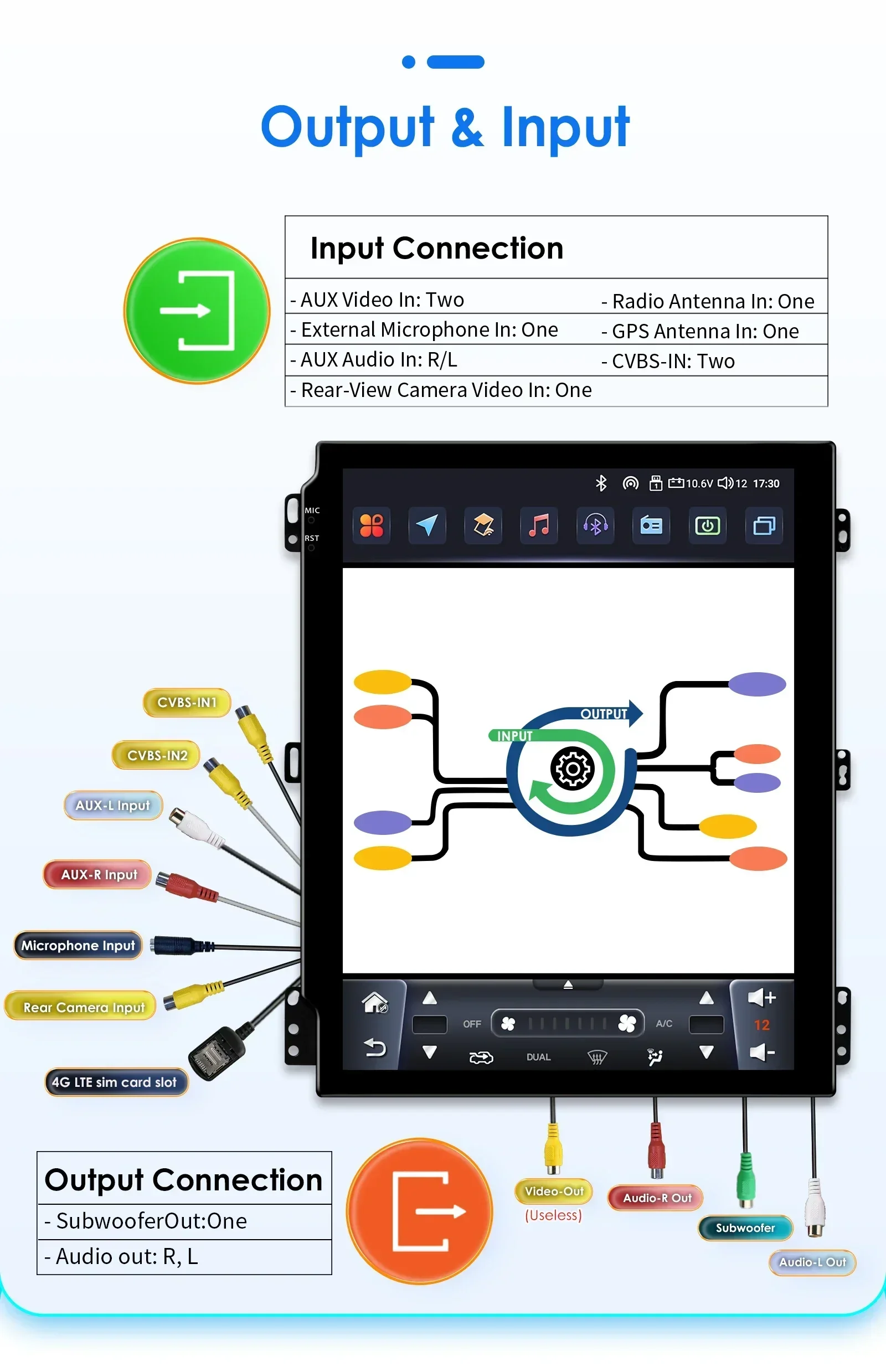

Radio backside wire diagram details:

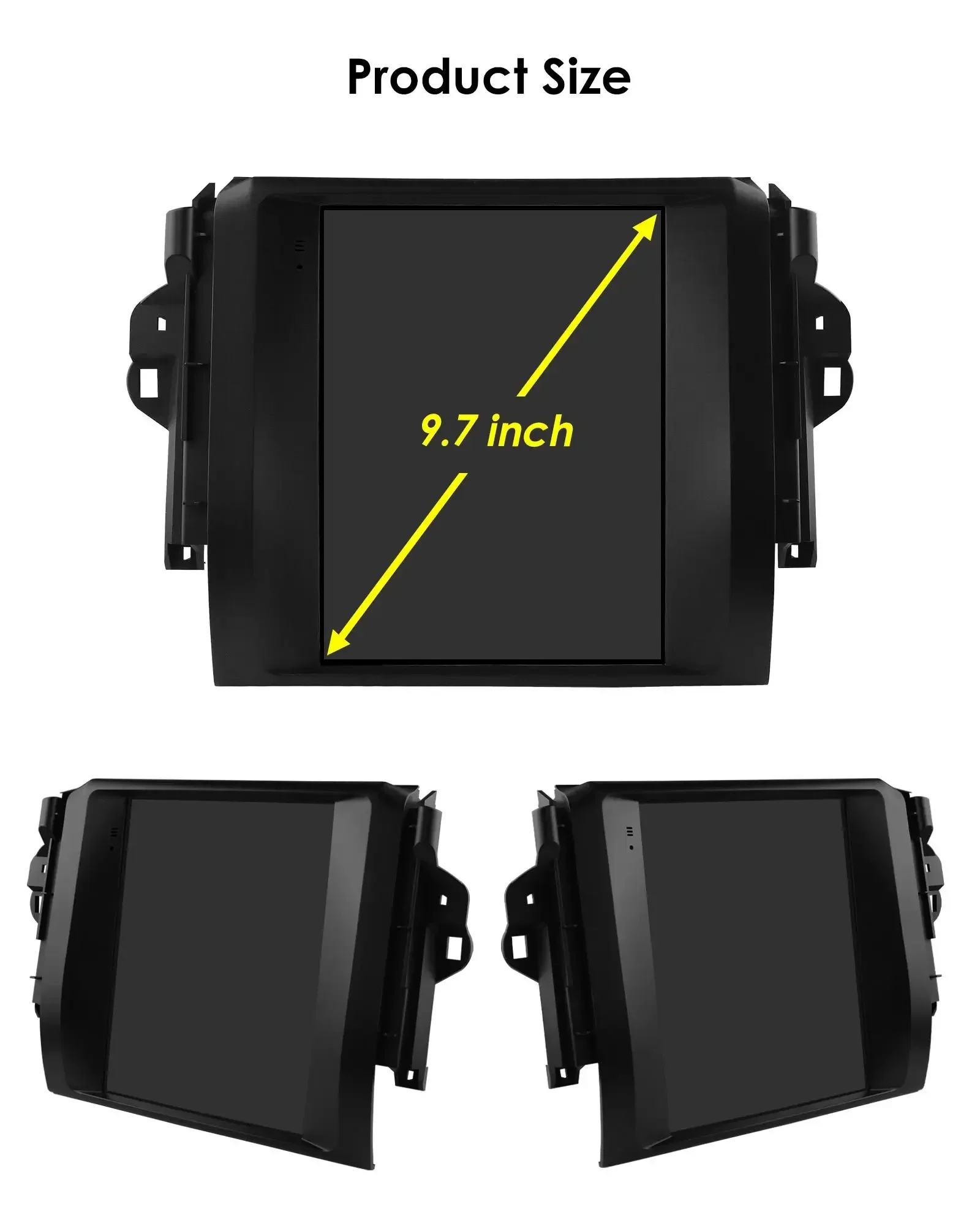

Product Size: Please kindly to compare with your original radio's size before bidding ,if size's are different which cannot install.

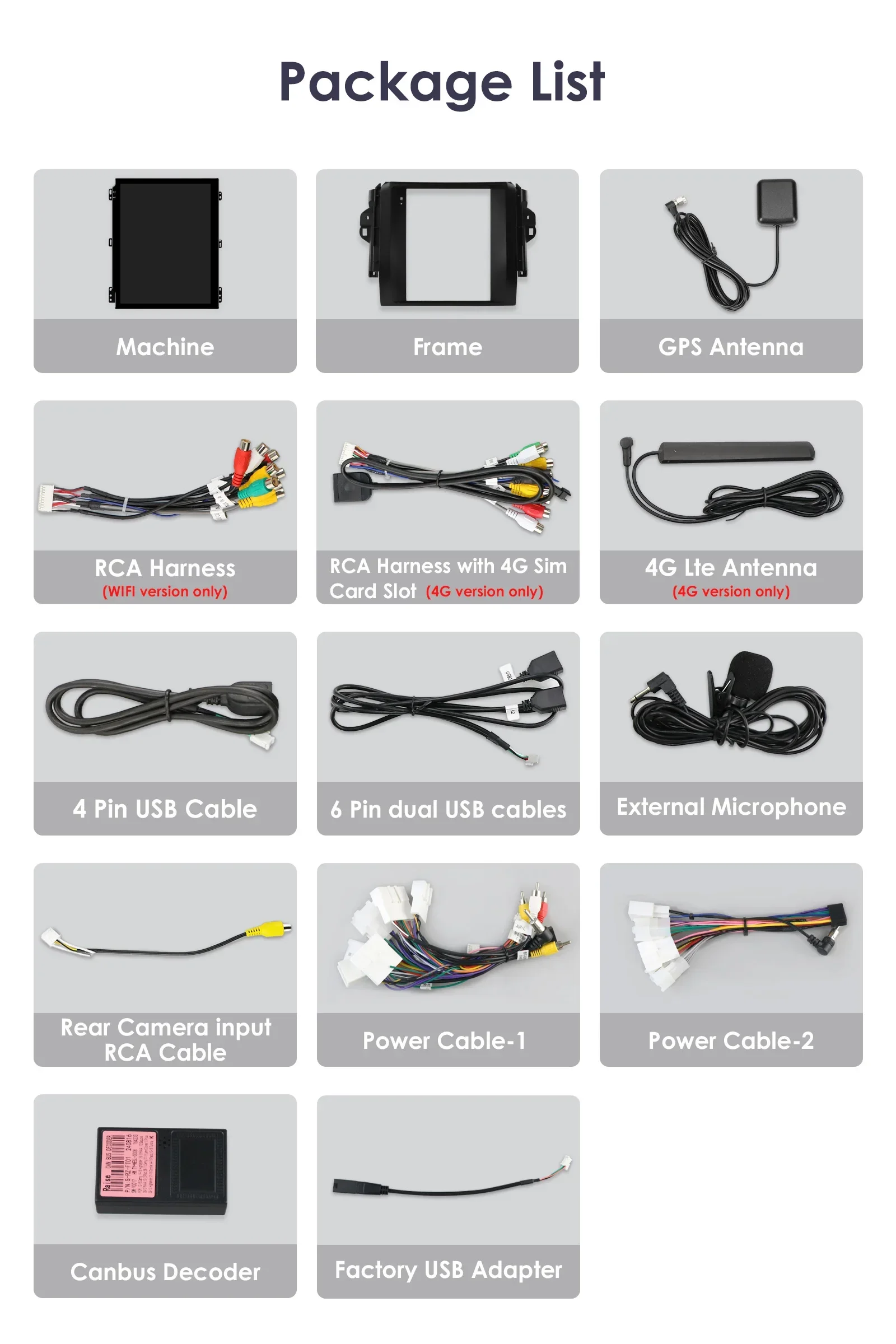

Standard Accessories: which ship with the head unit together(but please pay attension to the red words of accessory whether can get or not which depends on the item option you choose to buy it)

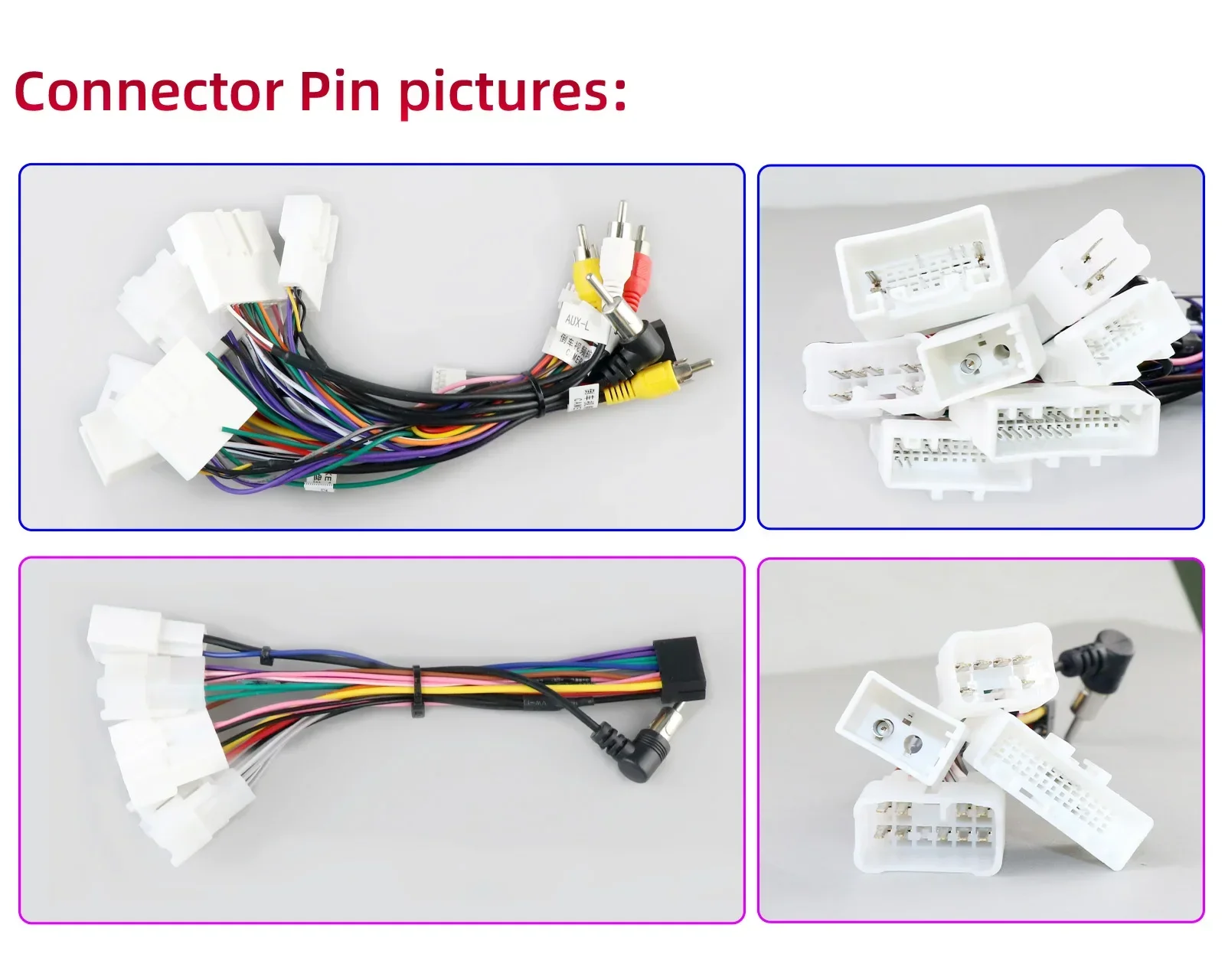

Connector Pin Pictures:
(Notice: if the connector pin to install with the car wires' cable is not the same as them which needs to contact the after-sale service to order special wire for installing)
