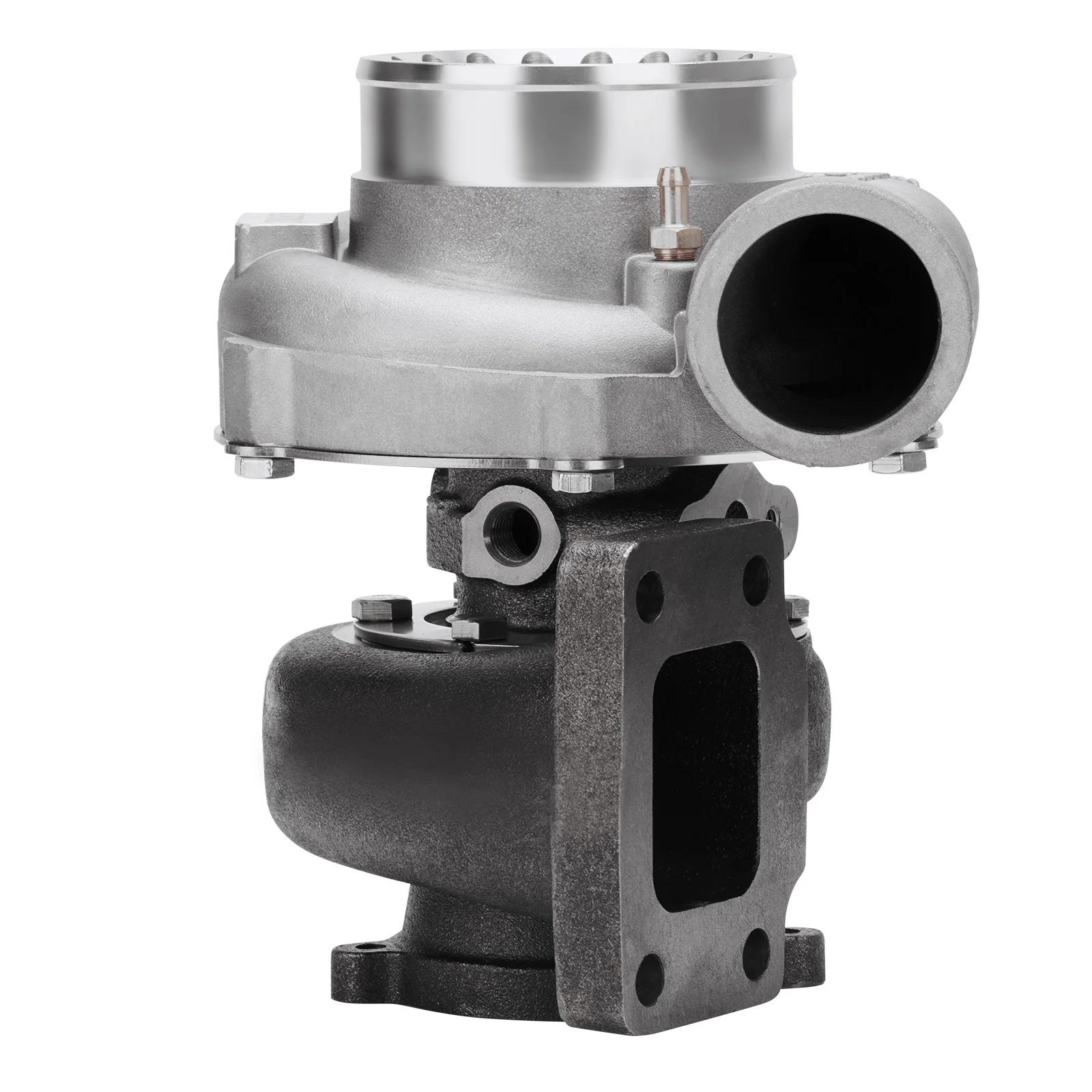

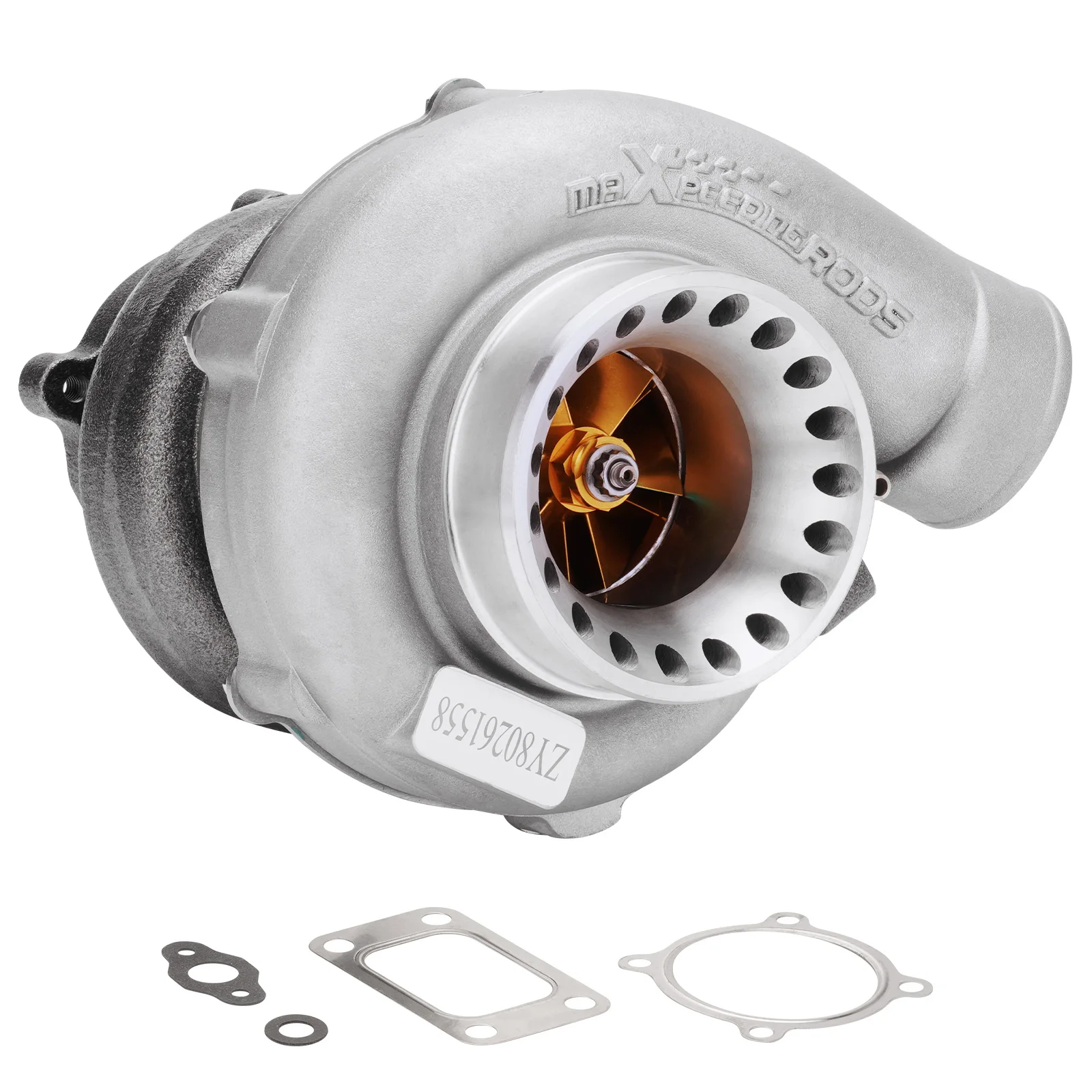

Billet Universal Turbo All 4/6 CYL 2.5-6.0L Engines Water Turbocharger T3 Flange

Street Billet Compressor Wheel GT3582 Universal Replacement Turbocharger

This turbo is an universal application street turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.

Application

Perfect for all 4/6 cylinder and 2.5L-6.0L engines

Capable of Boosting Horse Power up to 600HP

*Notice:Please confirm that there is enough space in your car to install this turbo before purchasing.
3.This turbo features a T3 flange. To mate with T4 manifold, a T3-T4 adapter is required. The adapter extends the inlet assembly length. Please double-check available clearance prior to installation to avoid fitment issues.

Specification:

Turbine Side:

Exhaust Inlet Flange: T3 Flange

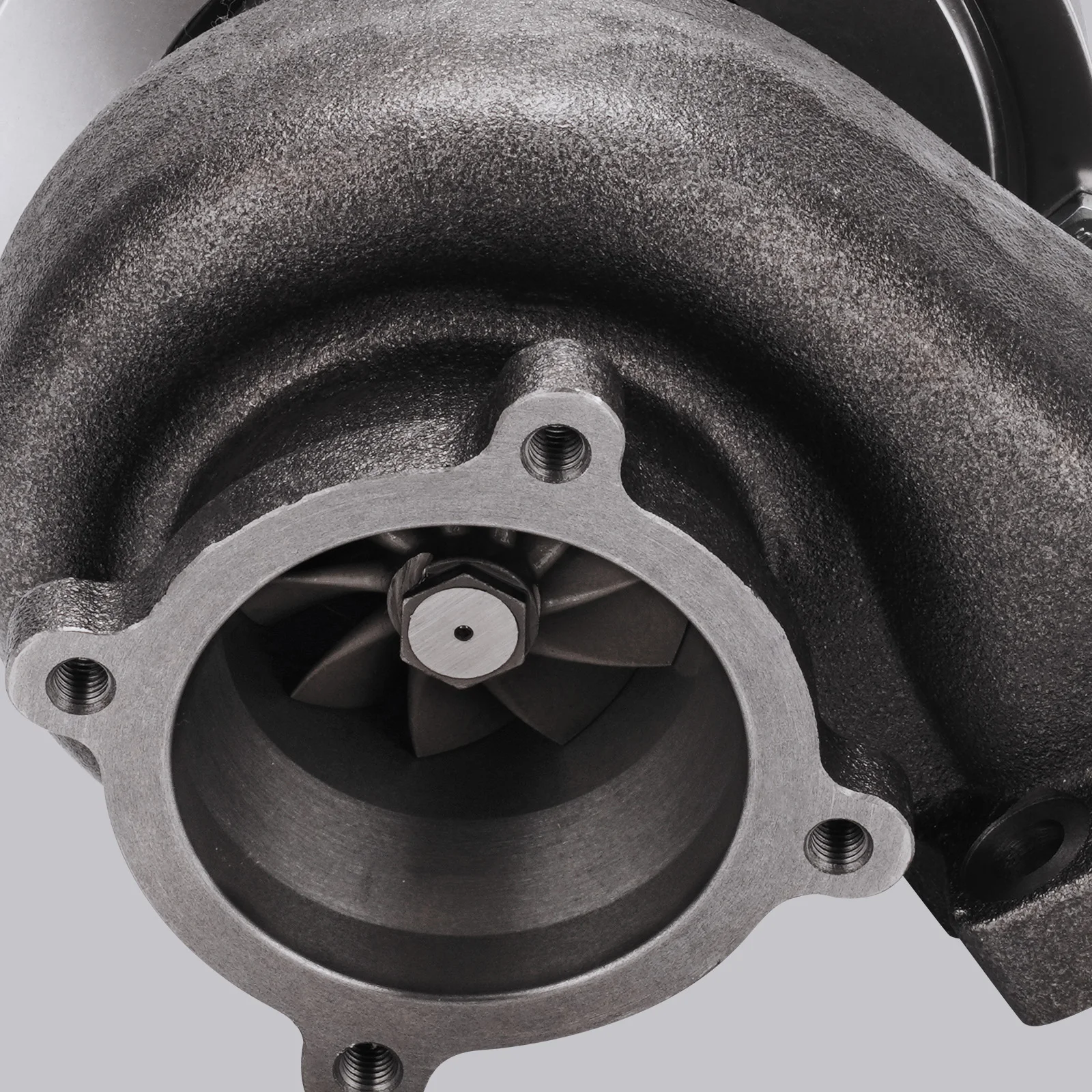

Exhaust Outlet Flange: 4-Bolt

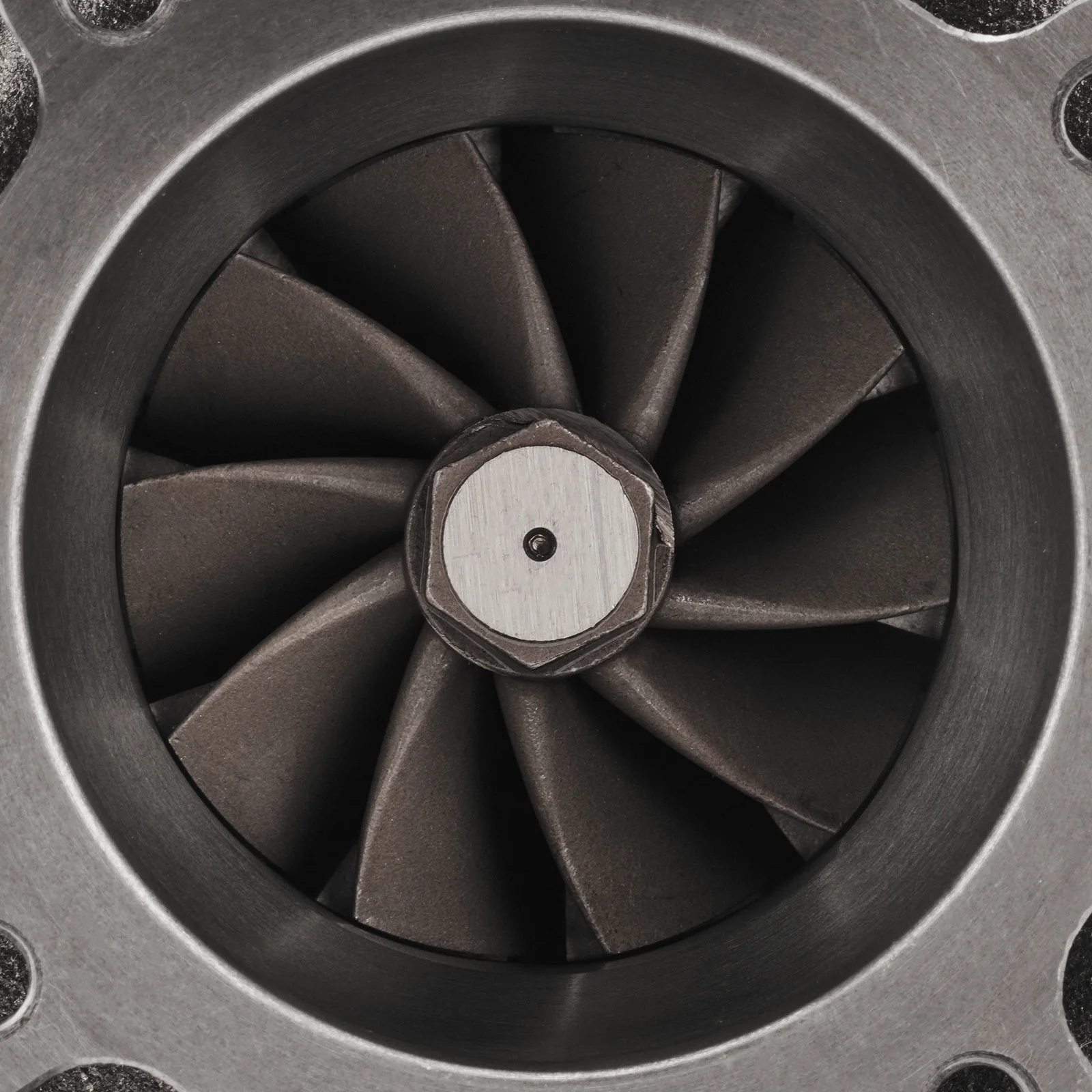

Turbine Trim: 84.2

Turbine A/R: 0.63

Turbine Inducer Diameter: 68mm

Turbine Exducer Diameter: 62.4mm

Compressor Side:

Compressor Trim: 56.9

Compressor A/R: 0.7

Compressor Inducer Diameter: 61.5mm

Compressor Exducer Diameter: 81.5mm

Compress Inlet Size(Air intake): 4 inch (103.5mm)

Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type: Wet Float

Thrust bearing: 270 degree

Cooling Type: Water + Oil Cooling

Horse Power: Up to 600HP

Turbo Type: Individual

Universal Fitment: Yes

Finish: Matte

Wastegate: W/O Wastegate

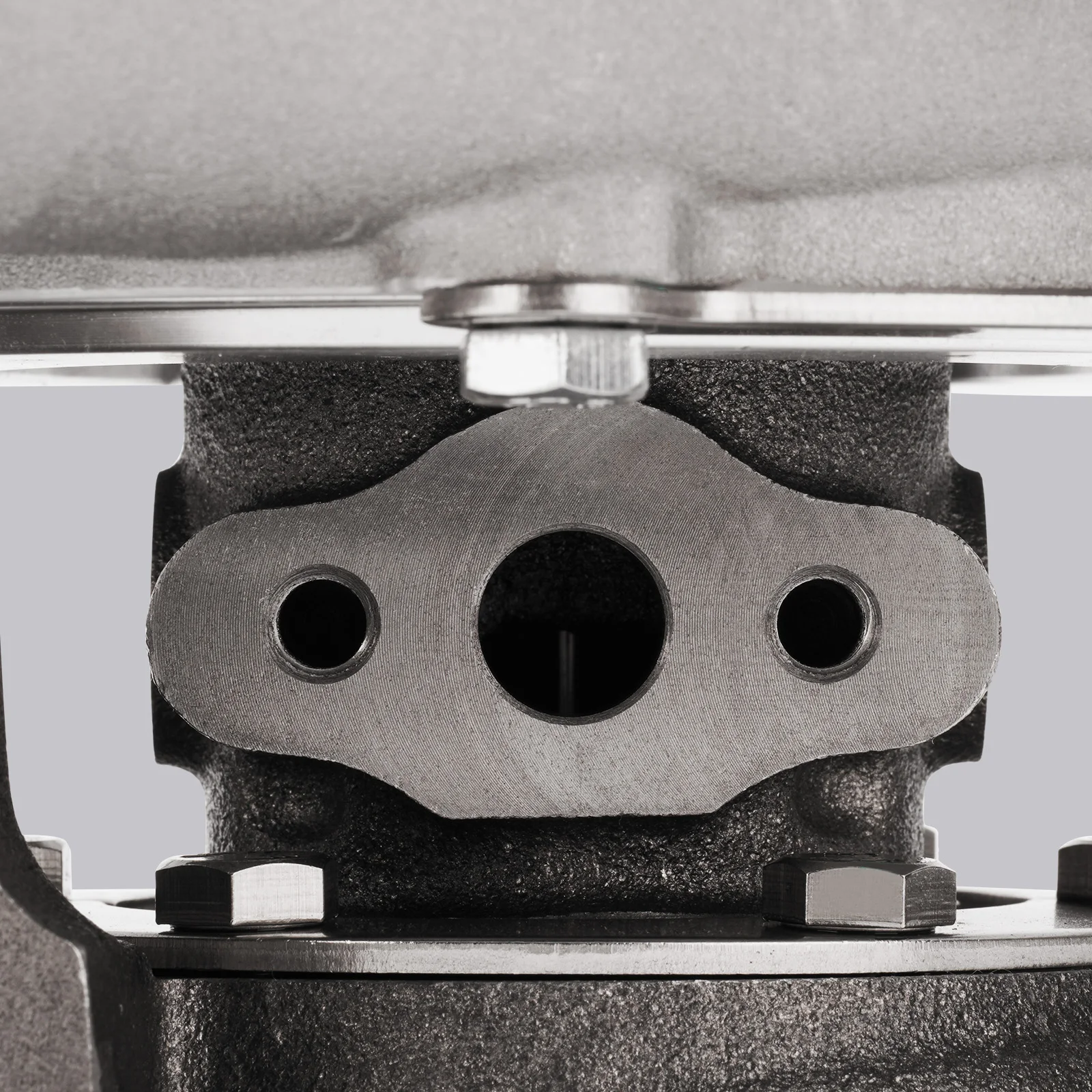

Oil feed/inlet: M10*7/16-24
