Air Spring Suspension Kit For Fiat Ducato Citroën Relay Jumper 1994-2024 4000kg Air Spring Bag Suspension Kit

Air Suspension Spring Bag Kit for Fiat Ducato 1994-2024

Application

For Fiat Ducato 1994-2024

For Citroën Relay 1994-2024

For Peugeot Boxer 1994-2024

For Citroën Jumper 1994-2024



Body type: Panel van, tipper, motorhome, camper, box van.

Notice: for Single Rear Wheel or Twin Rear Wheel, FWD or RWD

Chassis type: All standard type of chassis except Alco type Torsion Bars chassis.





Specification



Condition: Brand New

Chassis Type: All standard type Chassis

Placement on Vehicle: Rear left and right

Wheelbase：156mm

Max loading：4000 Kg

Package Length, width and height: 42*37*27 cm

Package Wight: 12.4 kg




Air spring：

Design height: 172 mm

Stroke: 140 mm

Max. Extended: 230 mm

Min. Compressed: 90 mm

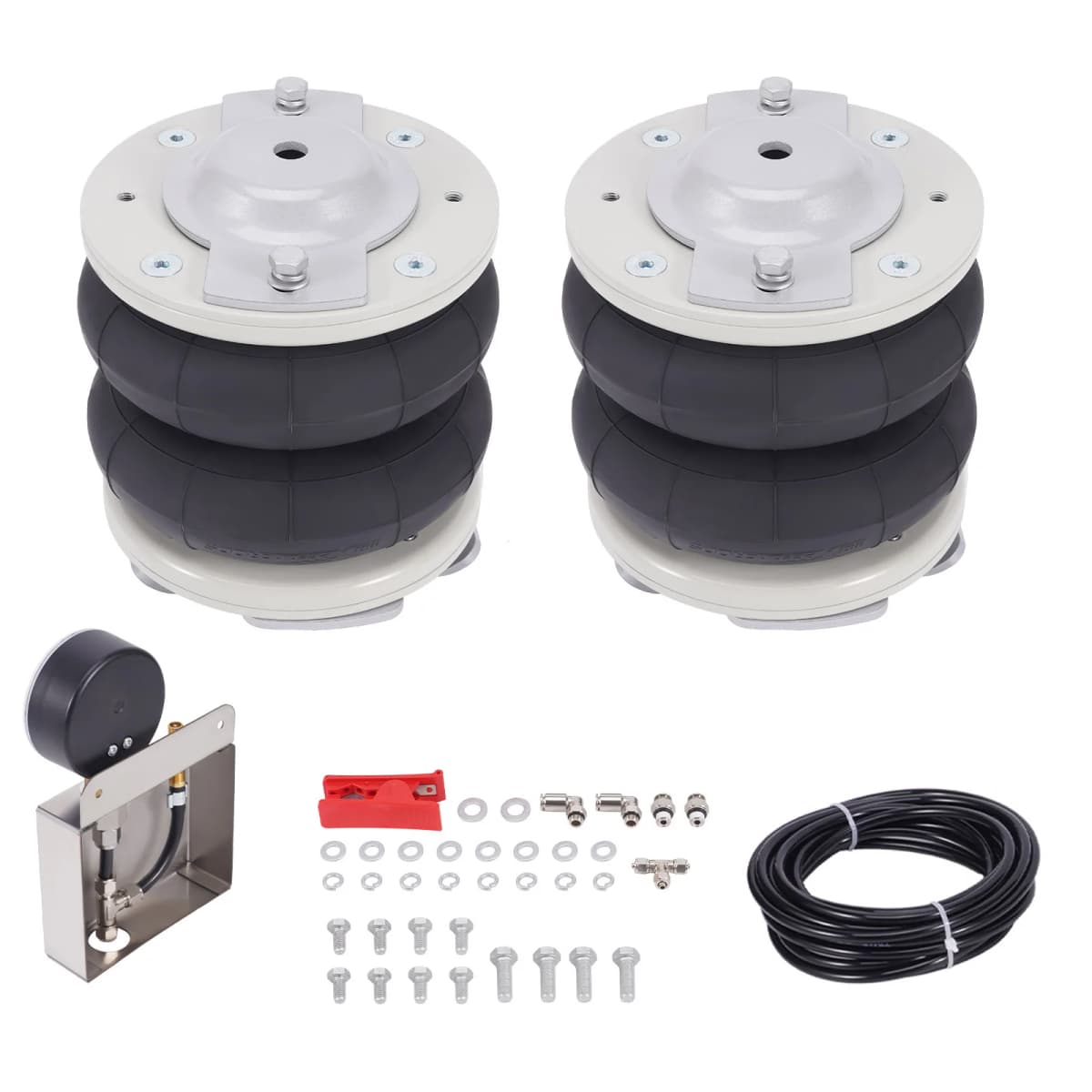

Package includes（as the picture shows）:

2x Natural Rubber & Hi-tensile steel Air spring bag

4x Galvanised Heavy duty mounting bracket

1x Guage

1x Air line 8m

Other bolts, screws, washers, spring washers and all you need to fit the kit



Feature

1. Stress Test Over 5,000,000 Times：Durable and Safe
2. Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise
3. Air Tightness Test ≤ 0.02MPa：100% Air Tightness Guarantee
4. Temperature Range ≥ -40℃/ ≤ 70℃：Premium Natural Rubber Material
5. Use high-quality steel with high load-bearing capacity and long life.
6. Excellent and practical bolt-on installation.
7. Safe carrying capacity and stability
8. Restore the original ride height and improve ride quality
9. Ensure our driving comfort and reduce tire wear.



Notice

- These air suspension kit are aftermarket ones. They will replace the original one.

- Professional installation is recommended.

- Contact us please for whatever we can help.
