VAG 611007 Crankshaft Adjustment Tool for 1.0 1.2 1.4, 1.5L 1.6 TSI, TFSI Tools 65380

VAG 611007 crankshaft adjustment tool for 1.0 1.2 1.4, 1.5L 1.6 TSI, TFSI

This special tool is used for basic adjustment of the camshaft to crankshaft position and replaces the VAG electronic measuring tool by using an electronic protractor.

The variant offered here contains the basic tool for 1.5L TSI, TFSI engines and the extension for 1.0L, 1.2L, 1.4L TSI, TFSI engines of the EA211 EVO2 generation.

The original VAG measuring system (611007) is based on software that is used via a PC or laptop. With this professional and precisely manufactured special tool it is possible to perform the basic setting with sensitive inclinometers.

However, an expensive and digital connection is not necessary with this tool. Thanks to this innovative solution, it is possible to work according to the repair manual.

Suitable for the following VAG engine codes:

1.0L TSI, TFSI: CHZA, CHZB, CHZC, CHZD, CHZF, CHZJ, CHZK, CHZL, CPGA, DBYA, DKJA, DKLA, DKLB, DKLC, DKLD, DKRA, DKRB, DKRC, DKRF

1.2L TSI, TFSI: CJZA, CJZB, CJZC, CJZD, CYVA, CYVB, CYVD

1.4L TSI, TFSI: CHPA, CMBA, CPVA, CPVB, CPWA, CUKB, CUKC, CXSA, CZCA, CZDA, CZDD, DGEA, DGEB, DJKA

1.5L TSI, TFSI: DACA, DACB, DADA, DFYA, DHFA, DPBA, DPBC, DPBE, DPCA

To be used as VAG 611 007 Electronic measuring system for camshaft adjustment (Adapter included VAG 611 007/6, VAG 611 007/7, 611 007/18,) T10340, T10499A, T10504/1

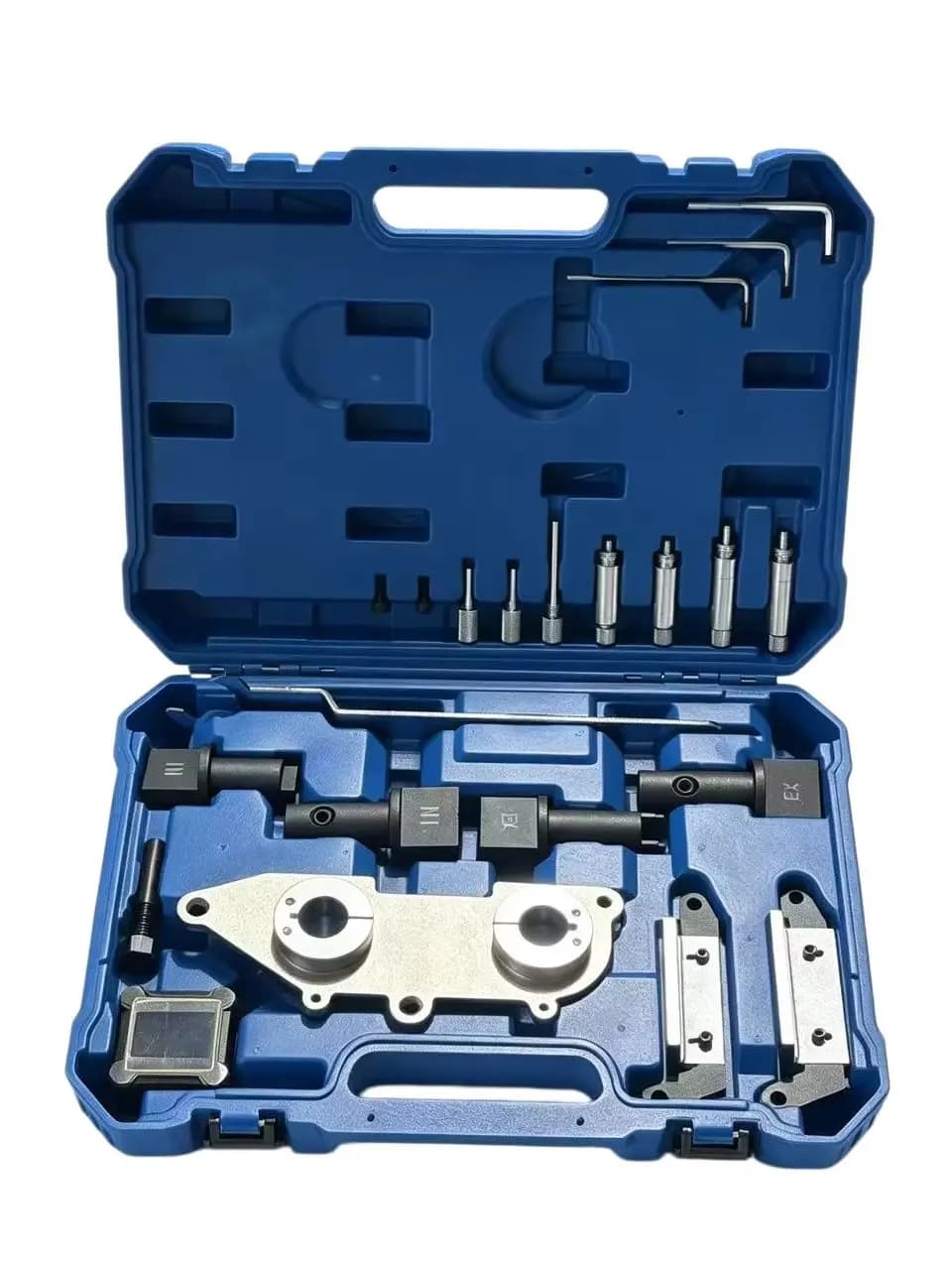

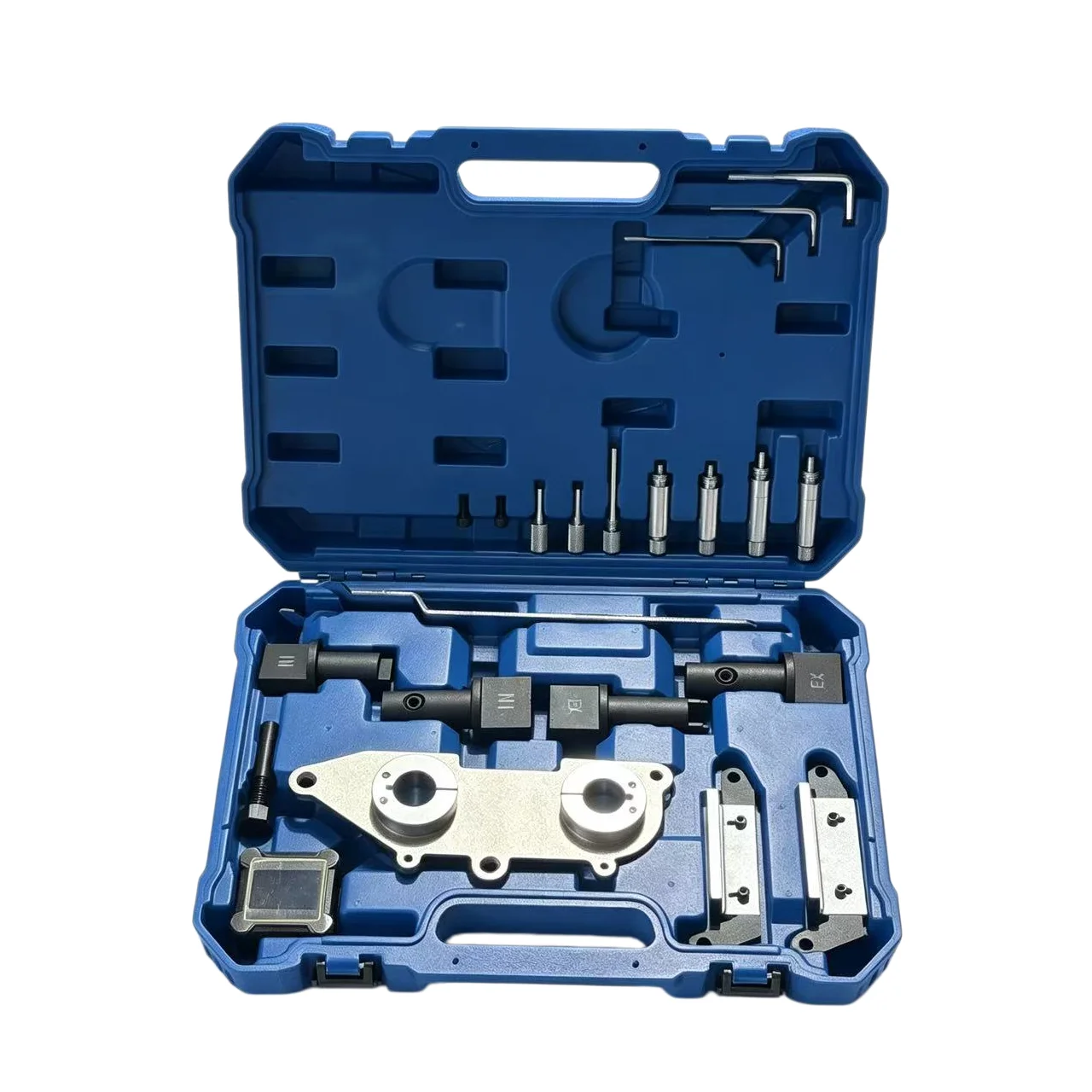

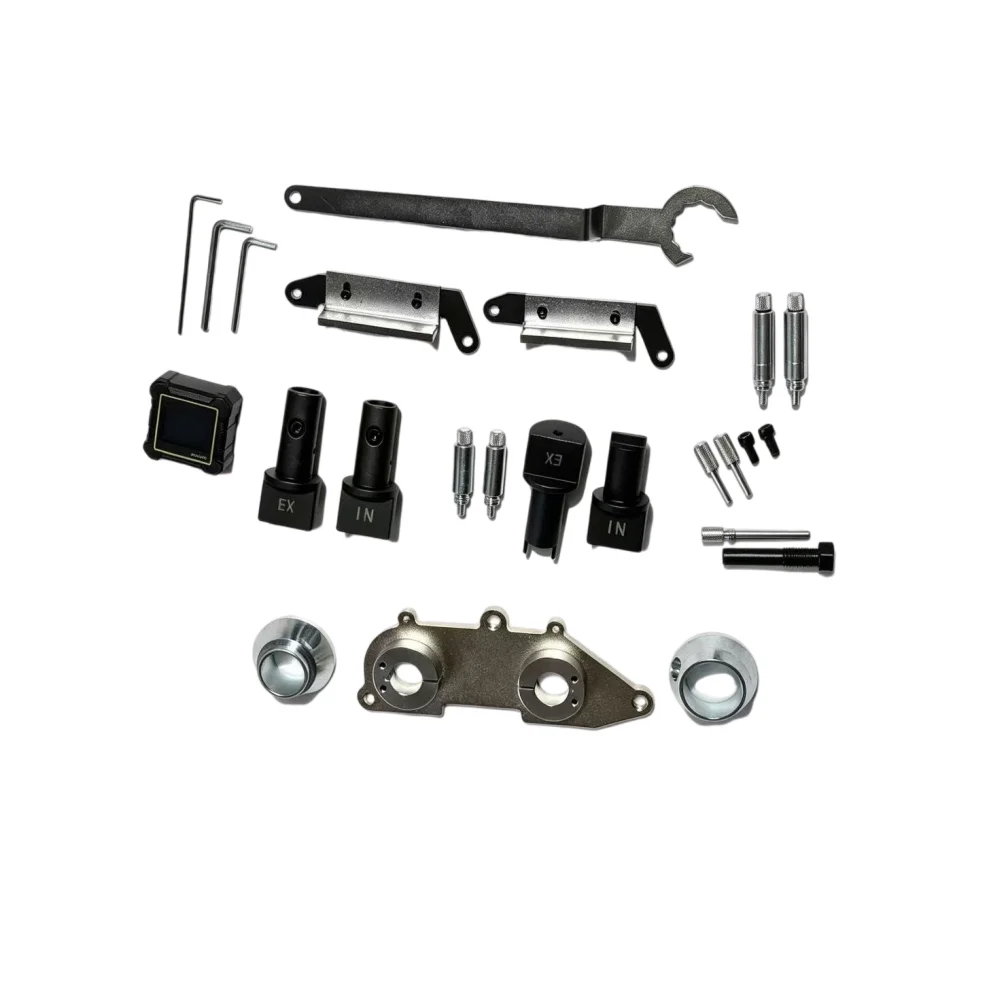

Scope of delivery:

1 x Electronic camshaft adjustment measuring system, to be used as VAG 611007

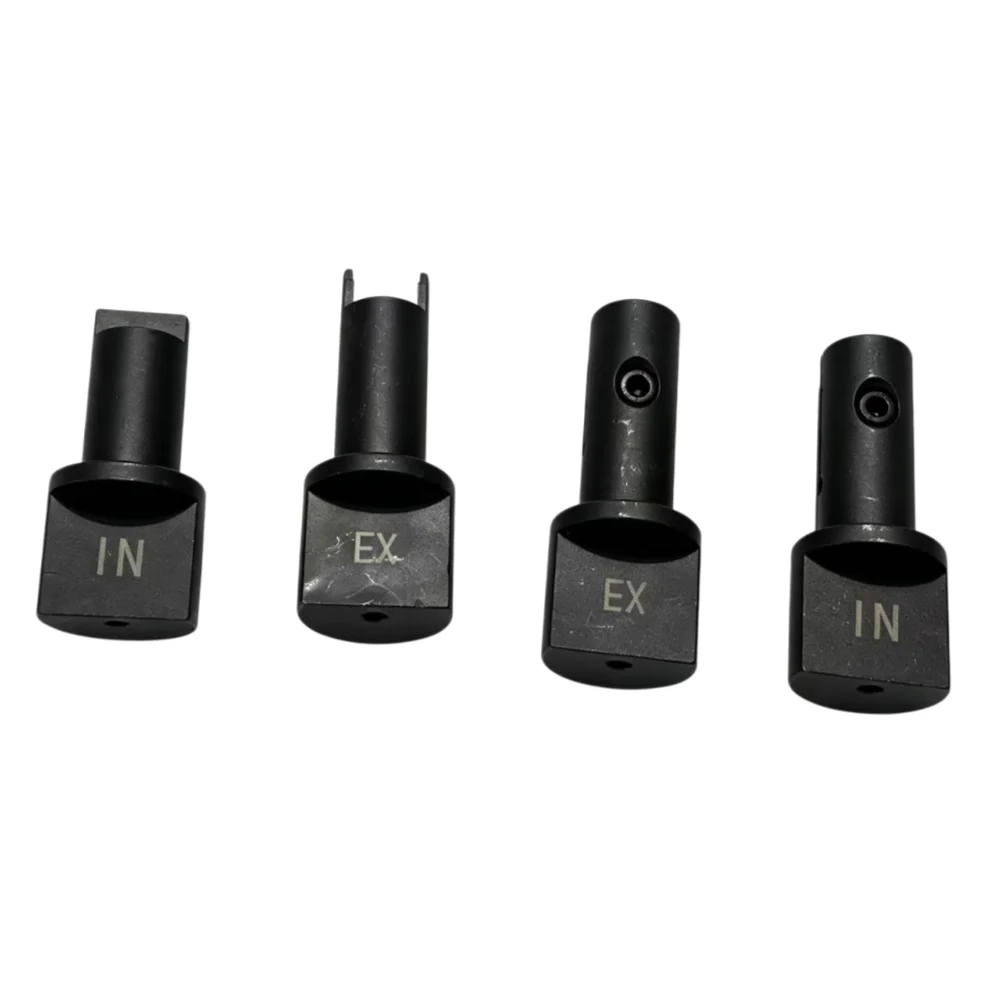

1 x Measuring adapter intake side camshaft, to be used as VAG 611 007/6

1 x Measuring adapter exhaust side camshaft, to be used as VAG 611 007/7

1 x Measuring adapter inlet and exhaust side camshaft, to be used as VAG 611 007/18

1 x Crankshaft mounting screw, for VAG, to be used as T10340

1 x Timing belt tensioner wrench for 1.0, 1.2, 1.4, 1.5 TSI, TFSI engines, to be used as VAG T10499A

1 x Camshaft Locking Pin, to be used as T10504/1

2 x Precision cylinder head stop angles

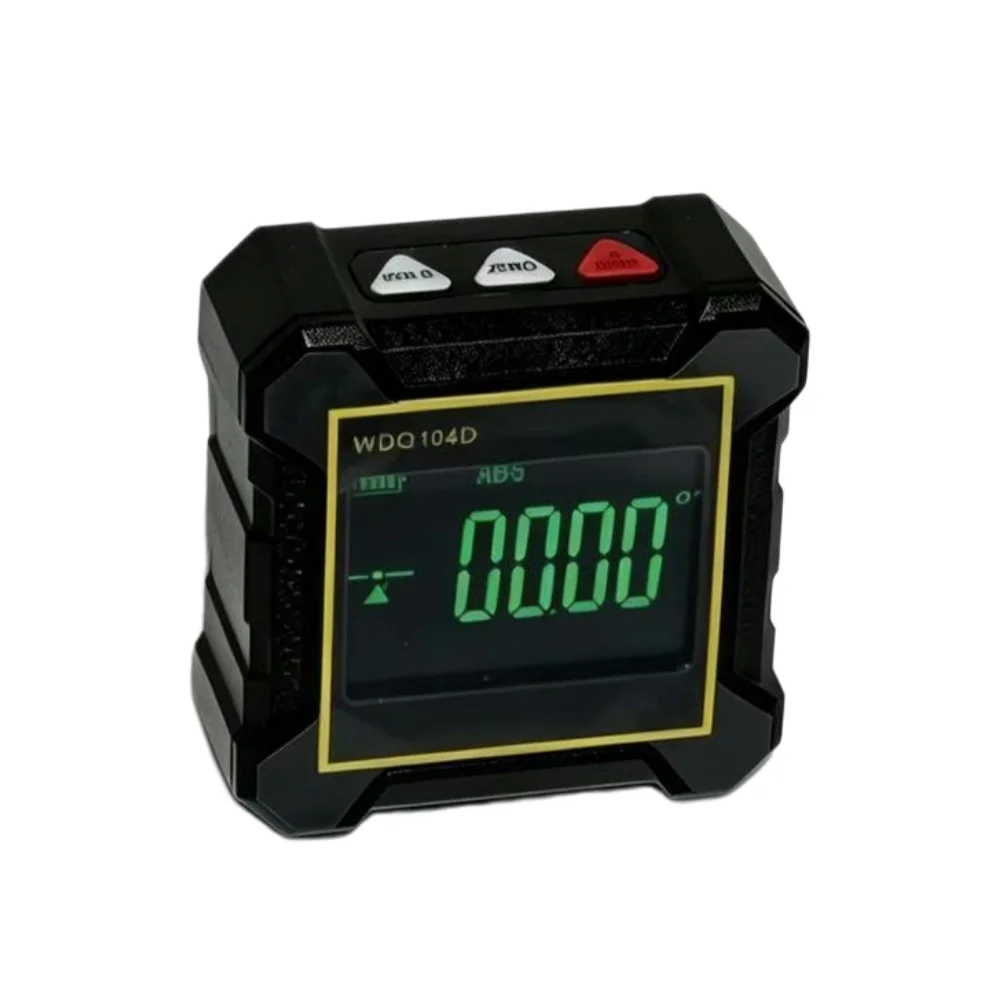

1 x Digital tilt meter, accuracy +/- 0.1°

1 x Extended Manual

1 x Sturdy storage case

Suitable for:

AUDI

A1 FROM 2018

A1 CITYCARVER/ ALLSTREET / SPORTBACK FROM 2018

 A3 FROM 2017

A3 SALOON/SPORTBACK FROM 2020

Q2 FROM 2018

Q2 FROM 2020

Q3 FROM 2018

SEAT

ALHAMBRA FROM 2015

ARONA FROM 2017 TO 2021

ATECA FROM 2016

IBIZA FROM 2013 TO 2021

LEON / ST FROM 2012

Mii FROM 2012 to 2020

TARRACO FROM 2019

TOLEDO FROM 2014 TO 2022

SKODA

FABIA III / Estate FROM 2014 to 2022

KAMIQ FROM 2019

KAROQ FROM 2017

KODIAQ FROM 2017

OCTAVIA III/IV FROM 2013

RAPID / SPACEBACK FROM 2015

SCALA FROM 2019

SUPERB III FROM 2017

YETI / OUTDOOR FROM 2014 TO 2017

VOLKSWAGEN

ARTEON 2018 TO 2020

CC FROM 2015 TO 2017

GOLF / VII / VIII / SV / SPORTSVAN FROM 2012

LOAD UP! FROM 2014 TO 2020

PASSAT FROM 2014

POLO FROM 2014

SCIROCCO FROM 2014 TO 2018

SHARAN FROM 2015

T-CROSS FROM 2018

TIGUAN FROM 2015

T-Roc/Cabriolet FROM 2017

UP! FROM 2011

With engine codes:

1.0 L TSI

CHZA/CHZB/CHZC/CHZD/CHZF/CHZJ/CHZK/CHZL/CPGA/

DBYA/DKJA/DKLA/DKLB/DKLC/DKLD/DK/DKRB/DKRC/DKRF

1.2 L TSI

CJZA/CJZB/CJZC/CJZD/CYVA/CYVB/CYVD

1.4 L TSI

CHPA/CMBA/CPVA/CPVB/CPWA/CUKB/CUKC/CXSA/CZCA/CZDA/CZDD/DGEA/DGEB/DJKA

1.5 L TSI

DADA/DFYA/DPCA/DACA/DPBA/DACB/DPBE
