Air Suspension Kit W/ Compressor For Peugeot Boxer 1994-2023 4000kg Campervan Air Suspension Bellow Bag Assist Kit

Air Suspension Spring Bag + 12V Compressor Kit for Fiat Ducato 1994-2023

installation instruction：https://video.mxrst.com/pdf/ABK-FIA9422-VLC-EU-Installation-Guide.pdf





Application

For Fiat Ducato 1994-2023

For Citroën Relay 1994-2023

For Peugeot Boxer 1994-2023

For Citroën Jumper 1994-2023



Body type: Panel van, tipper, motorhome, camper, box van.

Notice: for Single Rear Wheel or Twin Rear Wheel, FWD or RWD

Chassis type: All standard type of chassis except Alco type Torsion Bars chassis.





Specification



Condition: Brand New

Chassis Type: All standard type Chassis

Placement on Vehicle: Rear left and right

Max loading：4000 Kg

Package Length, width and height: 42*37*27 cm

Package Wight: 12.4 kg

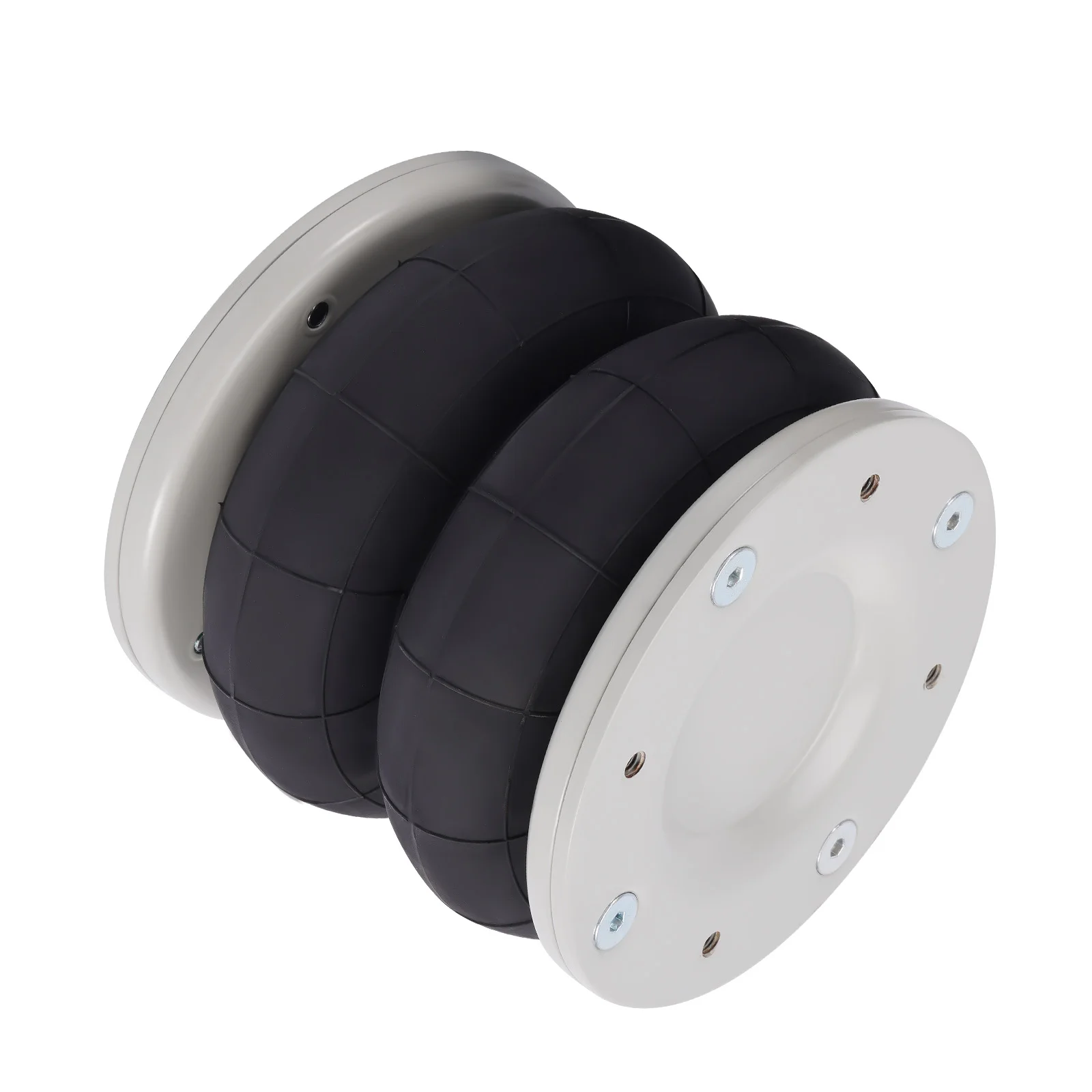

Air spring：

Design height: 172 mm

Stroke: 140 mm

Max. Extended: 230 mm

Min. Compressed: 90 mm

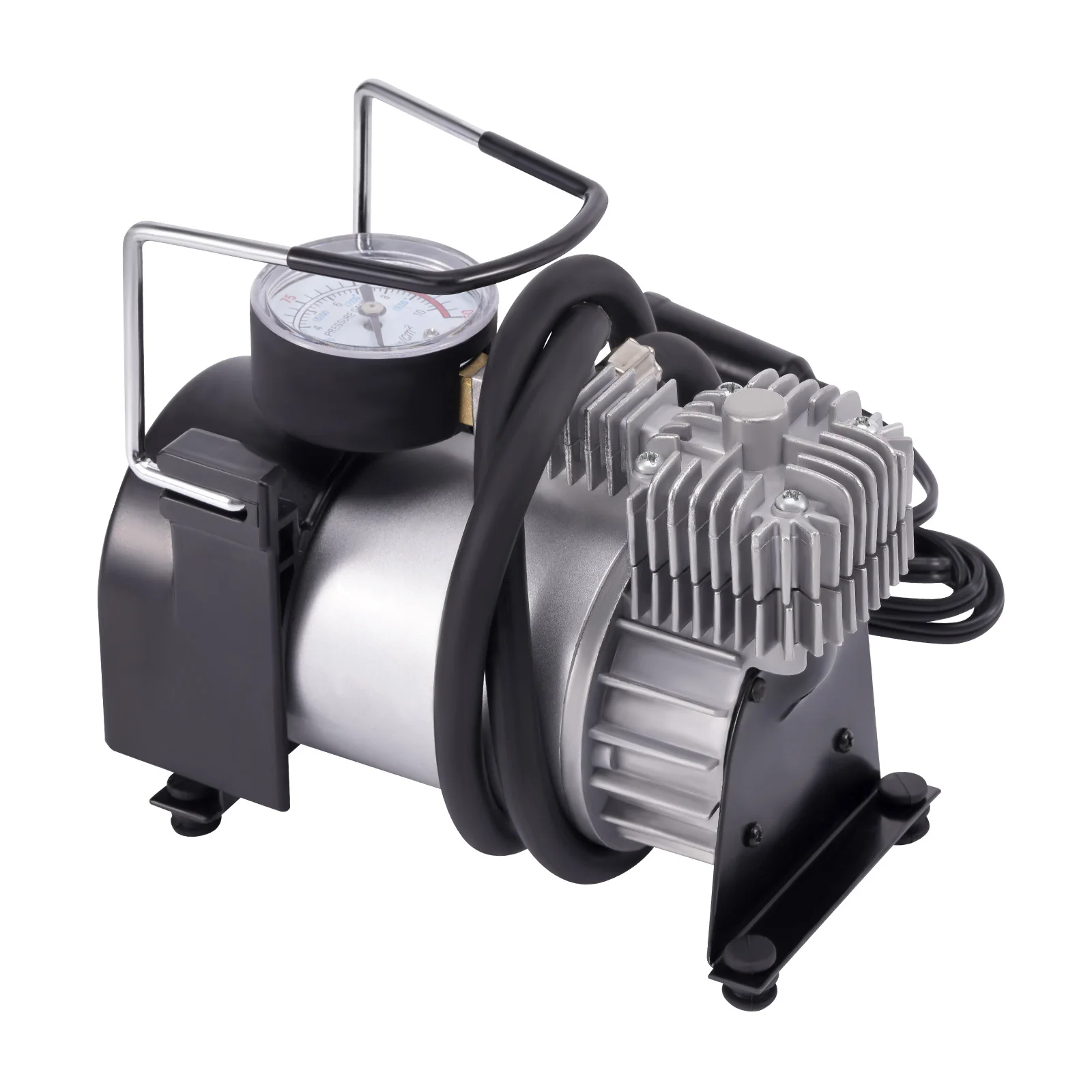

Air pump：

Power: 120W

Output Voltage: 12V

Maximum current: 10A

Maximum Working Voltage: 10bar（1MPa ）

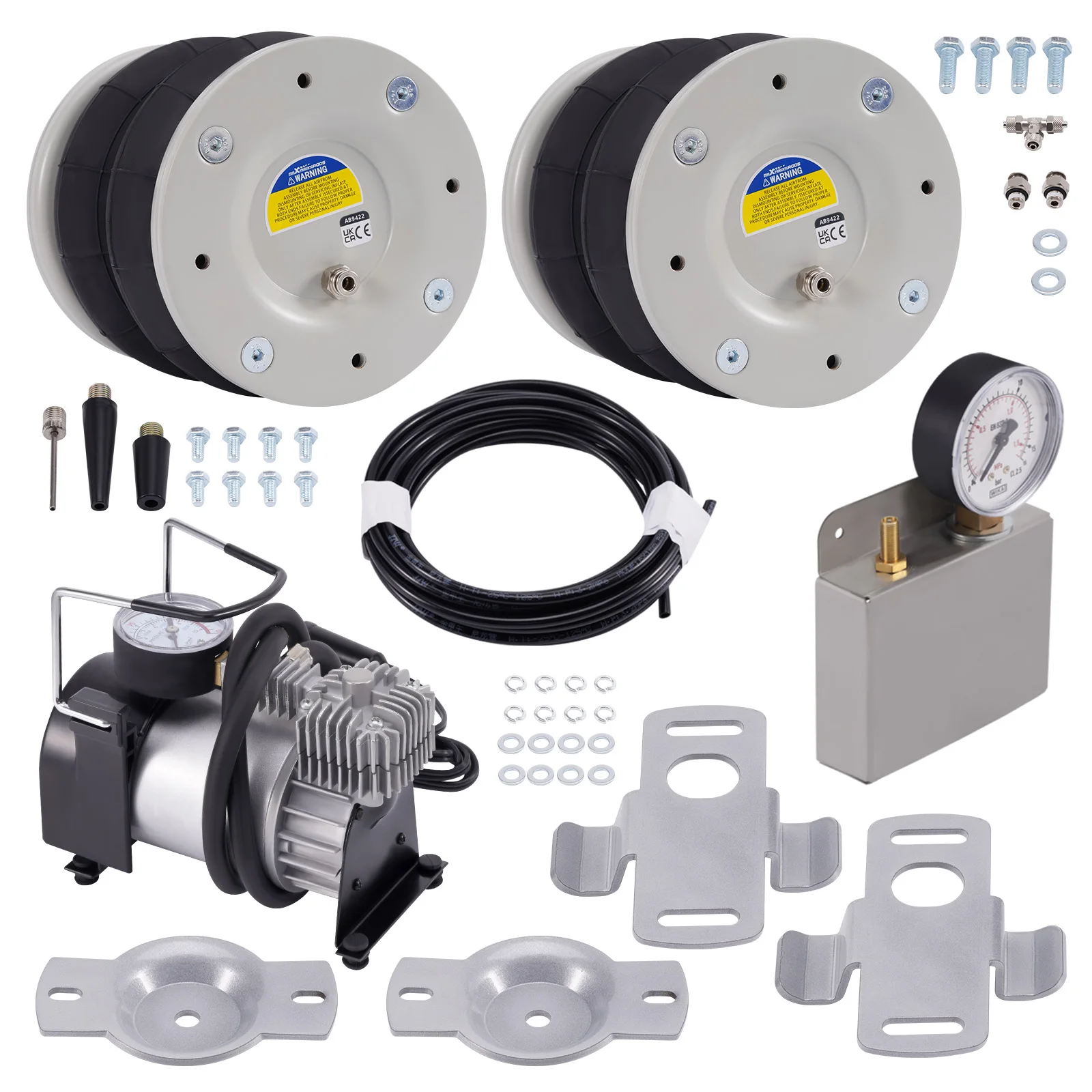

Package includes（as the picture shows）:

2x Natural Rubber & Hi-tensile steel Air spring bag

4x Galvanised Heavy duty mounting bracket

1x 12V Air suspension compressor

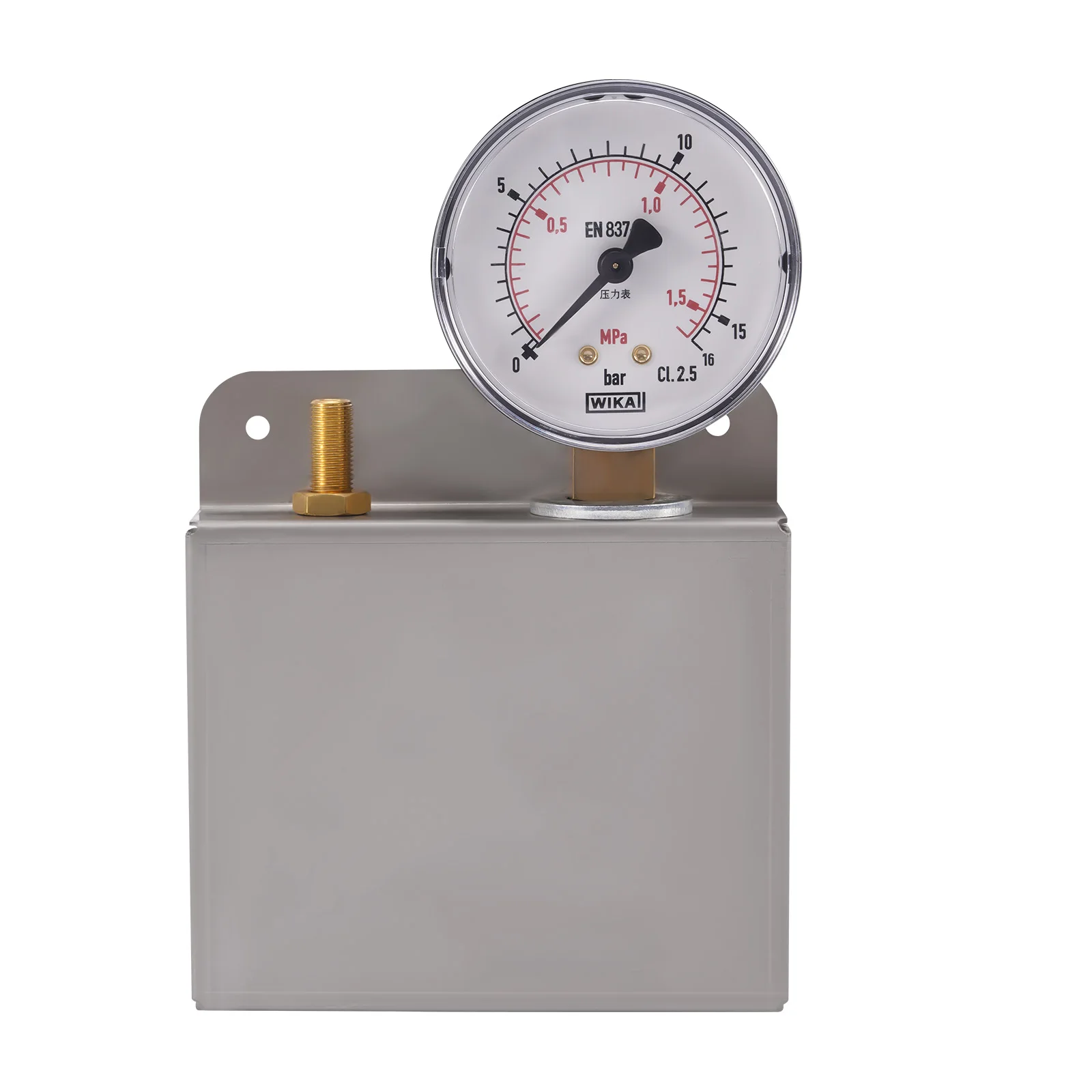

1x Barometer

4x Air fiting

1x Air line 8m

1x Installation box

Mounting bolts and gaskets



Feature

1. Stress Test Over 5,000,000 Times：Durable and Safe
2. Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise
3. Air Tightness Test ≤ 0.02MPa：100% Air Tightness Guarantee
4. Temperature Range ≥ -40℃/ ≤ 70℃：Premium Natural Rubber Material
5. Use high-quality steel with high load-bearing capacity and long life.
6. Excellent and practical bolt-on installation.
7. Safe carrying capacity and stability
8. Restore the original ride height and improve ride quality
9. Ensure our driving comfort and reduce tire wear.



Notice

- These air suspension kit are aftermarket ones. They will replace the original one.

- Professional installation is recommended.

- Contact us please for whatever we can help.
