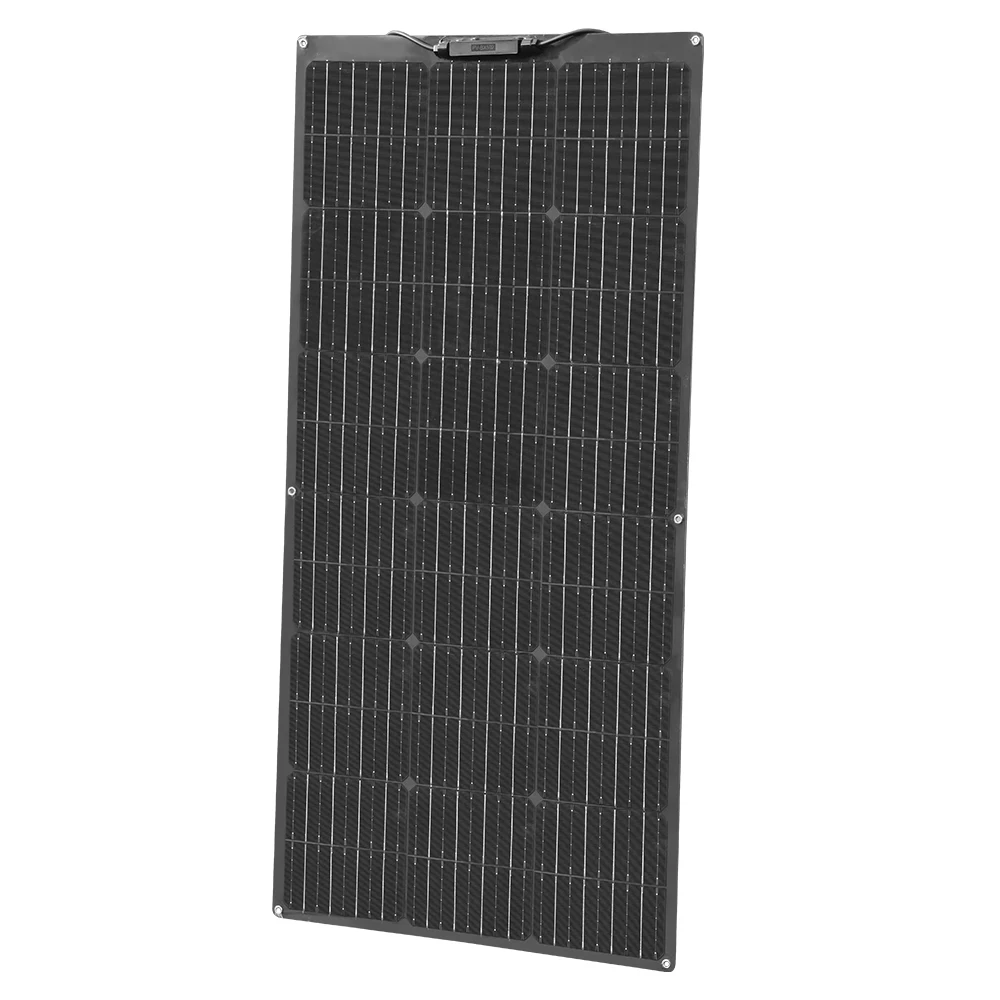

Flexible Solar Panel 200W 100W 19.8V Monocrystalline Charger Off-Grid 12V /24V Battery RV Boat Cabin Van Car Trailer (Front Bump

Flexible Solar Panel 200W 100W 19.8V Monocrystalline Solar Cells Charger Off-Grid For 12V /24V Battery RV Boat Cabin Van Car Trailer (Front Bump）

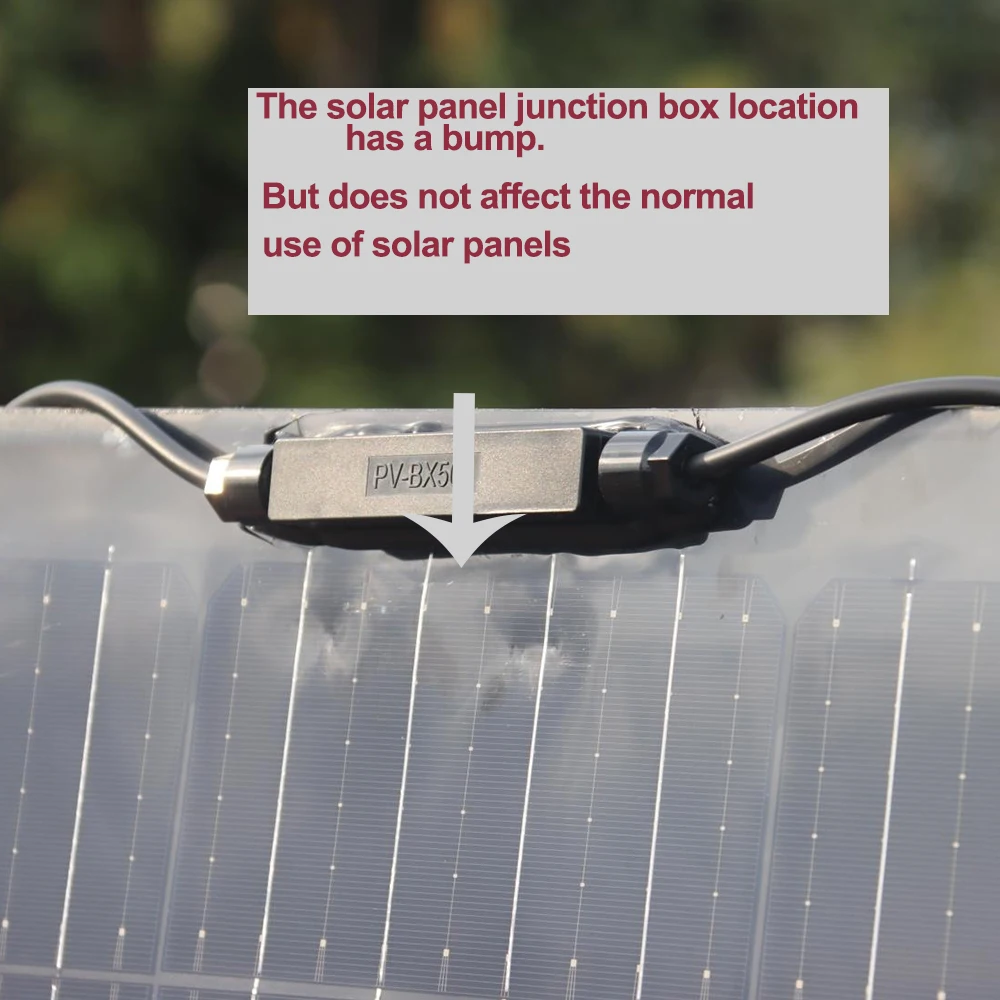

The solar panel junction box location has a bump.
But does not affect the normal use of solar panels

If you are interested in the appearance of solar panels, we recommend that you consider the following link

https://www.aliexpress.com/item/1005005816950038.html

Packing listing

1pcs 19.8V 100w flexible solar panel

or

2pcs 19.8V 100w flexible solar panel

or

1pcs 17.6V 80w flexible solar panel

Product specifications

Maximum power(Pmax) 100W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 23.7V
Short circuit current(Isc) 5.55A
Maximum power voltage(Vmp) 19.8V
Maximum power current(Imp) 5.05A
Cell efficiency 22%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃～+80℃
Number of cells 33pcs
Weight 1950g
Size 1060*530*3 mm
Colour: Black

Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5

(The size is manually measured and there is a certain error.)

Advantages of XINPUGUANG PET Solar Panels:..Stronger Box Package, sturdy and durable, good heat dissipation. No hot spots will appear.
It is Very Thin And Durablle With Less Weight. It is the best choice for motorhomes and Camping, Boat, Marine, RV, Bus Car Roof. It has a very high cost performance and is the best choice for home energy investment Or Outdoor Usage.
The surface is Plstic Cover Film Coating And Four EVA Layers, waterproof, snowproof, resistant to small hail..
By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with connectors comes with the panel automatically, Cable Length with About 900MM
The Solar Panel back Sidehas 6 drill holes that can be quickly installed.

17.6V 80W Solar panel Specification:

Maximum power(Pmax) 80W

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.12V

Short circuit current(Isc) 4.99A

Maximum power voltage(Vmp) 17.6V

Maximum power current(Imp) 4.54A

Weight 1.9KG

Size 1000*400*3mm

Operating temperature(NOCT) 45 plus or minus 2 Celsius system

STC: lrradiance1000w/m2,Temperature 25 Celsius system, AM=1.5

Please note: If you test the solar panel, the solar panel must be tested under the sun. The solar panel is exposed to sunlight at different times and the temperature is different, which will affect the output power of the solar panel.

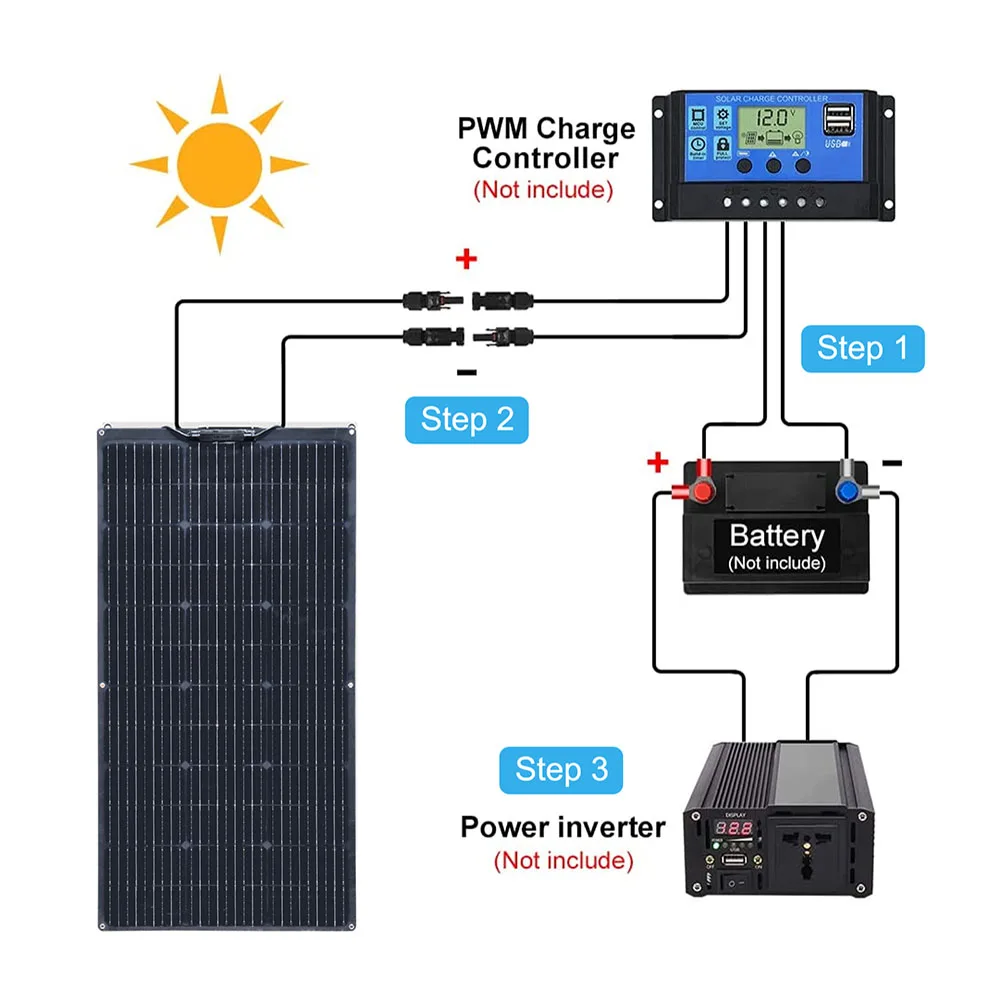

Solar panels for charging 12V batteries generally require a controller to be used in conjunction with them.

If it is a 24V battery that requires solar panel charging, at least two solar panels need to be configured to connect the solar panels in series.

12V 200W solar panel kit

Solar module products

a. This product must not be in contact with highly corrosive substances to avoid excessive bending and long-term bending;
b. The solar panel should be prevented from stacking and falling down, the solar flexible panel cannot be disassembled, do not collide with hard objects, avoid trampling, and avoid scratching the surface with hard objects during use;
c. A large number of scratches or dirt on the surface of the solar panel may result in low efficiency of the solar panel, which may seriously cause burnout;
d. The suitable ambient temperature range of solar panels: -20 ℃-80 ℃, do not exceed this range;
e. The solar panel must be installed in an area with good sunlight and no shadow. The solar panel may work in the shaded sunlight for a long time and there may be a risk of burnout;
f. When used in series connection, the "+" of the previous component is connected to the "-" of the next component. The same panel cannot be directly connected to the positive and negative poles.

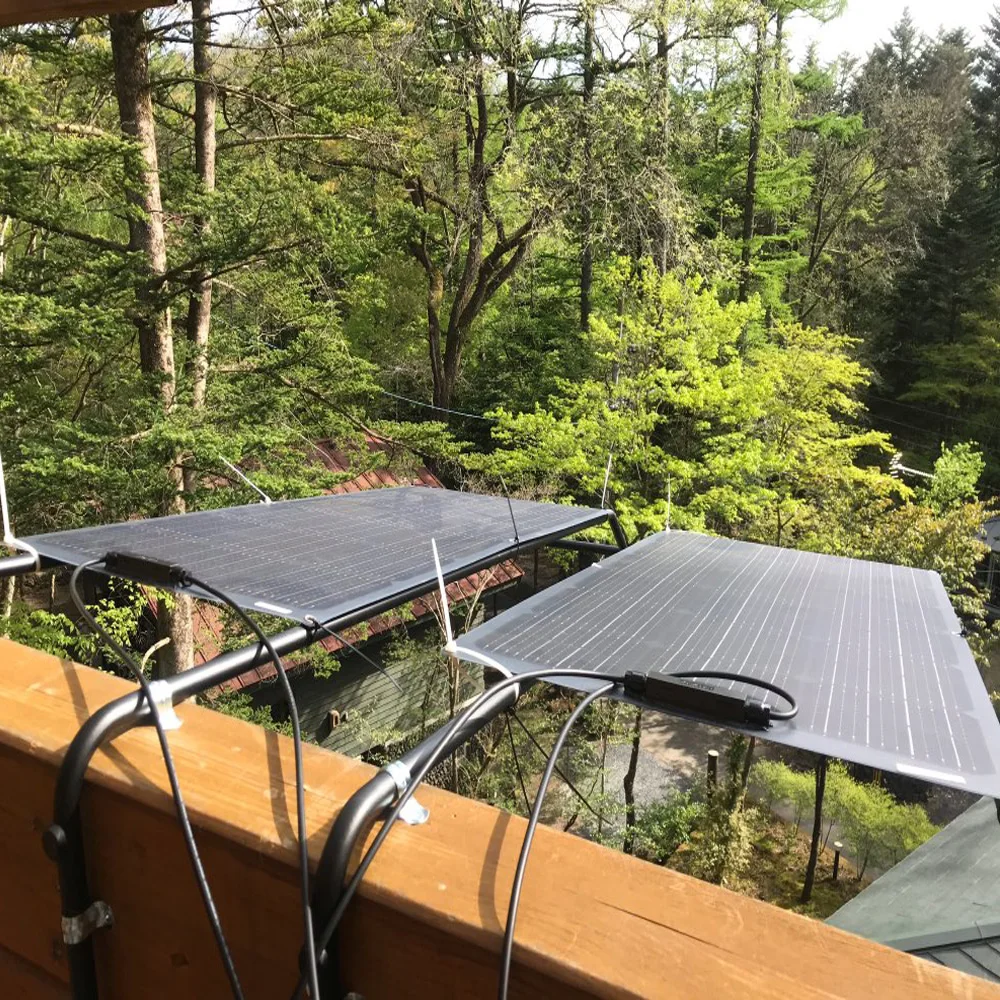

Solar panel connection installation method

When you use a 12V battery, use a parallel connection; when you use a 24V battery, use two serial connections. Please install the solar panel on a smooth surface with good sunlight and no shadow, and try not to install it on uneven areas. Solar panels can be fixed with glue or bolts.
