EN24 4340 H-Beam Connecting Rods for BMW 328i 528i E36 E46 M52B28 ARP 135mm 4x 4340 Bielles Connecting Rod ARP Pleuel

EN24 4340 Forged Connecting Rods+ARP2000 Bolts For BMW 328i 528i E36 E46 M52B28

Please Carefully check the Size of the Rods in Specific and Description

Introduction

MaXpeedingRods H-beam connecting rods are designed for demanding racing applications to increase horsepower and efficiency. The strength is suitable for high-horsepower applications while keeping the weight light. Professional processing makes it have super high wear resistance and excellent durability.

Application

For BMW 328i 528i E36 E46 M52B28
Fitment Details:
For BMW 3 Series E36 1990-2000 325i 328i
For BMW 3 Series E46 1998-2007 325i 328i 330i 325 Ci 328 Ci 330 Ci 325 xi 328 xi 330 xi
For BMW 5 Series E12 1972-1981 Saloon 528i
For BMW 7 Series E38 1994-2001 Saloon 728i X 728i, iL
For BMW Z3 E36 1997-2003 Coupe 2.8i
For BMW Z3 Roadster E36 1995-2003 Convertible 2.8i

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing
*H-beam Conrods Quantity: 6 Pieces as showing in picture
*Bolts: Including Genuine ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*14CM

Dimension

Center to center length: 135mm/5.315"
Big end diameter: 48mm/1.89"
Small end diameter: 22mm/0.866"
Big end width: 21.9mm/0.862"
Small end width: 21.9mm/0.862"

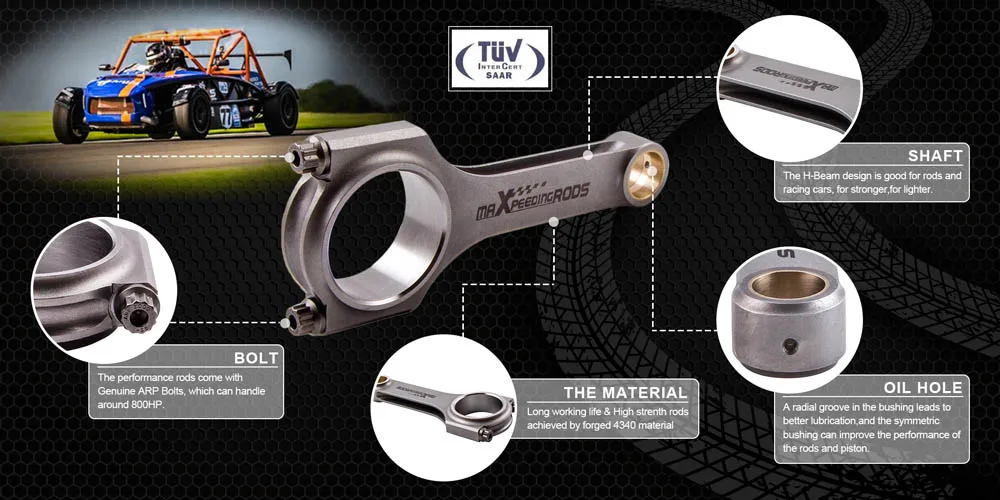

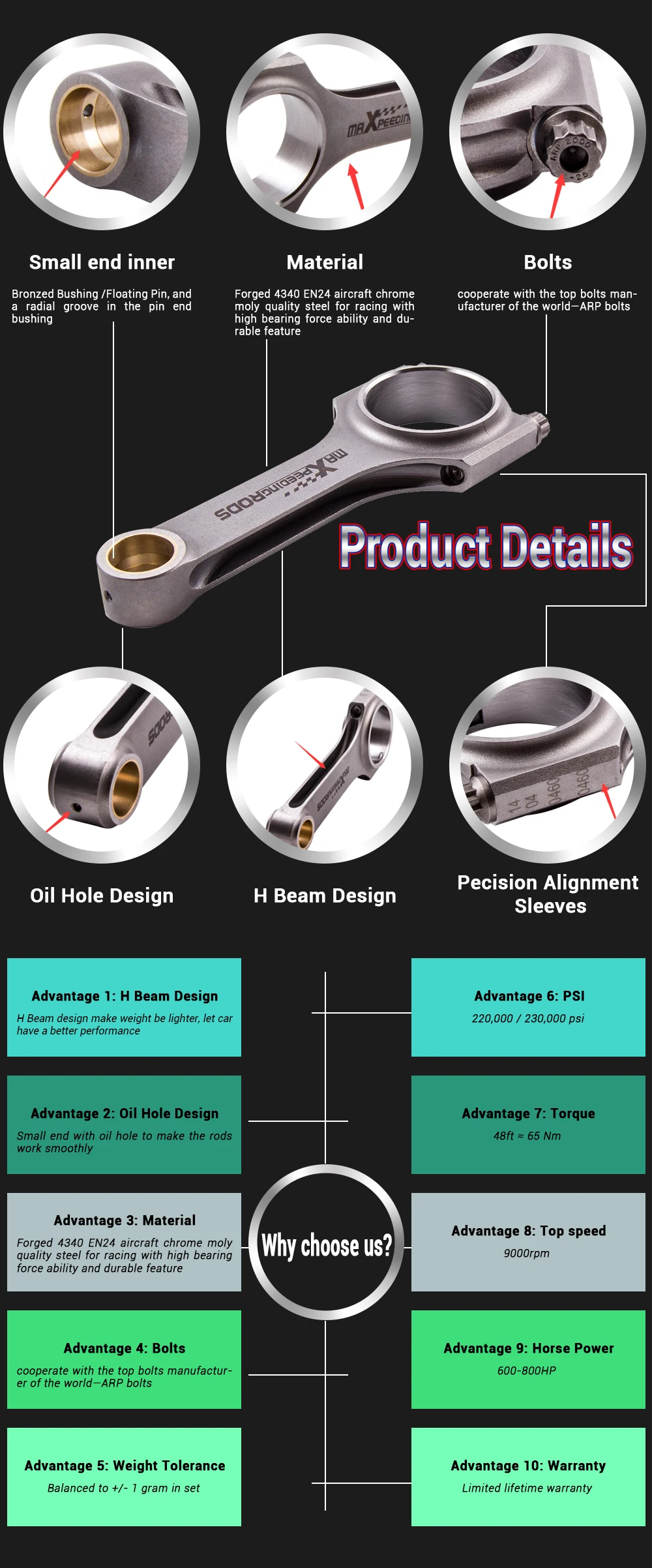

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. Genuine ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.100% CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .005mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.100% X-rayed, sonic tested；
11.Custom Service.

Note

*There are titanium-plated upgrade models；
*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
