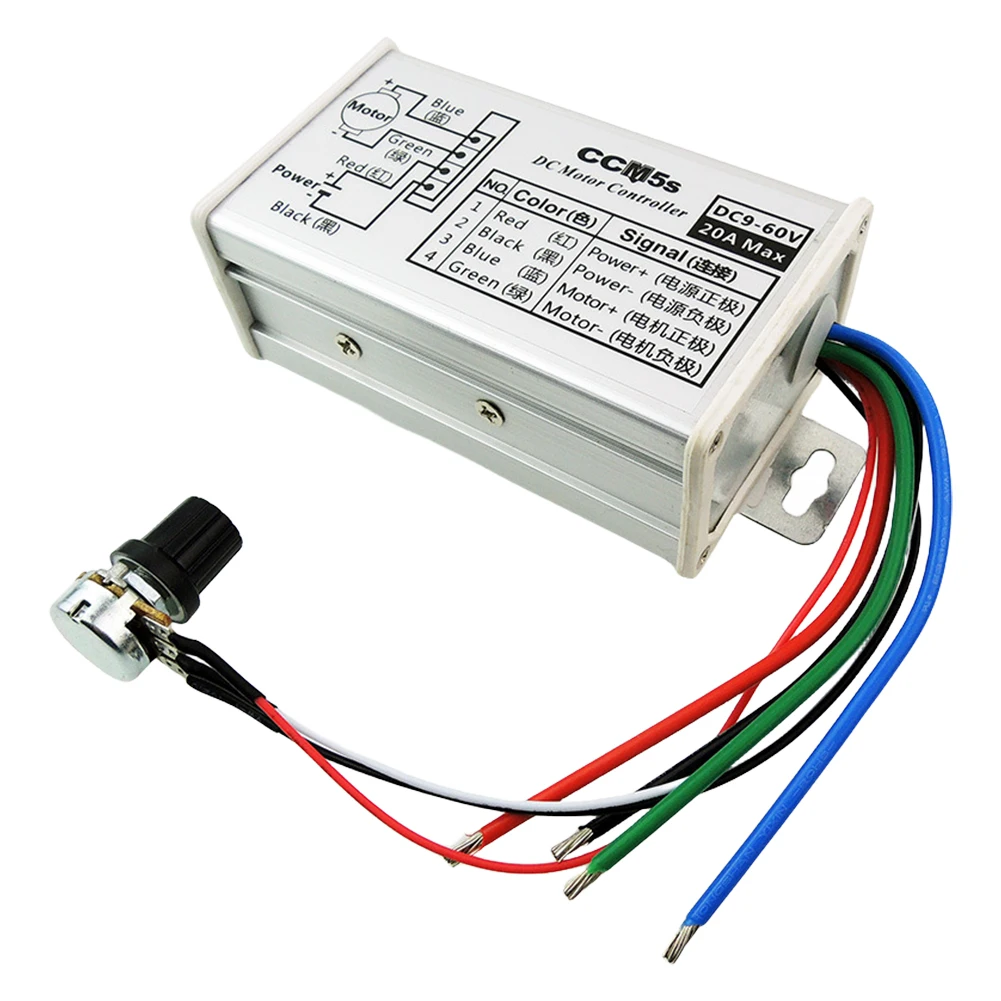

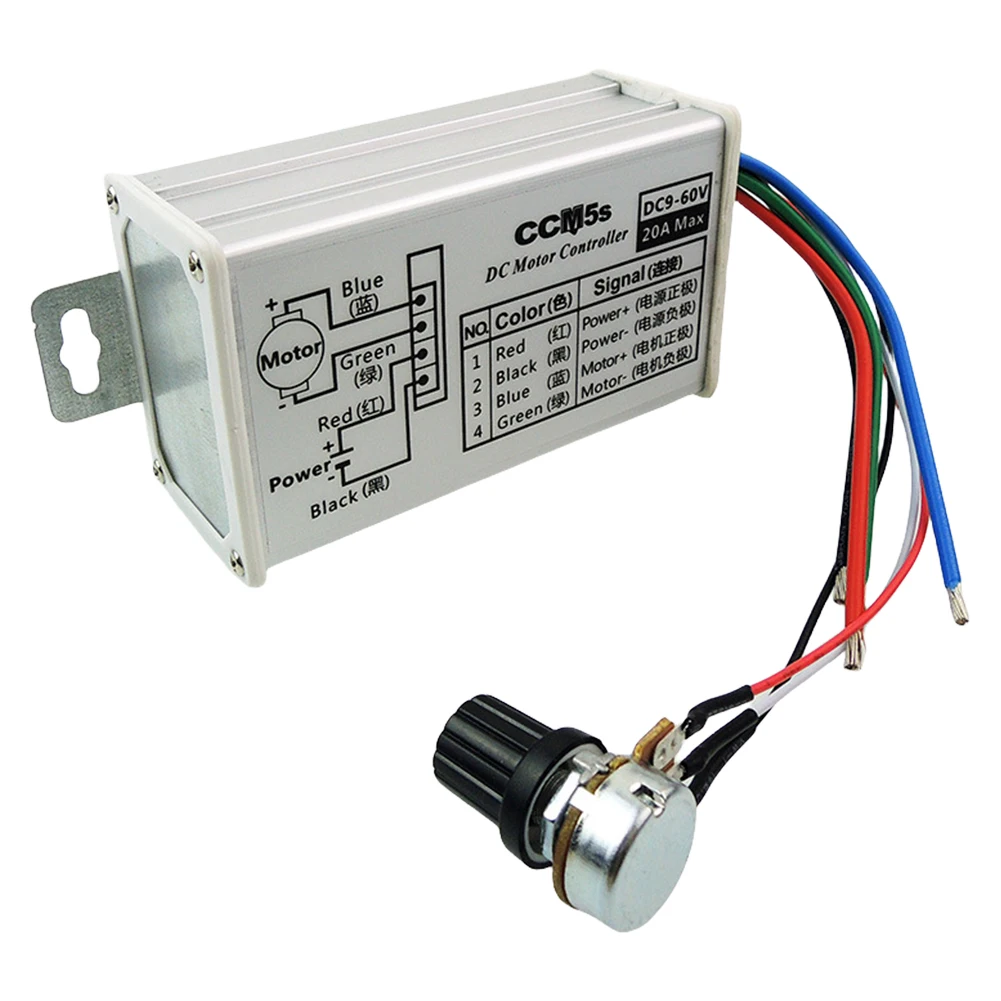

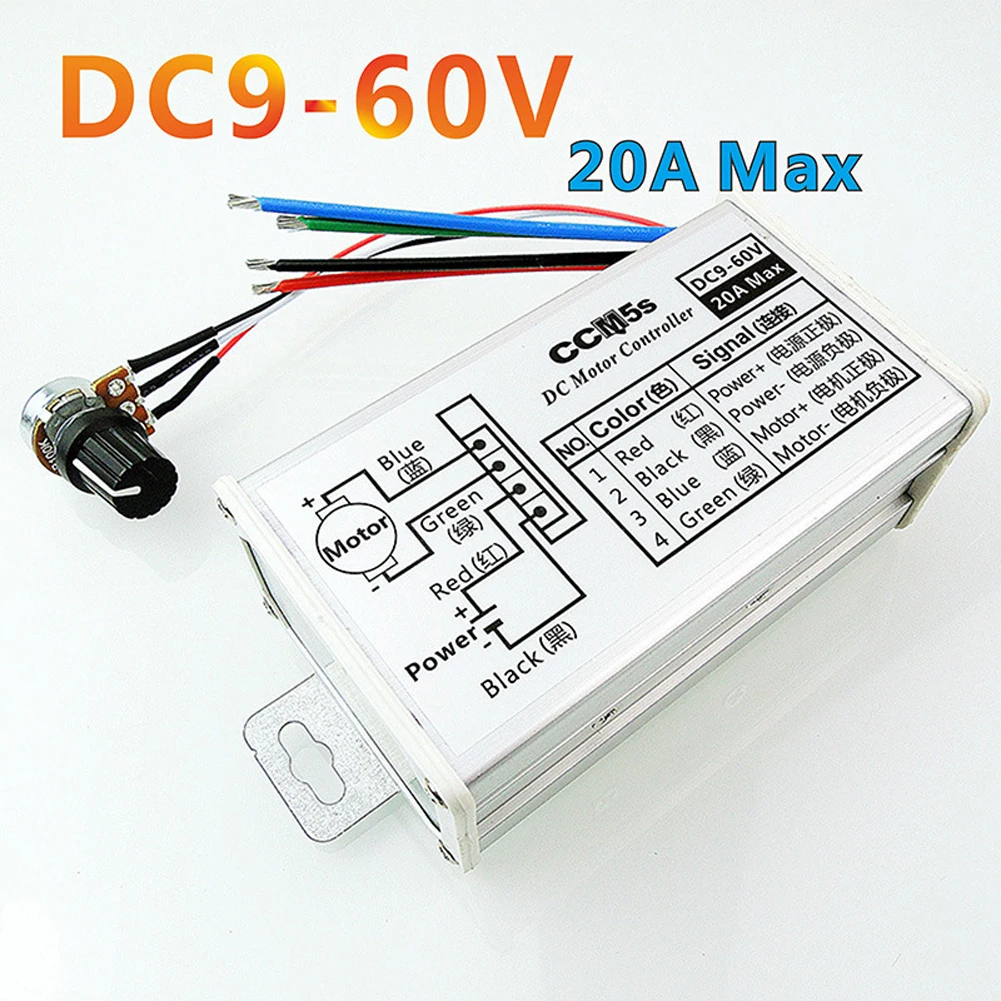

Stepless DC Motor Speed Controller DC 9V-60V 12V 24V 60V 20A Motor Pulse Width Modulator Regulator PWM Speed Regulator

DC Motor Speed Controller DC 9V-60V 12V 24V 60V 20A Motor Pulse Width Modulator Regulator PWM DC Motor Driver Speed Controller
Feature:
1. Wide Voltage Compatibility: The DC motor speed controller boasts a wide voltage range capability, spanning from 9V to 60V, catering to the diverse voltage requirements of different motors. This feature ensures compatibility and flexibility in various power supply scenarios.
2. Precise PWM Speed Control: With its PWM speed control function, the PWM DC motor driver speed controller allows for accurate adjustment of the motor's suspension by modifying the duty cycle of the PWM signal. This enables precise regulation of motor speed, enhancing performance and functionality.
3. Comprehensive Control: The motor pulse width modulator regulator supports both forward and reverse control, enabling users to change the motor's rotation direction simply by switching the direction signal. This feature grants users complete control over the motor's operation.
4. Enhanced Protection Features: In order to safeguard the motor and the controller itself, the DC motor controller typically incorporates protective measures such as overcurrent protection, overheating protection, and overvoltage protection. These built-in safety features ensure the longevity and reliability of both the motor and the controller.
5. Compact Design: Designed with a compact form factor and an aluminum alloy construction, this PWM speed regulator is suitable for installation in small spaces or mechanical equipment. Its small size and robust design enable convenient and efficient integration into various setups without compromising performance. Specification:
Origin: Mainland China
Working Voltage: DC 9V-60V
Output Voltage: linear with load
Maximum Current: 20A
Continuous Current: 18A
Speed Adjustment Range: 0%-100% control
Frequency: 25KHZ
Speed Adjustment Method: Use potentiometer to adjust current
Module Size: 92x52x36mm/3.62x2.05x1.42inch
Weight: 135g
Size: 92.00x52.00x36.00mm/3.62x2.05x1.42inch
Motor Type: DC motor Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

1 xDC Motor Speed Controller
