GT2871 GT2860 Universal Turbo Turbocharger Kit for 1.5-2.0L Street type Upgraded Billet Compressor Wheel Water + Oil Cooled

Billet T25 T28 GT25 GT28 GT2860 GT2871 Turbocharger for 1.5-2L Water&Oil Cooled

Application:
Perfect for all 1.6L-2.0L engine
Horse Power: Capable of Boosting Horse Power 250PS-450PS
Cooling Type: Water + Oil

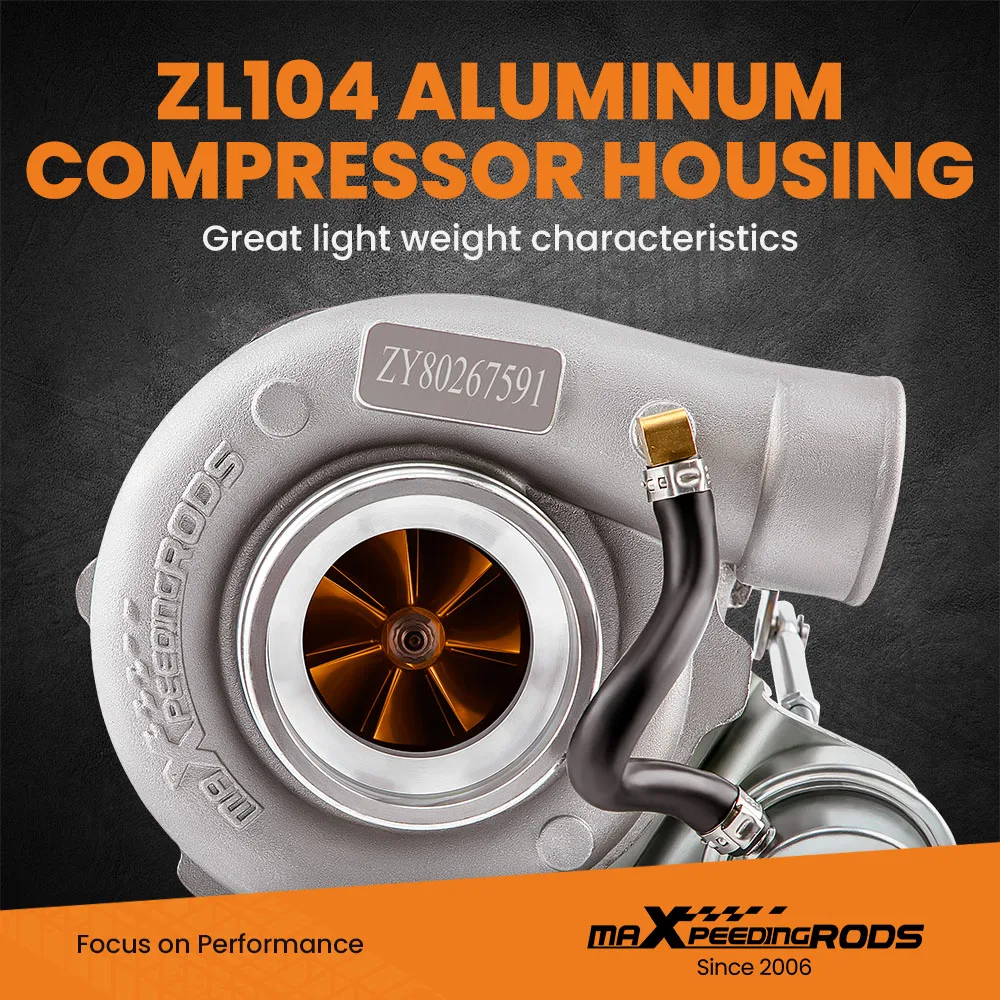

Compressor Housing: Aluminum alloy
Turbine Housing: Cast iron
Bearing Type: Wet Float
Internal Wastegate: Yes
Exhaust (Turbo Manifold) Flange: Standard T25 4-Bolt Flange
Exhaust (Downpipe) Flange: 5-Bolt Flange


Specification:
Compressor:

Compressor Inducer Diameter: 49.2mm
Compressor Exducer Diameter: 71mm
Compressor A/R: 0.6
Compressor Trim: 48

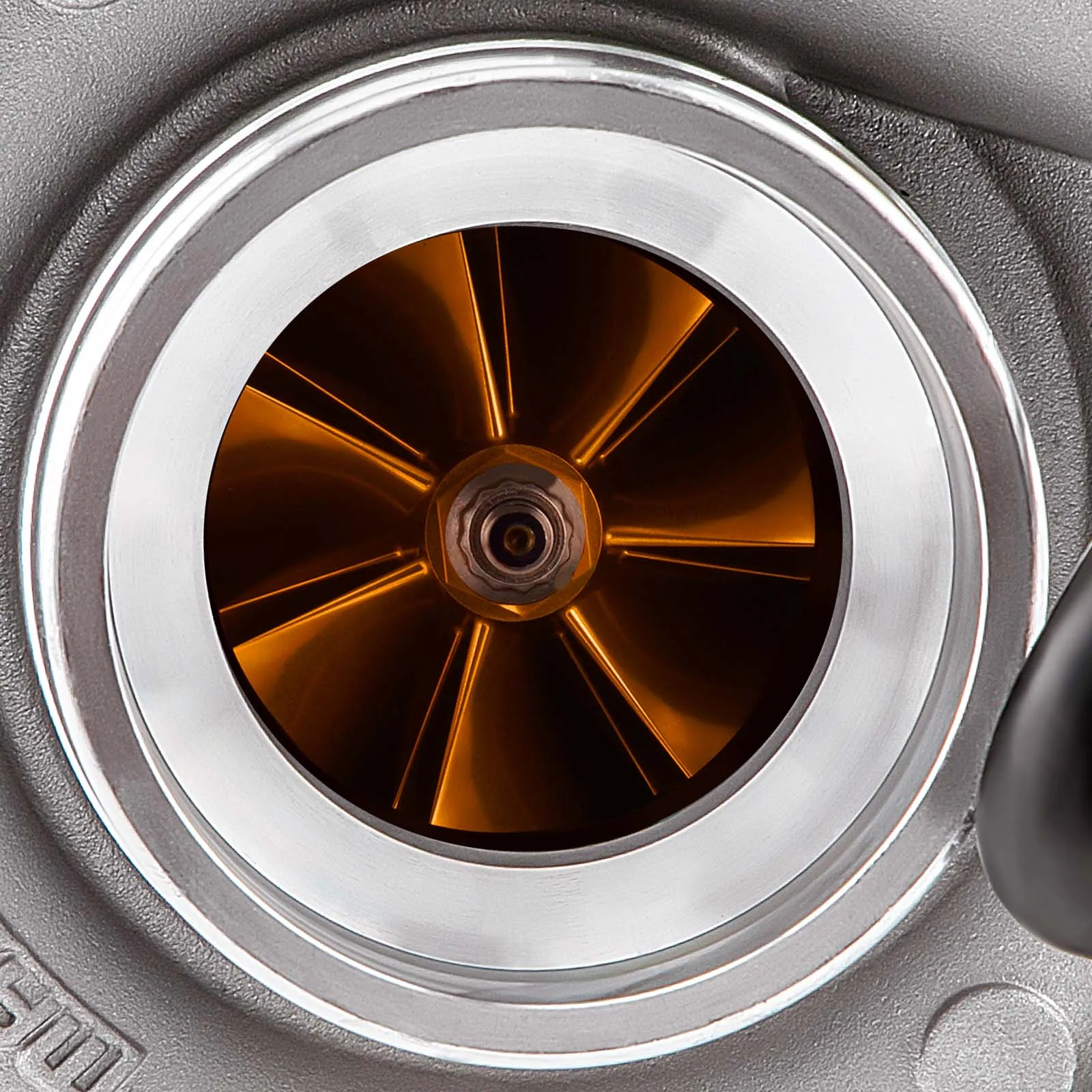

Compressor Wheel Blades: 12

Turbine:
Turbine Inducer Diameter: 53.9mm
Turbine Exducer Diameter: 47mm
Turbine A/R: 0.64
Turbine Trim: 76
Turine Wheel Blades: 10
Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange
Exhaust Outlet (Downpipe) Flange: 5 Blot


Oil Feed Thread Size: M12*1.25
Oil Drain Size: 14mm
Oil Drain Thread Size: M8*1.25
Oil Drain Thread Pitch: 40mm
Water Thread Size: M14*1.5

Bearing Type: Wet Float
Cooling Type: Water + Oil Cooled
Wastegate: Internal Wastegate
Oil Restrictor: Yes
Oil Restrictor size：inside diameter 2mm
Horse Power: Boost Horse Power up to 350BHP
Turbo Type: Individual

Condition: 100% Brand New

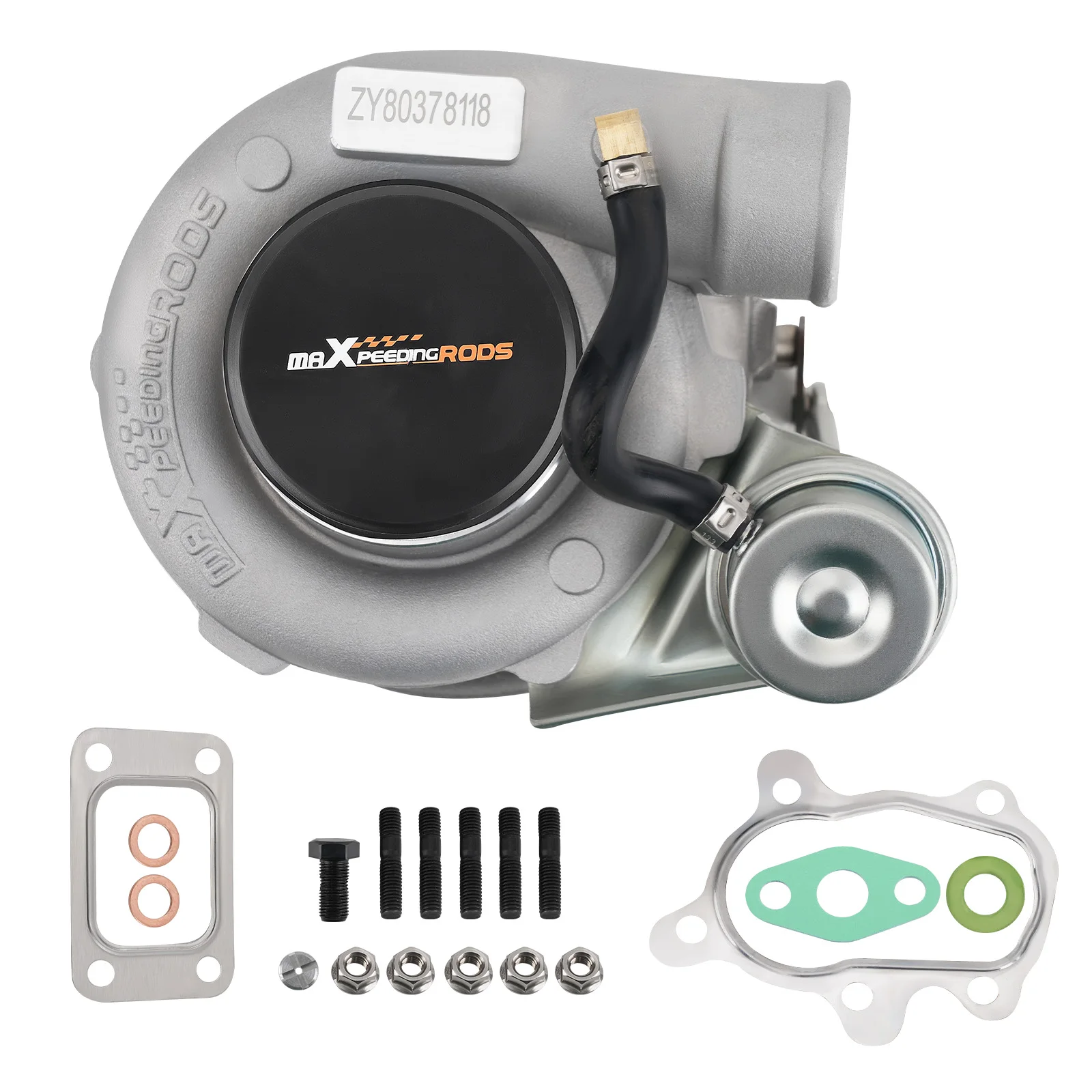

Accessories: You will get exactly as shown as picture above

package size：26x24x22cm

package weight：7250g



Features:

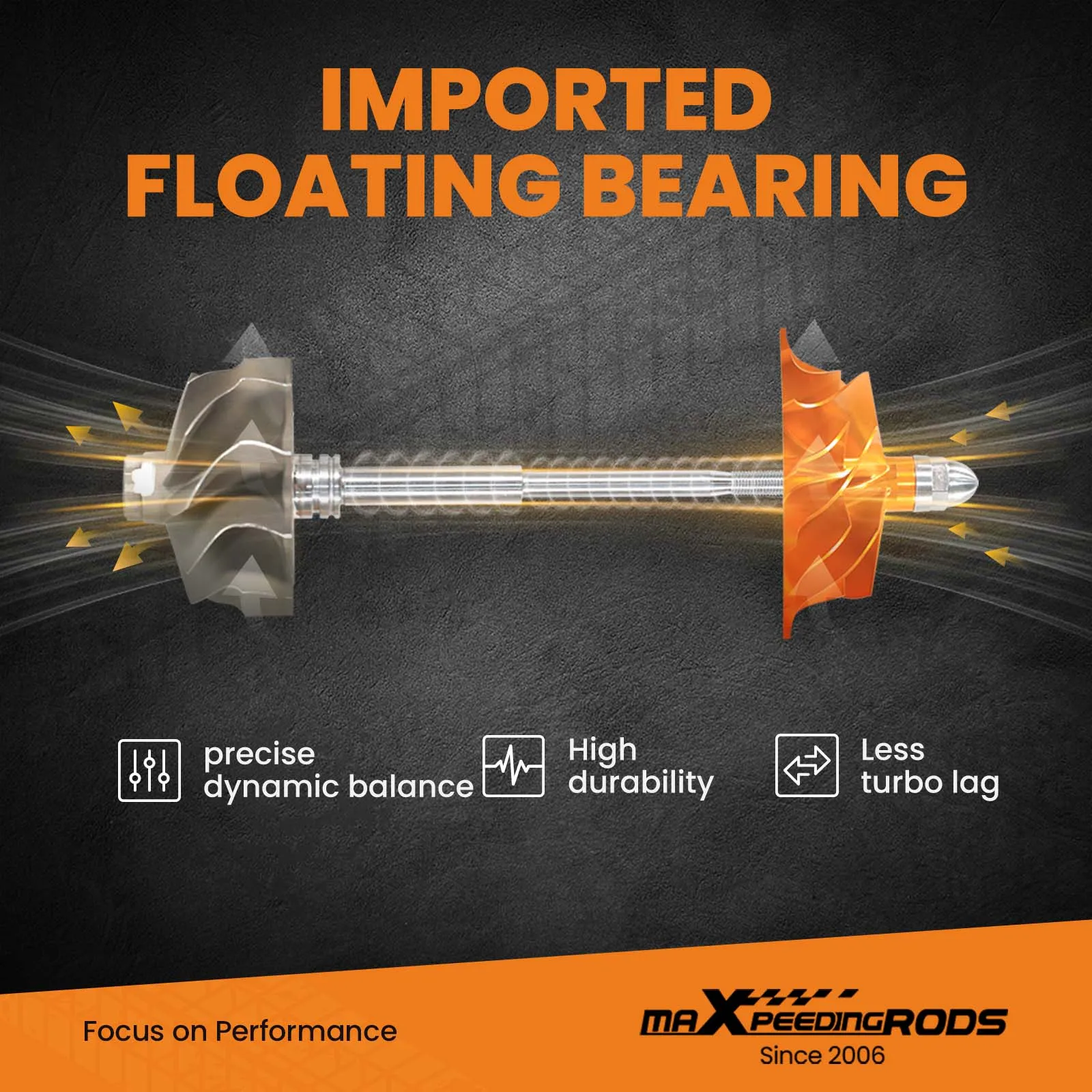

1) Perfectly designed and durable floating bearing，with high precision dynamic balanced wheel blades, which can boost more than 2.0BAR.

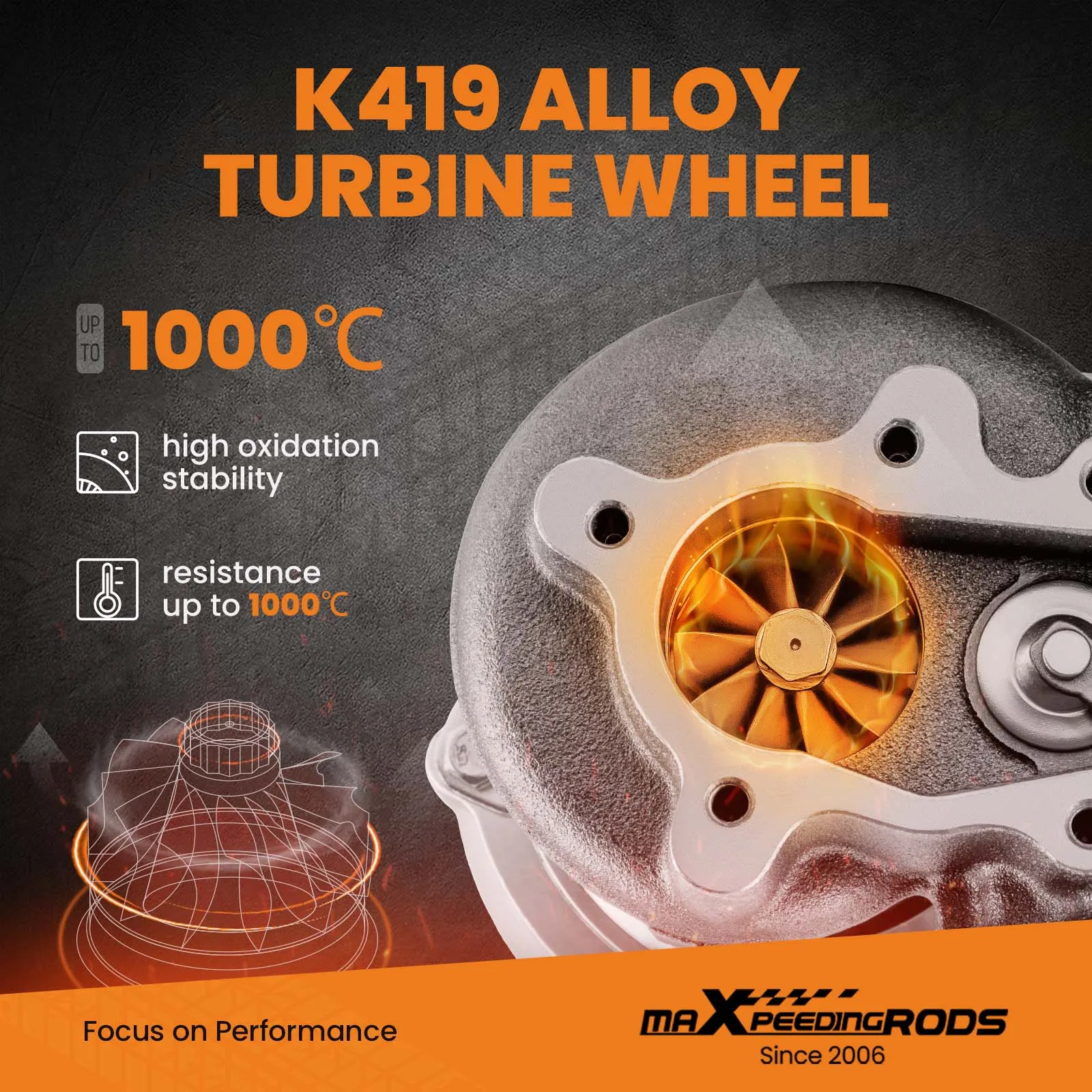

2) High temperature resistance, stainless steel turbo housing can withstand more than 900 degree celsius of exhaust temperature.

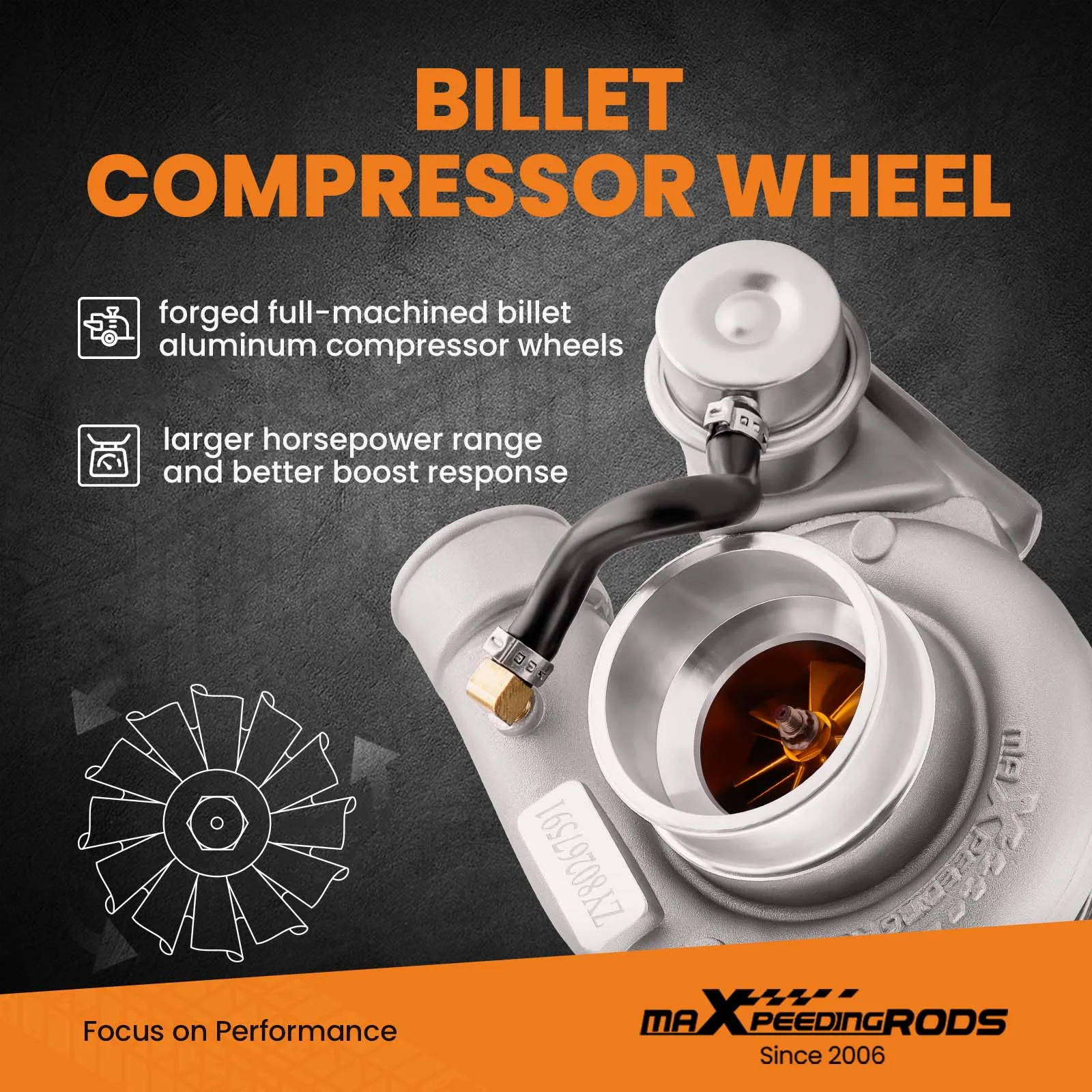

3) High efficiency and low inertia wheel blades significantly reduce turbo lag.
4) Water and oil cooling system can extend the life of the turbo The engine power output can be increased by more than 200%, can boost up to 250-450PS.


Condition: 100% brand new
Warranty: 2 years for any manufacture defects

Notice:
*modification might be required for some vehicles.

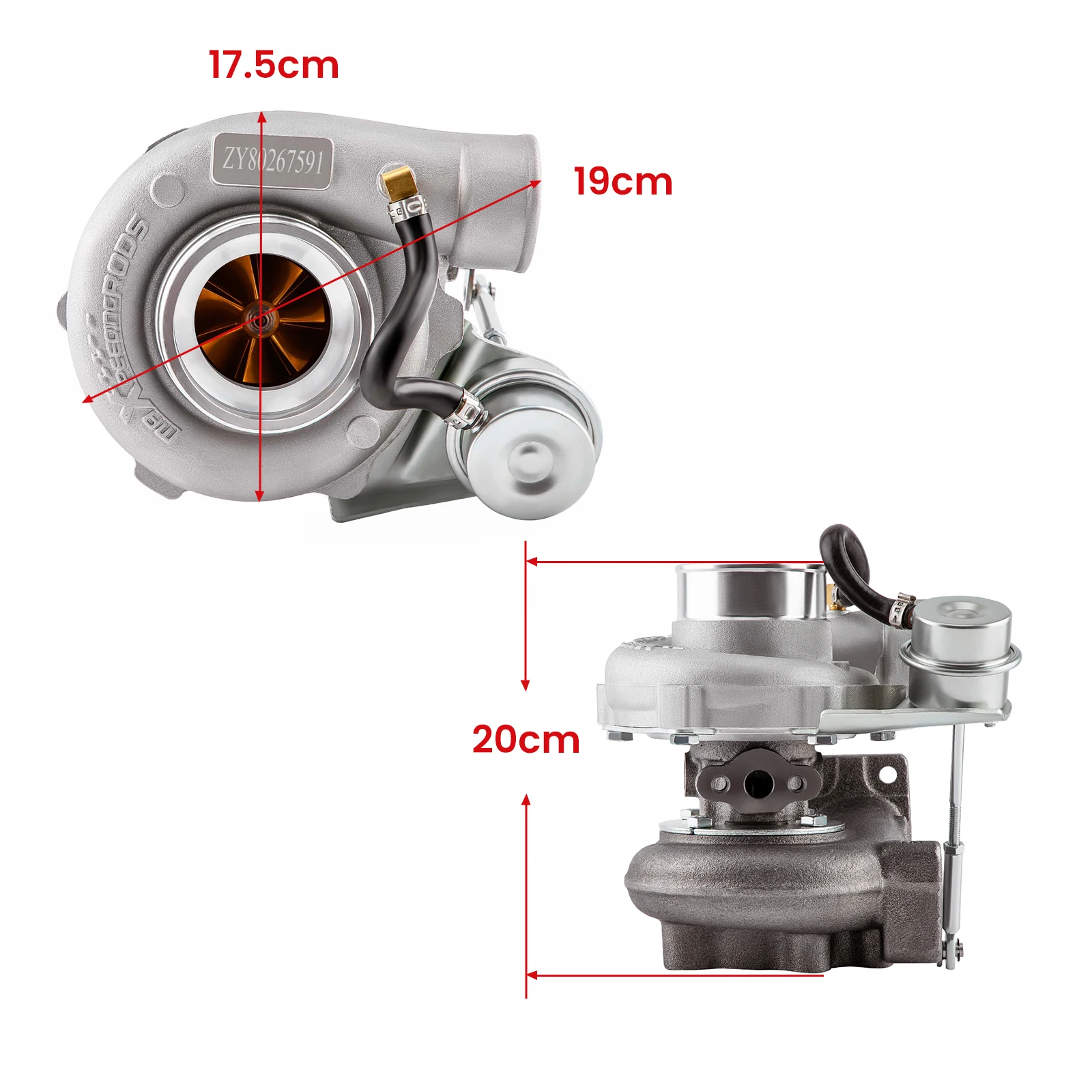

*The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
* About the color of the turbine compressor shell impeller: We will ship gold and silver at random, thank you


Important notice



* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding
