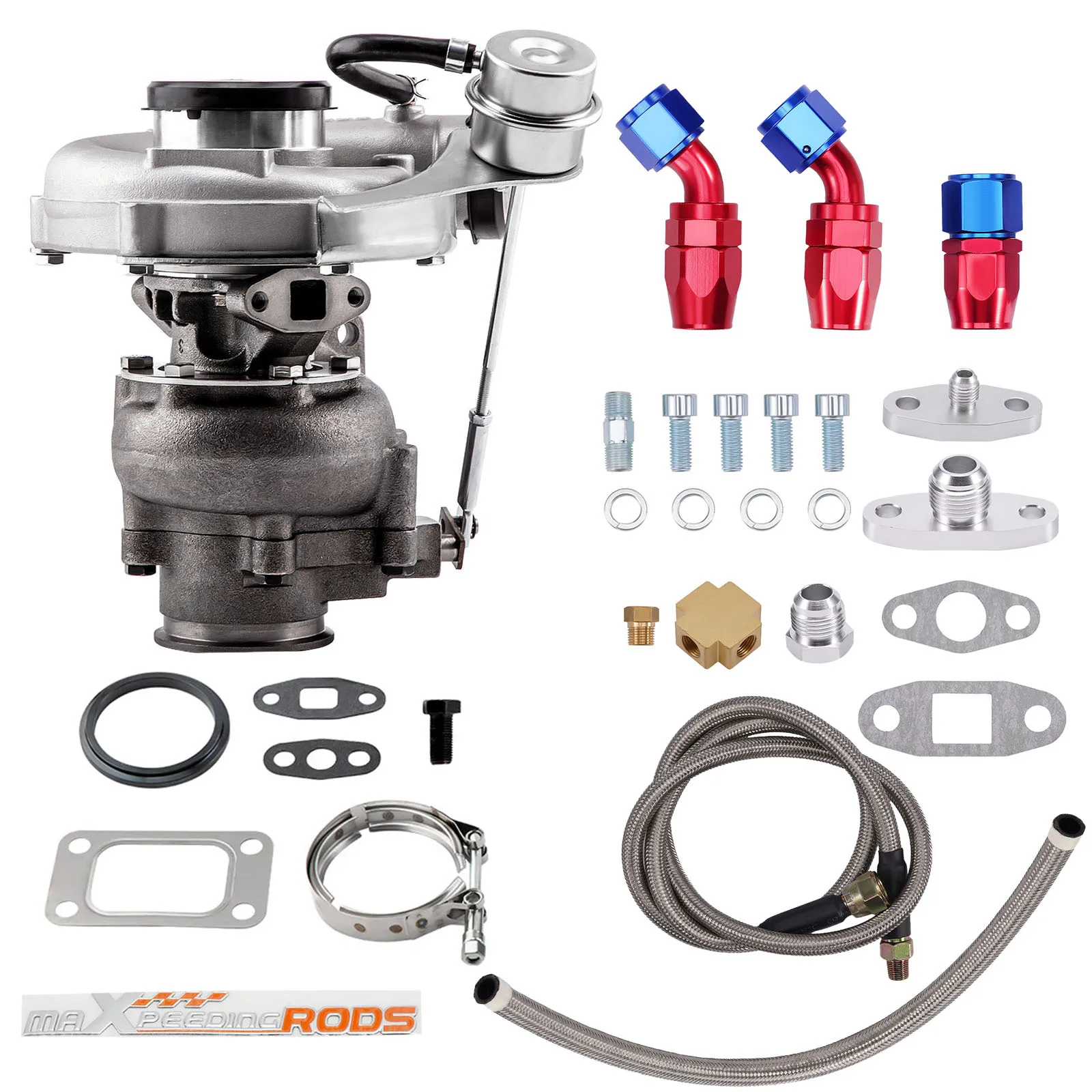

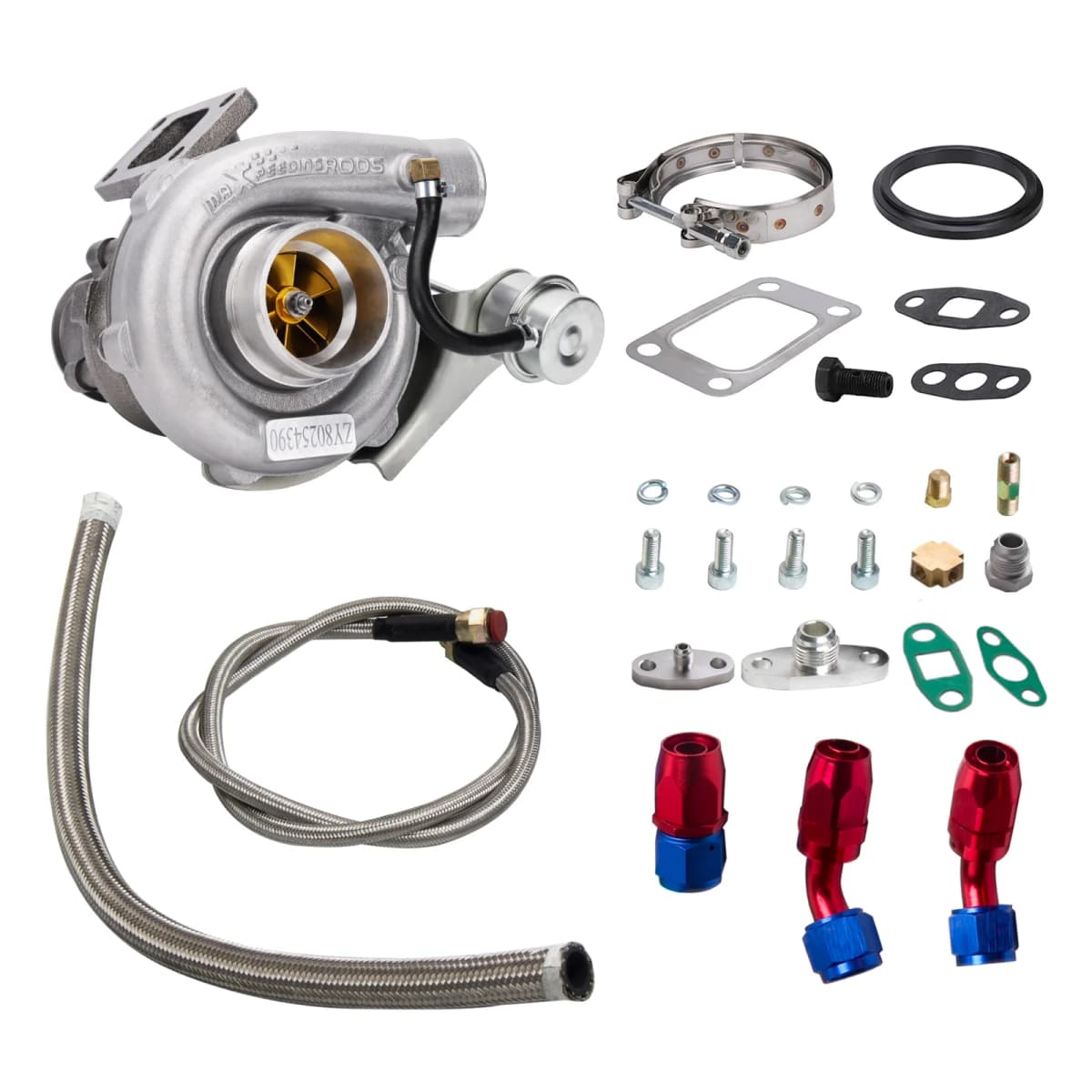

Upgrade Billet T3 Turbo & Oil Line Kit for 1.5L-2.5L 4 6 Cyl Oil Cooled 420HP

T3 TO4E V-band Billet Turbo 0.63 AR Oil Drain Return Feed hose Line Kit

Notice:

Pick up service is not available.

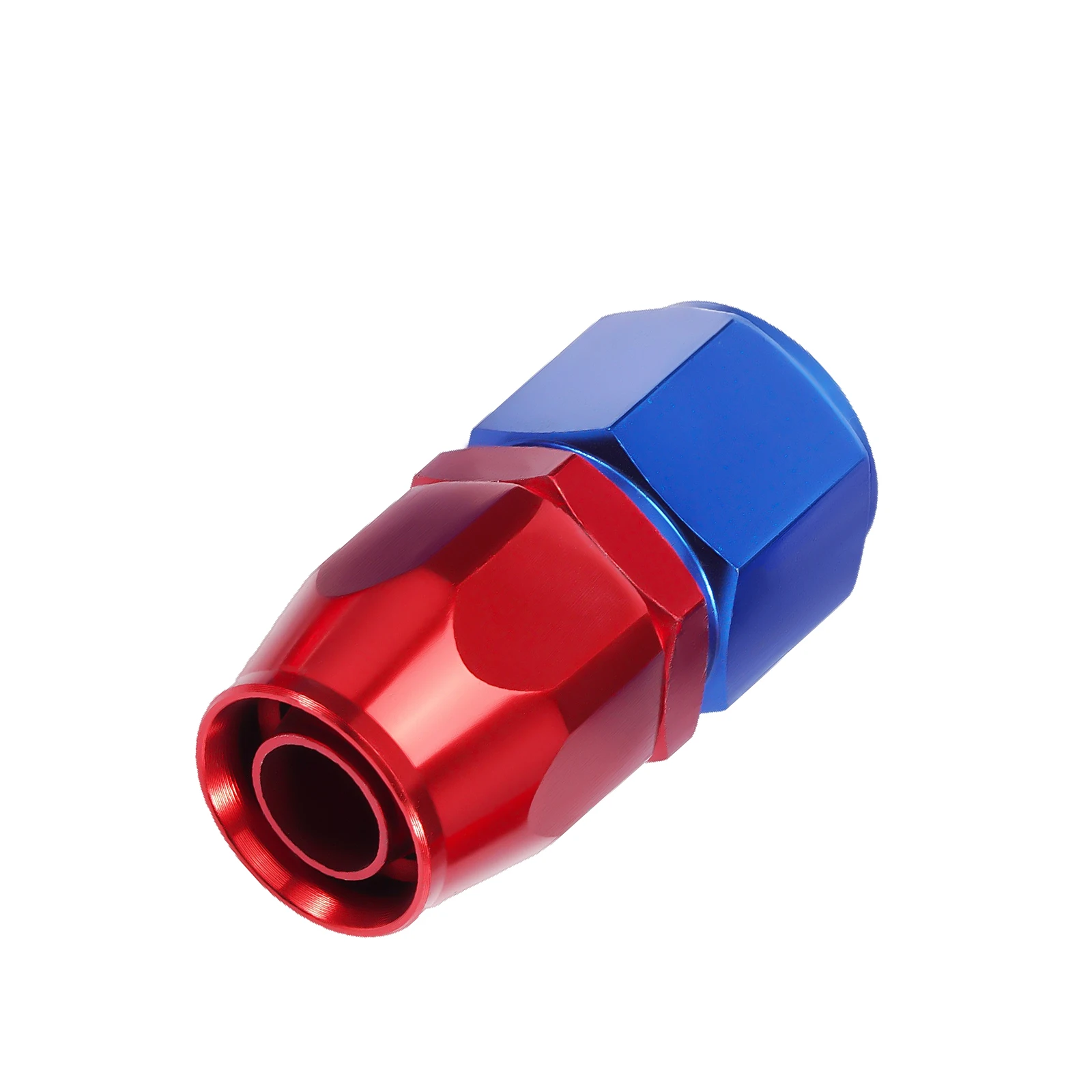

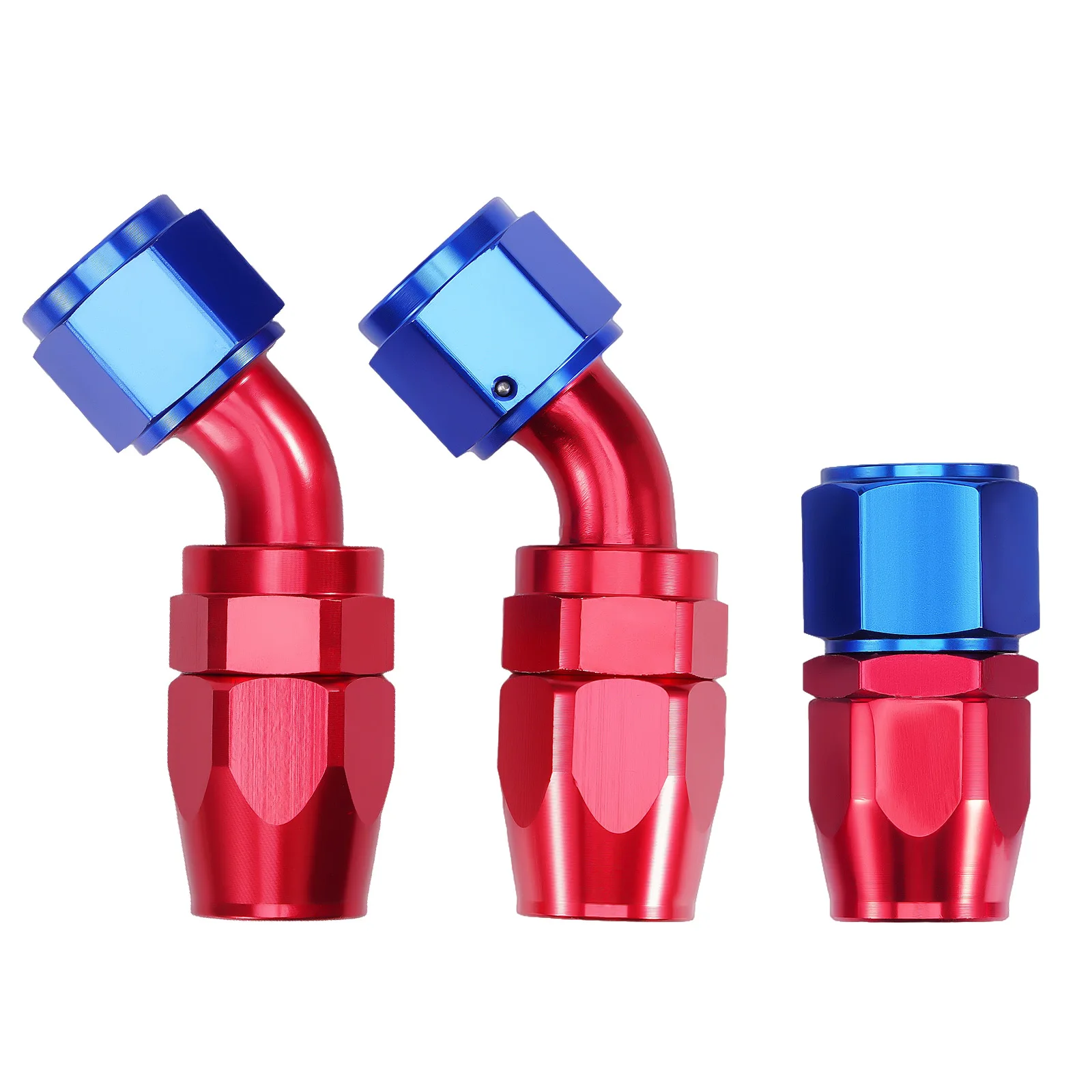

Turbo Oil Feed Line + Turbo Oil Feed Line:

* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm

* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

T3 Turbocharger:

Application

Compatible for 1.5L to 2.5L any 4/6 cylinder engine

Horse Power: Capable of Boosting Horse Power up to 420HP

Cooling Type: Oil Cooled

Specification

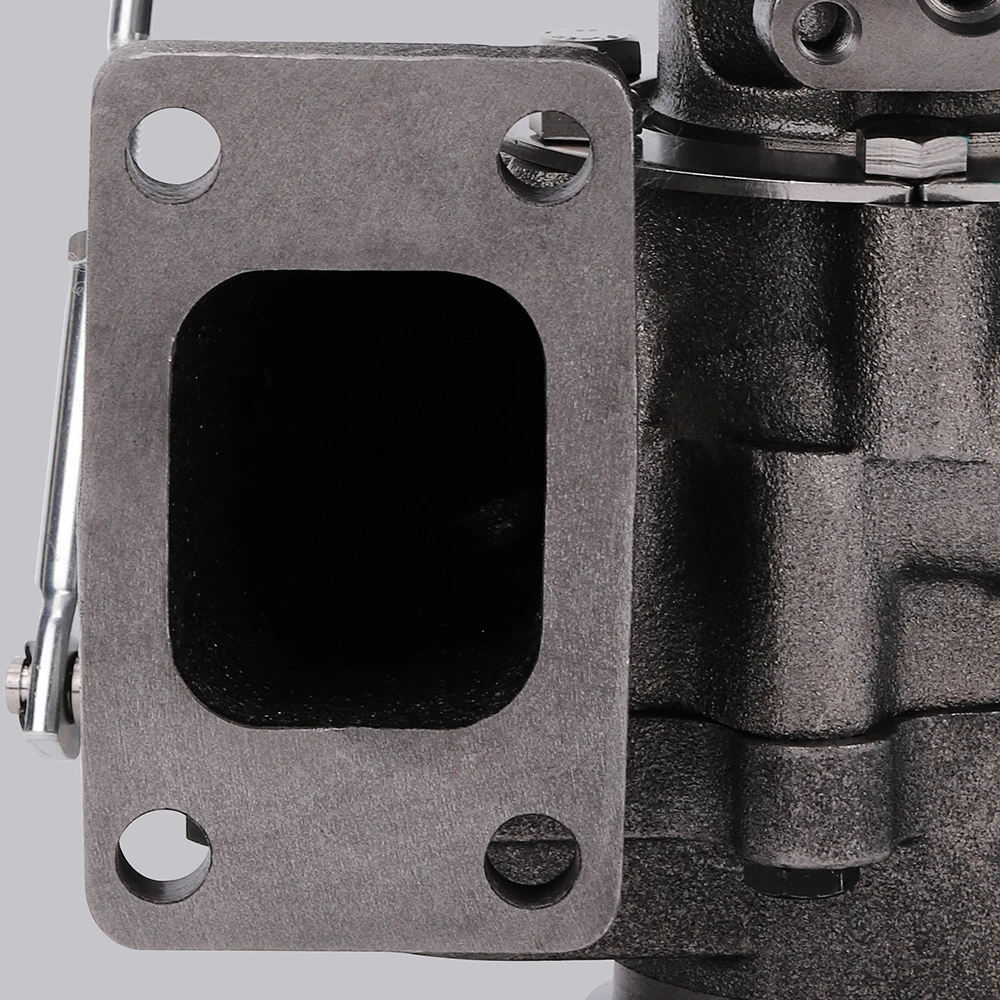

Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns

Exhaust Outlet () Flange: V-Band Flange

Turbine Trim:74.2

Turbine Inducer Diameter:64.8mm

Turbine Exducer Diameter:55.8mm

Turbine A/R:0.63

Turbine exhaust outlet : 79mm

Turbine exhaust inlet：44.7mm/85.8mm

Compressor outlet：78 mm

Compressor inlet：51.5 mm

Compressor Trim:48.1

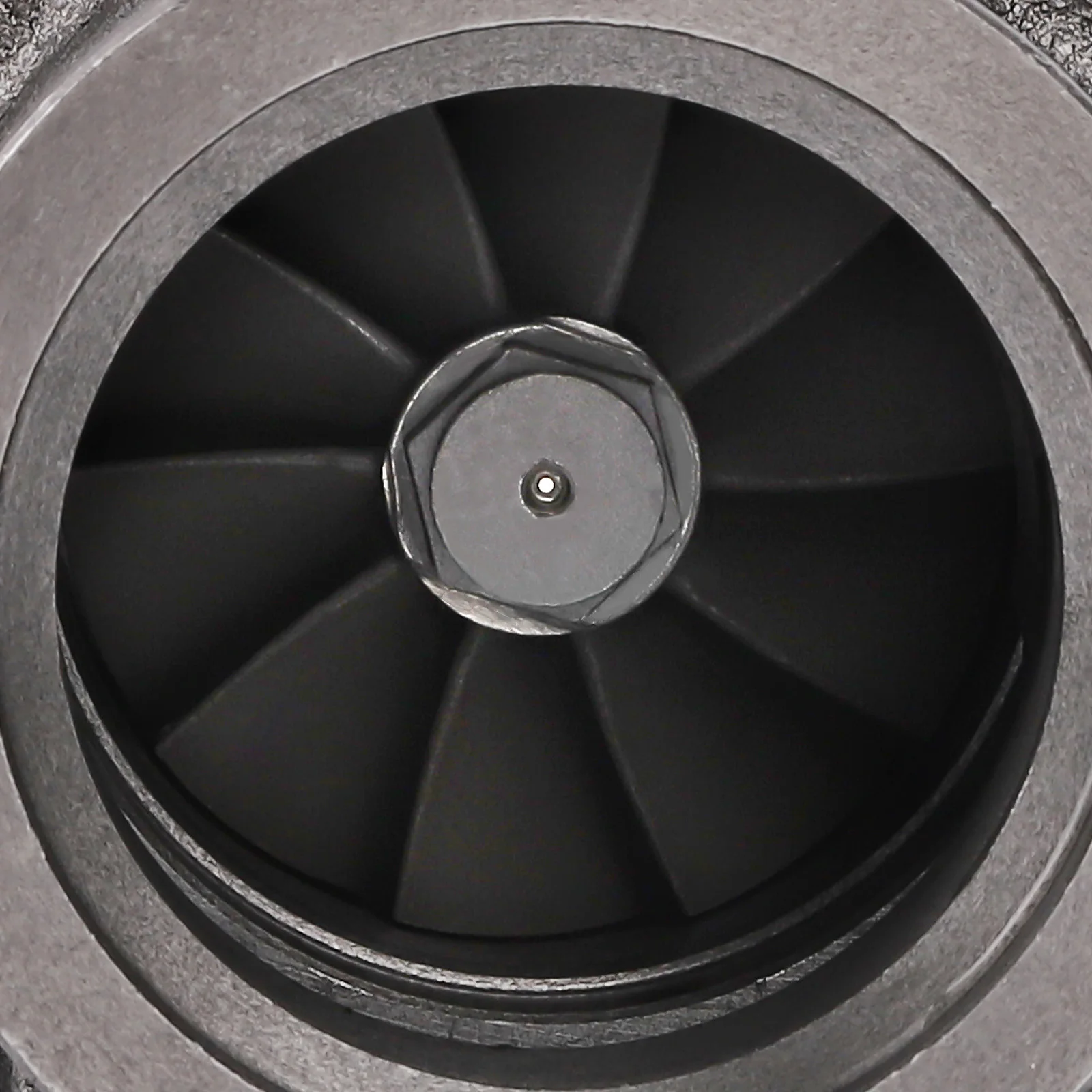

Compressor Inducer Diameter:52.7mm

Compressor Exducer Diameter:76 mm

Compressor A/R:0.5

Bearing:Journal Bearing

Warranty:2 Year

Internal Wastegate: Yes
