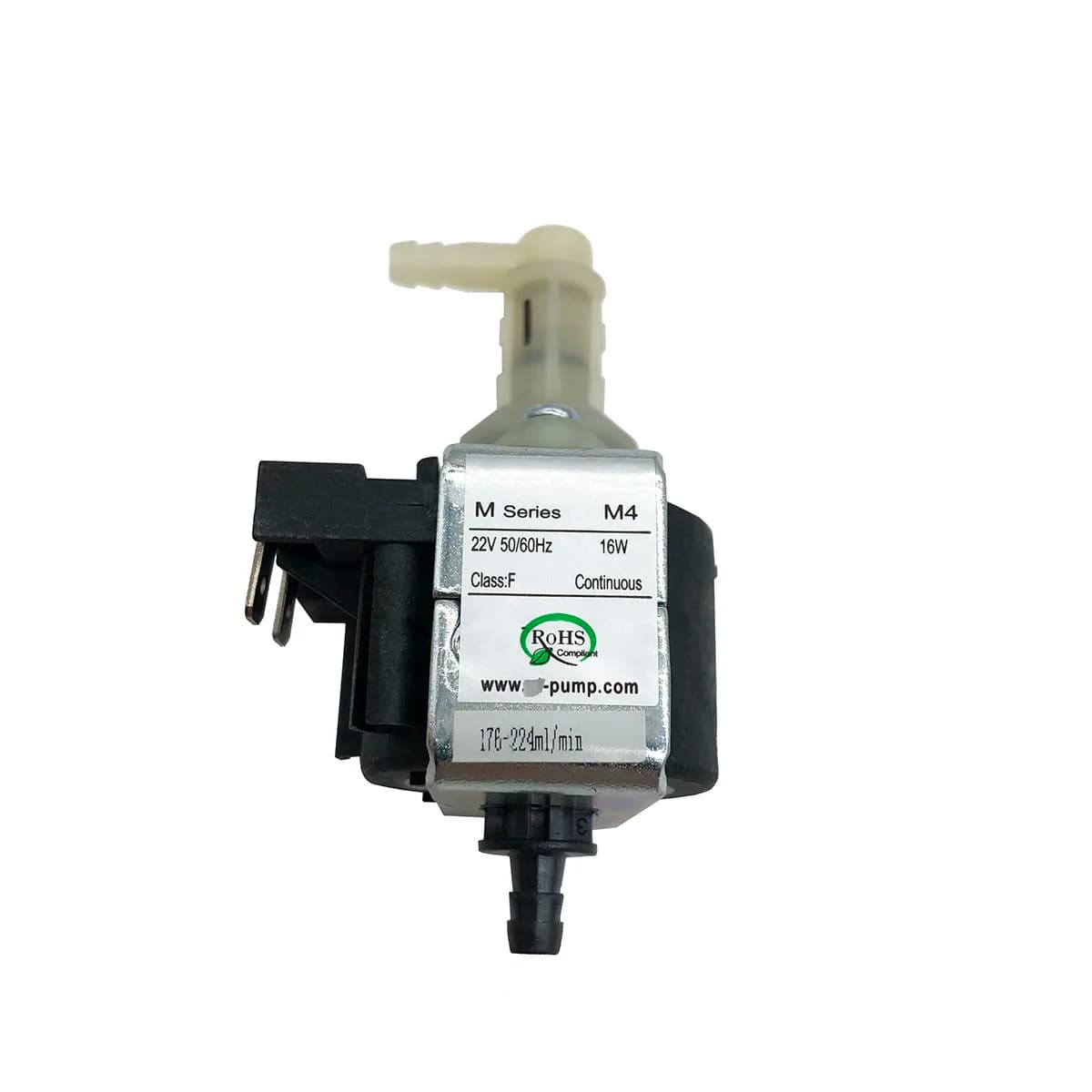

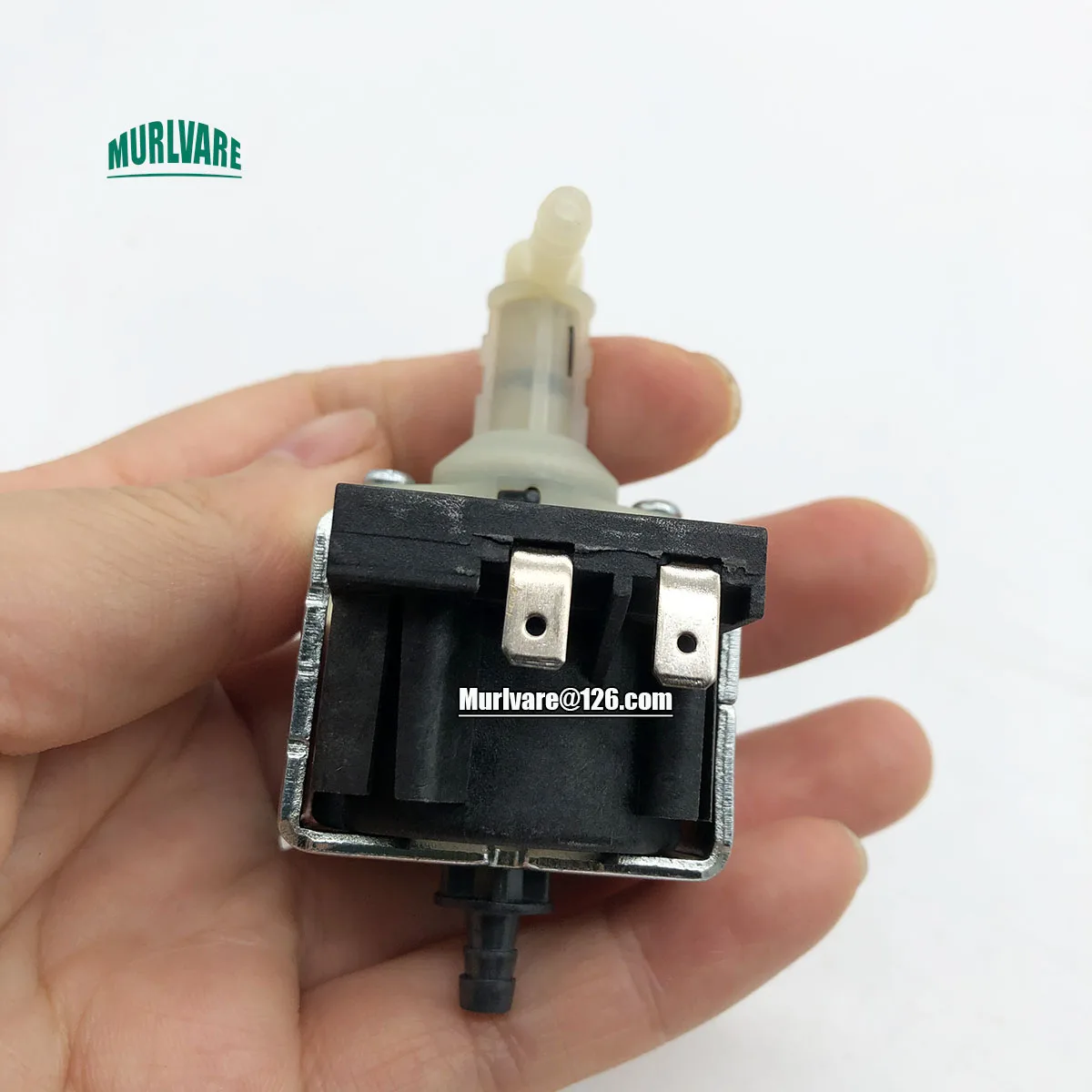

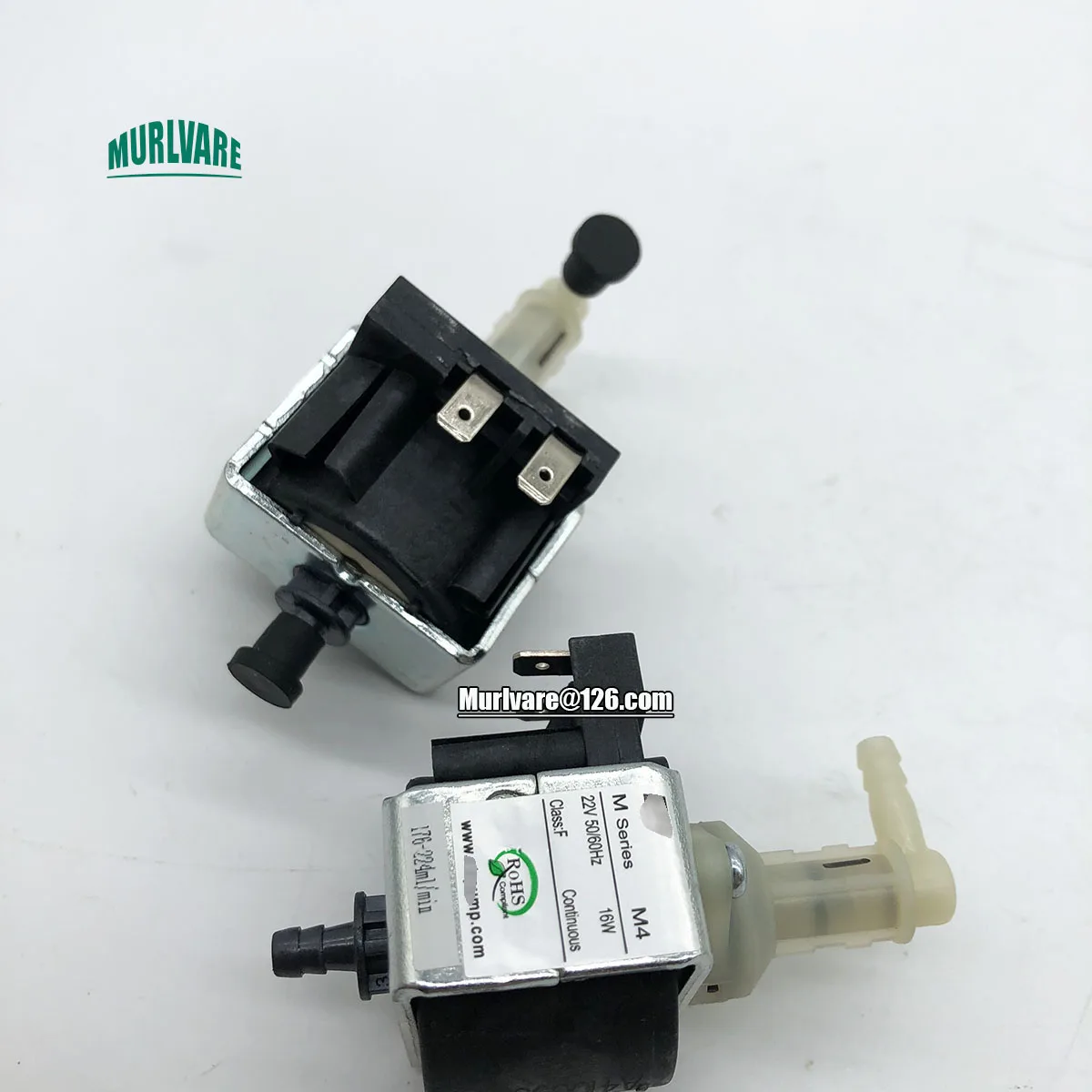

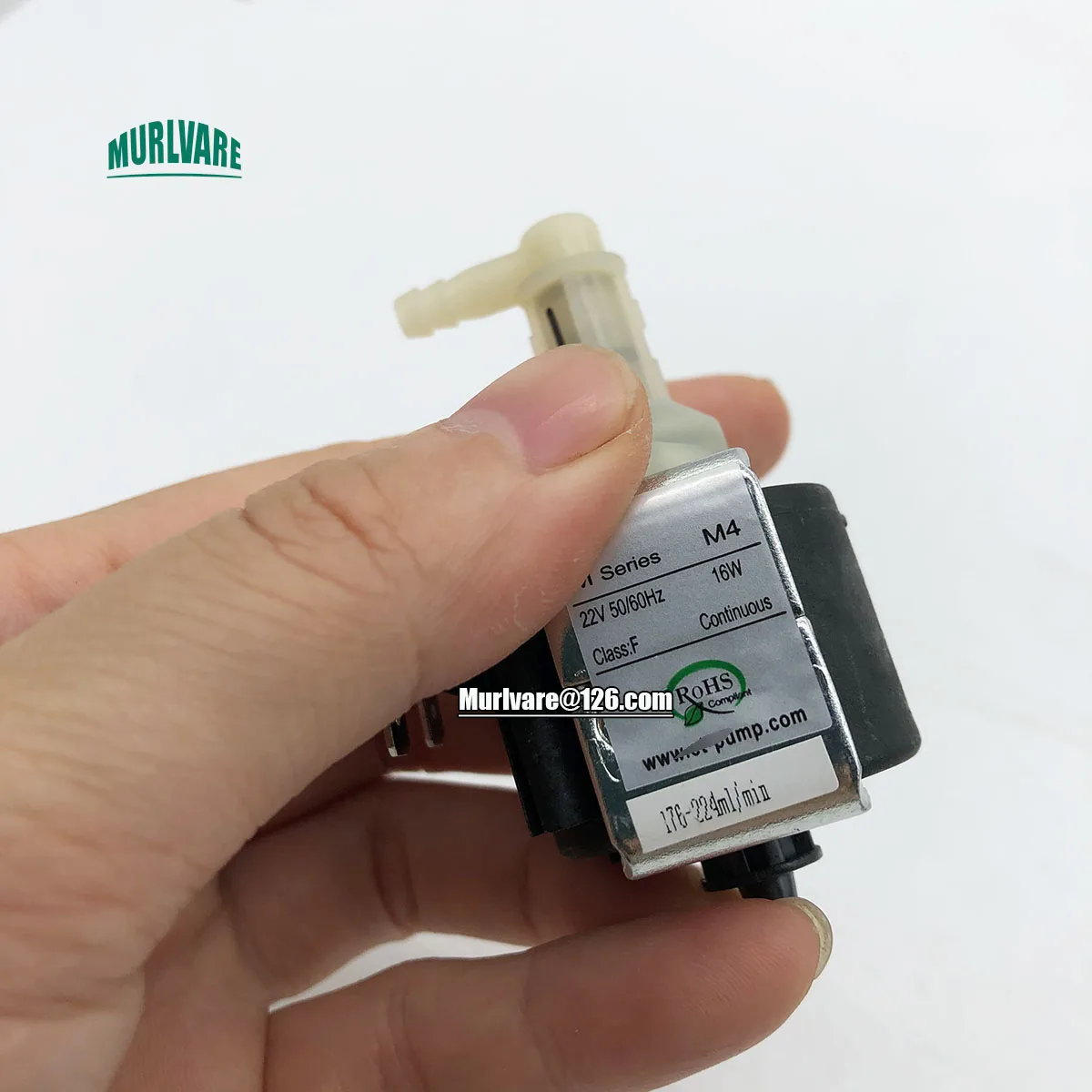

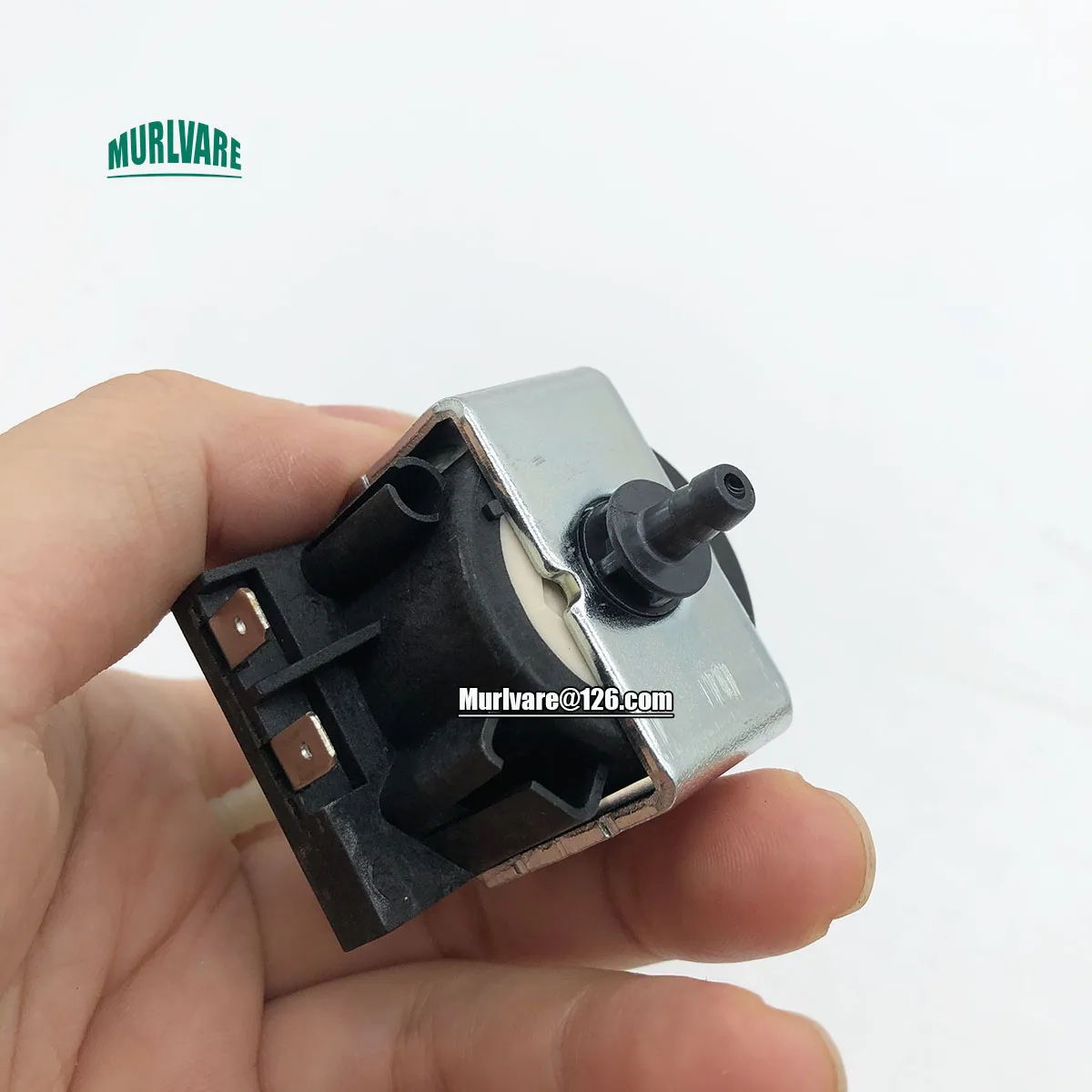

176-224ml/min M Series M4 22V 16W Micro Solenoid Pump Water Pump For Hanging Ironing Machine Steam Mop Cleaning Machine

Special note: This model is 22 volts, presumably requires a pulse drive,

Direct 22 volts DC is not working properly, you need to drive the circuit!!

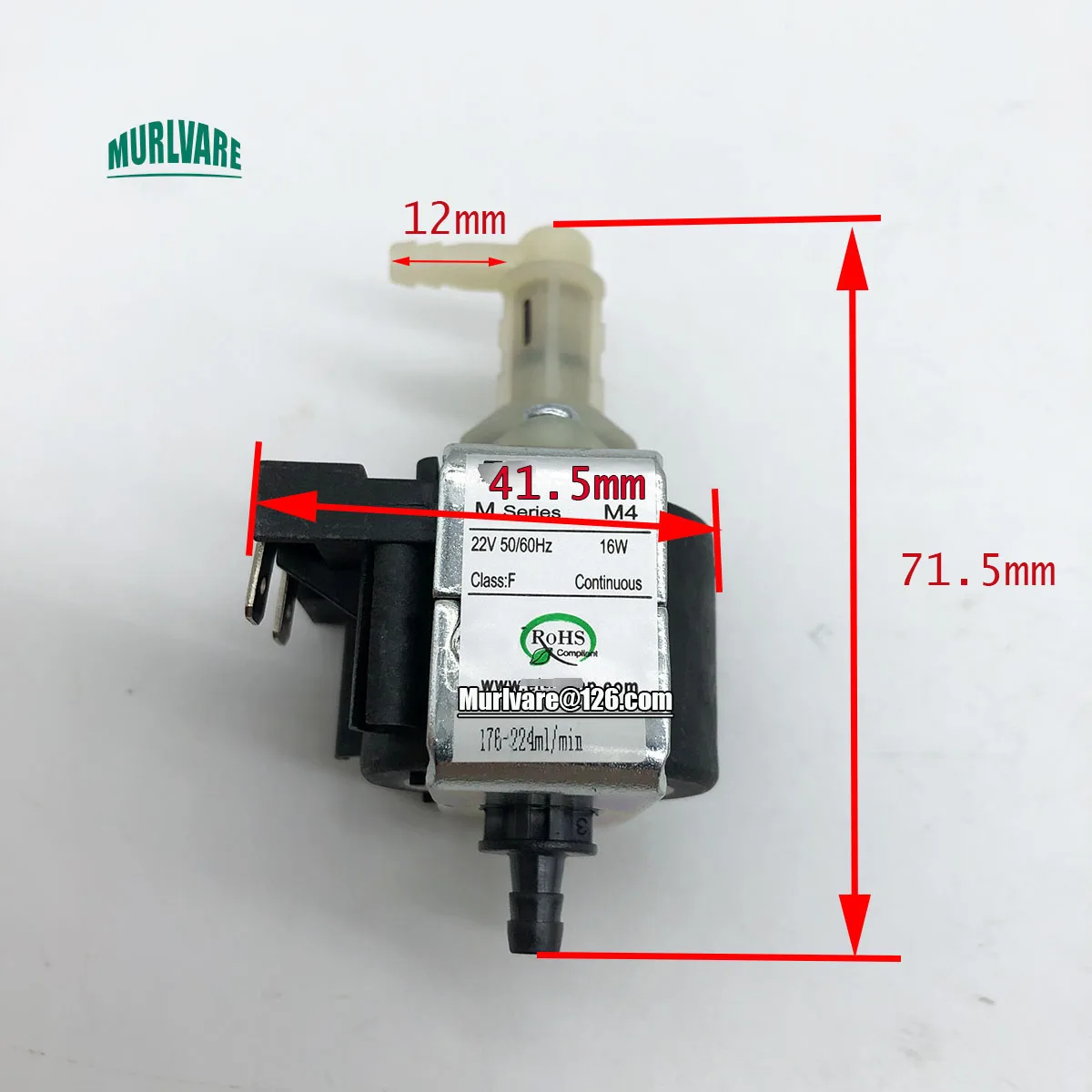

It is the suction pump inside the washing machine. Compare the outline size, voltage and power before purchase. If it is the same, a high probability can be applied.

Please remove both ends of the rubber sleeve before use, the pump will have residual water, is a normal phenomenon,

Is the manufacturer's full inspection of the water.

Product name: Miniature electromagnetic pump

Type: land self priming pump

Packing specification: new original packing, 20 pieces in one layer, 100 pieces in one box

Rated voltage: 22V 50/60Hz (AC 22 volts)

Power: 16 watts

Flow: 210 ml/min or so (small flow)

Working mode: can work continuously

Insulation class: F

Noise: about 60dB

Suitable medium: water

Suitable pipe: inner diameter 4, outer diameter 6 mm pipe

Dry pumping function: do not dry pumping

Installation method: Do not immerse in water

Features: small vibration, small flow, low pressure safety, self-priming function

General use: floor washing machine, steam drag, hanging ironing machine, steam iron, etc
