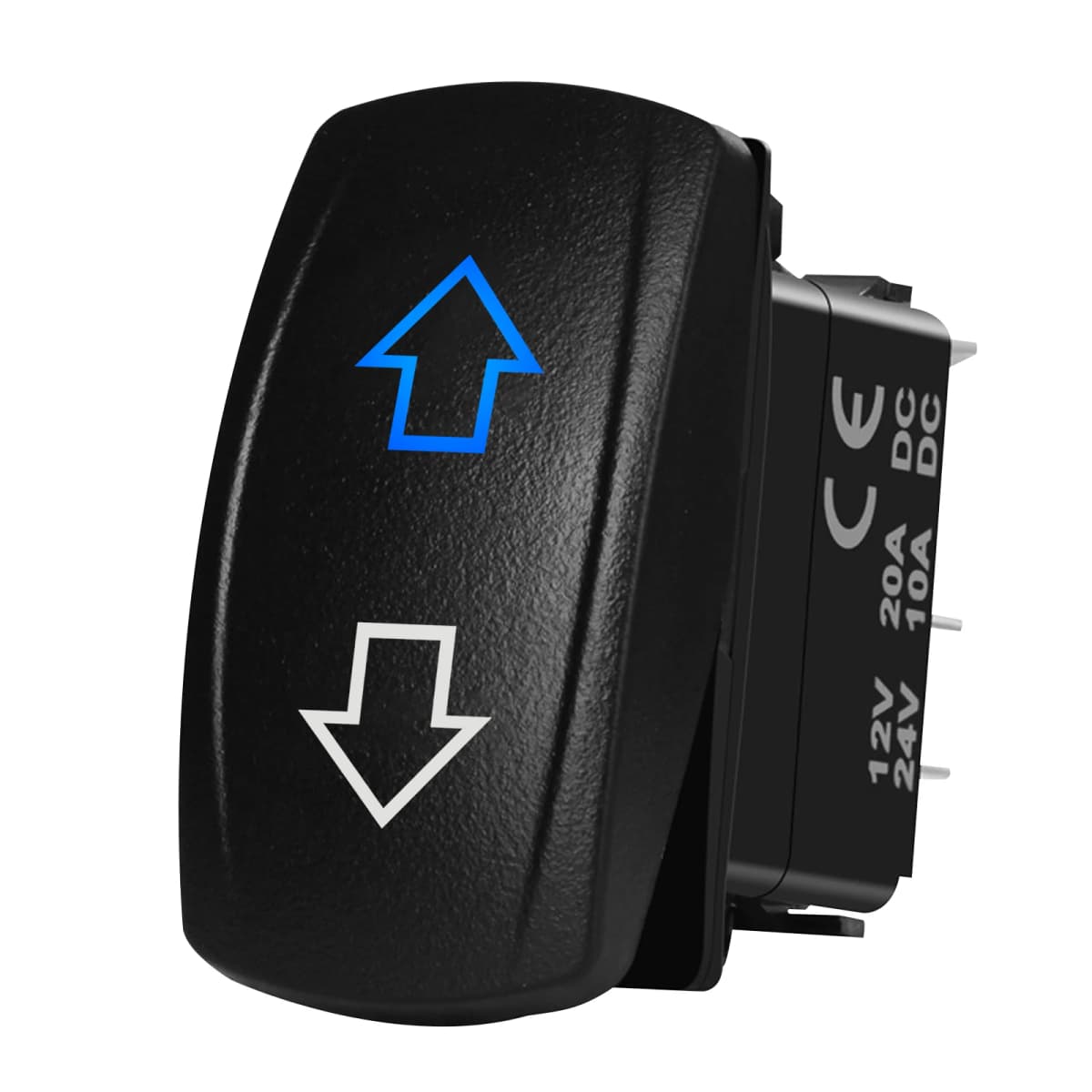

Waterproof 12V/24V 7-Pin DPDT Reverse Polarity Rocker Switch Blue LED Latching/Momentary On-Off-On for DC Linear Actuators Motor

This 12V/24V DPDT reverse polarity switch is used to control linear directions such as up/down, left/right, forward/backward, and high/low, widely use on crane, hoist, excavatora, and any other application that requires bidirectional linear or rotary motion.

Type: Reverse Polarity Rocker Switch for Linear Actuators

Material: High-quality ABS plastic + stable PC

Waterproof Rating: IP66 (Marine Grade)

Panel Size: 60x40mm

Electrical Ratings: 20A @ 12V DC / 10A @ 24V DC

Circuit Type: Double Pole Double Throw (DPDT), 3-position rocker switch

Number of Terminals: 7 pins

LED Color: Blue

Light Illumination: LED lights up at ON position

Actuator Marking: Arrow symbols (UP/DOWN/LEFT/RIGHT)

Switch Operations

ON-OFF-ON (Maintained / Latching)

(ON)-OFF-(ON) (Momentary / Spring-return to center)

Size Parameters

Switch Mounting Hole Size: 37.2 x 21.2 mm (Standard Carling/ARB size)

Single Switch Panel Size: 60mm x 40mm

Dual Switch Panel Size: 60mm x 66mm

Common Applications

Cranes, hoists, and lifting platforms (up/down control)

Conveyor belts (forward/reverse)

Power windows and sunroofs

Electric seat adjusters

Anchor winches (raise/lower the anchor)

Deck cranes and windlasses

Electric lifts on tractors or utility vehicles

Solar panel tracking systems (adjusting tilt angle)
