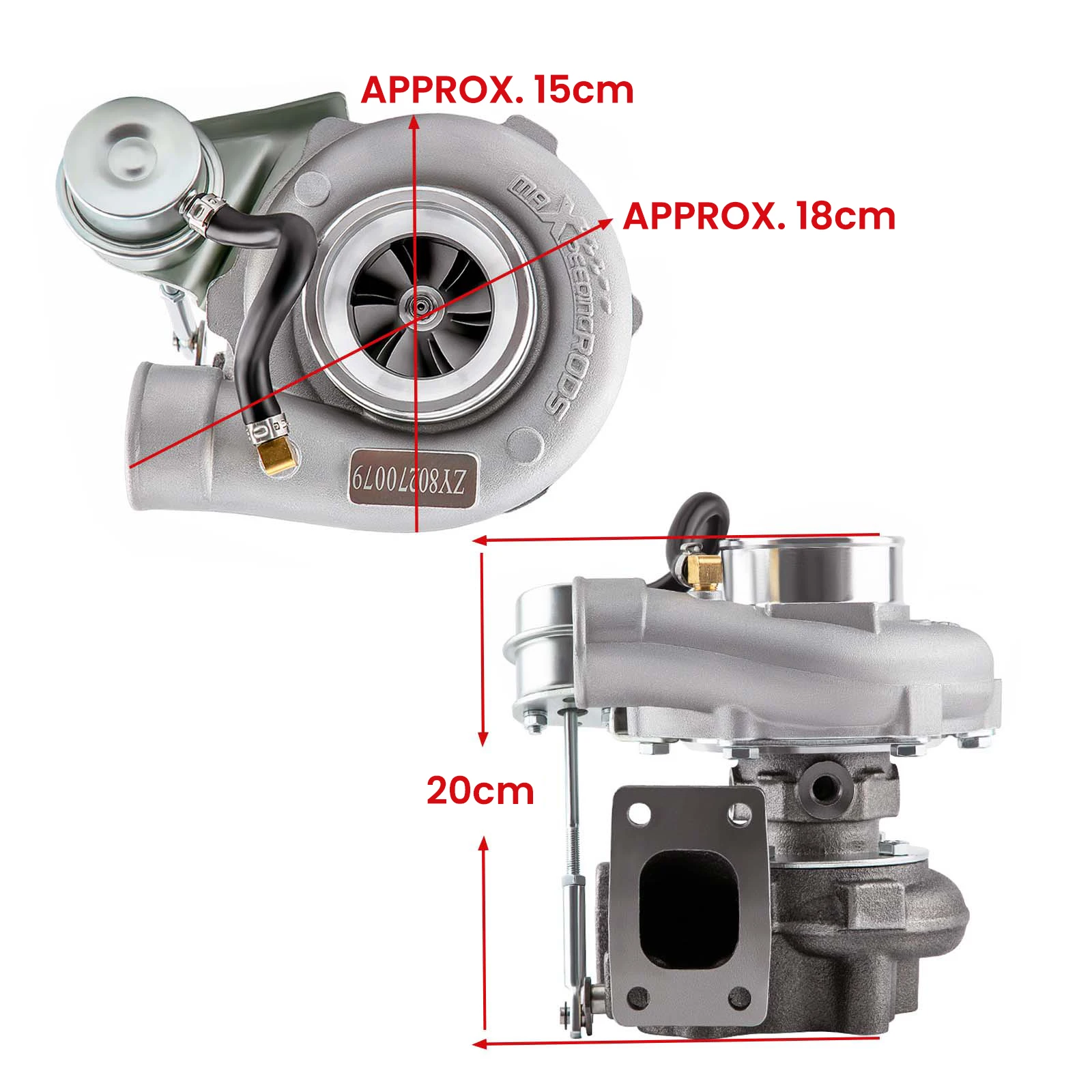

maxpeedingrods GT2871 Turbocharger For 1.8L-3.0L engine A/R 0.6 Turbine A/R 0.64 Water Cooled

Horse Power: Capable of Boosting Horse Power up to 350BHP

Cooling Type: Water + Oil

Application

Perfect for all 1.5L-2.0L engine , for all 4 cylinder

Specification

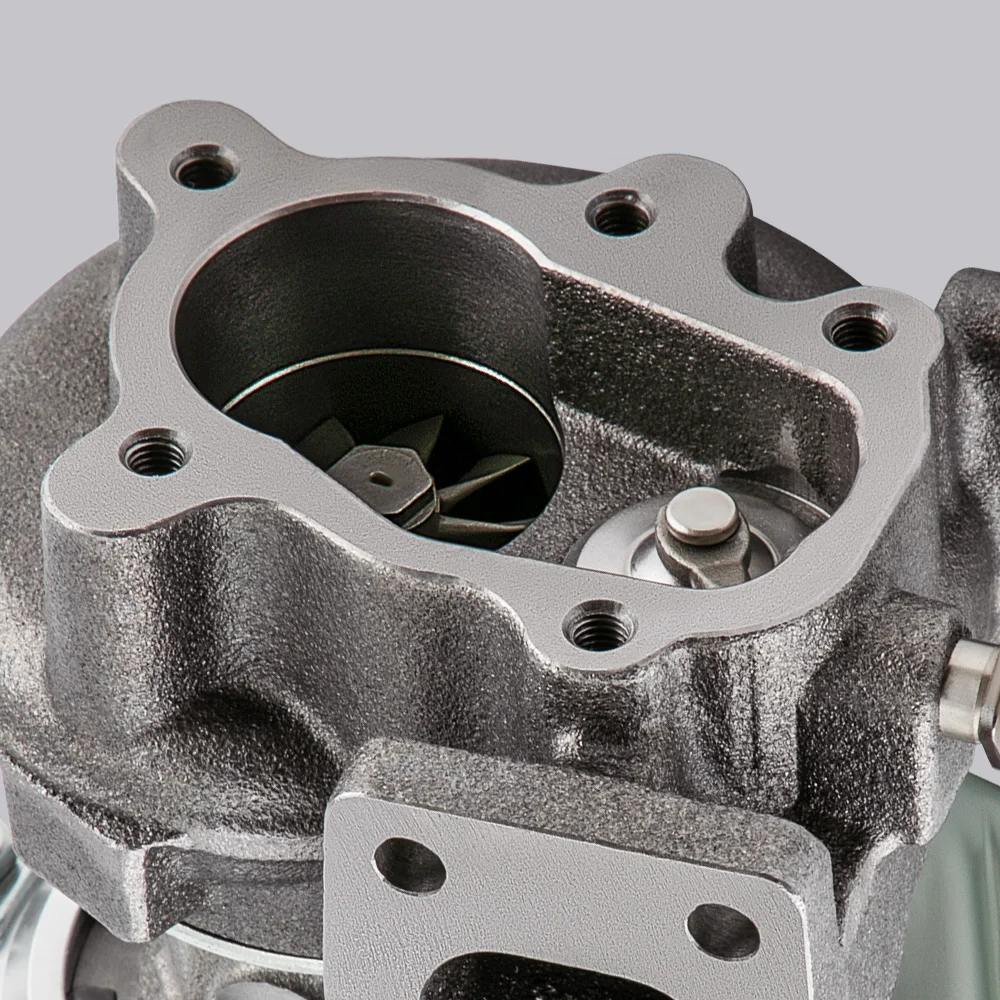

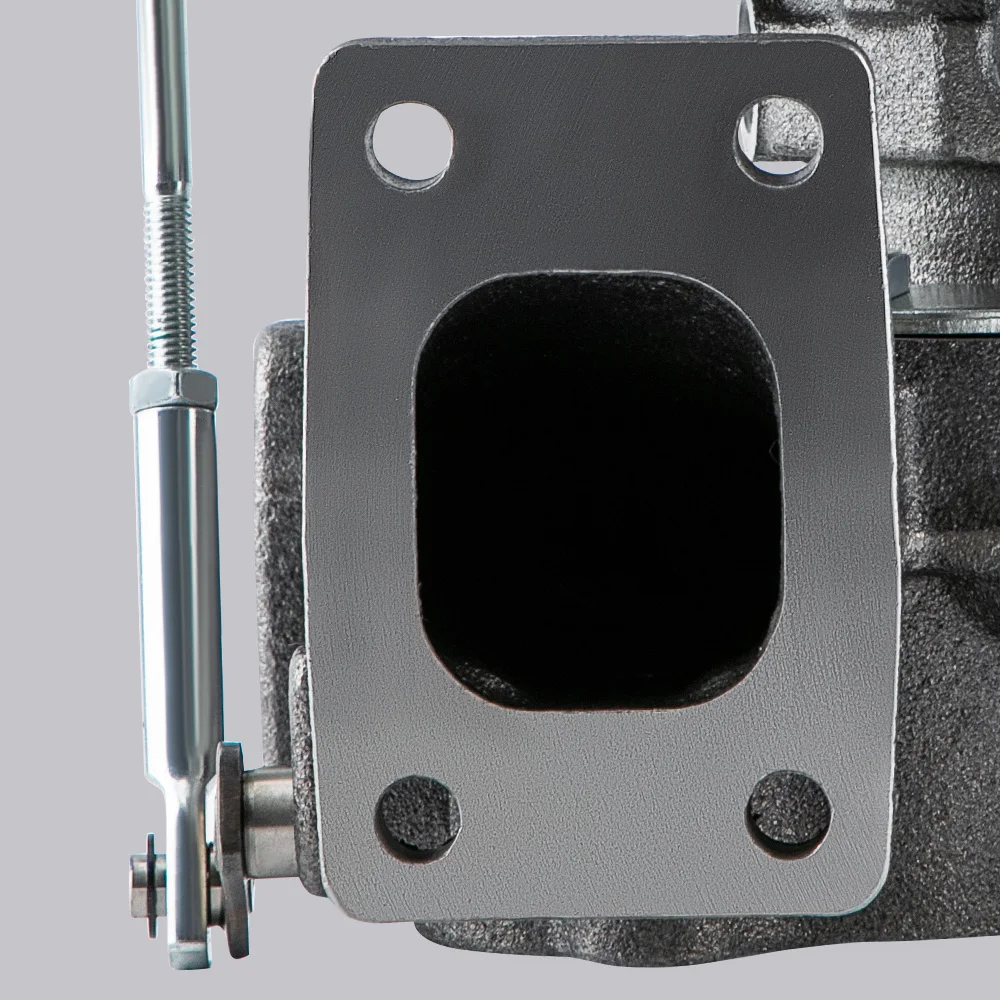

Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange

(T28 Flange can be converted to T25 Flange, Adrapter is needed).

Exhaust Outlet Flange: 5-Bolt

Compressor Trim: 48

Compressor Inducer Diameter: 49.20 mm

Compressor Exducer Diameter: 71 mm

Compressor A/R: 0.6

Turbine Trim: 74

Turbine Inducer Diameter: 53.8mm

Turbine Exducer Diameter: 47mm

Turbine A/R: 0.64

Bearing: Wet Float

Warranty: 2 Year

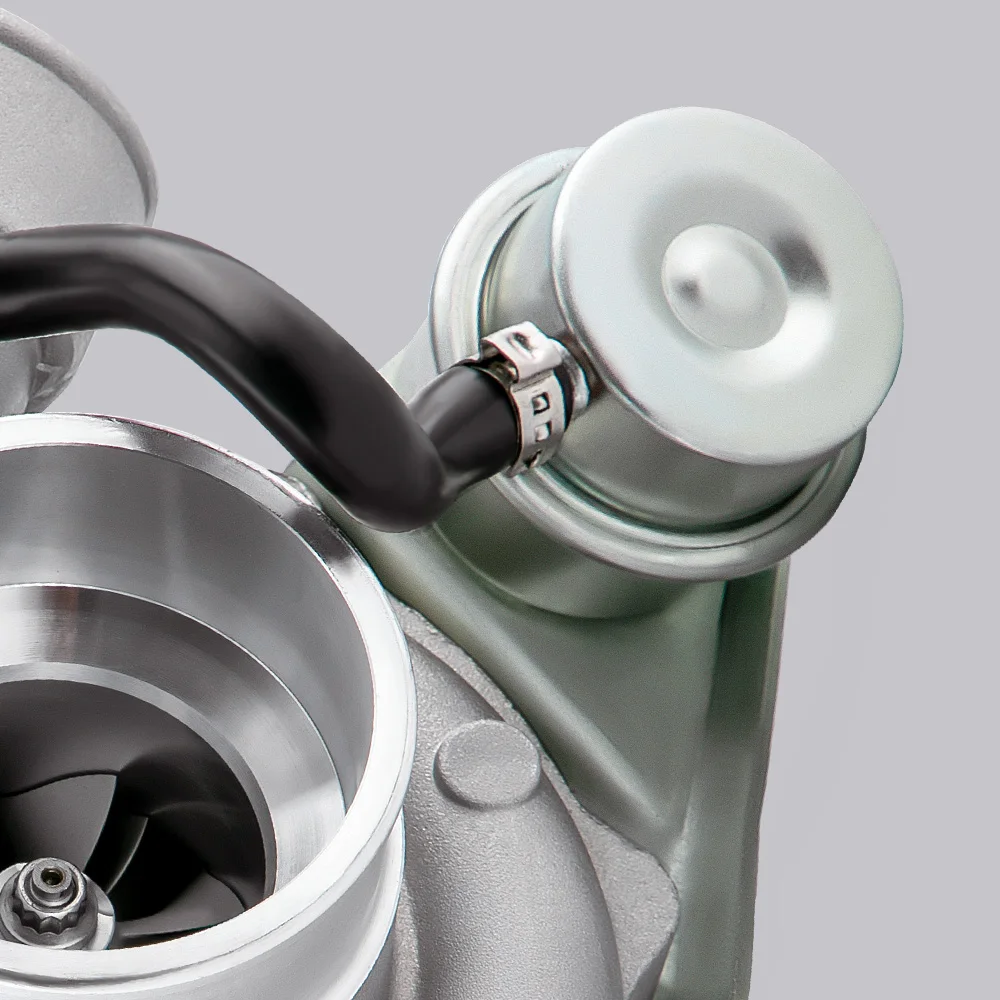

Internal Wastegate: Yes

Oil Restrictor: Yes

Oil Restrictor size：inside diameter 2mm

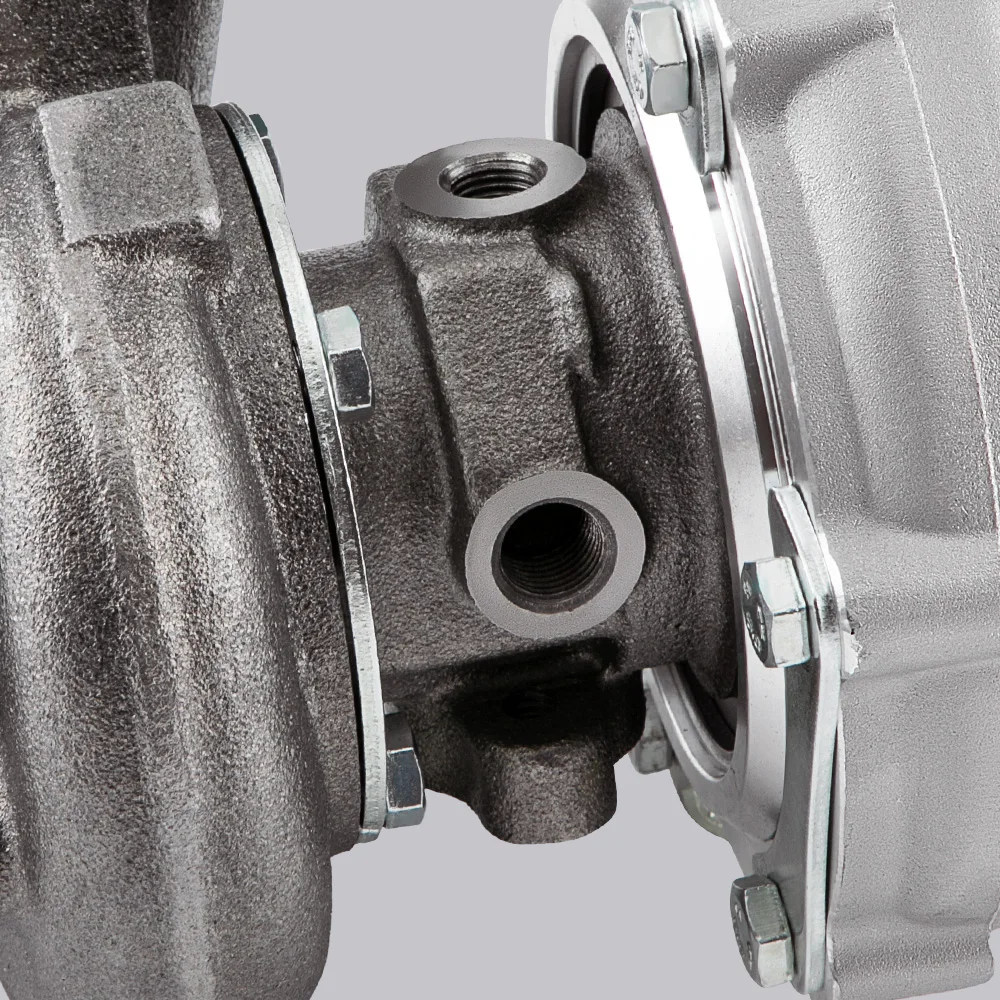

Oil Feed Size: 12mm

Oil Feed Thread Size: M12*1.25

Oil Drain Size: 14mm

Oil Drain Thread Size: M8*1.25

Water Thread Size: M14*1.5

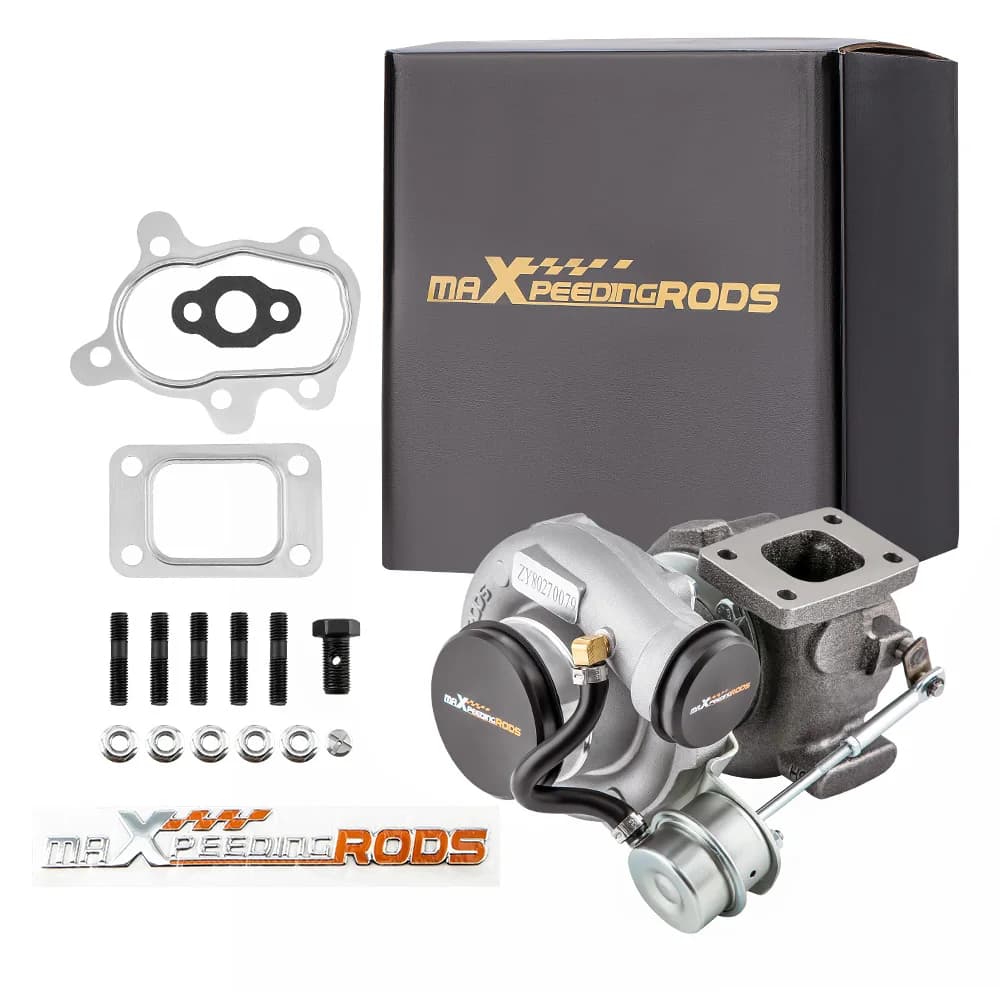

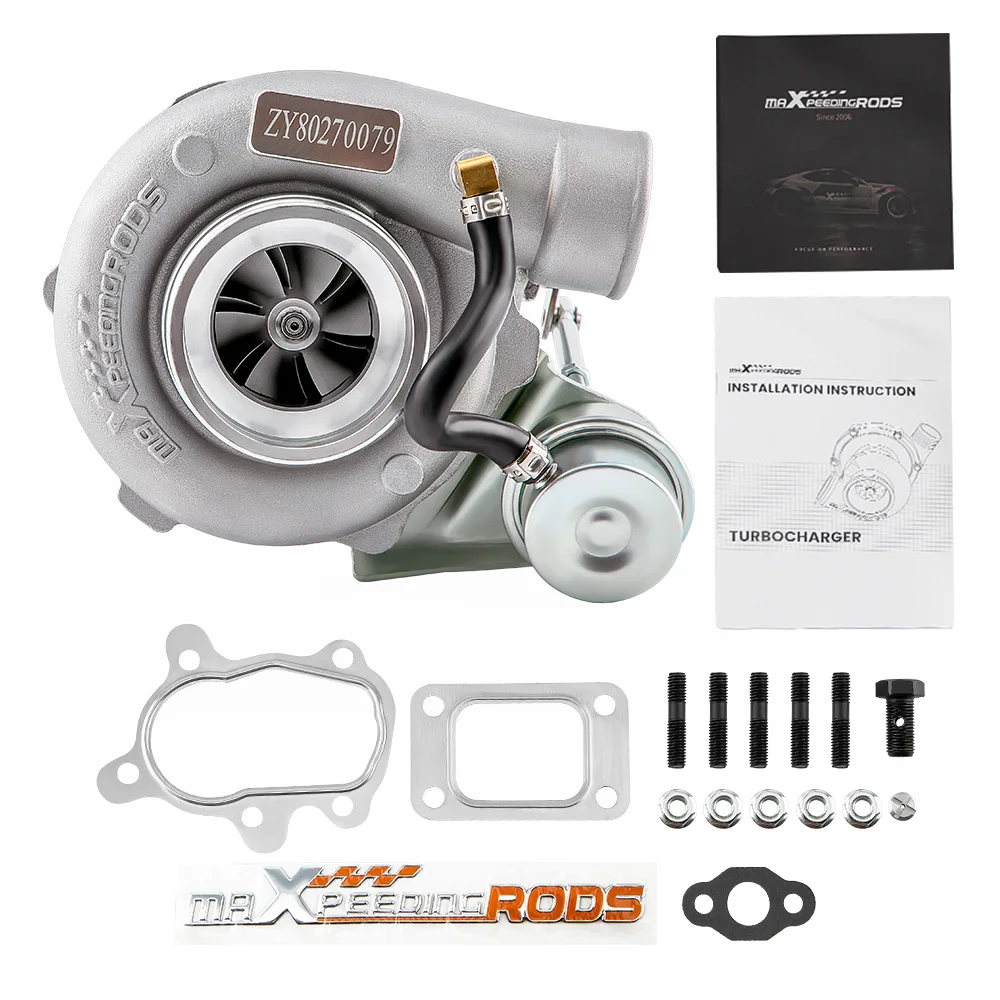

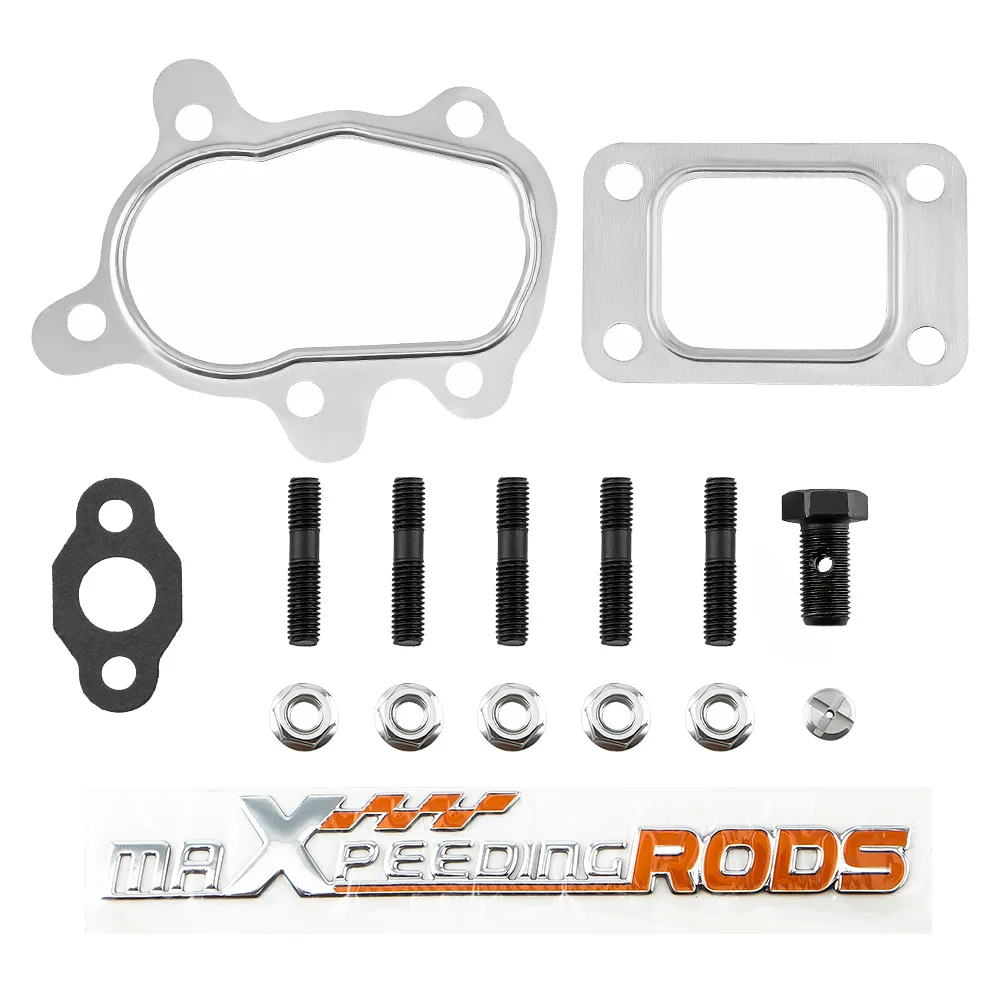

Accessories: You will get exactly as shown as picture above

Product Material

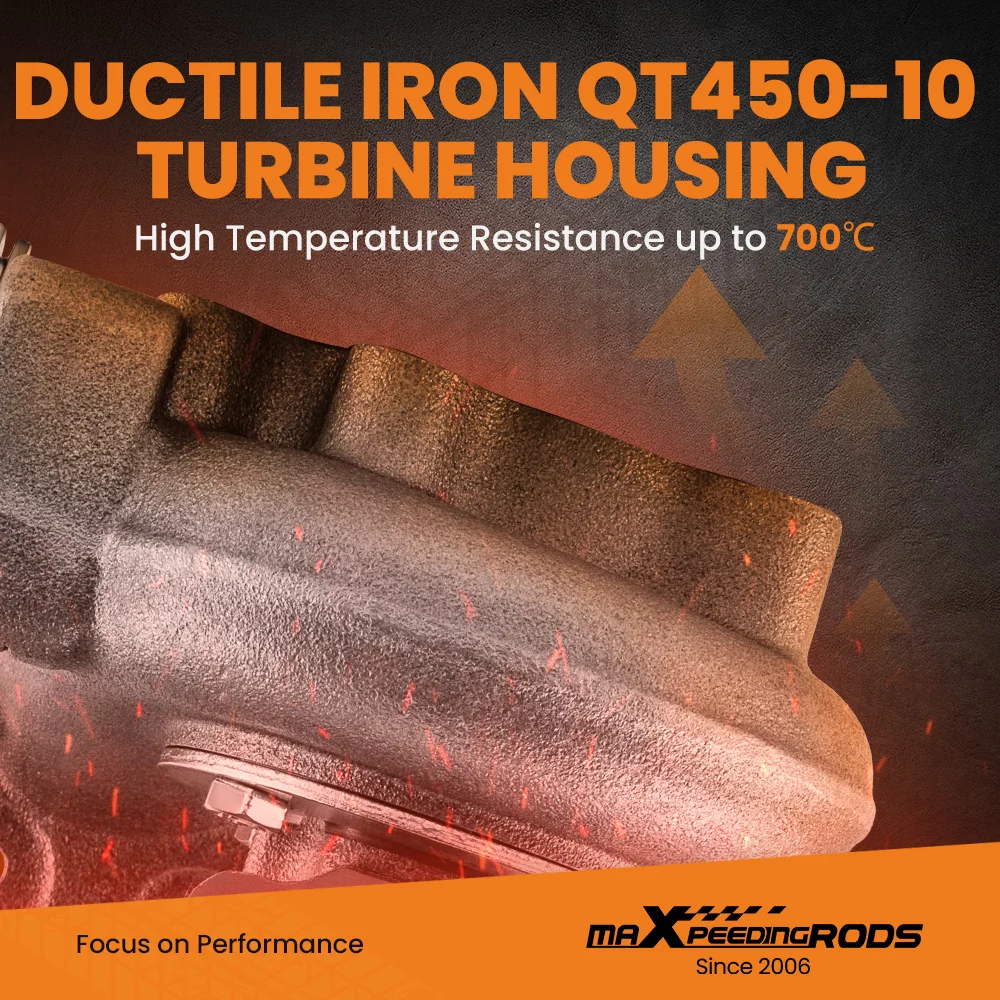

1. Turbine housing ：Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius

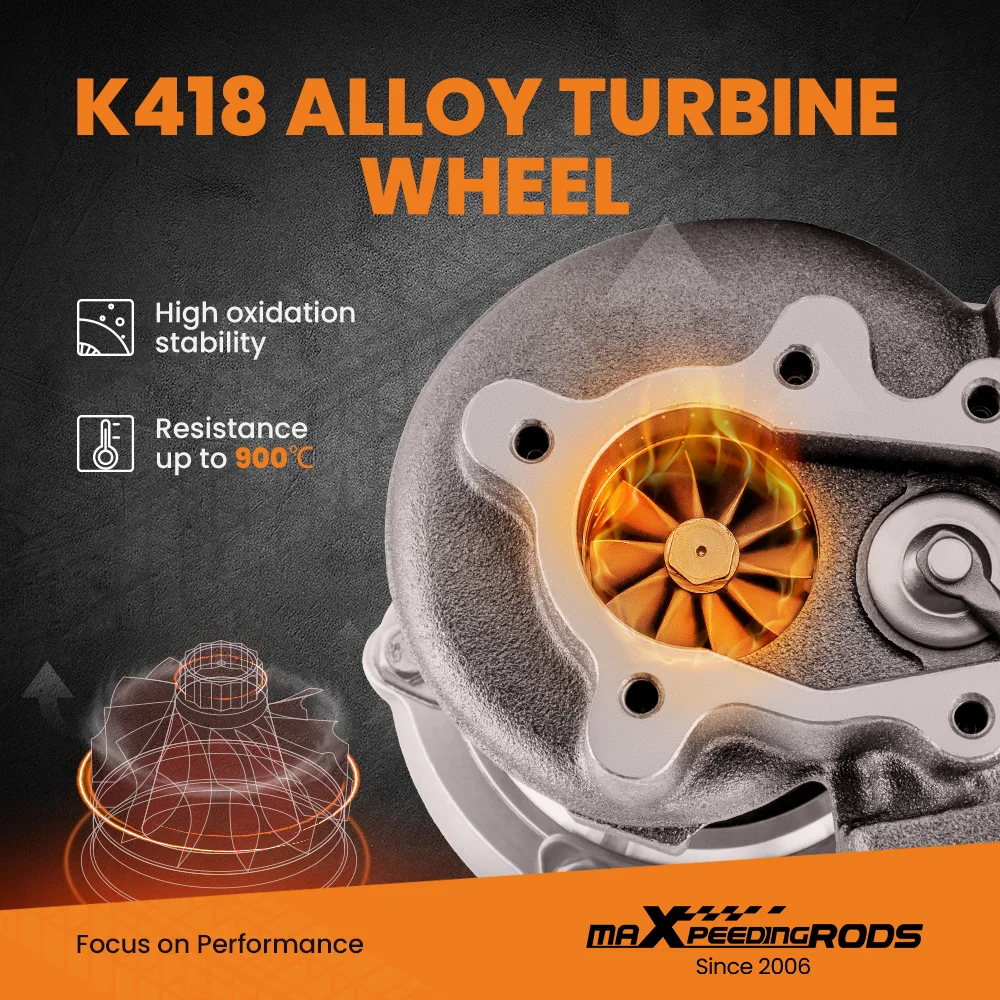

2. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius

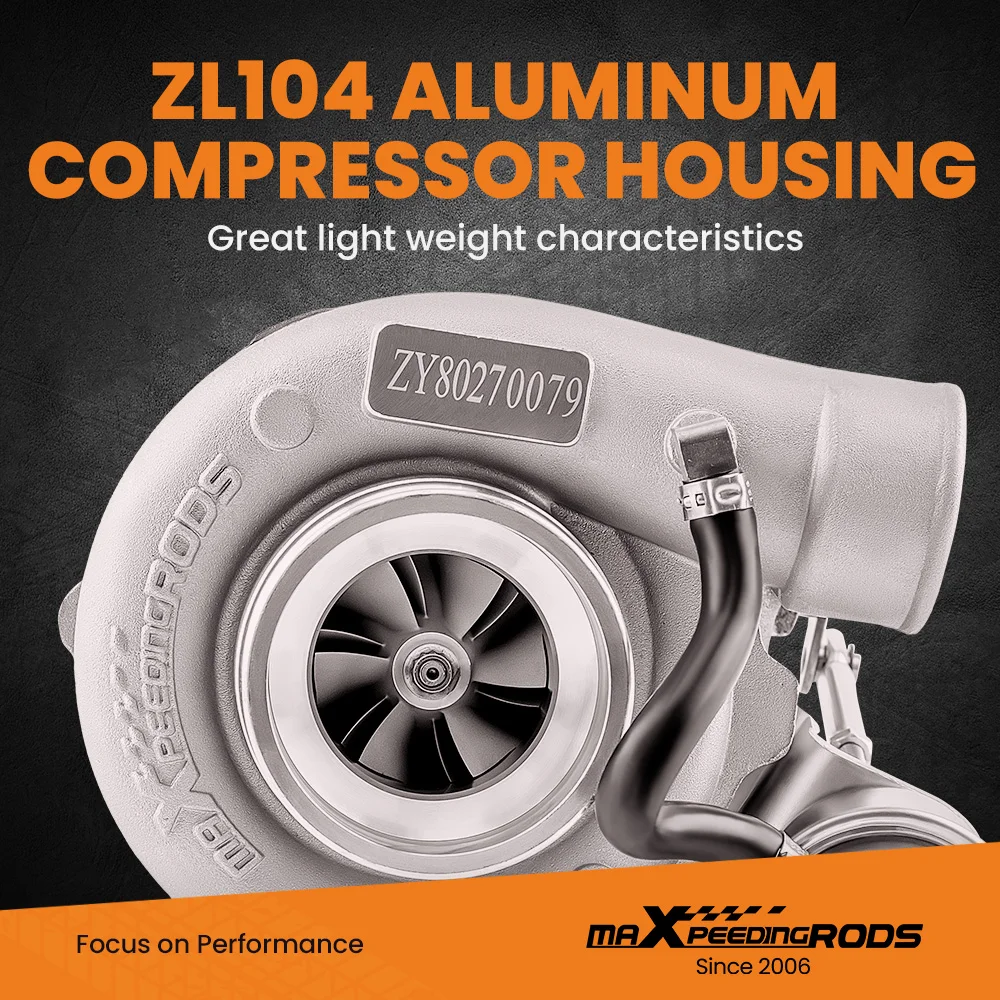

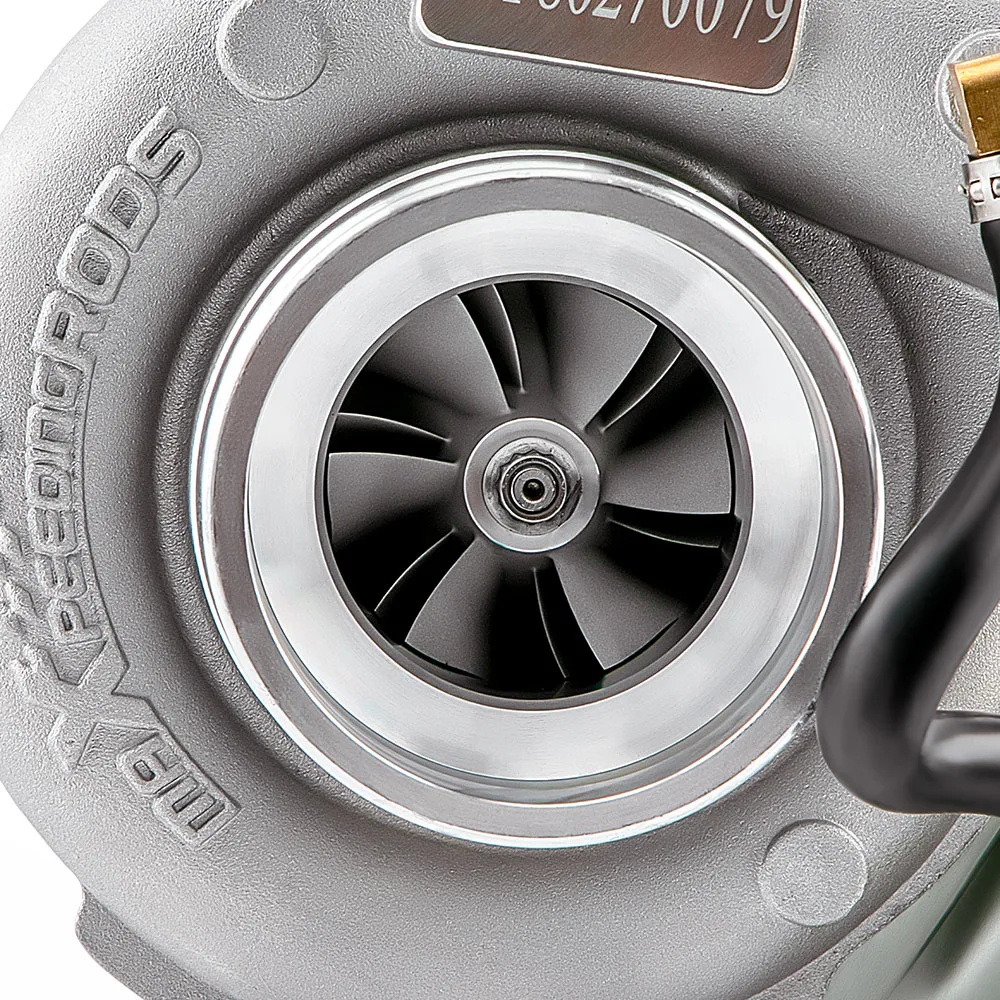

3. compressor wheel/blades：Cast aluminium with good gas tightness and corrosion resistance

4. Capable of Boosting Horse Power up to 350 BHP.

Product Feature

1. Cost effective Price:

Give your car 20%-40% more total power with friendly price

1. Excellent Design:

Excellent Design And Processing and durable floating bearing structure + high-precision blade dynamic balance

2. High Temperature Resistance:

special K418 alloy Turbine Wheel can withstand exhaust temperature Above 900°

ductile iron QT450-10 Turbine housing Can withstand temperatures up to 700℃

3. High Efficiency:

High efficiency and low inertia intake and exhaust blades can greatly reduce turbo lag

4. Durable:

Water-cooled/oil-cooled structure extends turbine service life

5. 100% BALANCING TEST:

This Turbocharger you will receive has been balanced using the VSR machine technology.

Product Performance

1. Rich Experience In Turbo Production And Own Factory

2. Quality Assurance

3. High Performance Rotor

4. High-Speed Oil Seal Ring

5. Strict Quality Inspection

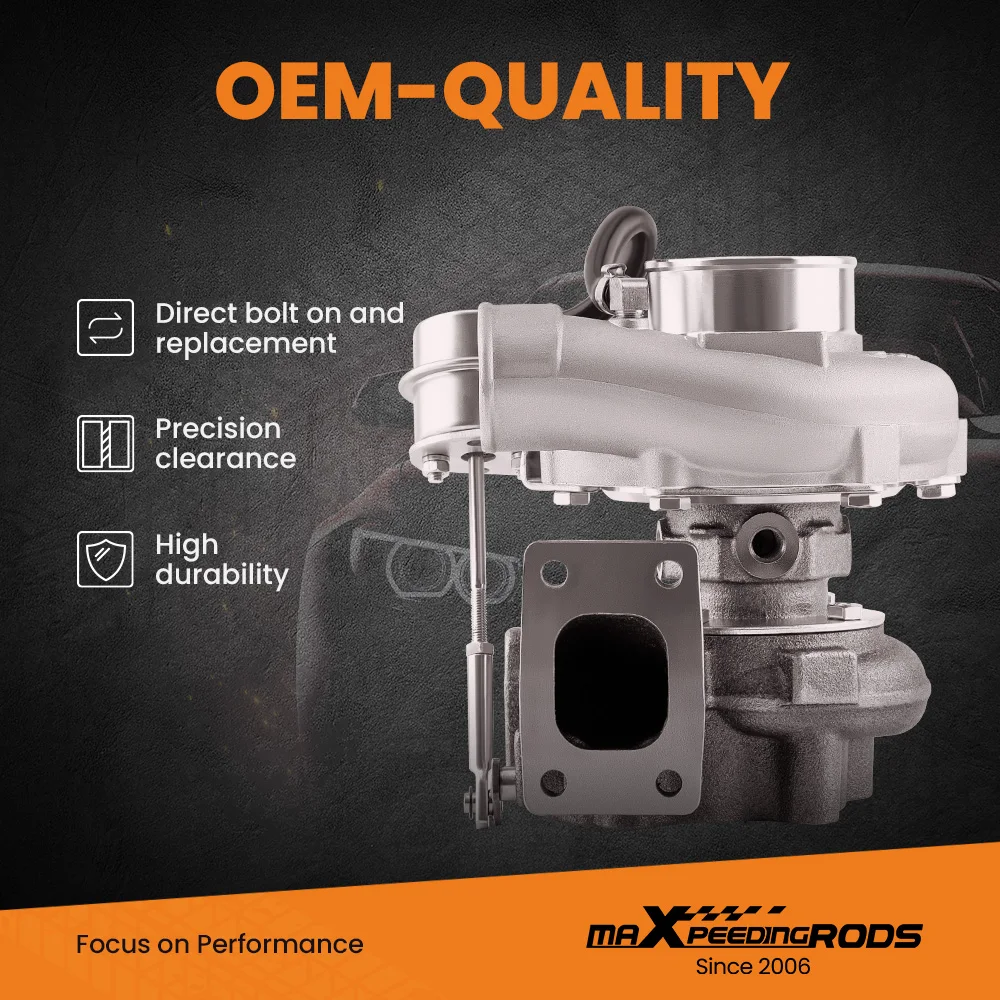

6. Precision Clearance

7. High-speed Accessories

8. Increase Engine Power

9. Improve Emissions & Save Oil

Notice

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Gasoline car must install a water cooling device to avoid overheating.

* Ensure exhaust outlet are well sealed by welding

* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.

* This is universal application turbo, so modification might be required for some vehicles

* Professional installation is highly recommended (No Instruction Included)
