LiFePO4 Lithium Iron Phosphate Battery with BMS, 12V, 24V, 36V, 48V, 100Ah, 120Ah, 200Ah, for Golf Cart, EV, RV, Solar Energy

Attention:

1. Buyers from EU countries are required to pay value-added tax (VAT) in accordance with the law after July 1.

2. Buyers who need to purchase goods worth more than 150 euros in European warehouses, please note that you can refer to the picture purchase steps to save paying value-added tax (VAT).

3. If there is stock in the European warehouse, we will note that it will be sent from the European warehouse, and the delivery time is the same(2-5 working days).

4. If you have any questions, you can contact our customer service at any time.

Local warehouse in USA / Canada / Poland / Japan and UK- fast delivery

Local warehouse

Fast delivery

VAT free

Customs import TAX free

Attention: We have some models in stock in Japan and Canada. If you are in Canada or Japan and need fast delivery.

We have a warehouse there, so you can contact our customer service before

purchasing. If there are models in stock,we will note that the batteries

will be sent to you from the local warehouse

KEPWORTH LiFePO4 Energy Storage Battery

12V 24V 36V 48V Lithium Iron Phosphate Battery LiFePO4 BMS 100Ah 120AH 200Ah For EV RV Solar Storage Golf Car

About this item:

Capacity: 100Ah 120AH 200Ah

Nominal voltage: 12V 24V 36V 48V

Max Protection Voltage: 14.6V 29.2V 43.8V 58.4V

End Voltage: 10V 20V 30V 40V

Certificate: CE ROHS MSDS UN38.3

Upgrade Parts/Accessories: Grade A

Voltage Protection Board(BMS): Yes

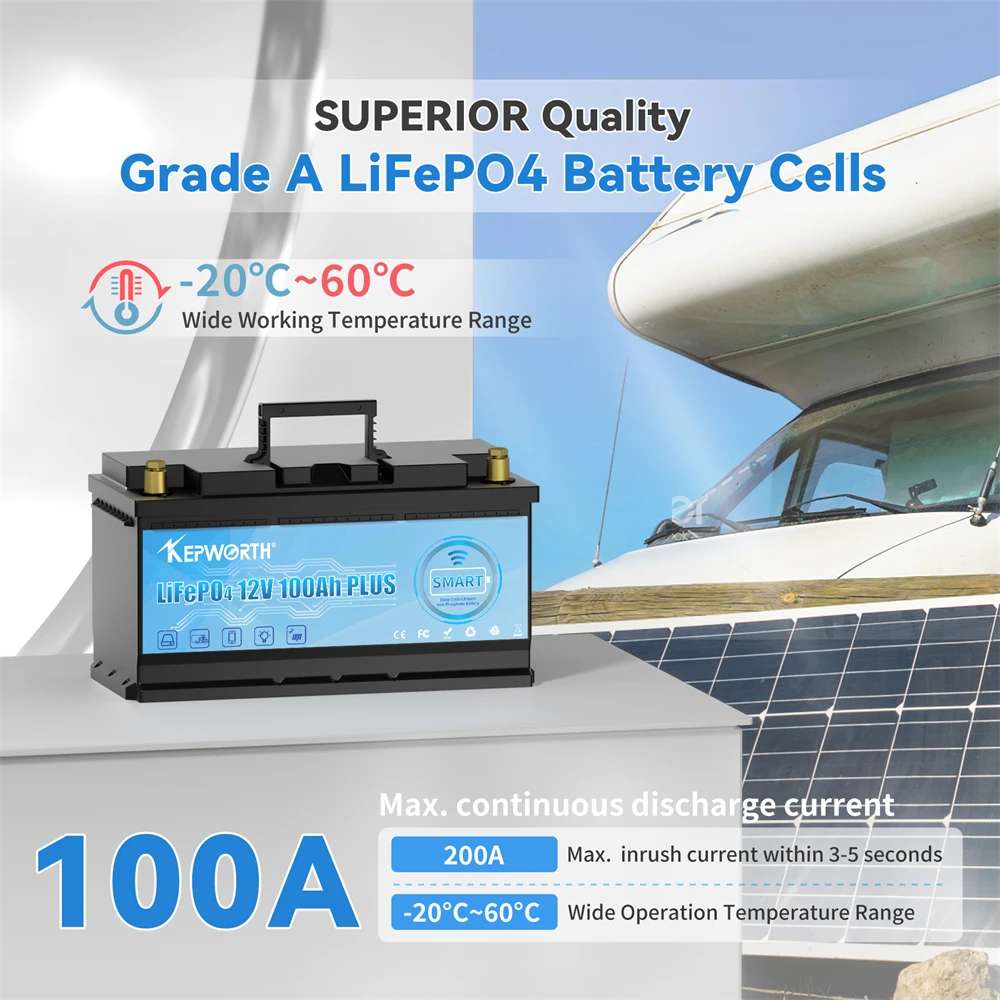

Instantaneous discharge current: 100A≥200A, 120A≥240A, 200Ah≥400A

Continuous discharge current: 100A≥100A, 120A≥120A, 200Ah≥200A

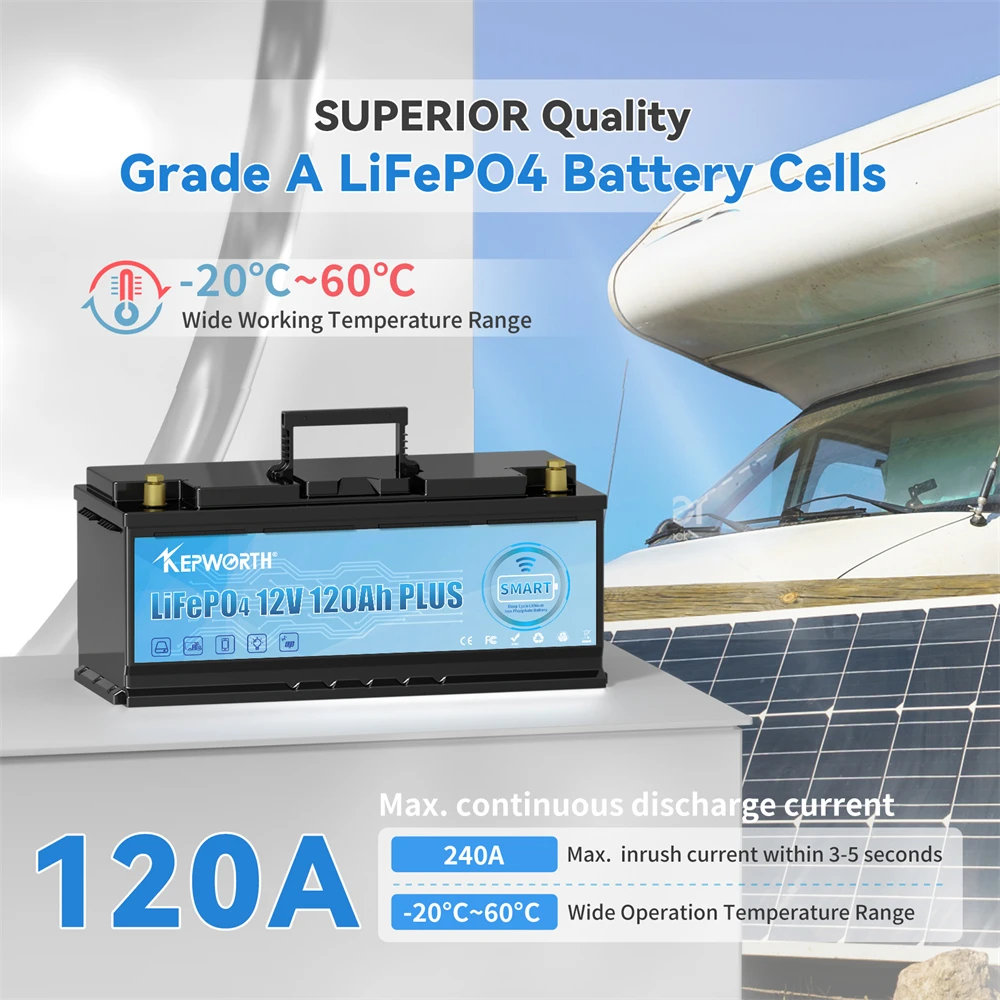

Cycles Life: 2000 Cycles-100%  6000 Cycles-70%

Max Charge Current: 0.5C

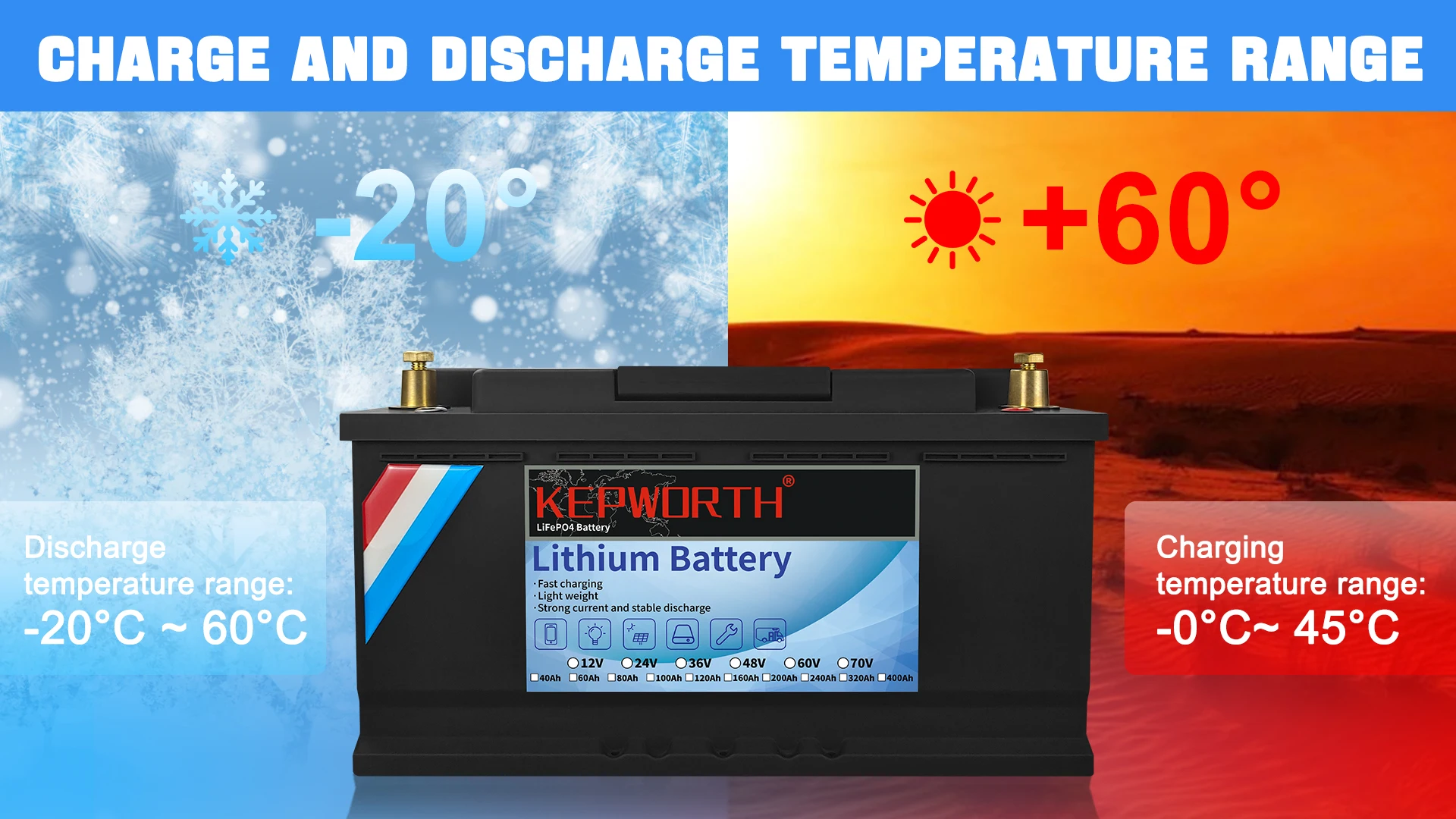

Working temperature : -20 ~ 60 ℃

Charge Temperature: 0-~ 45 ℃

Warranty: 2 years

36V and 48V: Without USB on the side

Note: There are two labels for US/CA/PL/DE warehouses, which are sent randomly. Please don't choose US/CA/PL/DE warehouses if you mind or contact our customer service before purchasing.

Size and Weight:

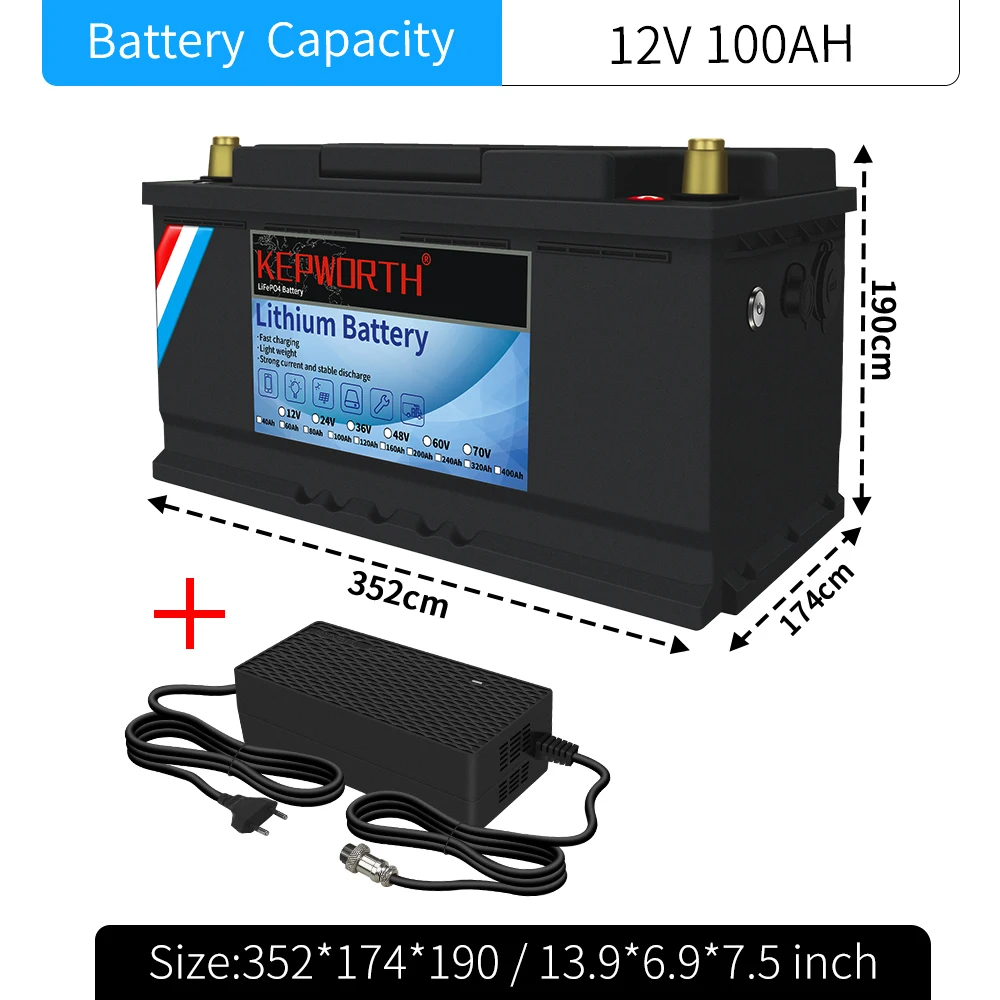

12V 100Ah: 352*174*190mm, About: 10kg(Charger included)

12V 100Ah: 332*176*220mm, About: 10kg(Charger included)

12V 200Ah: 525*230*220mm, About: 19.5kgCharger included()

24V 100Ah: 525*230*220mm, About: 18.8kg(Charger included)

36V 100Ah: 525*230*220mm, About: 27.5kg(Charger not included)

48V 100h: 640*245*220mm, About: 31.5kg(Charger not included)

Bluetooth version:

12V 100Ah bluetooth: 352*174*190mm, About: 10kg(Charger included)

12V 100Ah mini: 260*168*215mm, About: 10kg(Charger not included)

12V 120Ah: 393*174*190mm, About: 12.5kg(Charger included)

12V 135Ah bluetooth: 332*176*220mm, About: 12.5kg(no charger)

12V 200Ah bluetooth: 525*230*220mm, About: 19.5kgCharger included)

24V 100Ah bluetooth: 525*230*220mm, About: 18.8kg(Charger included)

Parcel includes：

1.One LiFePO4 Energy Storage Battery

2.One Specialized Charger(Attention:12V 100Ah mini, 12v 135ah bluetooth, 36 100ah, 48v 100ah unmatched charger)

Used For:

Solar Panel Power Bank System, Solar VRLA 12V 24V 36V 48V 60V Off-grid Applications, Trolling Motor, Mobility Scooter Wheelchair, Electronics, Wheelchair, Scooter, Industrial and Medical Equipment, Golf Carts, Hunting, Lawn and Garden Tools, Portable Tools, Toys and Hobby, Emergency Lighting, Leisure, RV House, Security and more. (Not for Motorcycle ATV Engine Starts)

Advantages:

It has excellent safety performance and high efficiency and stability working performance than traditional Lead acid battery.

Low self discharge rate: It can be stored for more than 1 years ( and normal lead acid can only be stored with less than 6 months ).

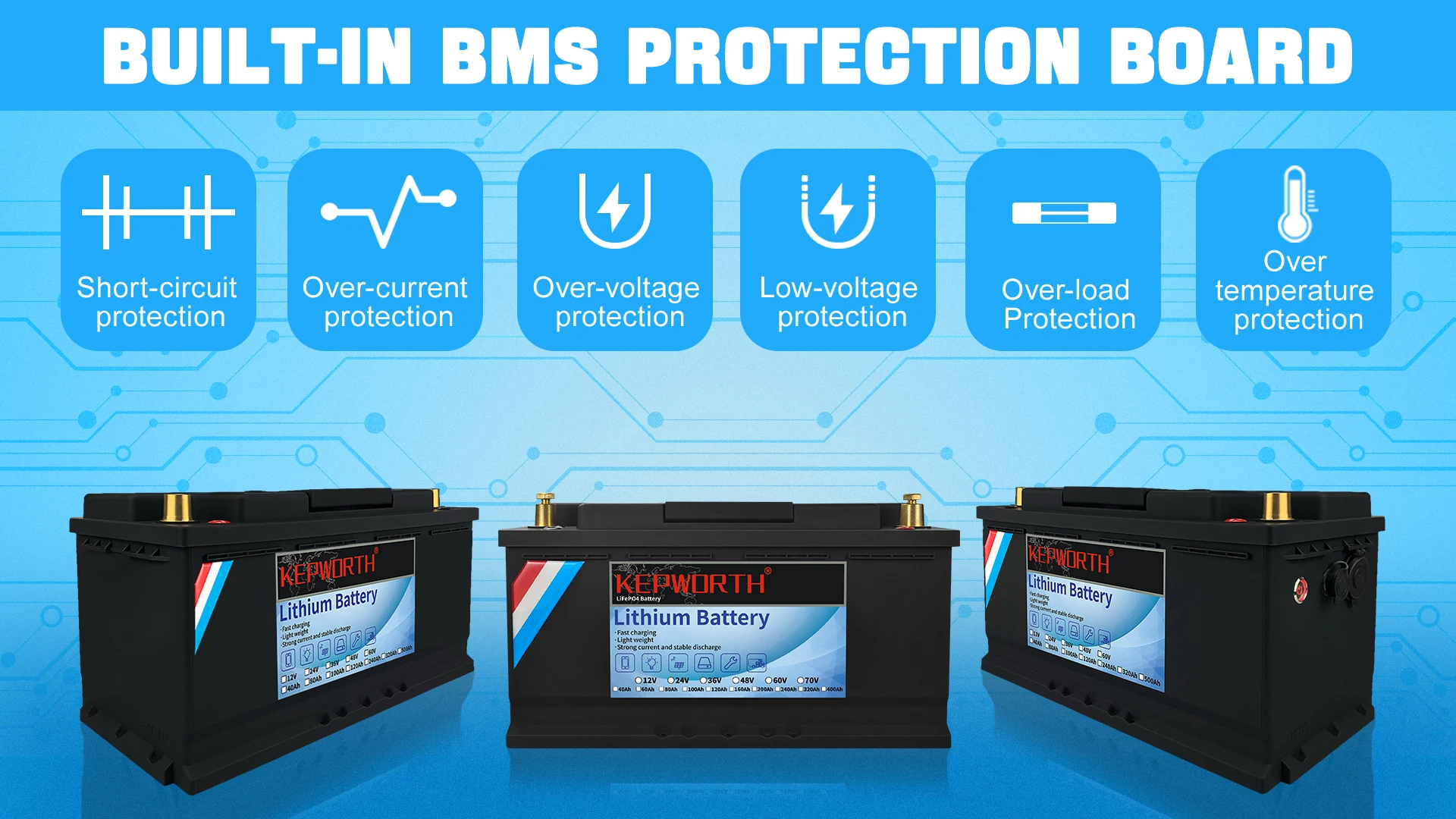

Built-in BMS: BMS stands for "Battery Management System" - the brain of our deep cycle lithium batteries. Our BMS protects your battery from most common causes of battery failure, such as temperature volatility or ground faults. The BMS regulates the amount of power taken out of the battery and acts as a shut-off system to protect the li-ion cells (and you) from unsafe operating conditions.

Lithium ion Technology: Unlike Lead Acid batteries, Battle Born's deep cycle lithium ion batteries have unlimited mounting capability, exceptional longevity, and are more cost effective. When factoring time and cost into your purchase, our lithium ion battery banks come out ahead every time. Plus, Li-Ion batteries can be safer than Lead Acid batteries, which have no protection against ground faults.

Green Energy Battery: Made from 100% safe, nontoxic, renewable energy, Battle Born Batteries last for more cycles and can be charged and discharged repeatedly (and charge faster than any other battery). We make our renewable, sustainable green energy batteries because they’re simply better than anything else out there, including other green batteries.

12V 100Ah+7A charger(Two different sizes.)

12V 120Ah+7A charger(Two different sizes.)

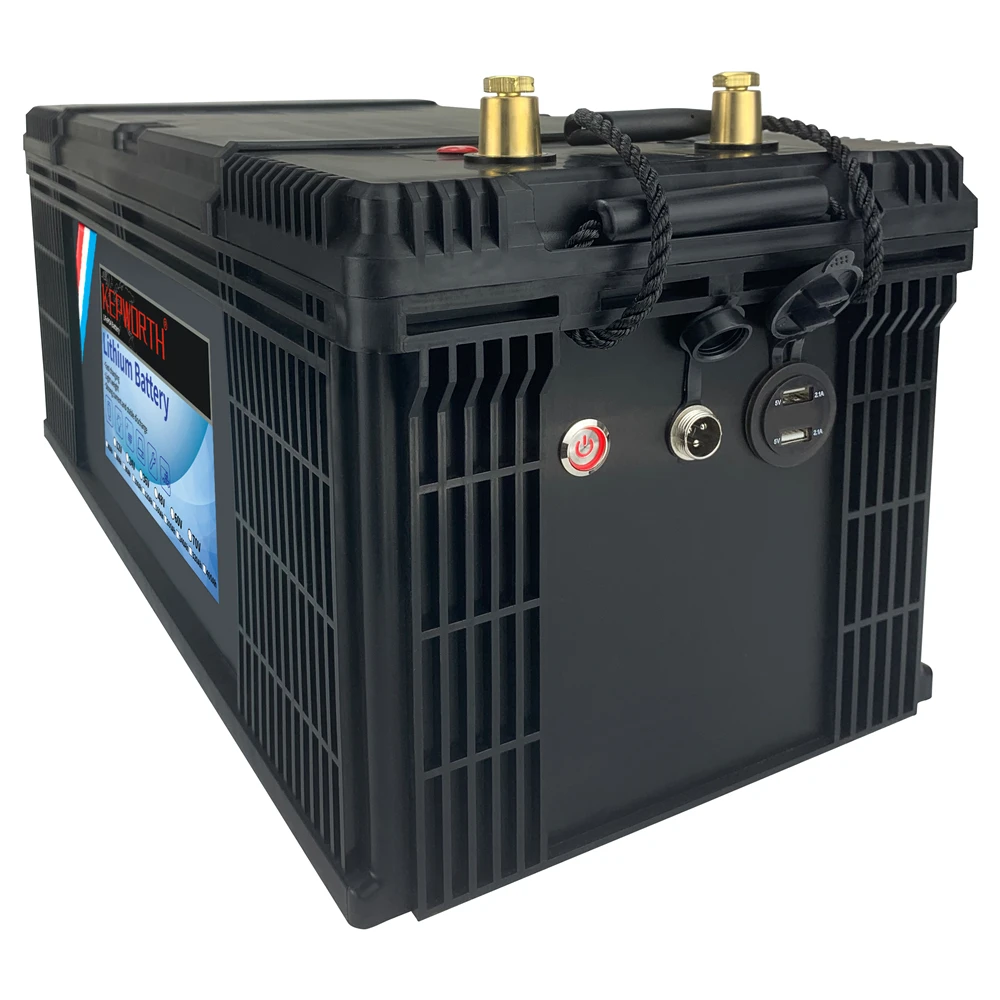

12V 200Ah USB/NO USB+7A charger(The difference is whether there is USB on the side)

12v100ah bluetooth/12v120ah bluetooth/12v135ah bluetooth/12v200ah bluetooth/ 24v100ah bluetooththese four batteries are built-in bluetooth BMS.

About Bluetooth Battery:

Bluetooth Battery Support Languages: Spanish, German, English, Chinese, Russian, Norwegian and French.

Overview:The Bluetooth communication mobile phone APP system mainly connects the special Bluetooth device through the Bluetooth function of the mobile phone, and the Bluetooth device communicates with the BMS, so that the user can detect the BMSinformation directly through the mobile phone and carry out the functions of reading, managing, querying and managing, thusreplacing the special BMS equipment and software.

Bluetooth communication mobile phone APP system includes real-time data reading, protection parameters, core characteristics, acquisition board settings, temperature protection, system settings and query functions.

The main functions of the system are:

1) Parameter reading: alarm fault information, number of temperature, number of battery strings.

2) protection parameters: monomer over voltage protection, monomer under voltage protection, overall over voltage protection, overall under voltage protection, differential pressure protection, charging over current protection, discharge over current protection.

3) Core characteristics: battery type, rated capacity, monomer reference voltage, dormant waiting time, SOC setting, balanced opening voltage, balanced opening pressure difference.

4) Acquisition board setting: number of acquisition board, number of acquisition board 1 unit, number of acquisition board 2 unit, number of acquisition board 3 unit, number of acquisition board 1 unit temperature, number of acquisition board 2 unit temperature, number of acquisition board 3 unit temperature.

5) Temperature protection: charging high temperature protection, charging low temperature protection, discharge high temperature protection, discharge low temperature protection, temperature difference protection, power tube temperature protection.

6) System settings: charging switch, discharge switch, restart system, restore factory settings, current to zero, reset password.

System Characteristics：

1) Alarm prompt: alarm fault view, alarm prompt automatic elimination after fault release.

2) Bluetooth: When the user opens the software, if the user

does not turn on the Bluetooth function, then automatically prompt to turn on the phone Bluetooth, unplug or sleep automatically disconnect Bluetooth connection.
