Forged Conrods for Volvo B230 engines Pleuel Con Rods Rod ARP 2000 Bolts 152mm Connecting Rod Floating EN24 TUV Crankshaft Pin

Forged Conrods for Volvo B230 engines Pleuel Con Rods Rod ARP 2000 Bolts 152mm

Application

for Volvo B230 engines
for Volvo 740 1984–1992 B230 engines 2.3
for Volvo 760 1982–1990 B230 engines 2.3
for Volvo 940 1990–1998 B230 engines 2.3
for Volvo 240 1983–1993 B230 engines 2.3
Pin Type: Floating Pin Piston

(Note: Please confirm the dimensions before purchase the connecting Rods)

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

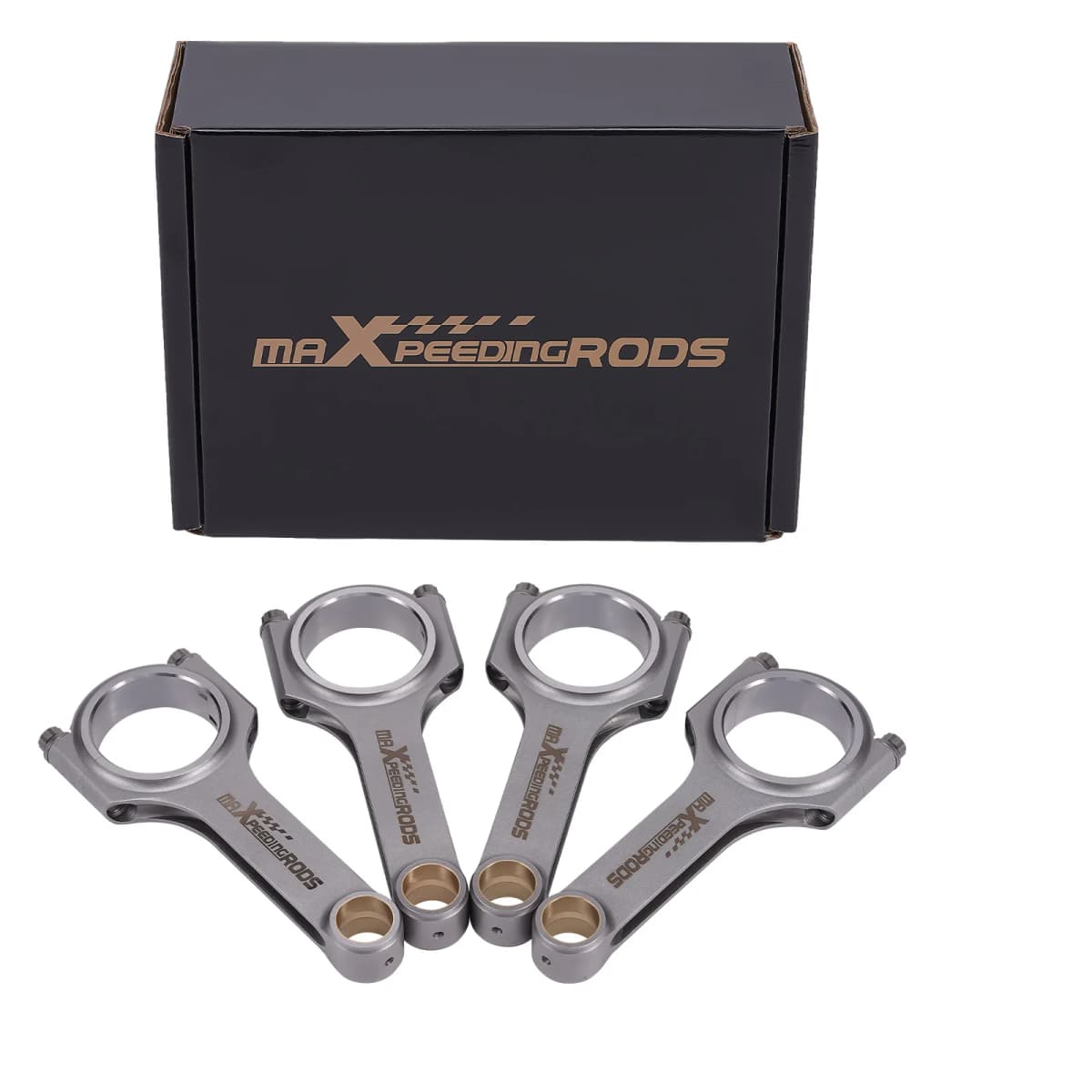

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

Dimension

Center to center length: 152mm/5.984in
Big end diameter: 52mm/2.047in
Small end diameter: 23mm/0.906in
Big end width: 24.8mm/0.976in
Small end width: 24.8mm/0.976in

Feature

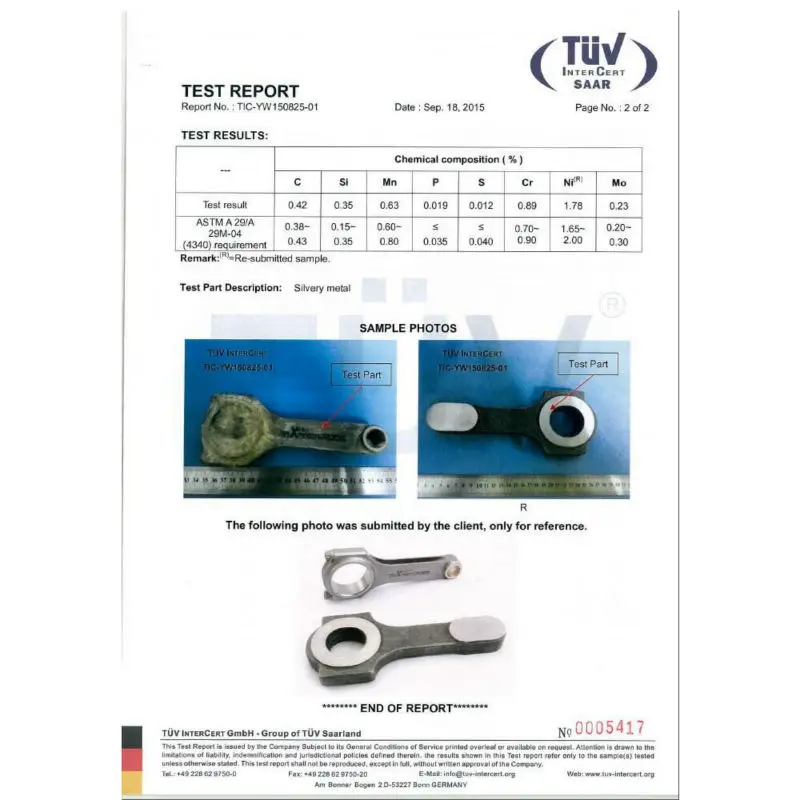

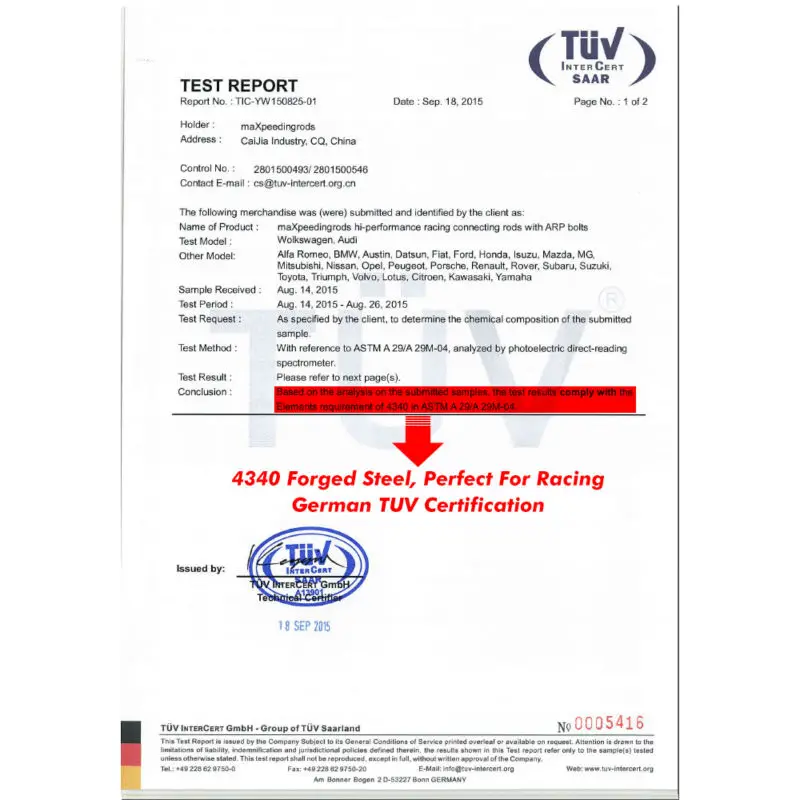

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note

*There are titanium-plated upgrade models；
*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
