Connecting Rods for Mitsubishi Laser EVO 4-7 8 9 4G63 7 Bolts Late Model Conrods

4x Connecting Rod Rods for Mitsubishi 4G63 Eclipse Lancer EVO 4-9 ARP 2000 Bolts

Application

For Mitsubishi 4G63 Eclipse Lancer EVO 4 - 9(7-Bolt) GEN 2


Note:Will not fit 1G 4G63 6 Bolt Engines. We have related products.


For Talon TSi 1993-1998
For Mitsubishi Eclipse GS 1993-1994
For Mitsubishi Eclipse GST 1993-1999
For Mitsubishi Eclipse GSX 1993-1999
For Mitsubishi Eclipse Spyder GST 1996-1999
For Mitsubishi Lancer Evolution 2003-2006
For Plymouth Laser RS 1993-1994


Pin Type: Floating Pin Piston

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

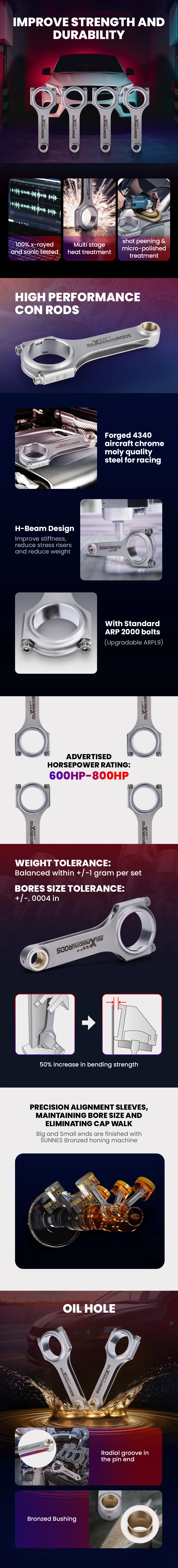

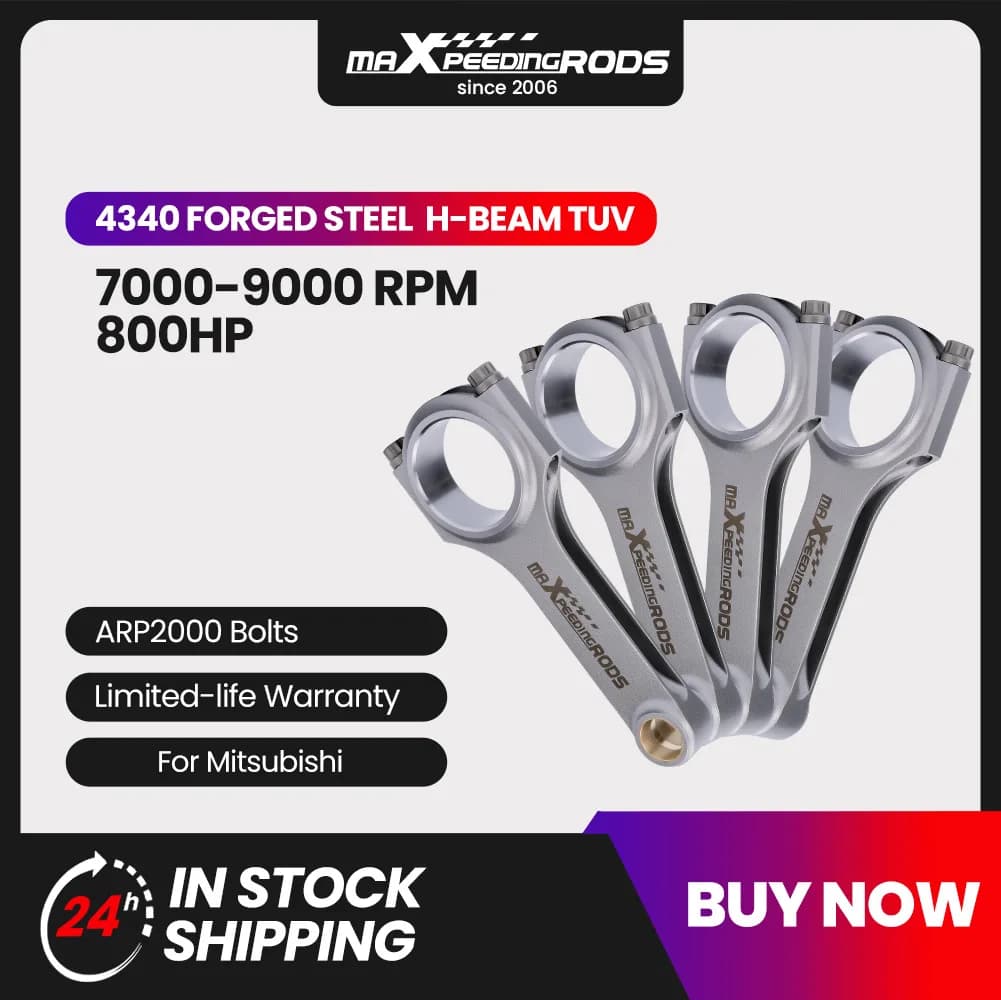

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

Dimensions

Center to center length:150mm/5.906"
Big end diameter:48mm/1.89"
Small end diameter:22mm/0.866"
Big end width:26.4mm/1.039"
Small end width:26.4mm/1.039"

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
