Connecting Rod Rods for Audi VW Golf Gti 1.8T 225 2.0 16V 20V Pleuel Bielle ARP2000 Floating 4340 Forged Floating Bellie Pleuel

Connecting Rod Rods for Audi VW Golf Gti 1.8T 225 2.0 16V 20V Pleuel Bielle ARP

Application

for Audi VW EA888 2.0L TSI Gen 3 Engine


Pin Type: Floating Pin Piston


Fitment Details:

for 1.8 R4 16v TSI/TFSI (EA888)：
for Audi TT Mk2 8J
for Audi 8P A3
for Audi B7 A4
for Audi A4 B8
for Audi A5
for SEAT Leon Mk2 1P
for SEAT Altea XL
for Skoda Yeti
for Skoda Octavia Mk2 (1Z, Ming Rui)
for Skoda Superb Mk2 3T
for VW Jetta Mk5/Sagitar
for VW Passat B6
for VW Passat CC

for 2.0 R4 16v TSI/TFSI (EA888)：
for Audi TT Mk2 (8J)
for Audi A3 Cabriolet
for Audi A4 (B8)
for Audi A5
for Audi Q3 (US Only)
for Audi Q5
for Audi S3
for Skoda Kodiaq
for Skoda Superb Mk2 (3T)
for Skoda Octavia RS
for SEAT Exeo
for SEAT Leon Cupra
for VW Golf Mk7 GTI
for VW Golf Mk5 GTI (US only)
for VW Golf Mk6 GTI (US only)
for VW Tiguan
for VW Scirocco GTS
for VW Magotan (Passat)
for Volkswagen Phideon
for VW Jetta Mk7 GLI

Specification

*Type: Forged 4340 aircraft grade chrome molybdenum racing grade steel
* H beam connecting rods Quantity: 4pcs as shown in the picture
*Bolts: Includes ARP 2000 3/8" bolts (Note: additional cost to upgrade to ARP L19 bolts)
*Connecting rods include all ARP 2000 bolts rated for 220,000psi and optional ARP L19 stock for 260,000psi is available as an upgrade product.
*Advertised horsepower: 200 hp/each
*Maximum acceleration: 9000 rpm
* Package size: 28cm*21cm*10cm

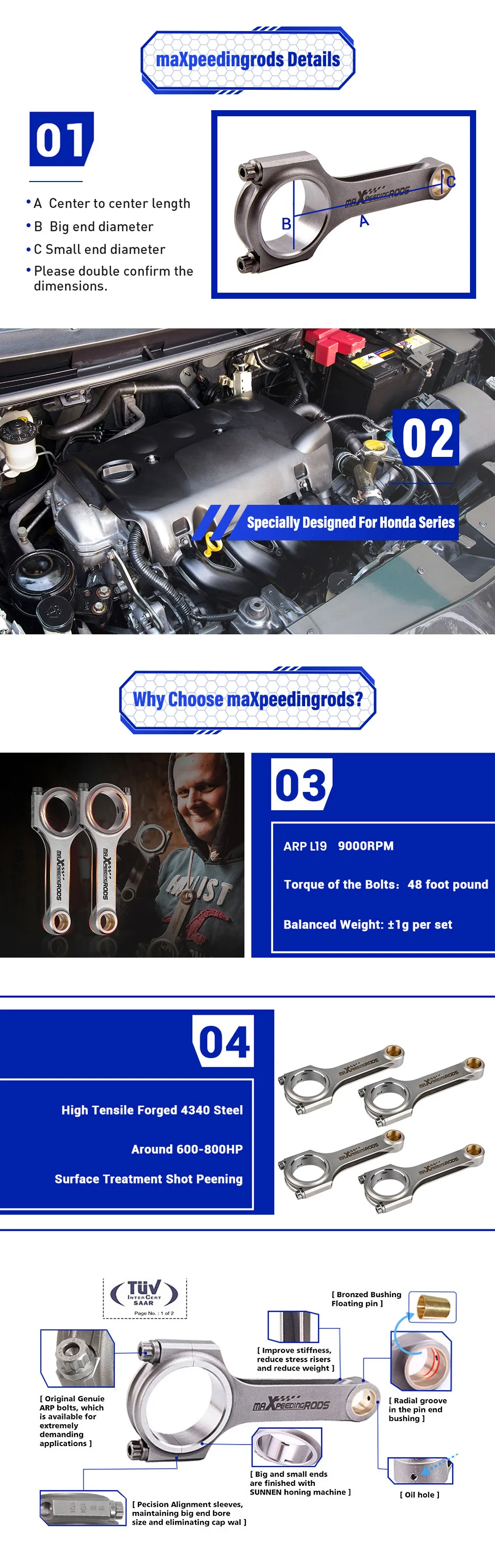

Dimensions

Center to Center Length: 144mm/5.669in
Big End Diameter: 50.6mm / 1.992"
Small end diameter: 23mm/0.906"(not tapered)
Big End Width: 21.9mm / 0.862"
Narrow End Width: 21.9mm/0.862in

Feature

1. TUV PRODUCT TEST AND TUV ISO 9001 CERTIFIED;
2. Material: Forged SAE 4340 chrome-molybdenum steel for superior strength and durability, specially designed for racing；
3. ARP 2000 screws, optional ARP L19 fasteners available as an upgrade;
4. H-Beam design reduces weight without sacrificing strength.
5. Heat treatment and shot peening to stay consistent and strong. Shot peened finish to eliminate potential for stress risers;
6. High precision CNC machined, precision rod cap alignment dowels;
7.Drilling finished to +/- 0.01mm；
8. Balanced to +/- 1g per stick;
9. Each bar is tested for magnetic particles to ensure it is free from defects;
10. Use X-rayed, sonically tested;
11.Customer Service.

Note

*There are titanium coated upgrade models；
*Professional installation is highly recommended；
*Custom Service: If you do not need a connecting rod on our side, we will be happy to help you determine what you need and work with you to develop a solution for your needs.
