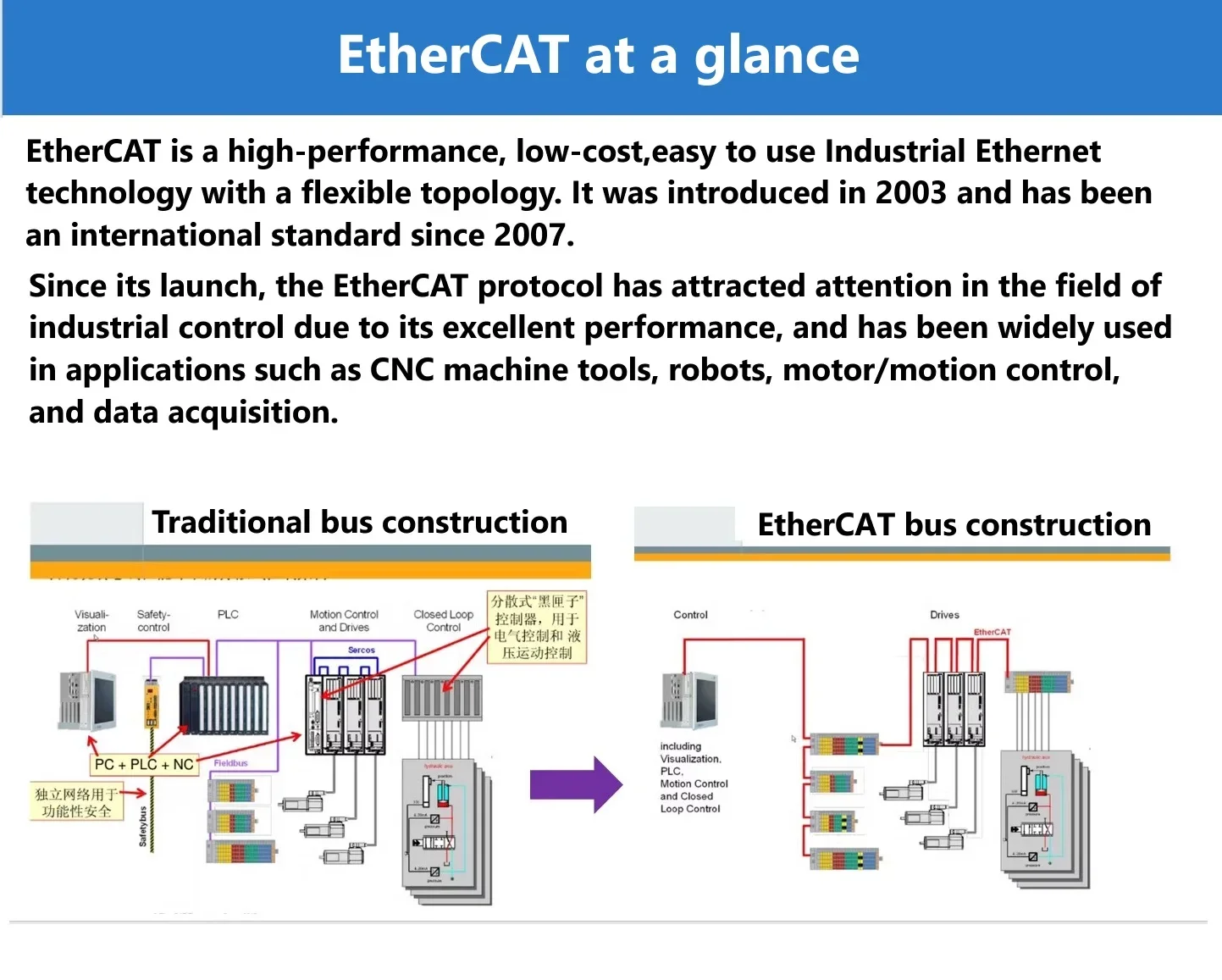

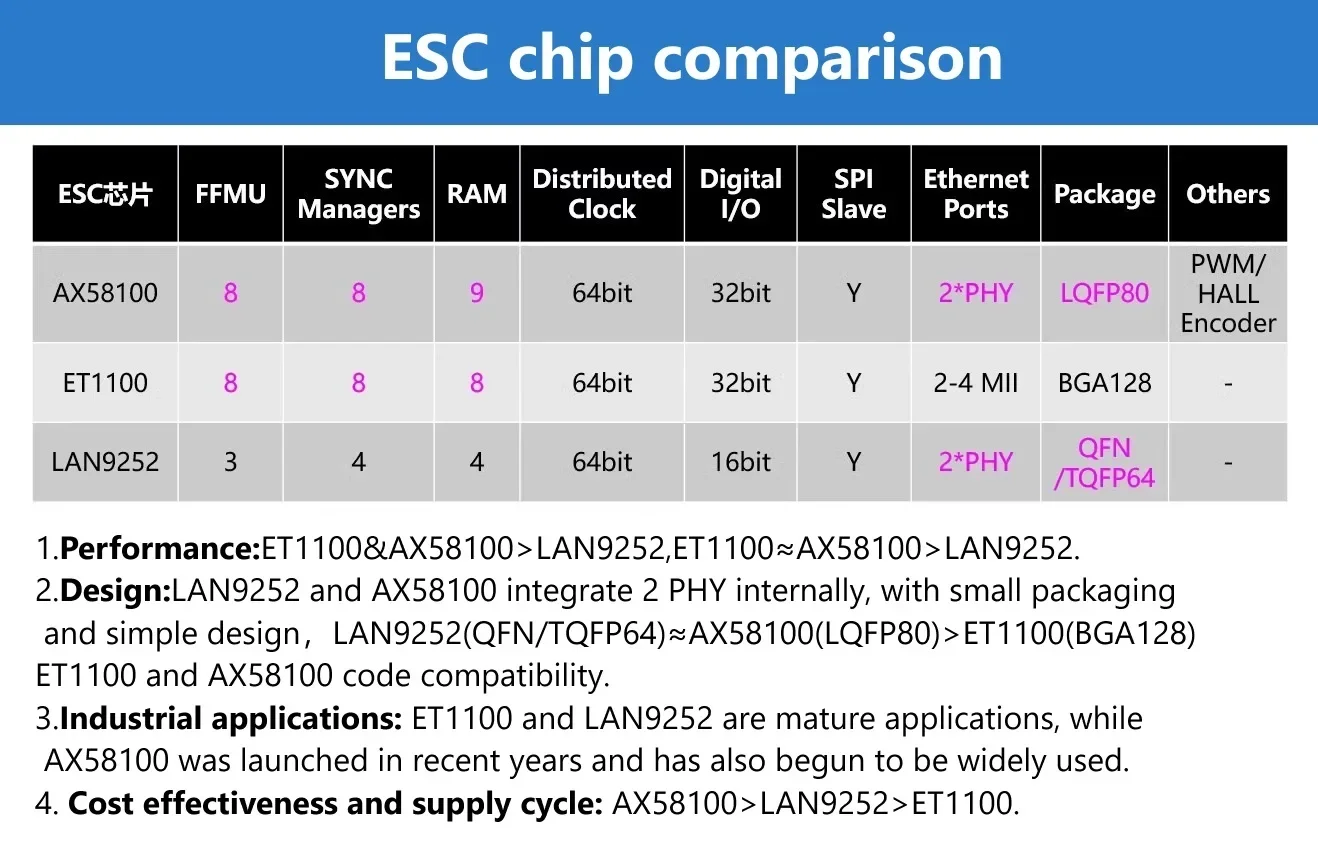

LAN9252 AX58100 EtherCAT Development Board Base on STM32 MCU,EtherCAT Slave&Master Based on Beckhoff

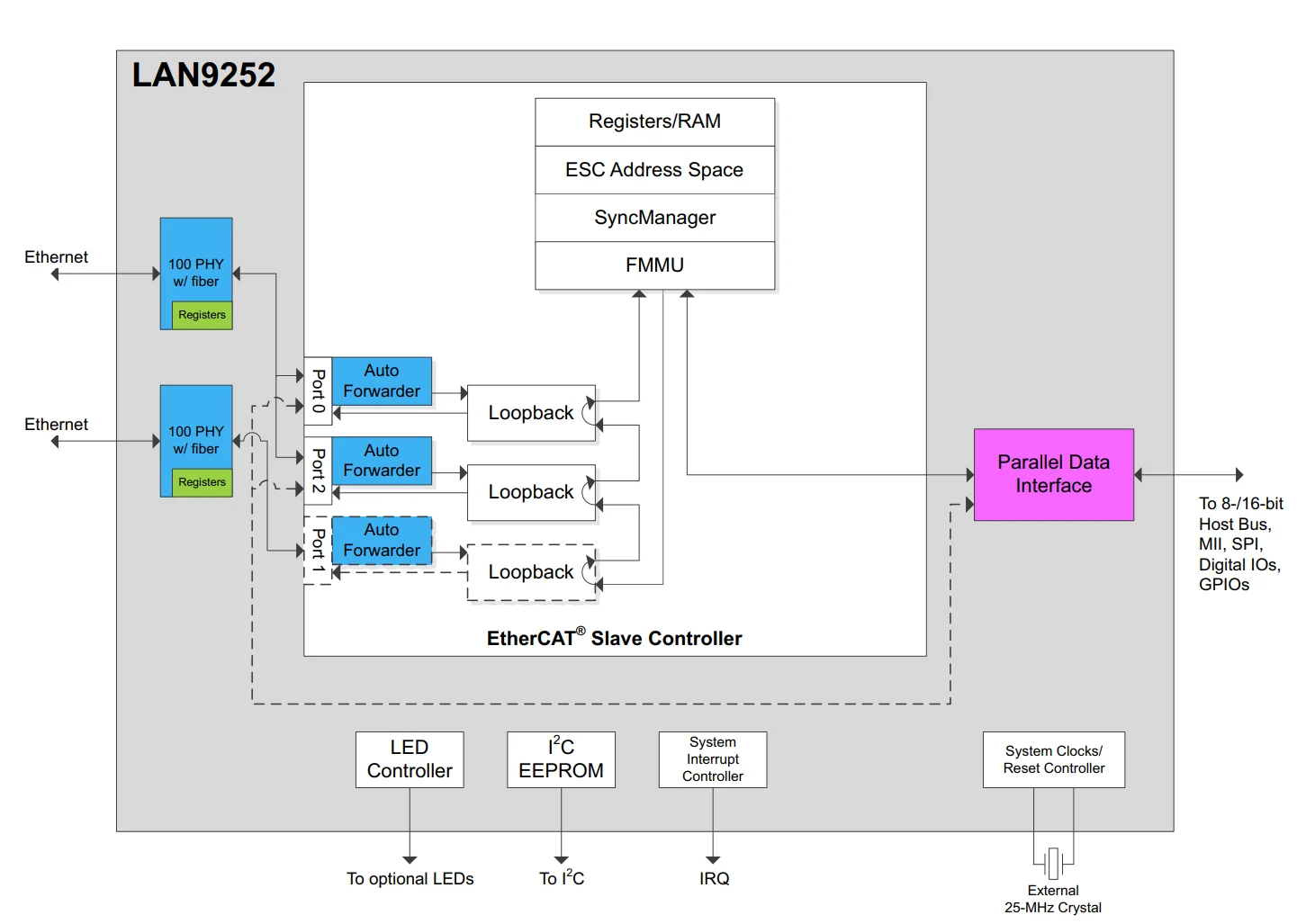

OPT1  LAN9252 Development Board Core Board  can quickly complete simple applications such as high-speed IO control without an external MCU. It can also build complex applications by connecting an external MCU;USB TYPE-C power supply, independent operation; Two EtherCAT interfaces are introduced, with 8 inputs and 8 outputs, and all pins have been pulled out.

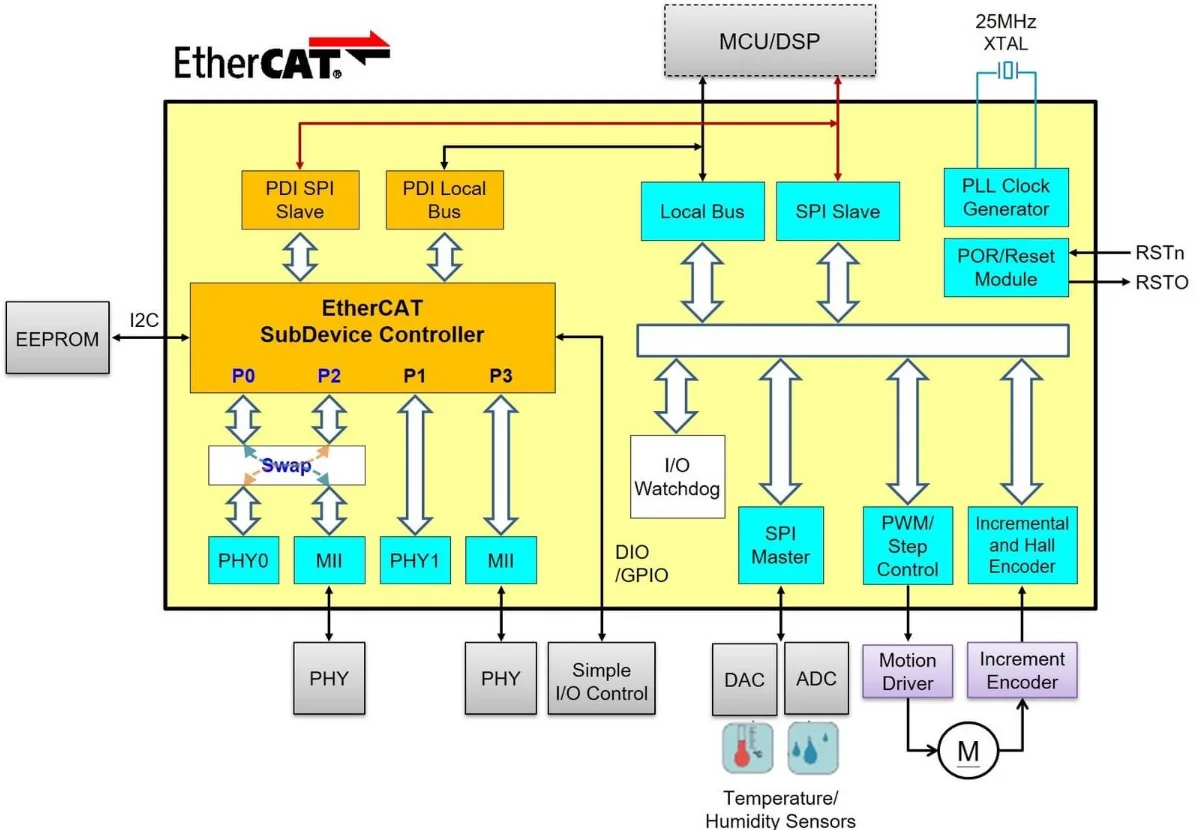

OPT2 AX58100 Development Board Core Board  can quickly complete simple applications such as high-speed IO control/ADC without an external MCU. It can also build complex applications by connecting an external MCU;USB TYPE-C power supply, independent operation ; Two EtherCAT interfaces are introduced, with 8 inputs and 8 outputs, and all pins have been pulled out.

OPT3 Adopting the AX58100+STM32F103VB scheme, the two communicate through SPI and are powered by USBTYPE-B, with 16 dip switch inputs and 16 LED outputs, and 1 adjustable resistor analog sampling, Supports CAN, 485, UART, etc.

OPT4 Add OLED.

OPT5 Adopting the LAN9252+STM32F407VE scheme, the two communicate through SPI and are powered by USBTYPE-B, with 8 dip switch inputs and 8 LED outputs, and 1 adjustable resistor analog sampling, supporting CAN, 485, UART, etc.

OPT6 Add OLED.

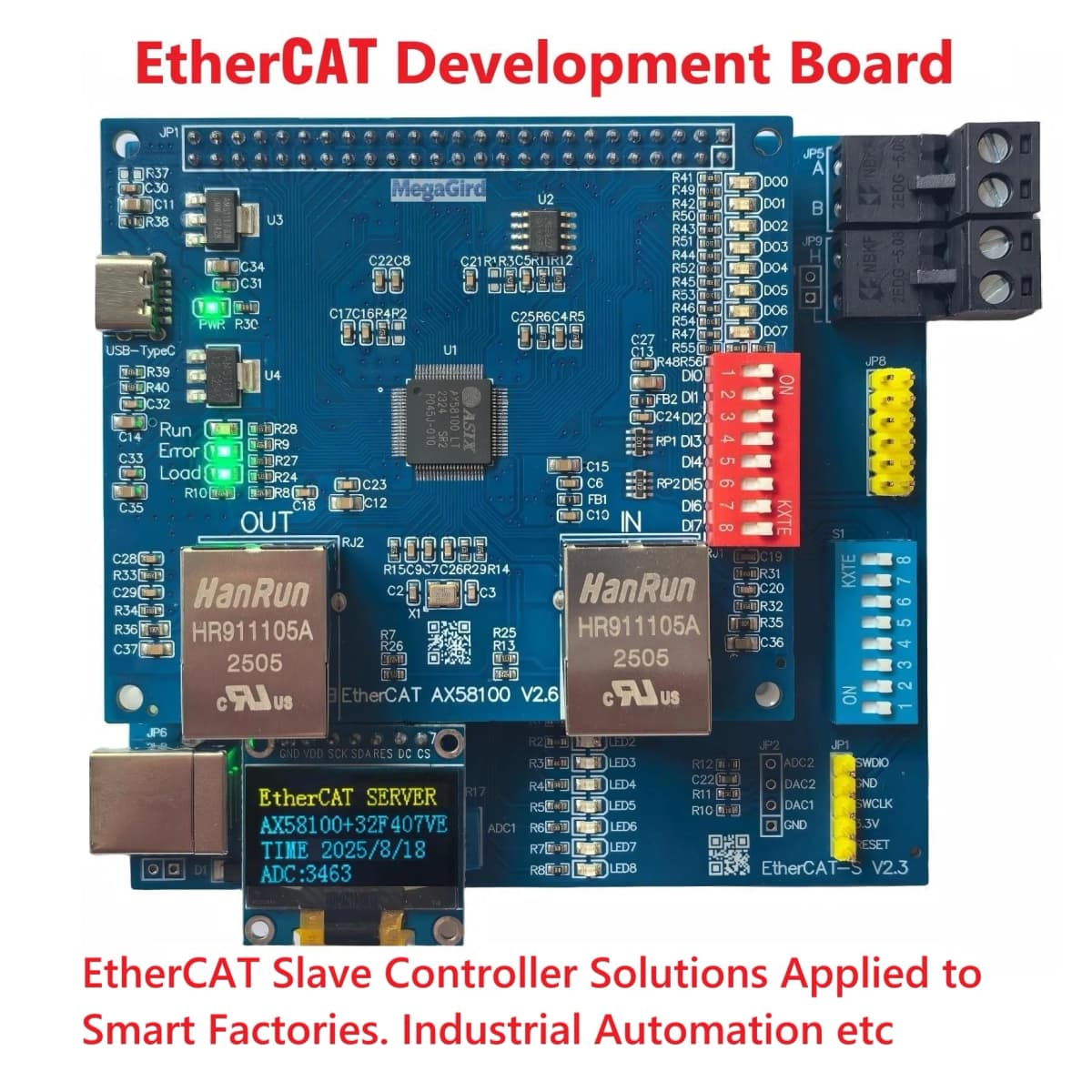

OPT7 Adopting the AX58100+STM32F407VE scheme, the two communicate through SPI and are powered by USBTYPE-B, with 8 dip switch inputs and 8 LED outputs, and 1 adjustable resistor analog sampling, supporting CAN, 485, UART, etc.

OPT8 Add OLED.

OPT9 Adopting the STM32H743+LAN8720A scheme,Using the SOEM library from Beckhoff,the two communicate through RMII and are powered by USBTYPE-B,with 8 dip switch inputs and 8 LED outputs,and 1 adjustable resistor analog sampling, provide an example of a master station controlling a slave station,the MCU pins have been pulled out.

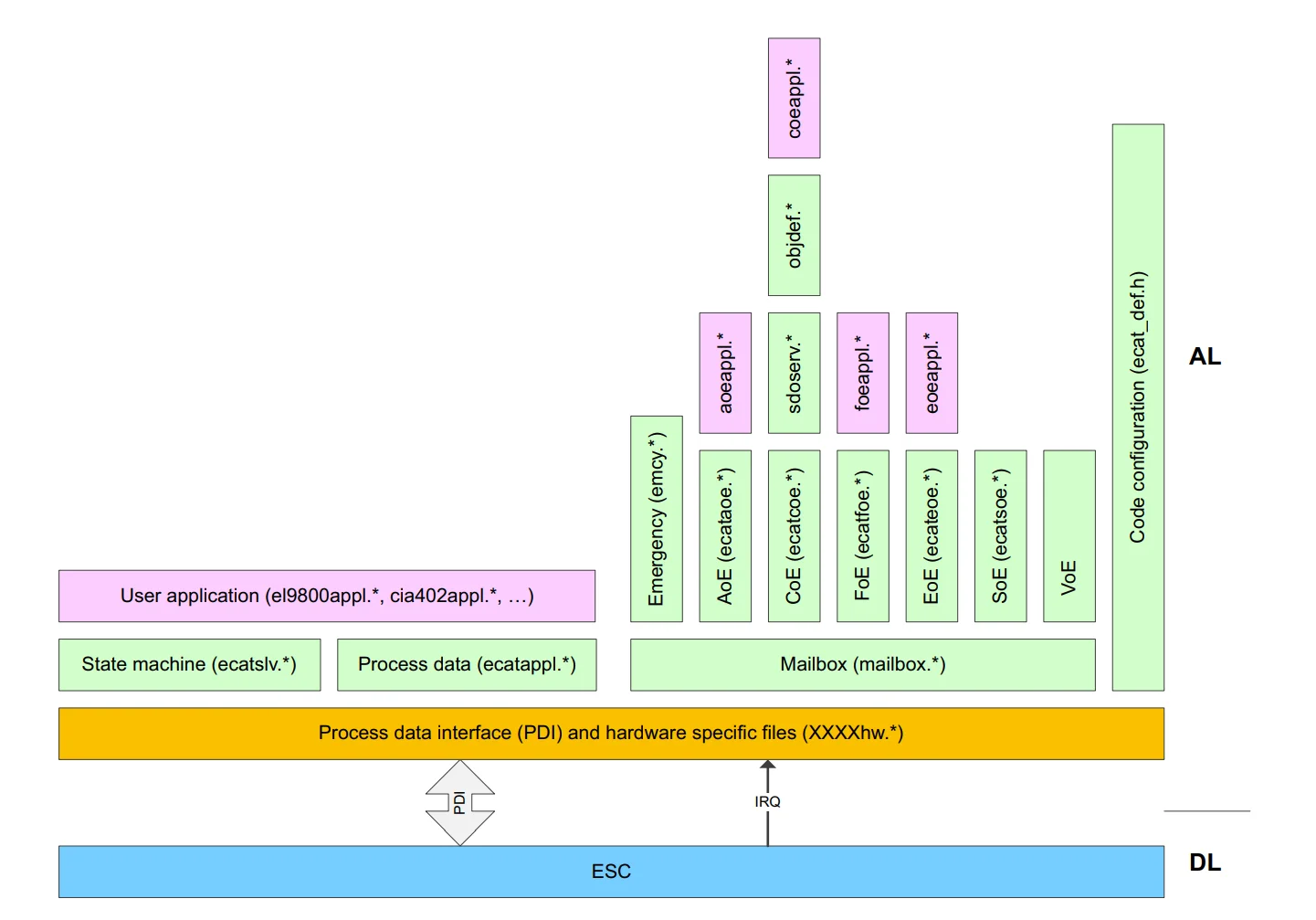

Provide original products, Provide technical support. Provide user instructions, program C source code, circuit schematic PDF, TwinCAT related operationlearning videos, IC datasheetEtherCAT related document, tool software packages, etc.All information will be sent through Netdisk or Email：[email protected],Please contact us.

Package Included

- 1 x Development Board
- 1 x Ethernet Cable
- 1 x DC Cable
- 1 xSTLINK V2 (OPT3-OPT9)
