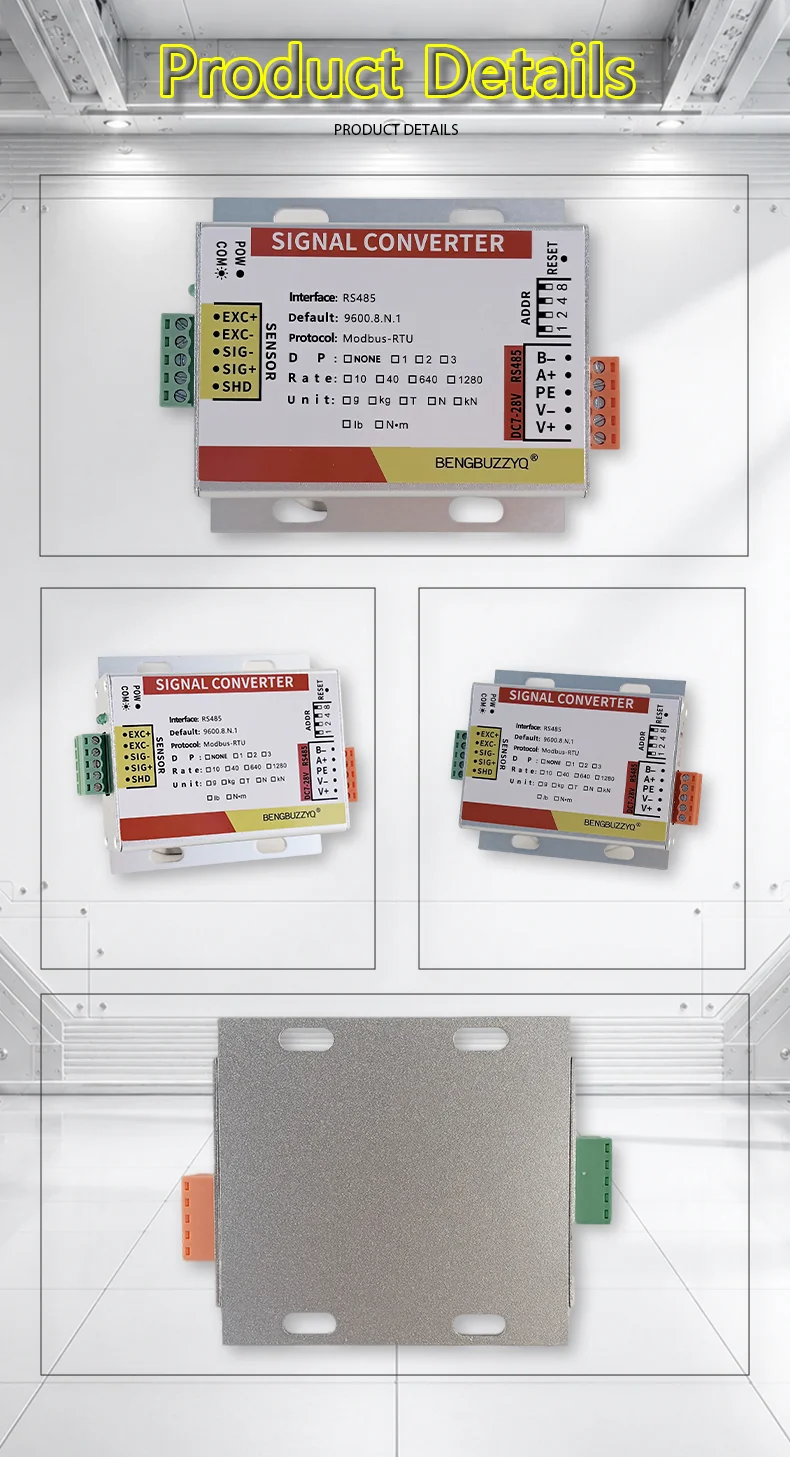

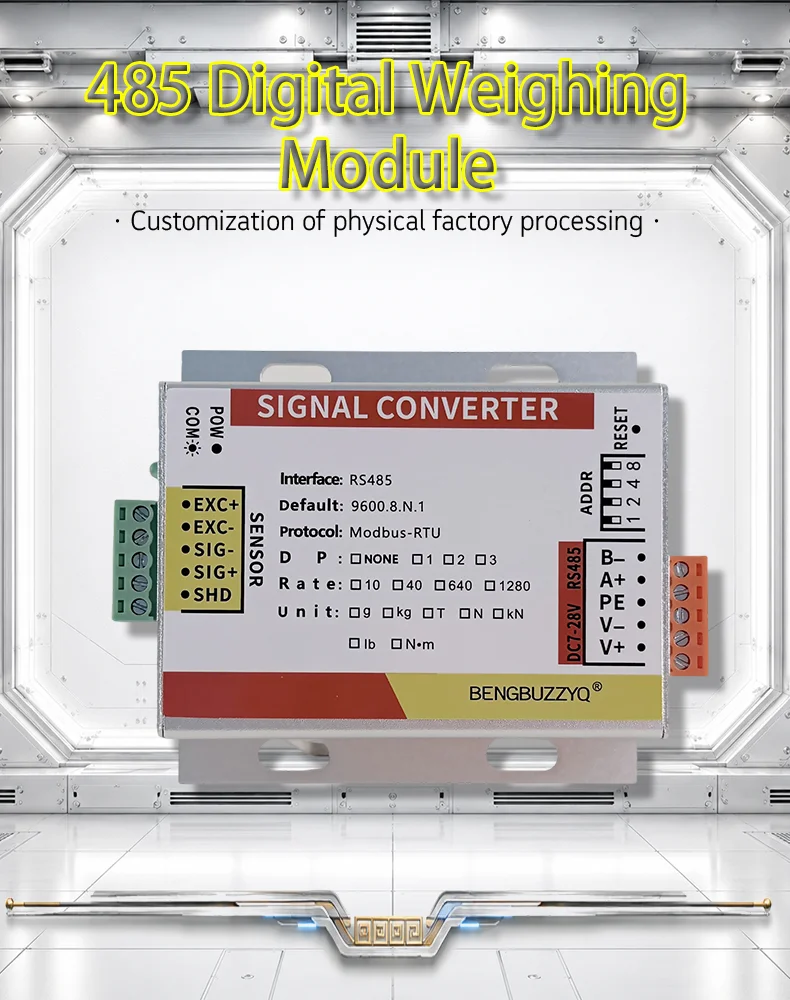

485 Digital Weighing Sensor Module, High Accuracy, 8x350Ω Sensors Supported, RS485 Interface, 1/500,000 Resolution

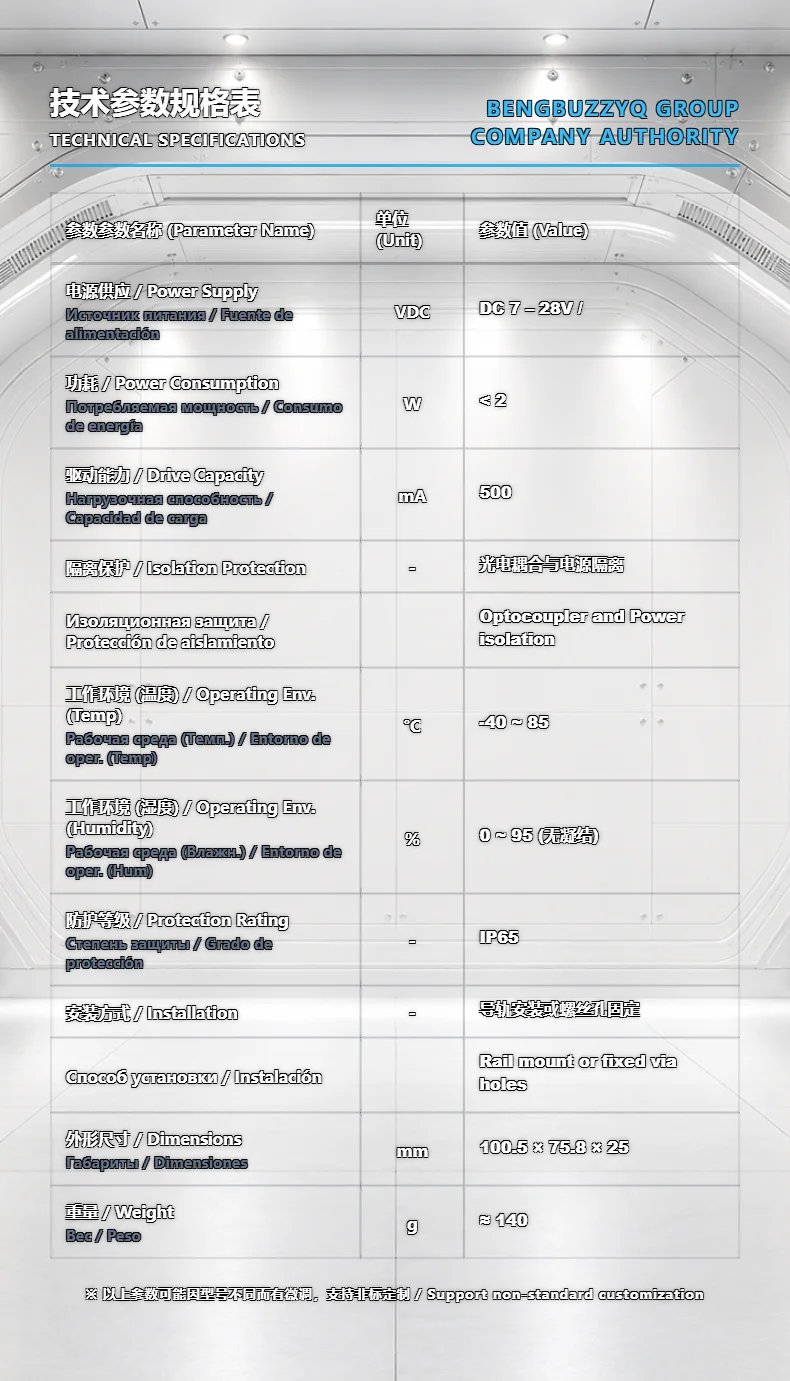

参数参数名称 (Parameter Name)

单位 (Unit)

参数值 (Value)

电源供应

/

Power Supply

VDC

DC 7 – 28V /

Источник питания / Fuente de alimentación

功耗

/

Power Consumption

W

< 2

Потребляемая мощность / Consumo de energía

驱动能力

/

Drive Capacity

mA

500

Нагрузочная способность / Capacidad de carga

隔离保护

/

Isolation Protection

-

光电耦合与电源隔离

Изоляционная защита / Protección de aislamiento

Optocoupler and Power isolation

工作环境 (温度)

/

Operating Env. (Temp)

°C

-40 ~ 85

Рабочая среда (Темп.) / Entorno de oper. (Temp)

工作环境 (湿度)

/

Operating Env. (Humidity)

%

0 ~ 95 (无凝结)

Рабочая среда (Влажн.) / Entorno de oper. (Hum)

防护等级

/

Protection Rating

-

IP65

Степень защиты / Grado de protección

安装方式

/

Installation

-

导轨安装或螺丝孔固定

Способ установки / Instalación

Rail mount or fixed via holes

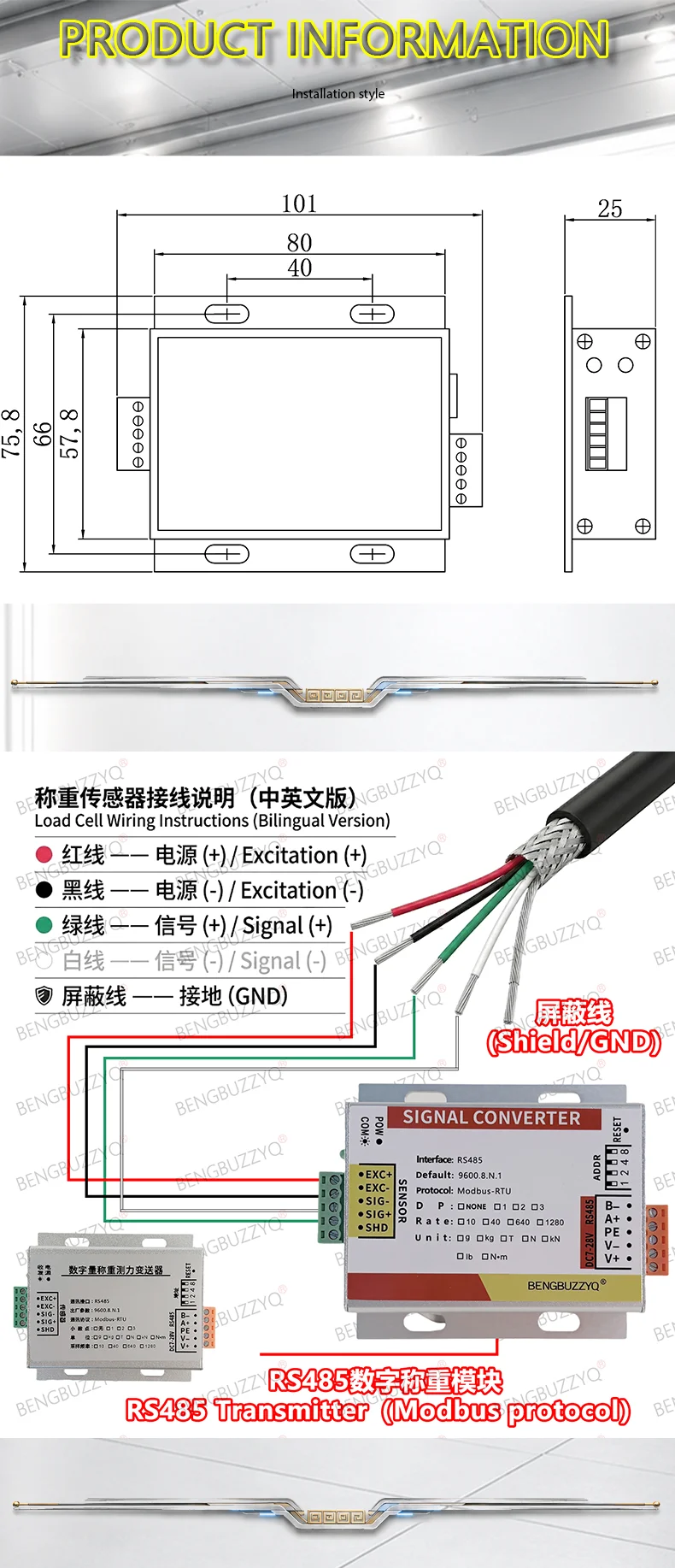

外形尺寸

/

Dimensions

mm

100.5 × 75.8 × 25

Габариты / Dimensiones

重量

/

Weight

g

≈ 140

Вес / Peso

This 485 Digital Weighing Module is designed for precision industrial weighing, utilizing RS485 communication with Modbus RTU. It supports up to 8 load cells, making it perfect for a variety of sensor-based applications in factory automation systems. The module boasts high resolution (1/500,000), durable construction with an IP65 rating, and wide operational temperature range. Its efficient design makes it an excellent choice for high-speed, high-precision weighing in industrial settings, especially when integrated into automated systems.
