Christmas themed LED 3/7-color flashing Christmas tree DIY kit, electronic welding practice, and assembly of individual parts

Product features:Tri color 1

The Flash Christmas Tree Kit is composed of three circuit boards, all of which are designed with double-sided wiring,

2. Users can weld 36 LEDs alternately by themselves, presenting a three-dimensional outline of the Christmas tree in the space (best viewed in nighttime environments).

3. Install according to the component numbers on the list for easy installation

4. There are two options for power supply in this circuit. It can be powered by three No. 5 batteries. If batteries are not needed, the circuit can also be powered by a USB connected phone charger (5V).

5. This kit is very effective in developing welding and hands-on skills, making it suitable for students' practical training and children's enlightenment training. After production, it is a great choice for enjoying and entertaining oneself, or as a holiday gift for others.

Product parameters:

Kit Name: Sparkling Christmas Tree

Working voltage: DC4.5-5V

Size: 60 L * 60 W * 136mm

Power supply method: 3 No. 5 batteries or USB charger

Dimensions: 60mm length * 60mm width * 136mm height

The CTR-30 Sparkling Christmas Tree Kit is composed of three circuit boards, which users assemble by soldering themselves, allowing 36 LEDs to flash alternately, presenting a three-dimensional outline of the Christmas tree in space (better viewing effect in nighttime environments).

Production steps:

One. Welding CTR-30A circuit board (referred to as A board)

1. Weld 4 resistors (R1 R3 R5 R7)

2. Weld 3 resistors (R2, R4, R6)

3. Weld 3 transistors and install them horizontally (with direction)

4. Weld 3 electrolytic capacitors and install them horizontally (with direction)

5. Weld the red LED (with direction), with red LED numbers D1~D6.

6. After folding the pins, insert them into the corresponding holes (pay attention to the installation direction)

7. The red LED has been soldered (numbered D1~D6)

8. Welding yellow LED (directional), numbered D7~D12

9. Welding green LED (with direction), numbered D13~D18

At this point, the A-plate welding is completed.

Next, solder the CTR-30B circuit board, abbreviated as B board, in the same direction.

There are two types of components with different installation positions on board A and board B; (Install according to the position on the component list)

1. The installation positions of R2, R4, and R6 resistors are different

2. The installation positions of red, green, and yellow LEDs are different

After both board A and board B are welded, they can be powered on to test whether the two boards can emit light and flicker normally. A. After the B board can flash normally, continue with the following steps.

11. Welding CTR-30C circuit board, abbreviated as C board

Welding 1 DC socket (with direction)

12. Weld one button switch (with direction)

13. A board and B board combination (with direction, the positioning arrows of the two boards are shown in the figure below), align the two positioning arrows, and use a soldering iron to fix the two boards together.

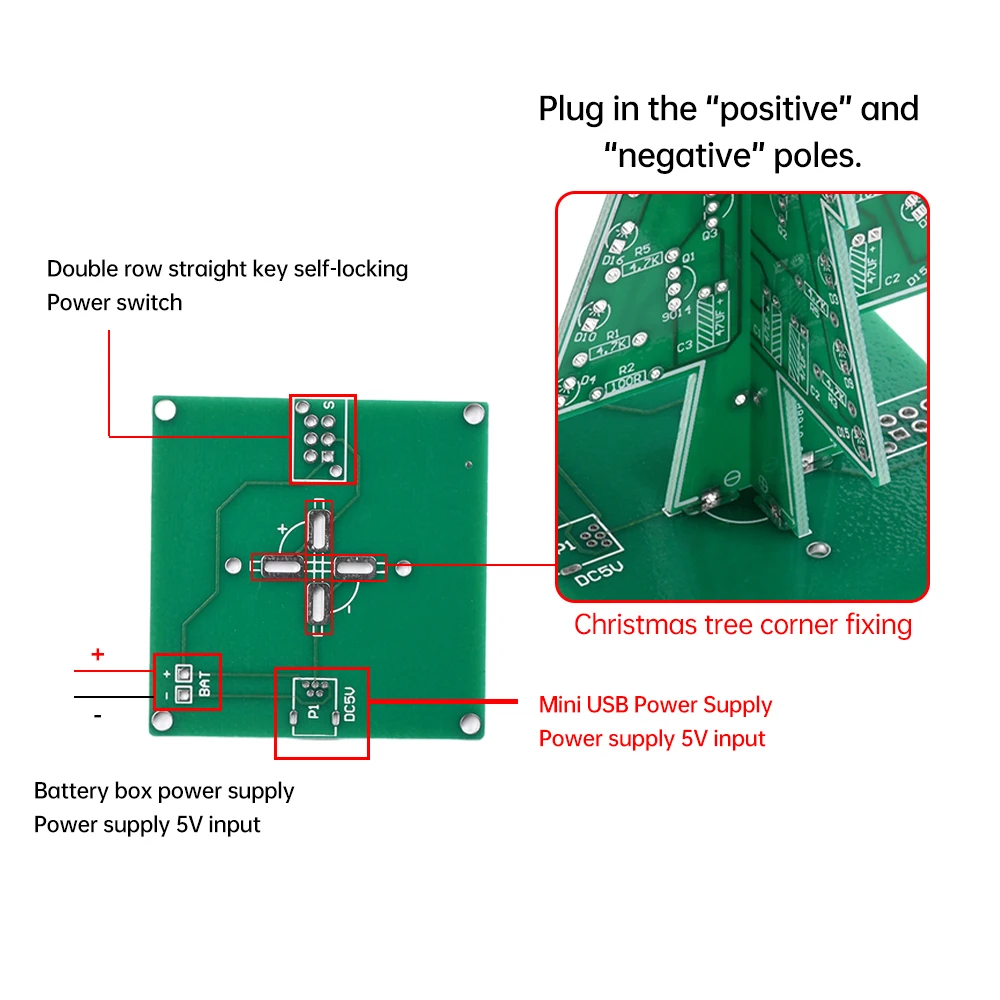

14. Combination of battery box and C-board

Combination of battery box and C-board

A. Welding battery box wires

B. Fix the battery box with screws and nuts

15. Pre assembled AB board and C board combination (with direction, positioning arrow, and power polarity consistent)

16. Weld the top LED (with direction)

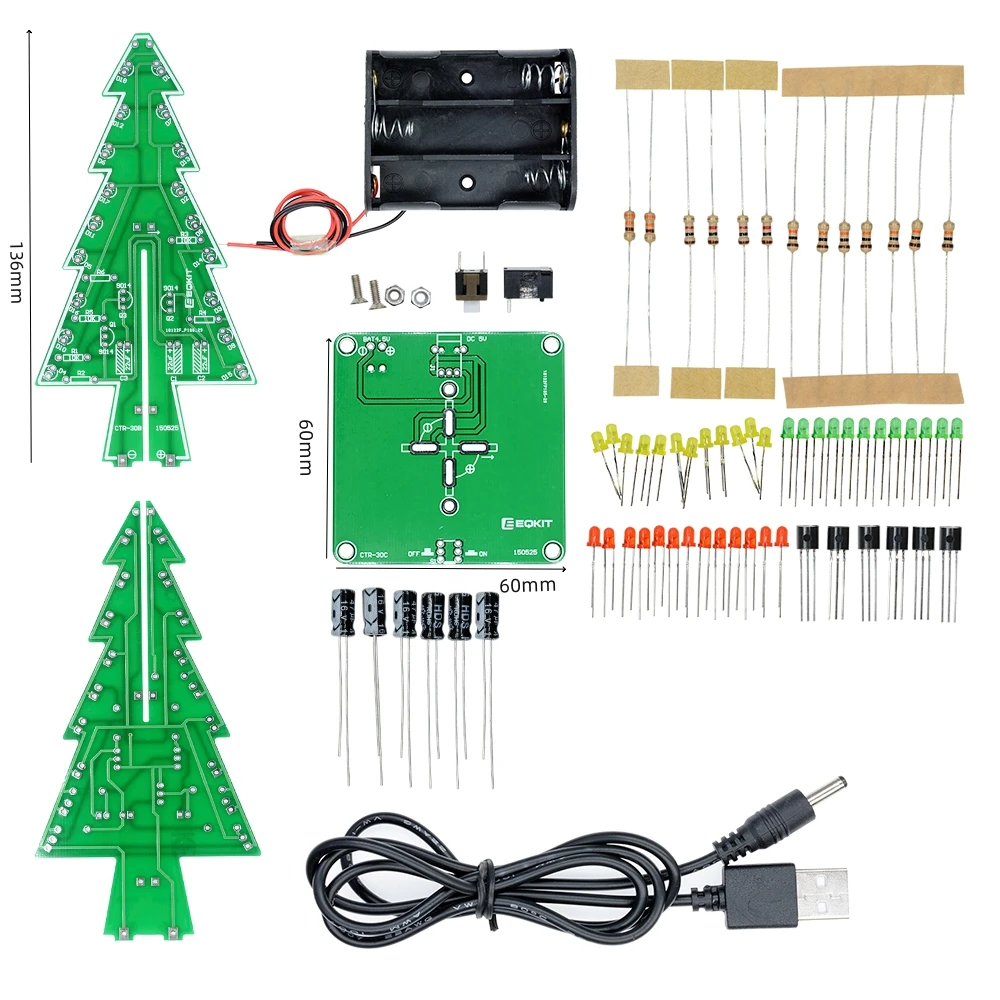

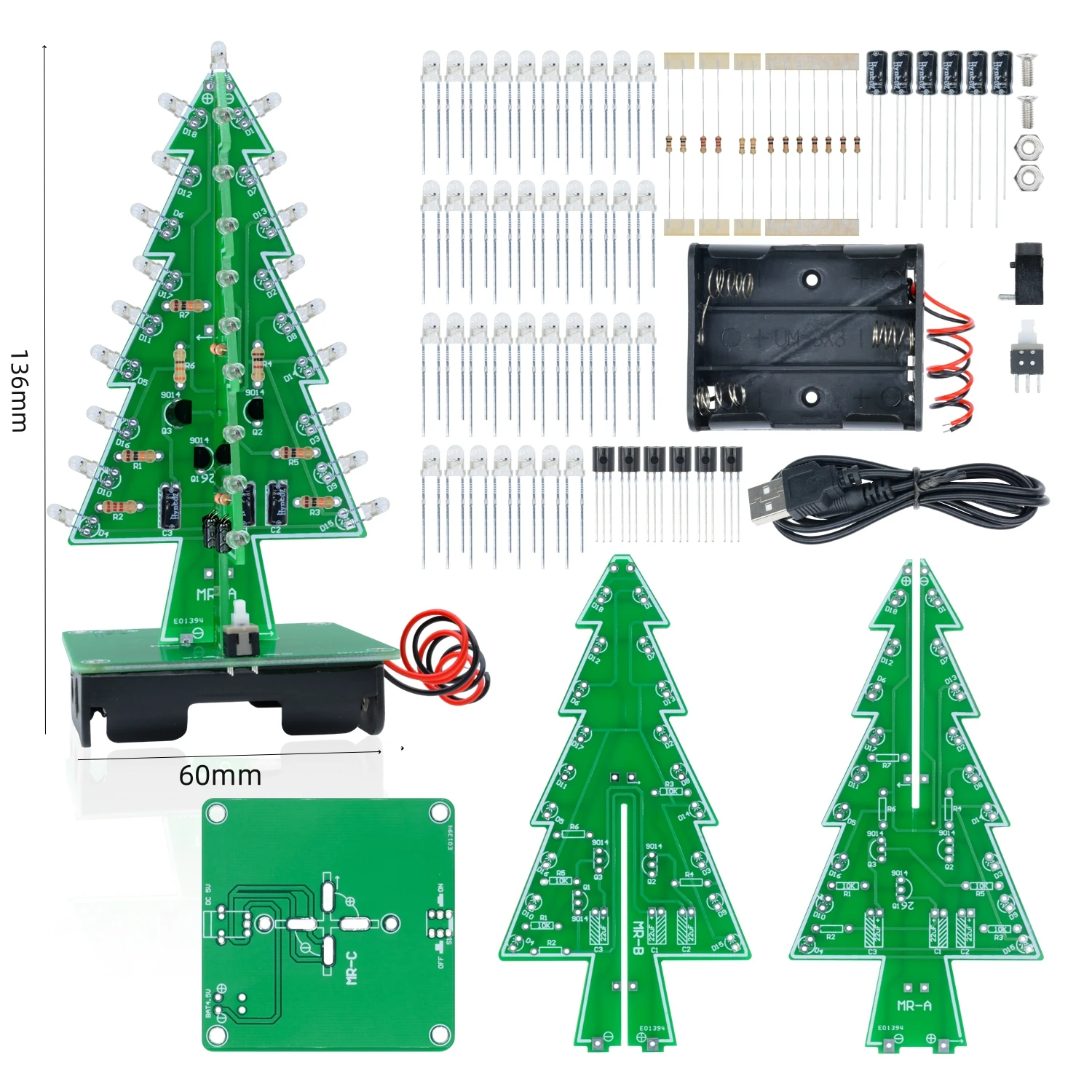

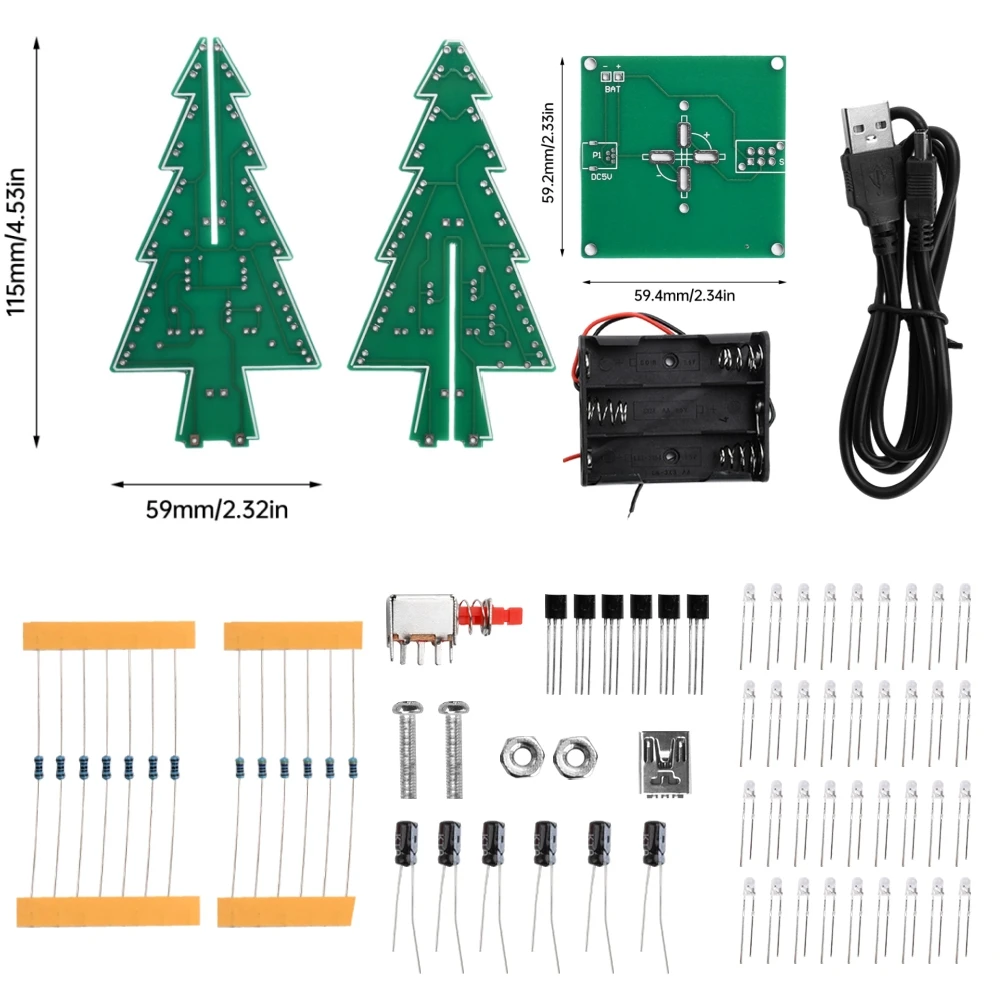

Complete set of loose parts

Installation precautions:

Please install according to the component numbers on the above list, and note that the LED colors should also be installed according to the numbers. After installing the A board, first power on the positive and negative poles under the A board to see if they are installed correctly and can work normally (flashing alternately). Similarly, the B board is installed and tested in the same way as the A board, and then cross installed together. Finally, install the AB cross combination board on the C board together. After power on, it can work normally. Christmas trees are basically used at night, so this product can only show better results at night.

inventory

1 set of Christmas tree kit

Product features:Tri color 2

1. The product adopts high-quality PCB and electronic component materials, with stable performance and guaranteed quality

2. The green printed circuit board is combined into a Christmas tree shape, which is easy to make and very suitable for DIY enthusiasts. It can improve their hands-on ability and can also be used as a decorative gift

3. The product is shipped as loose parts and needs to be welded by oneself. The welding effect is stunning, making it a great choice for both gifting and viewing

4. The product is packaged in an independent electrostatic bag for protection, and shipped with a MINI USB power cord

5. The product consists of 36 LED lights flashing alternately, which has a beautiful effect and the best viewing effect in night environments

Product Introduction:

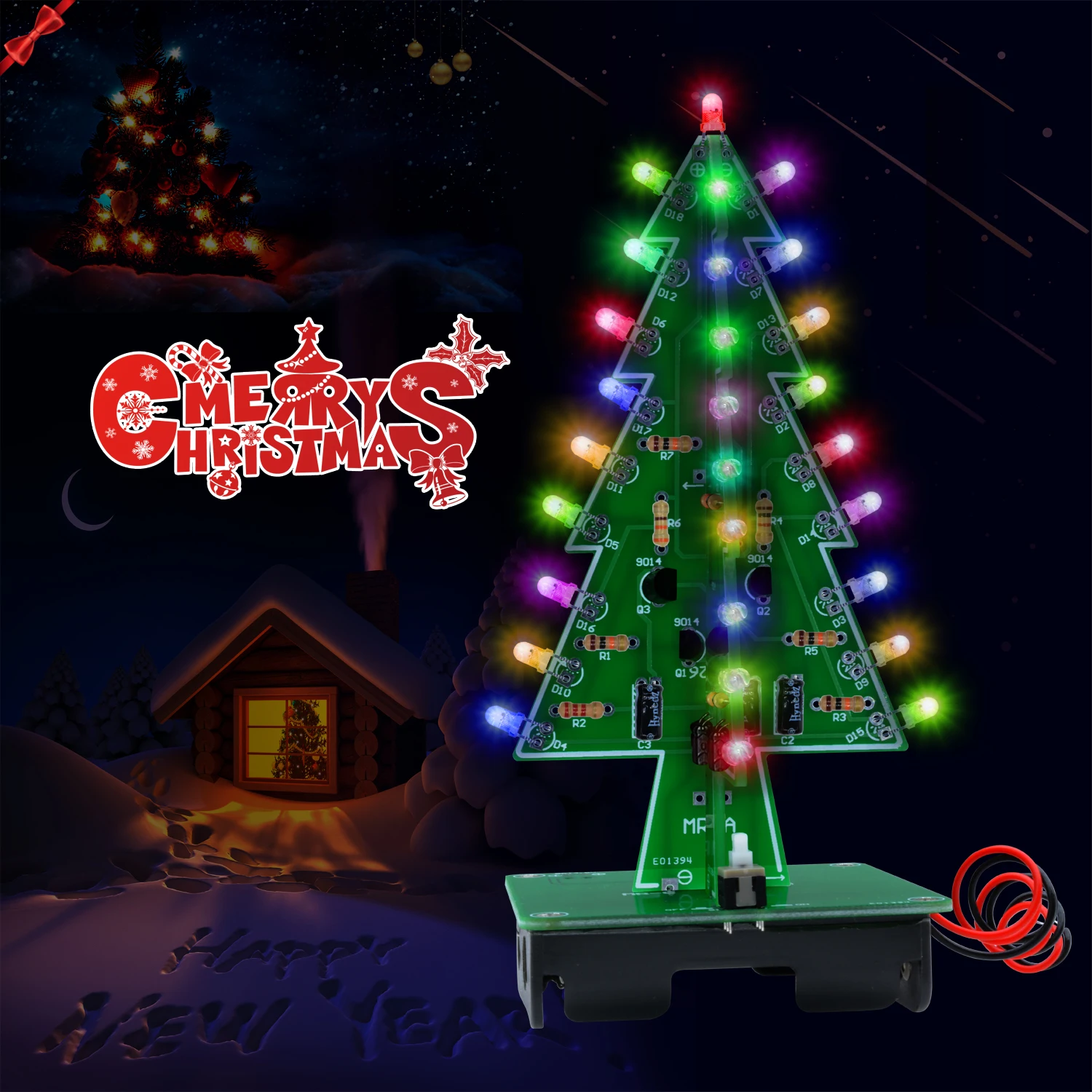

This Christmas tree kit is composed of three circuit boards and components, forming a tree like shape with 36 LED lights flashing alternately, presenting a three-dimensional outline of the Christmas tree in space. The effect is beautiful, and it is a good choice for viewing and giving as a gift.

Product parameters:

Name: DIY Christmas Tree Electronic Kit

PCB color: green

Working voltage: DC4.5-5V

Power supply method: 3-cell 5-gauge battery pack or USB charger, computer, power bank

Data cable interface: MINI USB

Special reminder: LED is composed of three different colors of monochromatic lights, and the welding position should be distinguished. The long leg is the positive pole

Shipping List:

DIY Parts X1

Product features:seven colour

1.100% brand new high-quality products.

2. Made of high-quality materials, durable and practical.

3. Small size, simple application, and easy installation.

4. Efficient and stable performance, long working life.

5. Widely applicable.

Product parameters:

Working voltage: DC4.5-5V

Size: Length 60, Width 136mm

36 LEDs can be alternately soldered

Colorful Sparkling Christmas Tree Parts

Packing list:

DIY kit * 1

Product features:With battery or Without battery

1. The product is made of high-quality PCB material, with stable performance and guaranteed quality

2. This kit is very suitable for training welding skills and is also very suitable for DIY enthusiasts. It can be used by installing button batteries, which can greatly improve one's hands-on ability

3. The product is shipped as loose parts and needs to be assembled by the customer themselves. Customers can bring button batteries or not

4. Composed of LED lights for flashing effect, it is a great choice for both gifting and viewing

5. The product adopts a lightweight design, and the assembled effect is super mini, which can be used anytime and anywhere, very convenient

Product parameters:

Kit Name: Simple Sparkling Miniature Christmas Tree

Working voltage: DC3V

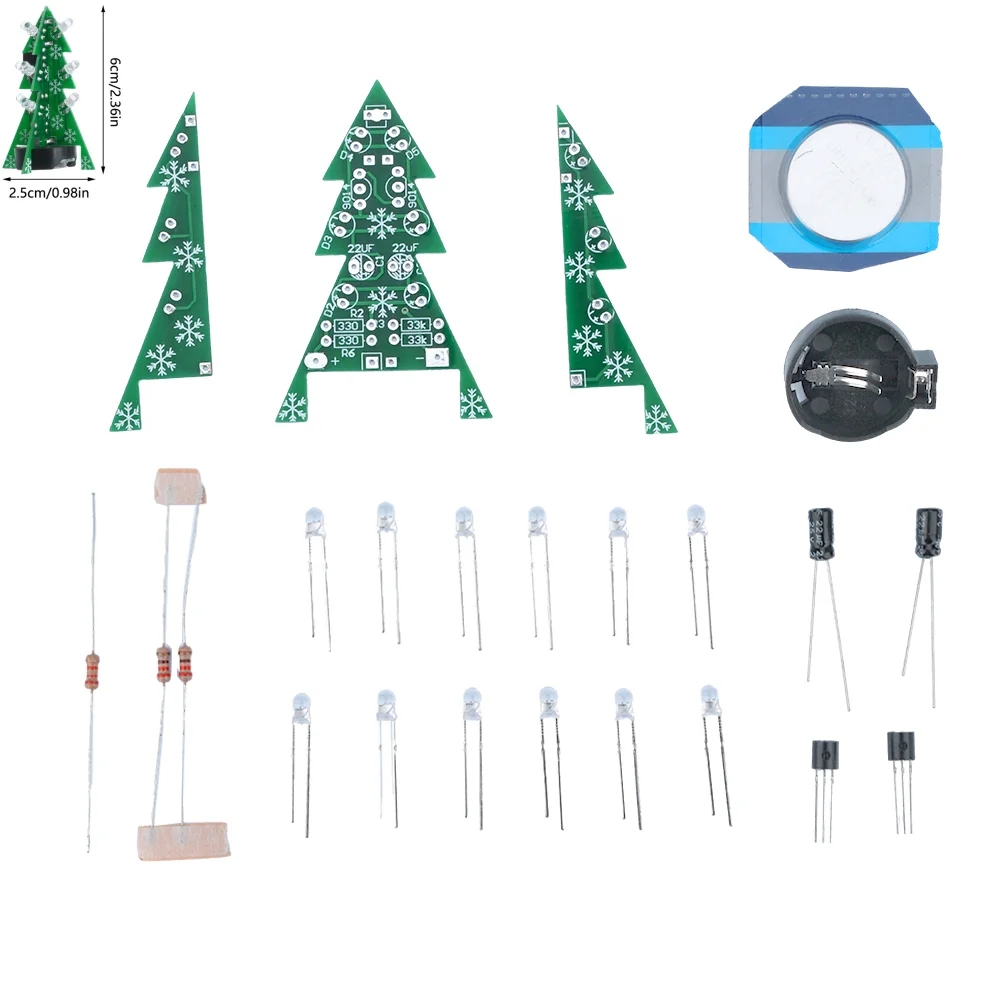

List of components with battery:

X3 pieces of PCB board

330 ohm resistor X2

33K resistor X2

9014 transistor X2

22UF capacitor capacitor X2

LED light X12

2032 base X1

2032 button battery X1

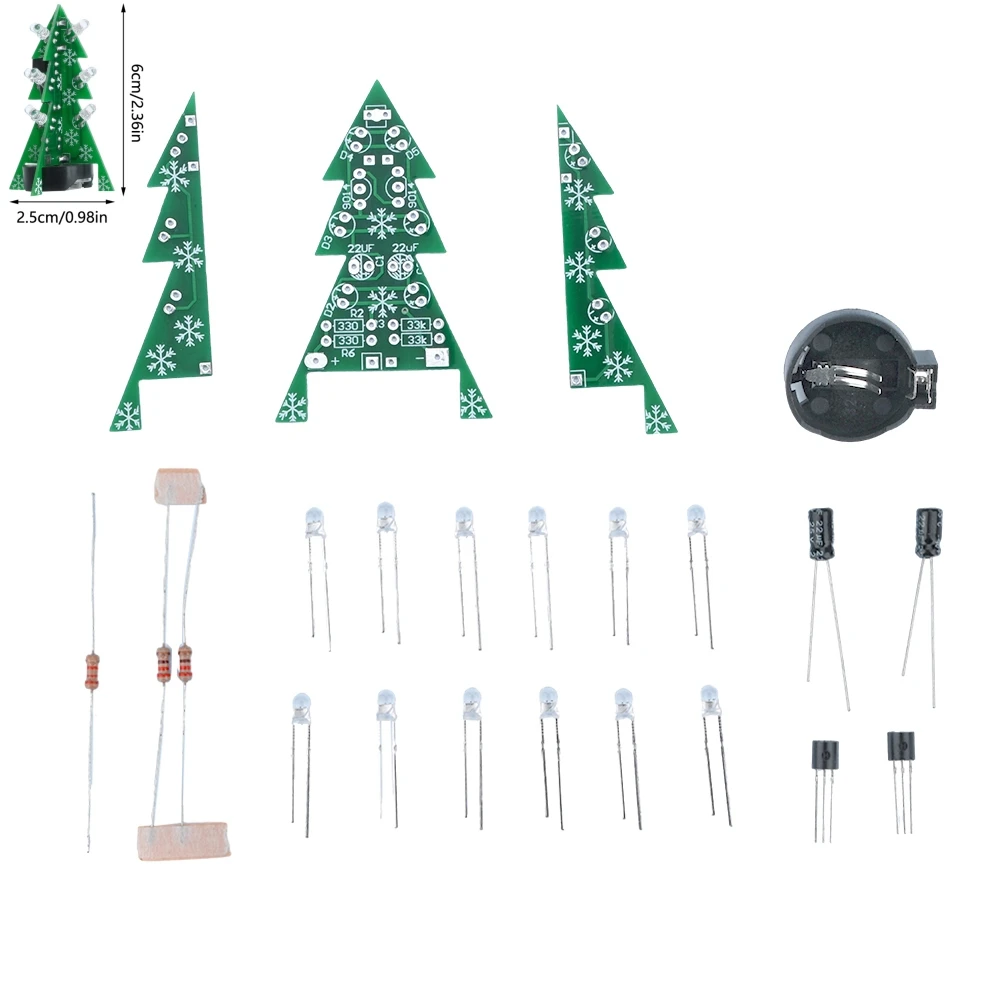

List of components without battery:

X3 pieces of PCB board

330 ohm resistor X2

33K resistor X2

9014 transistor X2

22UF capacitor capacitor X2

LED light X12

2032 base X1

Shipping List:

DIY Parts X1
