60 Bits RGB LED Ring 60 X WS2812 WS2812B 5050 Ring Lamp Light with Integrated Drivers SK6812 for Arduino RPI

Product Description

Package Included:
1 X 60 Bits WS2812 5050 RGB LED Ring
Description:
Voltage:DC4-7V
Communication interface:Single-wire communication
LED Chip:WS2812B

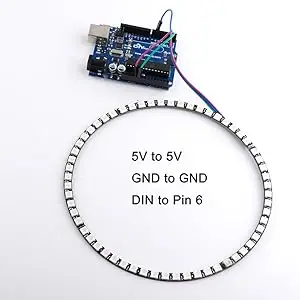

Connection:
5V to 5V
GND to GND
DIN to pin 6

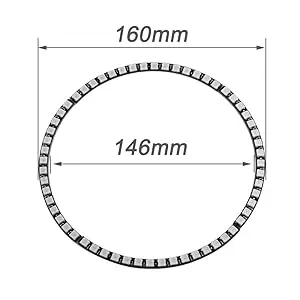

Size
Outer diameter: 16cm
Inner diameter: 14.6cm

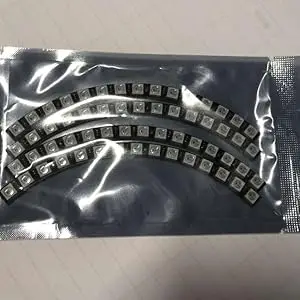

Package

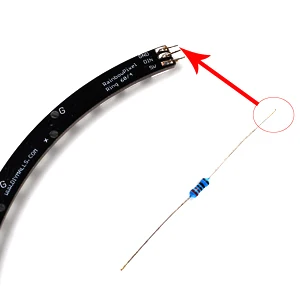

- Butt the ends together and use a small piece of stripped wire as a 'bridge' to give some mechanical support.
- For example, you can use the leg of DIP resistor.

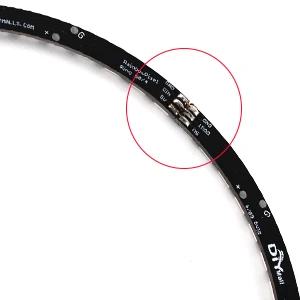

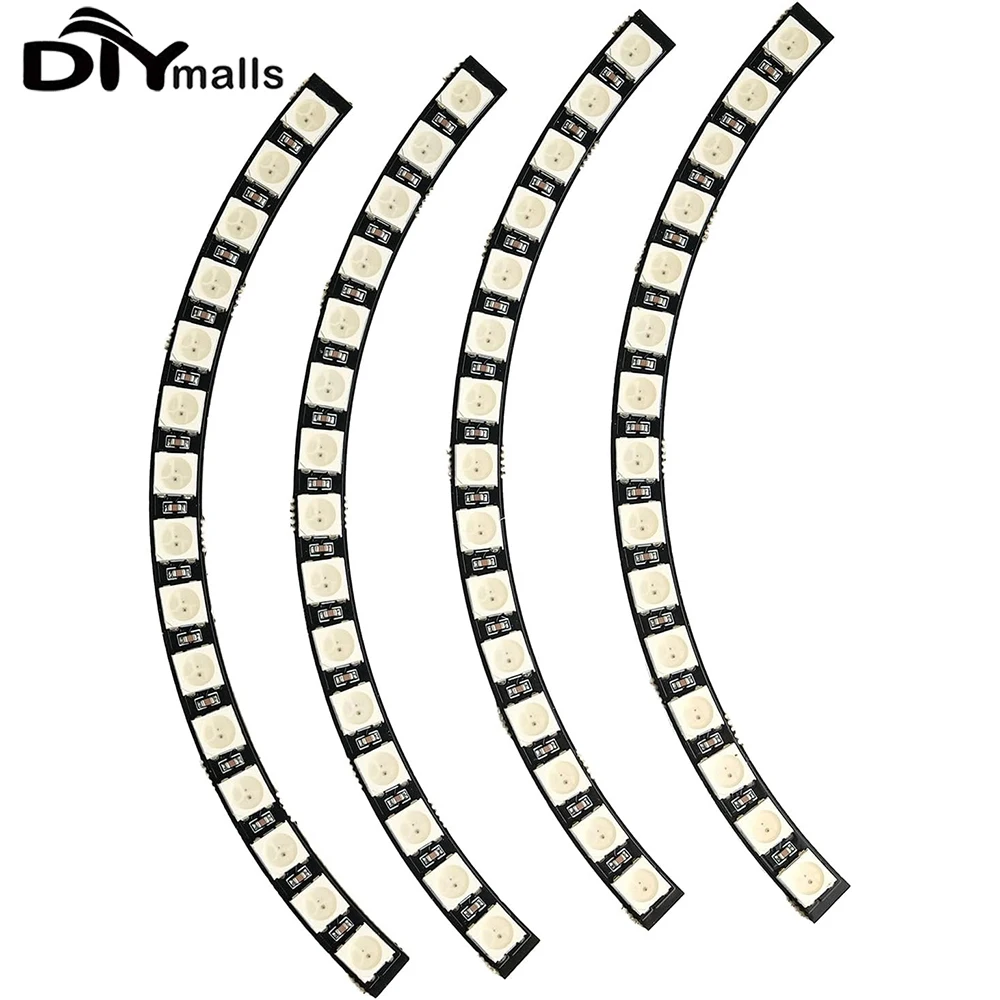

- Solder 4 pieces of the 1/4 60 Ring together.
- Connecting GND to GND, 5V to 5V and DIN to DOUT.

FAQ
Q: Can this be stripped to a red, green, and blue wire (+power) to be wired to a different board?
A: No, the WS2812 is a digital LED, it need to be controlled by a micro controller or AVR (such as an Arduino or ESP8266 board) with a digital pin and appropriate library
Q: Does this work with Raspberry Pi 3?
A: Yes, it can. As long as you have a 5v line (which the pi 3 has) then it should work
Q: Can I use raspberry pi to control the RGB led ring?
A: You can use raspberry pi to control the RGB led ring, the problem is RPI is 3.3V , and RGB led ring need 5V, so you need level shifter to convert the voltage.Please check the link: h ttps://github.com/jgarff/rpi_ws281x
Q: Is this something I can program once and not require data in? I need to program all led red or green and then power down and up to the last color.
A: Yes, you can write code to achieve this function
Q: Could i power three of these using 1 uno board and a 5v usb power outlet?
A: Yes, it can. Please use 5V 2A power supply
