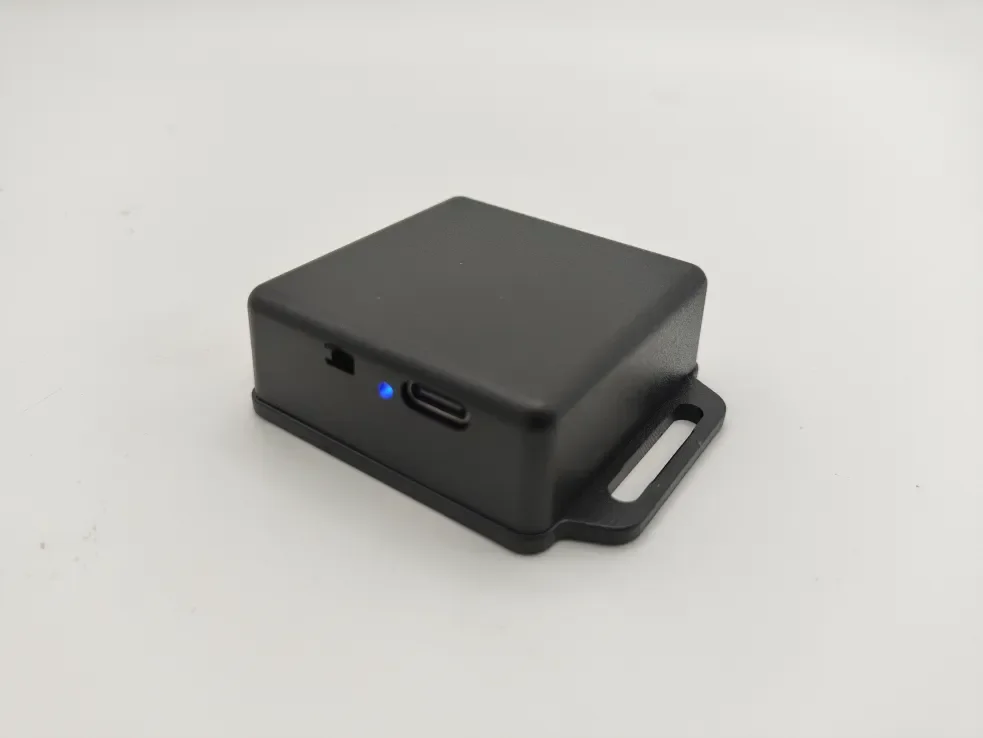

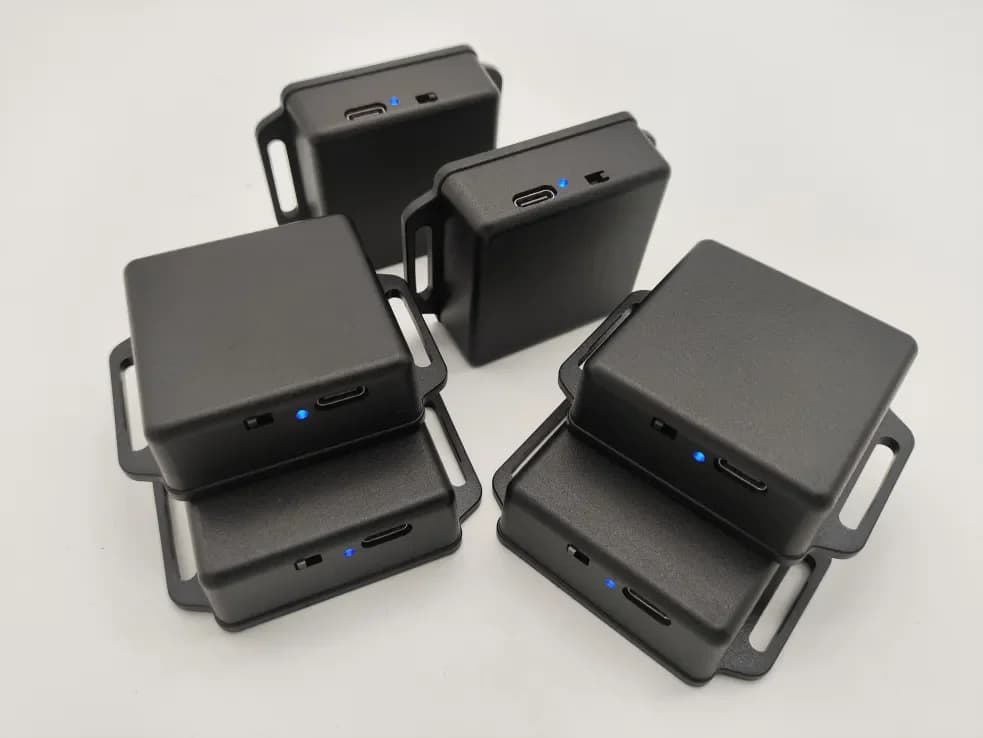

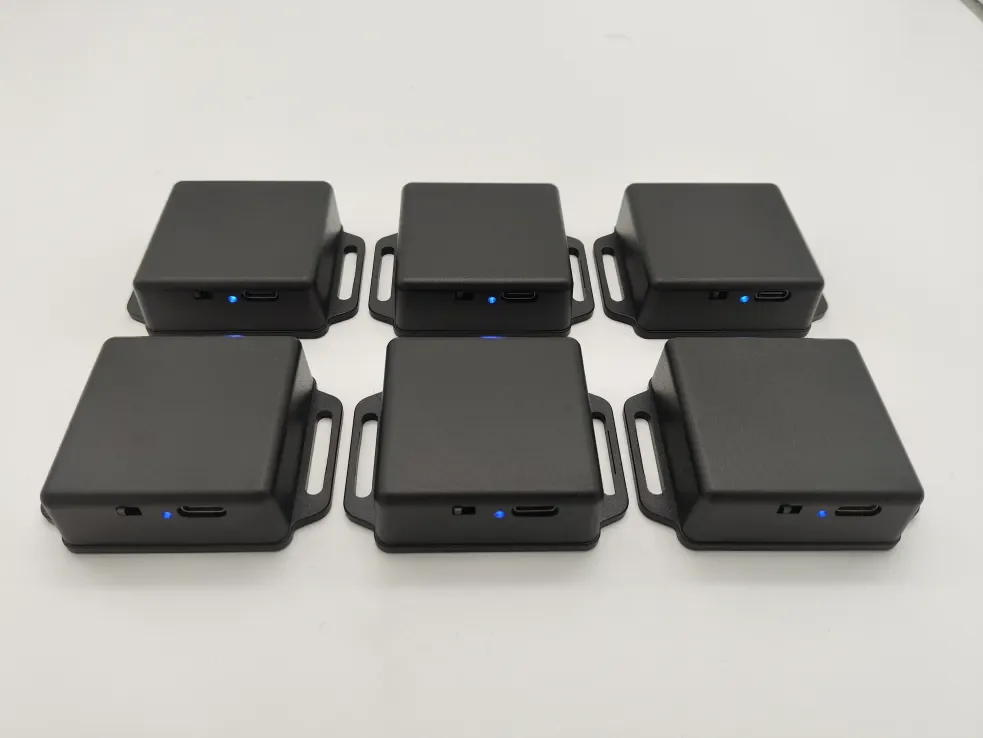

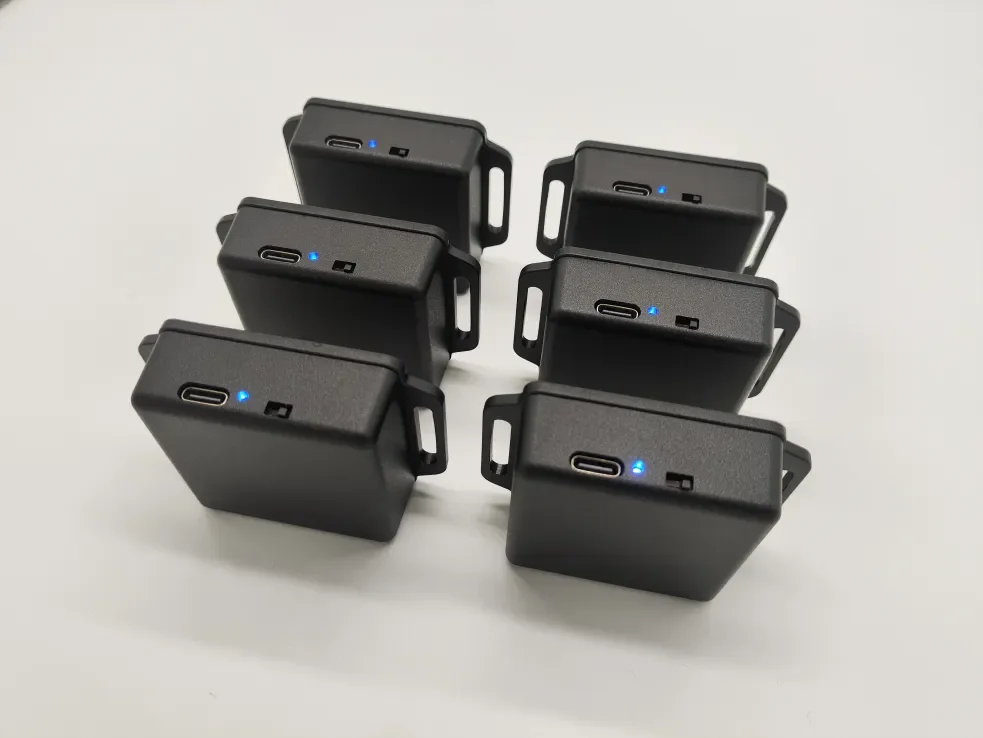

SlimeVR Plus Tracker BNO085 VRChat SteamVR Standalone

About VRLab – Designer & Manufacturer of Plus Tracker

We are the VRLab team, the original designers and manufacturers of the Plus Tracker—not a reseller. Our product is officially authorized and listed in the Marketplace Forum of the SlimeVR Discord community. We are the only authorized seller of Plus Tracker on AliExpress.

At VRLab, we’re committed to providing excellent technical support and after-sales service to ensure the best experience for our customers.

BNO085

Measured Battery Life & Size:

14 hrs(1200mAh 103040)

Usb Port Type:

* 1x white usbc for flashing and wifi setting,

* Nx black usbc for charging

Included accessories:

* N Straps with 25mm/1inch width

* N+1 usbc cables

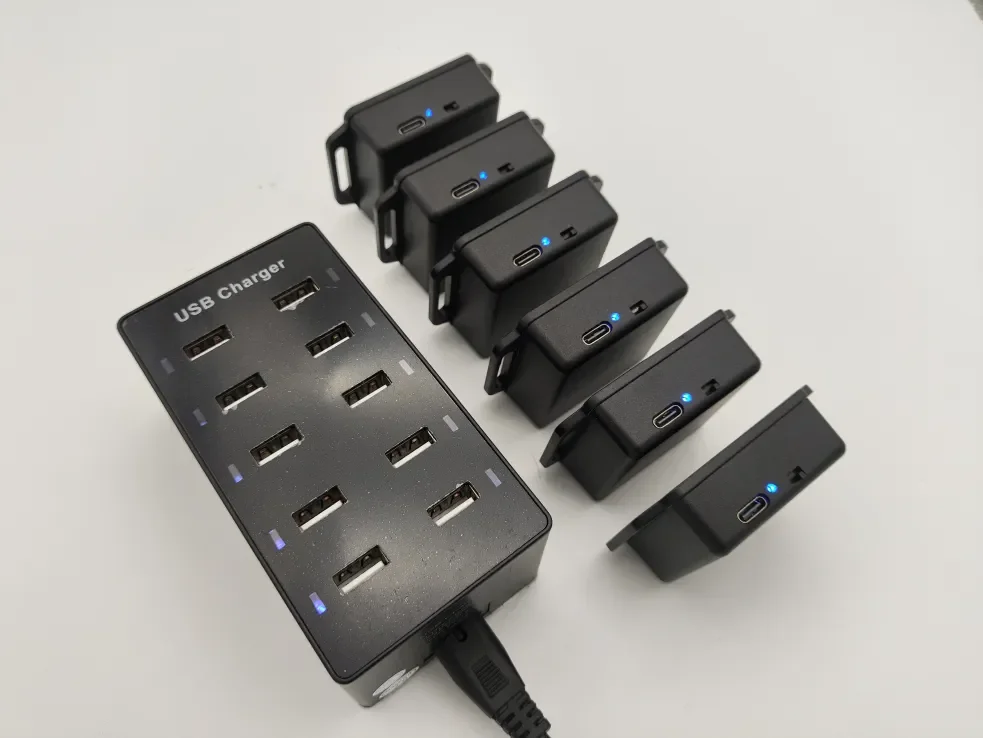

* 1 charger with 10 usba output (Provided only when ordering more than 5 trackers.)

* 1 storage bag(Provided only when ordering more than 5 trackers.)

Strap Default Length:

* 1xBNO085 1x31.5inch

* 5xBNO085 1x31.5inch 2x17.7inch 2x11.8inch

* 6xBNO085 2x31.5inch 2x17.7inch 2x11.8inch

* 8xBNO085 2x31.5inch 2x17.7inch 4x11.8inch

* 10xBNO085 2x31.5inch 2x17.7inch 6x11.8inch

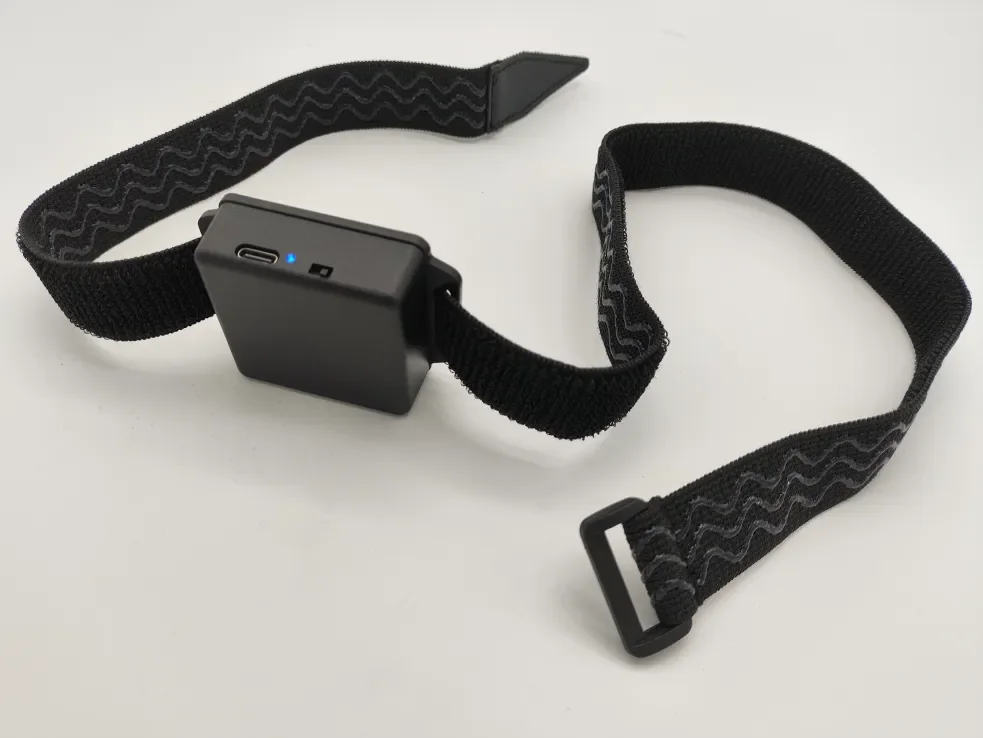

The strap is elastic and non-slip. 31.5inch is for chest and waist. 17.7inch is for left/right thigh. 11.8 inch is for left/right calf, feet and arms. If you have any special requirements, please contact us.

Firmware version:

0.7.1. We will update the latest firmware to the related file link. Download and flash the firmware file with a usb cable easily. Don't use your own firmware, it may cause the system error.

Battery protections used:

uses tp4057 power manager chip, and protection chip on the battery itself.

Battery Level Monitoring?:

Y

Case material:

ABS mold

Return policy:

Returns accepted until 7 days after delivery. All hardware must be shipped back to be

considered for a refund. Free returns.

Warranty:

One year.

Trouble shooting:

Failed to connect to wifi?

1. wifi need to work at 2.4g frequency

2. wifi ssid/password only have number and letter, Please do not include any Spaces or special symbols. If not, please go to the router Settings page to modify.

3. Use the white data cable. The black cable can only be used for charging.

4. Turn the switch on the tracker first, then plug in the usb cable. It needs to be in that exact order.

If the above steps do not work, please go to Settings -> Serial Console, click the "Reset Factory" button, and then reconfigure the Wi-Fi.

Tracker drift?

1.Try placing it on the table for at least 1 minute and avoid vibrations as much as possible.. The chip is automatically calibrated. It is best to wait for it to reach the operating temperature before doing this operation, as the temperature also affects the drift.
