Raspberry Pi Zero W 2W Raspberry Pi Pico 2 Pico W H 2H 2W WH 2WH RP2040 RP2350 Wireless WiFi Bluetooth-compat Development Board

Introduction :

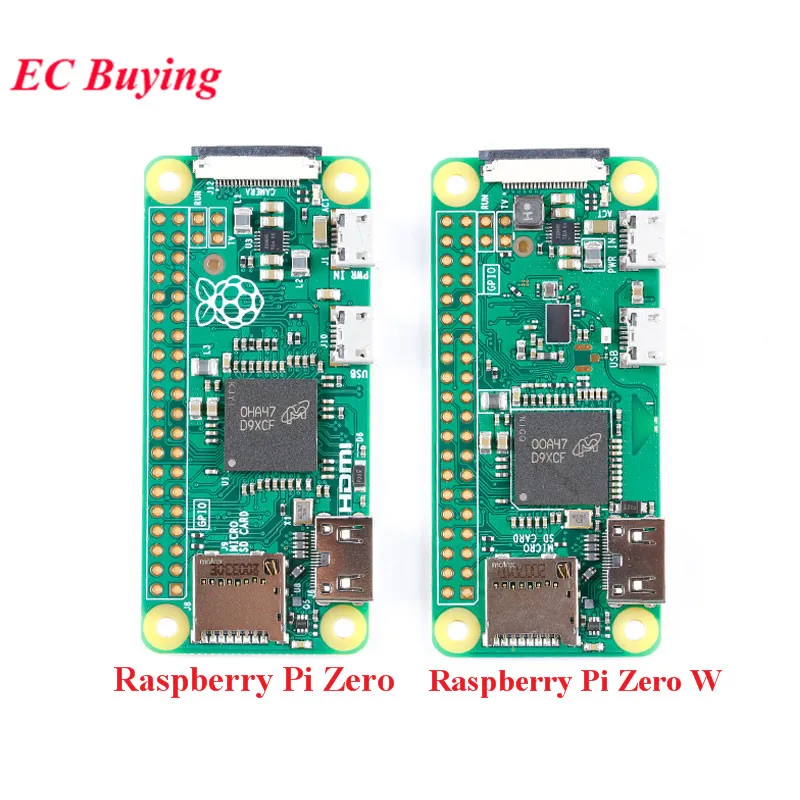

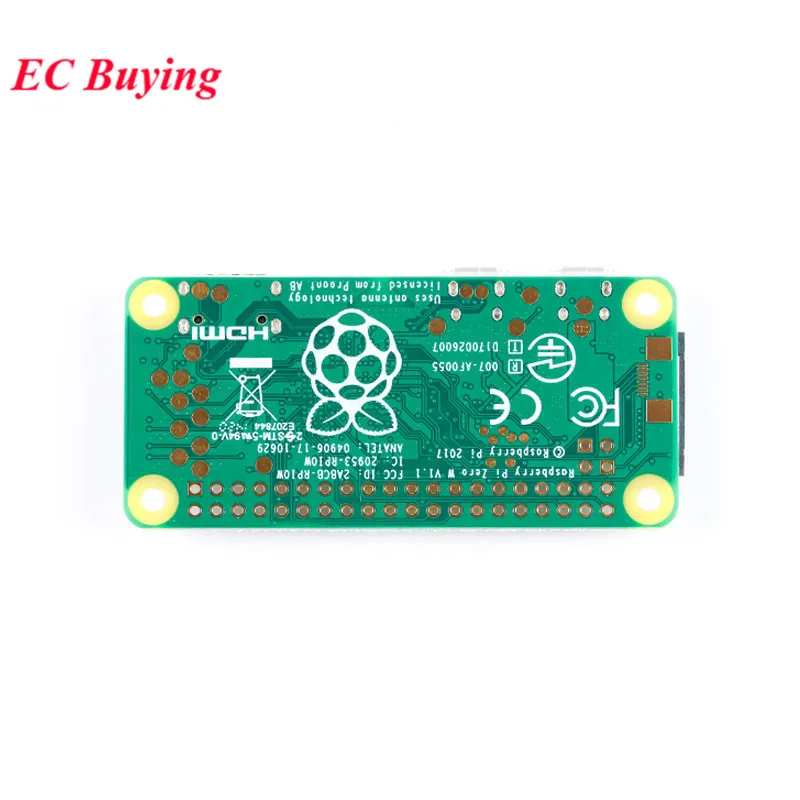

The Raspberry Pi Zero W extends the Pi Zero family, the Pi Zero W has all the functionality of the original Pi Zero but with added connectivity, consisting of :

802.11 b/g/n wireless LAN

Bluetooth-compatible 4.1

Bluetooth-compatible Low Energy (BLE)

Like the Pi Zero, it also has :

1GHz, single-core CPU

512MB RAM

Mini HDMI-compatible and USB On-The-Go ports

Micro USB power

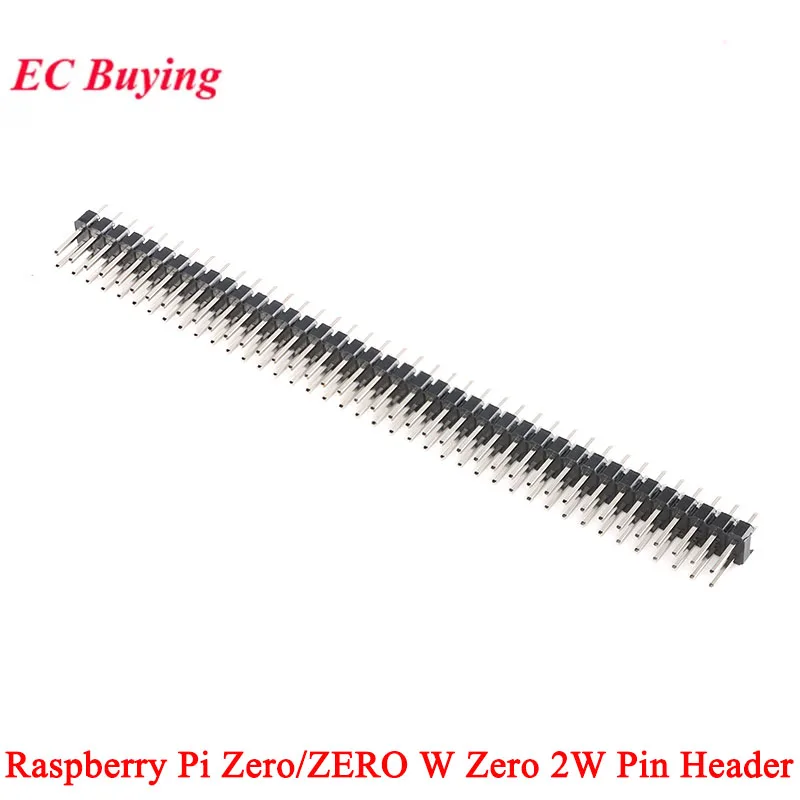

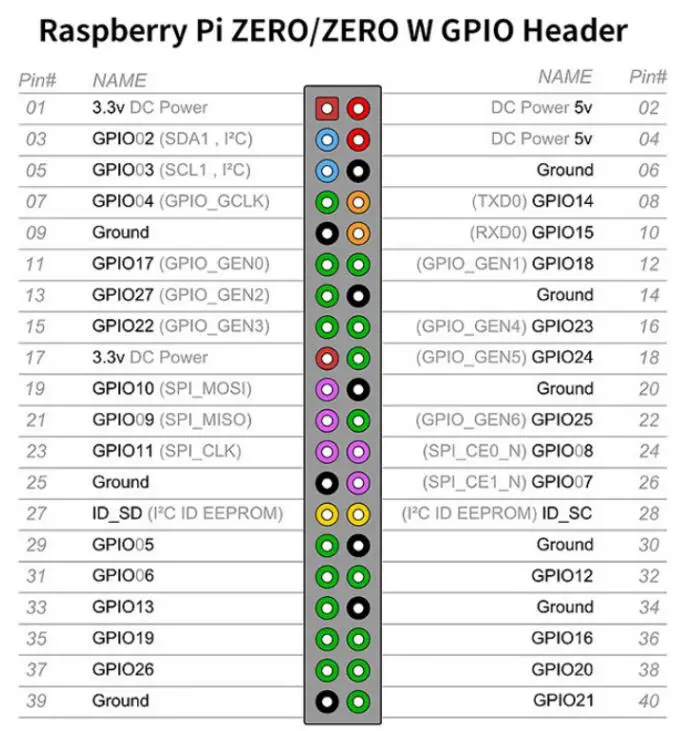

HAT-compatible 40-pin header

Composite video and reset headers

CSI camera connector

Features:

Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz

264KB of SRAM, and 2MB of on-board Flash memory

Castellated module allows soldering direct to carrier boards

USB 1.1 Host and Device support

Low-power sleep and dormant modes

Comprehensive C/C++/Micropython SDK, software examples, and documentation

Drag & drop programming using mass storage over USB

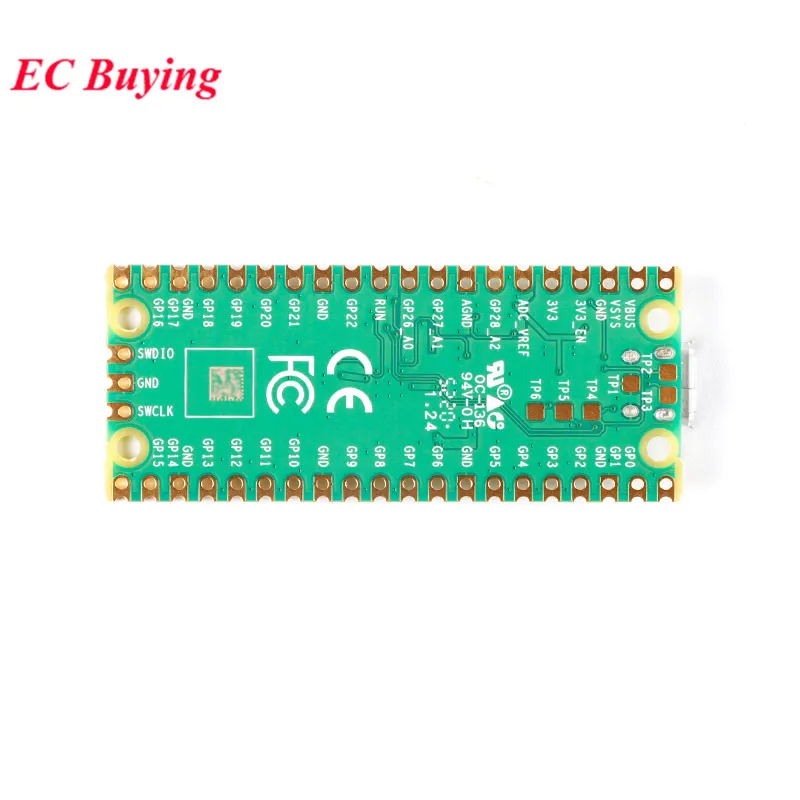

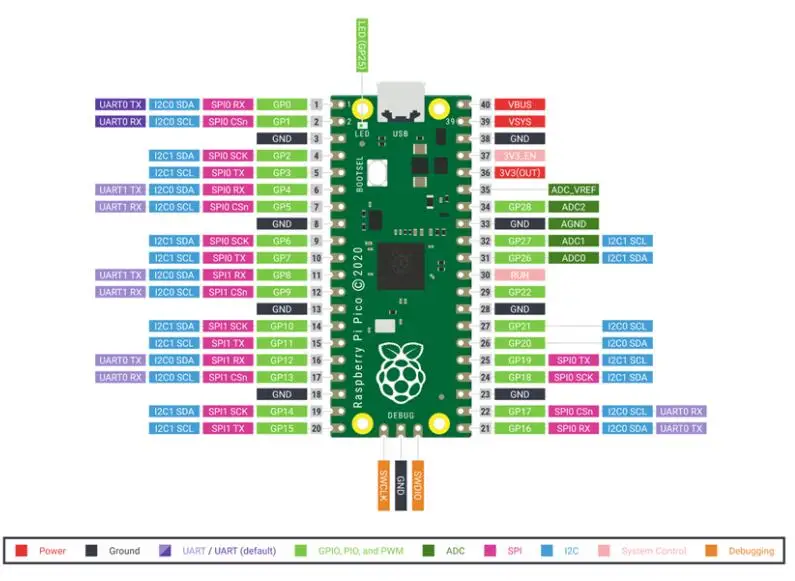

26 × multi-function GPIO pins

2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels

Accurate clock and timer on-chip

Temperature sensor

Accelerated floating-point libraries on-chip

8 × Programmable I/O (PIO) state machines for custom peripheral support

Description:

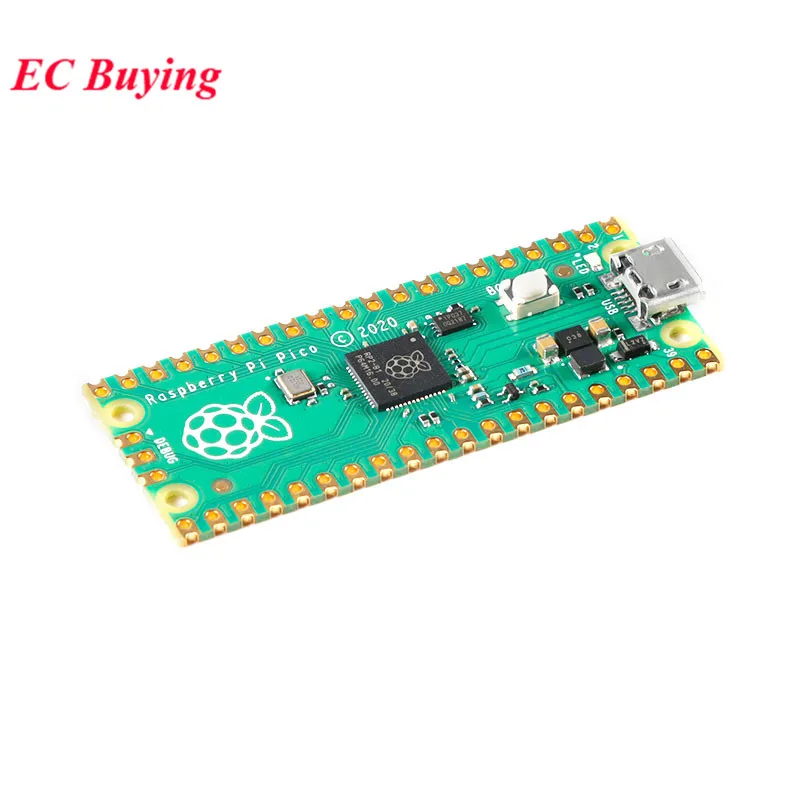

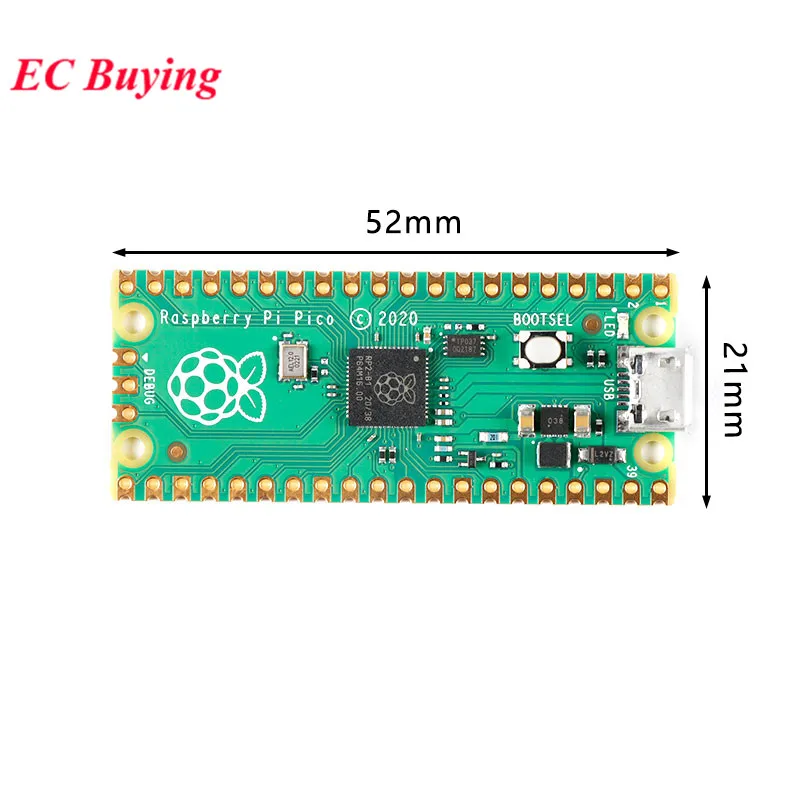

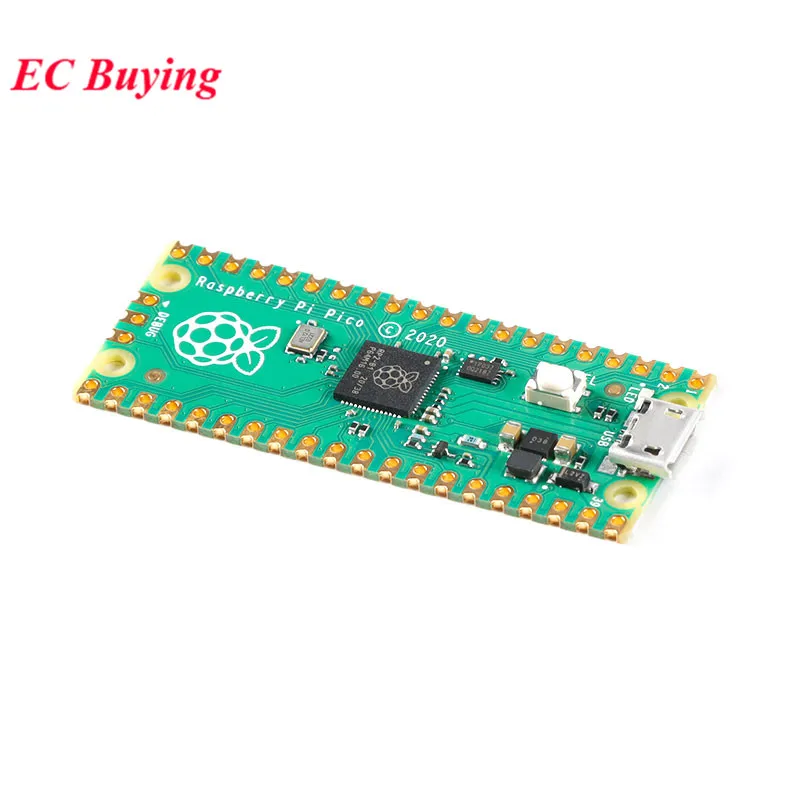

The Raspberry Pi Pico is a microcontroller board based on the Raspberry Pi RP2040 microcontroller chip. It has been designed to be a low-cost, high-performance microcontroller board with flexible digital interfaces. The Raspberry Pi Pico features two ARM Cortex-M0+ cores run up to 133MHz; 256KB RAM; 30 GPIO pins; and a broad range of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for code and data storage.
