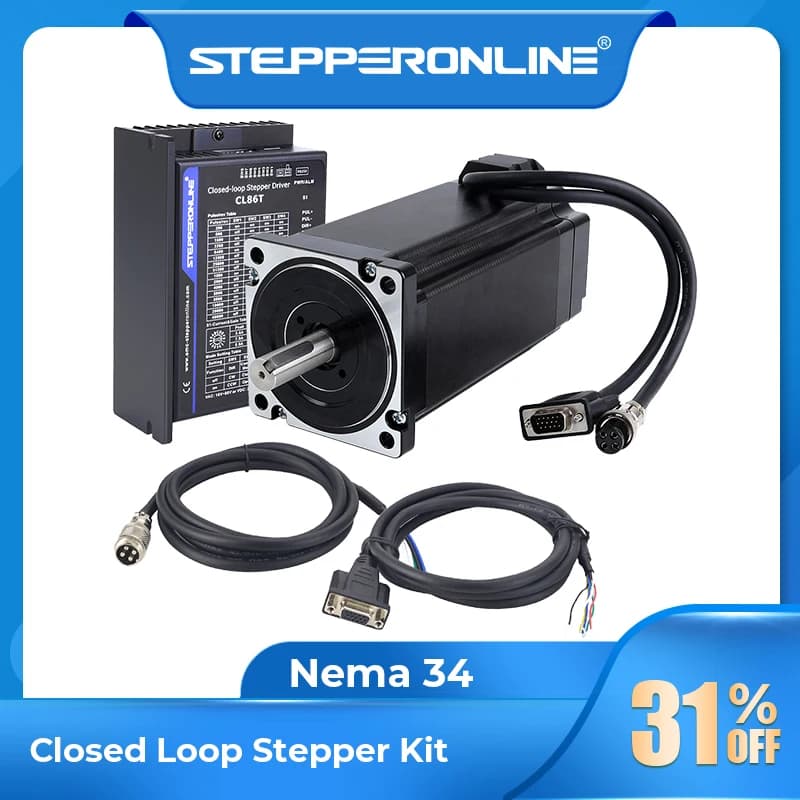

STEPPERONLINE Nema 34 Closed Loop Stepper Motor Kit TS Series 12Nm 1 Axis Nema34 Stepper Motor 1.7m Extension Cables

1 x Nema 34 Closed Loop Stepper Motor 19.0Nm/1700oz.in with Encoder 1000CPR

1 x Closed Loop Stepper Driver 0~8.2A 24~80VDC for Nema 34 Stepper Motor

1 x 1.7 m(67") Long Encoder Extension Cable for Closed Loop Stepper Driver

1 x AWG18 1.7 m(67") Long Motor Extension Cable with GX16 Aviation Plug

Part Number: 34HS59-6004D-E1000

Number of phase: 2

Holding Torque: 12.0 Nm(1700 oz.in)

Rated Current/phase: 6.0 A

Phase Resistance: 0.7 ohms

Inductance: 7.9 mH ± 20%(1KHz)

Frame Size: 86 x 86 mm

Body Length: 175 mm

Shaft Diameter: Φ14 mm

Shaft Length: 40 mm

keyway Length: 25 mm

Number of Leads: 4

Lead Length: 300 mm

Output Circuit Type: Differential type

Encoder Resolution: 1000

Output Signal Channels: 2 channels

Supply Voltage Min: 4V

Supply Voltage Max: 5V

Output Current: 100mA

Output High Voltage: 5V

Output Low Voltage: 4.5V

Output Frequency Max: 60kHZ
