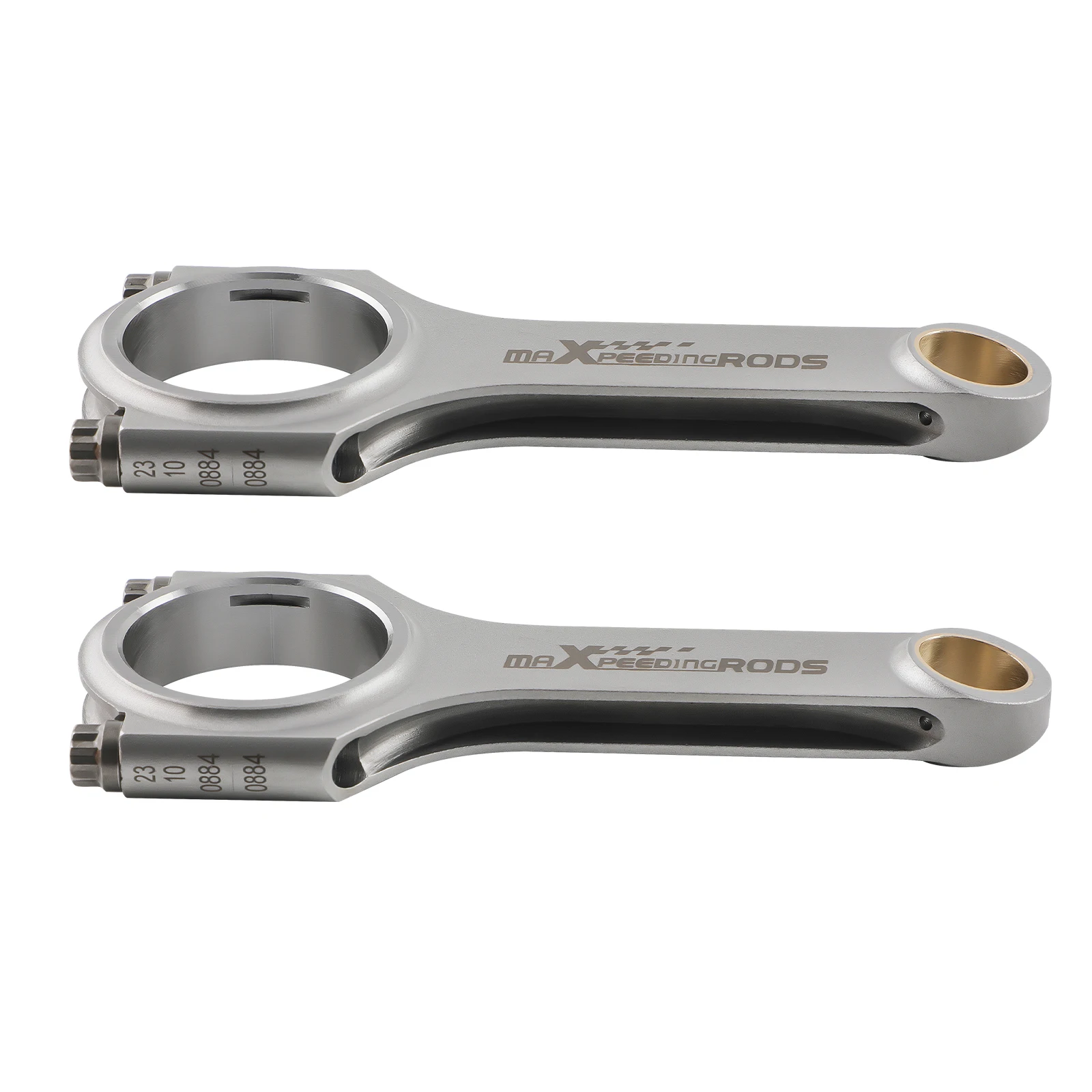

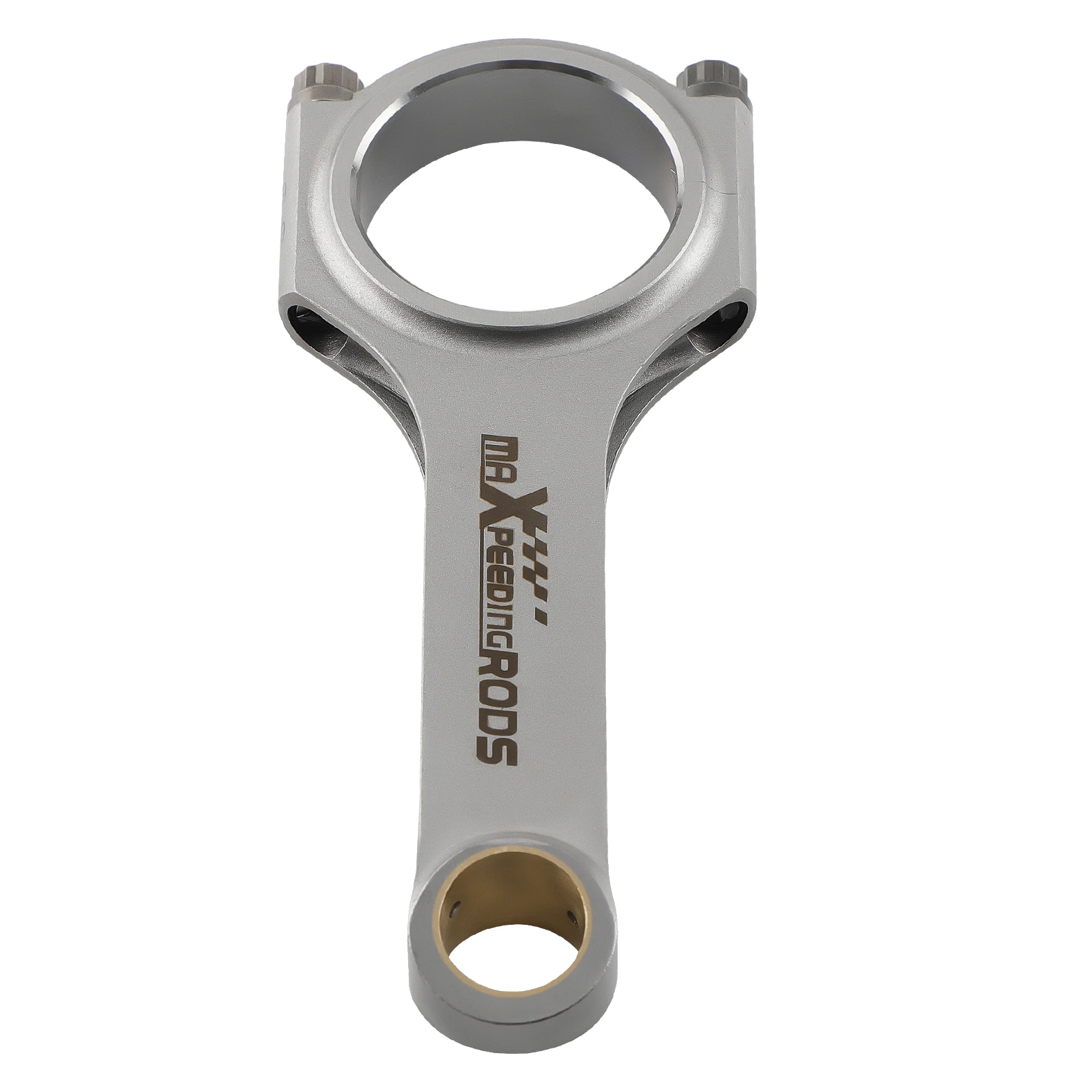

Steel Connecting Rods for BMW 1 3 5 7 X6 Z4 Series N54B30 3.0 ARP 2000 5.709"

Connecting Rods EN24 Forged Steel H-Beam 145mm for BMW N54B30 3.0 E90 E91 E92

Application

For BMW N54B30 3.0 TURBO


Engine
N54B30 3.0 L 2979 ccm 225 kW 306 hp from 2006
N54B30 3.0 L 2979 ccm 243 kW 326 hp from 2008


Fitment Details
for BMW 1 Series E82 Coupé 135i 2008–
for BMW 1 Series E88 Convertible 135i 2008–
for BMW 3 Series E90 Sedan 335i 2006–
for BMW 3 Series E91 Touring 335i 2006–
for BMW 3 Series E92 Coupé 335i 2006–
for BMW 3 Series E93 Convertible 335i 2007–
for BMW 5 Series E60 Sedan 535i 2008–
for BMW 5 Series E61 Touring 535i 2008–
for BMW 7 Series F01 Sedan 740i 2009–
for BMW X6 E71
for BMW Z4 E89

Pin Type: Floating Pin Piston

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

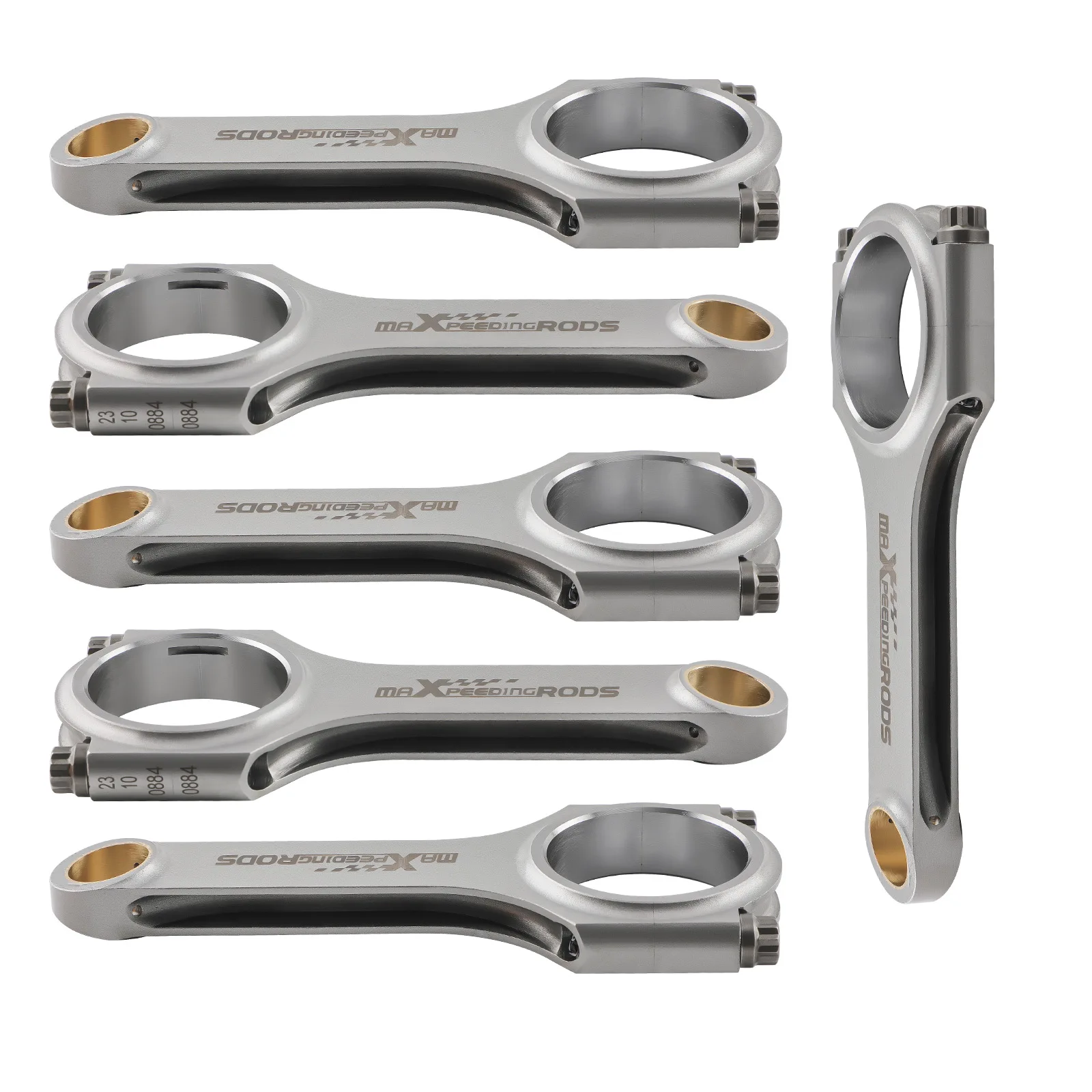

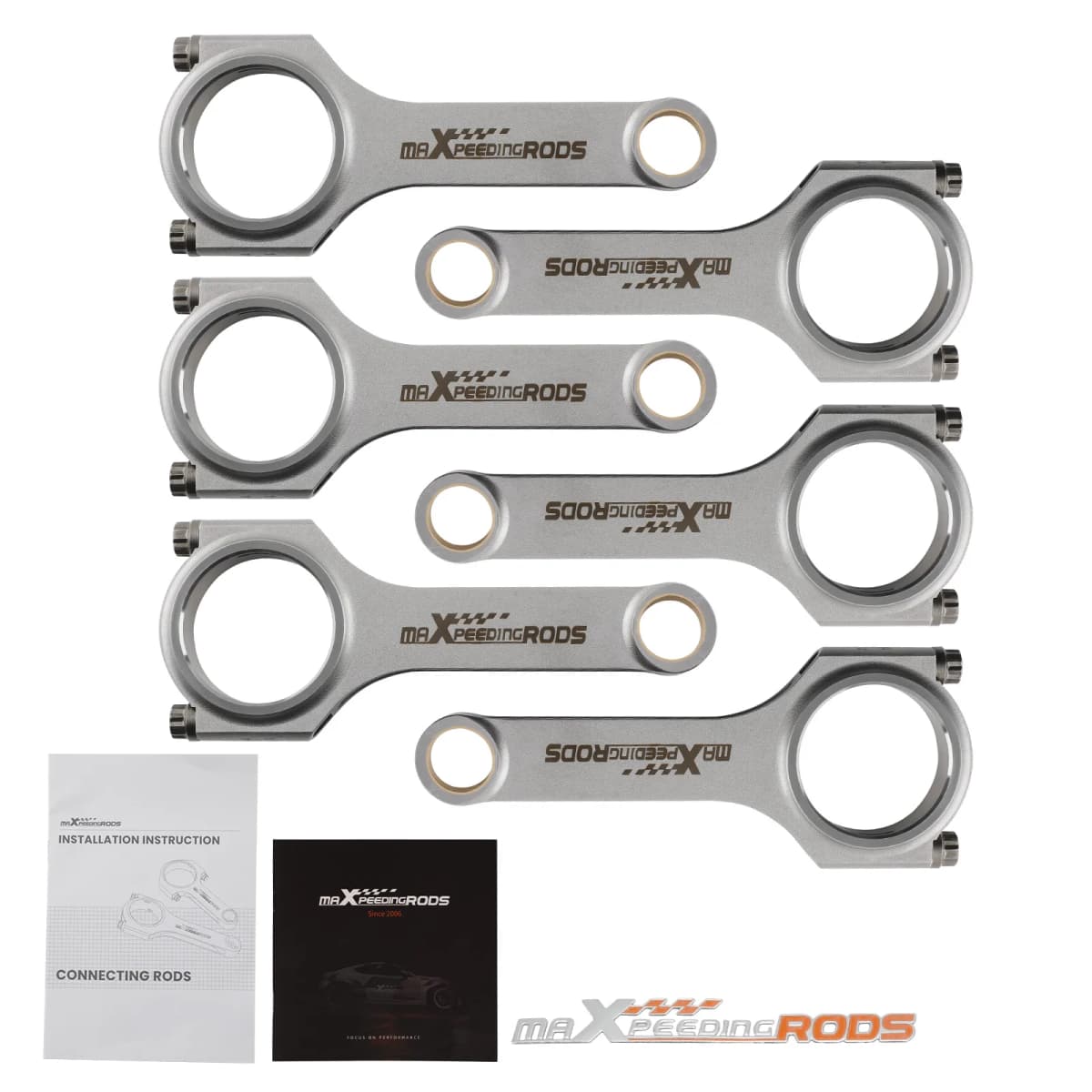

*H-beam Conrods Quantity: 6 Pieces as showing in picture

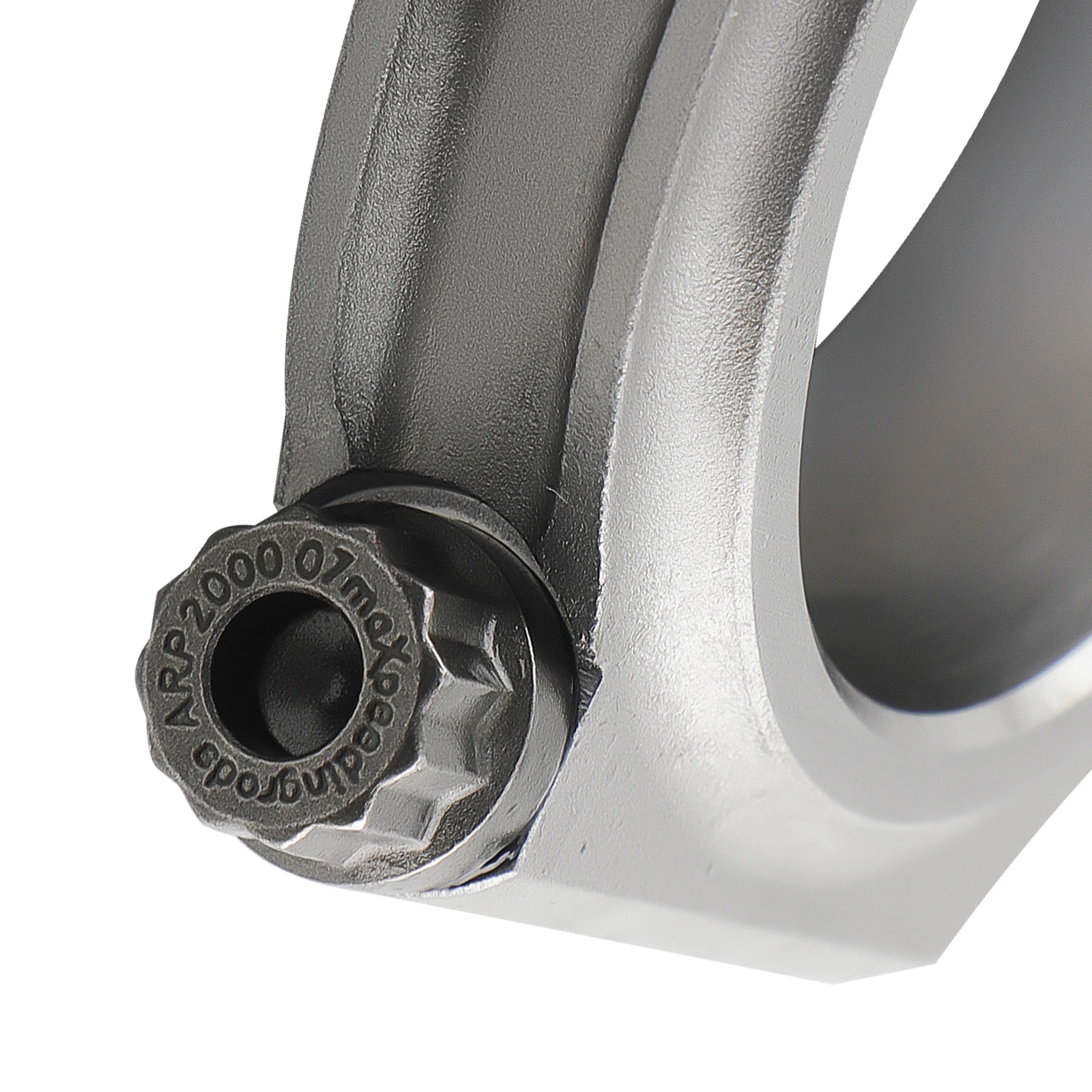

*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*14CM

Dimensions

Center to center length:145mm/5.709"

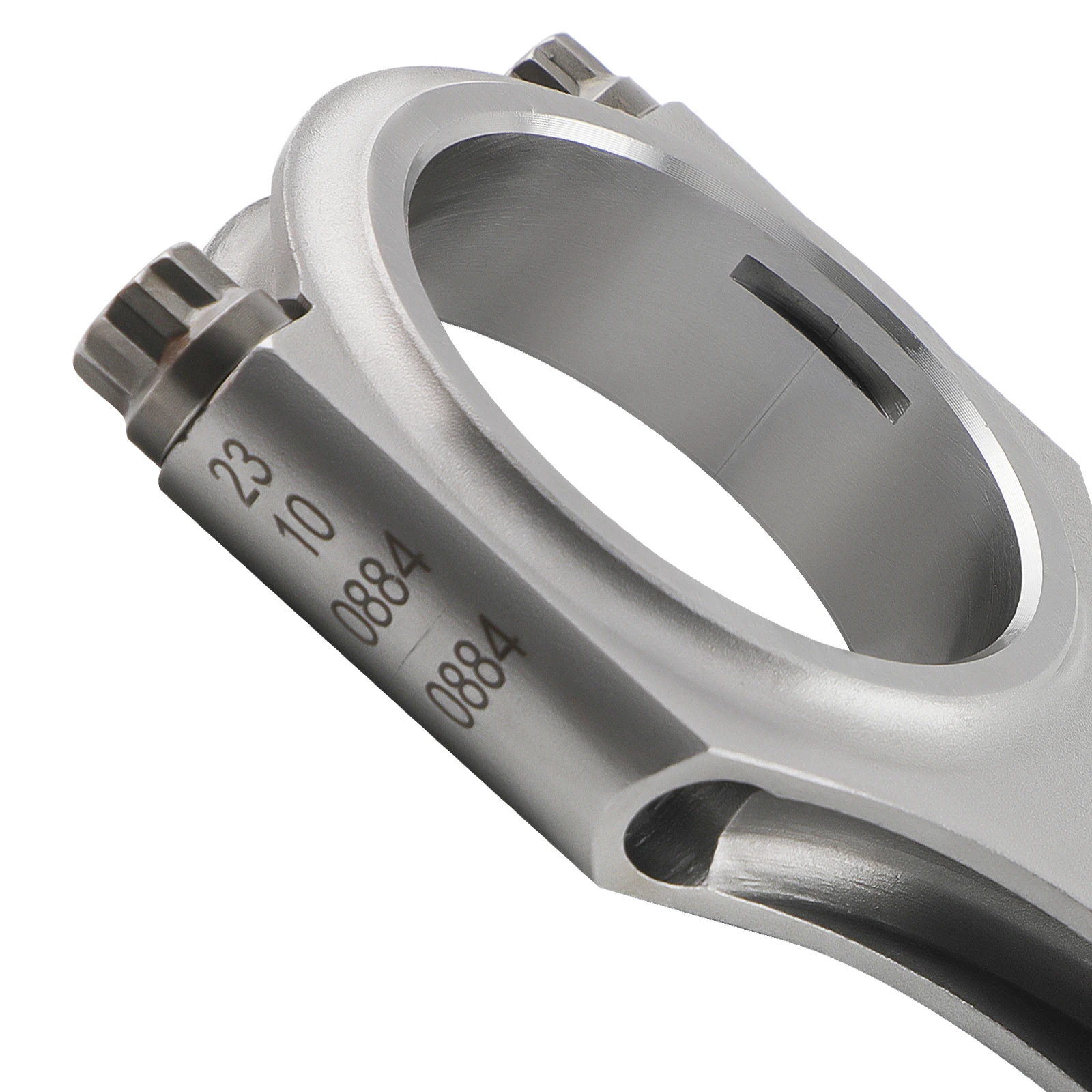

Big end diameter:53.6mm/2.11"
Small end diameter:22mm/0.866"(tapered small end)
Big end width:20.8mm/0.819"
Small end width:20.8mm/0.819"

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；

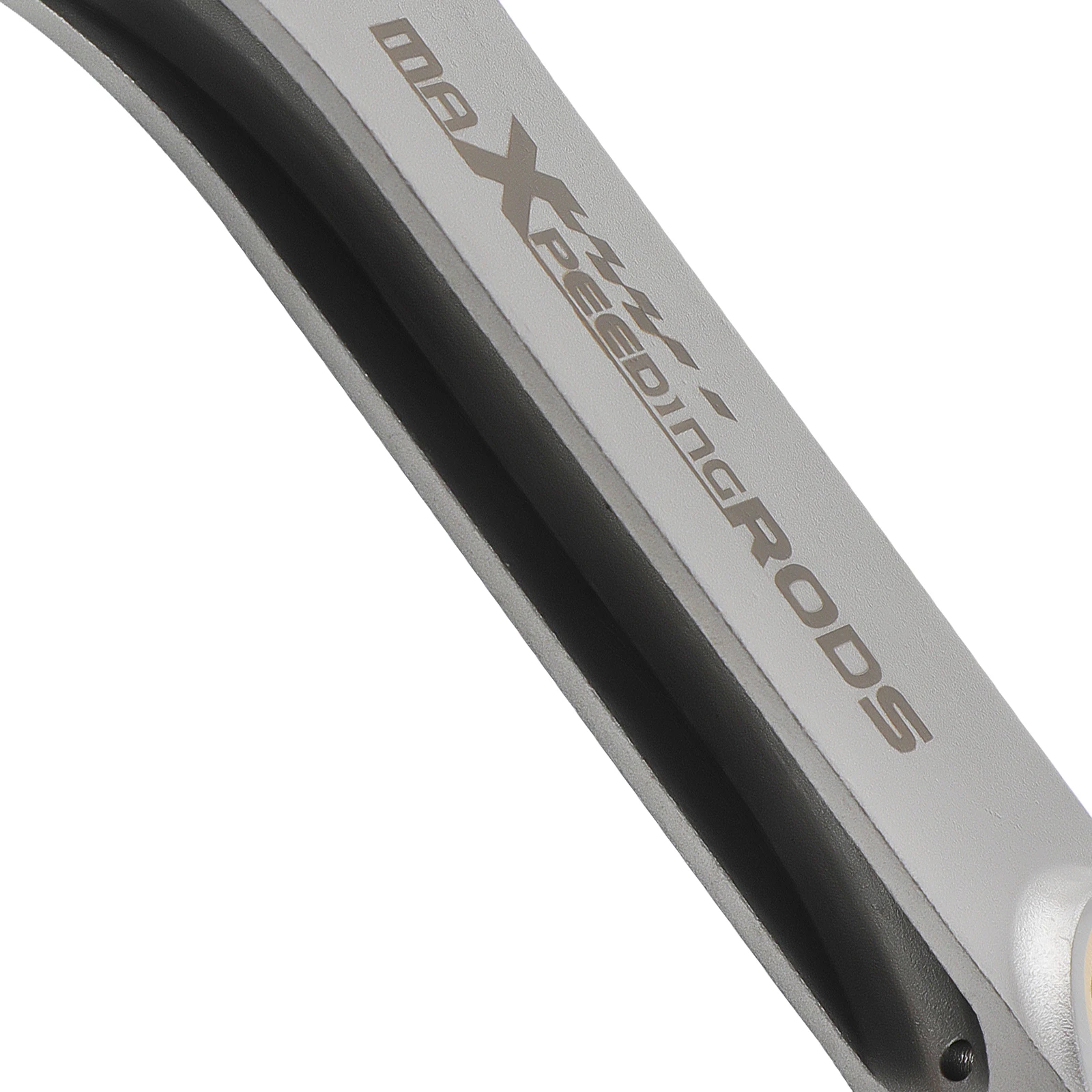

4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .005mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note

*There are titanium-plated upgrade models；
*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
