34 PICT-3 Carburetor & 12V Electric Choke for VW BEETLE Karmann Ghia 113129031K Choke/ 1600Cc Air-Cooled

34 PICT-3 Carburetor & 12V Electric Choke for VW BEETLE Karmann Ghia 113129031K Choke/ 1600Cc Air-Cooled

Fitment:

for VolkswagenBeetle 1971-1979

for VolkswagenSuper Beetle 1971-1979

for VolkswagenThing 1973-1974

for VolkswagenKarmann Ghia 1971-1974

for VolkswagenSquareback 1967-1973

for VolkswagenTransporter 1969-1972

- It will apply to any 1600cc for VW Air cooled Type 1 engines

- Compatible with any 1.6L Dual Port Engines. (Only for Dual port engine, not for single port engine)

OE/Part number:

34PICT3, 34PICT-3, 34 PICT-3, 98-1289-B

113129031K, 113 129 031 K, 113-129-031K

Specification:

Mounting Studs Measure: 68mm(Center To Center)

Intake Mount: 34mm

Choke Air Horn Inner Diameter: 47.7mm

Choke Air Horn Outer Diameter: 52mm

Venturi Diameter: 26mm

Placement: The intake pipe between the air filter and the engine of the car

Input Voltage: 12V

Material: Zinc Alloy

Choke Type: Automatic Choke

Package Dimensions: 20*18*16 cm

Package Weight: 1.4 kg

Note:

*Please allow 1-2mm error due to manual measurement.

*Please check the measurement information of the carburetor and confirm your old part number and car engine to ensure you are ordering the correct part.

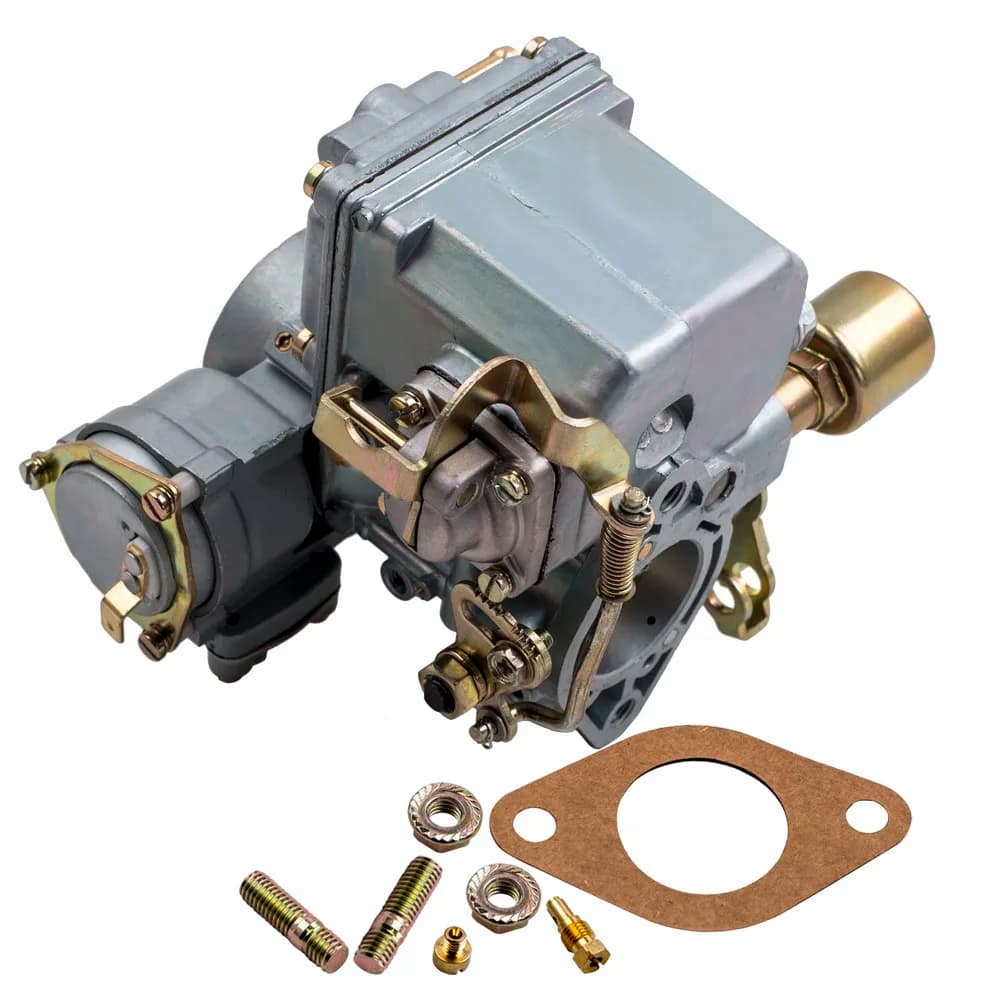

Package Included:

1x 34 PICT-3 Carburetor

1x Gasket

2x Jets Screws

2x Mounting Bolts

2x Screws






Feature:

1.The carburetor was made of high quality Zinc alloy, add more horse power while maintaining near stock fuel mileage.

2.To mix air and gasoline in a correct ratio to ensure proper engine function，Give your machine the new power it deserves.

3.Solve problems such as engine lack of power and low fuel efficiency, engine backfiring and overheating and hard starting.

4. Low fuel consumption, Start fast stable idle speed,allowsing you to get a better driving experience and maneuverability

5.100% tested For reliability and performance，backed by satisfying after-sales service















Note:

*The oil channels of carburetors will be blocked without cleaning.Please clean up the oil channels and air filters as well as use the clean fuel before installing the carburetors.

*Professional installation recommended/We recommend that this be installed by a qualified mechanic with experience doing this type of work. (No Instruction Included)

*To ensure correct purchase,please compare carburetor against picture before you purchase.






Q&As of maXpeedingrods 113129031k carburetor

1. Q: What is the venturi size of this?

A: 26mm

2. Q: what is the cfm?

A: 600 cfm

3. Q: What does bbd mean?

A: The bbd is an abbreviation for barrels, carburetors are designated as one barrel meaning only one venturie ,two barrel meaning two venturie and so on to a maximum of four.

4. Q: My current carburetor has a manual choke. If I replace it with this one that has an electric choke will I only need to have a 12 volt power source?

A: If there is only 1 electrical pin for the choke then you will only need to wire a 12v positive "switched " source.

5. Q: How much fuel pressure do these need ？

A:Low pressure, just like any carburetor (60's -80's). The needle valve needs to be able to close the fuel bowl inlet. 4-6 psi should be enough.

6. Q: Can these carburetors be mounted in an angle at around 45 degrees?
A: Yes

7. Q: How do you clean the oil channels as mentioned in the product description?
A: You need to soak carb un carb clean solvent

8. Q: Does this carburetor have a manual choke or automatic choke?
A: Automatic
