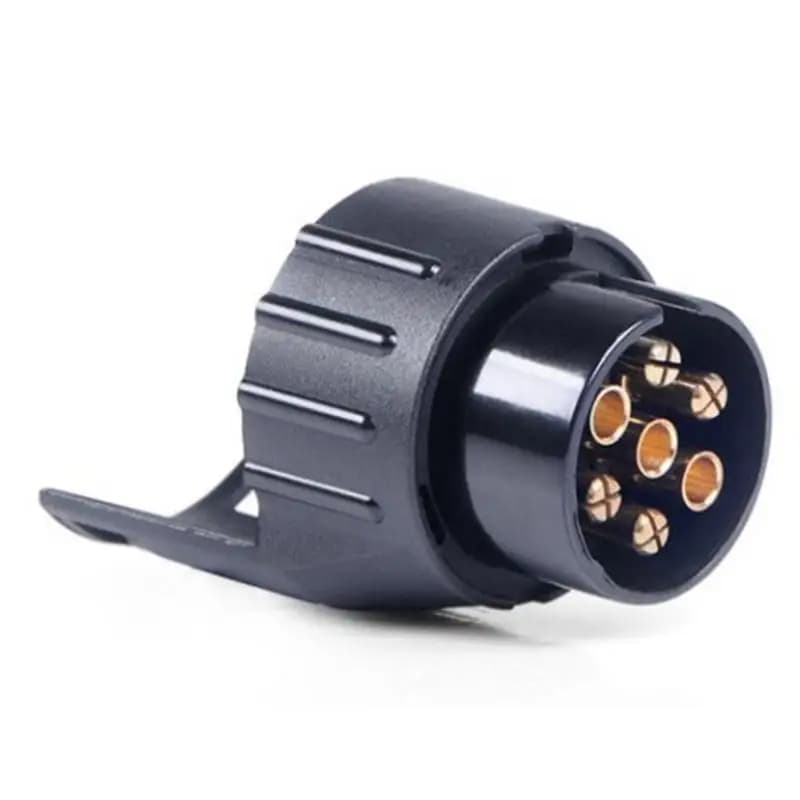

7 Pin To 13 Pin Caravan Adaptor Towbar Towing Socket Electrical Converter 12V Plastic Trailer Adapter Trailer Connector For Rv

Description:
Suitable for European standard trailer.
Establishes a secure connection between your major vehicle and the additional trailer; Transfers the electronic signal lights from the vehicle to trailer.
Converts the 7-pin socket on your car to the 13-pin female socket.
Supplies power to your caravan, towing and truck.
Slim line design: same diameter as a normal trailer plug and just over half the length.
Plastic housing prevents rusting and enhances appearance.
Waterproof for all road and weather conditions.

Specifications:
Item Name: 7 To 13 Pin Adapter
Material: Plastic
Color: Black
Input: 12V
Item size: 4.5(D) * 8(H)cm / 1.8(D) * 3.1(D)in

Wiring Configuration:
7 Pin Lighting Connections  -  12 N Black Cable Function
l PIN 1 - Yellow Wire (Left/H Direction Indicator)
l PIN 2 - Blue Wire ( Rear Fog Lamps )
l PIN 3 - White Wire ( Earth Return )
l PIN 4 - Green Wire (Right/H Direction Indicator)
l PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
l PIN 6 - Red Wire (Brake lights)
l PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
13 Pin Lighting Connections – Cable Function
l Pin1 - Yellow  Wire ( Left Indicator )
l Pin2 - Blue Wire ( Fog Light )
l Pin3 -  White Wire ( Earth Return )
l Pin4 - Green Wire ( Right Indicator )
l Pin5 - Brown Wire ( Right tail / Side Light )
l Pin6 - Red Wire ( Brake / Stop Lights )
l Pin7 - Black Wire ( Left tail / Side Light )
l Pin8 - Pink  Wire ( Reversing Light )
l Pin9 -  Orange Wire ( 12V Pemanent power from battery )
l Pin10 - Grey Wire ( 12V Ignition on ( Battery charging or Fridge )
l Pin11 -  White / Black Wire ( Earth for Teminal 10 )
l Pin 12 - White / Blue Wire  ( NOT usually used )
l Pin 13 -  White / Red Wire ( Earth for Teminal 9 )

Package Includes:
1 * 7 To 13 Pin Adapter

See more product details

1.【Prevent Rust】The advantage of the Trailer Connector is that it comes with a waterproof cover to better protect the electric plug when not using the towing adapter. Increase the service life of the adapter, the high-quality shell can prevent rust

2.【Transmitting Signals】Because the main function of the 7-Pin Trailer Connector is to establish a secure connection between your main vehicle and the attached trailer. Useful for transmitting electronic signal lights from the vehicle to the trailer

3.【Thin Wire Design】Because Trailer Plugs adopt a thin wire design, this makes it the same diameter as a normal trailer plug, and just half the length, which is very practical.

4.【Simple to Carry】7 Pin Trailer Plug is small in size and dimensions, so it is very convenient to carry, in addition, you can also put it at home or in the car storage box for emergencies.

5.【Multiple Uses】The advantage of Trailer Light Plug is that it can be used in a very wide range, suitable for trailers, yachts, motorcycles, RV European standard trailers, etc.
