Driintel 79GHz77GHz RCTA AOA Millimeter Wave Radar Blind Spot Detection System BSD BSM BSA Microwave Radar Blind Spot Monitoring

★This radar blind spot detectors system is a vehicle assistance device that helps driver lane changing safely during driving.

★Adopting the most sensitive 77GHZ millimeter wave radar sensor, Detects whether a moving object enters the blind spot of the detection range on the side/rear of the vehicle.

★【Distinguish fixed or moving object alarm】 Fixed objects do not give an alarm, while cars, pedestrians, bicycles, motorcycles, etc. in motion will give an alarm when detected.

★【Long Detecting Distance】When the system is on, the system would start detecting moving objectsobjects in the blind area behind the vehicle 26*230 ft.

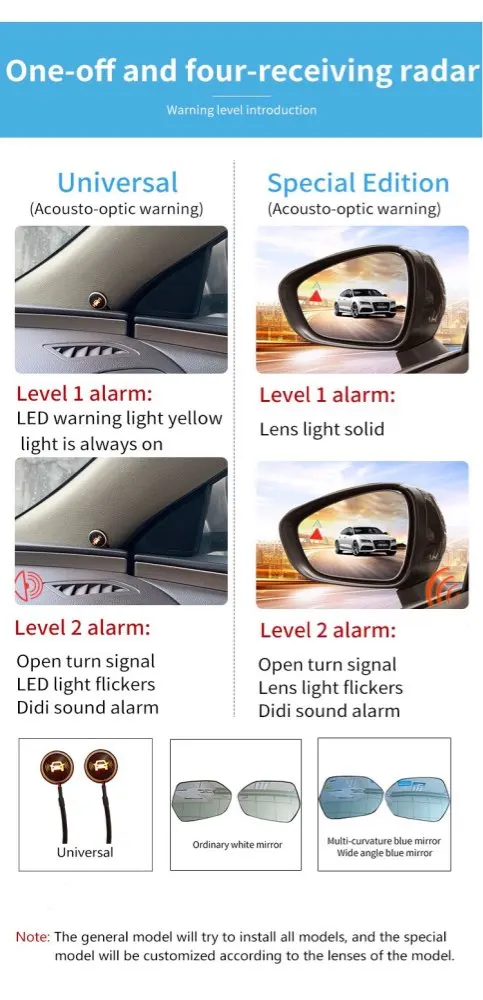

★【Warning Alarm Function】No matter it's night time, in rain, in fog or even in the snow,, Whenever a moving object suddenly enters the detection range, the LED flashes and the buzzer sounds to remind the driver.

★【6 Assistance Features】BSD - Blind Spot Detection; LCA - Lane change assistance; DOW - Open door warning; RCTA - Rear Cross Traffic Alert; AOA - Active overtaking warning; Follow-up warning for B-pillar driving at the same speed; Help drivers avoid the side crash accident more effectively.

【Note】

★ 77GHZ-023 is only suitable for vehicles equipped with non-metallic rear bumpers.

★ 77GHZ-021 is suitable for vehicles with metal and plastic bumpers

★ 【Applicable vehicle models】
✓ Commercial vehicle ✓ SUV ✓ Sedan ✓ Minivan ✓ Pickup

PS:Standard cable, suitable for vehicles with a body length of 4.7 meters. If the length exceeds this, please purchase an extension cable from our company.

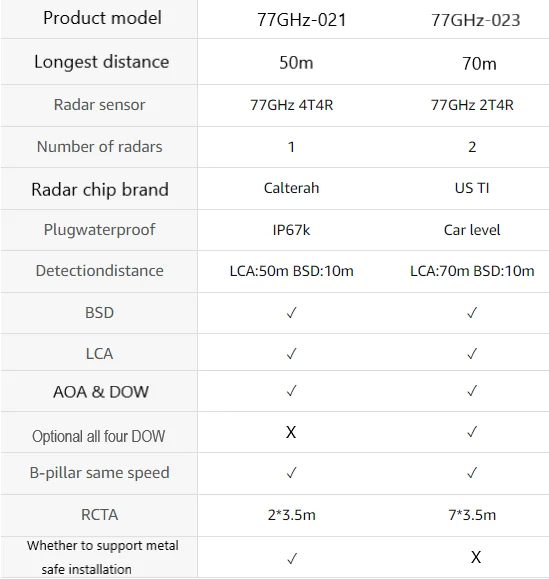

Product parameter comparison

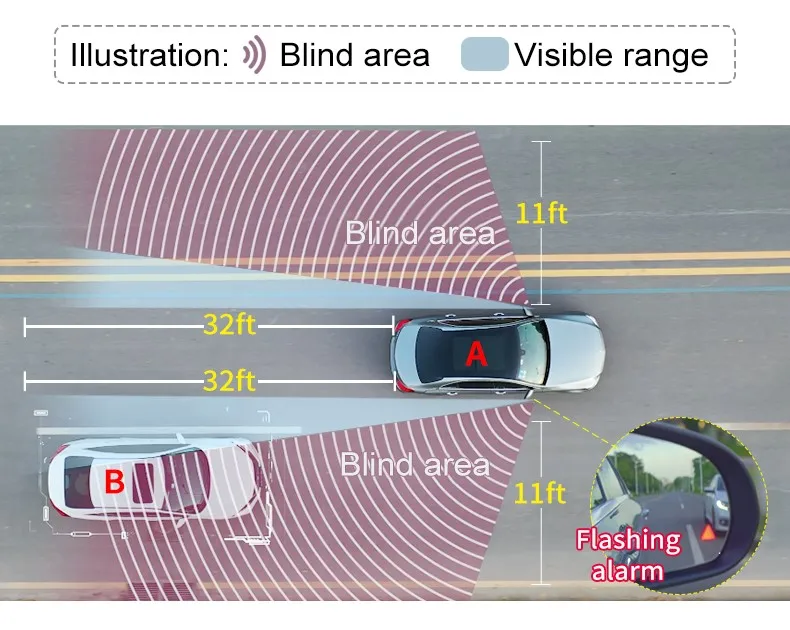

Why do we need blind spot monitoring?

Vehicle rearview mirrors have blind spots, especially within 8 meters behind the side of the B-pillar of the car, which is a very dangerous driving blind zone, which can easily endanger driving safety!

The system is a vehicle auxiliary equipment, which can help drivers safely change lanes while driving.

When BSM BSD millimeter wave radar is installed in your car, as long as there are moving objects in the rear of the vehicle, the LED lights will flash, no matter in the day, night or even in the snow. The sound signal reminds the driver to be careful when changing lanes to avoid the possibility of side collision.

Advantage 1: Driintel fourth generation product

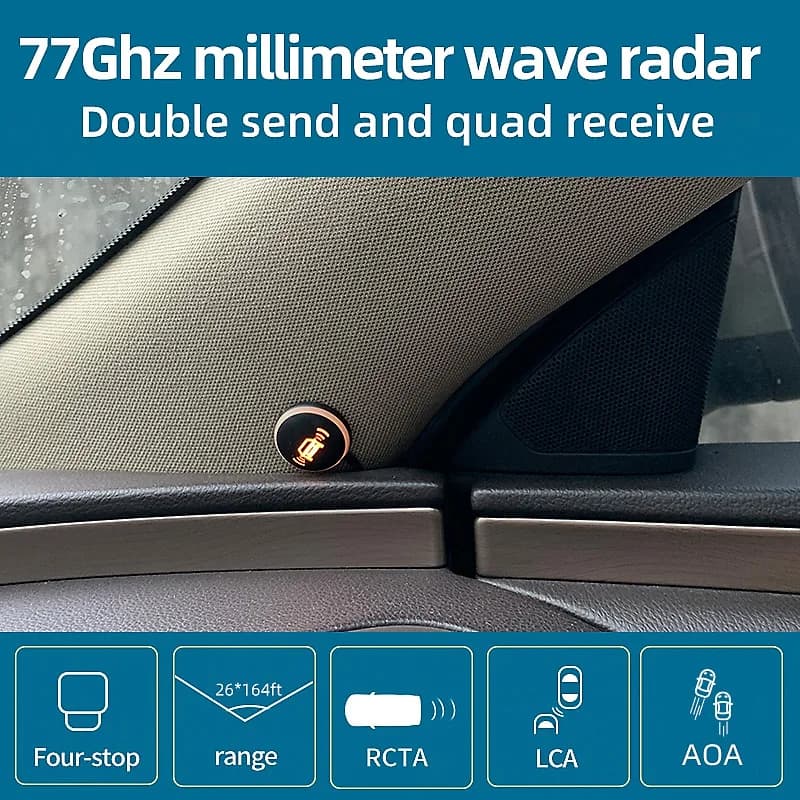

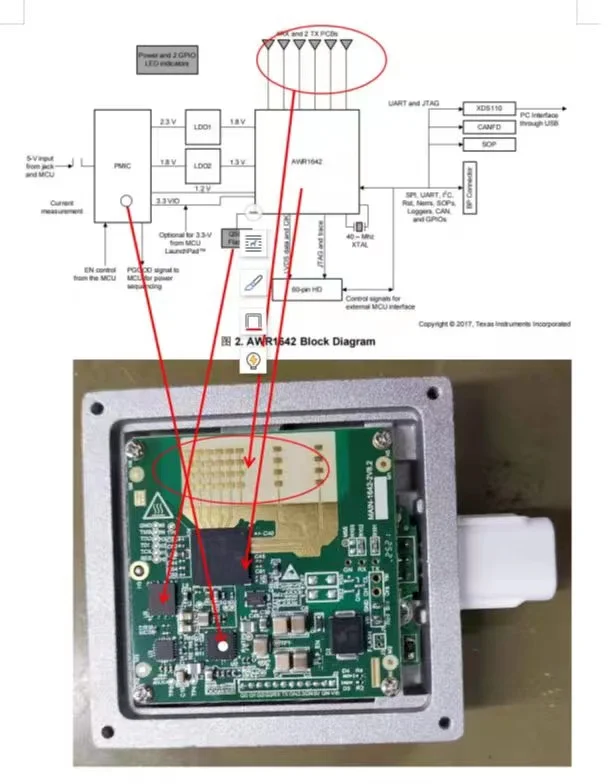

1.Using 77GHz 2T4R/4R4T radar sensors.

2.Has higher sensitivity, faster transmission speed and more accuracy. Same as the original factory standard radar chip.

3.There will be no false alarms or few/missing alarms.

4.Improve false alarms caused by green belts or rain and fog weather (except heavy rainstorms).

5.Radar accuracy algorithm: When the speed difference between two vehicles exceeds 60km/h, the product can still work normally and provide distance warning.

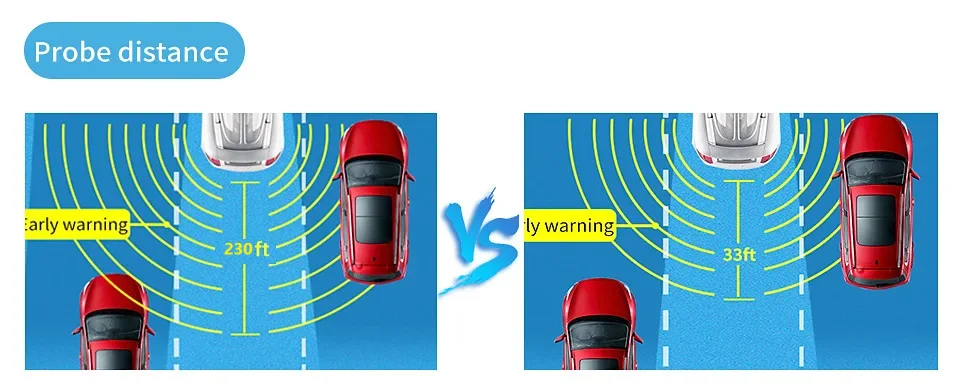

6.Detection distance up to 230 feet

★ 4th generation product can provide you with an alert at least 2.5 seconds in advance. The main function of the product is an alarm. If it is lower than this time, our brain will not have enough time to react.

Advantage 2: More powerful functions, the same functions as the products equipped by car manufacturers

1、Increase (RCTA) early warning of reverse crossing，to solve the blind zone range that cannot be seen by rearview and reversing radar;

2、Increase (LCA) intelligent parallel lane change assistant

3、Increase (AOA) active overtaking warning，

4. Increase the B-pillar blind zone follow-up warning to detect vehicles driving at the same speed in the blind zone, so that it is easy to know the situation of vehicles at the same speed in advance

5.More functions,6 major functions

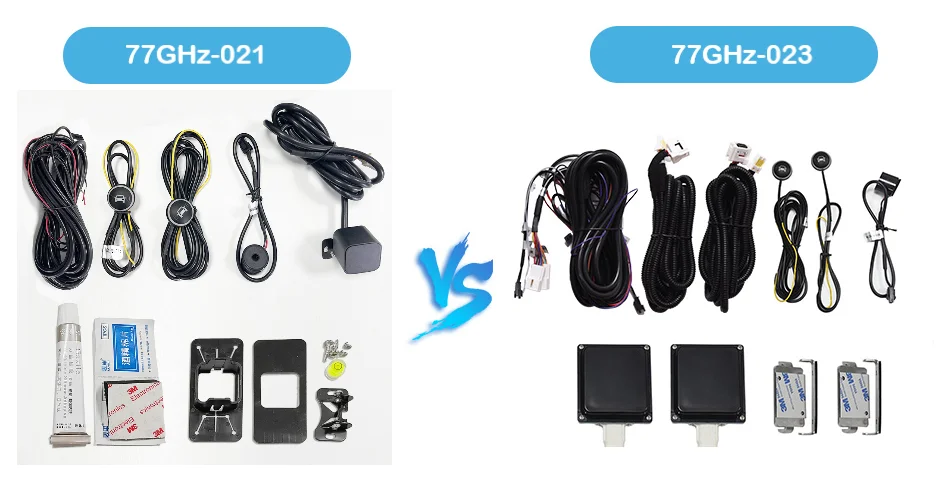

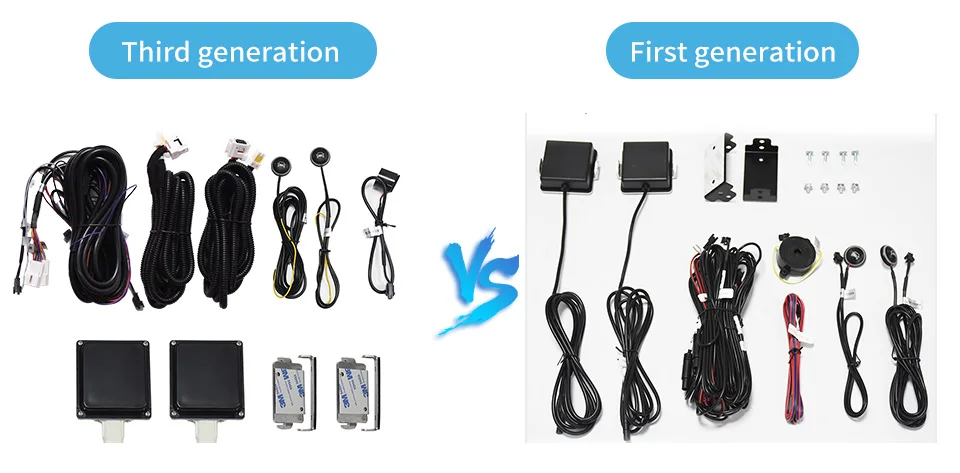

Advantage 3: Accessories comparison

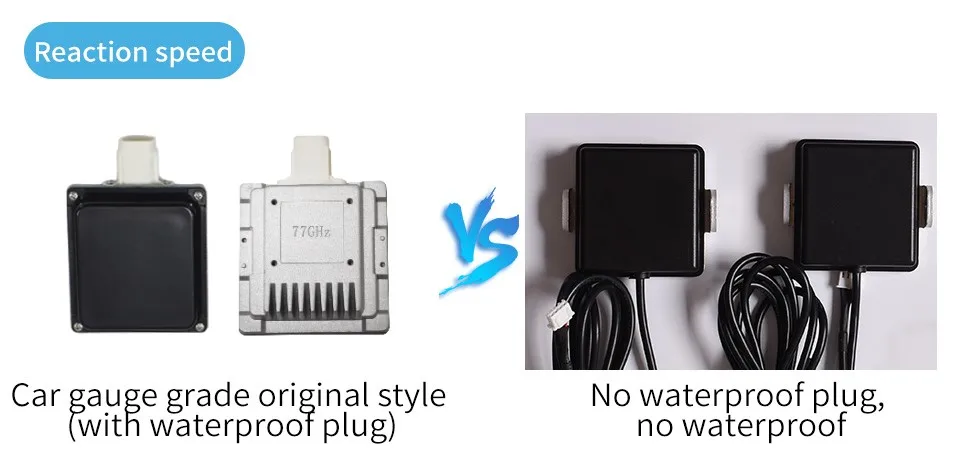

1. Automotive grade 77GHz radar sensor with waterproof plug
Use automotive-grade waterproof plugs for better waterproof performance
Radar sensor plug connection for easy installation and later maintenance

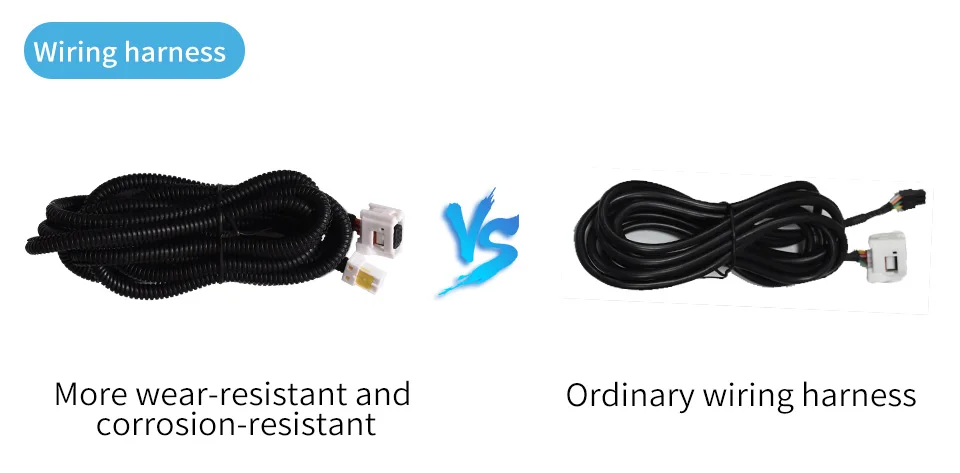

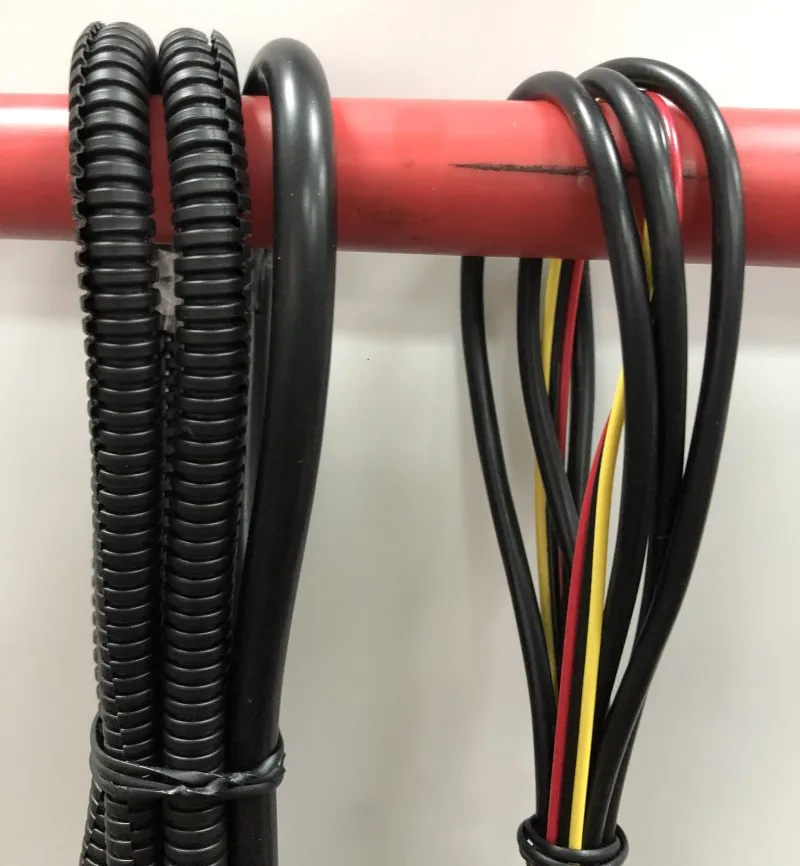

2. Thicker wire and protection
The cable core used is 2 times thicker than the market products, and the transmission speed is faster and more stable.

Add a cable protection tube, the wire will be more wear-resistant, corrosion-resistant, and prevent the mouse from biting the wire, more effectively protecting the wire from wear and durability.

3. Does not occupy the original car OBD
Obtain the vehicle speed automatically, no longer need to use the OBD controller to obtain the vehicle speed;

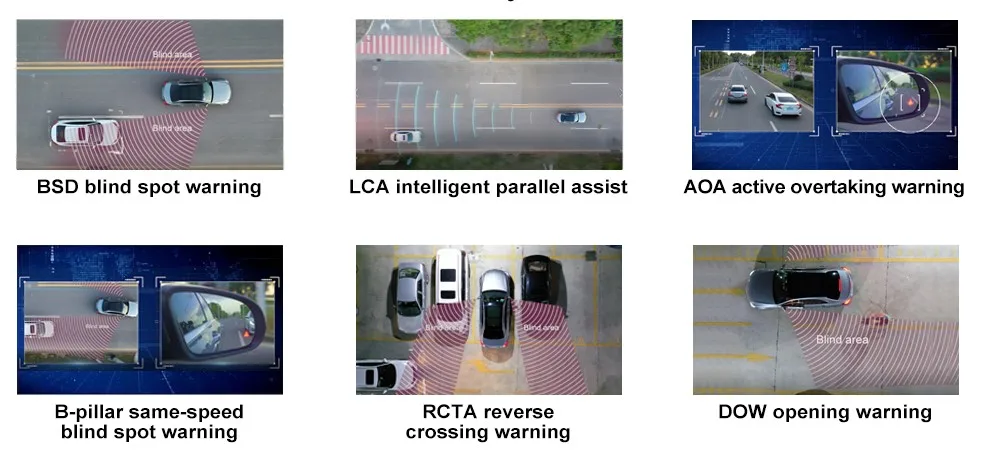

Functional Description

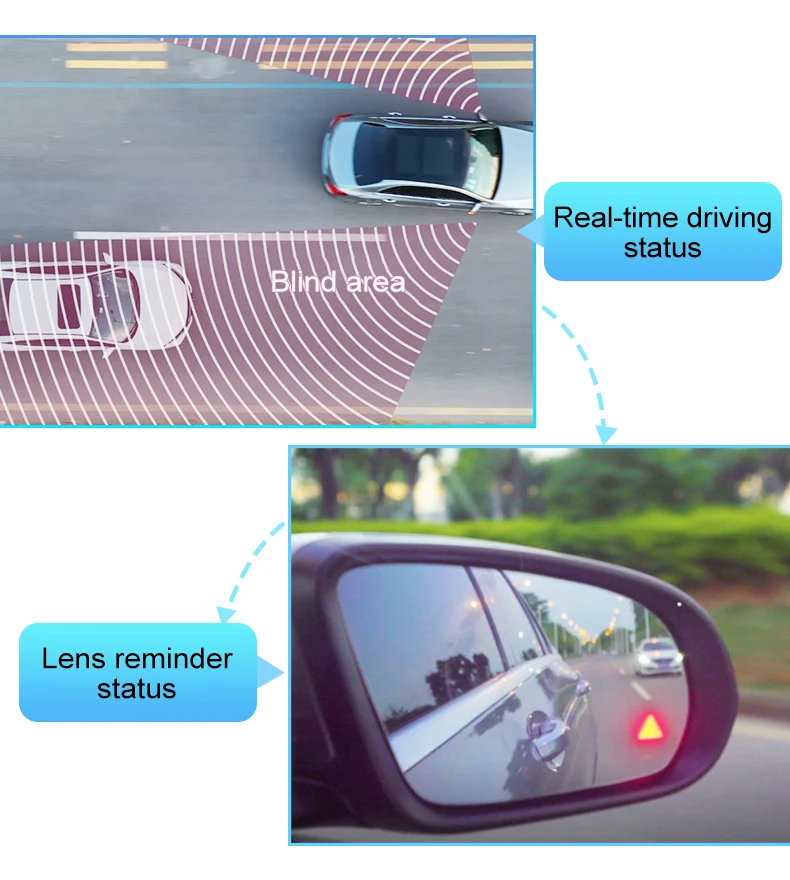

1、BSD - Blind Spot Detection

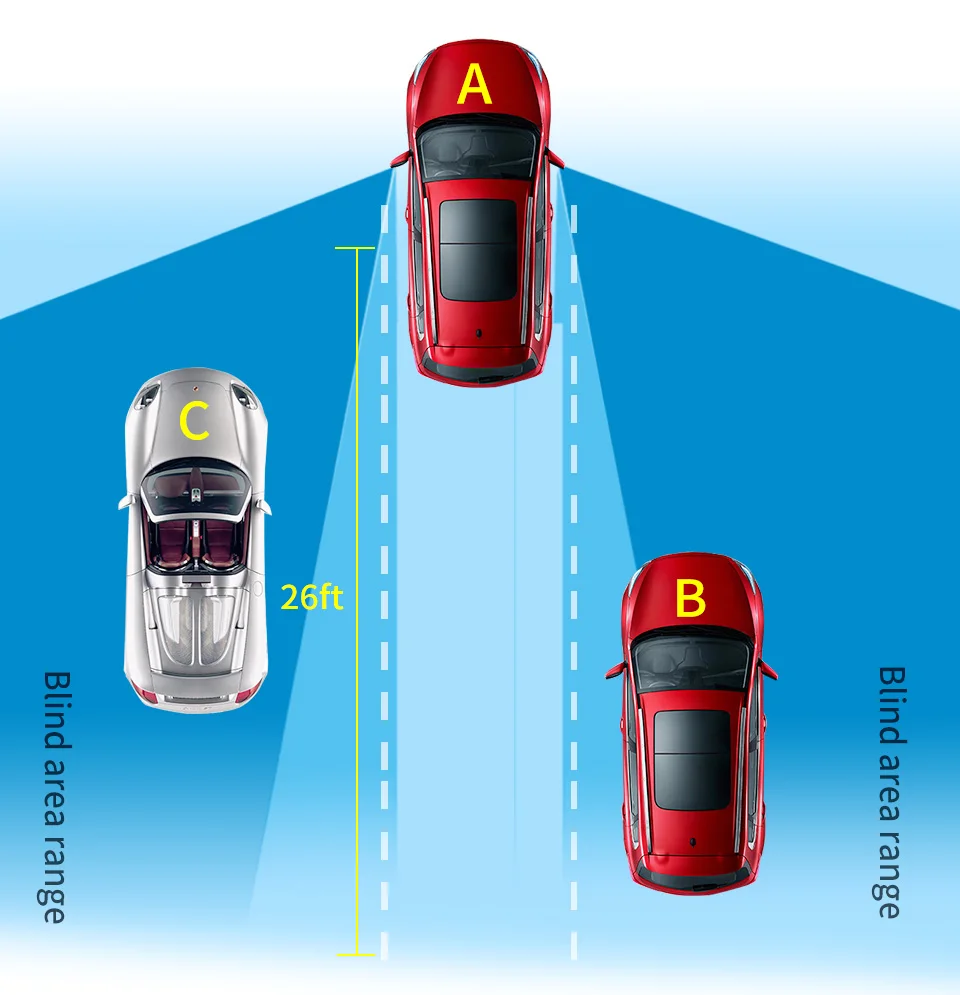

During the driving process of vehicle A, vehicle B cannot be seen from the rearview mirror. When vehicle B enters the detection area, the alarm light will light up.

In this case, vehicle A will turn on the turn signal, the alarm light will flash, and a BIBI warning prompt will be issued at the same time

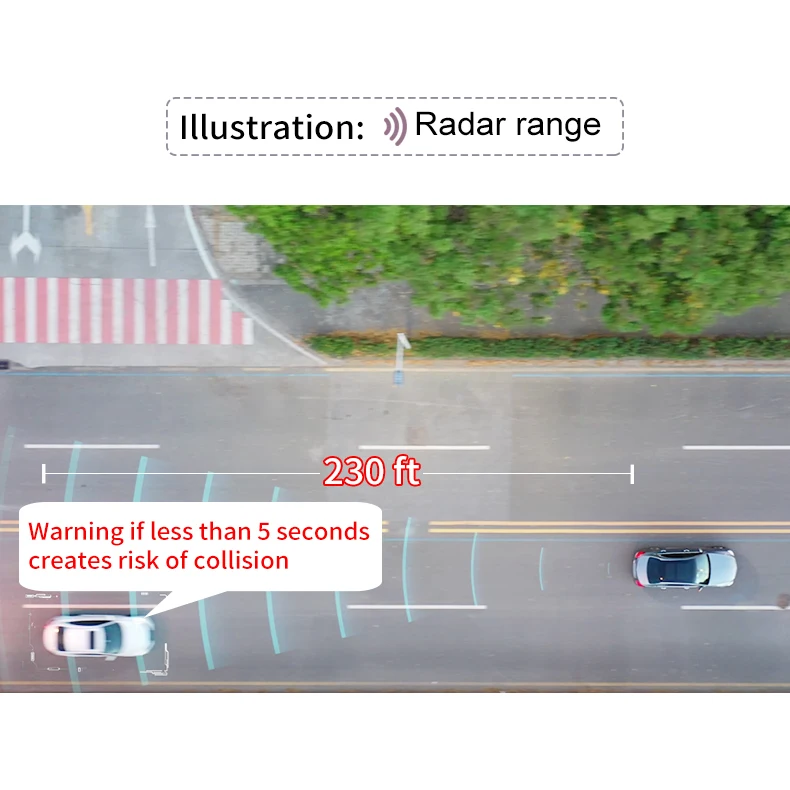

2、LCA - Lane change assistance

During the driving process, the system will automatically start the LCA function. For the target vehicle with a collision risk within 50/70 meters behind the side of the vehicle (the collision time is less than 5 seconds), the rearview mirror will light up the lighting reminder reminder

Intelligent start, avoid frequent alarm for long distances

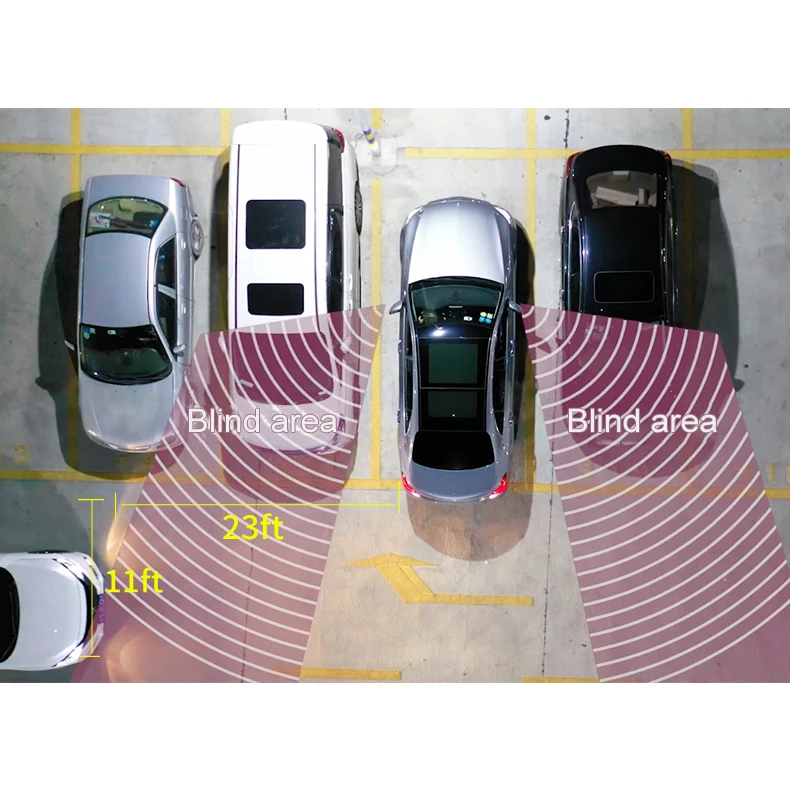

3、RCTA - Rear Cross Traffic Alert

When the driver is backing out or leaving the parking space, detect the traffic situation in the area not touched by the rearview mirror and reversing radar. Remind the driver to prevent a collision.

Detection and warning distance:
23ft (horizontal left and right) * 11ft (rear of the vehicle) When a moving object enters the warning area, LED lights and sound will remind.

77GHz-021 (2*3.5m)——6.56ft (horizontal left and right) * 11ft (rear of the vehicle)

77GHz-023 (7*3.5m),——3ft (horizontal left and right) * 11ft (rear of the vehicle)

PS: If you value this function, it is recommended to choose this 023 model

4、AOA - Active overtaking warning

When this vehicle overtakes the other vehicle and the rear vehicle enters the blind spot (10 to 33 ft behind the rearview mirror), the corresponding LED light will light up to warn.

5、B-pillar following warning at the same speed

The range of blind spots within 8 meters behind the vehicle B -pillar vehicle is detected， When the vehicles in the detection zone are traveling at the same speed, the alarm will be started to remind the owner

6、DOW - Open door warning

Door opening warning function, when parking and opening the door, it will warn the driver when a vehicle or pedestrian is detected in the rear to avoid collision with a vehicle or pedestrian in the rear when the door is opened

The product comes standard with the first two door open warning functions. The vehicle works when it is ignited and cannot work when it is turned off

If the vehicle needs to be opened to warn after it is shut down, (optional) the door opening function is required. This feature is suitable for vehicles with four doors (requires additional modules) and can work within 2 minutes after closing(77GHz-023)

Why choose us?

1. We are a manufacturer. Our products are sold directly. We guarantee stable quality and very favorable prices.

2. Our products have passed CNAS certification and EU CE certification, so you can buy them safely.

3. As a professional manufacturer of automobile safety products, we can help our buyers to solve all the problems. We are a reliable partner for you.

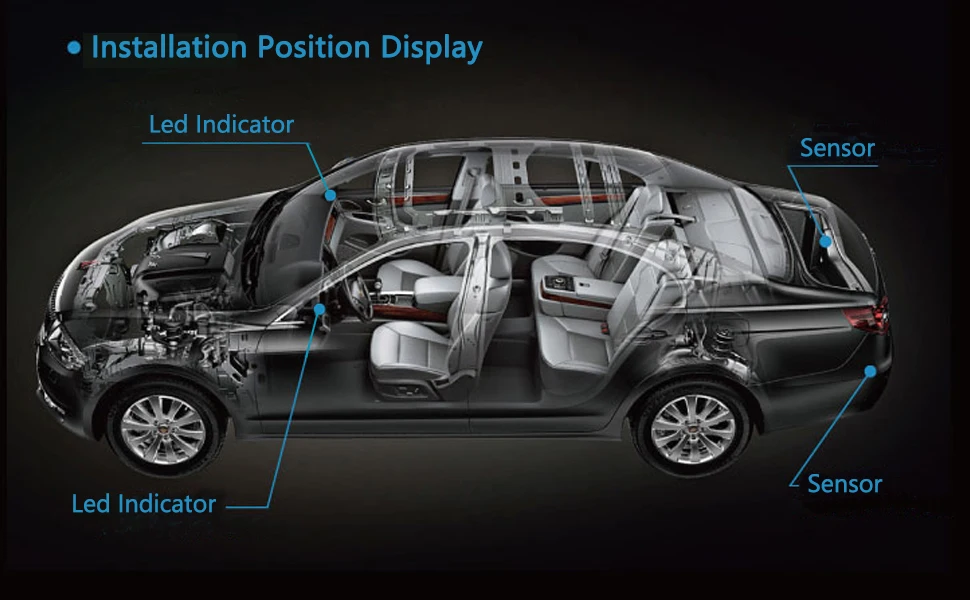

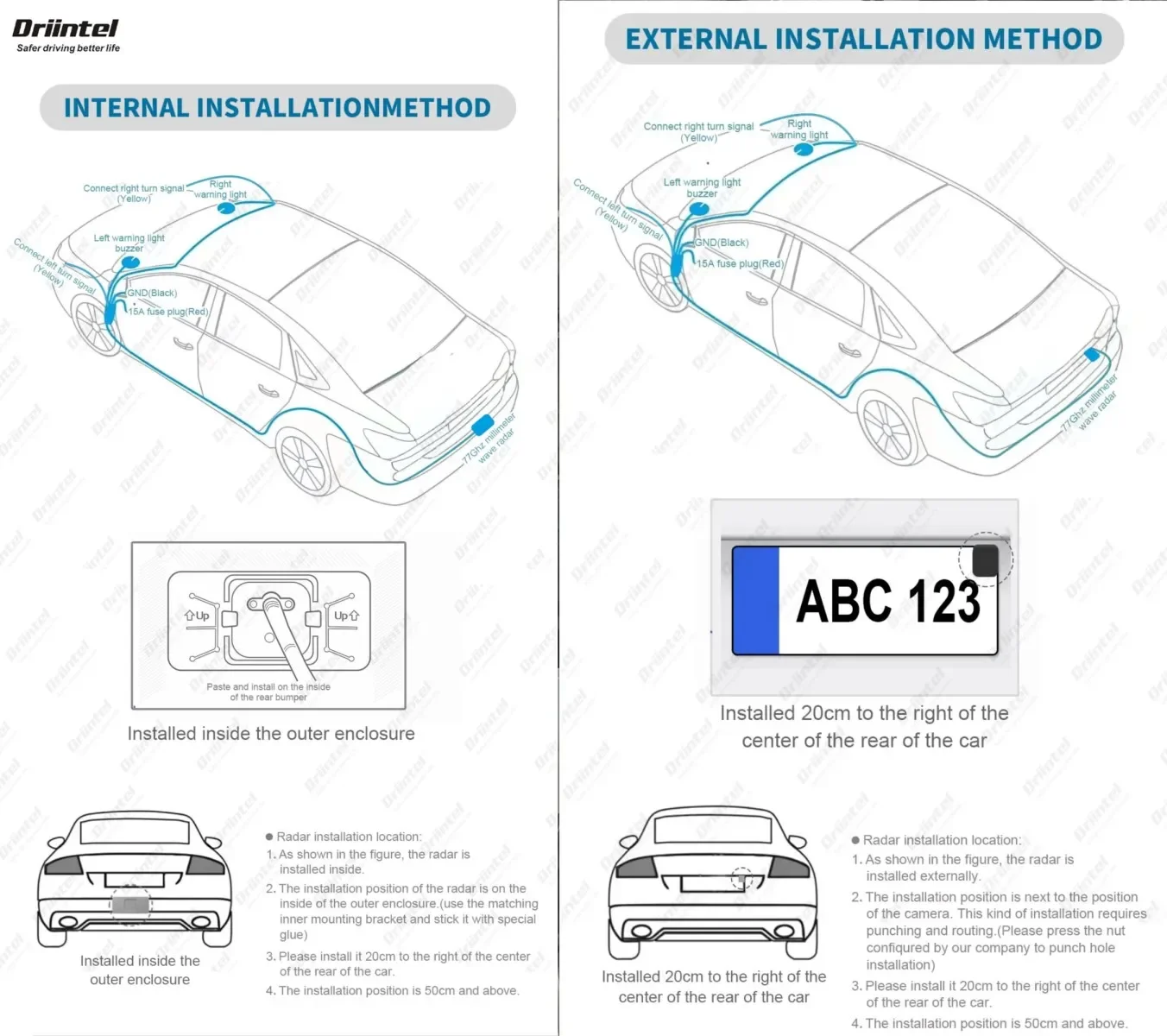

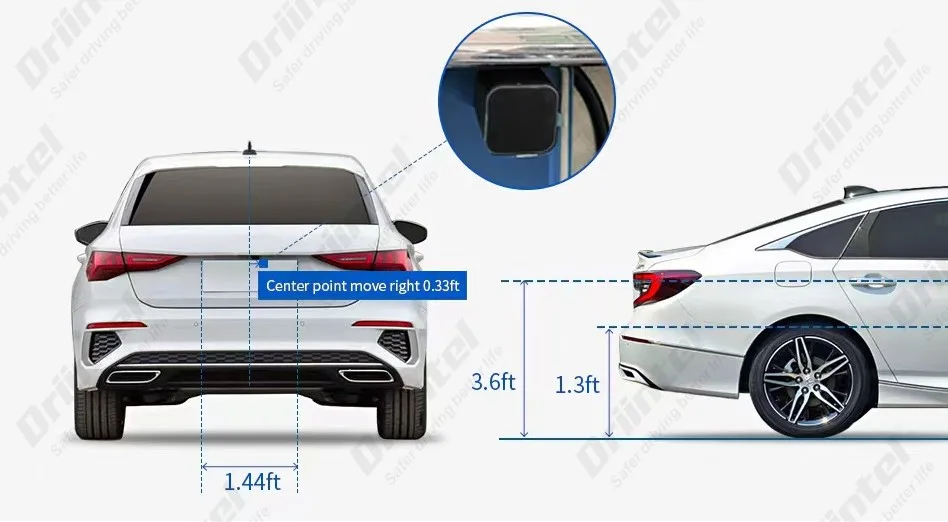

Installation bracket demonstration diagram

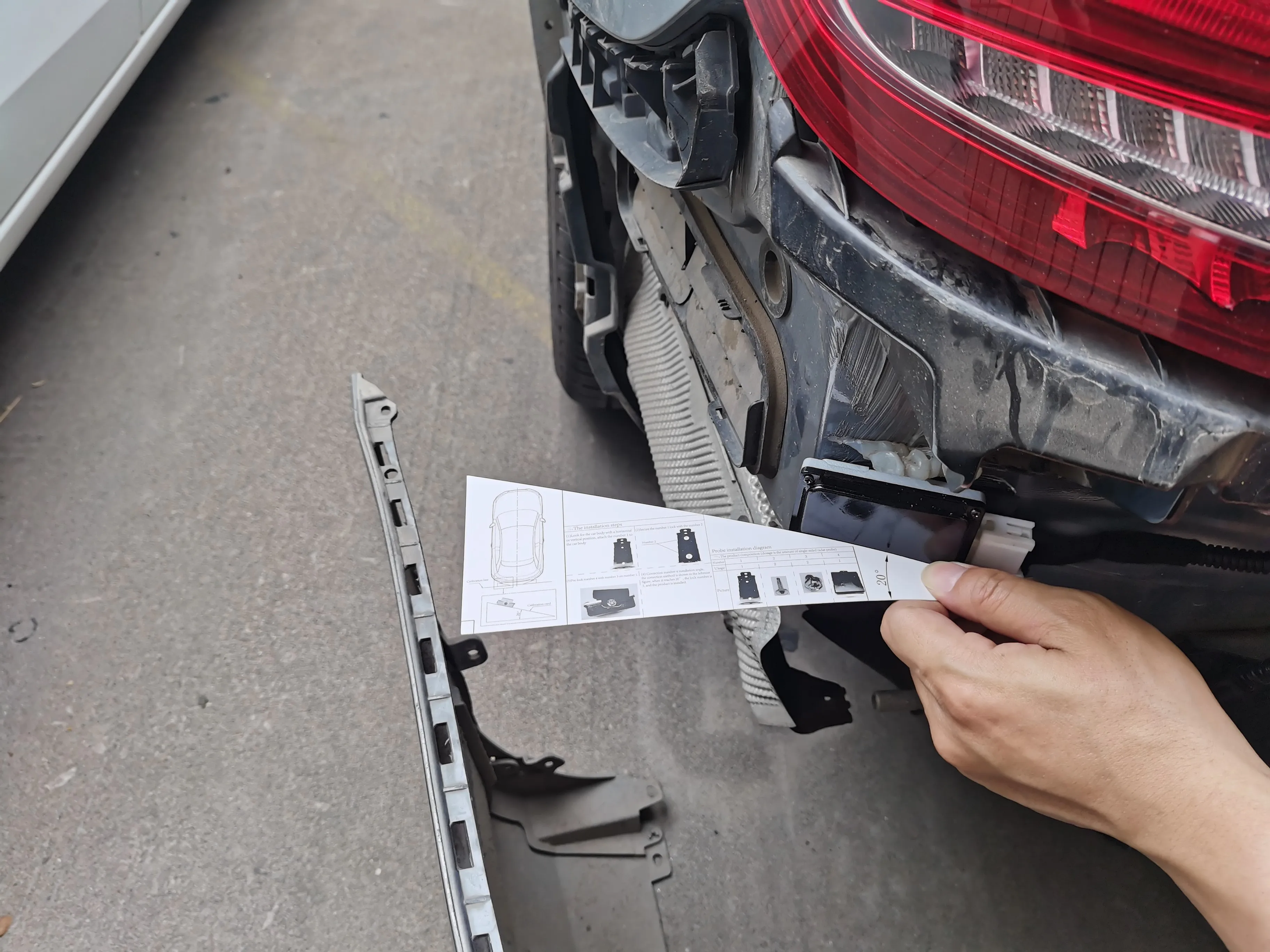

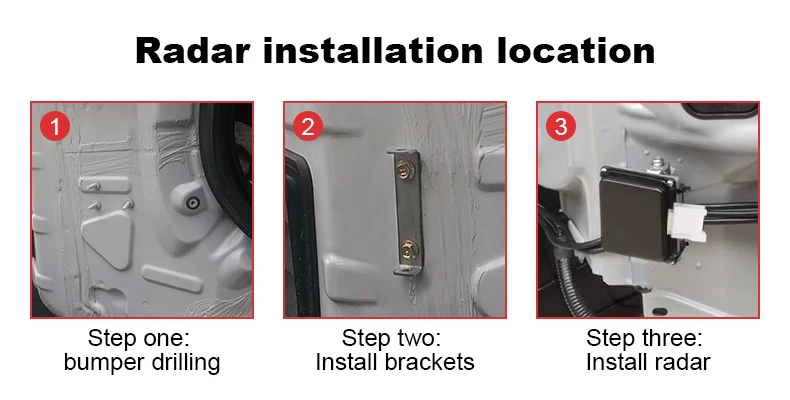

Remove the rear bumper and determine the installation position of the radar probe module. The position is located at the arc of the rear bumper of the car. After drilling, the base of the probe bracket is installed.

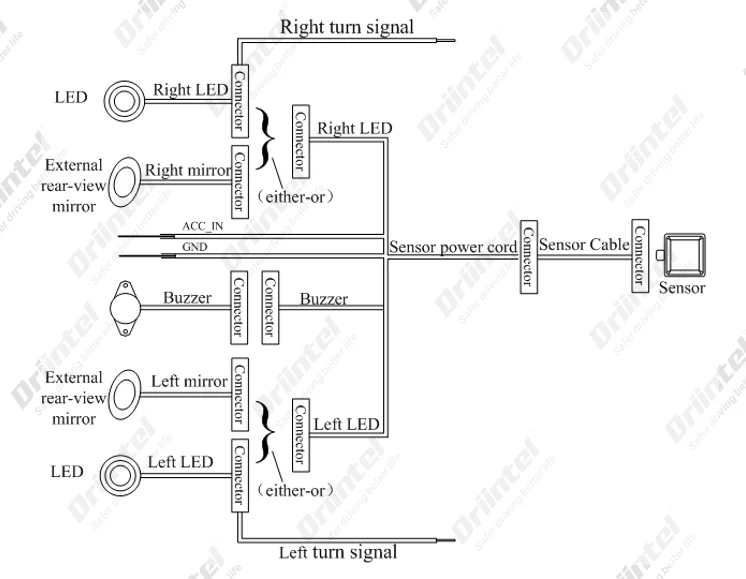

77GHz-023 Circuit Diagram

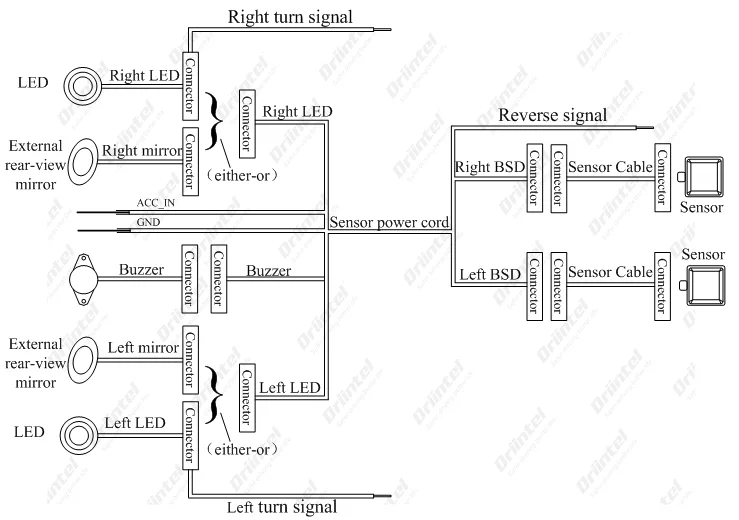

77GHz-021 Circuit Diagram

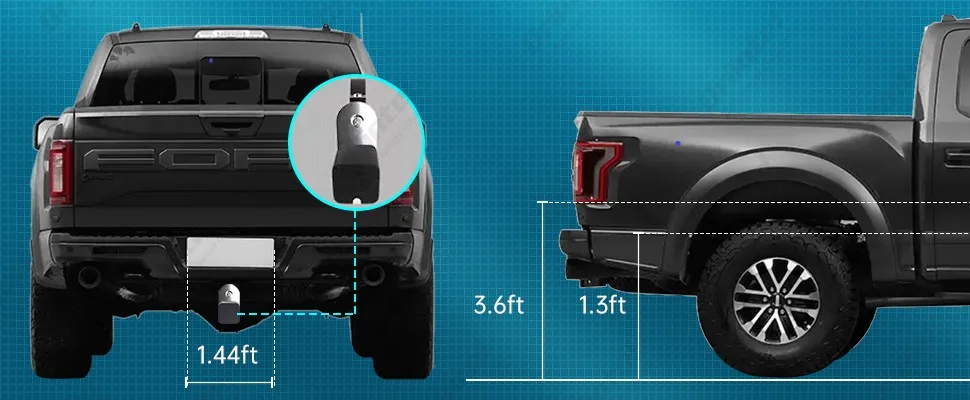

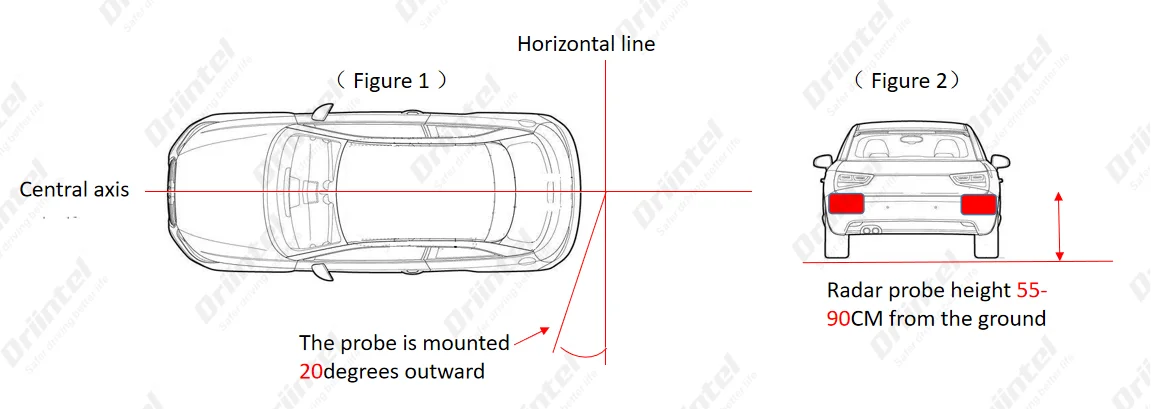

*Note: The installation angle and height of the radar probe are very important.

For the best experience, please install at the above height. The radar probe is vertical and must not be tilted to the ground. The left and right sides are inclined outward by 20 degrees.

Please use the angle calibration scale and calibration line in the accessory to calibrate according to the calibration method.

The radar probe can't be installed on the taillight, the reversing radar, and the metal rear to avoid the effect. The radar probe can only penetrate the plastic.
