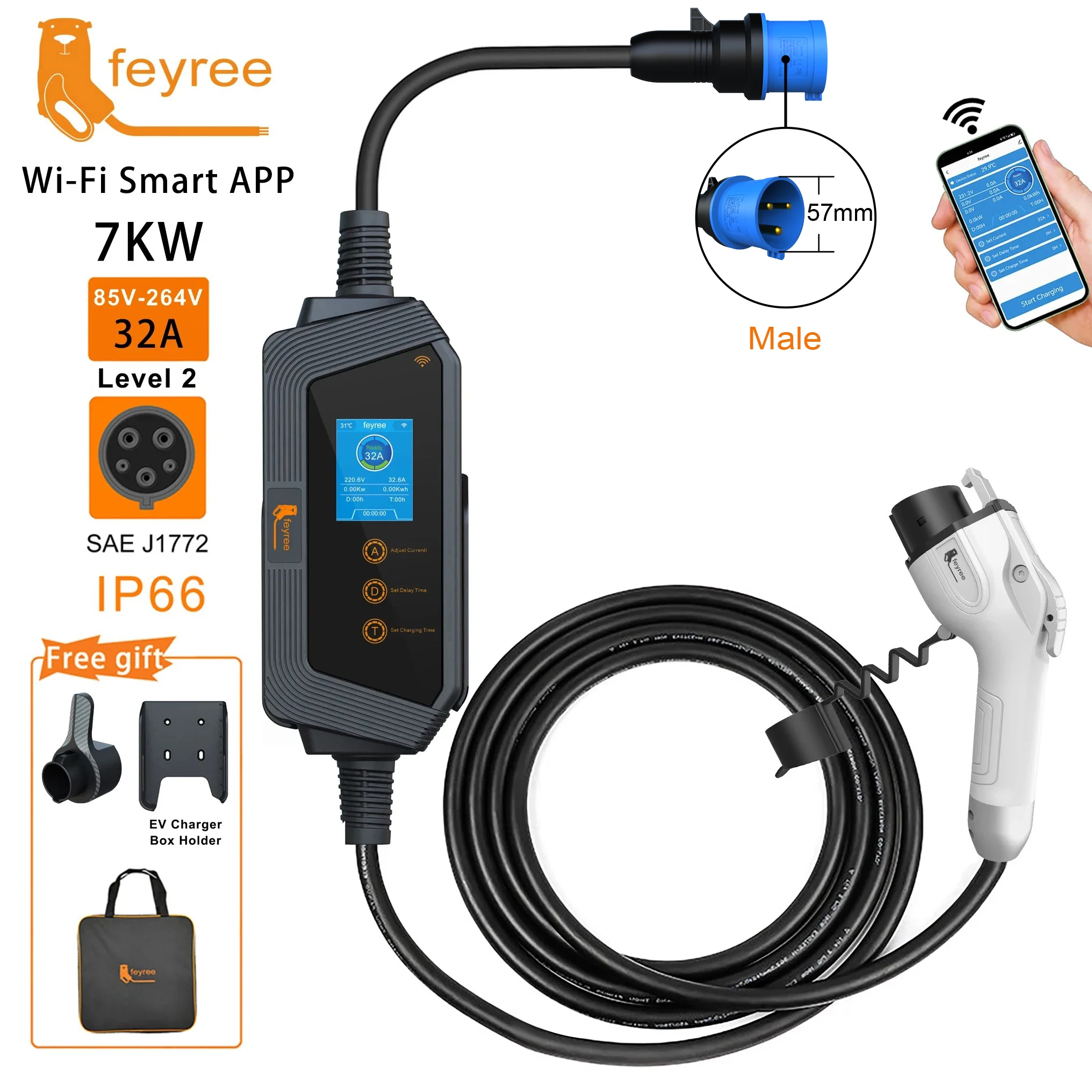

Feyree Type1 Portable EV Charger 7KW 32A 1Phase J1772 Socket with 5m Cable Smart APP WIFI Control Version for Electric Vehicle

Descriptions:

【Long Service Life】The charger adopts ePTFE (Waterproof Breathable Membrane) materials, which can automatically minimize the damage of control box due to different temperature and air pressure difference between inside and outside of heat expansion and cold contraction. The thickness of the shell has reached 3.5mm,which has superior compressive strength.

【Multi-function usage 】with a charging box holder,can meet both portable and wall mounted installation needs.

【Secure charging】Our chargers have safety protection measures such as overcurrent protection, overvoltage protection, undervoltage protection, leakage protection ( TypeA AC20mA ) , and overheating protection, with a waterproof grade of IP66.

【High flame retardant material】The gun head,cable and shell are all made of high flame-retardant materials,which meet the UL94V-0 fire protection rating ,can effectively prevent fire hazards ensure safe charging.

【Wi-Fi Smart APP, Real-time Monitor and Appoint the Charging Time】Built-in smart APP(turn on the wifi and bluetooth when add your device), you need to connect under WIFI environment, which allows your vehicles to be charged during off-peak period by setting the charging time, save money on the electricity bills. And it allows to adjust charging current range, fully-charged notification or track the charging status.

【New Design Style】 Newest Design Style, built-in capacitive touch buttons, more fashion sense of science and technology.

【3 Button Functions Available】 Setting Charging Time ("T" Button), Setting Delay Time ("D" Button) and Adjust Current before charging and Memory Charging ("A" Button).

1.Vehicle Compatibility

Compatible with J1772 charging ports. Please check your car's charging port before placing an order.

2.Type 1 charger compatible with all USA standard EVs.

3.Smart control remembers your preferred settings

Once you select your car's recommended current from 8A, 10A, 13A,16A, 20A, 25A or 32A, the unit will automatically set the same level for your next charge.

4.Detailed 2.8 inch LED display provides at-a-glance information

Easily read the charging temperature, current, time and power status in kWh on the convenient screen.

5. Safety features protect your vehicle

The surge box safeguards against leaks, high or low voltage, overloading, lightning and overheating.

Notice : Adjust the current setting by pushing the button. While you adjust the current, the power plug should be connected , and the car side J1772 plug should be disconnected.  After selecting the proper current, plug the charger into your car's port and start charging. And please power off the station before your pull out the charging plug ;

Specifications

Total Length: 5 Meters

Interchange part number: Type1 J1772

Material: thermoplastic and copper

Insulation resistance: > 1000MD (DC500V)

Terminal temperature rise:< 50K

Housing Fire Rating:UL94V-0
