5YOA Magnetic Lock Electronic Door Lock Electric Gate Opener Suction Holding Force Electromagnetic for Access Control System

Magnetic Lock

The 5YOA Magnetic Lock is a powerful and secure way to lock and unlock doors and gates.

Electromagnetic Suction Holding Force

The electromagnetic suction holding force ensures that the door or gate stays securely locked or unlocked.

Access Control System

The 5YOA Magnetic Lock is part of an access control system that allows for easy and secure access to your property.

Electric Gate Opener

The 5YOA Magnetic Lock can also be used as an electric gate opener, making it a versatile and practical solution for securing your property.

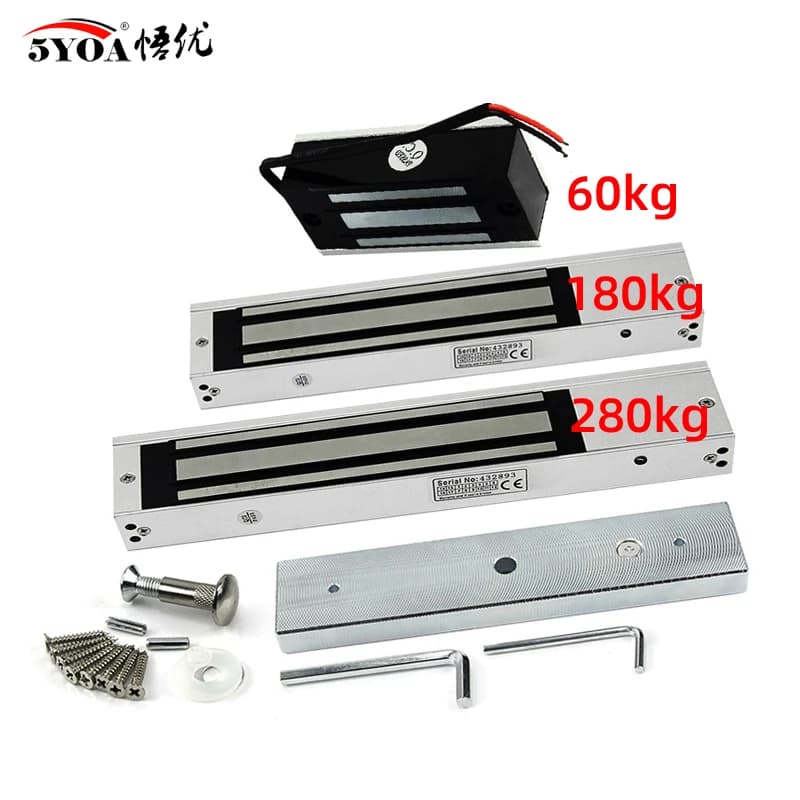

How to Choose?

60kg magnetic lock is for box case.

180kg or 280kg is for door eletric lock, if need stronger force, 280kg is recomended.

60kg Magnetic Lock

Lock dimensions: 80x40x22mm

Armature plate: 74x35x10mm

Maximum tension: 60 kg (100 lbs)

Input voltage: DC12V +10%

Operating current: 12V\/300mA

Surface temperature: Within + 20 degree below ambient temperature

Suitable temperature: -10 to 55 + degrees (14-131F)

Suitable humidity: 0 to 90% relative humidity

Shell: Anodized plating processing

Lock and suction plate processing: Environmentally friendly zinc plating processing

Weight: 0.55kg

Suitable for file cabinets, small doors, and more.

Connection diagram with access control device

Diagram with remote control

Magnetic Locks

Features:

Use magnetic power to lock the door, 180kg(350lbs)\/280kg(600lbs) holding force.

Built-in reverse current protection device (MOV).

Alluminum shell adopts high strength material, with hard anodised processing.

Corrosion resistant.

Good quality and durable to use.

Can be opened by push button, remote controller, etc.

Fit for wooden by, metal by, glass by, fireproof by, etc.

Specifications:

Holding force: 180kg(350lbs)\/280kg(600lbs)

Voltage: DC 12V

Current: 380-430mA

Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)

Humidity: 0 to 95%

Working mode: power-on to lock

Packing list:

1 Electronic magnetic lock

1 Armature plate

1 Bag of installation kit

1 Pad

Normal Magnetic Lock Connection Diagram
