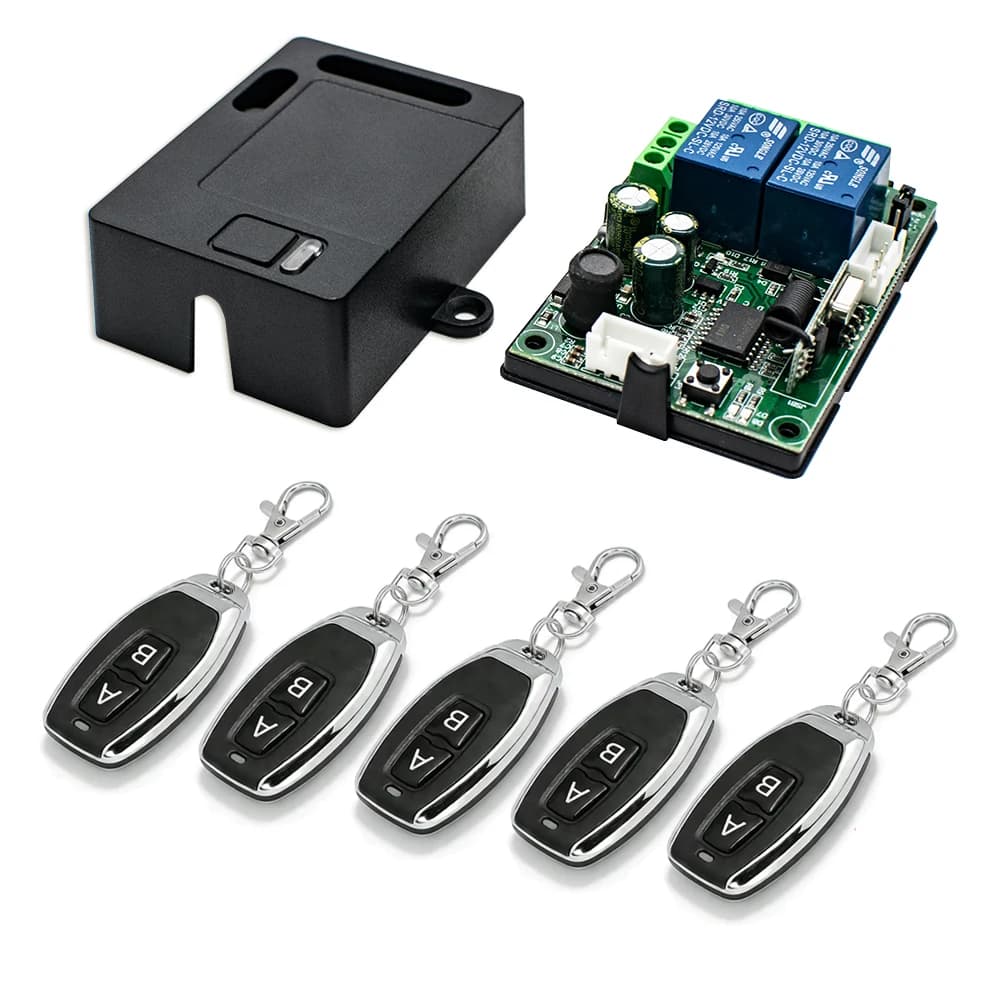

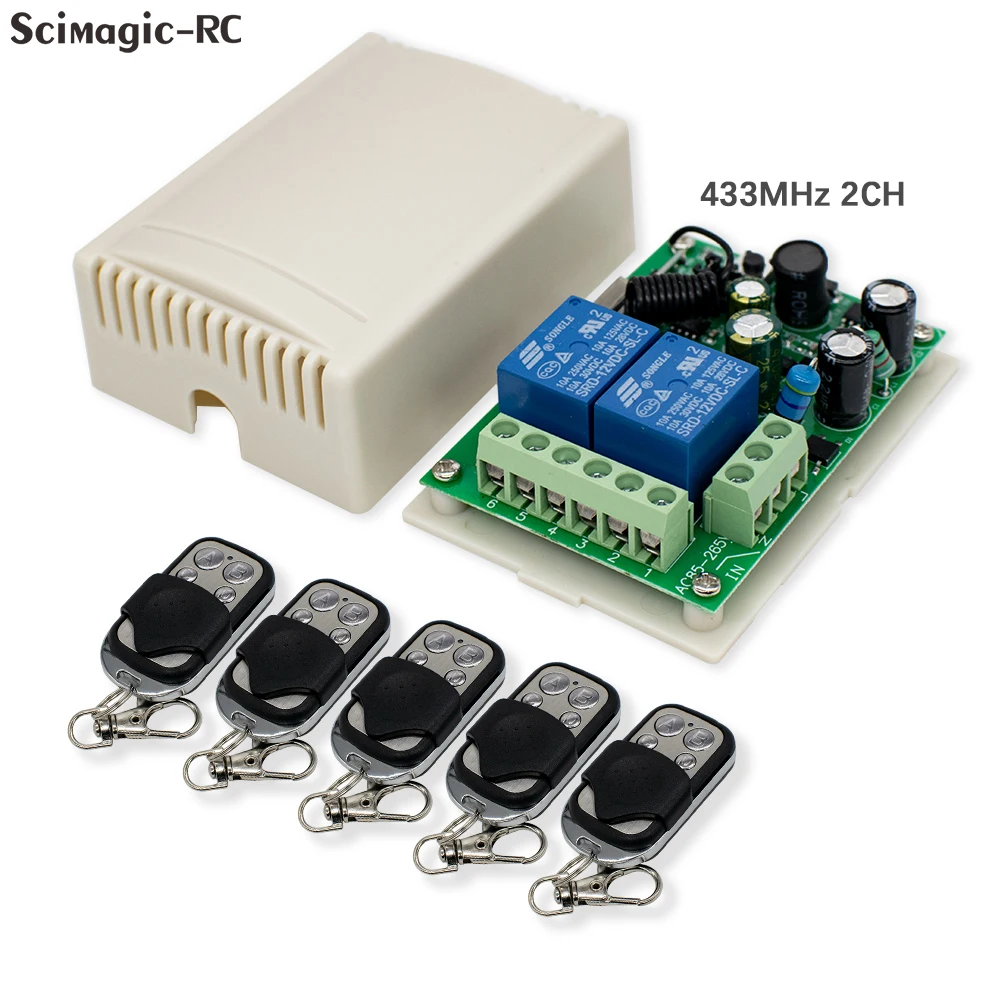

433MHz Universal Wireless Remote Control AC220V 2CH RF Relay Receiver and Transmitter for Universal Garage Door and Gate Control

433MHz Universal Wireless Remote Control AC220V 2CH rf Relay Receiver and Transmitter for Universal Garage door and gate Control

1、Technical parameters:

1. Working voltage: 85-250V
2. Static working current: ≤ 10mA
3. Working temperature:- 40°℃~ +80°C
4. Receiving sensitivity: 2-100dB
5. Operating frequency: 433.92MHz
6. Output current: ≤ 10A

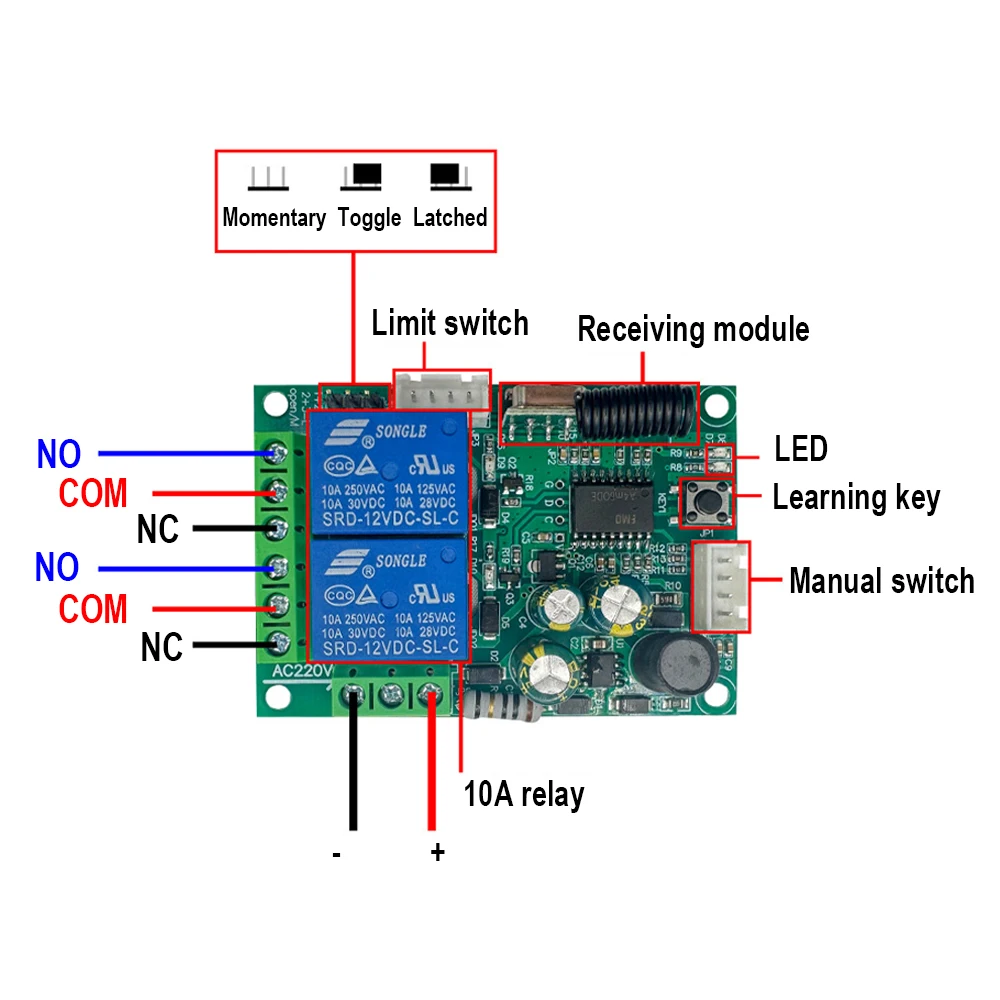

7. Working mode: jog, self-locking, interlock (jump cap switching)
8. Output mode: signal, voltage
2、Supporting methods:
After powering on, press the learning button on the control board once and the indi-
cator light will flash once. Press the A button on the remote control and the indicator
light will flash twice before turning off
Successful learning of road relay; Press the learning button on the control panel twice
again, and the indicator light will flash twice. Press the B button on the remote control
to turn on the indicator light

After flashing twice, it will turn off, and the two relays have successfully learned:
3、Code clearing method:
Press and hold the learning button for about 8 seconds, and the indicator light will go
from off to back on, indicating that all stored information has been successfully
cleared.
In jog/self-locking mode, M1 and M2 circuits work independently.

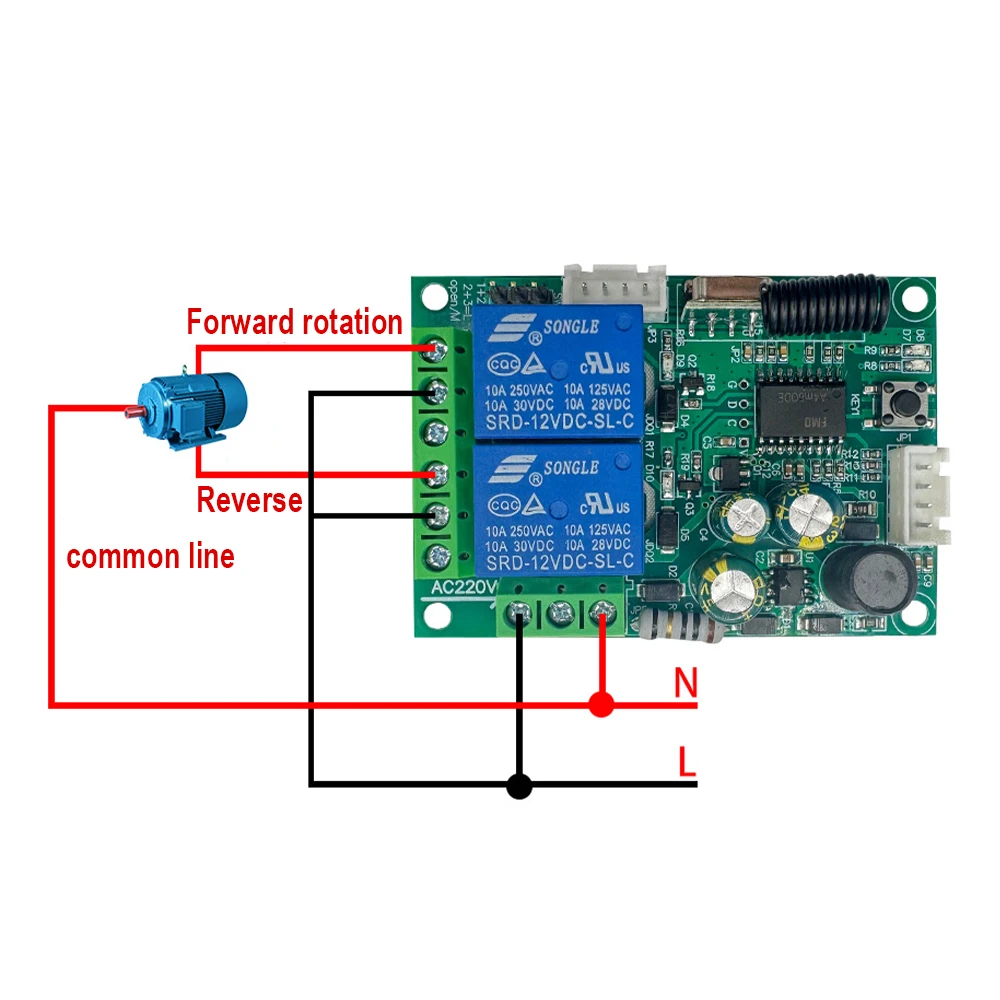

In interlock mode: M1 and M2 cannot output simultaneously

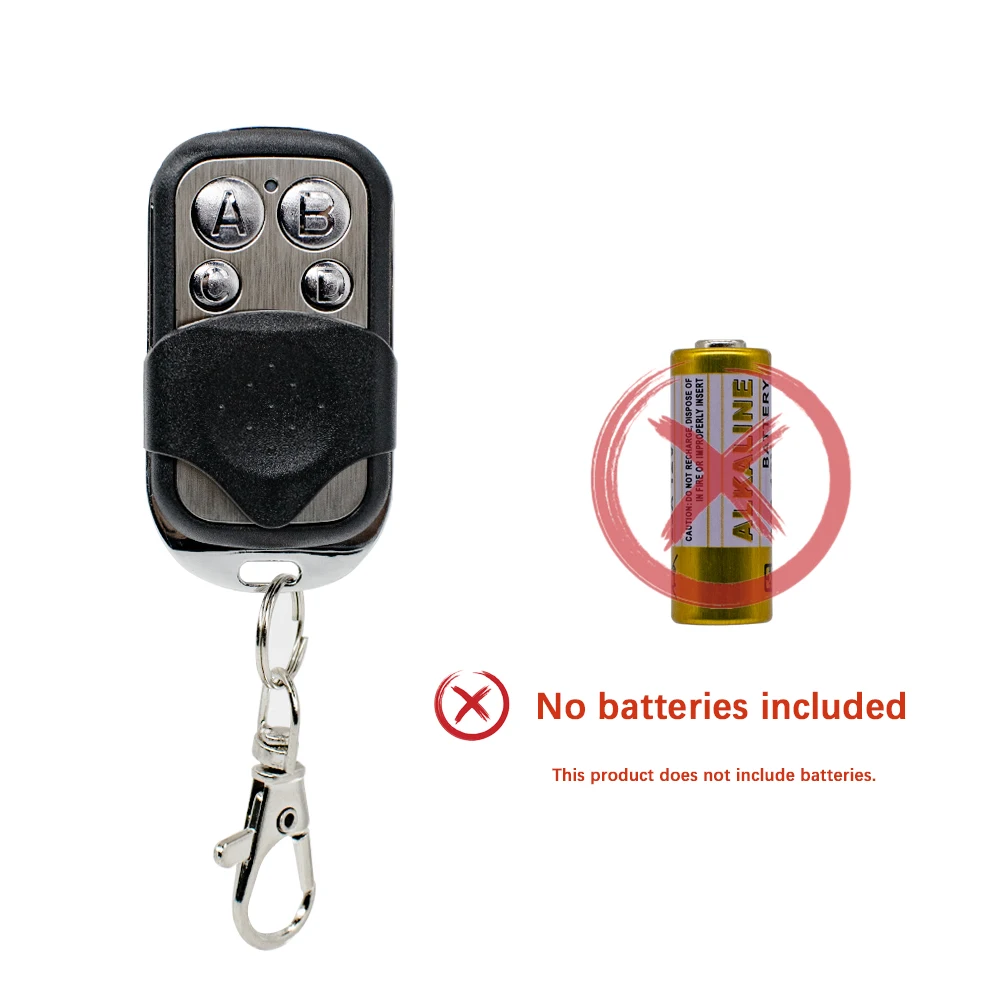

Remote Control

RF frequency : 433MHz
Support encoding : 1527 Leaning code
Transmitting range : up to 100 m (theoretical distance)
Battery : 12V 23A (Battery not included)

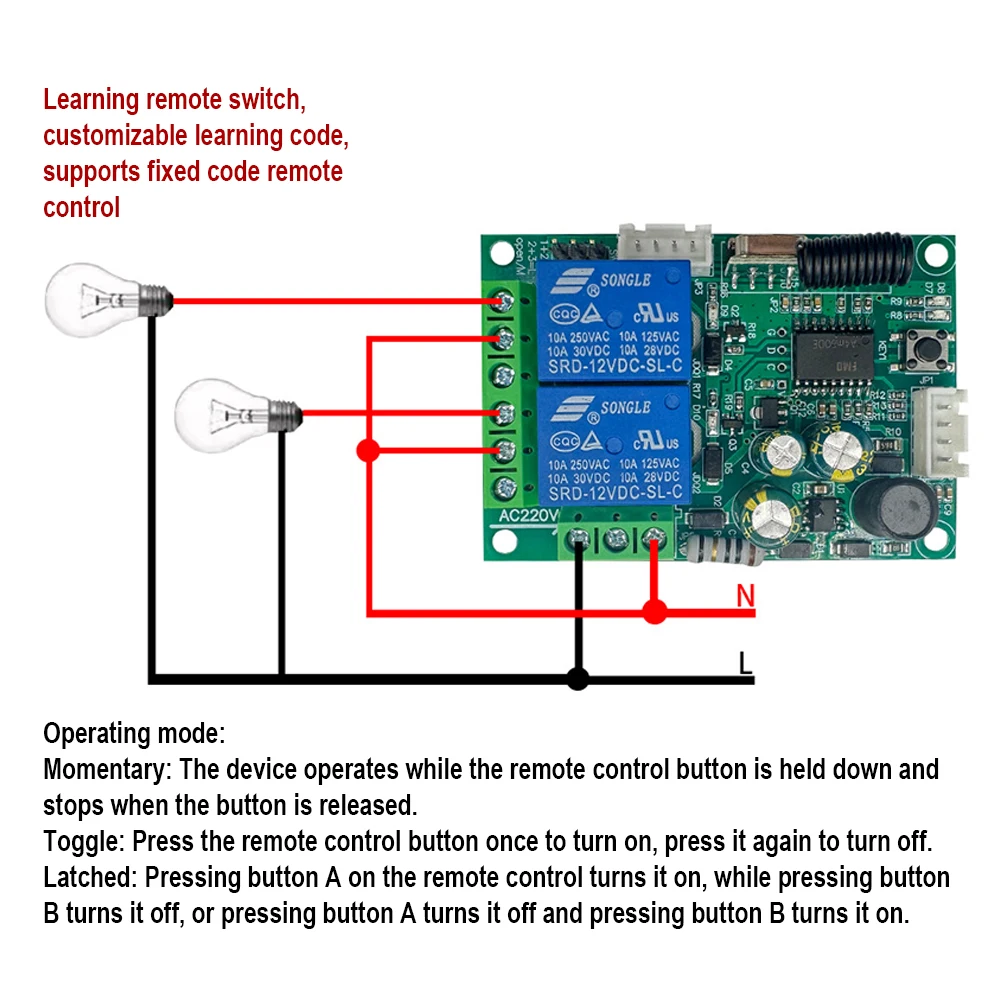

About Working Mode:

1. Momentary/Joggle:Press and hold->On; Release->Off
Keep pressing one button, the corresponding channel is working /on; Release your finger is stop/OFF. (4 channel switch(receiver) need 4 button remote control (transmitter )

2. Toggle/Self-Lock:Press->On; Press again->Off
Press one button for one time, the corresponding channel is working/on; Press the same button again to stop/OFF. (4 channel switch(receiver) need 4 button remote control (transmitter).

3. Latched/Inter-Lock:Press->on; Press other button->Off
Press one button for one time, the corresponding channel is working/on; Press another button is stop/OFF(At the same time, another corresponding channel works). (4 channel switch( receiver) need 4 buttons remote control (transmitter).

The Setting of Working Mode:

1.Momentary Mode:
Pressing the learning key button on the receiver board once (LED Indicator on receiver board will signaling simultaneously), then press any of the remote button, signaling three times by remote's LED indicator means setting Momentary Mode successfully.

2. Toggle Mode:
Pressing two times the learning key button on the receiver board twice(LED Indicator on receiver board will signaling simultaneously),then press any of the remote button , signaling three times by remote's LED means setting Toggle Mode successfully.

3.Latched Mode:
Pressing the learning key button on the receiver board three times (LED Indicator on receiver board will signaling simultaneously), then press first remote button, follow on second remote button, signaling three times by remote's LED indicator means setting Latching Mode successfully (first button stands for on, second button stands for off ).

This receiver contain 4 relays, and there are 3 terminals(normally open, common, normally closed) for each relay.This 4 relays are independent, so that you can remote control each of them independently by pressing the remote button. Each receiver can store about 25 transmitters. And One transmitter can control multiple receivers( the transmitter need to match with receiver ).For example you can use two relays to control garege door/ motor and the other two to control Lights.
