2CH Universal 433.92 MHz Garage Door Remote Control Receiver 433MHz Switch DC AC 7-32V 85-250V 220V 2 Channels RF Relay Module

Universal 433.92MHz 433MHz Garage Door Receiver 2CH AC/DC 7-32V 85-250V 220V Relay Module

Selling point

2023 New Style RF 2 Channels Universal 433MHz Garage Door Receiver.

More options, Two voltages AC DC 7-32V or AC 85-250V

Three Working mode: Momentary, Toggle, Latched

SECIFICATIONS:

1. Power supply: AC/DC 7-32V or AC 85-250V
2. Frequency: 433.92Mhz 433MHz
3. Wireless Communication: RF
4. Codes: can work with any fixed/learning/rolling codes
5. Channel:2
6. Working temperature :-40℃- + 80℃
7. Built in Aerial antenna : Reception range 10-100m
8. Material:Metal and PVC
9. SIZE:93mm*57 mm*28mm
10. Reception range: 10- 100m
11. Working mode: Momentary, Toggle, Latched
12.Use: Garage Door/Gate Door/Barrier etc

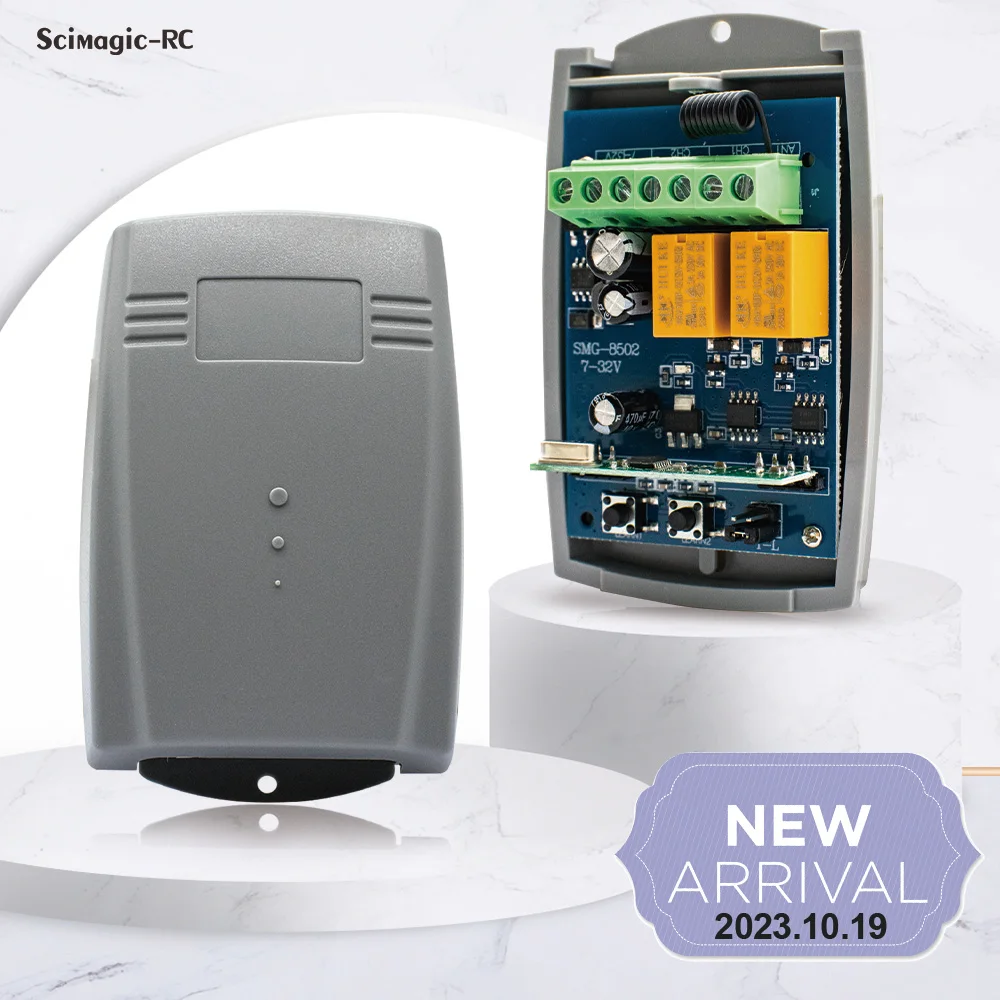

Latest model launched on 19 October 2023

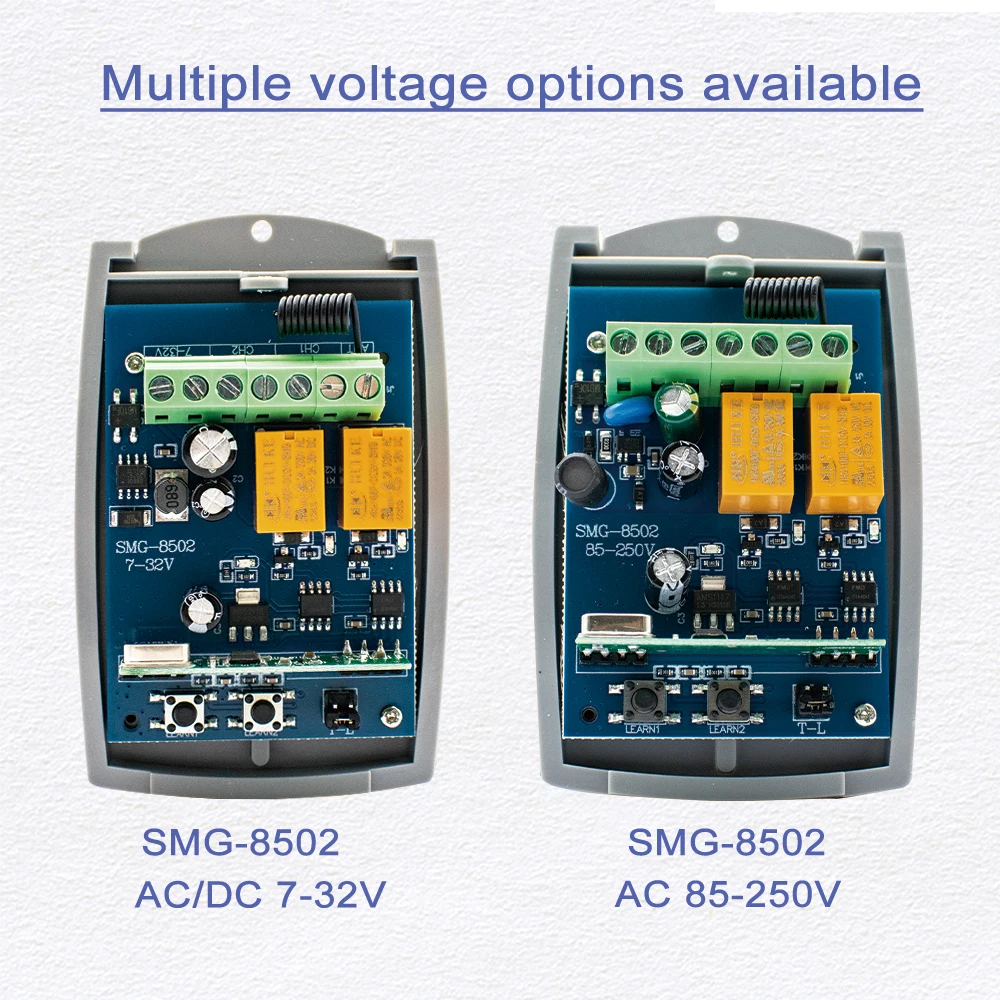

More options,Two voltages AC DC 7-32V or AC 85-250V

Three Working mode: Momentary, Toggle, Latched

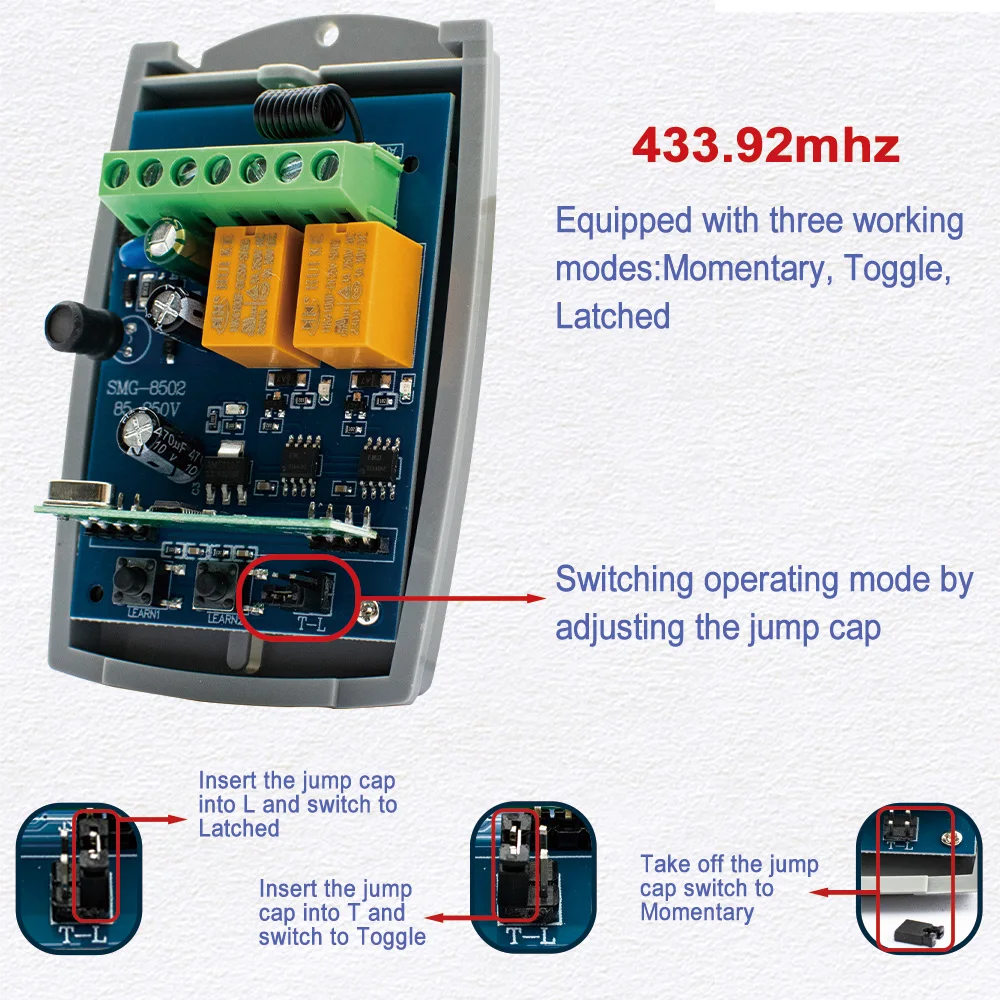

Use jump caps to switch between different operating modes

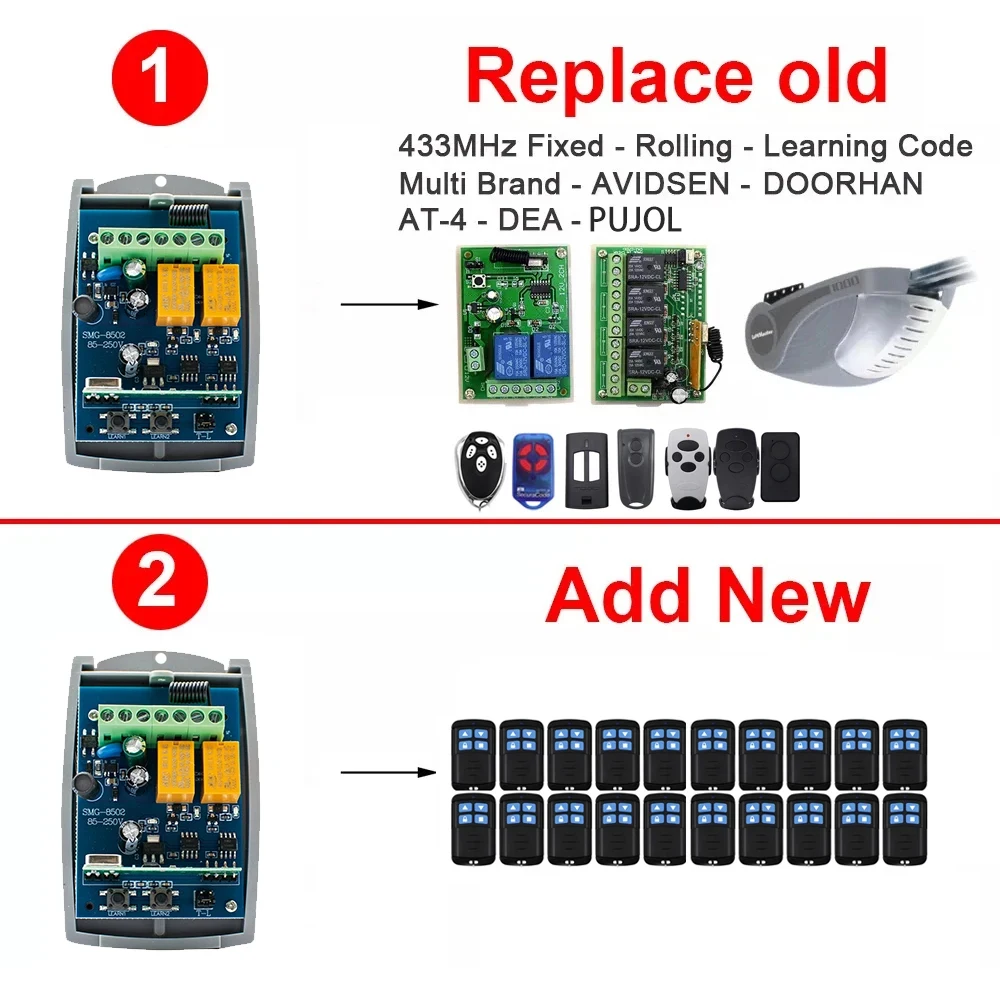

Replace old, add new

You can use it to replace your old receiver, or add our remote control to use.Compatible with many different brands of remote controls

Features

The product is a universal 2 channels receiver and it can be matched with the majority of the 433mhz 433.92mhz wireless transmitter in the market.

Comaptible with fixed code ( 2262, 2260,2264,5326,M1E,M5E etc ),

Comaptible with learning code ( 1527, 2240, 6P20B, 6P20D etc ).

Comaptible with rolling code ( HCS301 HCS300,HCS200 HCS201 HSC100 HCS1O1 etc ).

Comaptible with brand remotes:DEA,AT-4, PUJOL,BENINCA 2WV, DOORHAN,ATA PTX4, ECOSTAR and so on.

Note

Not compatile with PIC******* serial code

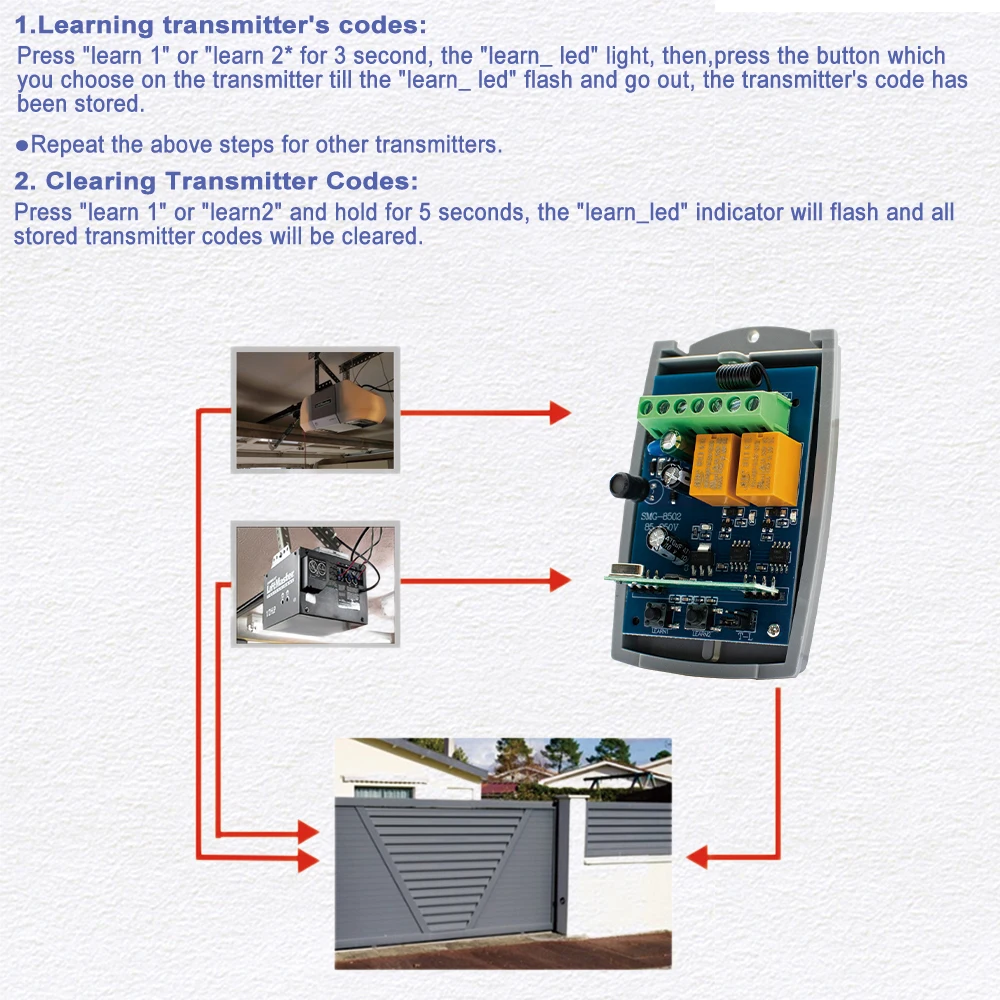

PROGRAMMING:

1.Learning transmitter’s codes:
Press “learn 1” or “learn 2” for 1 second, the “learn_led” light, then, press the button which you choose on the transmitter till the “learn_led” flash and go out, the transmitter’s code has been stored.
• Repeat the above steps for other transmitters.

2.Erasing transmitter’s codes:
Press “learn 1” or “learn2” and hold on to make the “learn_led light till go out, all codes of transmitters which had been stored are erased.

ANT - Receiver Antenna
CH1 - Relay Output 1
CH2 - Relay Output 2
V+ - Voltage +
GND - Ground

Include

1pcs Receiver
1pcs English manual

433mhz Remote control

Specifications:

Material: Plastic + Metal

Operating frequency: 433.92MHz

Usage: For 433Mhz RF receiver 1527 decode

This remote control only support the learning code (1527) of the receiver

Note: This is not a clone remote. Cannot clone other remotes
