3.6HP 2 Stroke Heavy Duty Outboard Motor Electric Boat Motor Boat Engine CDI Ignition & Water Cooling System Short Shaft

2 Stroke 3.6HP Heavy Duty Outboard Motor Boat Engine CDI w/Water Cooling System

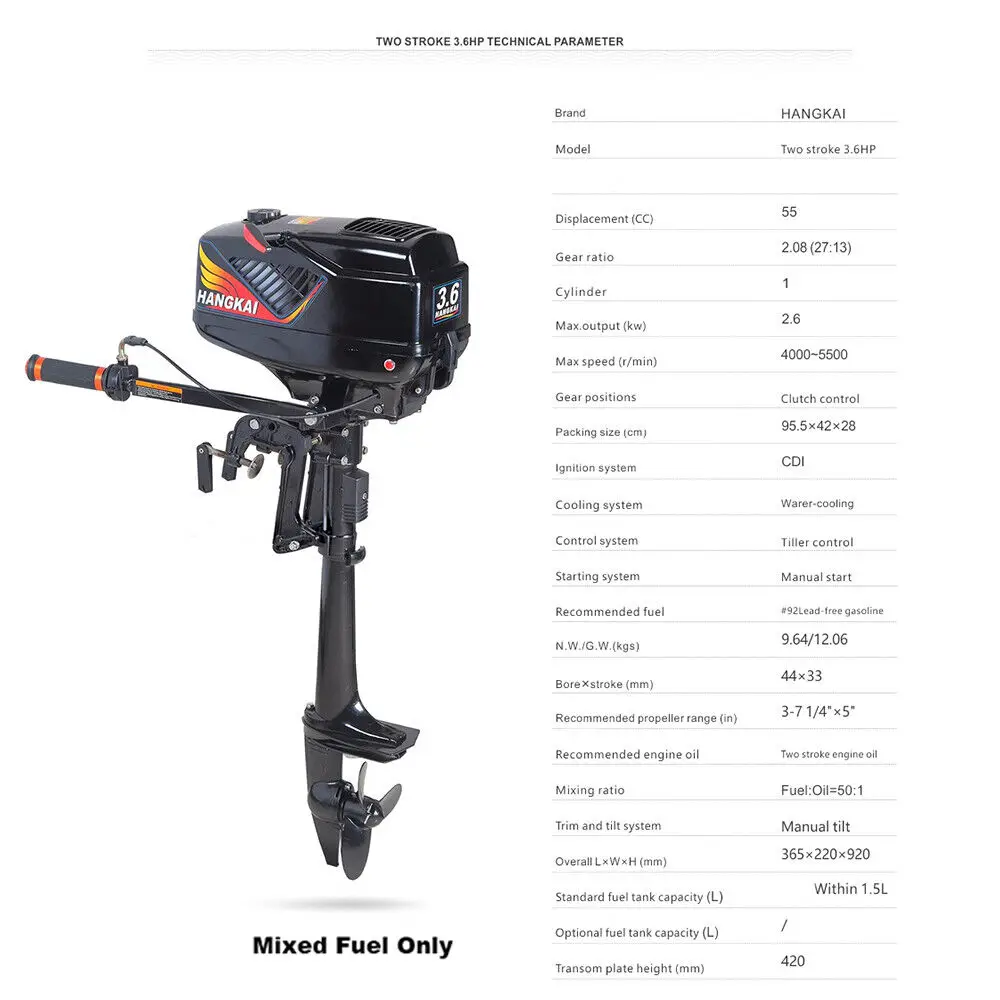

Specification

Cold Style: Water-cooled

Engine Position: Outboard

Starting System: Manual

Control System: Manual Tilt

Gear Shift Position: Clutch Control

Gear Ratio: 2.08(27:13)

Propeller Options: 3-7¼ "x 5"

Recommended Fuel: # 93 Lead-free gasoline

Recommended Gear Oil: Professional Gear Oil

Mixed Rating: Fuel : Oil (30/50:1)

Max. Output: 2.6kw /3.6HP

Full Throttle Operating Range (rpm): 4000-5000

Stroke: 2 Stroke

Cylinder:1

Displacement: 55CC

Bore×Stroke: 4.4*3.3cm/1.73*1.30in

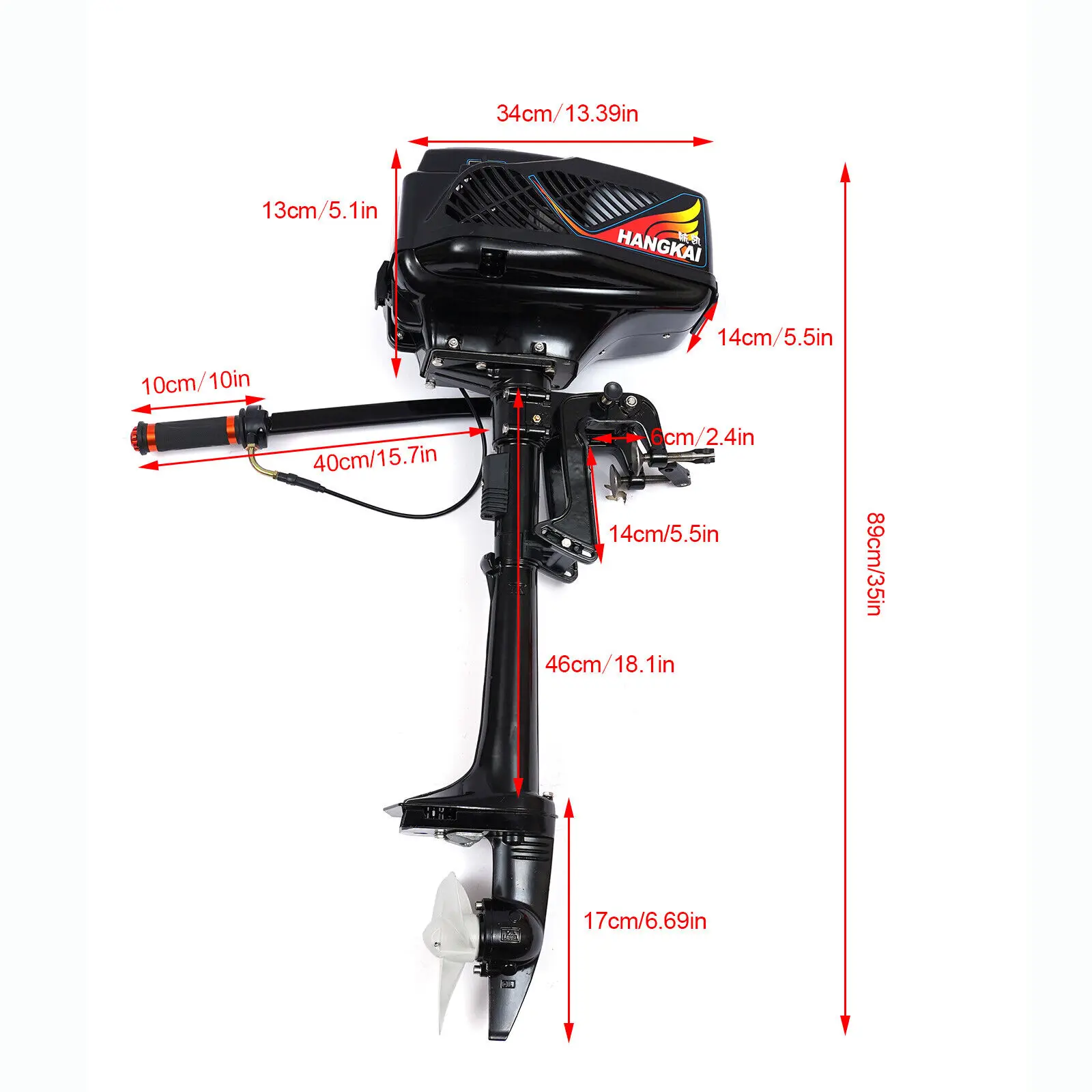

Dimensions: 36.5*22*92cm/14.37*8.66*36.22in

Transom Height:42cm/16.54in

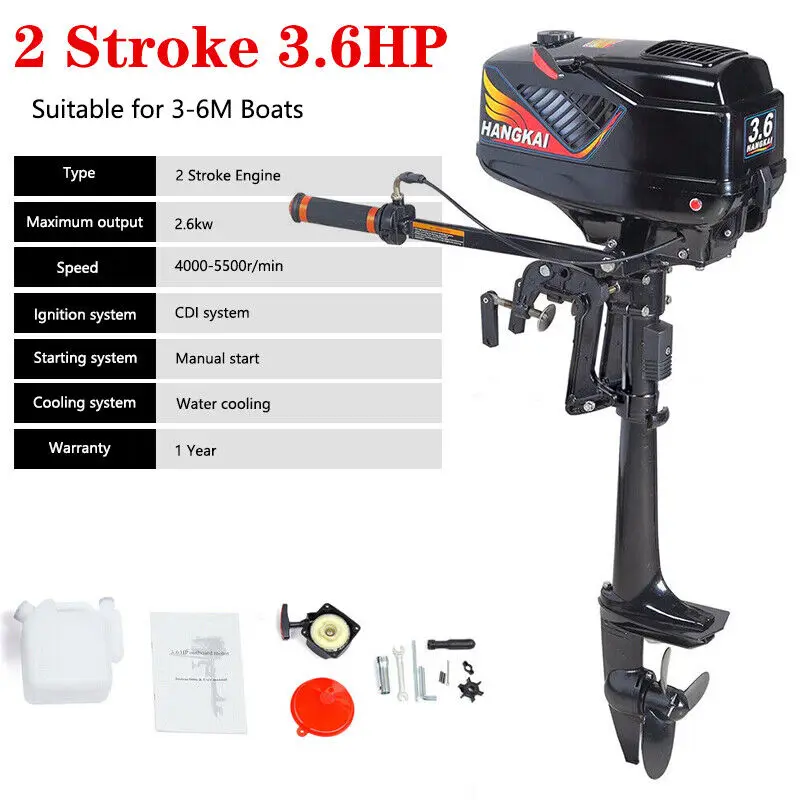

Package Included

1x Outboard Motor

1x Funnel

1x Proportional Bottle

1x Pump Impeller

1x Spark Plug

1x Fuel Tank

1x English Instruction

1x Installation Tool Kit

1x Starter

All Accessories for Assembly

Key Features

CDI Ignition System: The ignition system of this motor is a CDI ignition system. You can start the motor quickly and safely.

Strong and Durable: Superior outboard anti-corrosion system, cast Nylon plastic construction, and anodes increased the machine's durability.

High Efficiency: The outboard motor with a superior engine water cooling system can overcome huge water resistance, increase driving speed and improve its efficiency.

Independent Fin Streamline Design: When it collides with an object underwater, the design can protect the propeller that is running at high speed.

Easy to Drive: The main rod is made of aluminum so that its lightweight will not increase the entire weight of your boats and the difficulty of driving.

Energy-saving and Money-saving: This outboard adopts an international standard air intake system and compression ratio, which can effectively improve combustion efficiency and thus reduce fuel consumption. It is energy-saving and money-saving.

360 Degree Steering Function: This outboard has a 360 degree steering function that allows you to reverse without shifting gears.

Inline Propeller Design: The propeller of this item adopts an inline design, with high-speed engine that can more effectively play the outboard exhaust and thrust.

Tilt Function: This item has a tilt or lift function, and can be used for shallow water operation for your convenience.

Notes

1. Please read the attached instruction manual completely before use. And pay particular attention to the safety instructions included.

2. Please add gear oil to the gears before using the motor and replace gear oil after the run-in period(10 hours).(If you do not know how to handle this, please contact us). Our outboard motor doesn't with oil of gear, please prepare it by yourself.

3. Do not touch or remove electrical parts when starting or during operation. Keep hands, hair, and clothes away from the flywheel and other rotating parts while the engine is running.

4. Please don't start the motor on the bank. If you want to test the motor, it should be done in the river. Please don't use the motor when it stops coming out of water.

5. When there is no water coming out of the motor, please stop using it immediately, and then check whether the pump impeller or the water outlet is blocked.

6. About the noise. All gasoline machines have noise, at the moment we do not test the decibels, but the noise is the same as a motorcycle, so it is a normal phenomenon.

7. The machine itself is light enough to be used on a boat under 100 kg and can carry 4 people, but the speed of one person and 4 people is definitely different. Please note that customers with high requirements for speed.

8. We can only provide Ce certification, no other certification can be provided, thank you for your understanding.

9. Clean the outboard engine with fresh water after sailing in seawater or turbid water. Do not leave the outboard engine out until the cooling water is completely used up. Otherwise, the water cam will enter the cylinder through the exhaust port. This will cause engine failure.

10. Use up the gasoline in the fuel tank before storing for a long time. The engine should be stored in a dry and well-ventilated place, avoiding direct exposure to sunlight.

11. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
