2-String Solar Combiner Box IP65 Rated w/25A Circuit Breaker 1000V DC Surge Protection for PV Systems, Solar Combiner Box

Description

Our solar combiner box will be your ideal choice. Made of high-quality PC and ABS, it is sturdy and durable. It protects the amplifier from overload current, voltage damage, and short circuits, and can be manually disconnected for easy circuit checking and maintenance. Multiple protection functions ensure safe use.

Specification

Material: PC, ABS

Color: White, Black, Clear

Mount Type: Wall-mounted

Protection Rating: IP65

Impact Resistance Rating: IK10

Working Temperature: -25~55°C/-13~131°F

Maximum DC Short-circuit Current Per Input: 25A

Maximum Current Output / Rated Current (Ue): 25A

DC Circuit Breaker Model: 63DC 2P 25A 1000V

DC Surge Arrester Model: SP-D2 2P 20-25KA 1000Vdc T2

Rated Insulation Voltage (Ui): 1000V

Circuit Breaker: 63DC 2P 25A 1000V

DC Surge Arrester: SP-D2 2P 20-25KA 1000Vdc T2

Applicable Cable: 4-16mm²/10-5AWG Cable

Surge Protection: 20-25kA 2P DC1000V

Inputs: 2 Strings

Outputs: 2 Strings

Total Height: 28.5cm/11.22 in

Product Size: 21*10*21cm/8.26*3.93*8.26 in

Package Size: 25.8*22*12cm/10.16*8.66*4.72 in

Gross Weight: 3kg/6.61 lbs

Net Weight: 2.8kg/6.17 lbs

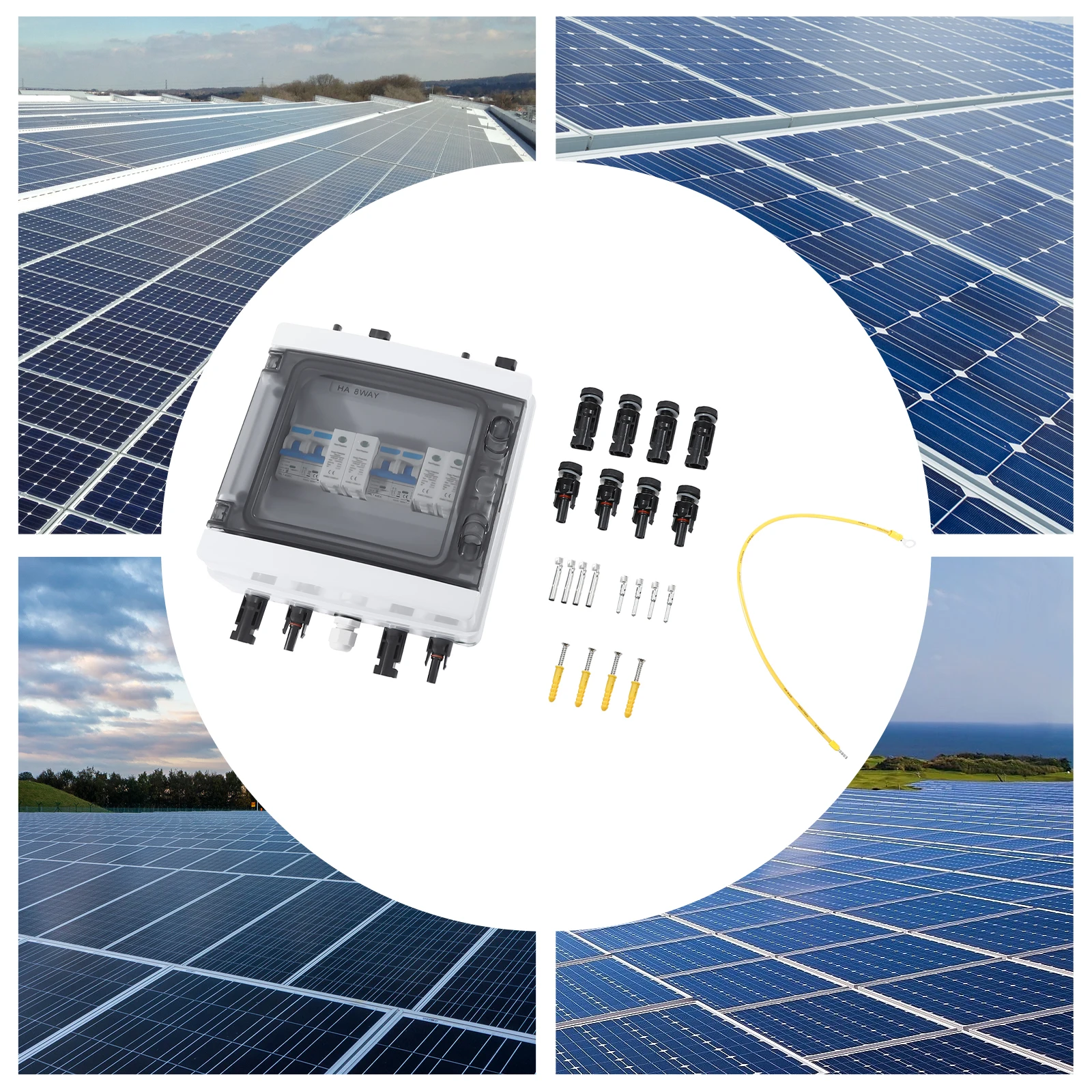

Package Included

1* Solar Combiner Box

8* MC4 Terminals

1* Ground Wire

All Accessories for Use

Details

Clear Cover: Through it, you can check the status of the main switch and surge arrestor at any time. If the indicator light of the lightning protector turns red, it means that a lightning strike has occurred and you need to replace the lightning protection module in time.

Rounded Corners: Rounded and burr-free corners prevent your hands from being scratched during use.

Key Features

Made to Last:High-quality ABS and PC are not easy to wear, shock, and deform, giving this product robustness and longevity.

Powerful Functions: It protects the amplifier from damage caused by overload current or voltage and protects the power supply from short-circuiting causing battery rupture and explosion. In addition, it can be manually disconnected, which is convenient for circuit checking and maintenance.

Effective Output: It has two inputs and two outputs, together with a maximum current output of 25 amps, which greatly increases the efficiency of power utilization.

Safe and Reliable: It has surge protection, overload protection, and lightning protection, as well as reliable DC components so that you can use it with more assurance.

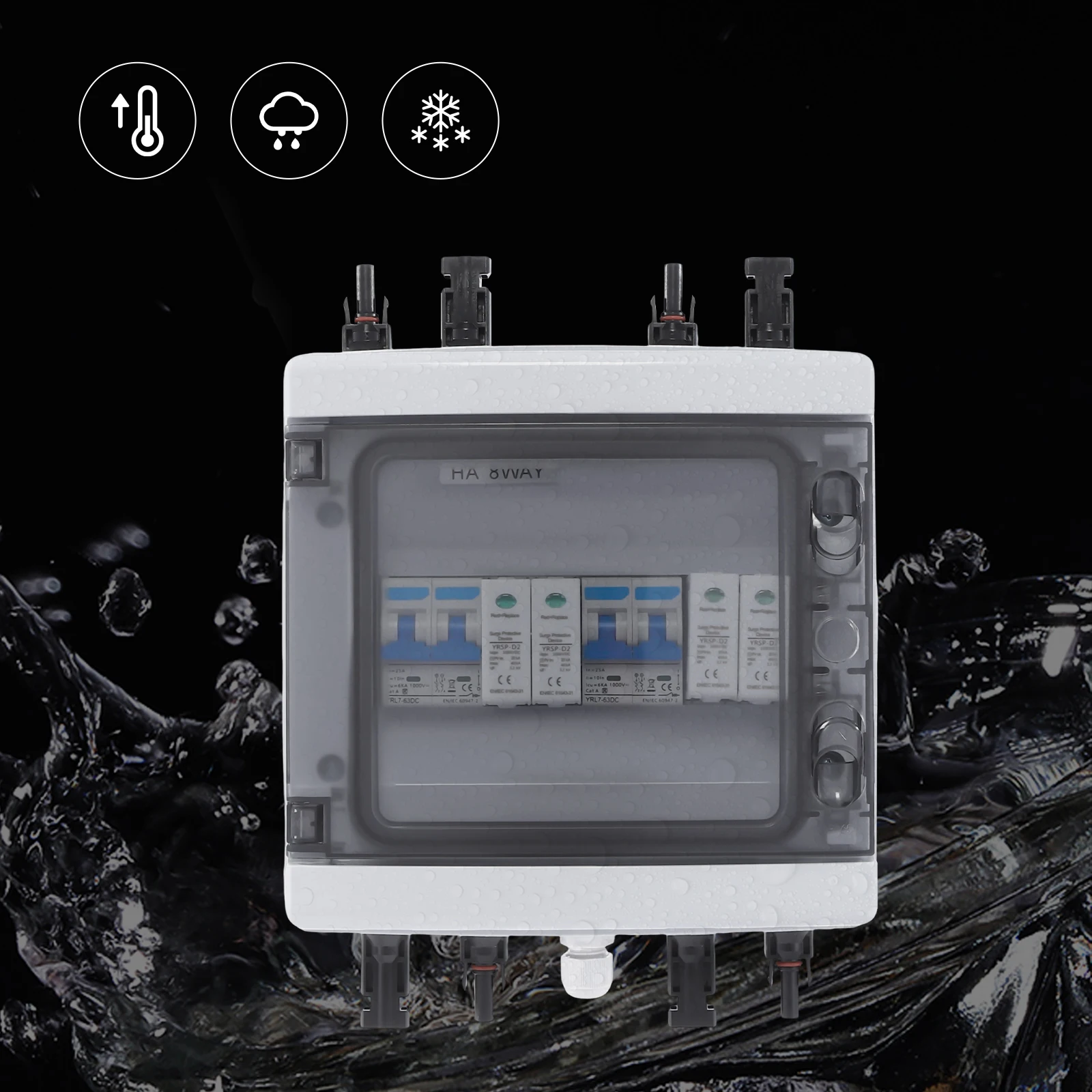

Waterproof and Impact Resistant: It has a high protection rating (IP65) and impact resistance rating (IK10) with flame retardant, which can effectively protect against water, dust, and UV rays, allowing it to be used in harsh environments.

Ideal Gift: Thanks to its practicality and powerful features, you can give it as a well-chosen gift to your family, relatives, and friends!

Easy to Install:With MC4 terminals, expansion screws, mounting holes, and grounding wire, you can install and use this product with more ease and convenience.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Notes

1. Please check the specifications before purchasing.

2. Please press the button correctly to avoid damage to the circuit breaker and use it at the proper operating temperature to avoid overheating and stopping operation.

3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
