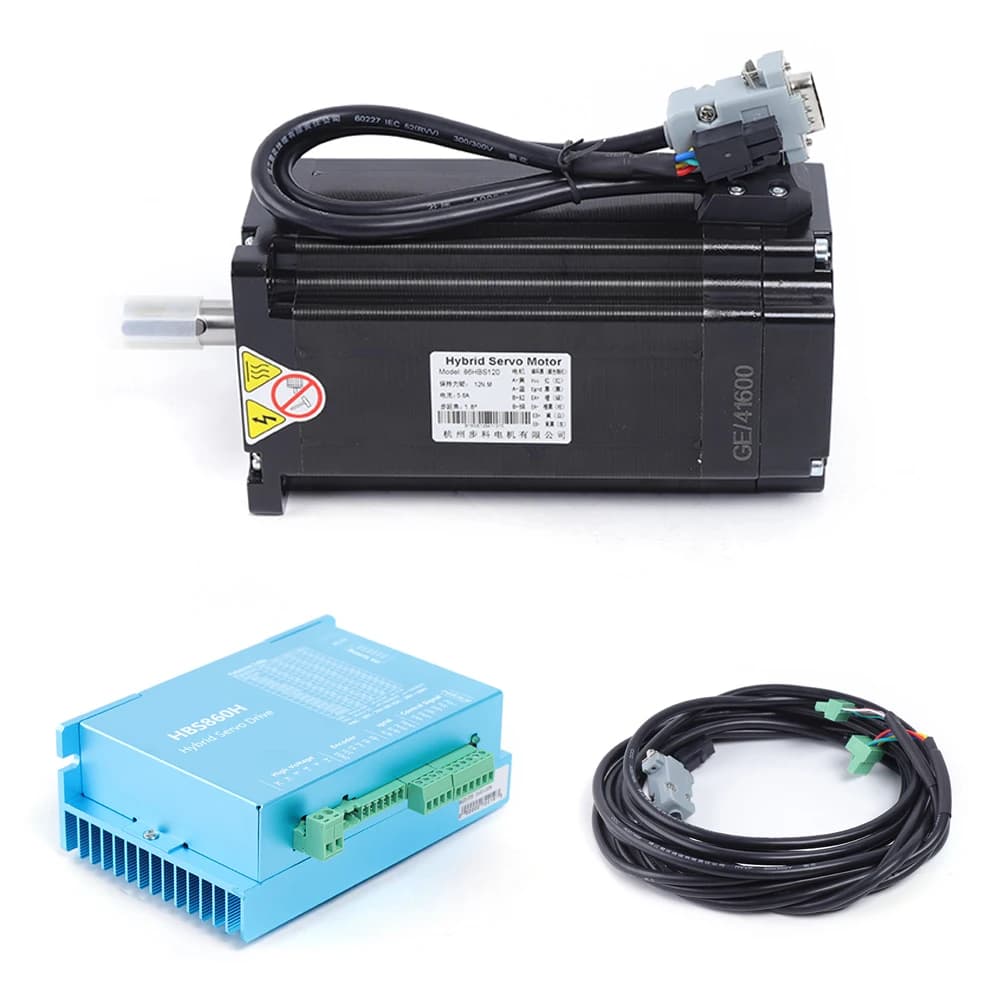

CNC 12Nm Closed Loop Stepper Motor Kit 8A Nema 34 DSP Stepper Motor Driver Set for CNC Router Engraving Milling Machine

Product description

Our products are shipped from local warehouses. We transport with DHL, YODEL, UPS.

If you have any problems, please feel free to contact us. We will serve you within 24 hours.

If you are not satisfied with our product, we accept your return and refund your refund.

Specification:

Driver model: HBS86H.

Voltage: AC20-80V / DC24-100V.

Phase current: 8 A/Pha (peak current).

Subdivision: 2-256 subdivisions, maximum 51200 steps/round.

Processor: 32-bit DSP Digital

Pulse voltage: 5V-24V signal compatible.

Response frequency: up to 200 kHz.

Pulse mode: single pulse (standard), double pulse (adjustable via software).

Cooling method: fan cooling

Engine model: 86HBS120.

Phase current: 5.6 A/Pha.

Torque: 12 Nm.

Shaft diameter: 14 mm.

Shaft length: 40 mm.

Step angle: 1.8°.

Step angle accuracy: ± 5%.

Surface temperature: 80℃ or less (rated current)

Motor cable: 3 m.

Transmitter cable: 3 m.

Includes:

1 x HBS86H driver.

1 x 86HBS120 motor.

1 x 3 m motor cable.

1 x 3 m transmitter cable.
