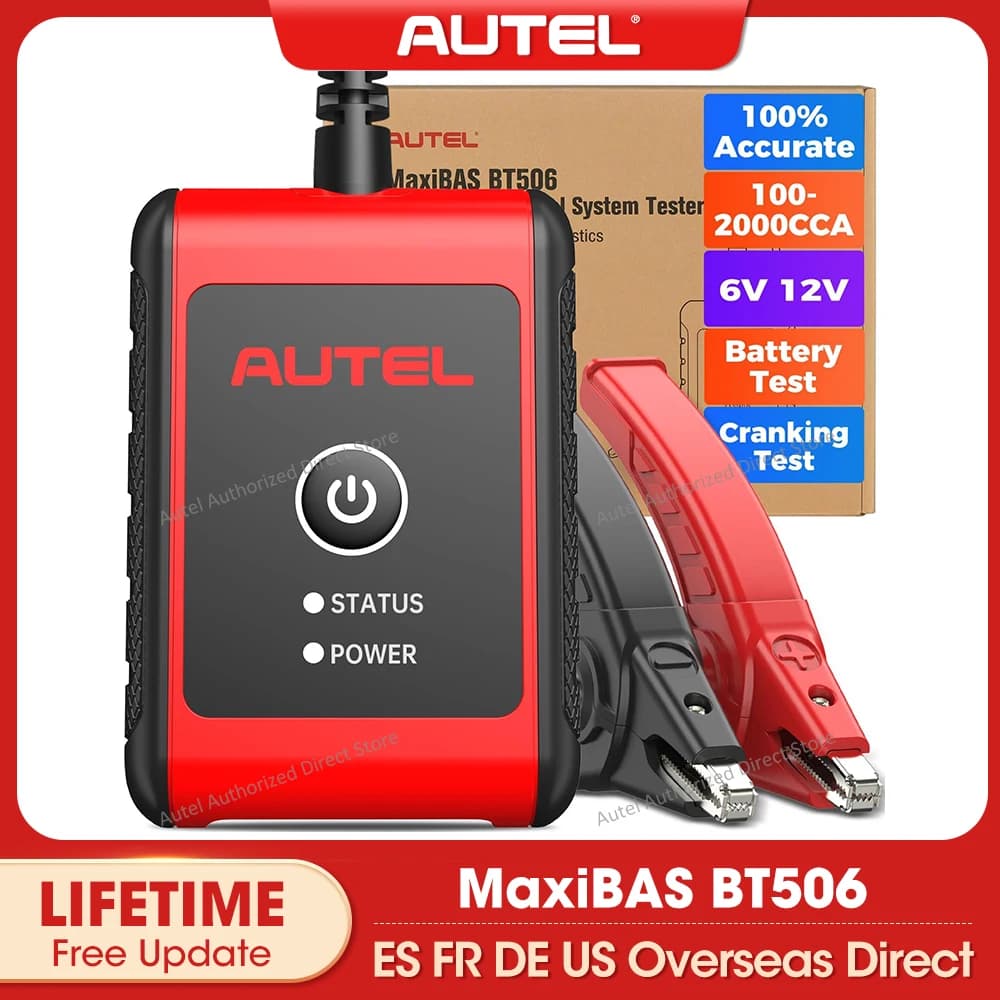

Autel MaxiBAS BT506 Car Battery Tester, 6V 12V 100-2000 CCA Car Battery Analyzer, 12V 24V Auto Cranking/Charging System Test

Autel MaxiBAS BT506 Car Battery Tester, 6V 12V 100-2000 CCA Car Battery Analyzer, 12V 24V Auto Cranking/Charging System Test, Adaptive Conductance, High-Precision Battery Load Test

What can BT506 do?

👍1. Battery Health Monitor: Checks cold cranking capability and battery aging status, and informs users to replace batteries before battery aging.
👍2. Adaptive conductance technology: Test low-capacity batteries and discharged batteries, improve the detection rate of abnormal batteries, and reduce the misjudgment rate to minimum
👍3. Battery Charging System Test: Judge the health of the generator by testing car charging system (12V/24V) to avoid damage to the battery due to overcharging or incomplete charging.
👍4. Starter System Test: first ensure that the output voltage of the generator is in a normal state, and then check whether the generator and diode can provide enough power for the vehicle start system. And further determine whether the battery can be charged normally. According to Cranking status, BT506 can quickly identify car battery charging condition.
👍5. In-vehicle test/ Out-vehicle test: in vehicle test is mainly on cranking and charging system; out-vehicle test is mainly for batteries that are not installed in a vehicle, like battery capacity, type, standard, etc.
👍6. Detection battery capacity range: CCA range 100-2000A.
👍7. For battery types: FLOODED, AGM, AGM SPIRAL, EFB, and GEL.
👍8. Complies with battery grade standards: CCA, SAE, CA, EN, IEC, DIN, JIS and MCA.
👍9. Easy Operation: Easy to connect with Autel Scanner or smartphone.

What makes BT506 more highly cost effective?

1. Free lifetime Updates
2. Upgrade to BT508 (buy additional V200P)
3. Wide Compatibility: Compatible with Autel wireless scanners (except MK908 MK908P)

Autel BT506 can work with 99% Autel Wireless Scanners, Such as :

1. 808 Series: MK808BT, MK808BT PRO, MX808TS MK808TS, MK808S-TS, MX808S-TS, MK808Z-TS, MP808BT, MP808BT PRO, MP808BT KIT, DS808S-BT, DS808S-TS, MP808Z-TS
2. 906 Series: MS906BT, MS906TS, MK906BT, MK906PRO, MK906S PRO, MK906PRO-TS, MK906S PRO-TS, MS906PRO
3. 908 Series: MS908 PRO, MS908S II, MS908S PRO II, MK908 II, MK908 PRO II
4. Elite Series: Elite, Elite II, Elite II, PRO
7. Top Series: MS909, MS919, Ultra Lite, Ultra Lite S, Ultra, Ultra EV, MS909EV

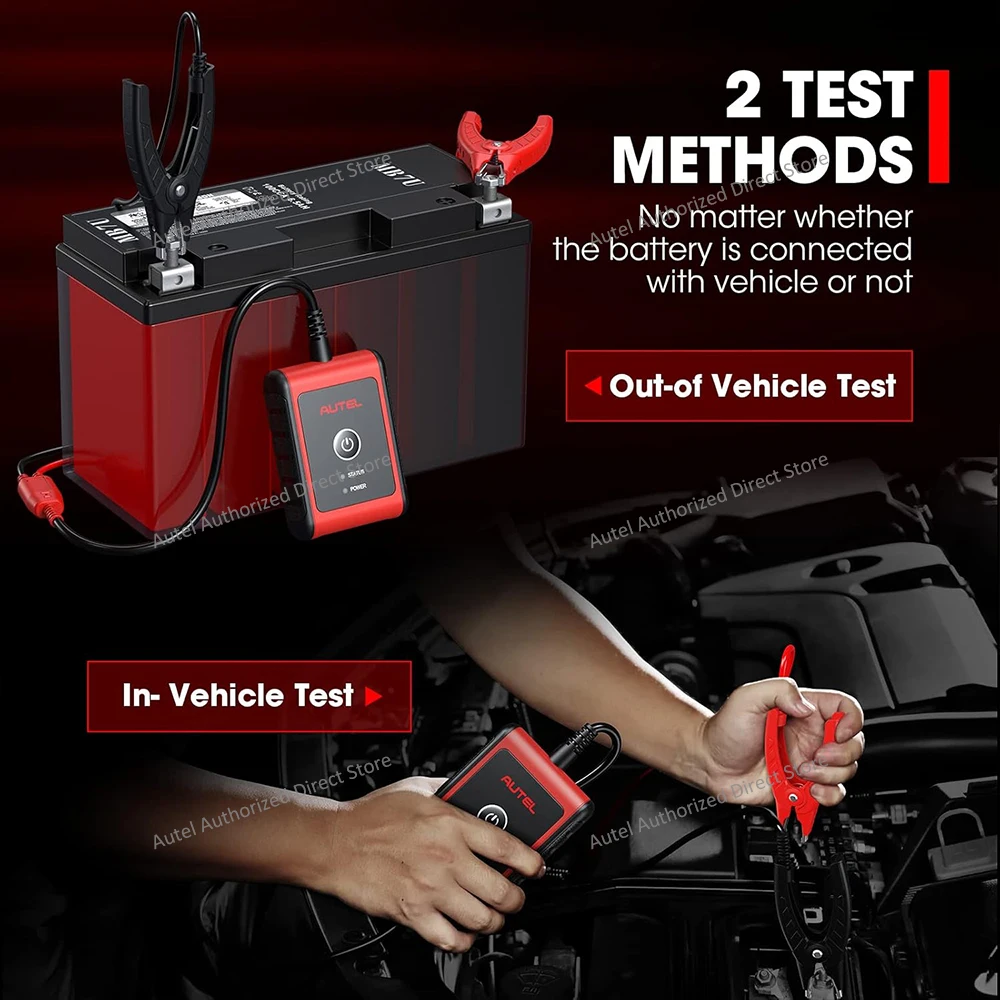

In-Vehicle & Out-of-Vehicle Tests:

Autel battery analyzer BT506 supports both in-vehicle & out-of-vehicle tests. In-vehicle test covers battery test, starter test, and generator test to determine the health status of the battery, the starter, and the generator respectively. Or if you need to test a standalone battery, BT506 can also help check the health status of the battery only, instant test result and maintenance tip are displayed on-screen.

Design for 12V and 24V Cranking/ Charging Systems:

Autel BT506 battery analyzer covers 98% of the car batteries on the market and strictly implements the car evaluation standards. It is widely loved by battery testing factories and workshops. It can quickly provide customers with the most accurate results, reduce the number of retests, and reduce time costs.

● Working on 6/12V automotive batteries: 100 to 2000 CCA Range
● Working on 12- and 24- cranking/charging systems
● Battery Types: Test regular flooded, AGM,AGM spiral, GEL and EFB batteries,
● Multiple rating systems are covered:CCA, SAE, CA, EN, IEC, DIN, JIS and MCA

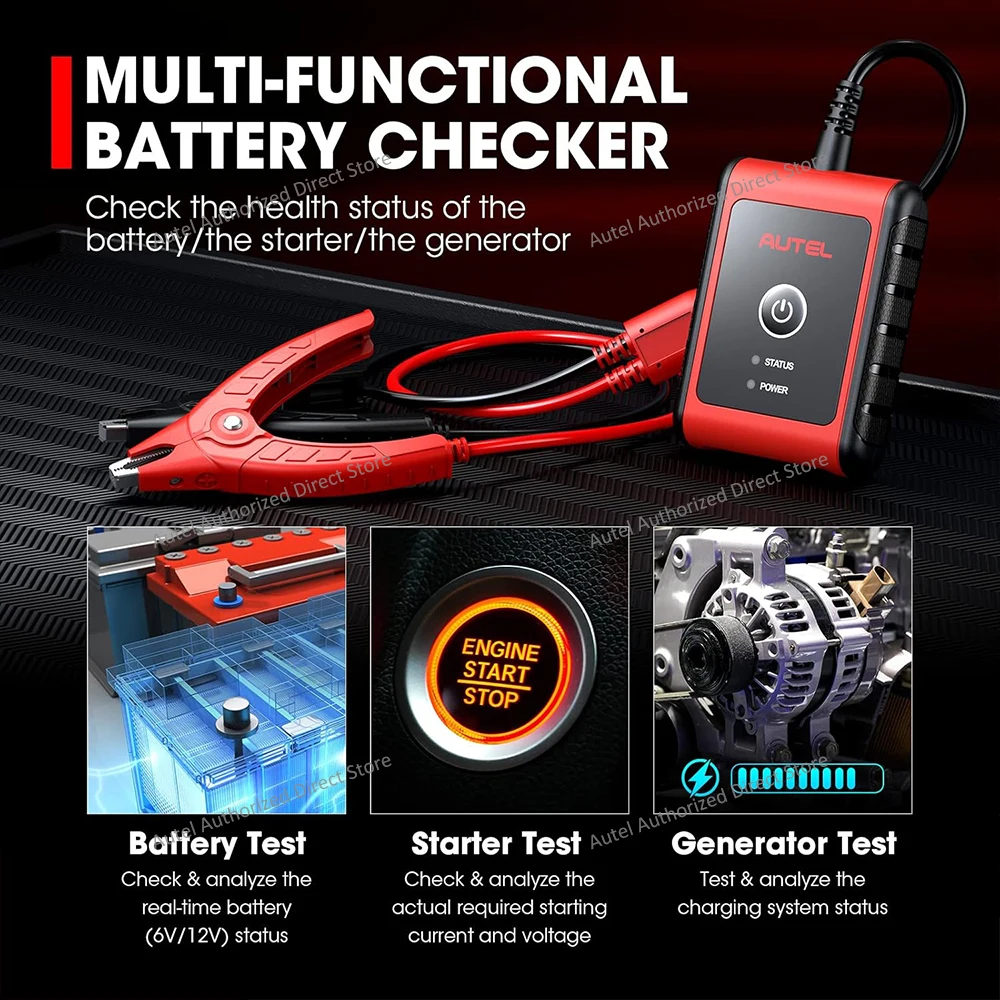

BT506 Advanced Features Explore: Start Test + Charge Test + Battery Test

Battery Test:

After battery test is completed, SOH (state of health), SOC (state of charge), voltage, current, rating, and specific guidance and suggestions can be visually displayed, and the batteries can be clearly divided into: Good Battery; Good & Recharge; Charge & Retest; Bad Cell; Replace Battery.

Color-coded results summary, a list of test data, and repair tips helps you perform battery test in easy way.

Starter Test:

Starter test help you analyze the starter motor, including start voltage and start time, to check if the starter motor is working properly.

● Load voltage refers to the voltage measured when on-board electrical appliances (such as headlamps) are turned on.
● No-load voltage is the voltage measured when all on-board electrical appliances are turned off.
● Start time is the time it takes for the vehicle to turn on the engine.

Generator Test:

Generator test refers to test different parts of the charging system, including generators, rectifiers, rectifier diodes, etc., to obtain the real charging voltage value.

All battery data about ripple, no-load voltage, load voltage are displayed to customers.

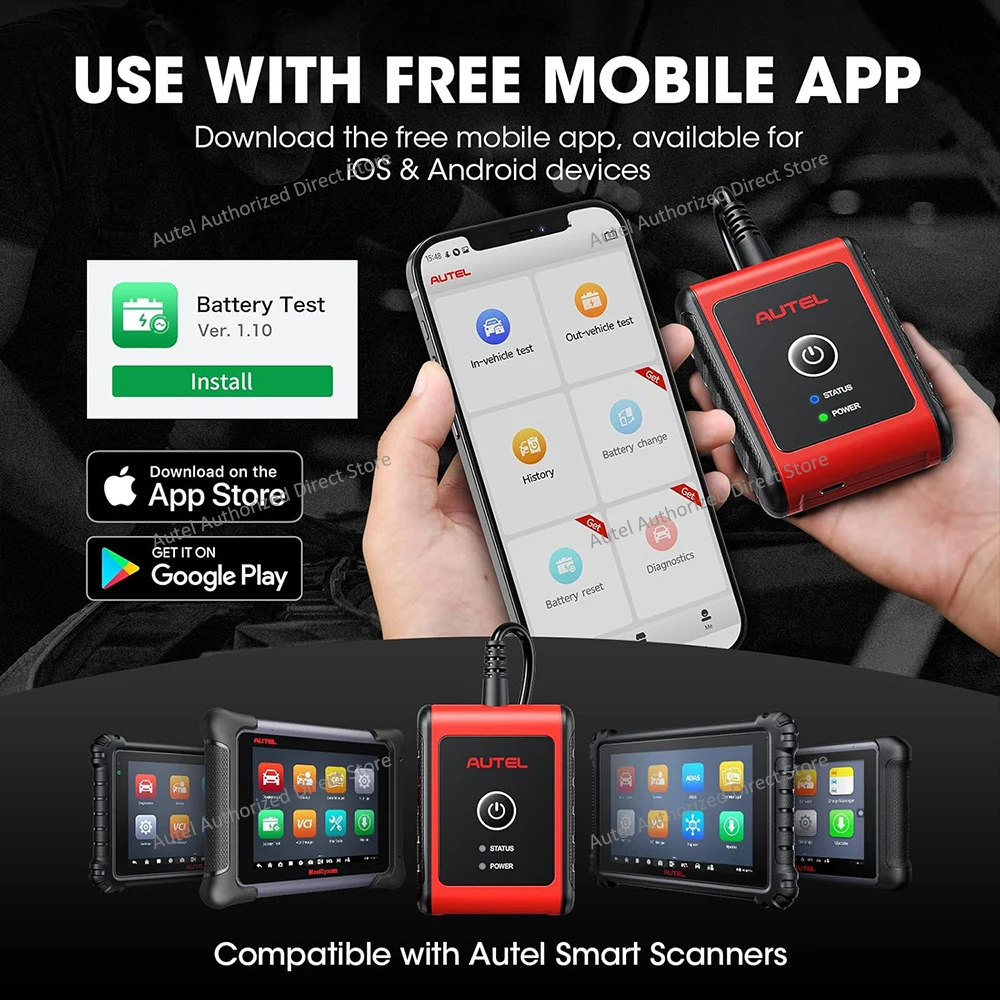

Smartphone & Autel Scanner Compatibility:

Different between traditional battery test, Autek MaxiBAS BT506 supports connect with Autel scanner and PC,which work together to perform complete battery test functions.

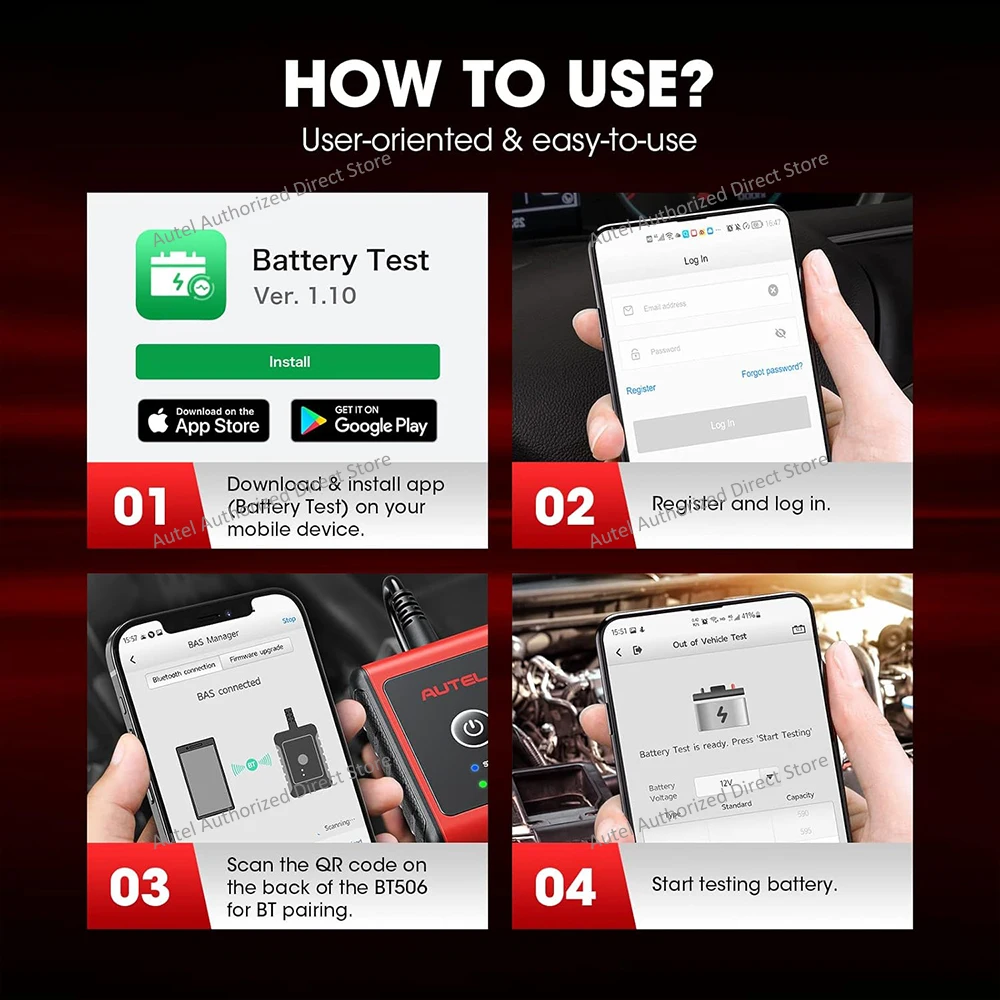

● Steps to connect with mobile phone:
1. Install the MaxiAP200 app (Android OS download it from Google Play, IOS download it from App Store)
2. Click the MaxiAP200, register/login the Autel account.
3. Scan the QR behind the BT506 to bind the BT506 to the phone
4. Start battery scan

● Steps to connect with Autel scanners:
1. Click VCI manager APP to bind the BT506 to the scanner
2. Click Battery Test App to start battery test

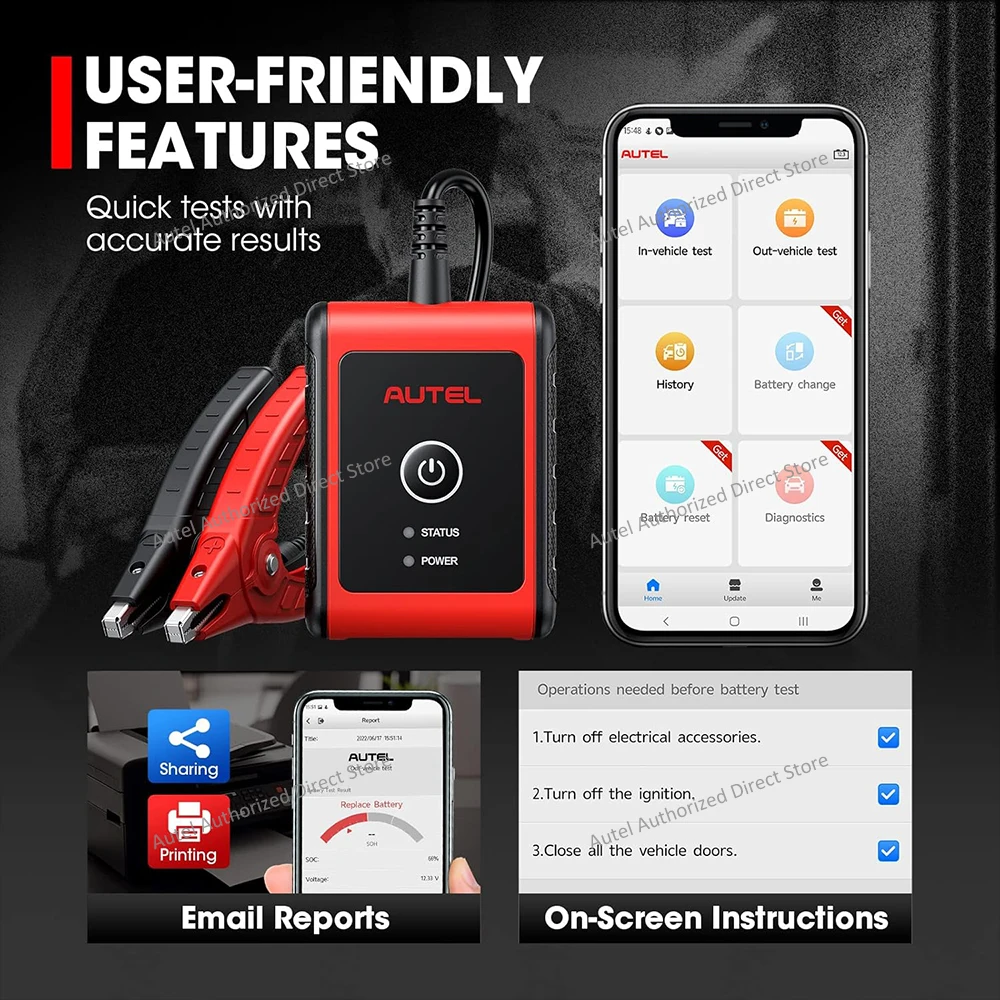

One-Screen Instructions:

New to the battery tester? No worries at all! Autel BT506 provides detailed and step to step instructions, just follow the on-screen indicators, you can finish battery diagnosis easily.

Automatically Identify Battery Type:

Clamp the BT506 to a in-vehicle battery, the vehicle information will be automatically populated and its battery information tab will pop up from the bottom of the screen, select the correct battery parameters on the screen to process the diagnosis.

Polarity Protection:

Metal clamps of the BT506 are protected by short-circuit protection, no worries even you reverse the positive and negative poles.

Share Battery Reports:

The Battery Test app can save a history of repair reports from your diagnostic sessions. A PDF can also be generated for the easy viewing, sharing, and printing of these reports.

Upload Data Logging:

The Data Logging option allows you to launch the Autel Support platform directly to view all records on the diagnostic system. The Data Logging option keeps all test records. Autel support personnel will receive and process any submitted reports through the Support platform.

Lifetime Free Software Update:

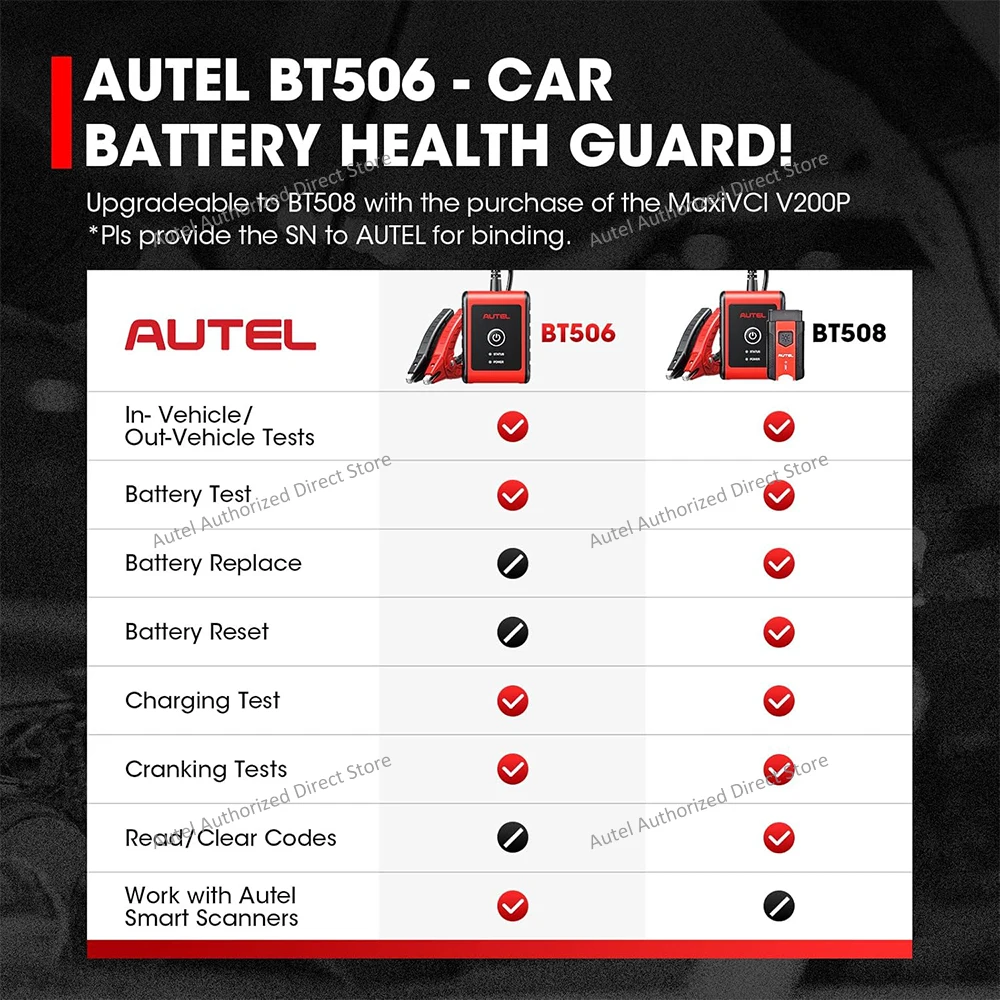

Autel BT506 offers Lifetime free software updates. With V200P, BT506 convert to BT508 to perform more functions.

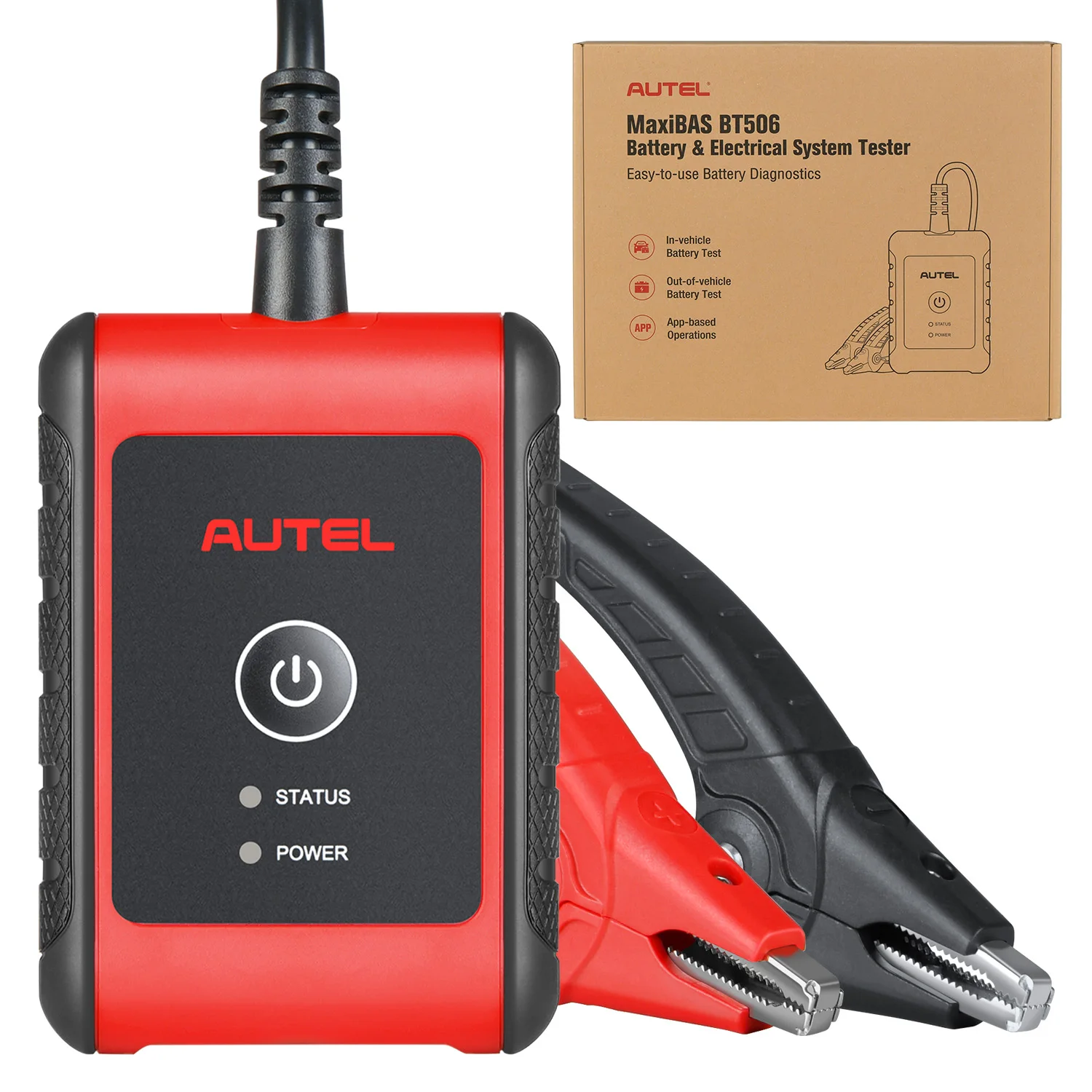

Autel MaxiBAS BT506 Package List：

1 x MaxiBAS BT508
1 x Battery Clamp Cable (Black)
1 x Battery Clamp Cable (Red)
1 x VP200
1 x User Quick Guide
1 x Packing Box
